1.GENERAL DESCRIPTION
Below is a table summarizing the antenna design specification.
1.1 Electrical Properties
Parameter |
Description |
Frequency Band |
2.4~2.5GHz ON GND |

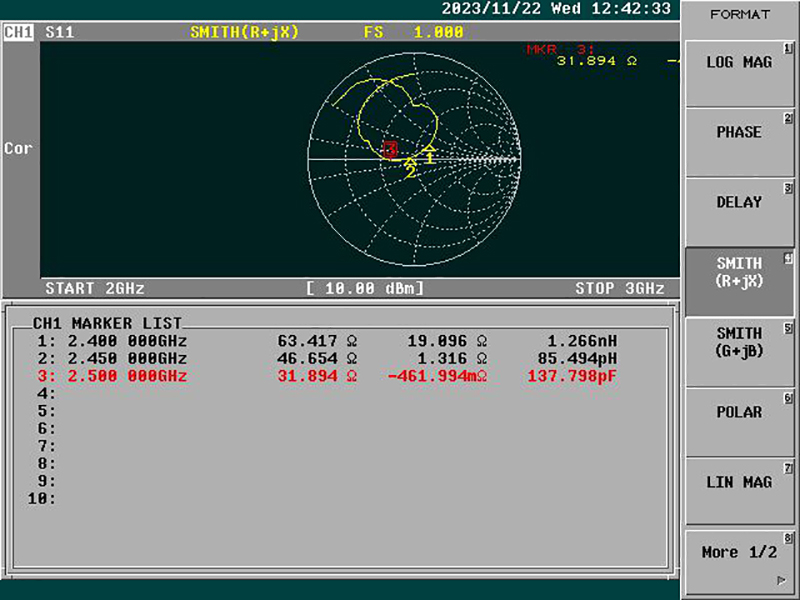

Nominal Impedance |
50 ohm |
Polarization |
Vertical |

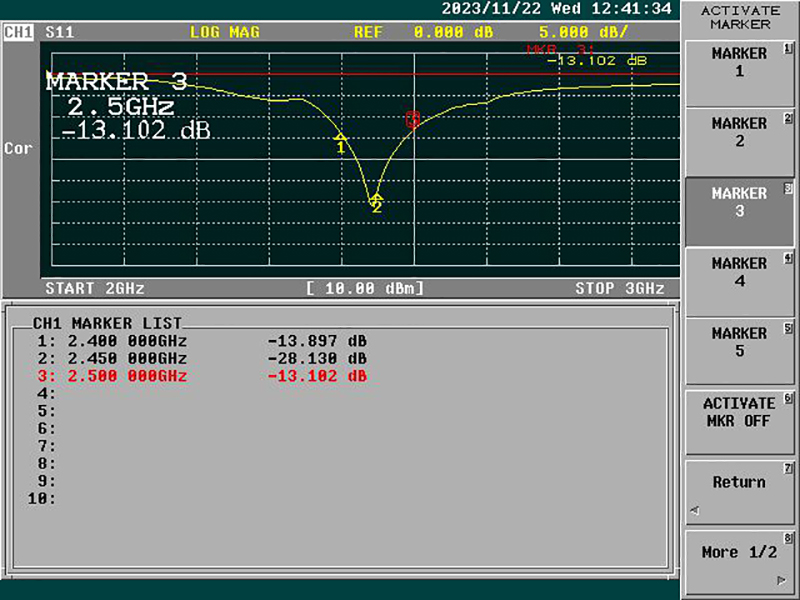

Return Loss |
Please See Data-1 |

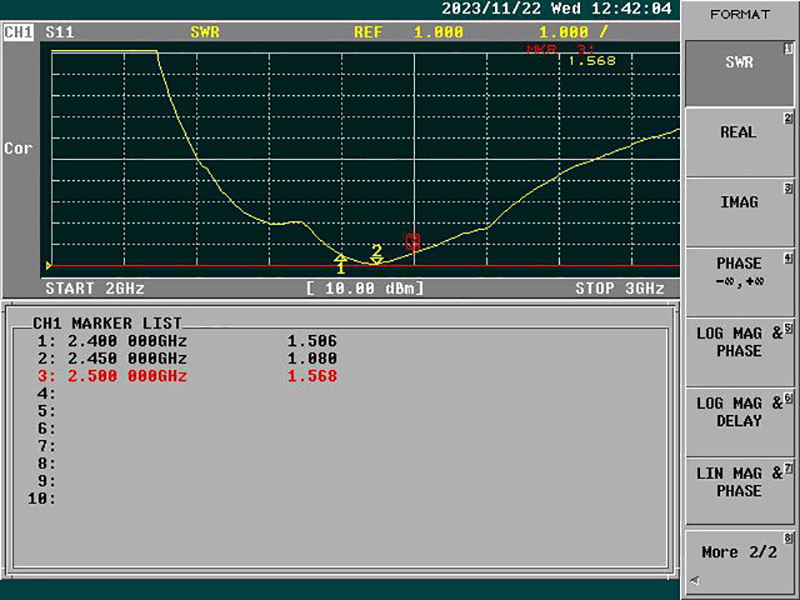

V.S.W.R |
2.0:1 |
1.2 Mechanical Properties
Parameter |
Description |
Antenna Type |
External Antenna |
Antenna Material |
TPU |
Touch Type |
Screw Type |
Connector Type |
SMA(Male) OR RP-SMA(M) |

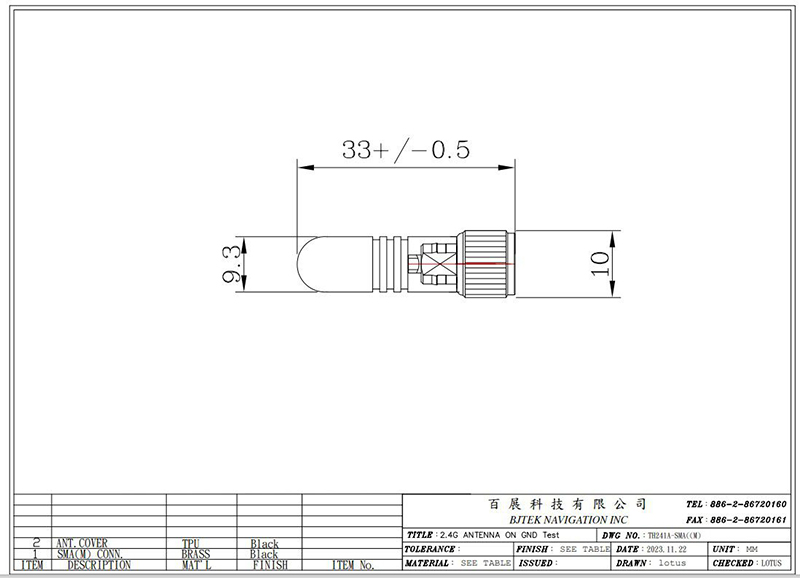

Antenna Dimensions |
Φ9.3 x 33mm +/-0.5 |
Antenna Color |
Black |
Operating Temperature Range |
-30°C~+80°C |
Storage Temperature Range |
-30°C~+80°C |

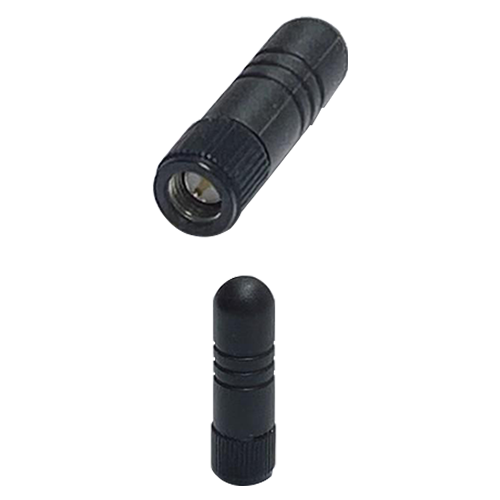

Our TH-241A is 2.4~2.5G Antenna. It can be applied to different devices such as smartphones, tablets, laptops, smart TVs and smart home devices, handheld radios… etc. It provides high-speed data transfer. It is small size and easy to hide. Please don’t hesitate to email us if you have any questions.
