TH-2458P

TH-2458P

Inquiry

Download

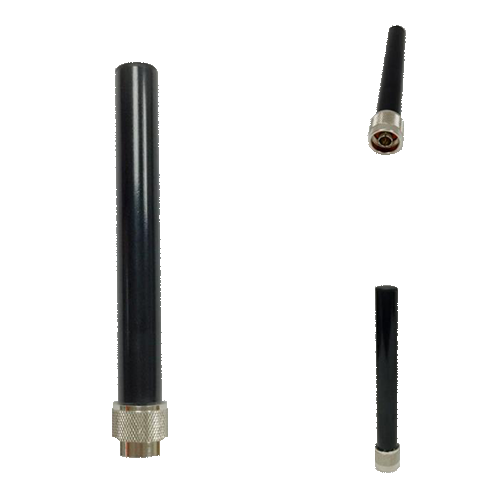

TH-2458P
  • Product Description
  • Product Specification

1.Electrica Properties

Parameter Description
Frequency Band 2400-2500 & 5150~5850 & 5850~7125 Mhz
Nominal Impedance 50 ohm
Polarization Vertical
Electrical Wave Dipole

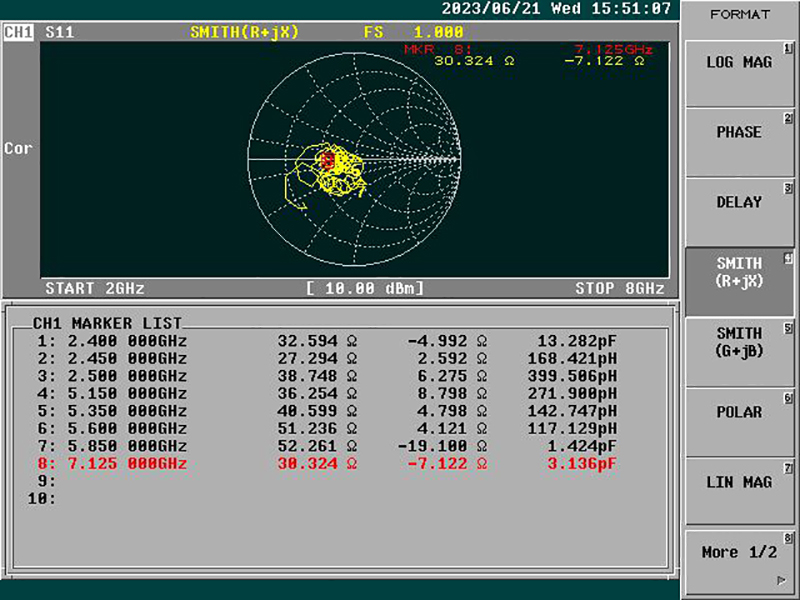

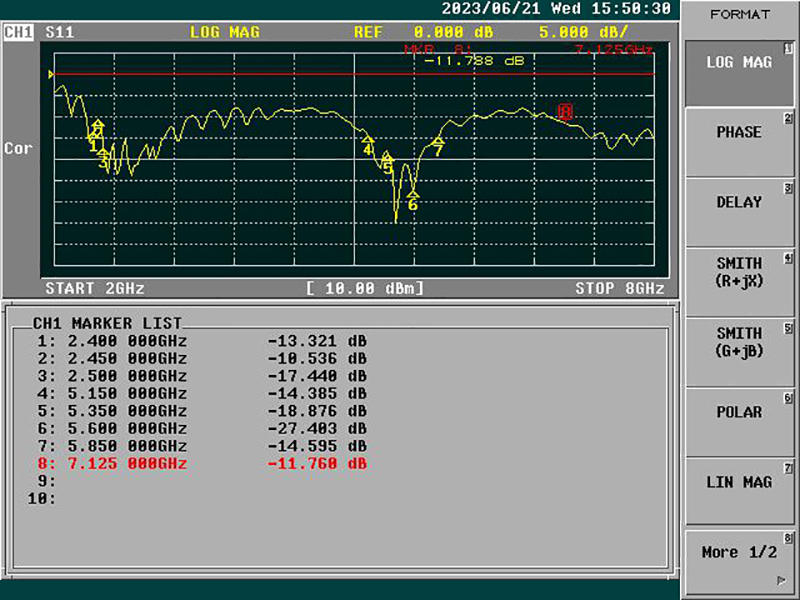

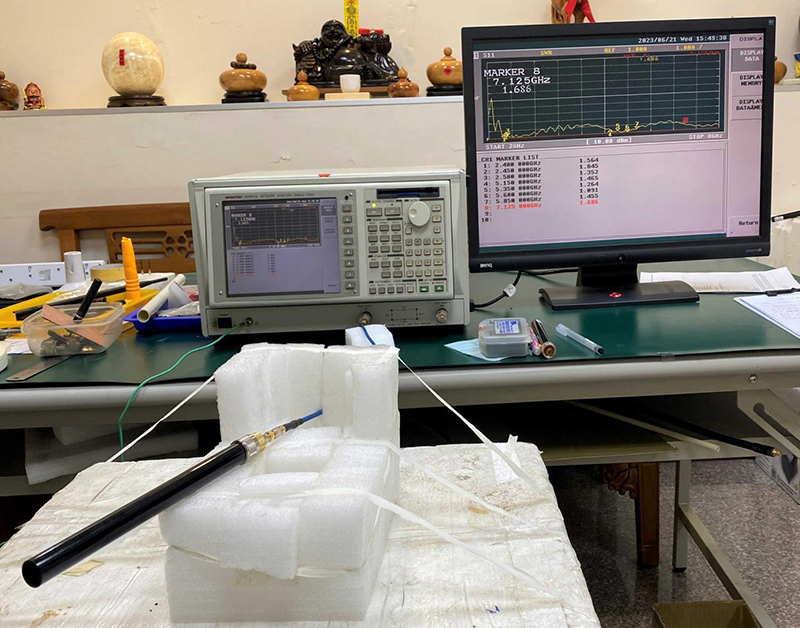

Return Loss Please See Data-1
V.S.W.R 3.0:1
Antenna Peak Gain 4.5dBi


2. Mechanical Properties

Parameter Description
Antenna Type External Antenna
Connector Type N(M)

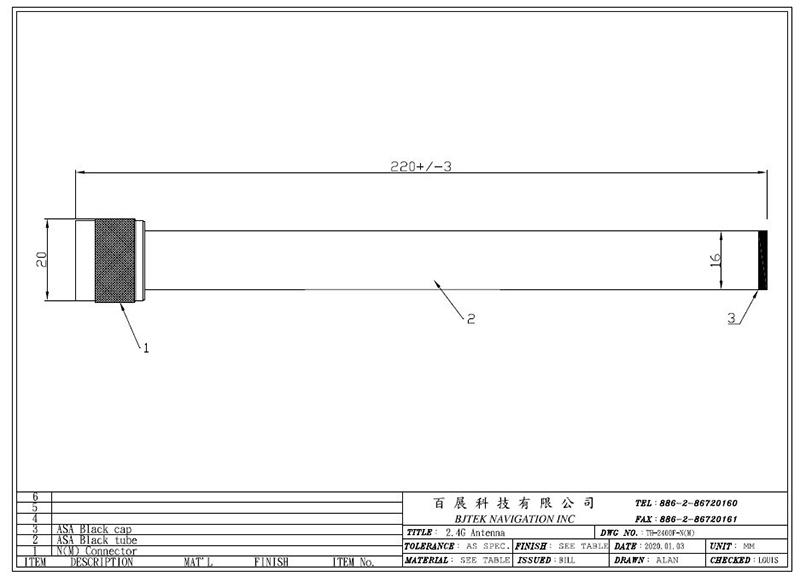

Antenna Dimensions 220 mm ± 3
Antenna Color ASA-UV-Black
Operating Temperature Range -40°C~+80°C
Storage Temperature Range -40°C~+80°C
Waterproof IPX7





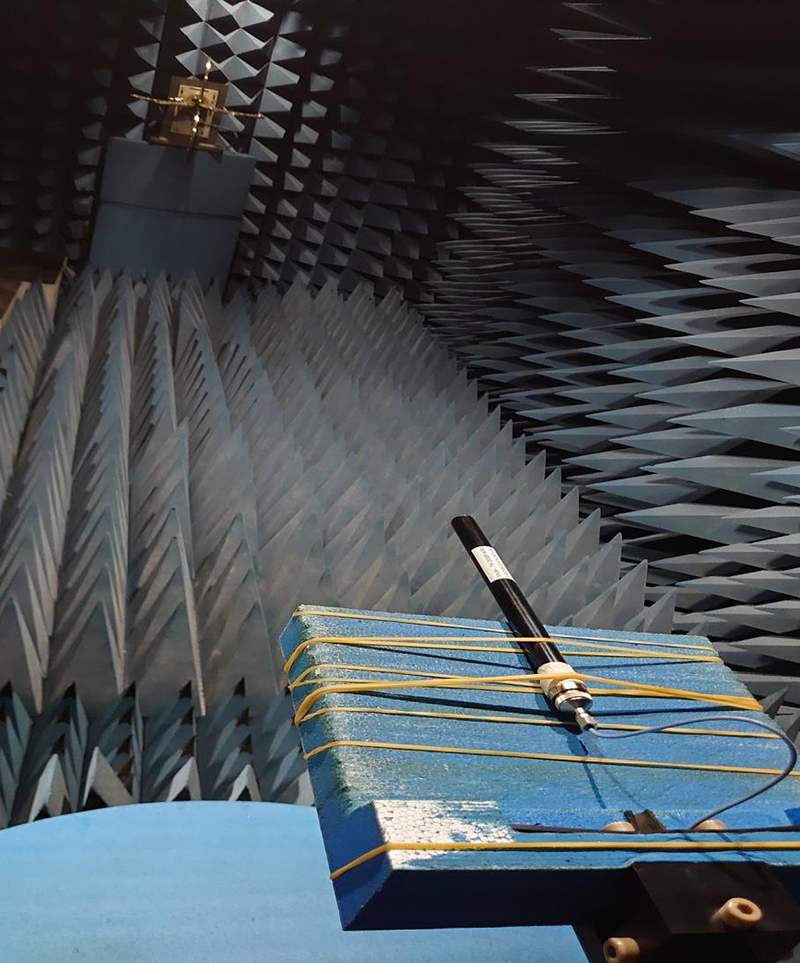

3D Total

Frequency
(MHz)		 Upper Hem.PRP
(dBm)		 Lower HEM.PRP
(dBm)		 Efficiency
(dB)		 Efficiency
(%)		 Gain (dBi) Tot.Rad.Pwr.
(dBm)
2400 MHz -6.64 -5.29 -2.90 51.23 2.66 -2.90
2440 MHz -5.94 -4.07 -1.89 64.64 3.68 -1.89
2450 MHz -5.64 -3.98 -1.72 67.30 4.05 -1.72
2470 MHz -6.06 -4.74 -2.34 58.36 3.49 -2.34
2500 MHz -6.58 -4.75 -2.56 55.47 3.13 -2.56
5150 MHz -5.67 -6.04 -2.84 52.01 4.28 -2.84
5350 MHz -5.73 -5.68 -2.96 53.77 3.65 -2.69
5470 MHz -5.53 -6.46 -2.96 50.60 3.94 -2.96
5600 MHz -5.65 -6.62 -3.10 49.00 3.92 -3.10
5725 MHz -5.44 -5.39 -2.40 57.53 4.06 -2.40
5850 MHz -4.89 -5.83 -2.32 58.57 4.33 -2.32
5925 MHz -5.40 -5.96 -2.66 54.15 4.30 -2.66
6000 MHz -4.51 -5.72 -2.06 62.24 4.07 -2.06
6225 MHz -6.12 -6.09 -3.10 49.03 3.37 -3.10
6525 MHz -7.02 -6.07 -3.51 44.58 2.45 -3.51
6725 MHz -6.56 -6.41 -3.48 44.91 2.87 -3.48
6875 MHz -7.66 -7.00 -4.31 37.10 1.43 -4.31
6925 MHz -5.56 -6.17 -2.84 51.98 4.70 -2.84
7000 MHz -6.63 -6.60 -3.61 43.57 3.28 -3.61
7125 MHz -6.78 -6.50 -3.63 43.33 3.83 -3.63

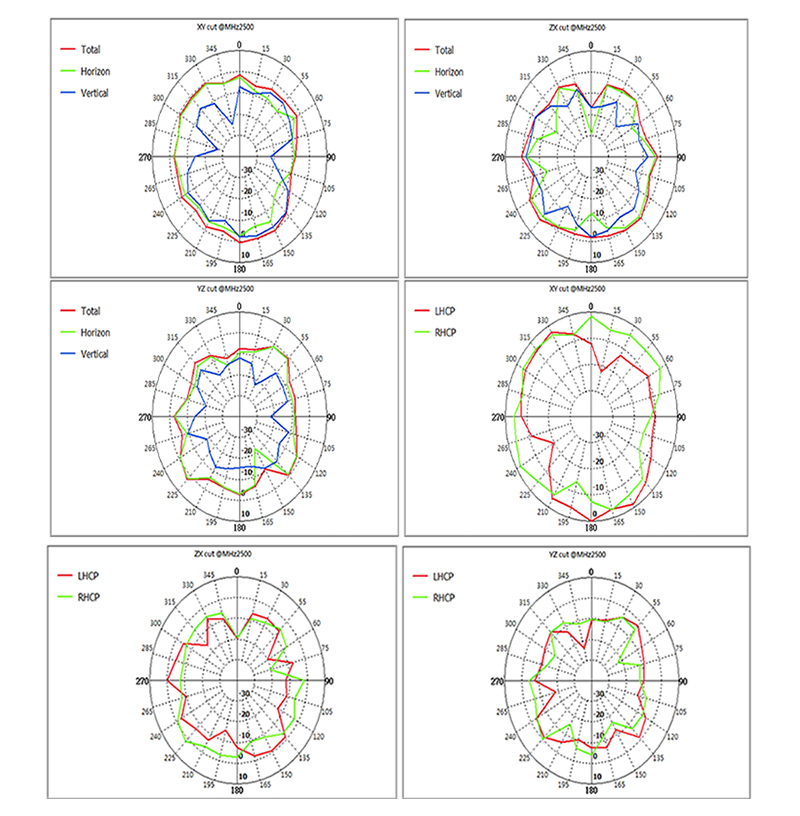

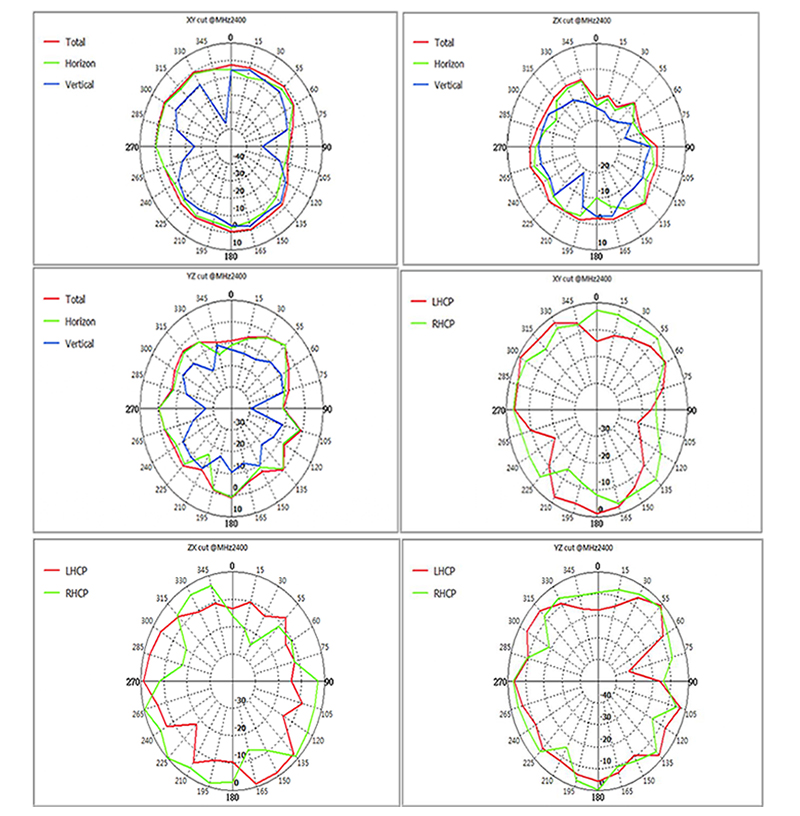

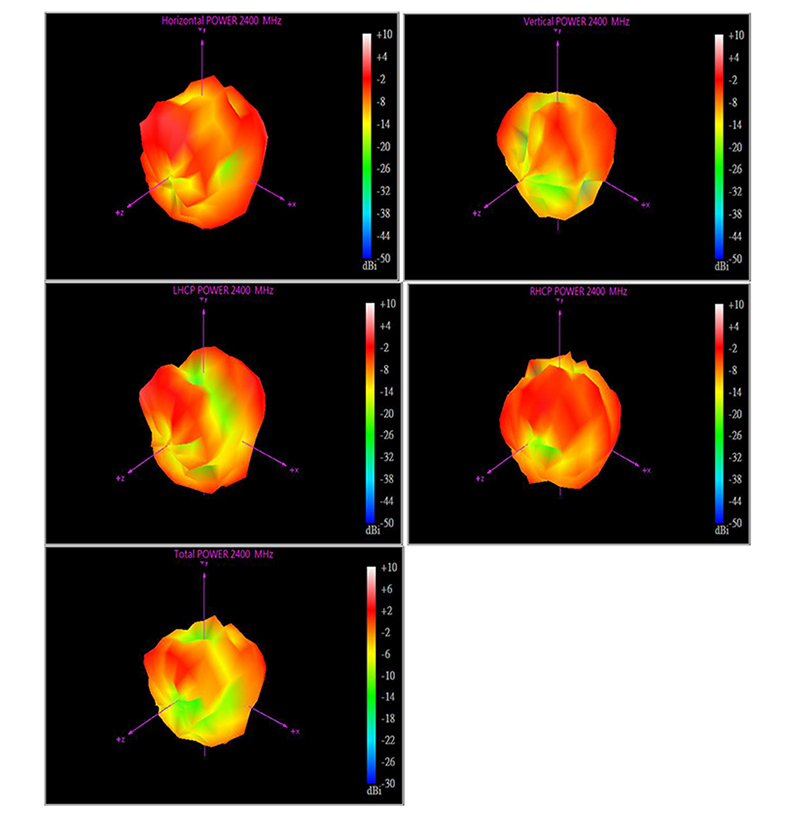

2400Mhz:

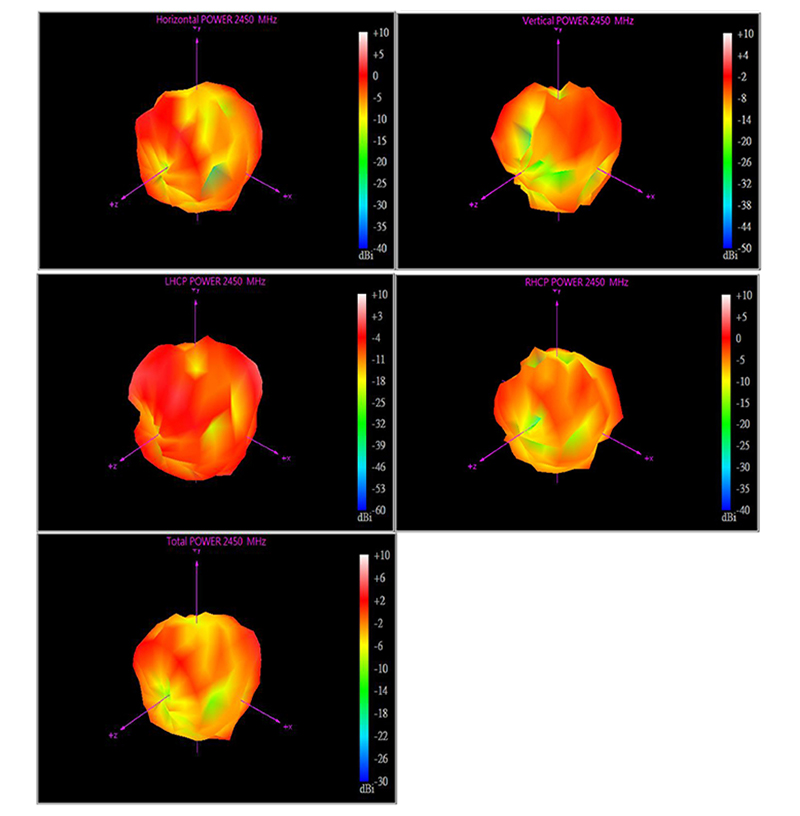

2450 MHz:

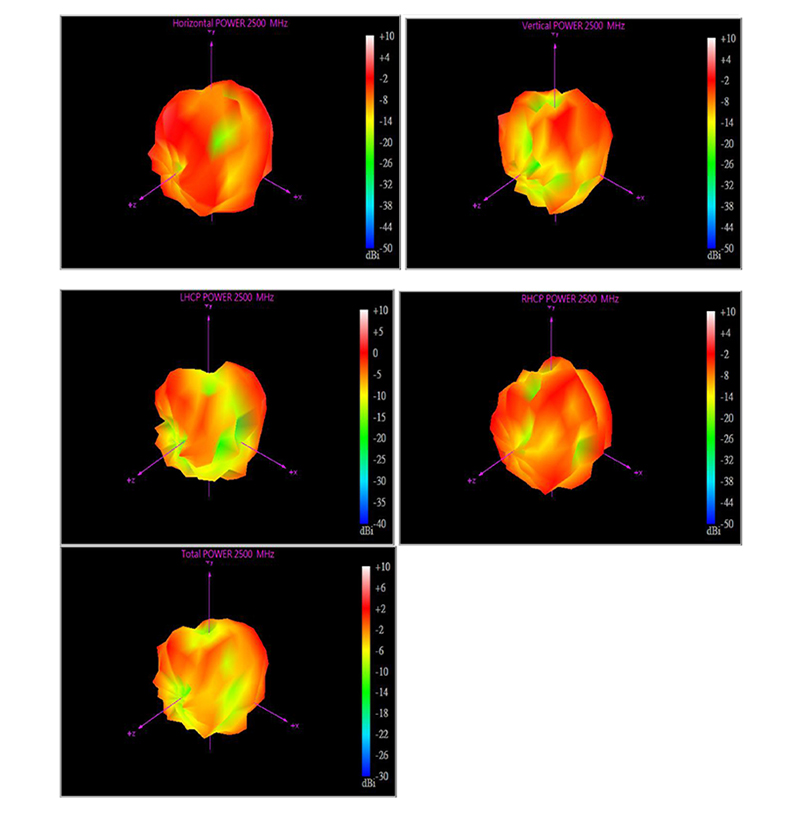

2500 MHz:

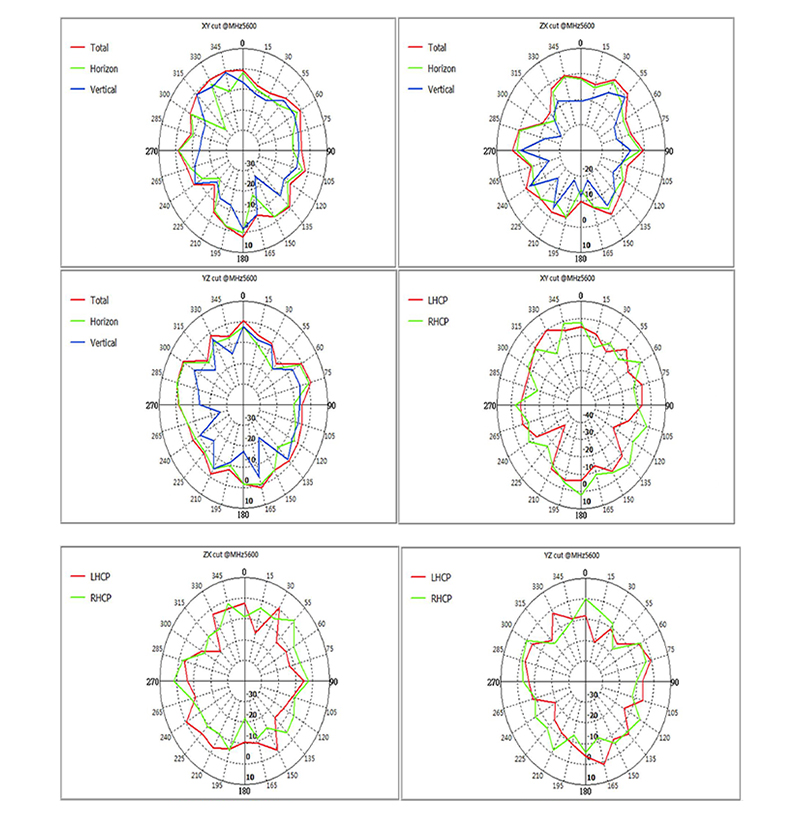

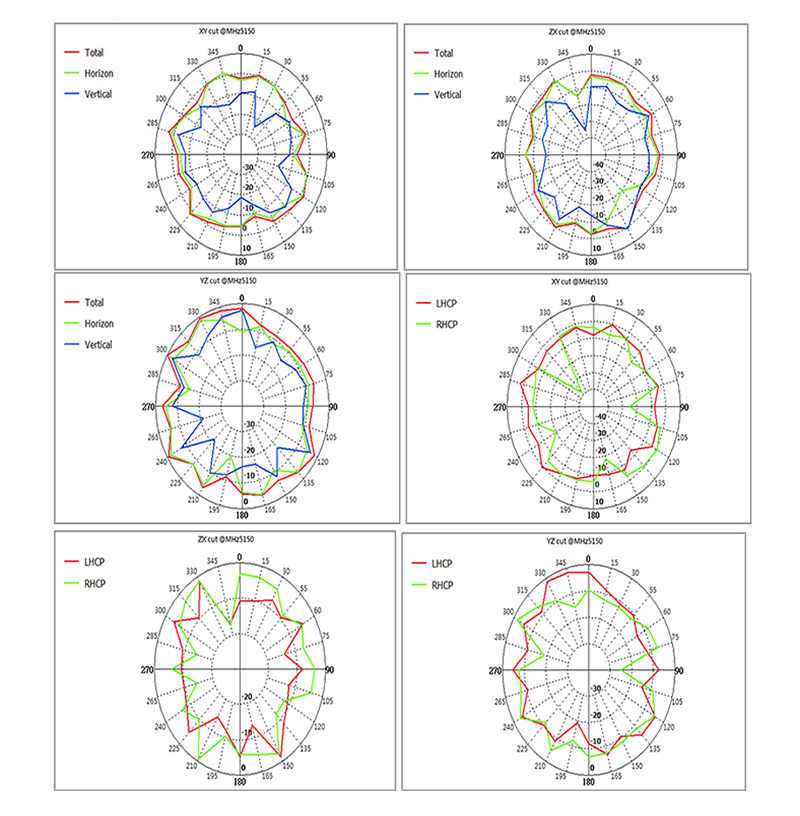

5150 MHz:

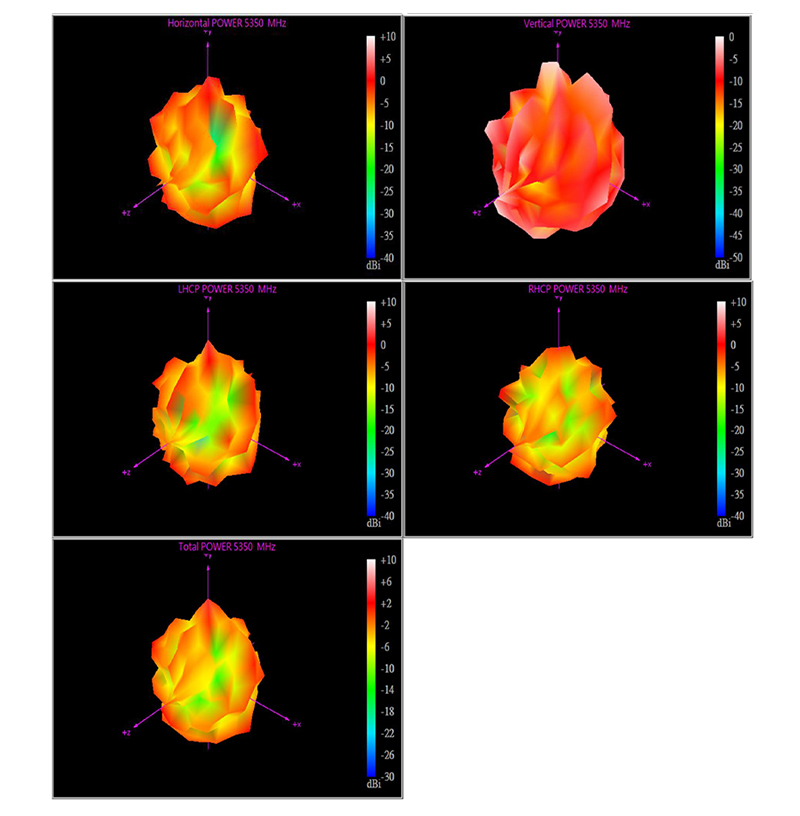

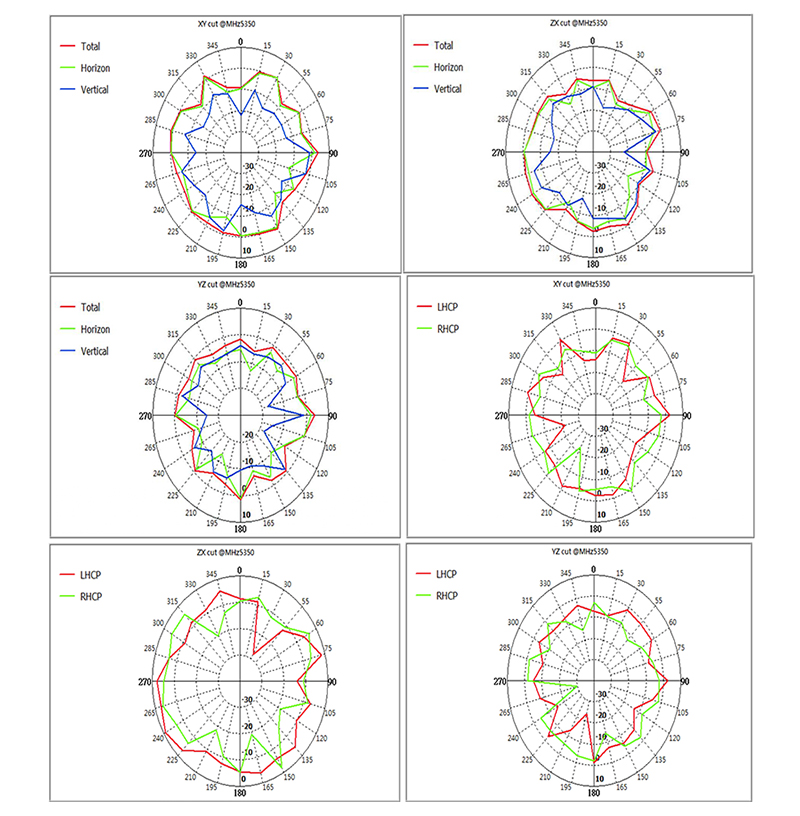

5350Mhz:

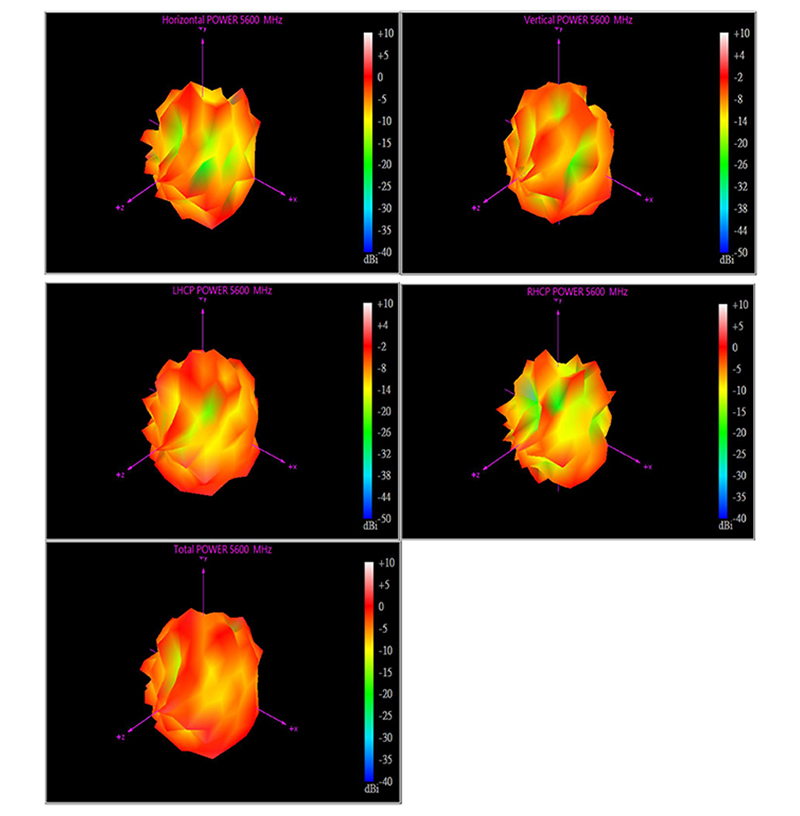

5600Mhz:

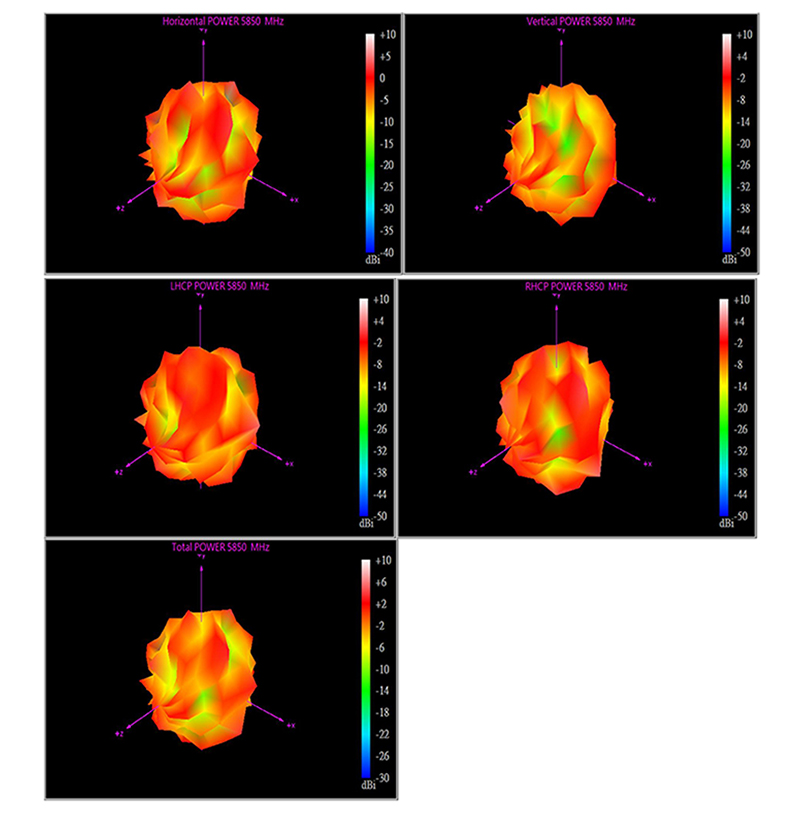

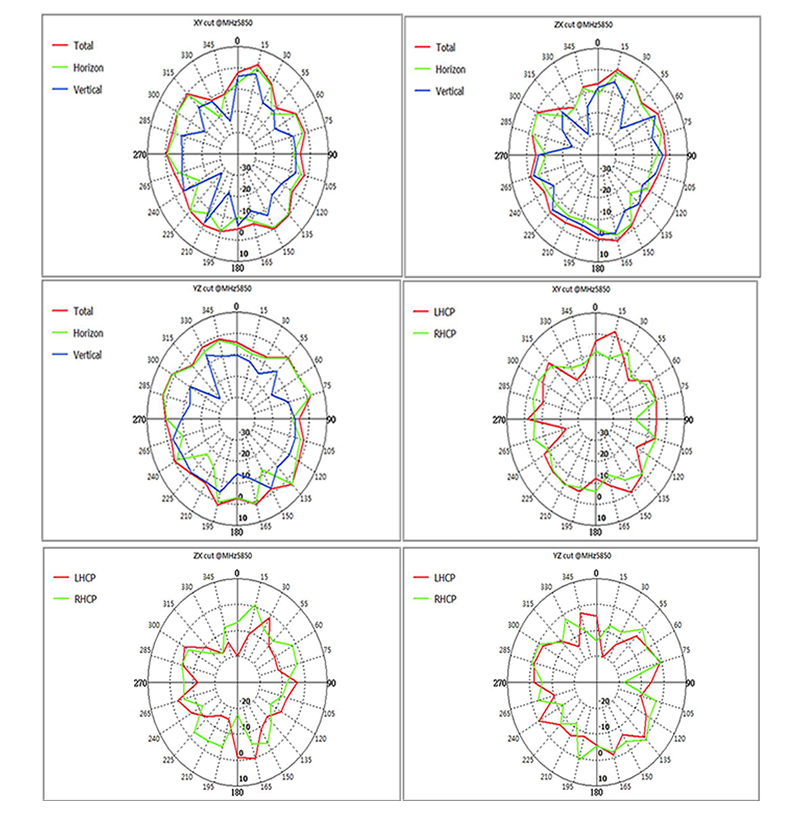

5850Mhz:

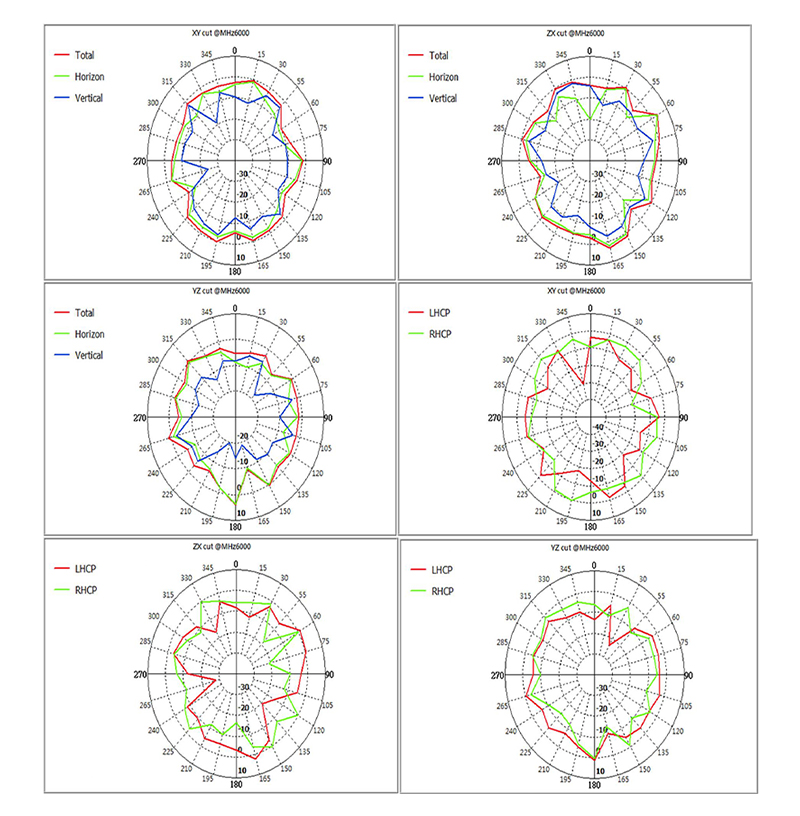

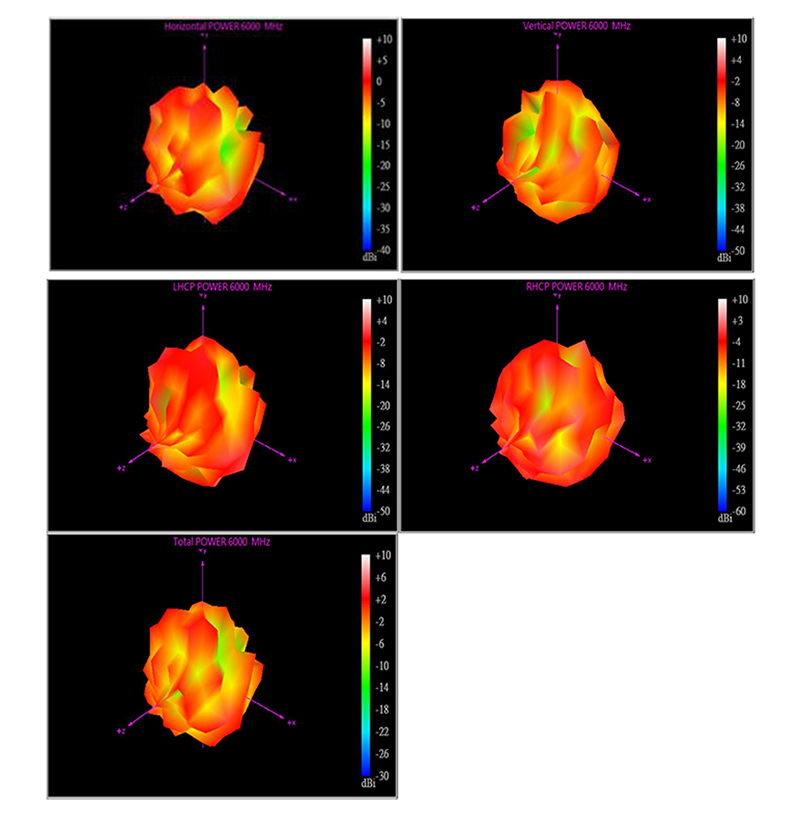

6000Mhz:

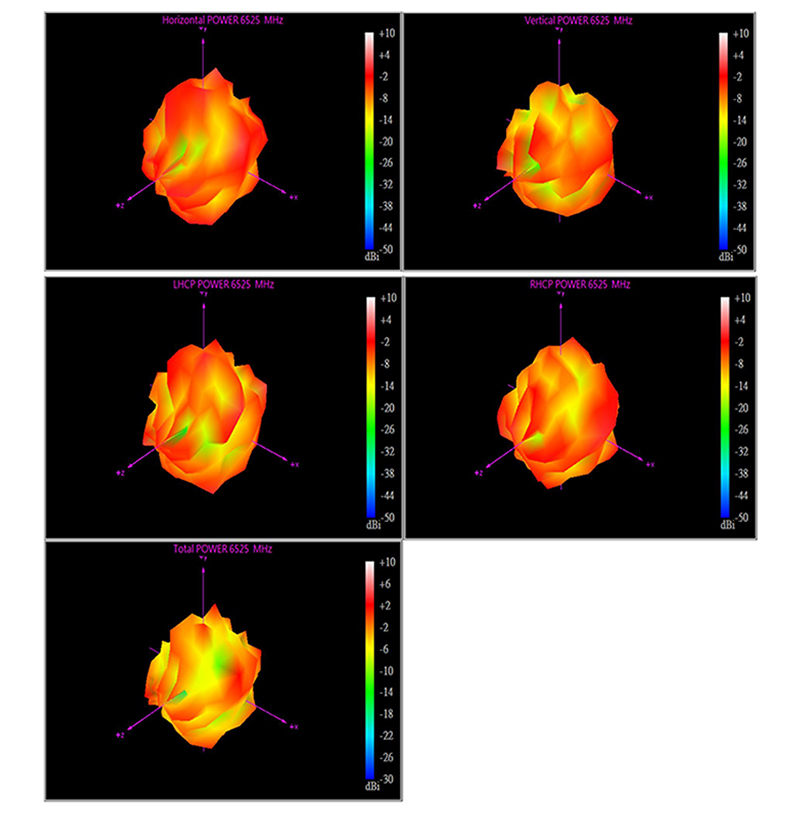

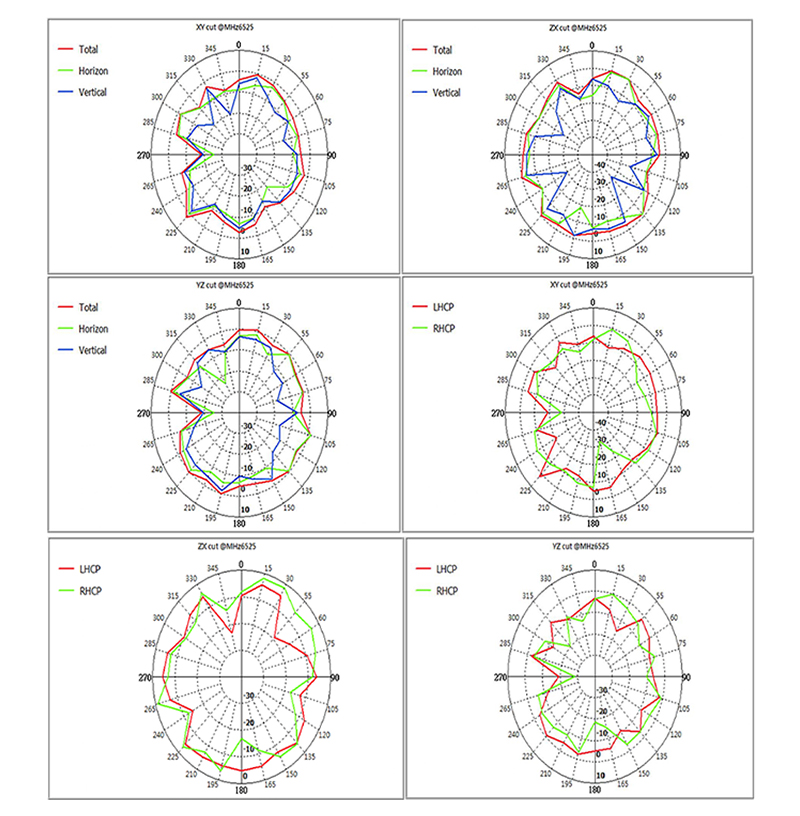

6525Mhz:

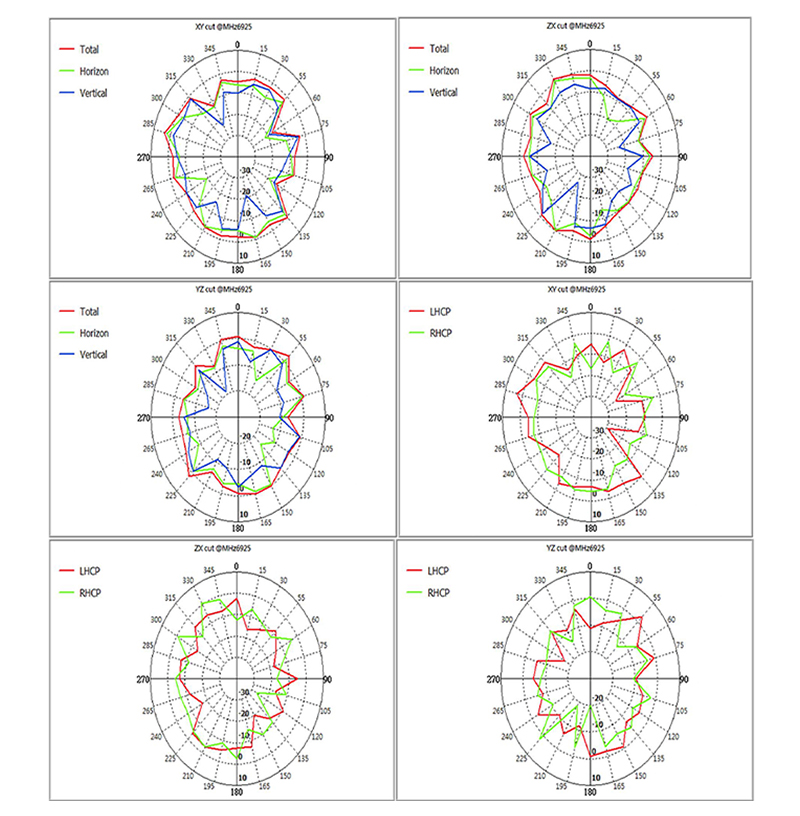

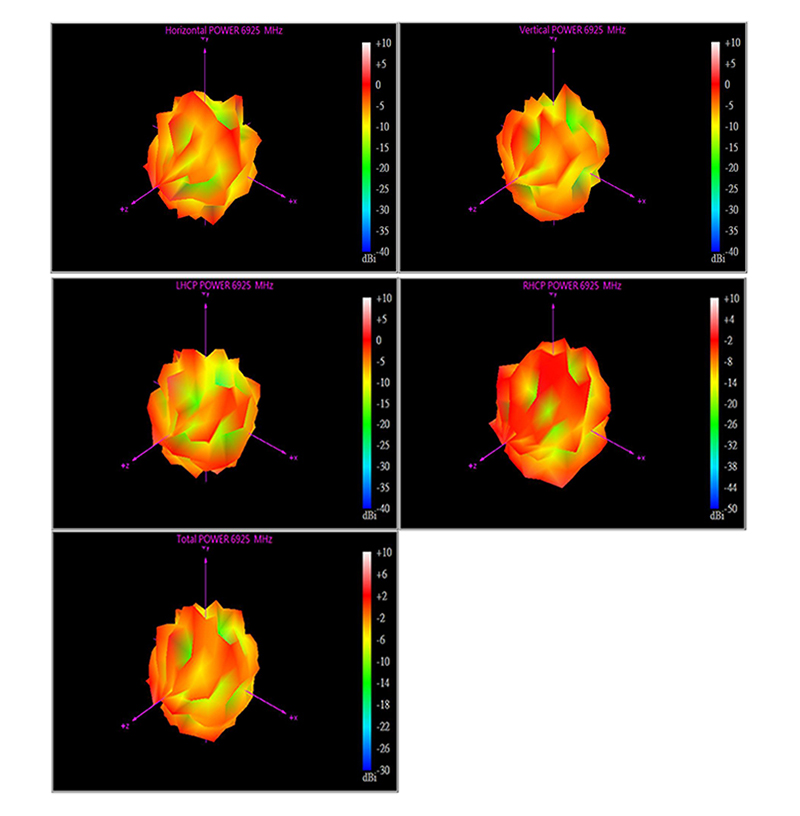

6925Mhz:

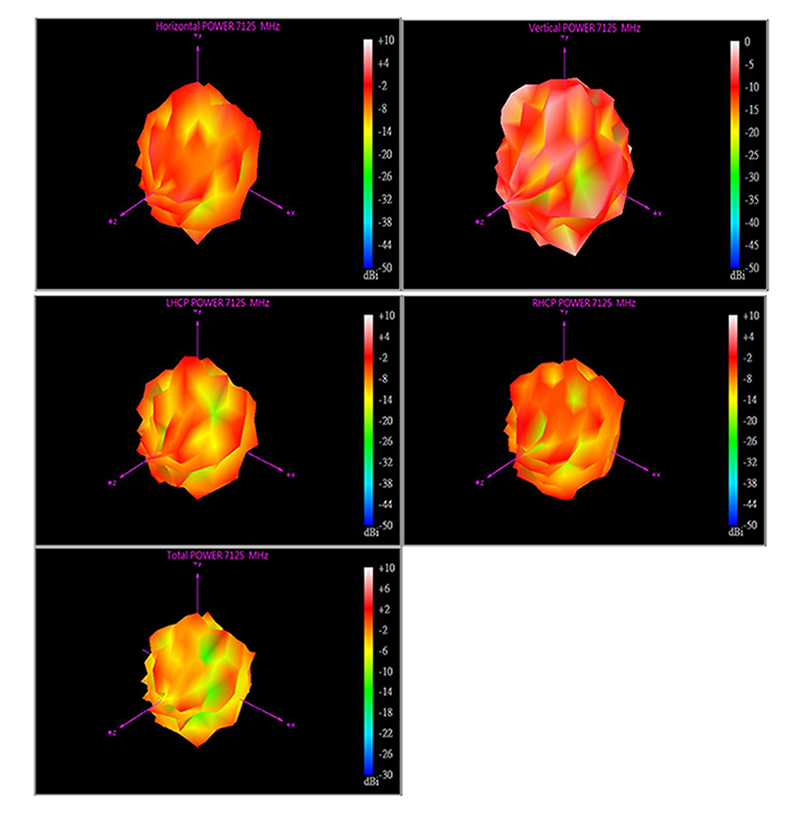

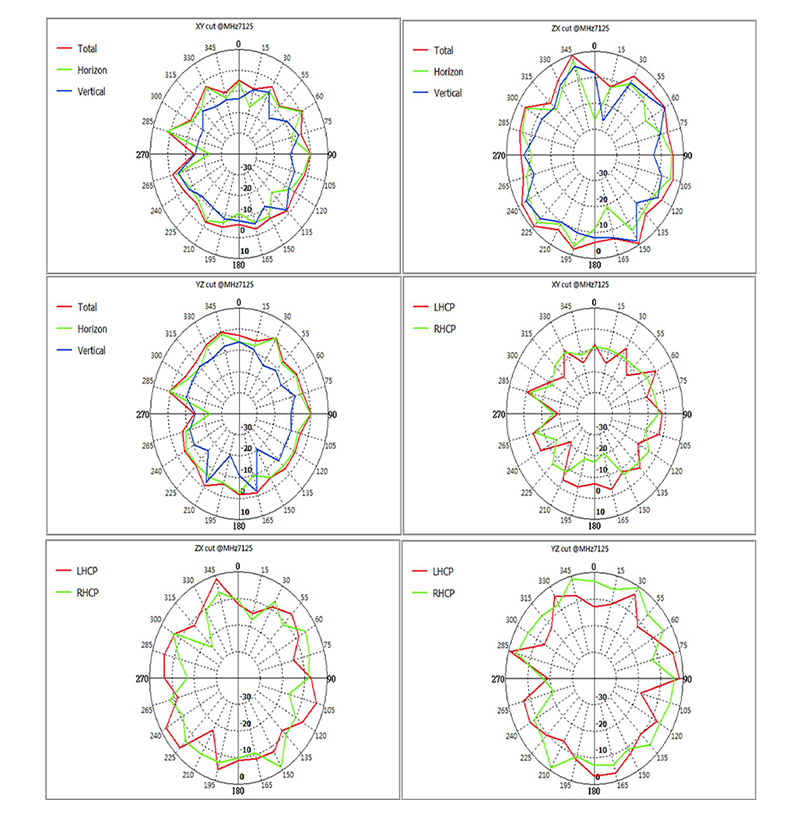

7125Mhz:
