1.GENERAL DESCRIPTION
1.1 Electrical Properties
| Parameter |
Description |
| Frequency Band |
2.4~2.5/5.1~5.85/6~7.125GHz |
| Nominal Impedance |
50 ohm |
| Polarization |
Vertical |
| V.S.W.R |
3.0:1 |
1.2 Mechanical Properties
| Parameter |
Description |
| Antenna Type |
External Antenna |
| Touch Type |
Screw Type |
| Connector Type |
SMA(M) or RP-SMA(M) |
| Antenna Dimensions |
OD12.5 x 102.2 mm ±3 |
| Antenna Color |
Black |
| Operating Temperature Range |
-40°C~+85°C |
| Storage Temperature Range |
-40°C~+85°C |
Our TH-2458Q is 2.4/5G/6/7G Wifi-6 Antenna. The Wi-Fi 6 allows 4 times more simultaneous connections to the router than Wi-Fi 5. It can easily overcome all the challenges that come with having too many connected devices. Wi-Fi 6 also provides to watch enjoyable 4K/8K images, play online games without lag, participate in online meetings and live broadcast on your home computer…etc. The Extended broadband coverage (horizontal + vertical) can divide each channel into smaller sub-channels, these sub-channels have smaller bandwidths that allow them to increase the signal range by up to 80%. Wi-Fi 6 is like a larger highway with multiple branches at the same time, allowing you to reach your destination faster and smoother. Please don’t hesitate to email us if you have any questions.

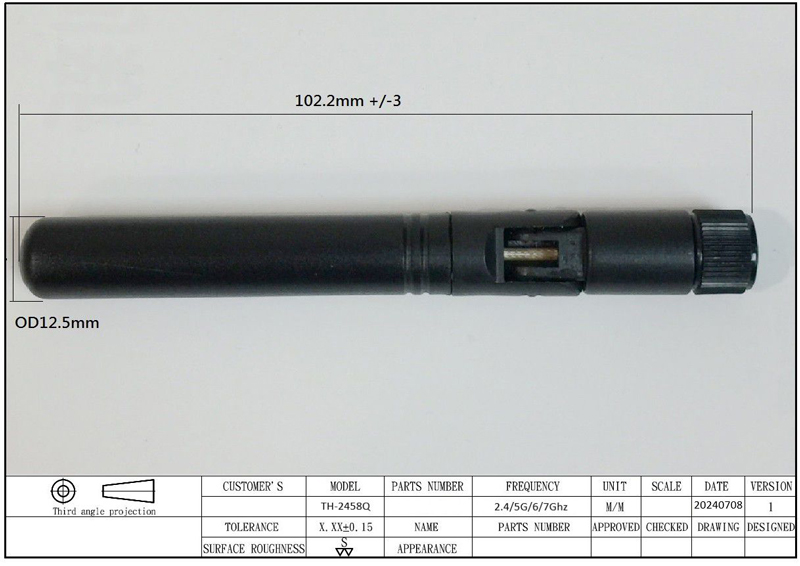

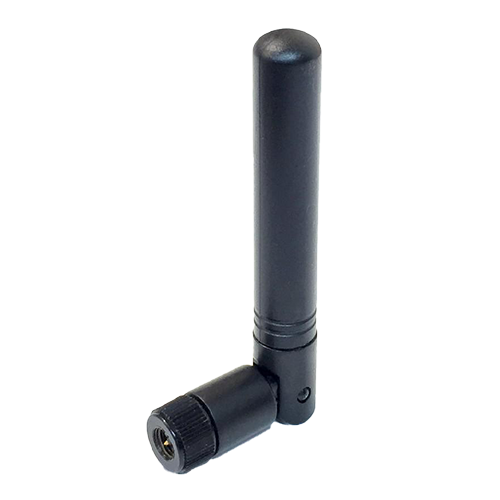

2.Appearance

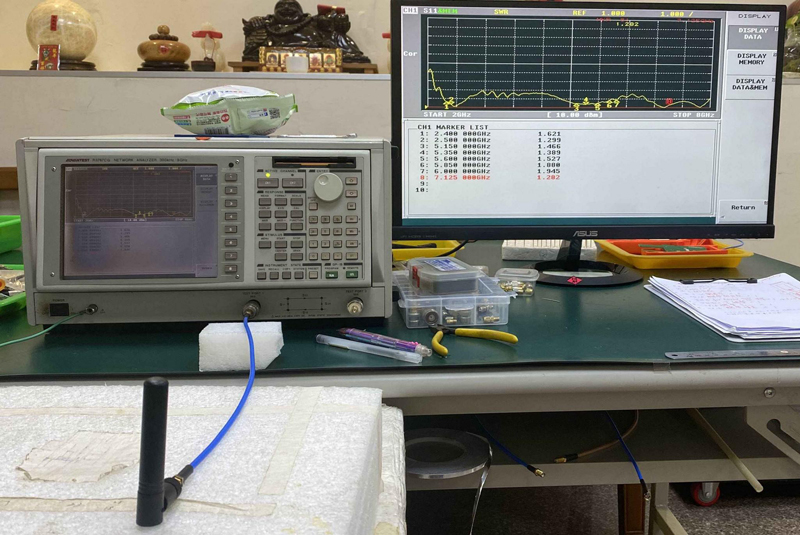

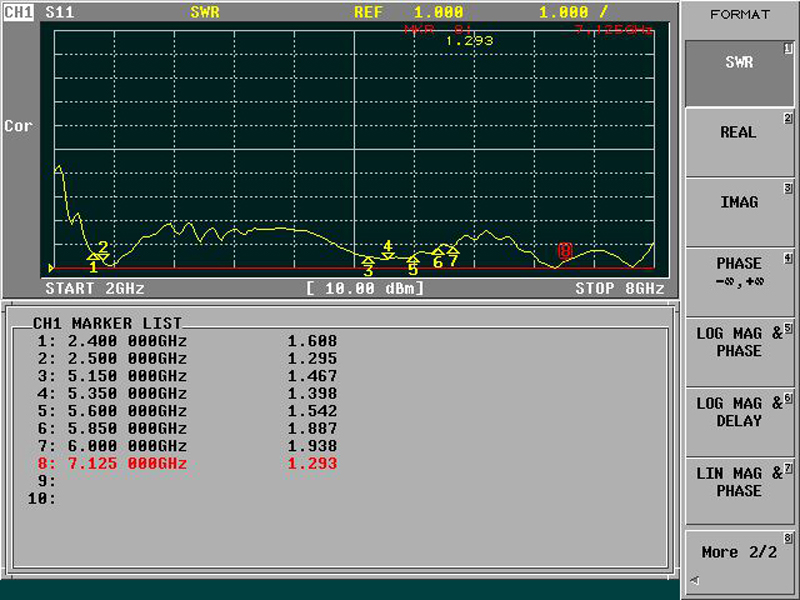

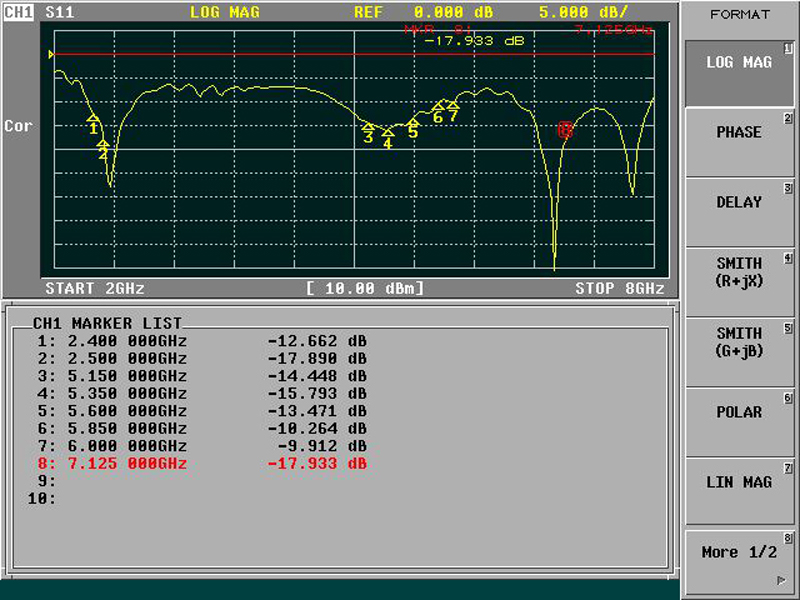

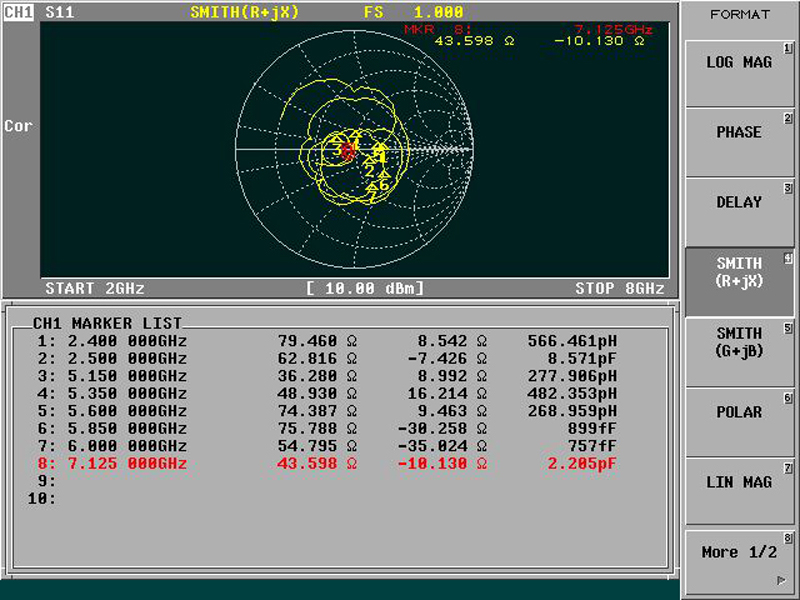

3. Return Loss, V.S.W.R. and Smith Chart

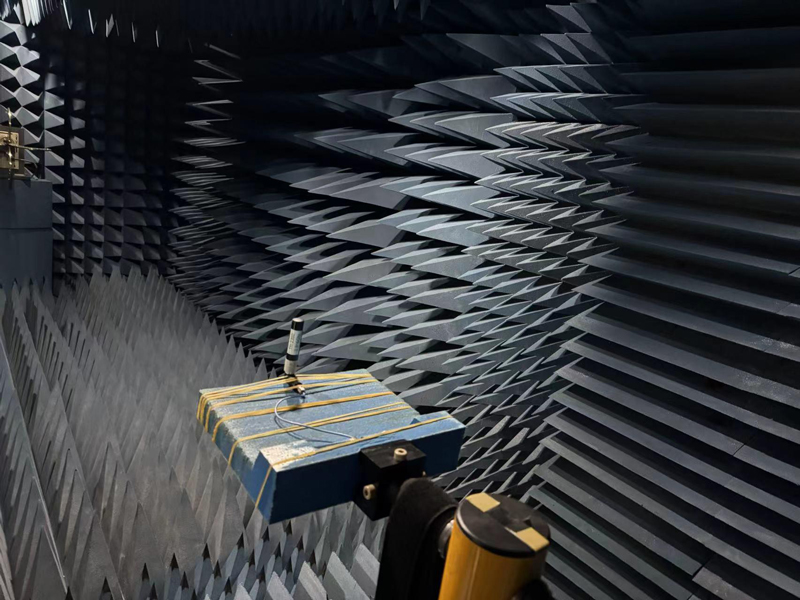

3D Total
Frequency
(MHz) |
Upper Hem.
PRP (dBm) |
Lower HEM.
PRP (dBm) |
Efficiency
(dB) |
Efficiency
(%) |
Gain (dBi) |
Tot. Rad.Pwr.
(dBm) |
| 2400MHz |
-7.21 |
-4.92 |
-2.91 |
51.19 |
2.48 |
-2.91 |
| 2450MHz |
-6.01 |
-4.06 |
-1.91 |
64.35 |
2.95 |
-1.91 |
| 2483.5MHz |
-5.85 |
-4.06 |
-1.85 |
65.29 |
3.44 |
-1.85 |
| 2500MHz |
-6.10 |
-4.17 |
-2.02 |
62.85 |
3.18 |
-2.02 |
| 5150MHz |
-6.27 |
-6.21 |
-3.23 |
47.54 |
2.83 |
-3.23 |
| 5250MHz |
-7.76 |
-7.31 |
-4.52 |
35.35 |
1.48 |
-4.52 |
| 5350MHz |
-7.90 |
-6.98 |
-4.41 |
36.23 |
2.59 |
-4.41 |
| 5470MHz |
-6.89 |
-6.28 |
-3.56 |
44.04 |
1.95 |
-3.56 |
| 5597.5MHz |
-7.66 |
-7.64 |
-4.64 |
34.35 |
2.20 |
-4.64 |
| 5725MHz |
-7.15 |
-6.79 |
-3.95 |
40.23 |
2.52 |
-3.95 |
| 5785MHz |
-7.54 |
-6.90 |
-4.20 |
38.02 |
1.78 |
-4.20 |
| 5850MHz |
-6.98 |
-6.76 |
-3.86 |
41.15 |
2.00 |
-3.86 |
| 5895MHz |
-6.01 |
-6.09 |
-3.04 |
49.61 |
1.88 |
-3.04 |
| 5925MHz |
-6.19 |
-6.50 |
-3.33 |
46.46 |
3.79 |
-3.33 |
| 6000MHz |
-6.13 |
-6.52 |
-3.31 |
46.62 |
2.72 |
-3.31 |
| 6125MHz |
-5.09 |
-5.63 |
-2.34 |
58.35 |
4.35 |
-2.34 |
| 6225MHz |
-5.61 |
-5.22 |
-2.40 |
57.59 |
2.61 |
-2.40 |
| 6325MHz |
-5.33 |
-4.93 |
-2.11 |
61.51 |
3.30 |
-2.11 |
| 6425MHz |
-4.79 |
-4.15 |
-1.45 |
71.66 |
4.10 |
-1.45 |
| 6525MHz |
-7.02 |
-6.10 |
-3.52 |
44.44 |
3.06 |
-3.52 |
| 6625MHz |
-5.56 |
-4.72 |
-2.11 |
61.51 |
3.89 |
-2.11 |
| 6725MHz |
-6.20 |
-5.15 |
-2.63 |
54.52 |
4.22 |
-2.63 |
| 6875MHz |
-6.70 |
-6.48 |
-3.58 |
43.88 |
3.36 |
-3.58 |
| 7000MHz |
-4.72 |
-4.83 |
-1.76 |
66.62 |
4.03 |
-1.76 |
| 7125MHz |
-4.22 |
-3.84 |
-1.02 |
79.14 |
4.95 |
-1.02 |
2.4Ghz:
2.45Ghz:
2.5Ghz:
5.15Ghz:
5.35Ghz:
5.725Ghz:
5.85Ghz:
6.125Ghz:
6.725Ghz:
7.125Ghz:
