TH-2458R

TH-2458R

Inquiry

Download

TH-2458R
TH-2458R
  • Product Description
  • Product Specification

1. GENERAL DESCRIPTION

Model No
TH-2458R-SMA(M)

1.1 Electrical Properties

Parameter Description
Frequency Band 2.4~2.5/5.1~5.85/6~7.125GHz
Nominal Impedance 50 ohm
Polarization Vertical
V.S.W.R 3.0:1

1.2 Mechanical Properties

Parameter Description
Antenna Type External Antenna
Touch Type Screw Type
Connector Type SMA(M) or RP-SMA(M)
Antenna Dimensions 22 x 210 mm ±3
Antenna Color Black
Operating Temperature Range -40°C~+85°C
Storage Temperature Range -40°C~+85°C

Our TH-2458R is an Indoor Transceiver router Antenna. It provides Wi-Fi 6, which is 4 times more simultaneous connections to the router than Wi-Fi 5. With Wi-Fi 6 you can enjoy perfect 4K/8K images, play online games without lag, participate in online meetings and live broadcast on your home computer... etc. Wi-Fi 6 is like a larger highway with multiple branches at the same time, allowing you to reach your destination faster and smoother. Please don’t hesitate to email us if you have any questions.

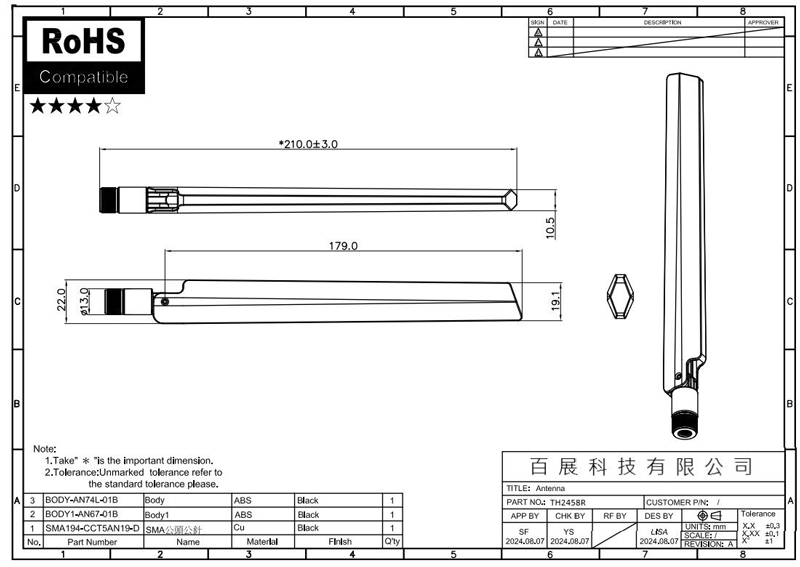

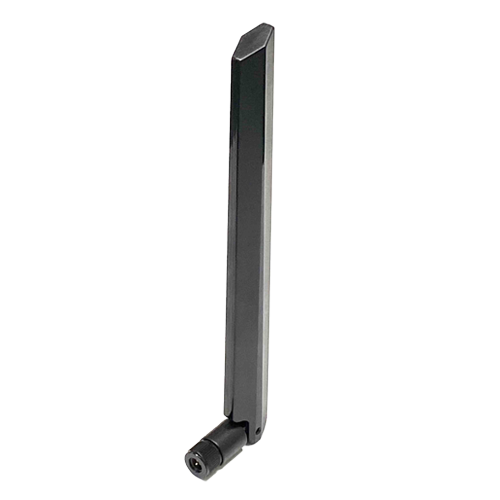

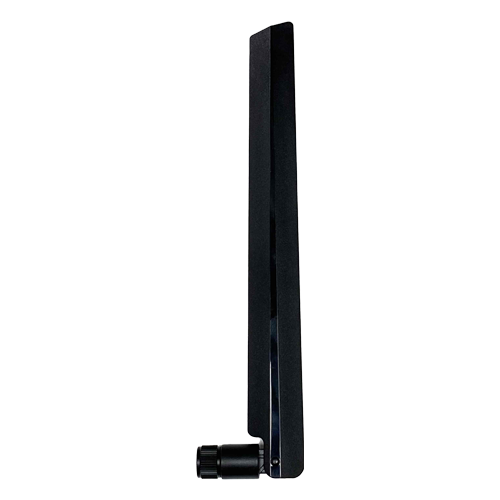

2. Appearance

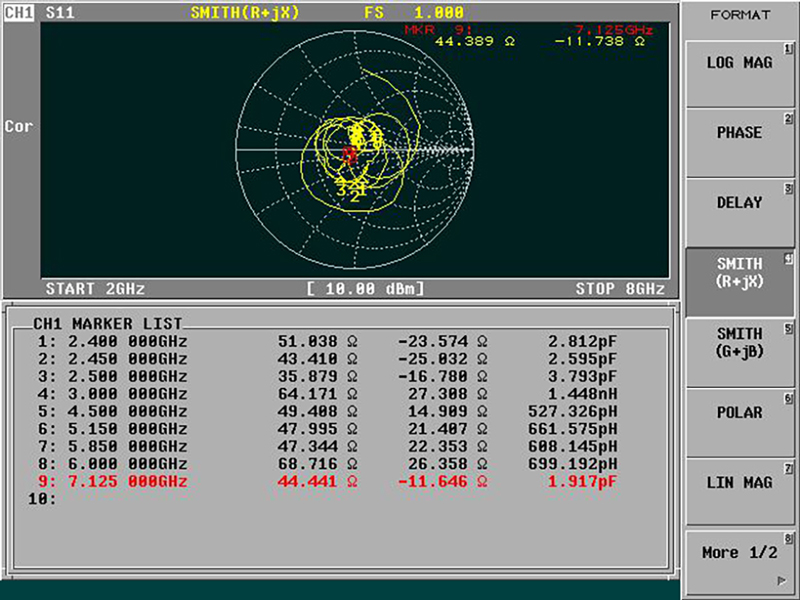

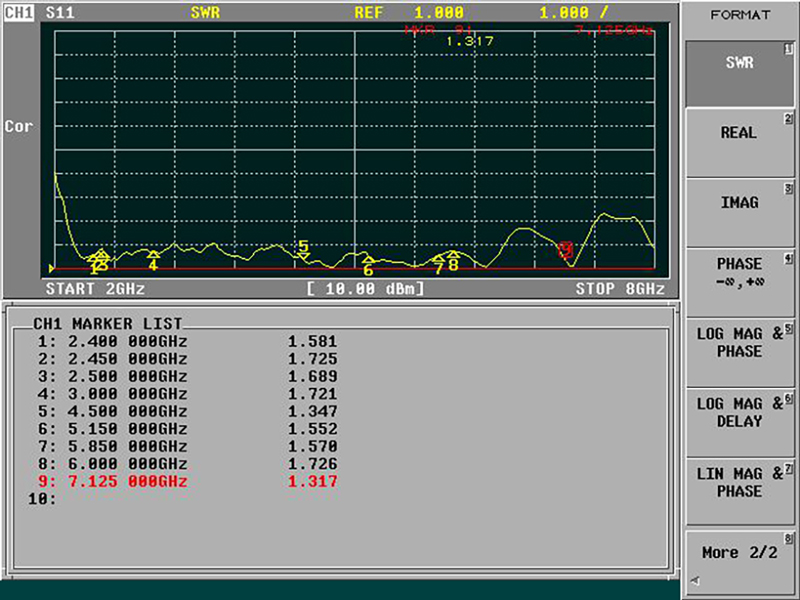

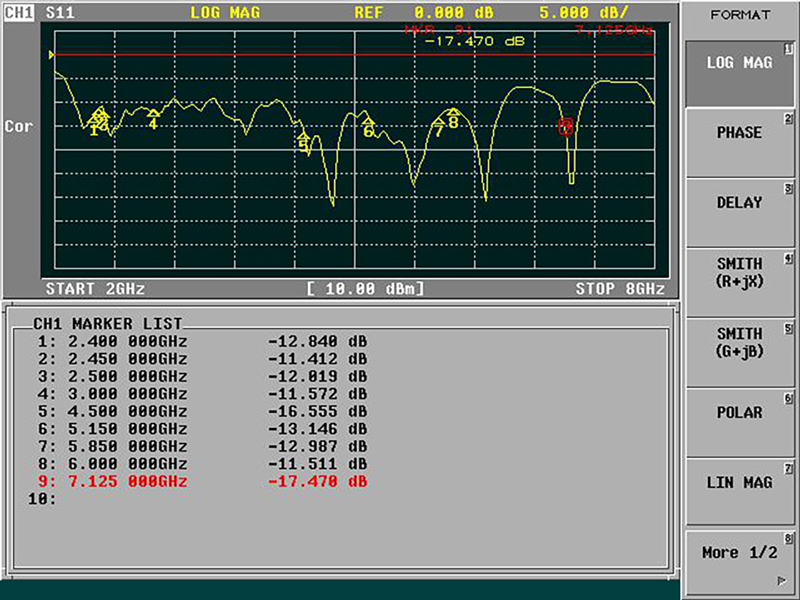

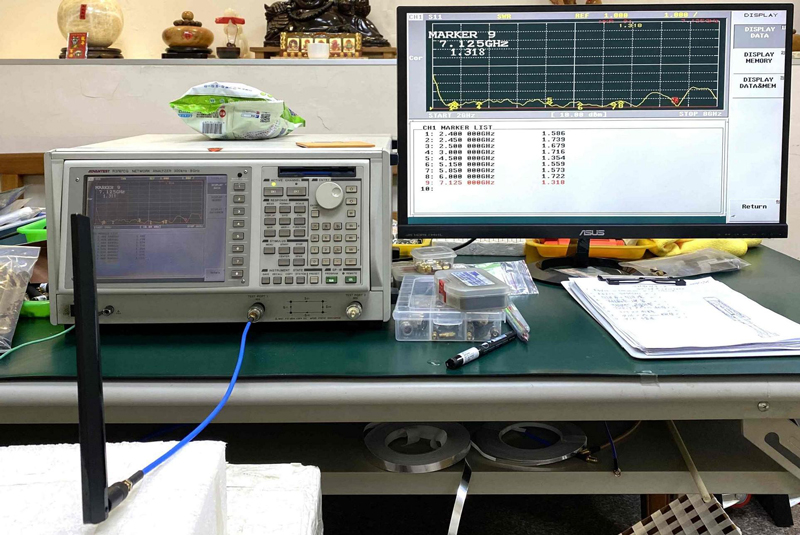

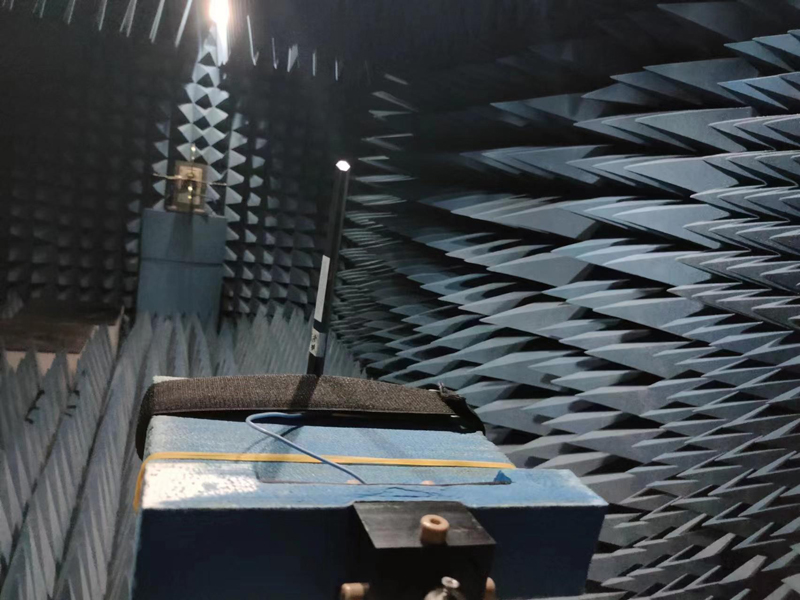

3. Return Loss, V.S.W.R. and Smith Chart

3D Total

Frequency
(MHz)		 Upper Hem.
PRP (dBm)		 Lower HEM.
PRP (dBm)		 Efficiency
(dB)		 Efficiency
(%)		 Gain (dBi) Tot. Rad.Pwr.
(dBm)
2350 MHz -6.70 -5.80 -3.21 47.71 2.97 -3.21
2400 MHz -6.82 -5.78 -3.26 47.25 2.69 -3.26
2450 MHz -6.34 -5.17 -2.71 53.62 3.74 -2.71
2500 MHz -7.16 -5.71 -3.36 46.10 2.88 -3.36
2600 MHz -6.31 -5.08 -2.64 54.45 2.41 -2.64
3300 MHz -6.95 -5.68 -3.26 47.24 2.50 -3.26
3400 MHz -7.02 -6.01 -3.47 44.95 3.69 -3.47
3600 MHz -5.63 -4.48 -2.01 62.97 5.98 -2.01
3800 MHz -7.88 -6.52 -4.13 38.59 4.60 -4.13
4000 MHz -4.82 -3.17 -2.91 51.17 7.31 -2.91
4200 MHz -5.34 -3.83 -1.51 70.70 7.48 -1.51
4400 MHz -6.90 -5.26 -2.99 50.23 5.16 -2.99
4600 MHz -7.91 -6.64 -4.22 37.84 3.43 -4.22
4900 MHz -7.03 -5.66 -3.28 46.97 5.05 -3.28
5100MHz -11.19 -10.63 -7.89 16.25 -0.03 -7.89
5300 MHz -10.12 -9.89 -6.99 19.99 0.87 -6.99
5600 MHz -9.38 -9.76 -6.55 22.12 0.45 -6.55
5700 MHz -8.87 -9.03 -5.94 25.45 3.19 -5.94
5900 MHz -9.24 -9.21 -6.21 23.93 2.81 -6.21
6000 MHz -10.29 -10.21 -7.24 18.90 3.06 -7.24

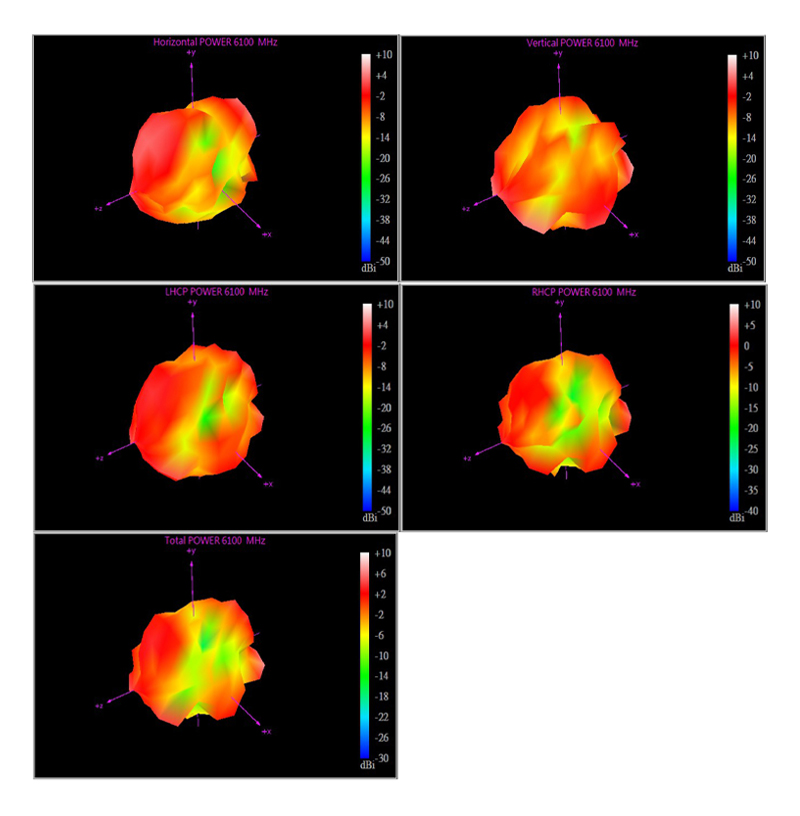

6100 MHz -6.34 -6.41 -3.37 46.06 6.46 -3.37
6300 MHz -8.58 -8.72 -5.64 27.29 4.21 -5.64
6600 MHz -9.53 -10.73 -7.08 19.58 3.30 -7.08
6800 MHz -3.70 -3.89 -1.78 66.37 6.60 -1.78
7000 MHz -9.19 -9.44 -6.30 23.42 2.87 -6.30
7125 MHz -7.24 -7.00 -4.11 38.81 8.64 -4.11
7200 MHz -1.39 -1.64 -2.50 56.23 8.70 -2.50

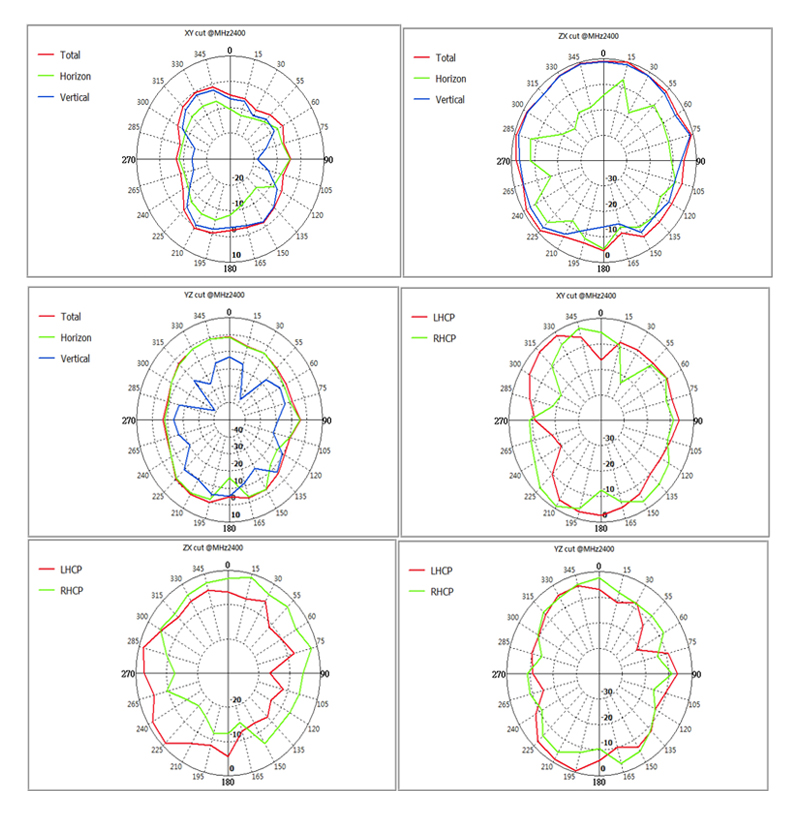

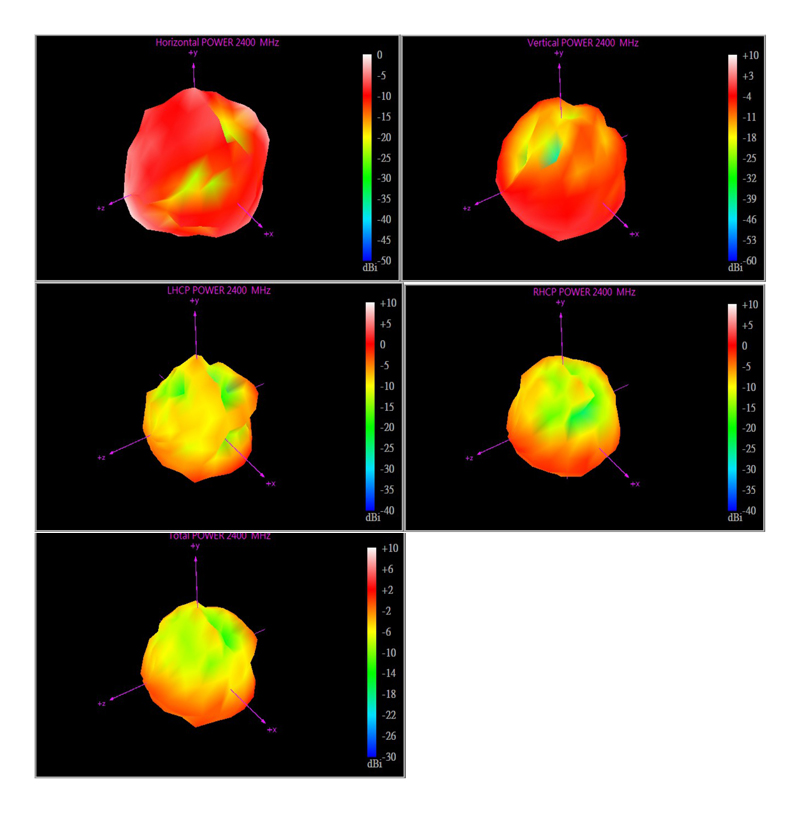

2400Mhz:

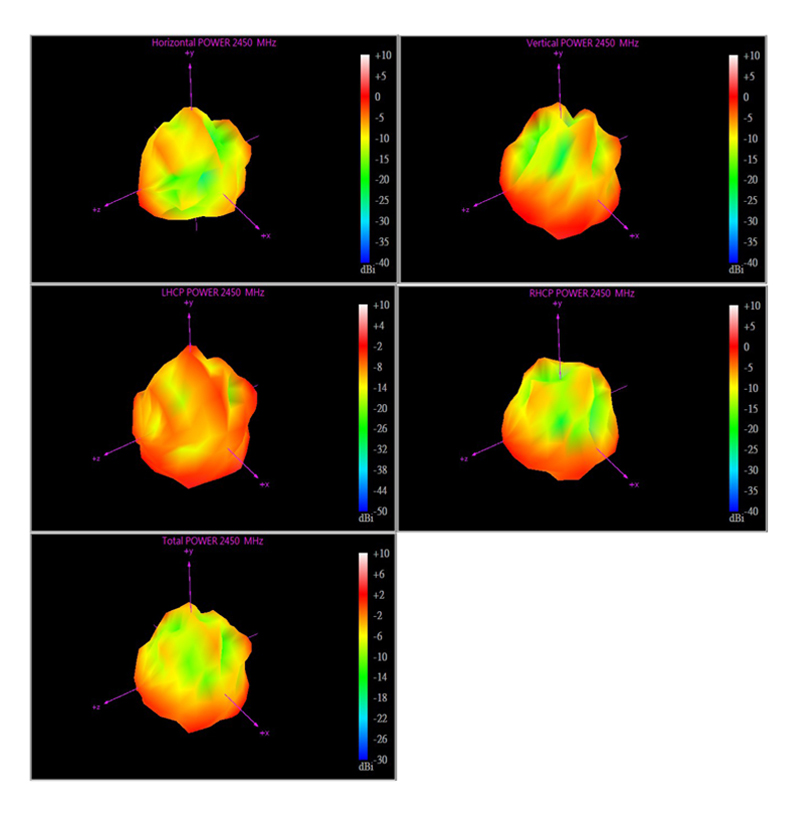

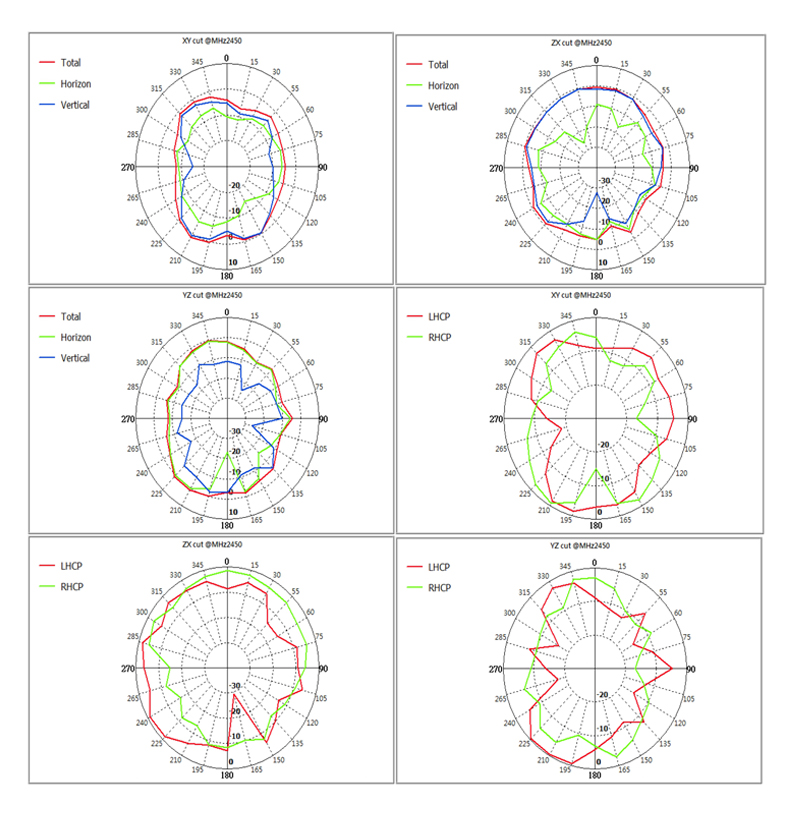

2450Mhz:

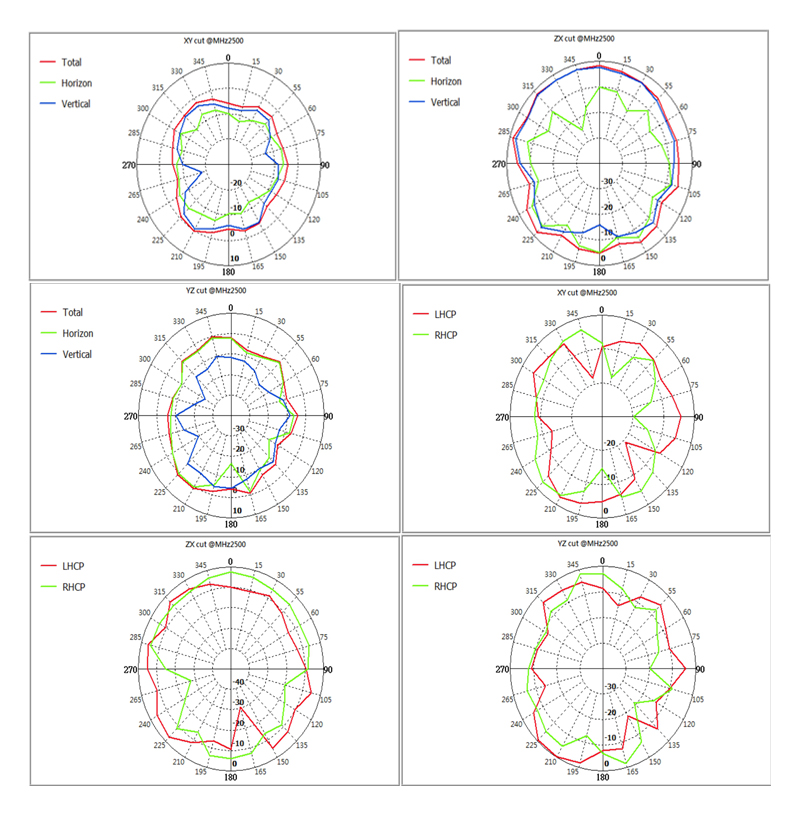

2500Mhz:

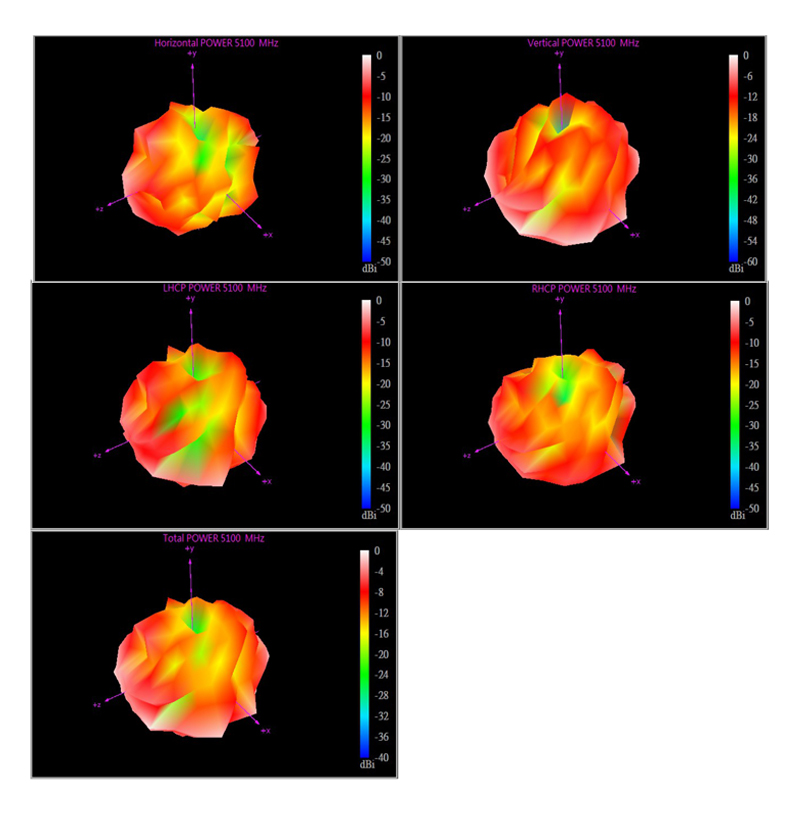

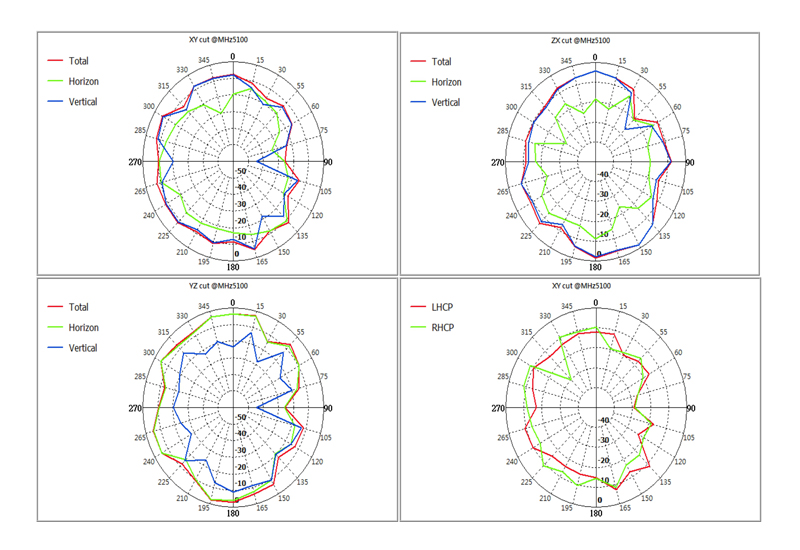

5100Mhz:

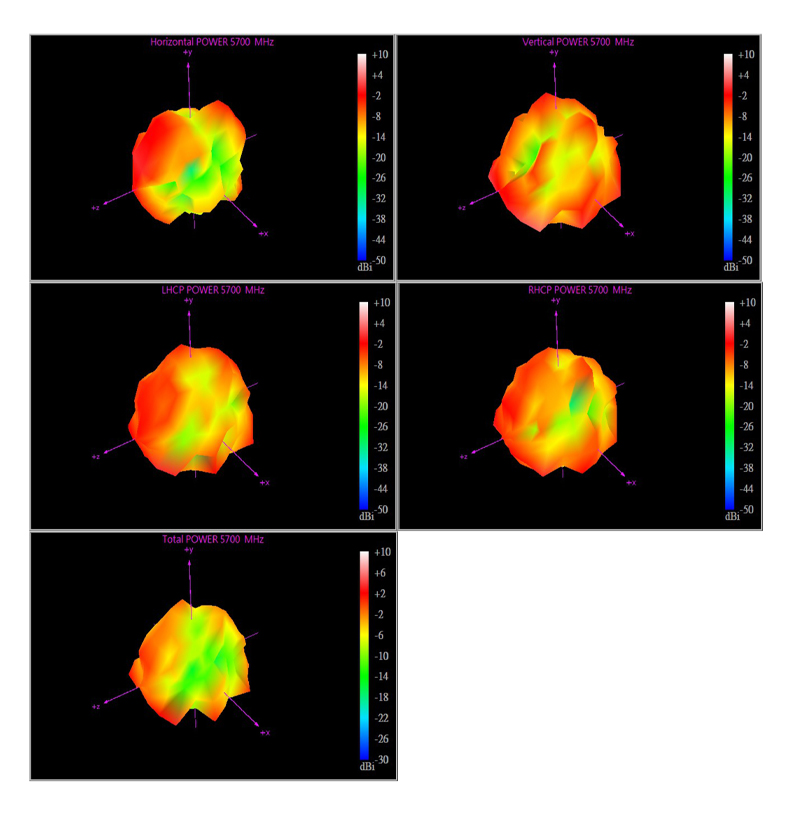

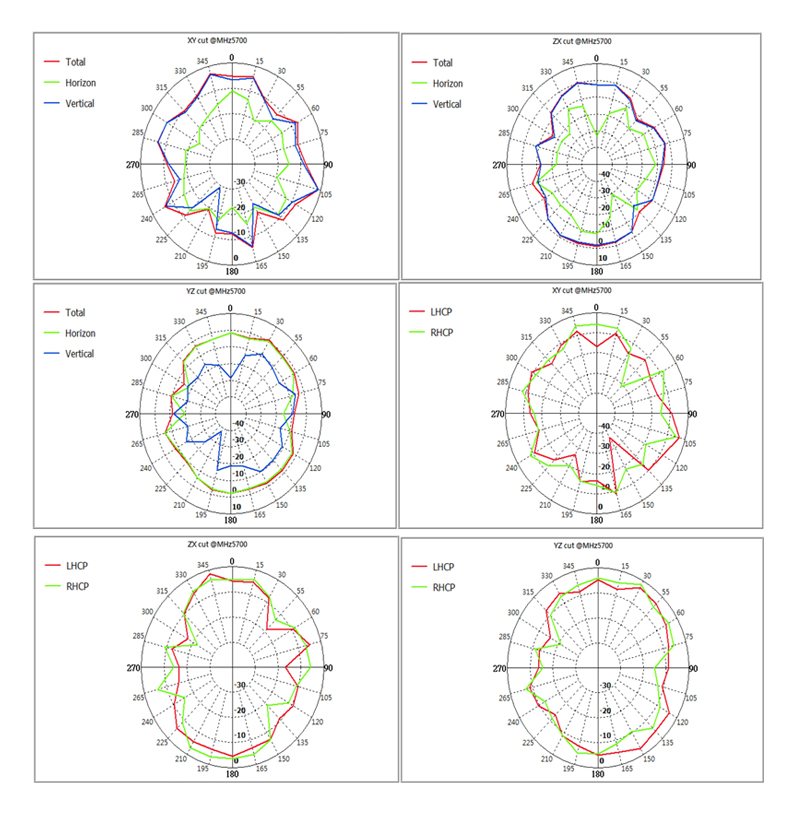

5700Mhz:

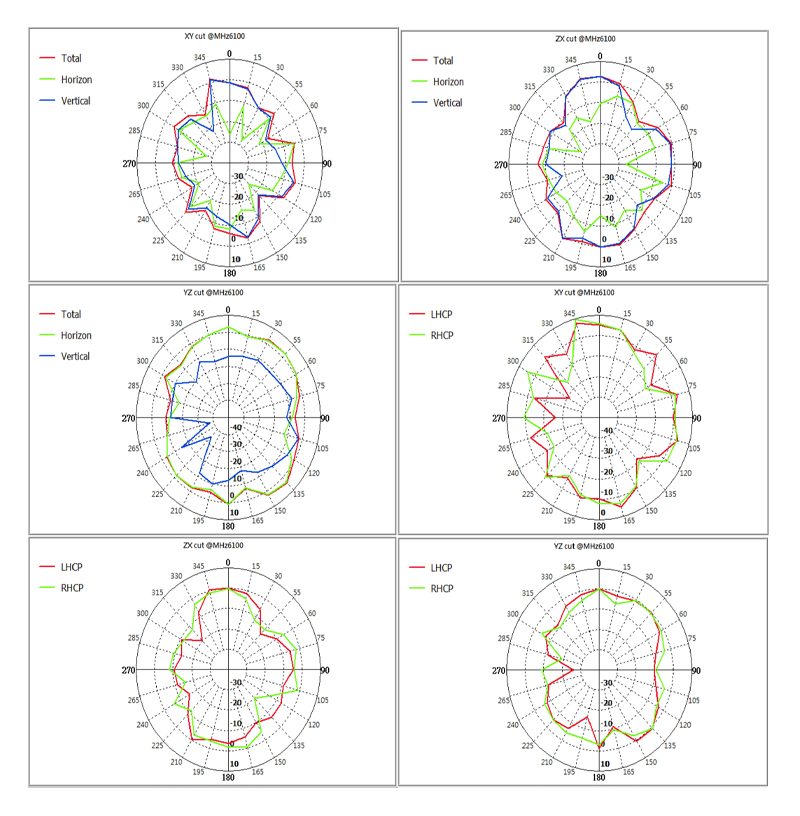

6100Mhz:

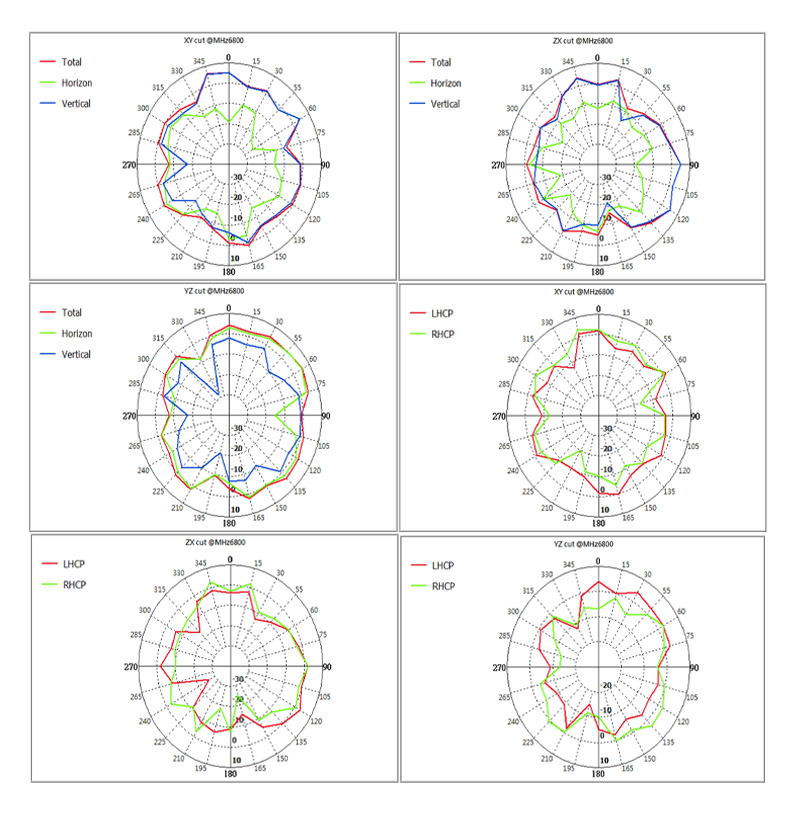

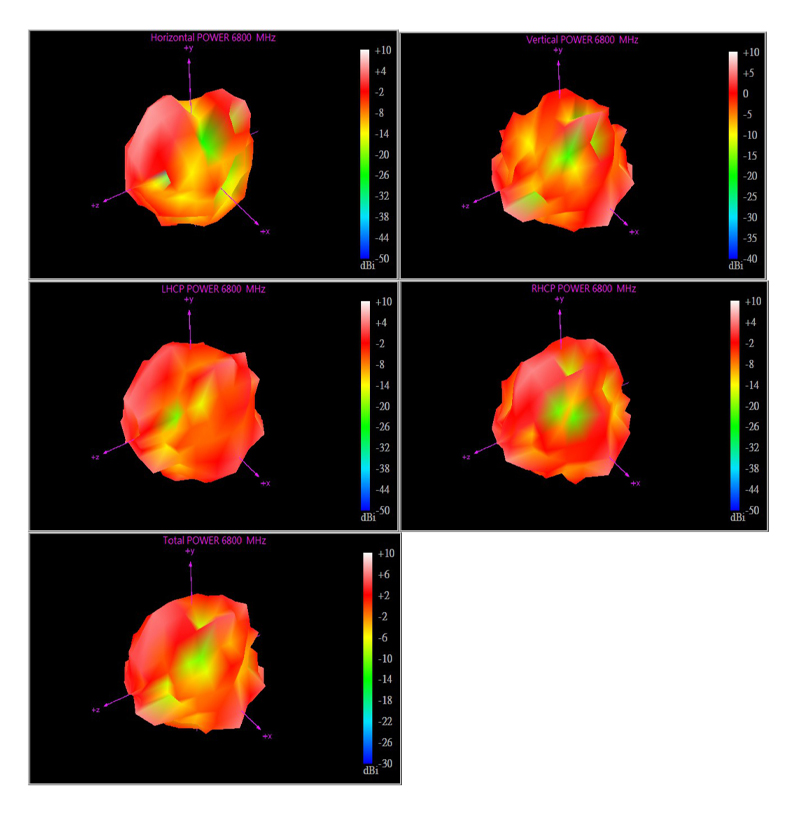

6800Mhz:

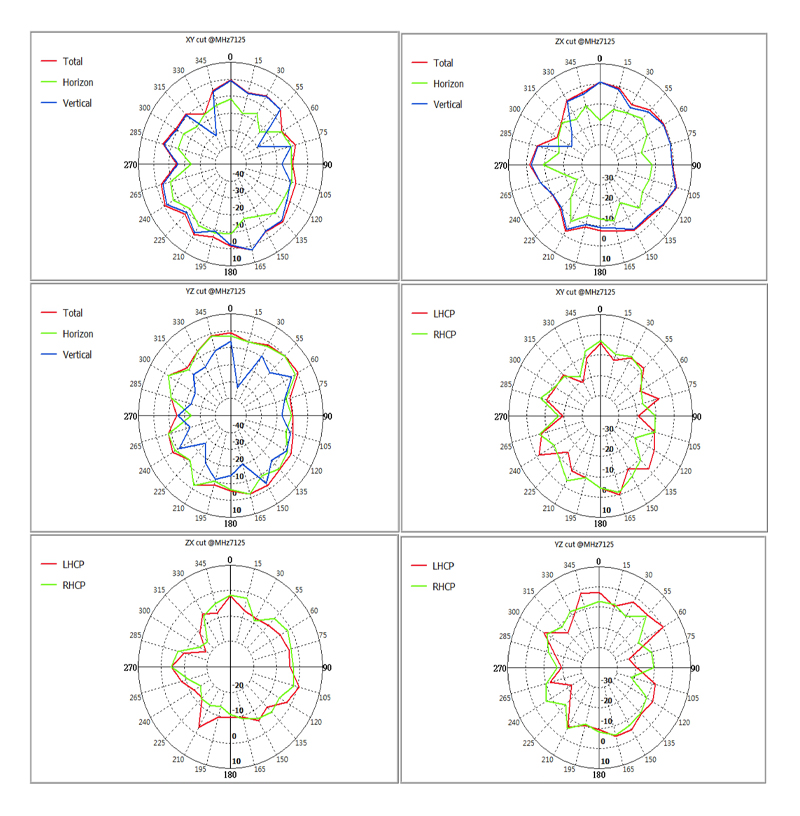

7125Mhz:
