1.GENERAL DESCRIPTION
1.1 Electrical Properties
| Parameter |
Description |
| Frequency Band |
2.4~2.5/5.1~5.85/6~7.125GHz |
| Nominal Impedance |
50 ohm |
| Polarization |
Vertical |
| V.S.W.R |
2.5:1 |
1.2 Mechanical Properties
| Parameter |
Description |
| Antenna Type |
External Antenna |
| Materal |
ASA |
| Touch Type |
Screw Type |
| Connector Type |
SMA(M) or RP-SMA(M) |
| Antenna Dimensions |
20 x 135.6 mm ±3 |
| Antenna Color |
Black |
| Operating Temperature Range |
-40°C~+85°C |
| Storage Temperature Range |
-40°C~+85°C |

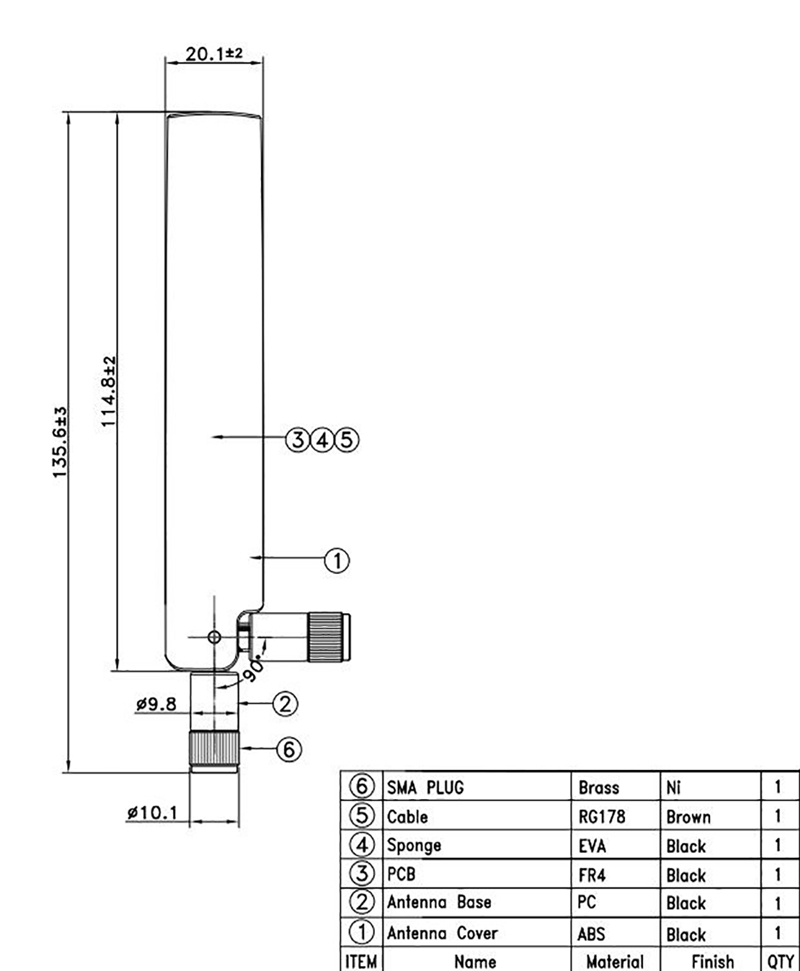

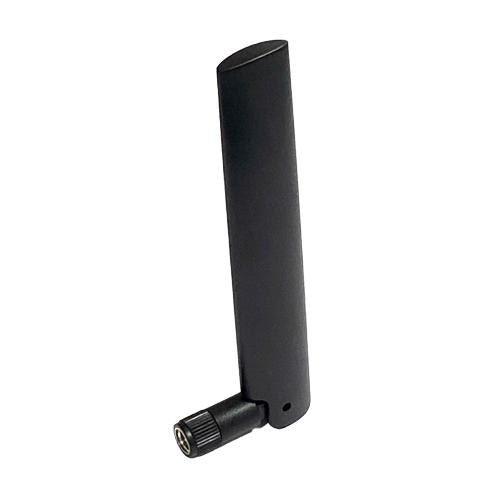

2. Appearance

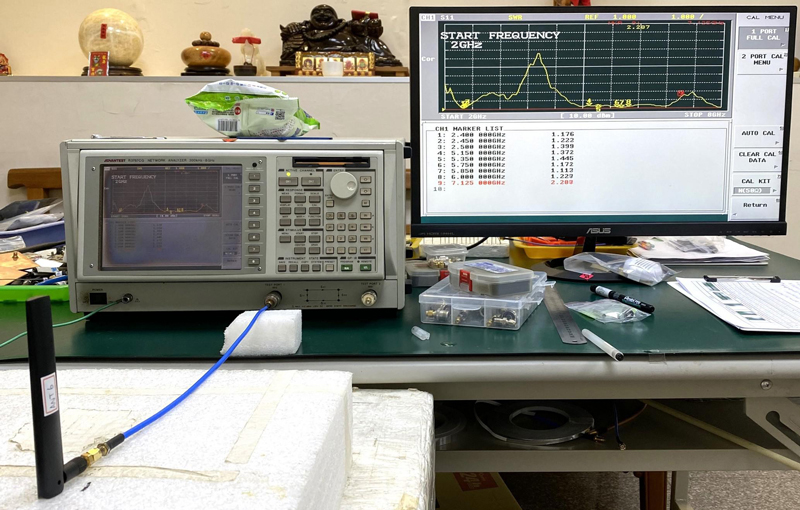

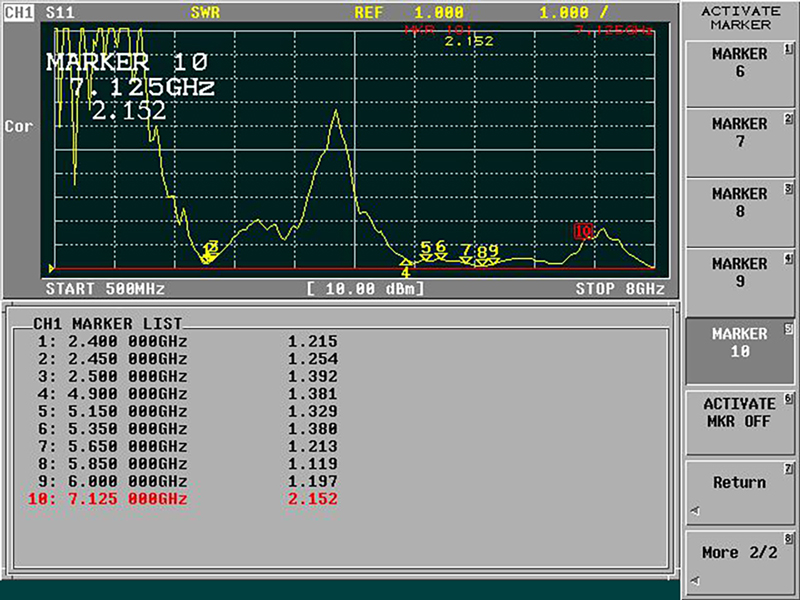

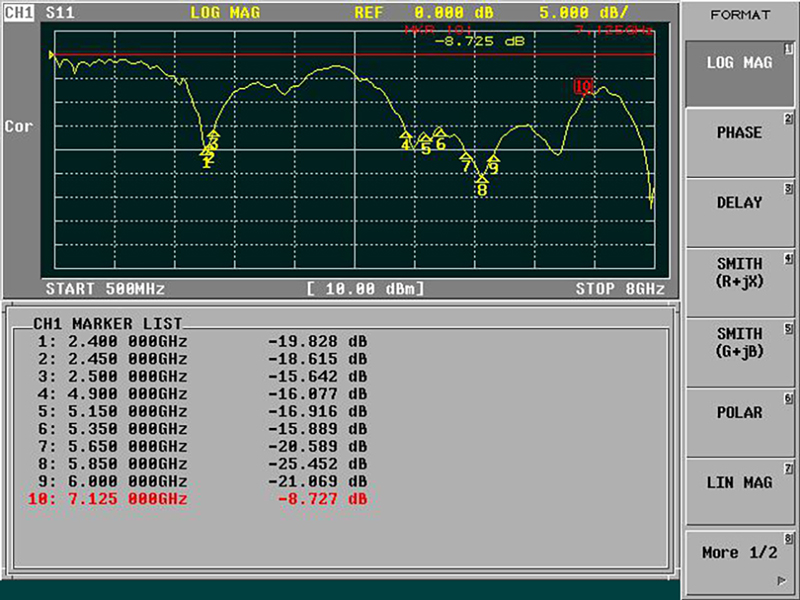

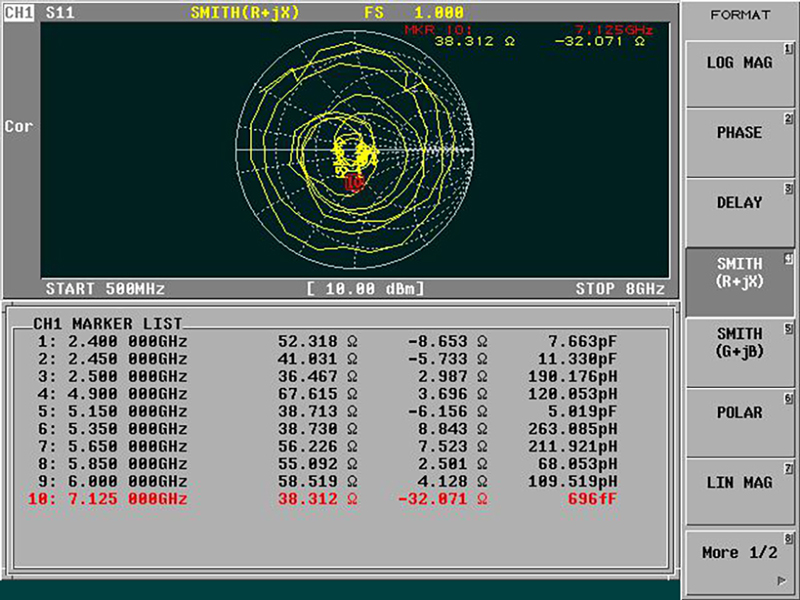

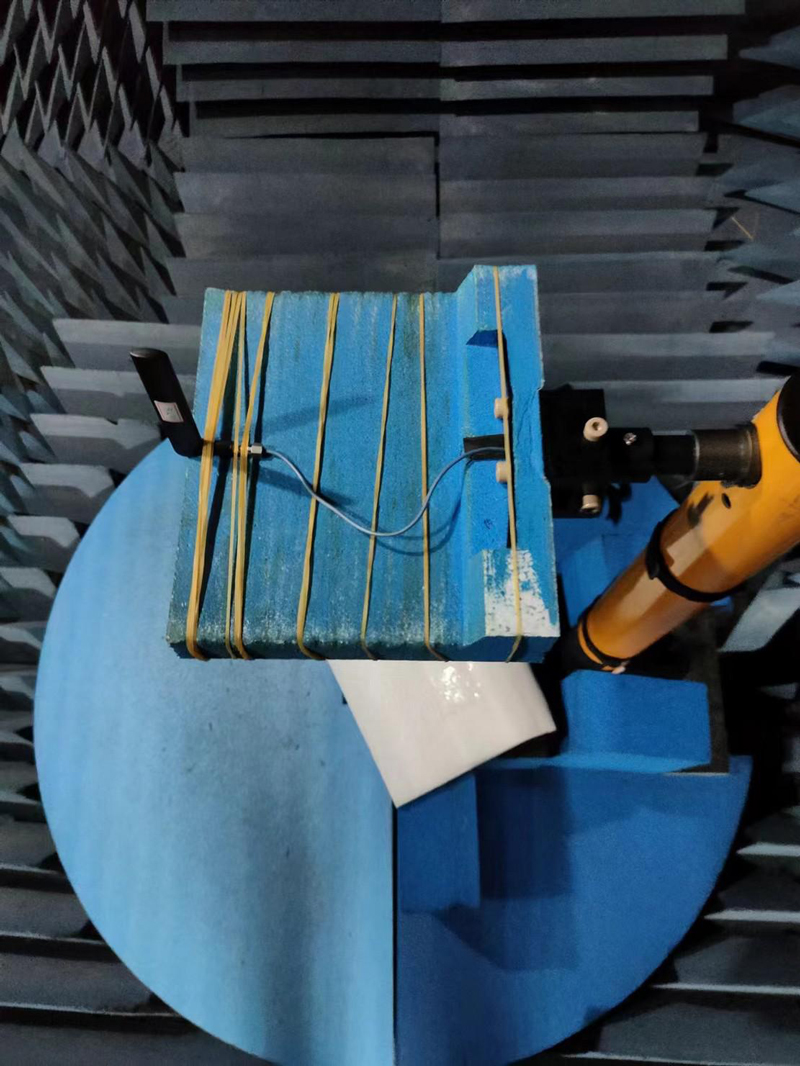

3. Return Loss, V.S.W.R. and Smith Chart
3D Total
Frequency
(MHz) |
Upper Hem.
PRP (dBm) |
Lower HEM.
PRP (dBm) |
Efficiency
(dB) |
Efficiency
(%) |
Gain (dBi) |
Tot. Rad.Pwr.
(dBm) |
| 2400 MHz |
-6.14 |
-5.91 |
-3.01 |
49.99 |
1.25 |
-3.01 |
| 2450 MHz |
-5.51 |
-5.33 |
-2.41 |
57.41 |
1.68 |
-2.41 |
| 2500 MHz |
-6.39 |
-6.01 |
-3.18 |
48.07 |
1.16 |
-3.18 |
| 4800 MHz |
-6.74 |
-6.50 |
-3.61 |
43.57 |
1.40 |
-3.61 |
| 4850 MHz |
-5.84 |
-5.63 |
-2.72 |
53.40 |
1.80 |
-2.72 |
| 4900 MHz |
-4.41 |
-4.28 |
-2.34 |
58.34 |
3.16 |
-2.34 |
| 4950 MHz |
-3.99 |
-3.93 |
-2.95 |
50.70 |
4.11 |
-2.95 |
| 5050 MHz |
-6.48 |
-6.47 |
-3.46 |
45.05 |
1.72 |
-3.46 |
| 5150 MHz |
-5.84 |
-5.55 |
-2.68 |
53.92 |
2.10 |
-2.68 |
| 5250 MHz |
-7.51 |
-7.31 |
-4.40 |
36.32 |
1.19 |
-4.40 |
| 5350 MHz |
-6.99 |
-7.09 |
-4.03 |
39.56 |
2.14 |
-4.03 |
| 5470 MHz |
-6.95 |
-7.04 |
-3.98 |
39.96 |
1.77 |
-3.98 |
| 5597.5 MHz |
-6.60 |
-7.00 |
-3.79 |
41.80 |
1.34 |
-3.79 |
| 5725 MHz |
-6.87 |
-6.98 |
-3.92 |
40.59 |
1.37 |
-3.92 |
| 5785 MHz |
-7.26 |
-7.63 |
-4.43 |
36.05 |
1.97 |
-4.43 |
| 5850 MHz |
-6.87 |
-7.43 |
-4.13 |
38.62 |
1.67 |
-4.13 |
| 5895 MHz |
-6.01 |
-6.41 |
-3.19 |
47.93 |
2.15 |
-3.19 |
| 5925 MHz |
-5.79 |
-6.76 |
-3.24 |
47.45 |
2.67 |
-3.24 |
| 6000 MHz |
-6.59 |
-7.01 |
-3.78 |
41.84 |
1.85 |
-3.78 |
| 6125 MHz |
-6.15 |
-6.40 |
-3.26 |
47.21 |
2.43 |
-3.26 |
| 6225 MHz |
-5.23 |
-5.91 |
-2.54 |
55.69 |
3.66 |
-2.54 |
| 6325 MHz |
-5.43 |
-5.54 |
-2.47 |
56.60 |
3.13 |
-2.47 |
| 6425 MHz |
-4.53 |
-4.84 |
-2.67 |
54.08 |
4.96 |
-2.67 |
| 6525 MHz |
-6.86 |
-7.19 |
-4.01 |
39.71 |
2.00 |
-4.01 |
| 6625 MHz |
-6.16 |
-6.25 |
-3.19 |
47.92 |
3.12 |
-3.19 |
| 6725 MHz |
-6.91 |
-7.29 |
-4.09 |
39.04 |
3.38 |
-4.09 |
| 6875 MHz |
-7.55 |
-7.28 |
-4.41 |
36.26 |
3.02 |
-4.41 |
| 7000 MHz |
-6.77 |
-6.61 |
-3.68 |
42.89 |
2.17 |
-3.68 |
| 7125 MHz |
-5.61 |
-5.38 |
-4.48 |
35.65 |
5.57 |
-4.48 |

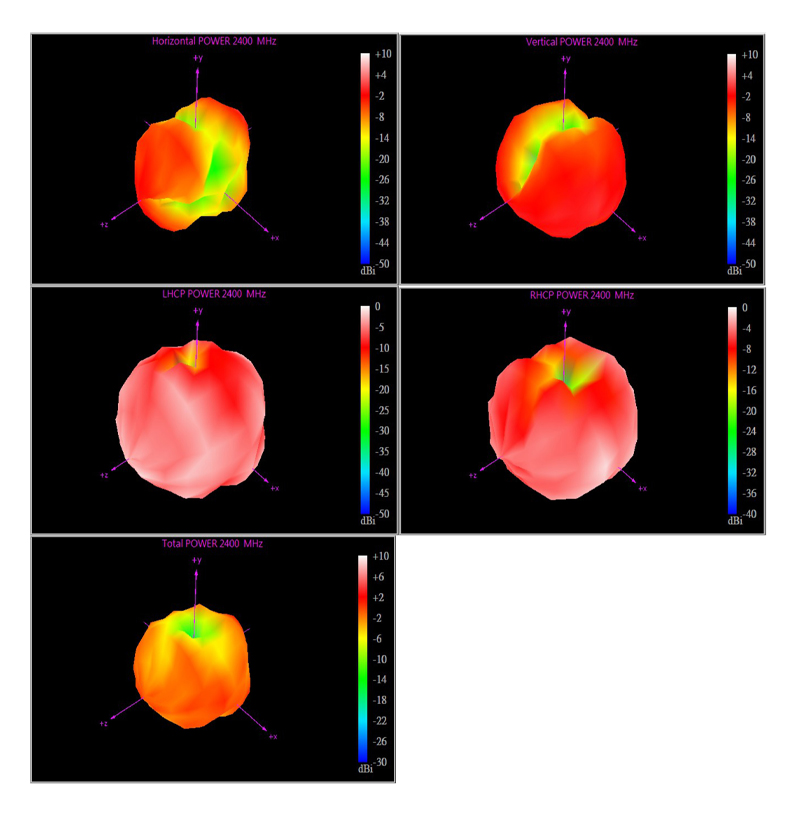

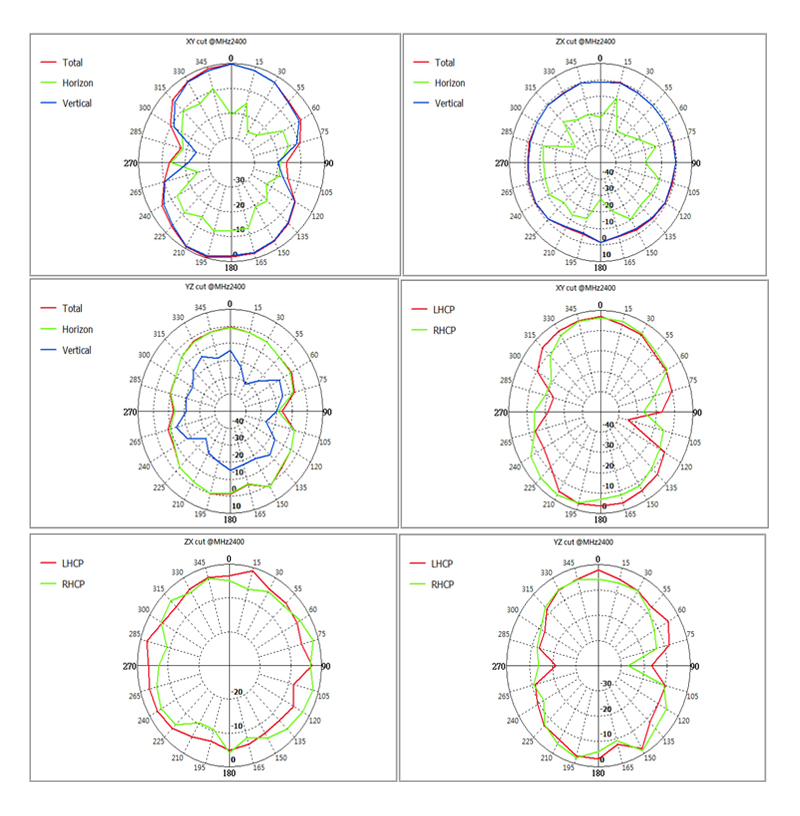

2400Mhz:

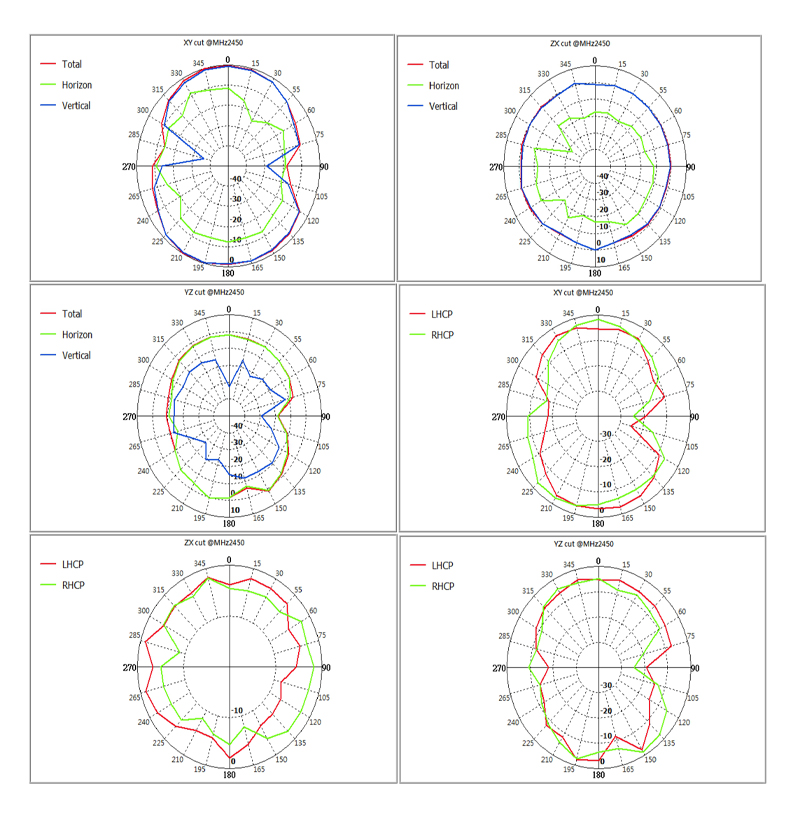

2450Mhz:

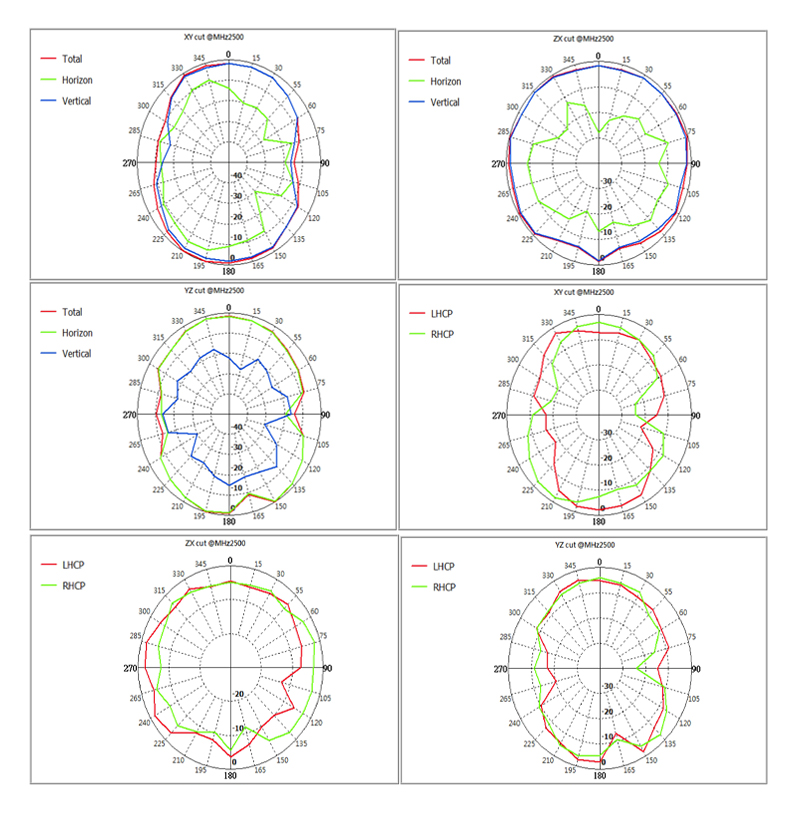

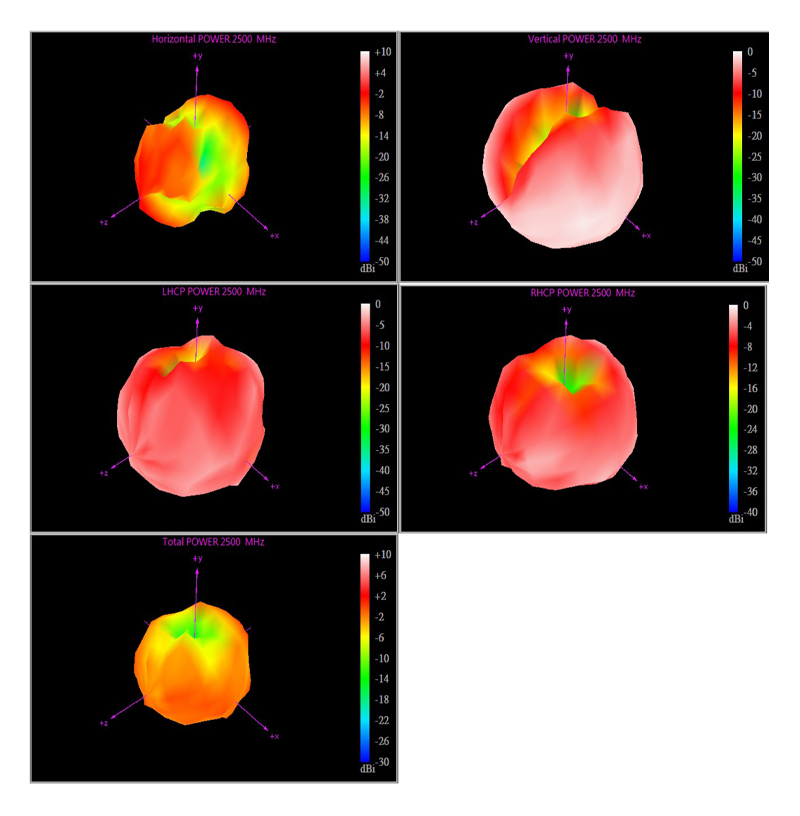

2500Mhz:

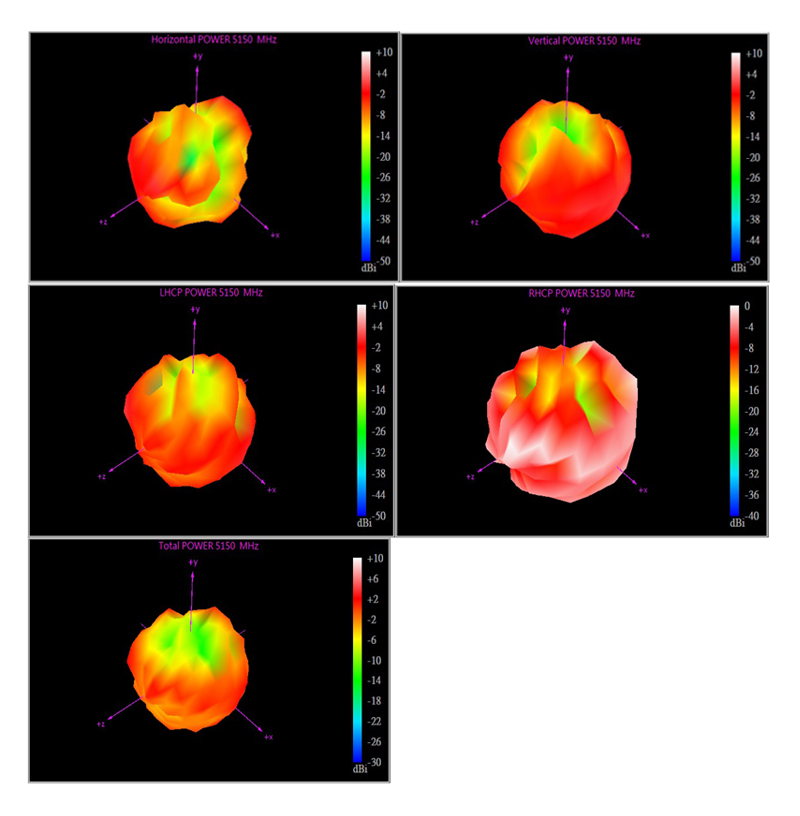

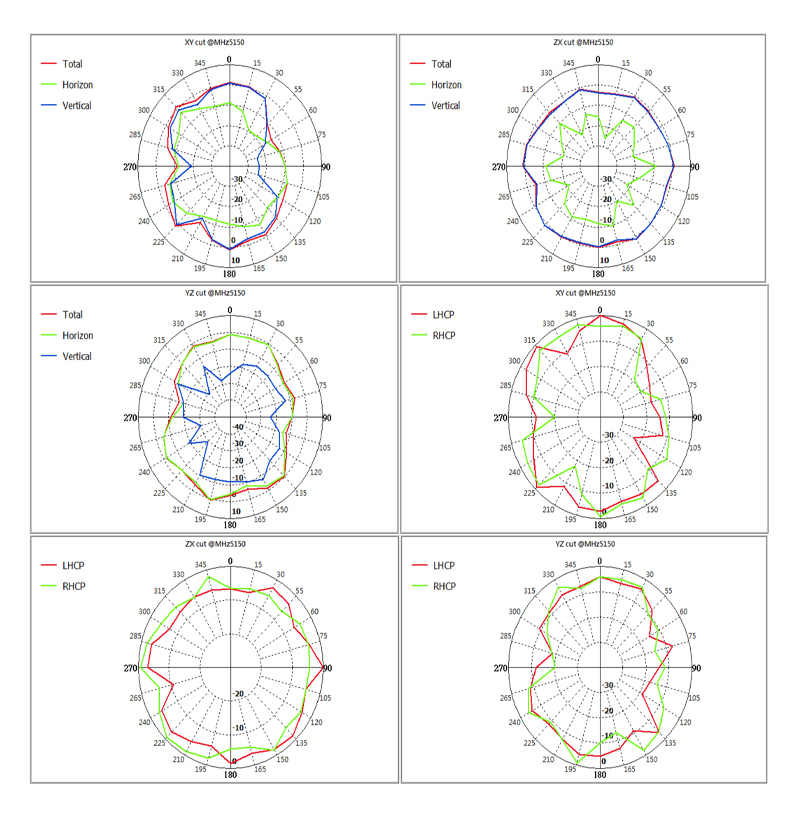

5150Mhz:

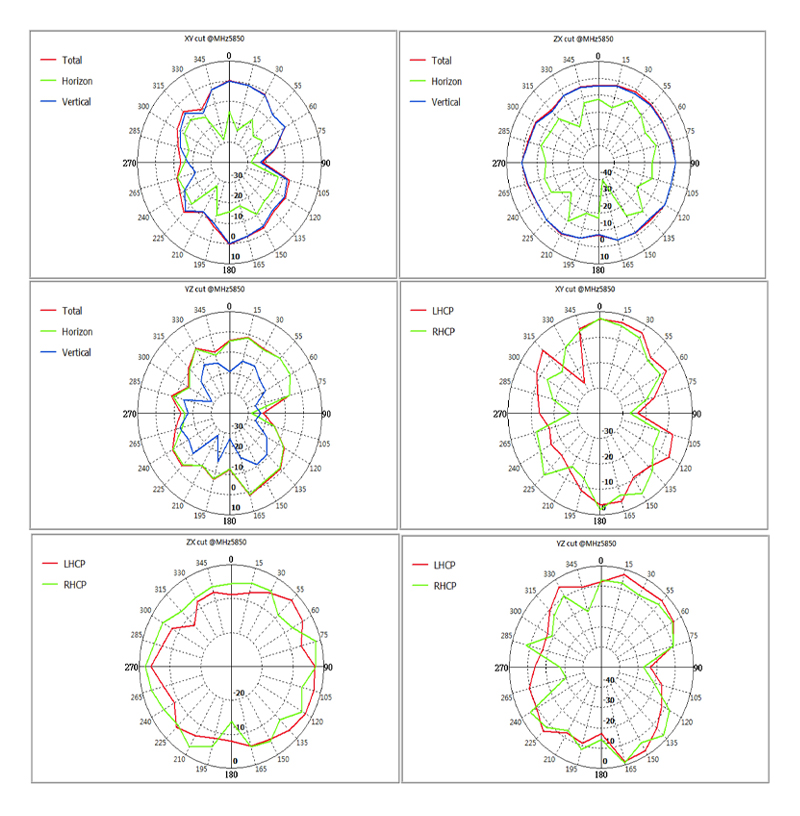

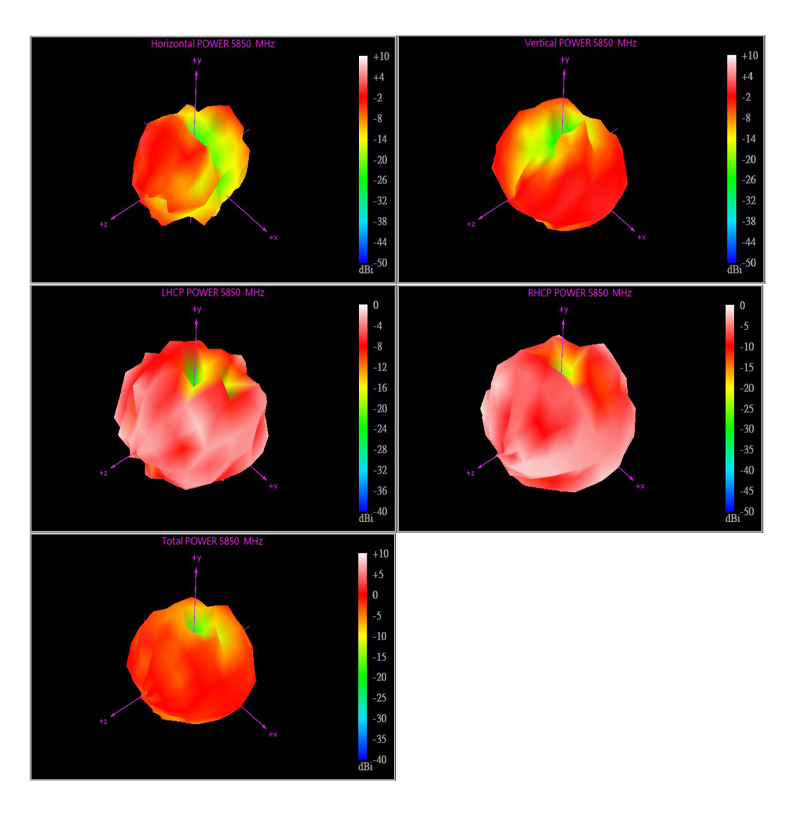

5850Mhz:

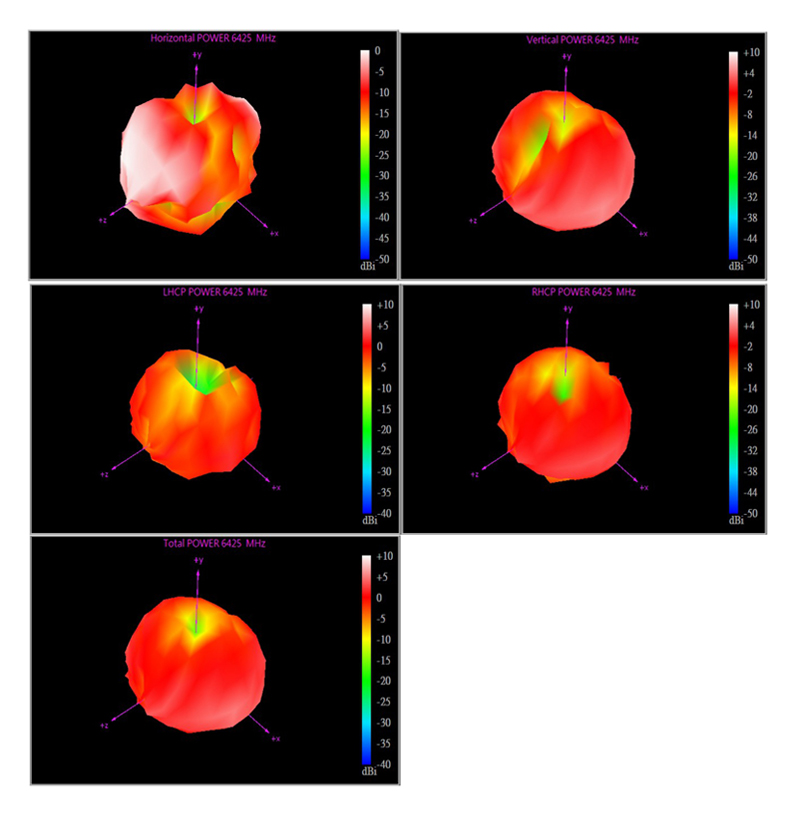

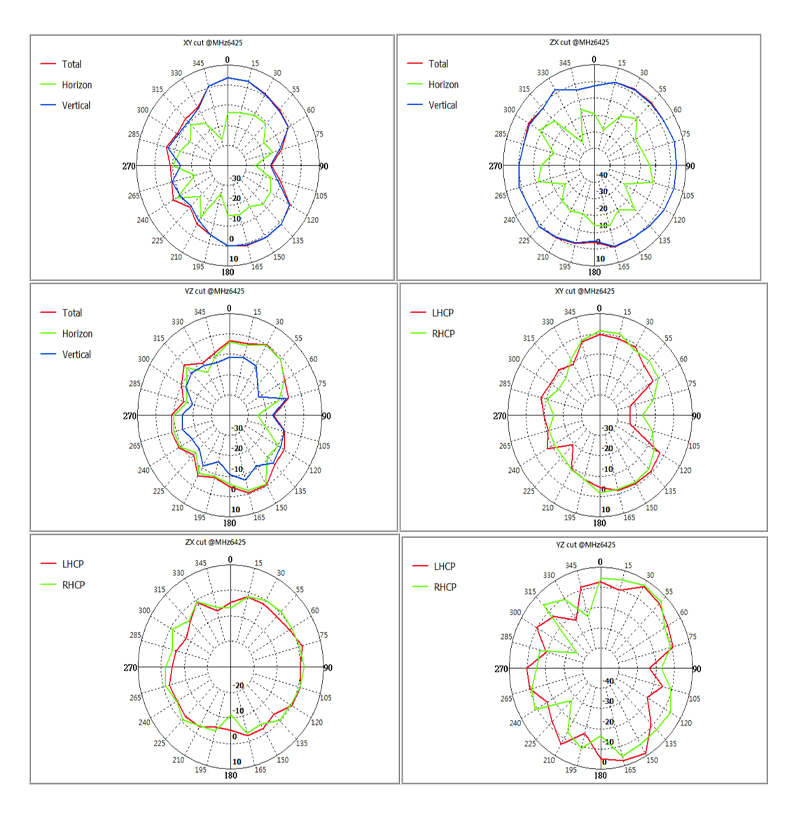

6425Mhz:

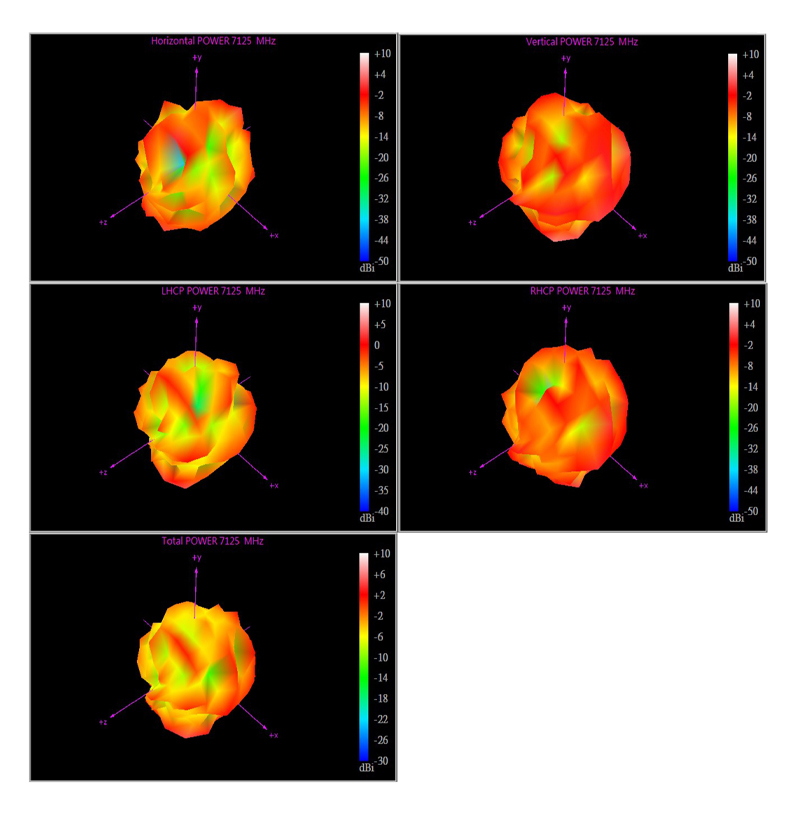

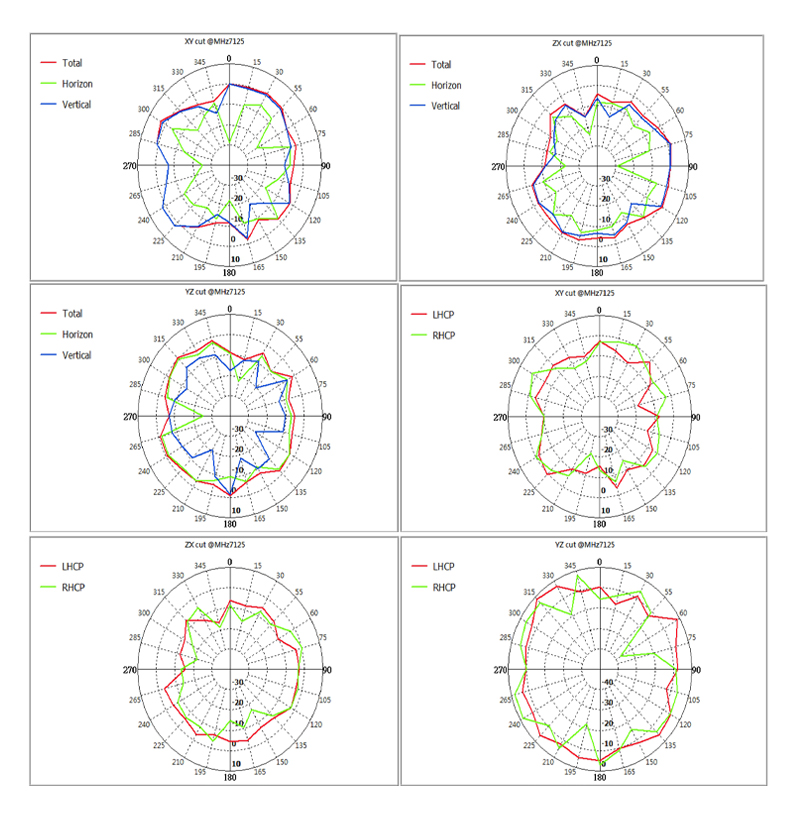

7125Mhz:
