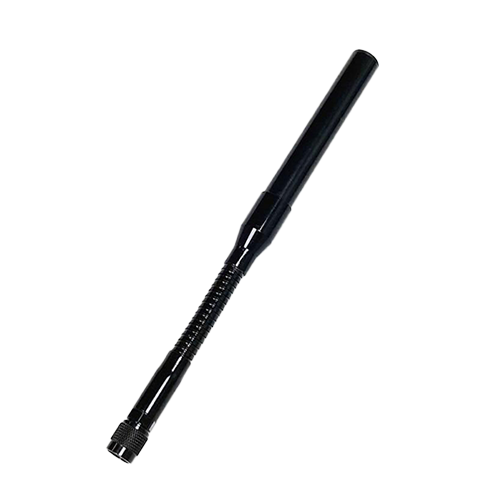

1.6~5Ghz Broadband Gooseneck Antenna TH-1650

TH‐1650

Inquiry

Download

1.6~5Ghz Broadband Gooseneck Antenna TH-1650
  • Product Description
  • Product Specification

1.GENERAL DESCRIPTION

Model No
TH1650-TNC(M)

1.1 Electrical Properties

Parameter Description
Frequency Band 1600~5000Mhz
Nominal Impedance 50 ohm
Polarization Vertical

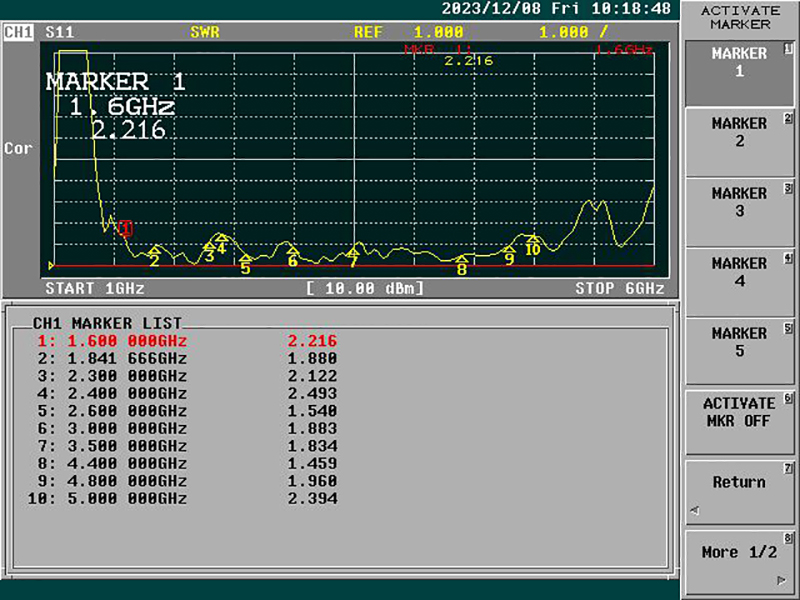

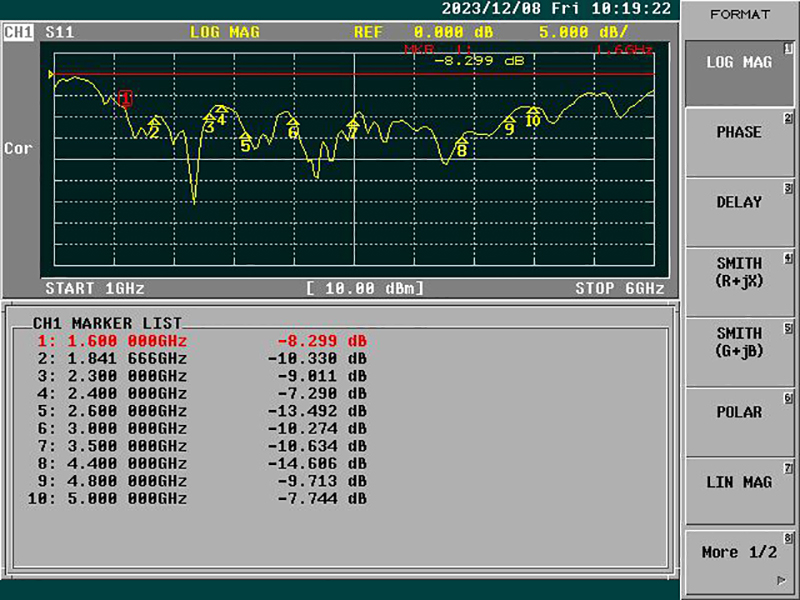

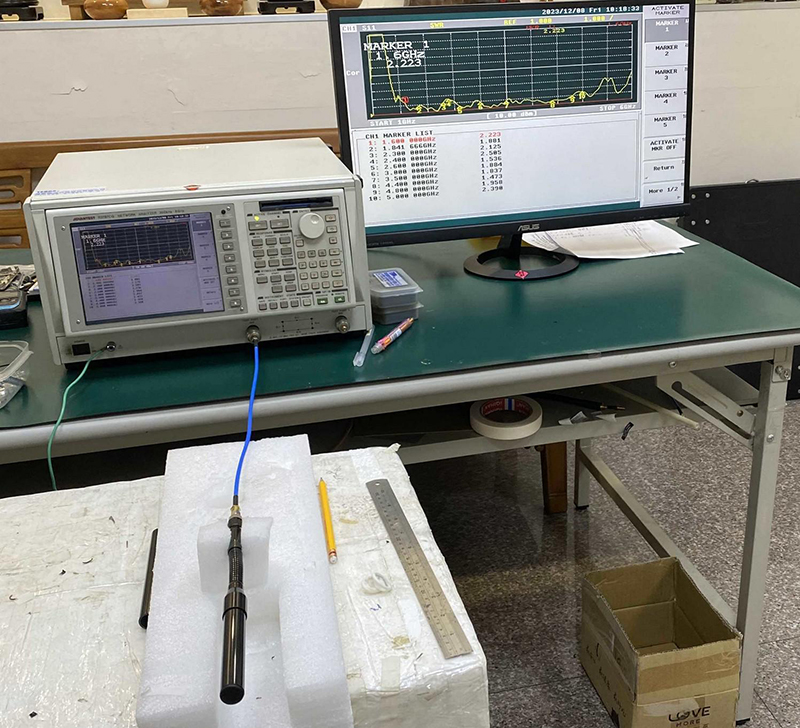

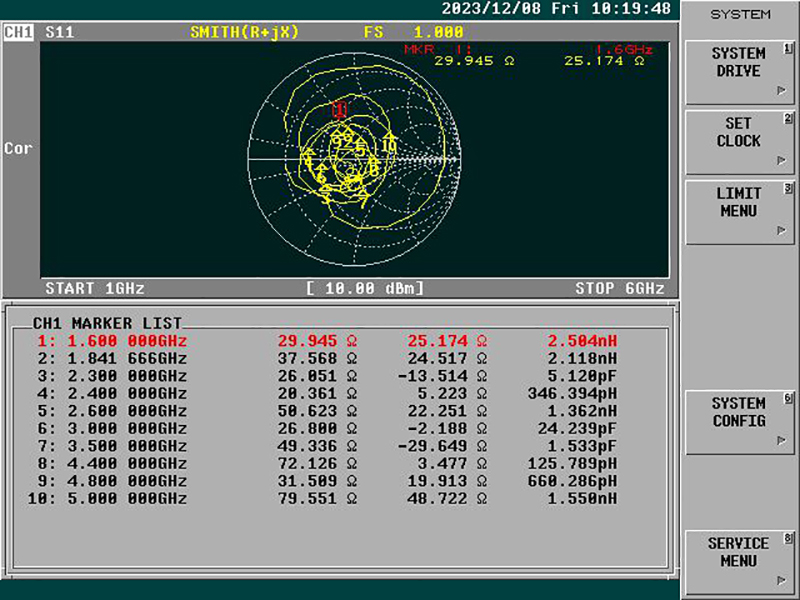

V.S.W.R 2.5:1

1.2 Mechanical Properties

Parameter Description
Antenna Type External Antenna
Material ASA
Touch Type Screw Type
Connector Type SMA connector (Male)

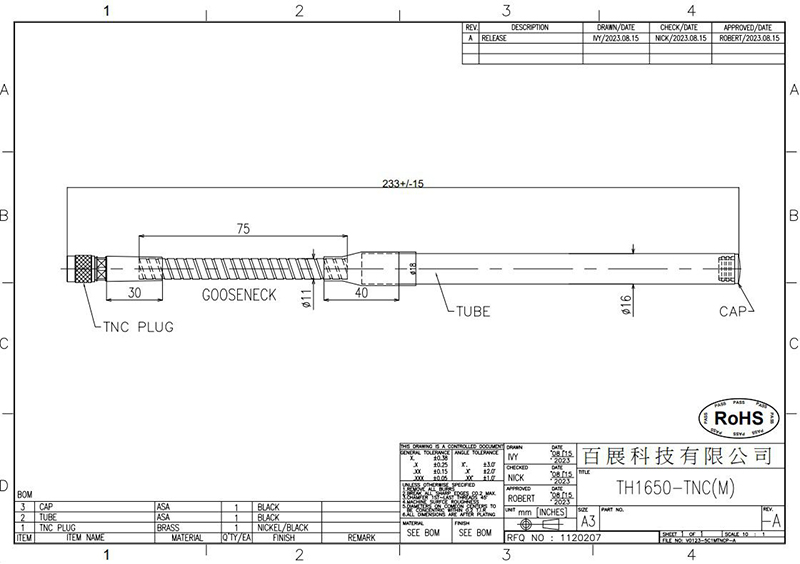

Antenna Dimensions Ø16 x 233mm ±15
Weight 115g
Antenna Color Black
Operating Temperature Range -40°C~+85°C
Storage Temperature Range -40°C~+85°C






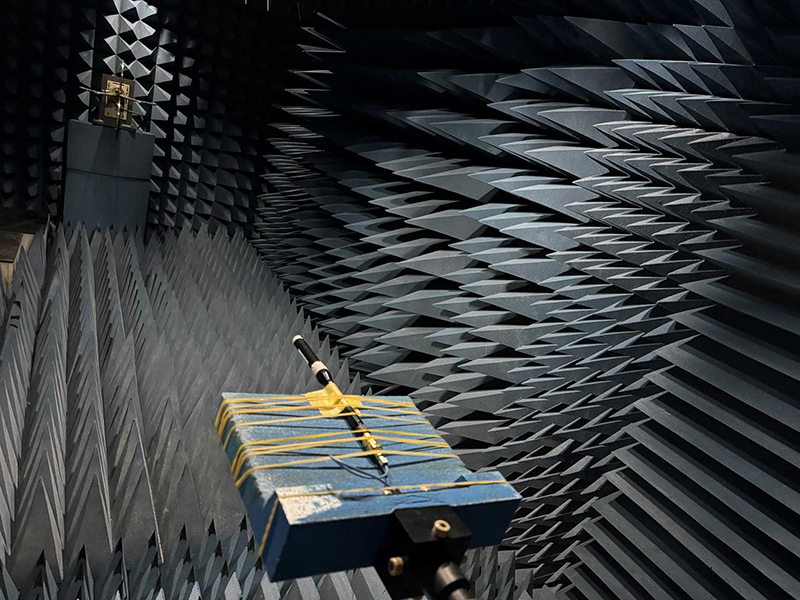

3D Total

Frequency
(MHz)		 Upper Hem.PRP
(dBm)		 Lower HEM.PRP
(dBm)		 Efficiency
(dB)		 Efficiency
(%)		 Gain
(dBi)		 Tot.Rad.Pwr.
(dBm)
1600 MHz -5.64 -5.53 -2.58 55.27 0.85 -2.58
1605 MHz -5.85 -5.72 -2.77 52.84 0.91 -2.77
1610 MHz -5.91 -5.80 -2.84 51.95 0.89 -2.84
1710 MHz -4.94 -4.57 -1.74 66.98 1.83 -1.74
1730 MHz -4.88 -4.43 -1.64 68.56 2.12 -1.64
1750 MHz -5.80 -5.19 -2.48 56.55 1.23 -2.48
1770 MHz -5.85 -5.43 -2.62 54.70 0.95 -2.62
1785 MHz -5.73 -5.30 -2.50 56.21 1.28 -2.50
1805 MHz -6.86 -6.09 -3.45 45.18 0.08 -3.45
1840 MHz -6.63 -5.42 -2.97 50.45 0.75 -2.97
1850 MHz -6.21 -4.79 -2.43 57.08 1.35 -2.43
1880 MHz -6.99 -5.22 -3.01 50.03 0.75 -3.01
1910 MHz -7.06 -4.90 -2.84 52.05 1.78 -2.84
1920 MHz -6.81 -4.64 -2.58 55.18 1.75 -2.58
1930 MHz -7.34 -4.75 -2.84 51.99 2.18 -2.84
1950 MHz -7.54 -4.10 -2.48 56.50 3.36 -2.48
1960 MHz -8.07 -4.05 -2.60 54.99 3.09 -2.60
1980 MHz -9.08 -3.76 -2.64 54.46 3.69 -2.64
1995 MHz -9.76 -3.76 -2.79 52.66 4.13 -2.79
2110 MHz -4.47 -4.52 -1.49 71.03 3.07 -1.49
2140 MHz -4.32 -5.13 -1.70 67.60 2.25 -1.70
2170 MHz -4.79 -5.86 -2.28 59.14 1.84 -2.28
2300 MHz -5.71 -6.10 -2.89 51.42 0.92 -2.89
2325 MHz -5.11 -5.07 -2.08 61.95 1.89 -2.08
2350 MHz -6.09 -5.60 -2.83 52.14 1.33 -2.83
2375 MHz -6.37 -5.50 -2.90 51.27 1.42 -2.90
2400 MHz -6.96 -5.64 -3.24 47.42 1.38 -3.24
2500 MHz -7.67 -4.62 -2.87 51.60 1.45 -2.87
2515 MHz -7.55 -4.30 -2.62 54.69 1.86 -2.62
2535 MHz -7.71 -4.59 -2.86 51.72 1.62 -2.86
2555 MHz -7.60 -4.40 -2.70 53.67 2.17 -2.70
2570 MHz -7.25 -4.35 -2.55 55.60 2.32 -2.55
2595 MHz -6.81 -4.61 -2.56 55.46 1.85 -2.56
2620 MHz -6.89 -5.11 -2.90 51.34 2.19 -2.90
2630 MHz -6.95 -5.28 -3.02 49.86 1.50 -3.02
2655 MHz -6.50 -4.69 -2.49 56.38 1.64 -2.49
2680 MHz -6.68 -4.80 -2.63 54.61 1.63 -2.63
2690 MHz -6.94 -4.99 -2.85 51.92 1.64 -2.85
3300 MHz -6.27 -3.93 -1.93 64.06 4.55 -1.93
3350 MHz -5.14 -3.14 -1.02 79.08 5.16 -1.02
3400 MHz -7.56 -5.74 -3.54 44.22 2.77 -3.54
3450 MHz -7.04 -4.08 -2.30 58.89 4.50 -2.30
3500 MHz -7.33 -3.64 -2.09 61.74 3.87 -2.09
3550 MHz -7.52 -4.35 -2.64 54.41 2.48 -2.64
3600 MHz -6.90 -4.80 -2.71 53.55 2.30 -2.71
3650 MHz -4.14 -3.20 -0.63 86.48 3.97 -0.63
3700 MHz -5.98 -5.51 -2.73 53.34 1.54 -2.73
3750 MHz -5.83 -5.33 -2.56 55.40 1.84 -2.56
3800 MHz -6.60 -5.96 -3.26 47.21 0.20 -3.26
3850 MHz -5.02 -4.84 -1.92 64.25 1.58 -1.92
4400 MHz -4.90 -6.35 -2.55 55.53 1.04 -2.55
4450 MHz -6.79 -8.39 -4.50 35.44 -0.70 -4.50
4500 MHz -6.30 -8.42 -4.22 37.81 -0.54 -4.22
4550 MHz -5.90 -8.21 -3.89 40.83 -0.37 -3.89
4600 MHz -6.08 -8.48 -4.11 38.83 -0.32 -4.11
4650 MHz -5.80 -8.48 -3.93 40.49 -0.53 -3.93
4700 MHz -6.26 -8.36 -4.17 38.28 5.7 -4.17
4750 MHz -5.59 -8.85 -3.91 40.62 0.76 -3.91
4850 MHz -4.76 -7.78 -3.00 50.10 2.04 -3.00
4900 MHz -5.00 -7.94 -3.21 47.72 1.21 -3.21
5000 MHz -5.29 -7.14 -3.8 41.69 1.99 -3.8

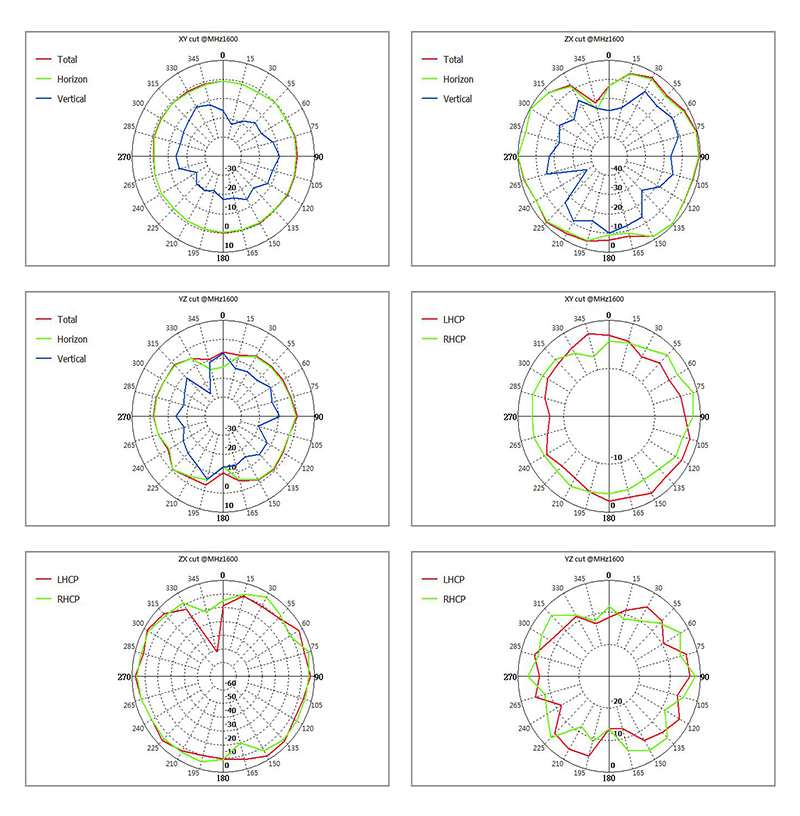

1600Mhz:

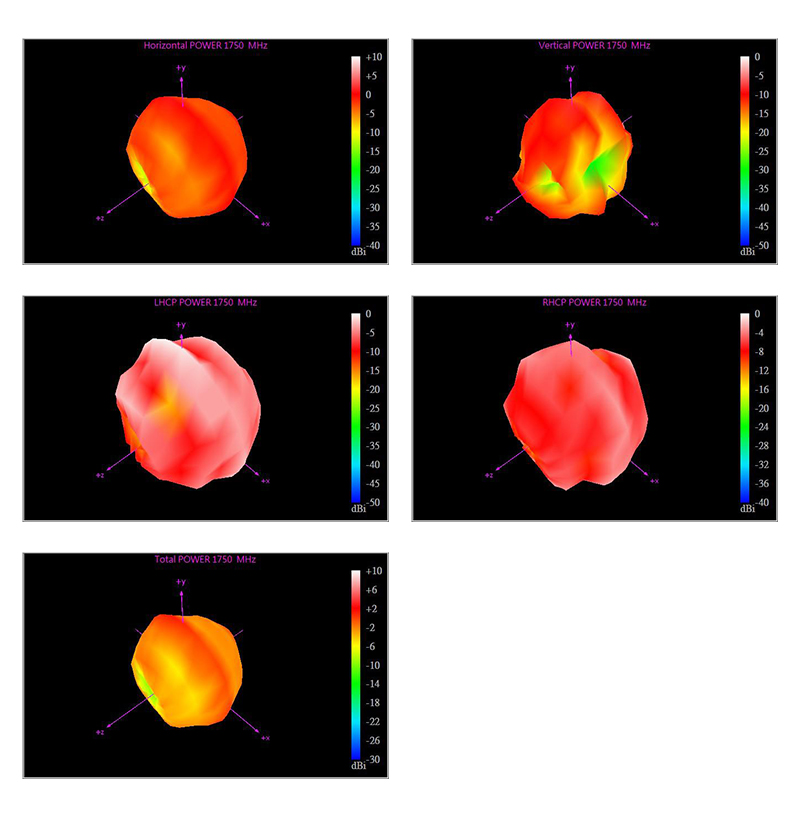

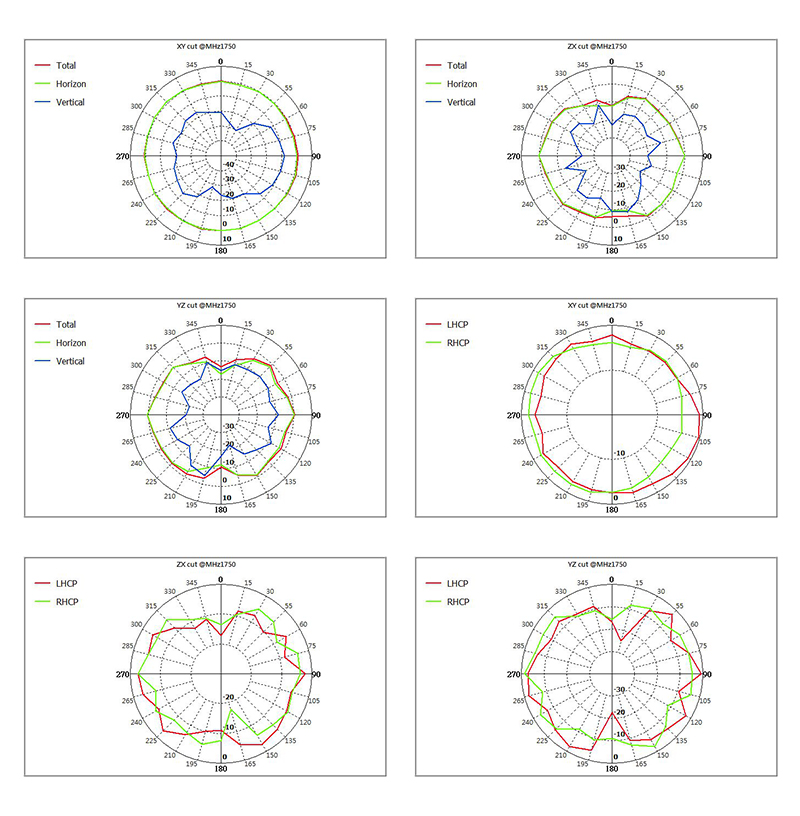

1750Mhz:


1850Mhz:

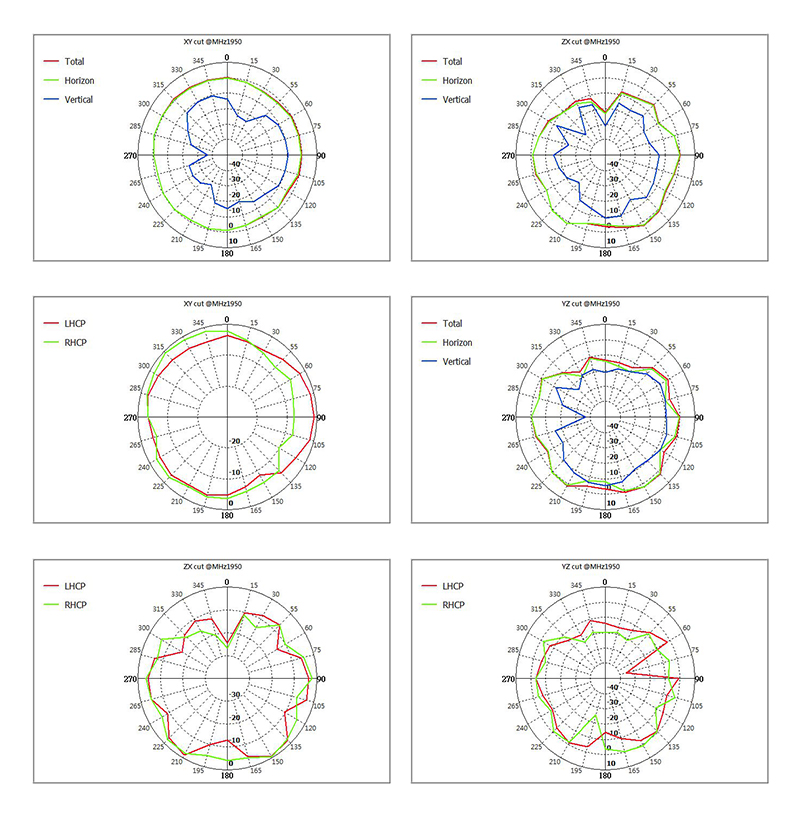

1950Mhz:


2110Mhz:


2350Mhz:

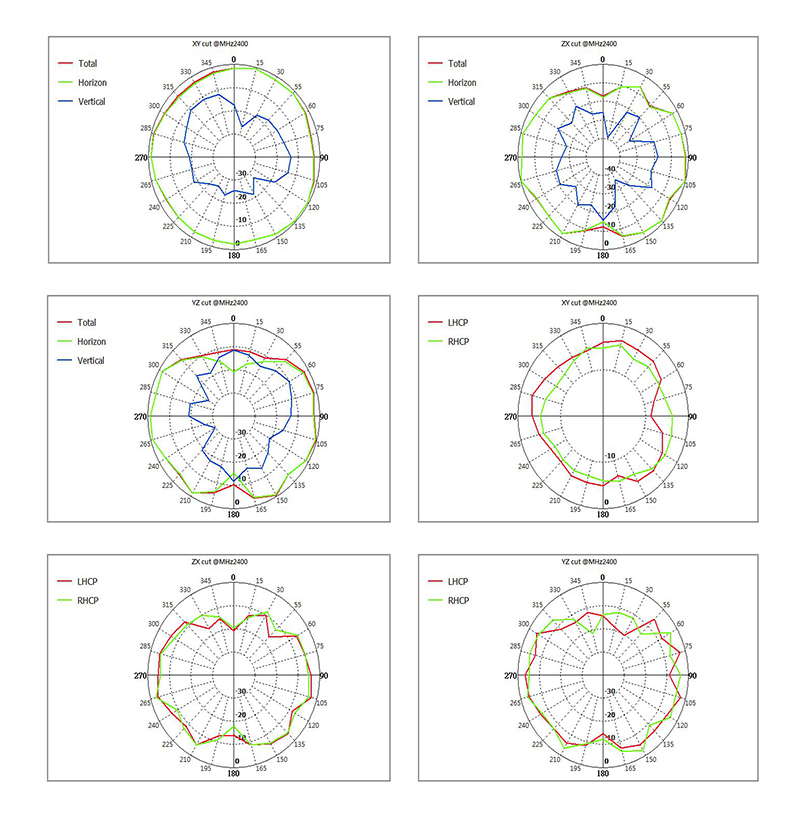

2400Mhz:

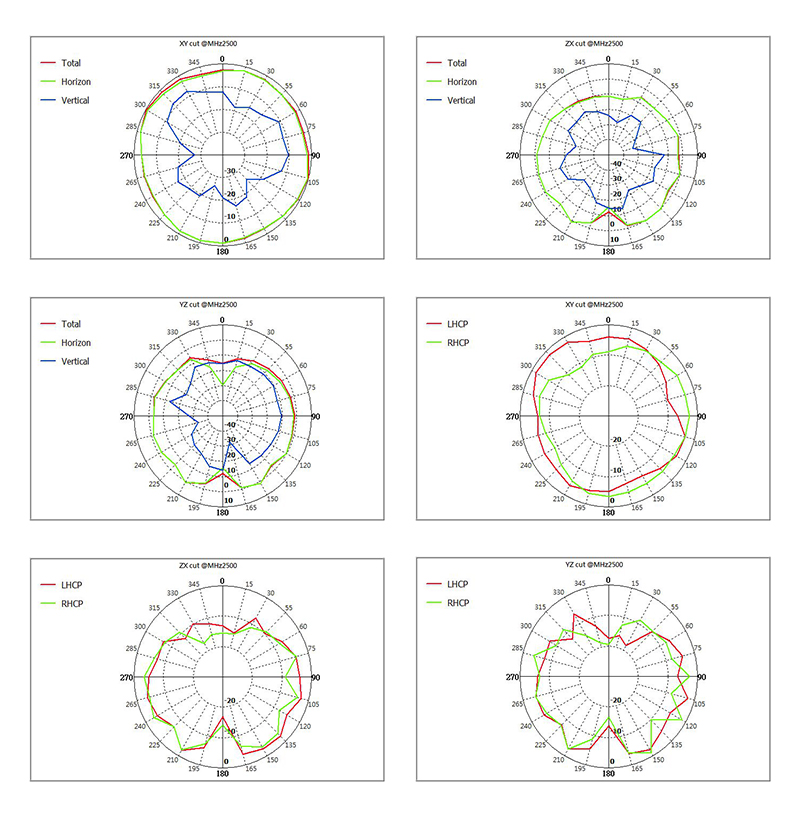

2500Mhz:

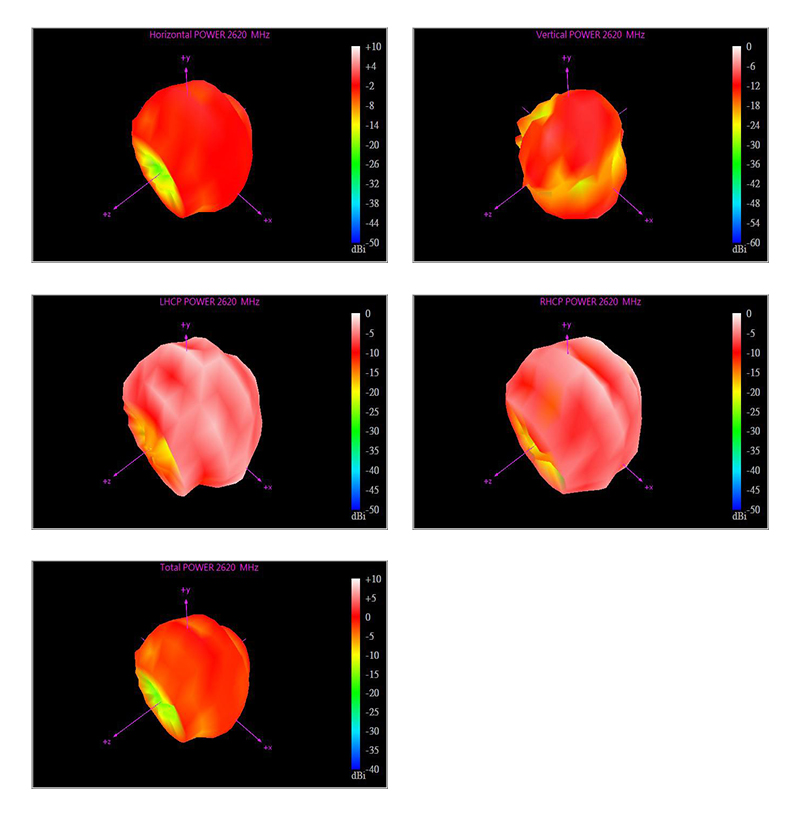

2620Mhz:

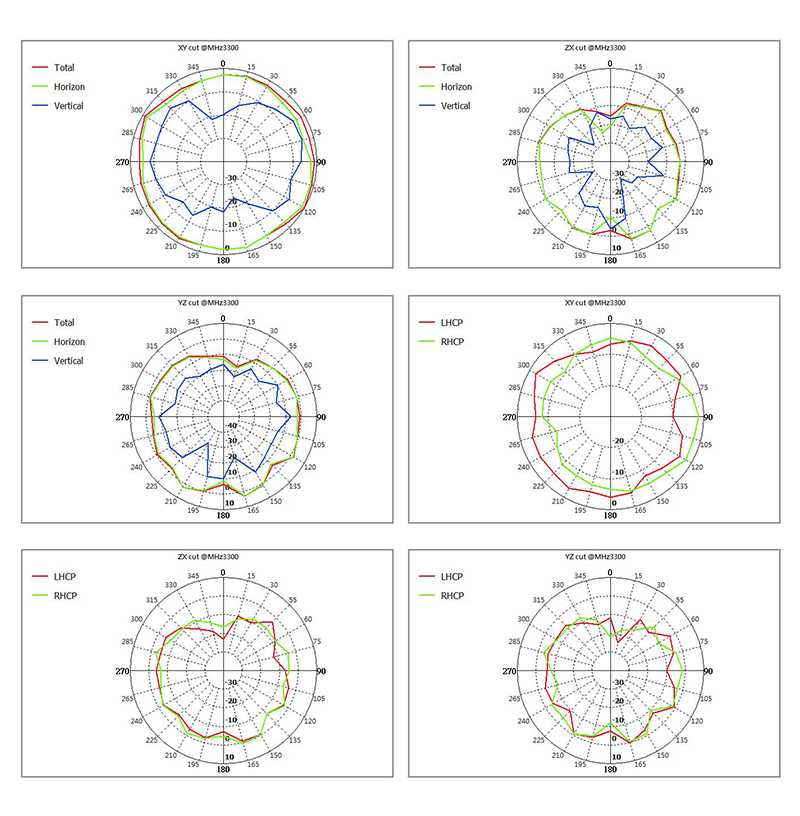

3300Mhz:

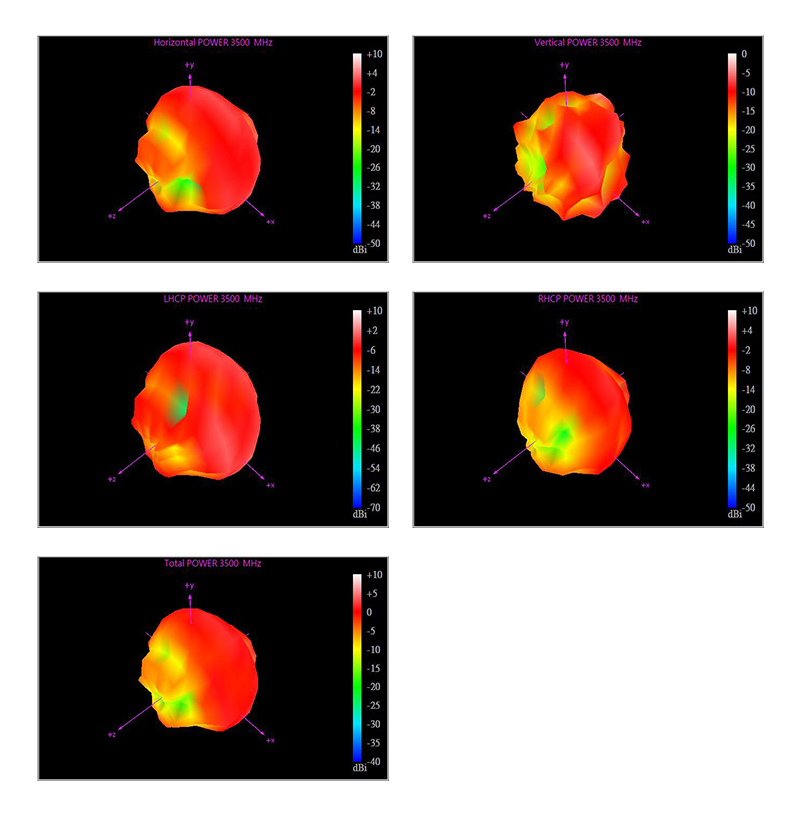

3500Mhz:

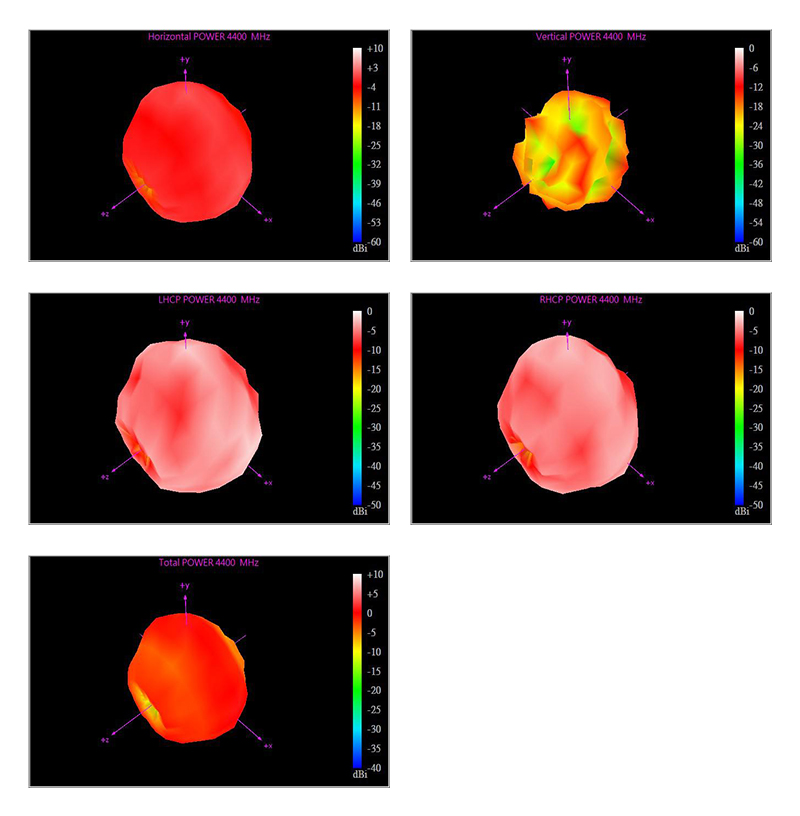

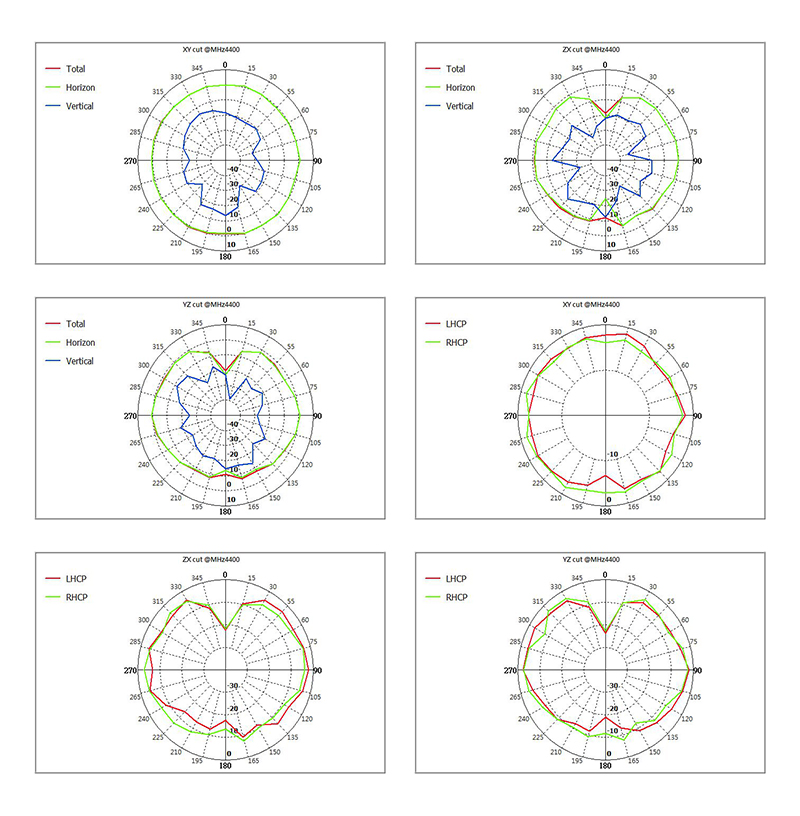

4400Mhz:

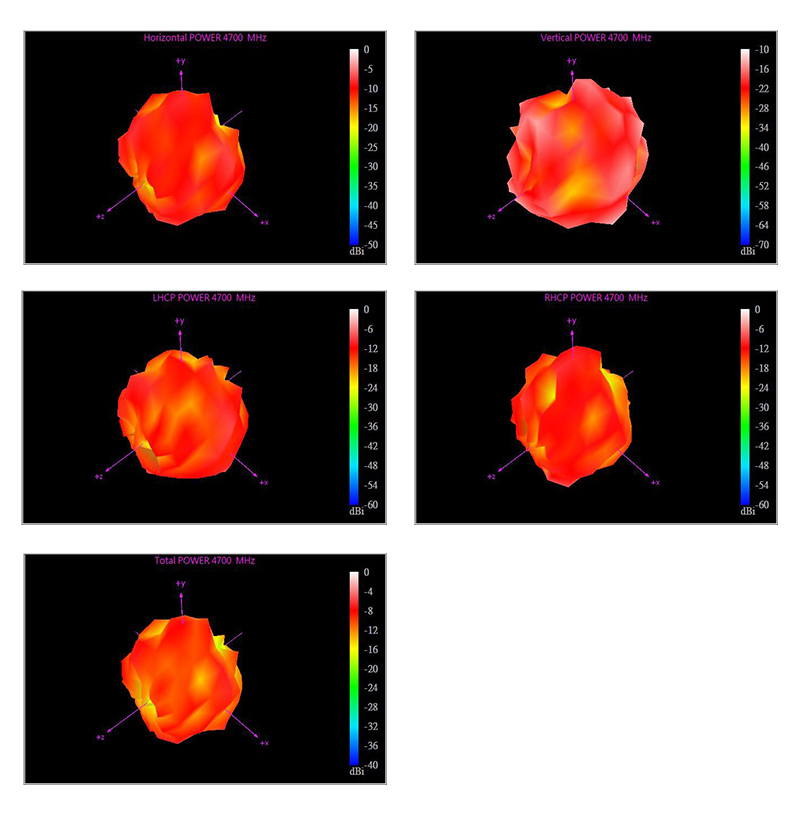

4700Mhz:

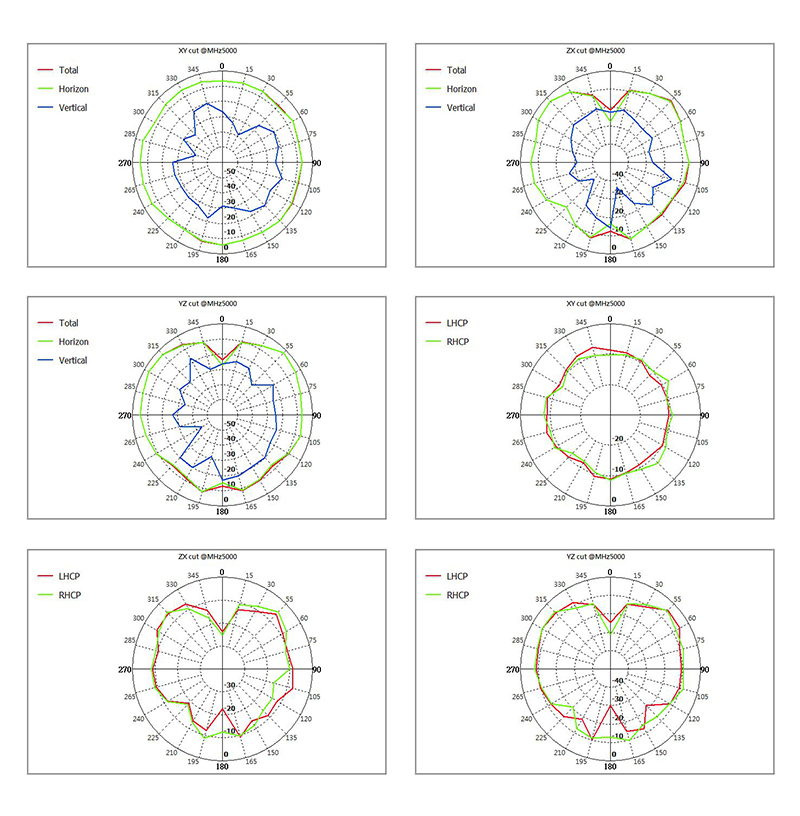

5000Mhz:
