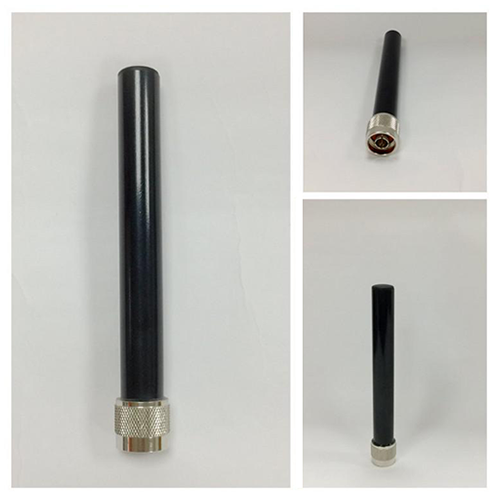

TH-1425 L & S Band Omni Antenna
  • Product Description
  • Product Specification

1.GENERAL DESCRIPTION

P/N
TH-1425-N(M)

1.1 Electrical Properties

Parameter Description
Frequency Band 1350~1500 & 2200~2500MHz

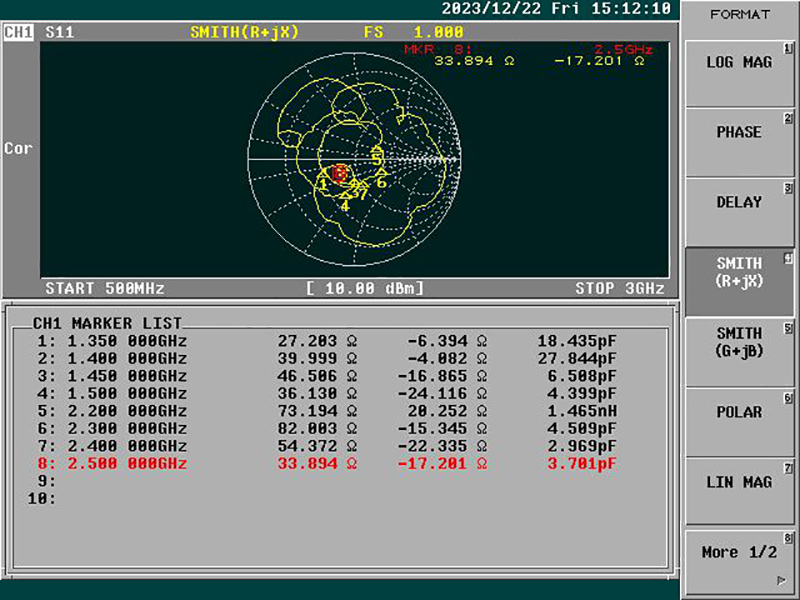

Nominal Impedance 50 ohm
Polarization Vertical

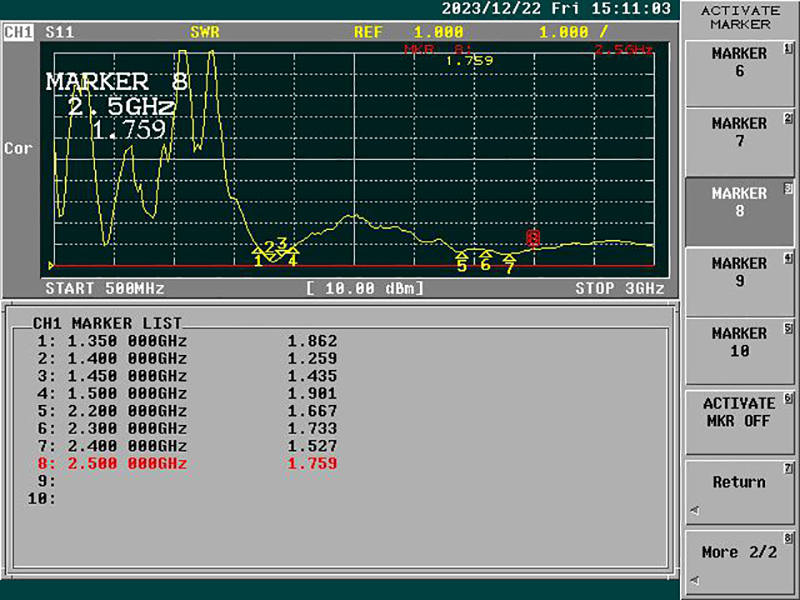

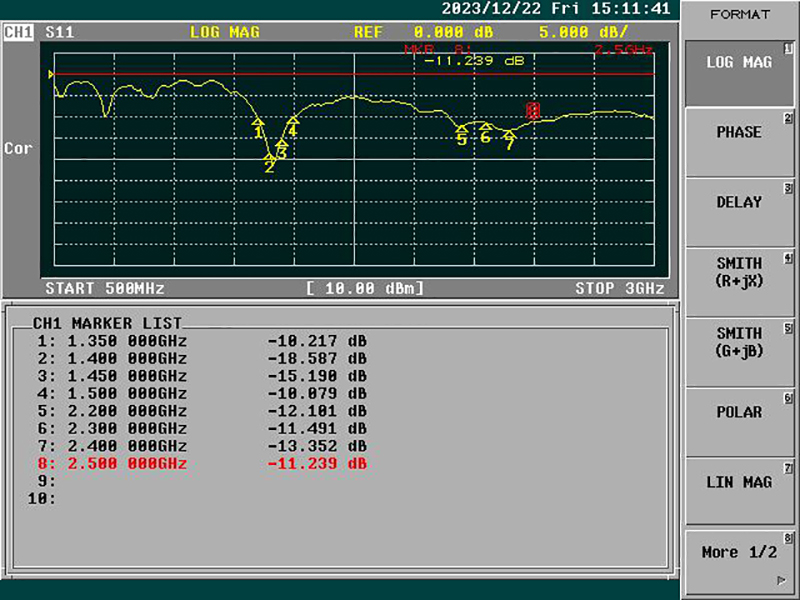

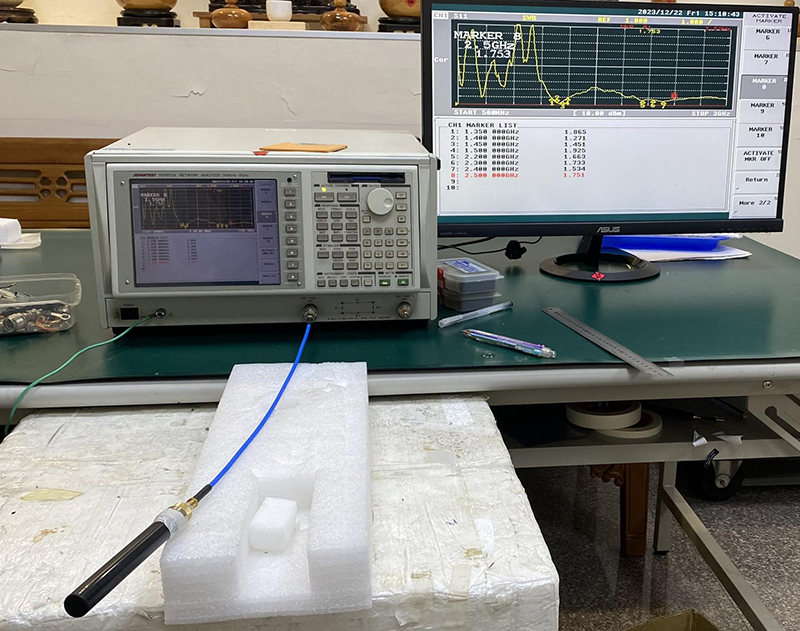

V.S.W.R 2.0:1
Power 10W
Gain 1.5db

1.2 Mechanical Properties Parameter

Parameter Description
Antenna Type External Antenna
Materal ASA
Touch Type Screw Type
Connector Type N Connector (Male)
Antenna Dimensions 136mm ±3
Antenna Color Black
Operating Temperature Range -45°C~+85°C
Storage Temperature Range -45°C~+85°C

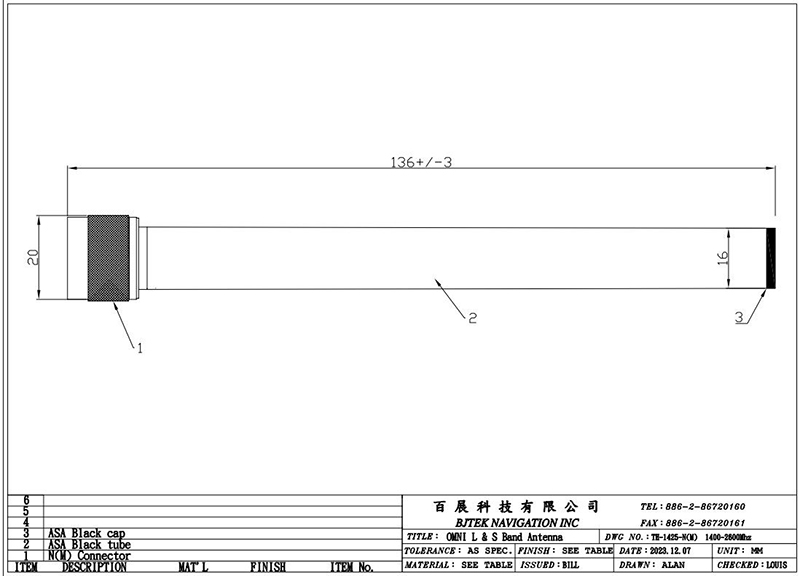

2. Appearance

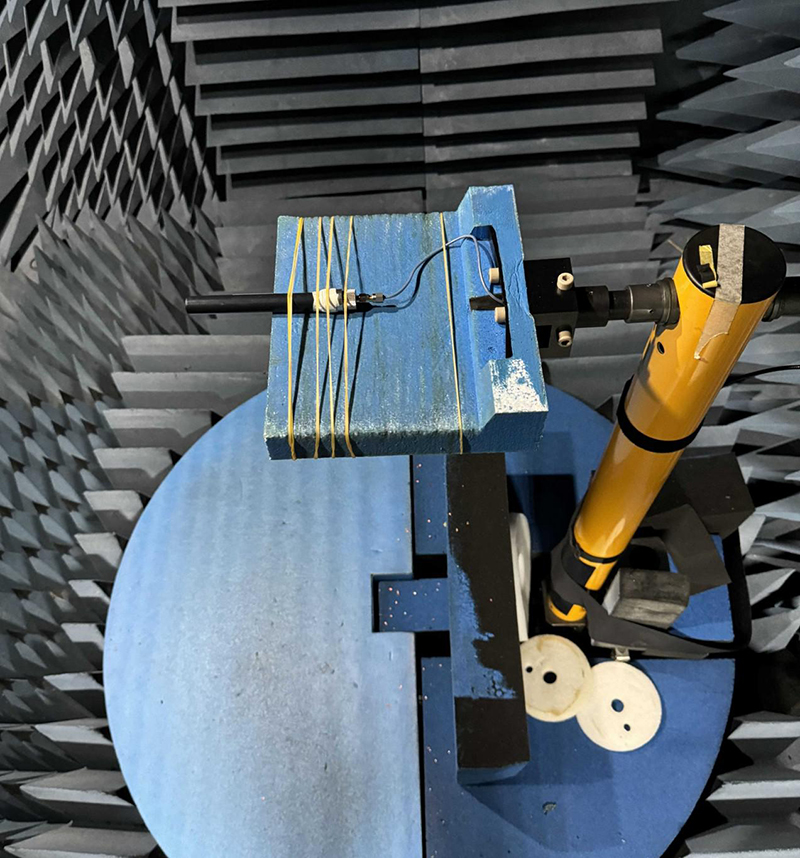

3D Total

Frequency
(MHz)		 Upper Hem.PRP
(dBm)		 Lower HEM.PRP
(dBm)		 Efficiency
(dB)		 Efficiency
(%)		 Gain
(dBi)		 Tot.Rad.Pwr.
(dBm)
1350 MHz -4.90 -6.66 -2.68 53.90 0.44 -2.68
1400 MHz -4.45 -6.01 -2.15 60.96 1.18 -2.15
1450 MHz -5.22 -6.34 -2.73 53.33 0.21 -2.73
1500 MHz -5.56 -6.01 -2.77 52.90 0.45 -2.77
2200 MHz -5.78 -4.29 -1.96 63.64 1.79 -1.96
2300 MHz -6.66 -4.98 -2.73 53.39 1.39 -2.73
2400 MHz -5.25 -5.06 -2.15 60.99 1.22 -2.15
2450 MHz -4.62 -5.09 -1.84 65.49 1.02 -1.84
2500 MHz -4.46 -5.12 -1.77 66.55 0.80 -1.77
2600 MHz -3.89 -5.05 -1.42 72.06 1.77 -1.42

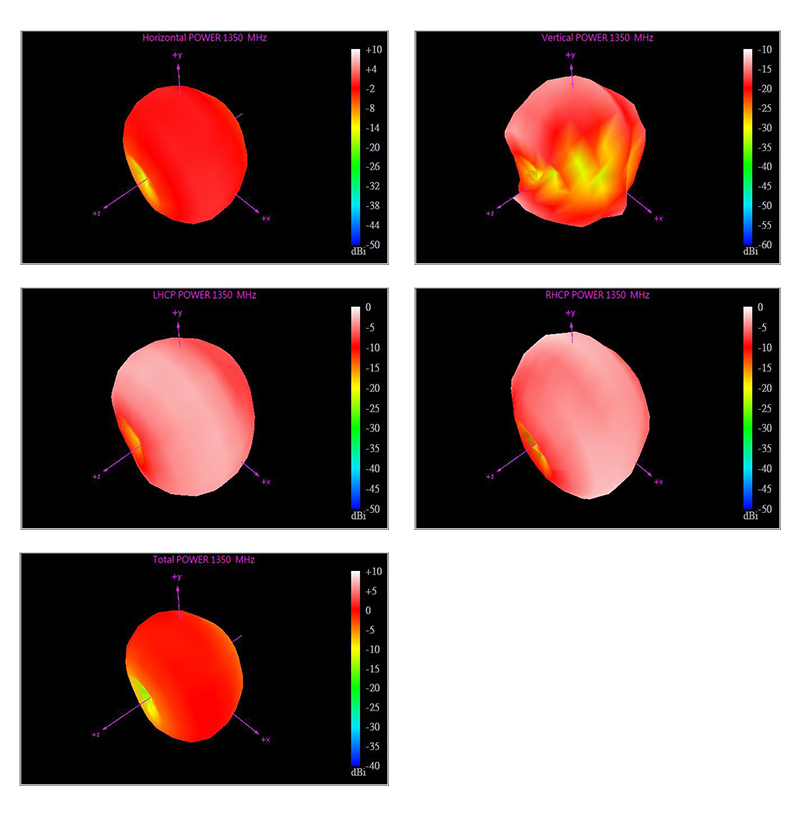

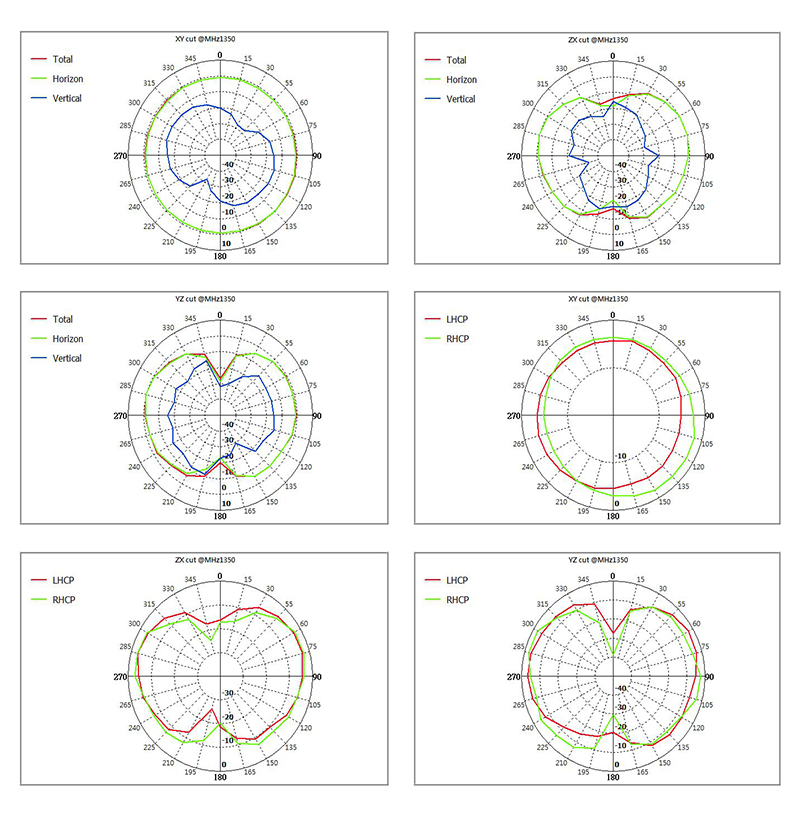

1350Mhz:

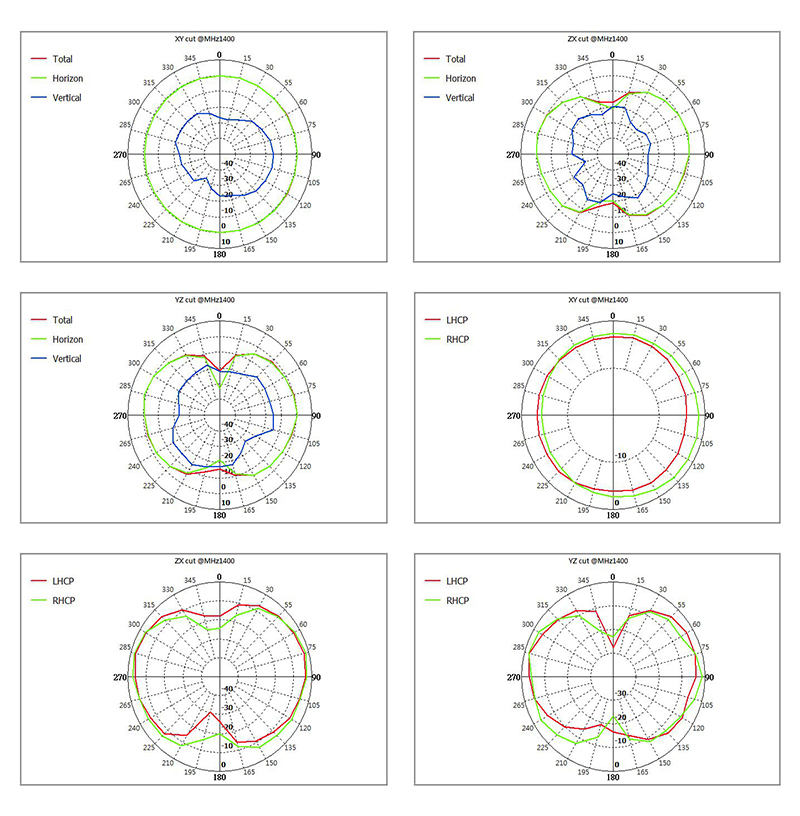

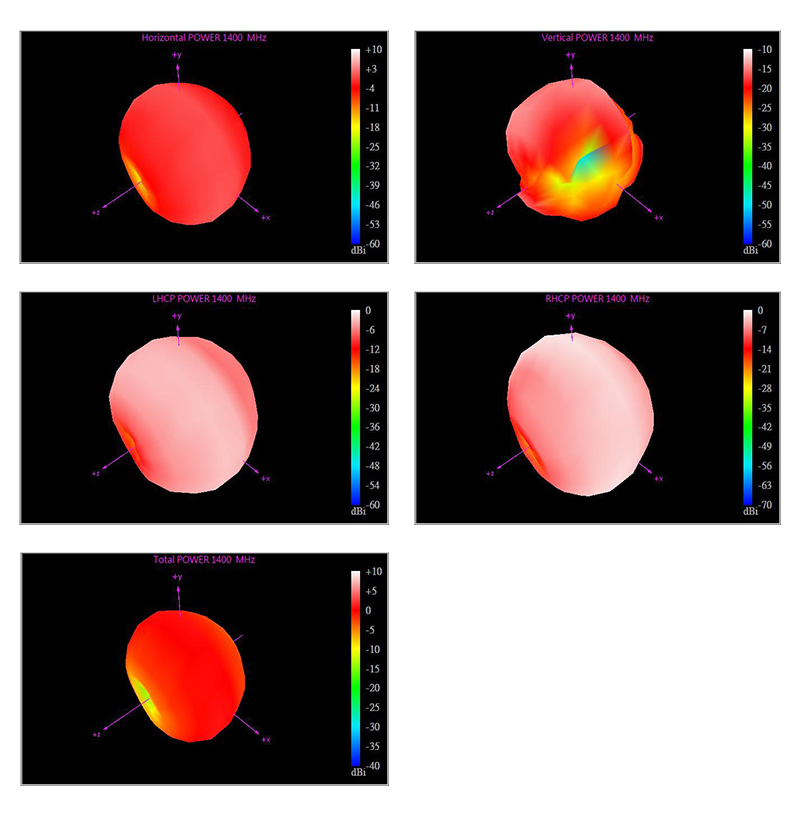

1400Mhz:

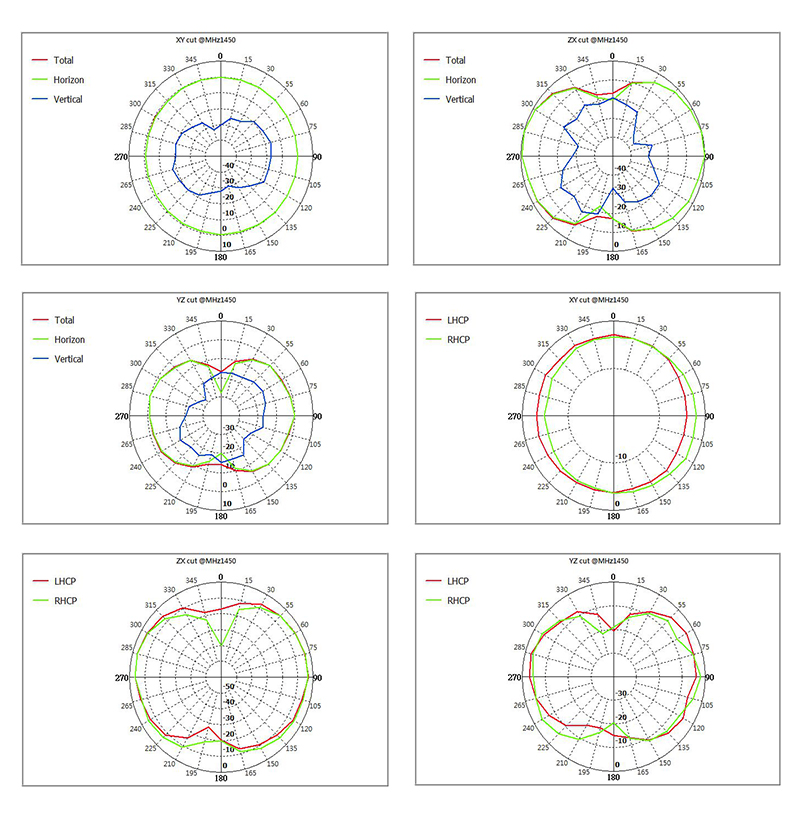

1450Mhz:

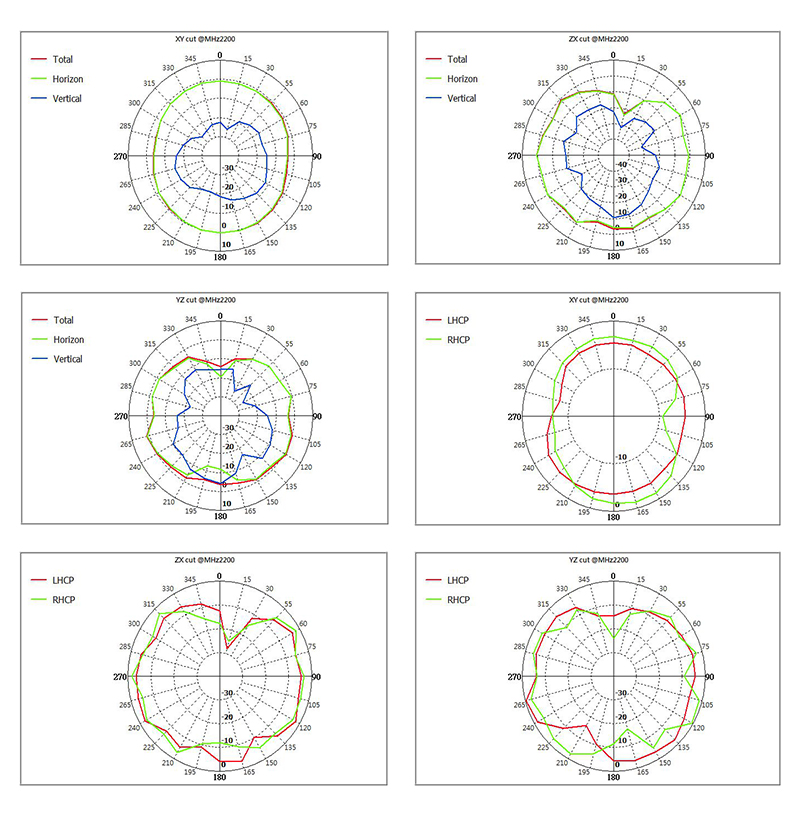

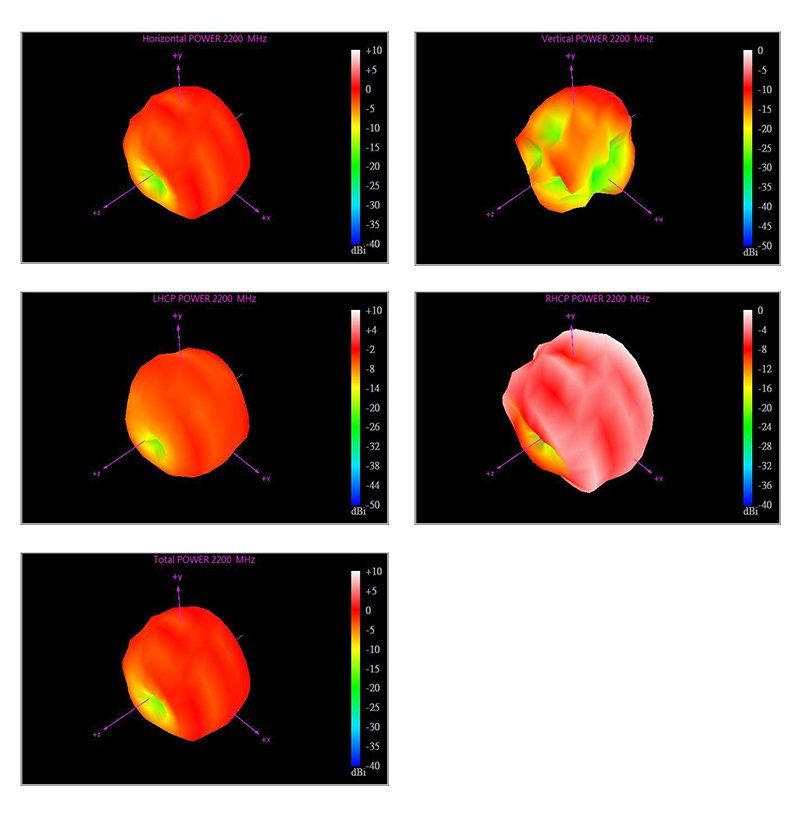

2200Mhz:

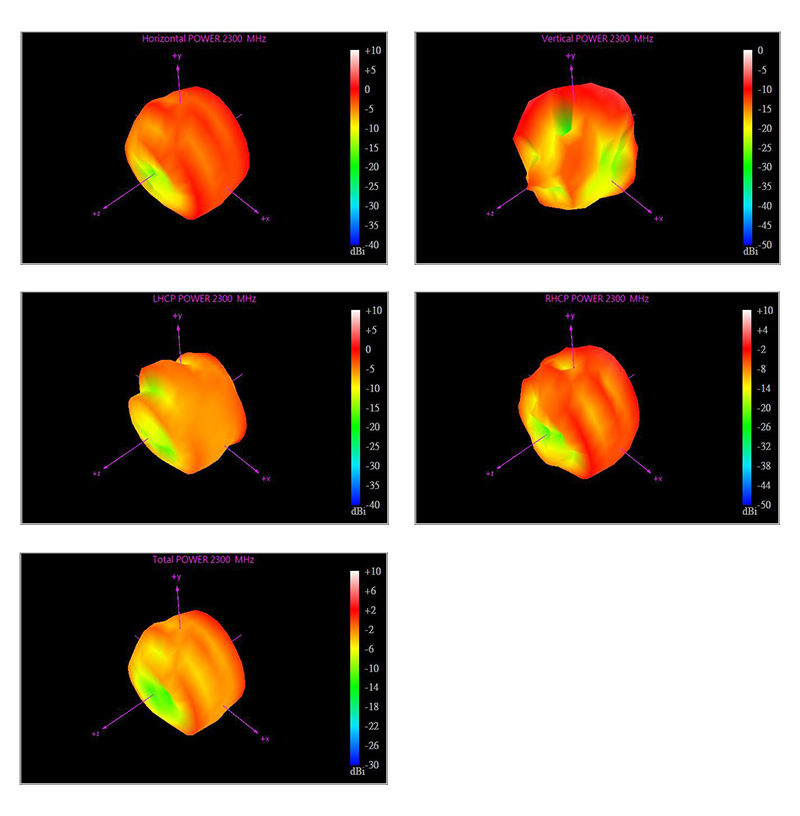

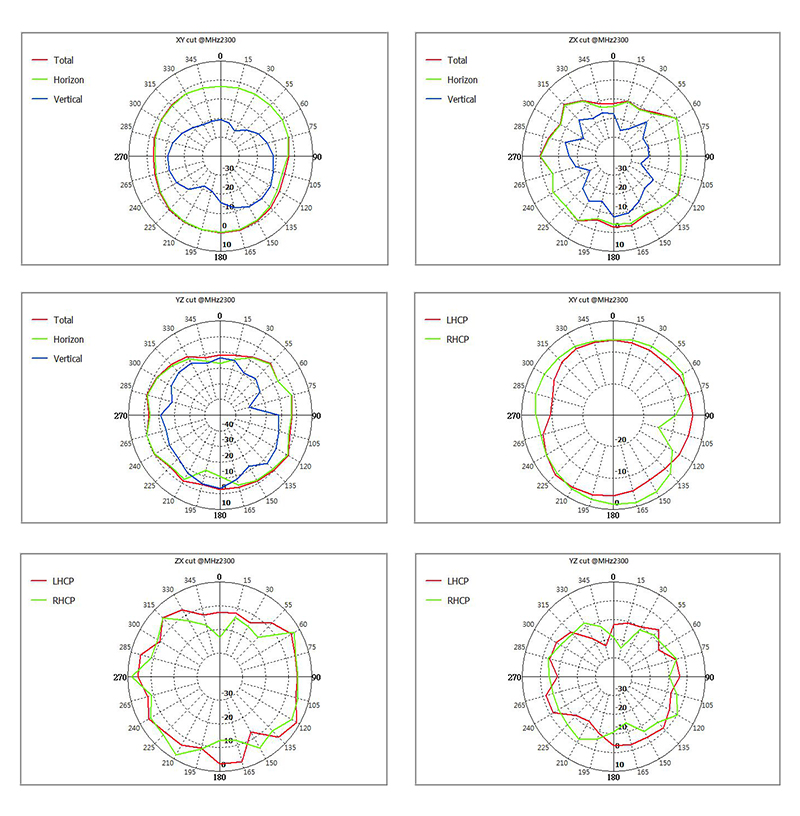

2300Mhz:

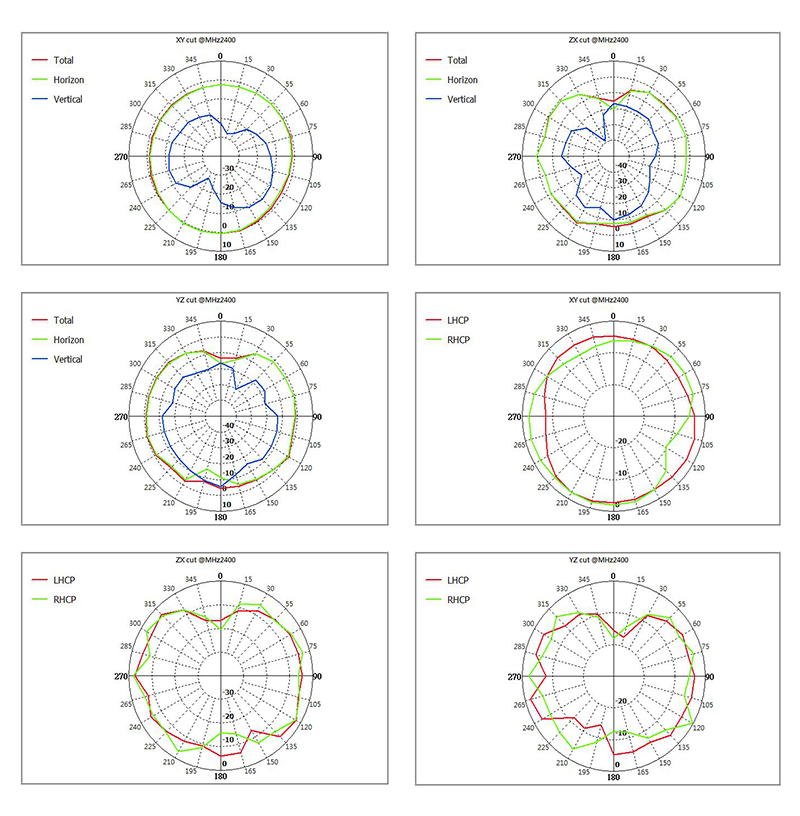

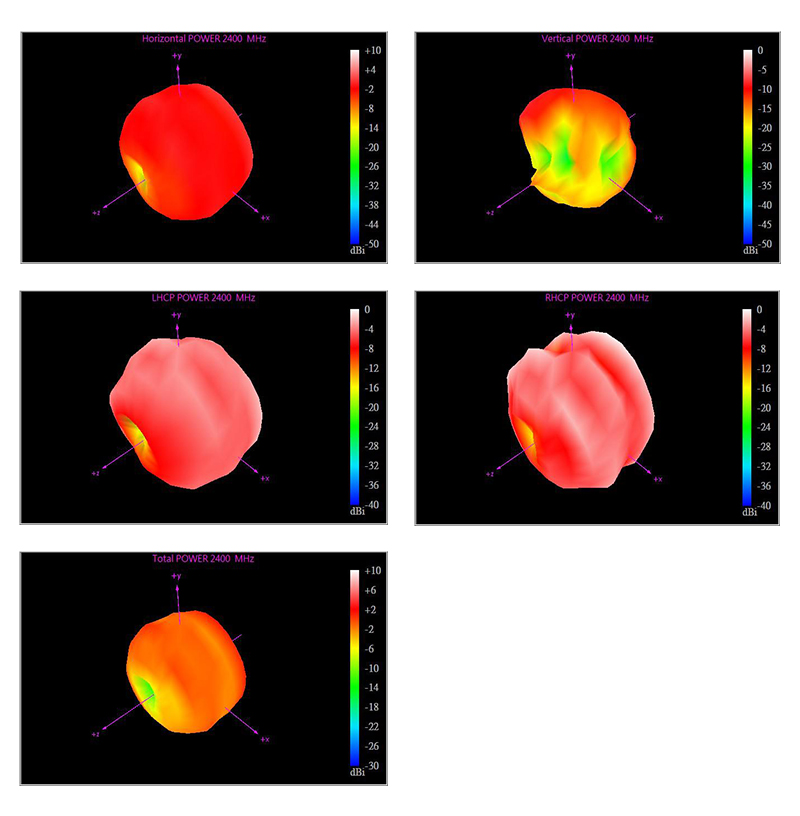

2400Mhz:

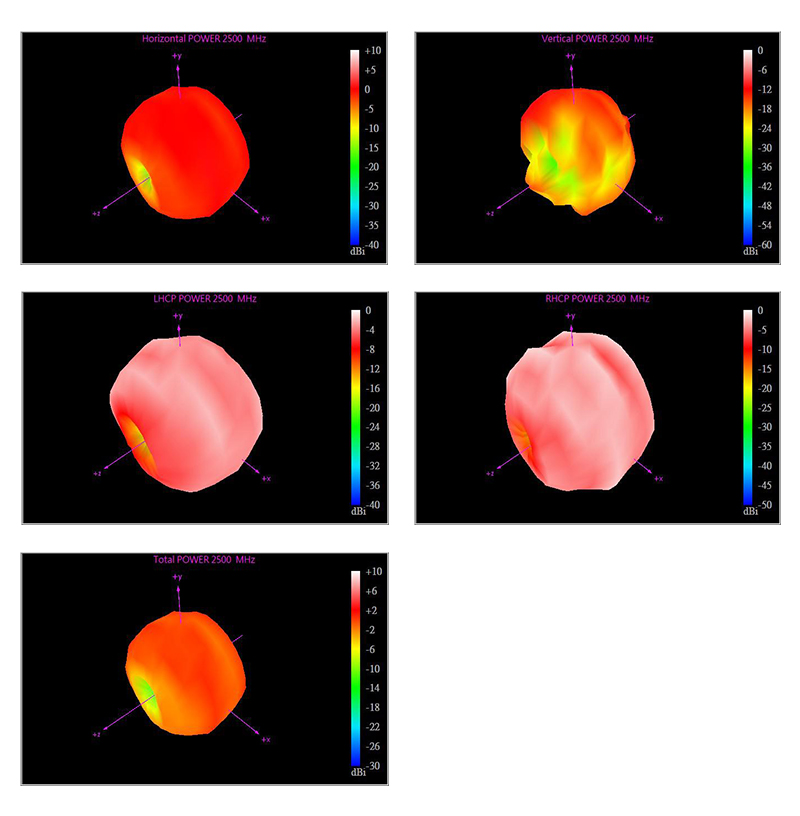

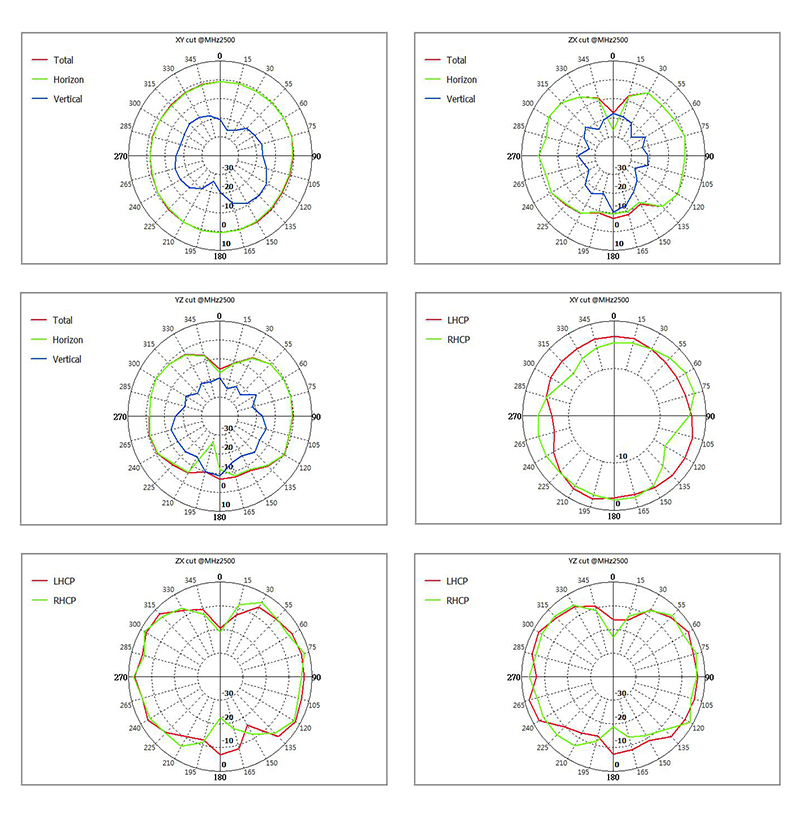

2500Mhz:
