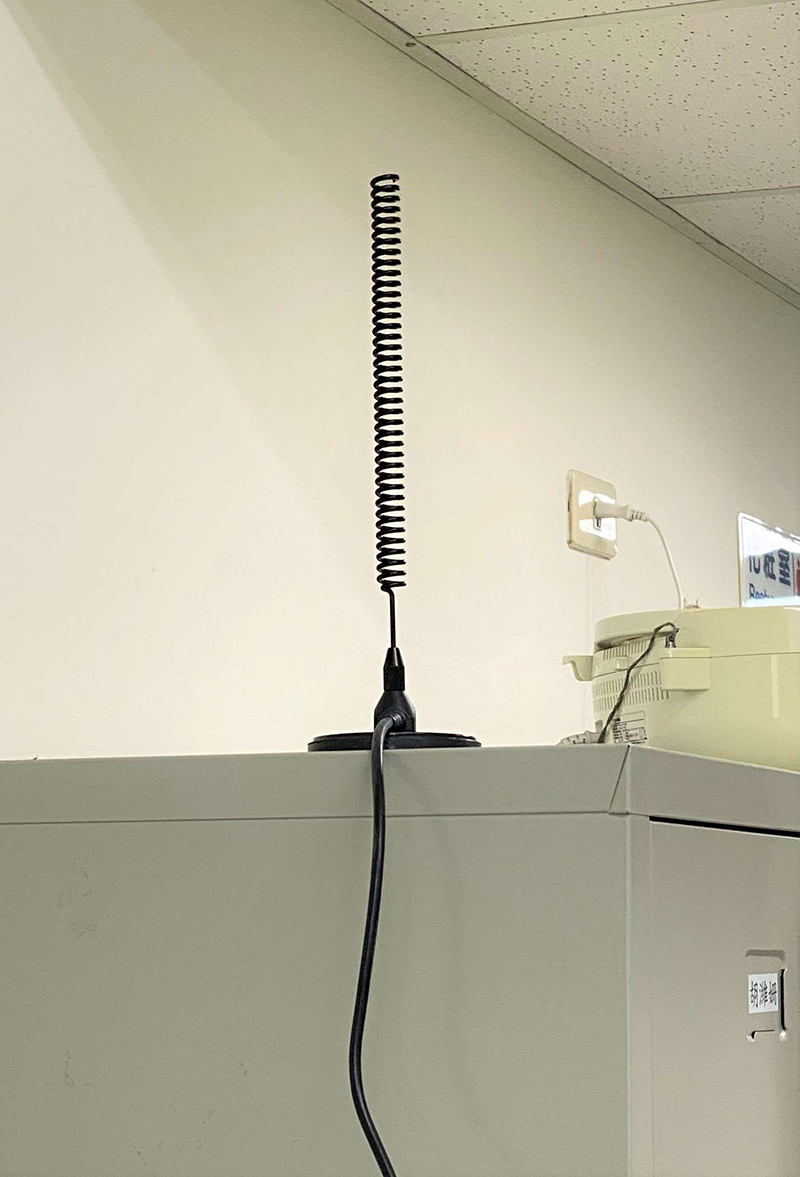

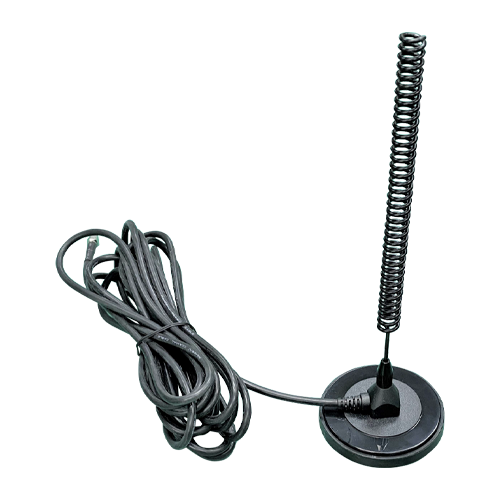

1.GENERAL DESCRIPTION
| Model No |
P/N |
| MA-100 |
MA-100-5M-PL259(M) |
Below is a table summarizing the antenna design specification.
1.1 Electrica Properties
| Parameter |
Description |
| Frequency Band |
118-136MHz |
| Nominal Impedance |
50 ohm |
| Polarization |
Vertical |
| Electrical Wave |
1 /2λ Dipole |

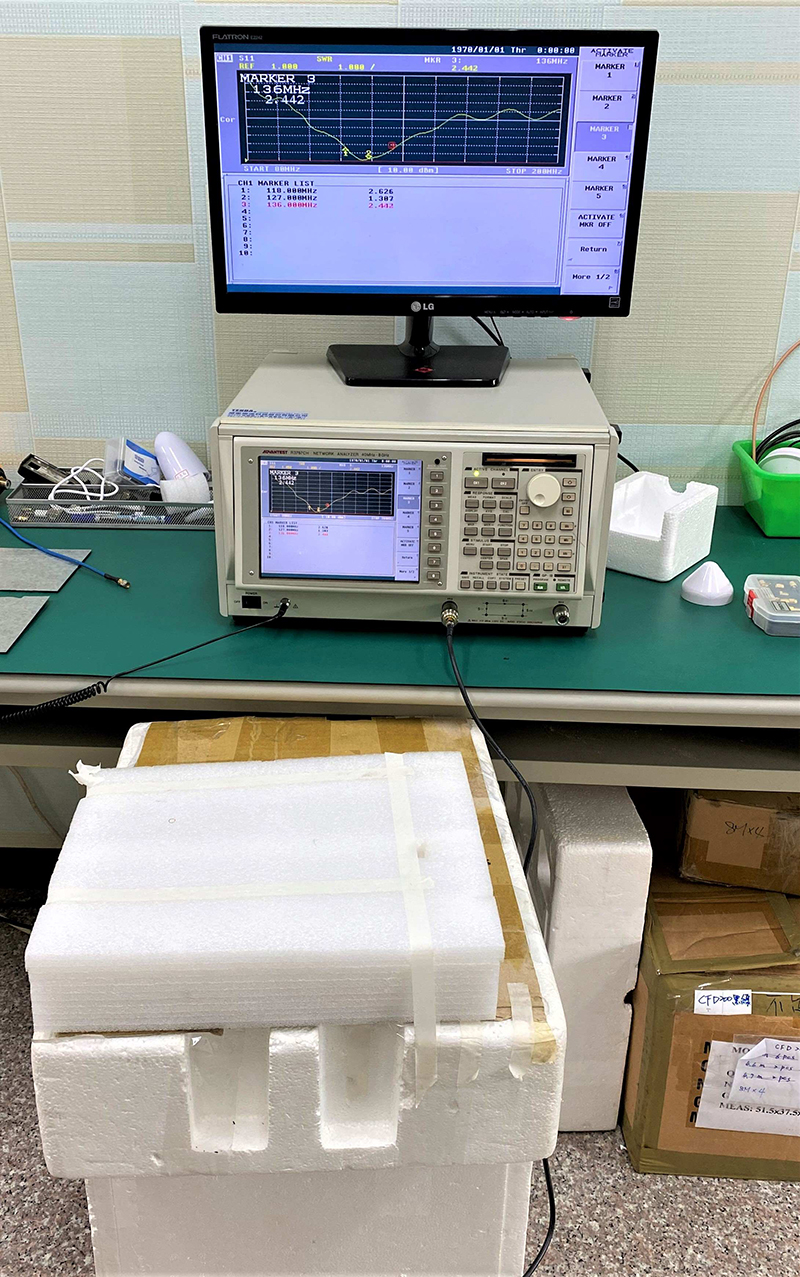

| Return Loss |

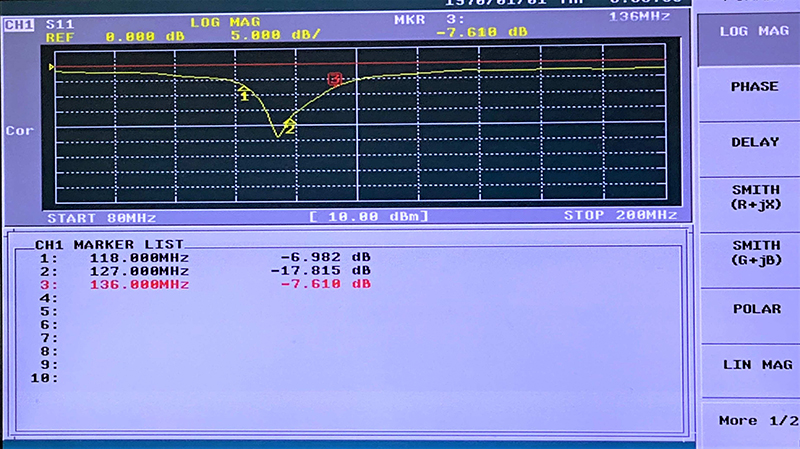

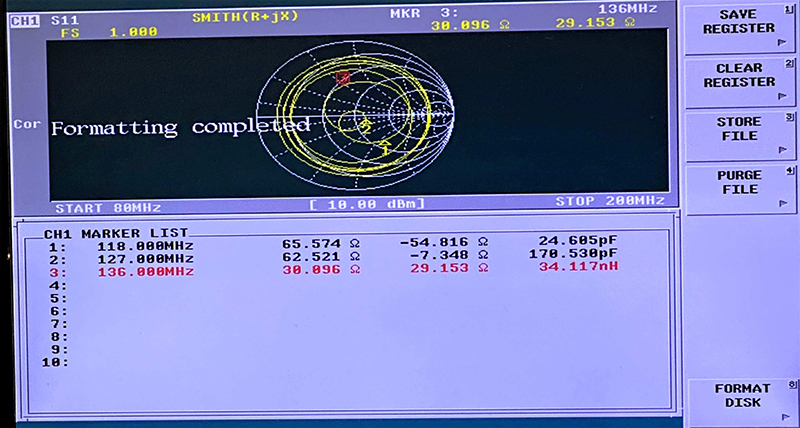

Please See Data-1 |

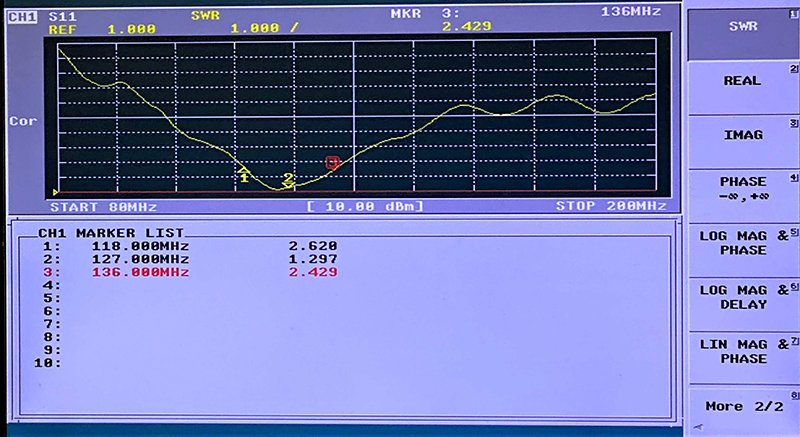

| V.S.W.R |
3.0:1 (ON GND) |

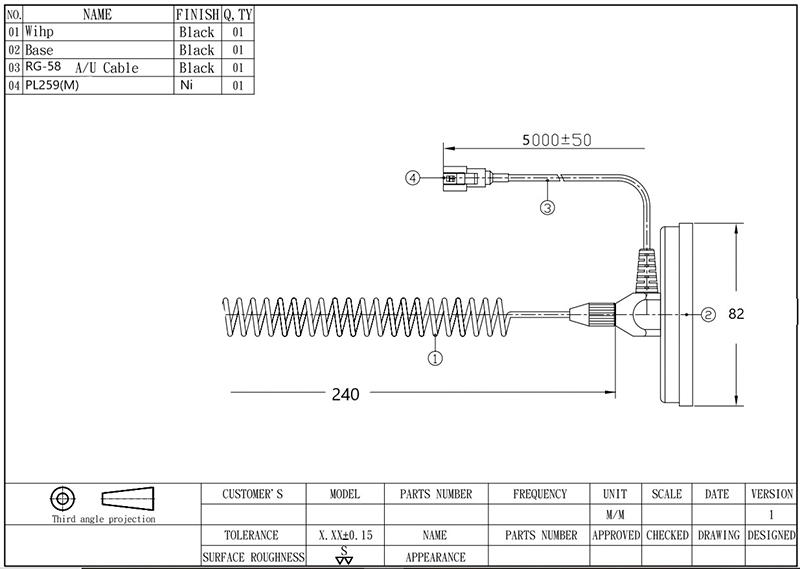

1.2 Mechanical Properties
| Parameter |
Description |
| Antenna Type |
External Antenna |
| Touch Type |
Magnetic |
| Cable type |
RG58-5000 ± 50 |
| Connector Type |
PL259 (Male) |
| Antenna Dimensions |
82mm (Dia) X 240 mm |
| Antenna Cable Total Length |
3000 mm ± 20 |
| Antenna Color |
Black |
| Operating Temperature Range |
-30°C~+70°C |
| Storage Temperature Range |
-30°C~+70°C |
