1. GENERAL DESCRIPTION
1.1 Electrical Properties
| Parameter |
Description |
| Frequency Band |
125 MHz |

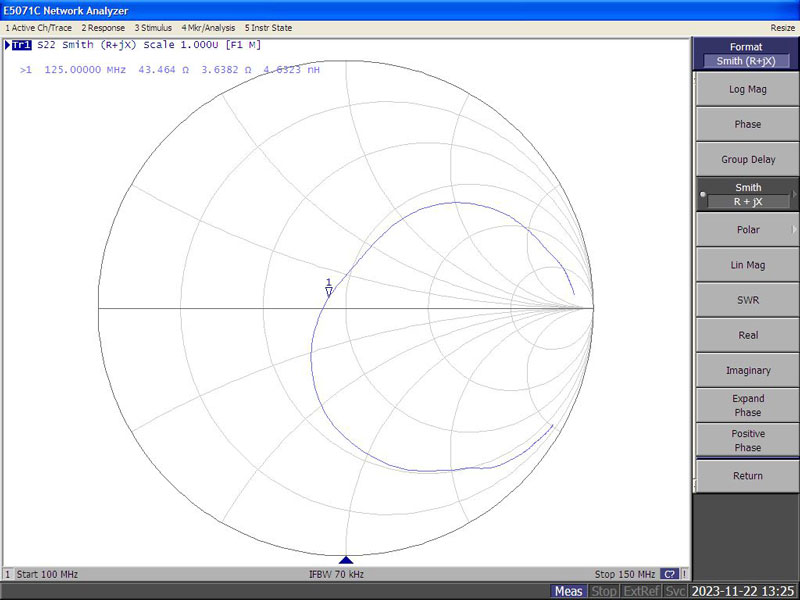

| Nominal Impedance |
50 ohm |
| Polarization |
Vertical |

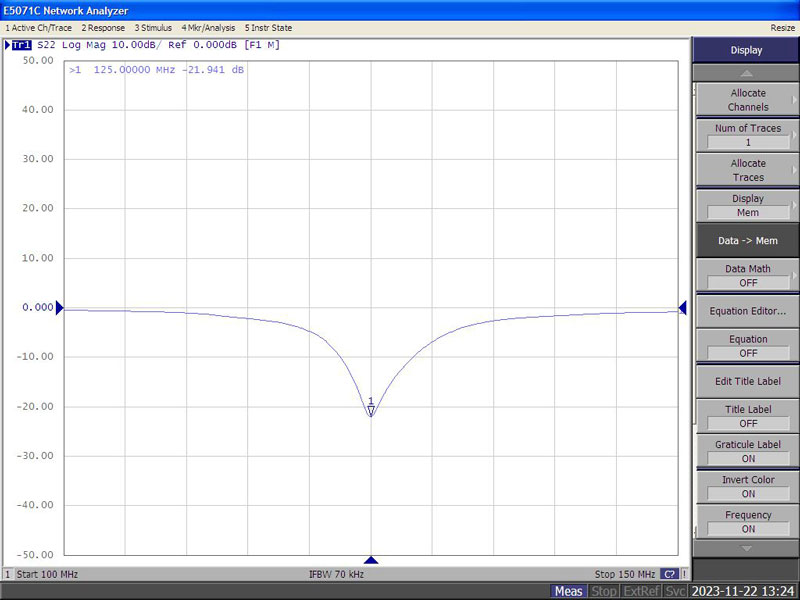

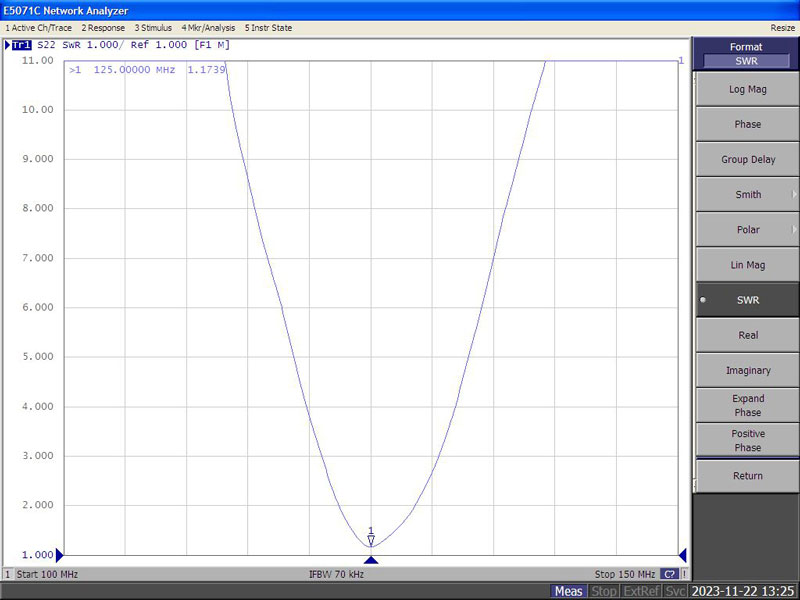

| V.S.W.R |
2.0：1 |

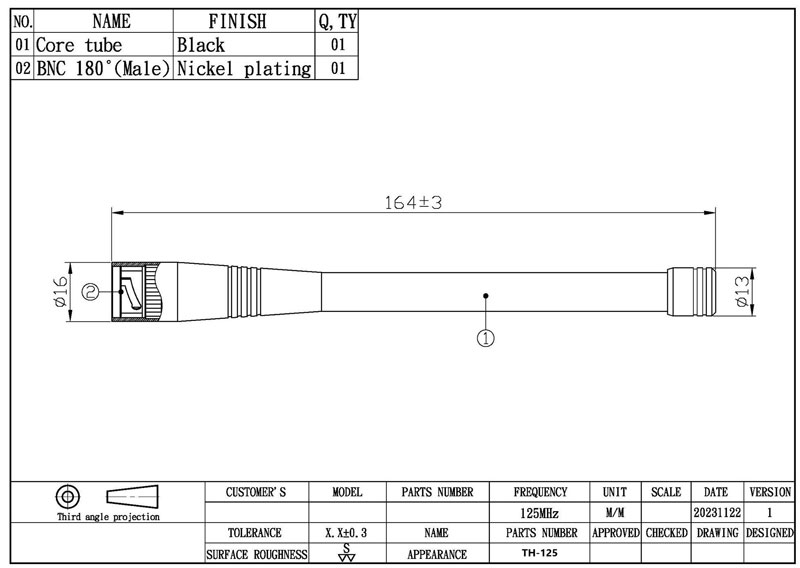

1.2 Mechanical Properties
| Parameter |
Description |

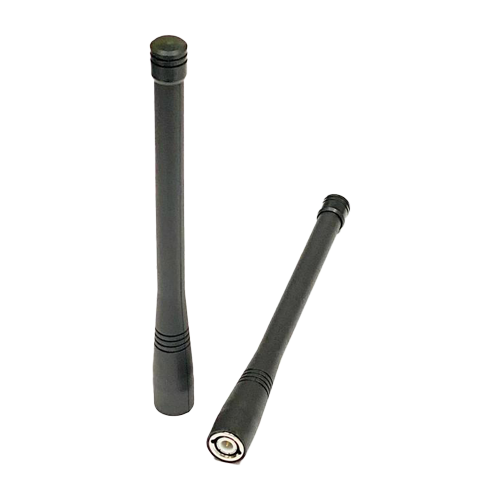

| Antenna Type |
External Antenna |
| Touch Type |
Screw Type |
| Connector Type |
BNC 180°(Male) |
| Antenna Dimensions |
164mm ±3 |
| Antenna Color |
Black |
| Operating Temperature Range |
-40°C~+85°C |
| Storage Temperature Range |
-40°C~+85°C |
