1.GENERAL DESCRIPTION

Model No
TH9024F-SMA(M)

1.1 Electrical Properties

Parameter Description
Frequency Band 902~928Mhz & 2.4~2.5GHz
Nominal Impedance 50 ohm
Polarization Vertical

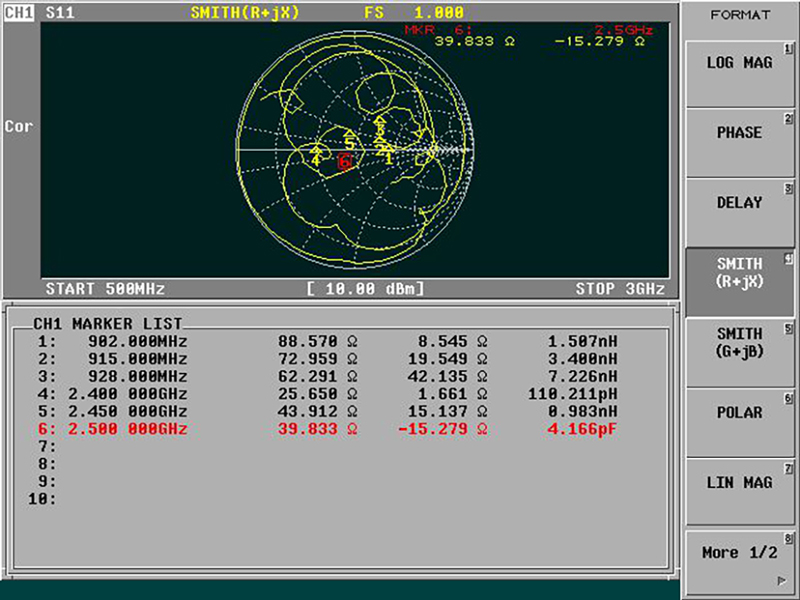

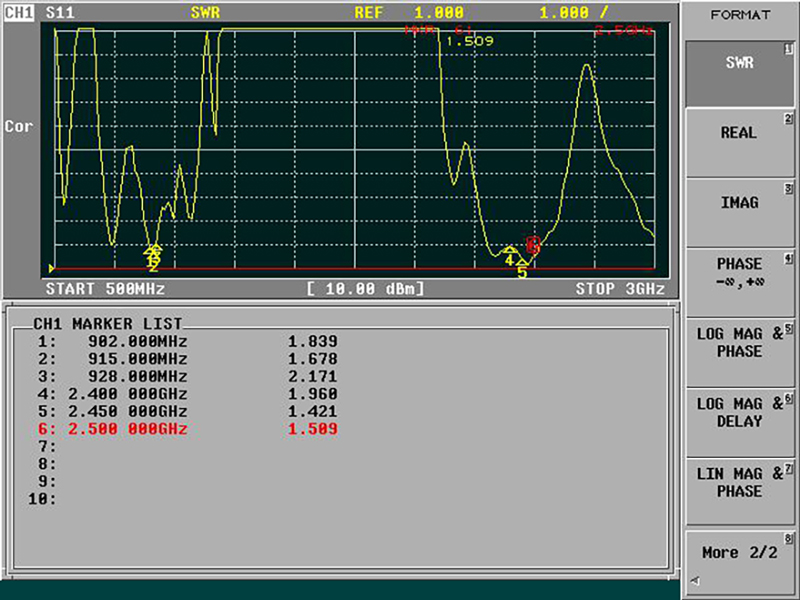

V.S.W.R 2.5:1
Peak Gain -1~ 2dbi
Power 10W

1.2 Mechanical Properties

Parameter Description
Antenna Type External Antenna
Materal ASA
Touch Type Screw Type
Connector Type SMA connector (Male) / RG402 Cable
Antenna Dimensions OD16 x158.5mm ±5
Weight 30g
Antenna Color Black
Operating Temperature Range -40°C~+85°C
Storage Temperature Range -40°C~+85°C
Waterproof IP67

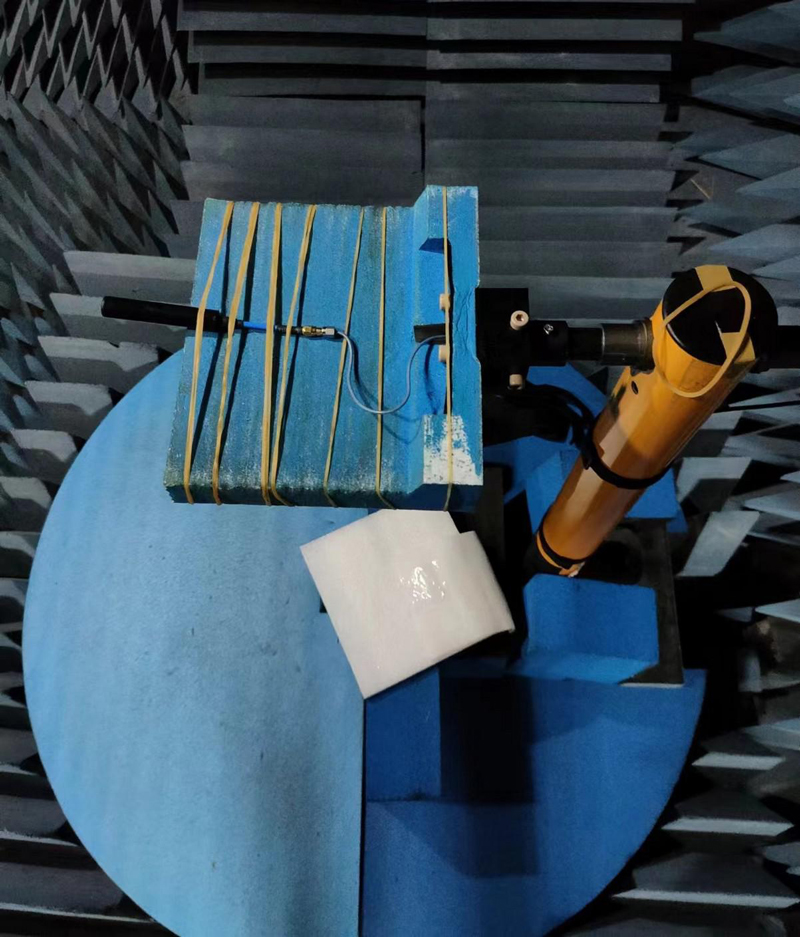

3D Total

Frequency
(MHz)		 Upper Hem.
PRP (dBm)		 Lower HEM.
PRP (dBm)		 Efficiency
(dB)		 Efficiency
(%)		 Gain (dBi) Tot. Rad.Pwr.
(dBm)
902 MHz -8.01 -6.81 -4.36 36.65 -0.98 -4.36
915 MHz -8.35 -6.96 -4.59 34.77 -1.08 -4.59
928 MHz -8.28 -6.57 -4.33 36.89 -0.55 -4.33
2400 MHz -7.69 -6.27 -3.91 40.62 1.93 -3.91
2450 MHz -7.09 -5.88 -3.44 45.34 2.30 -3.44
2500 MHz -7.53 -6.41 -3.92 40.51 2.45 -3.92

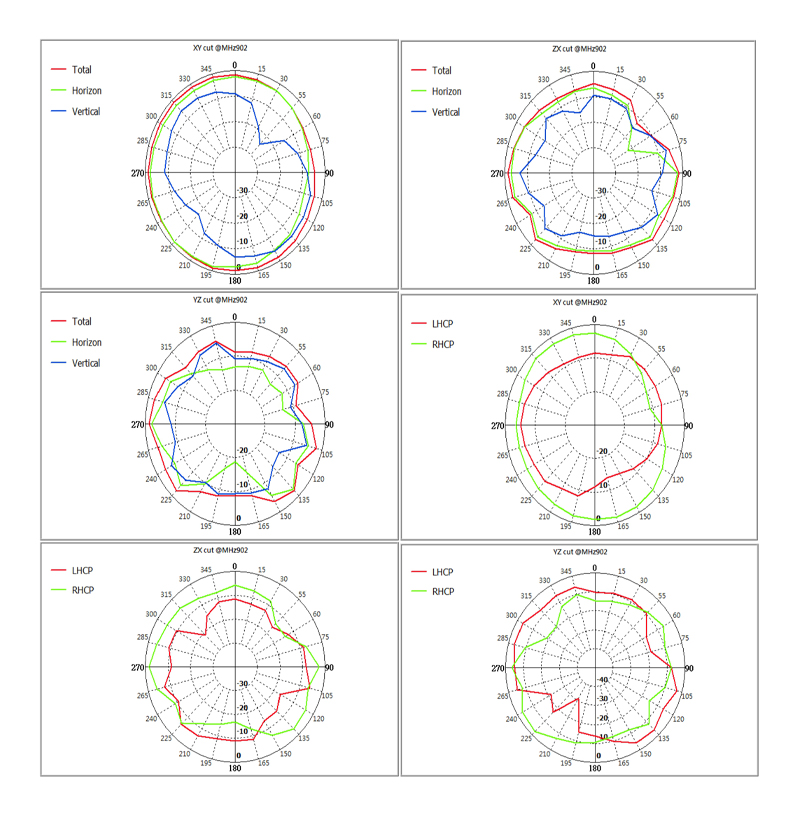

902Mhz :

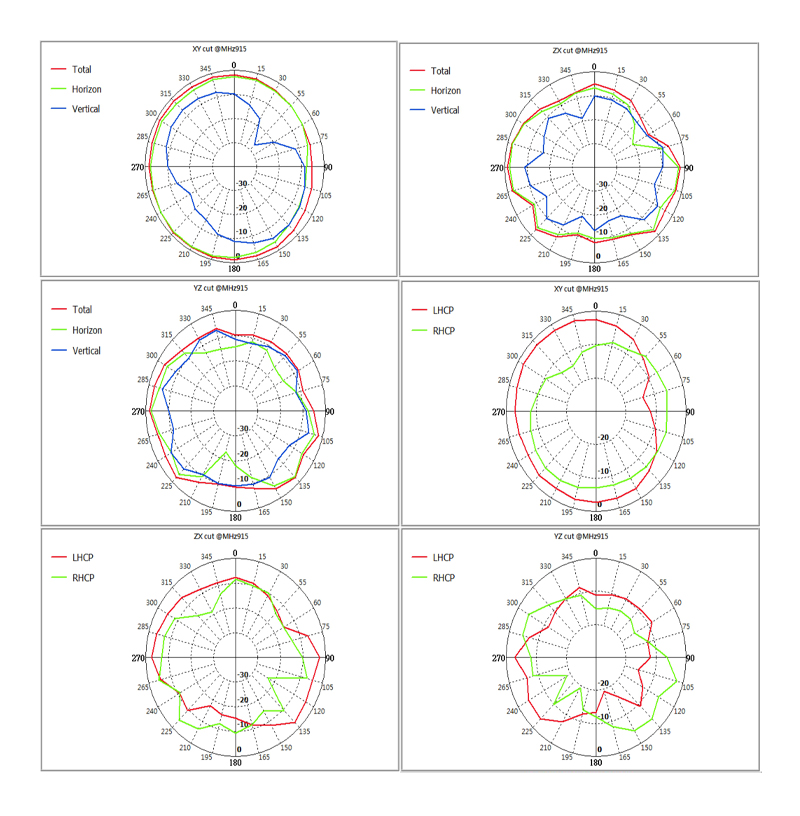

915Mhz:

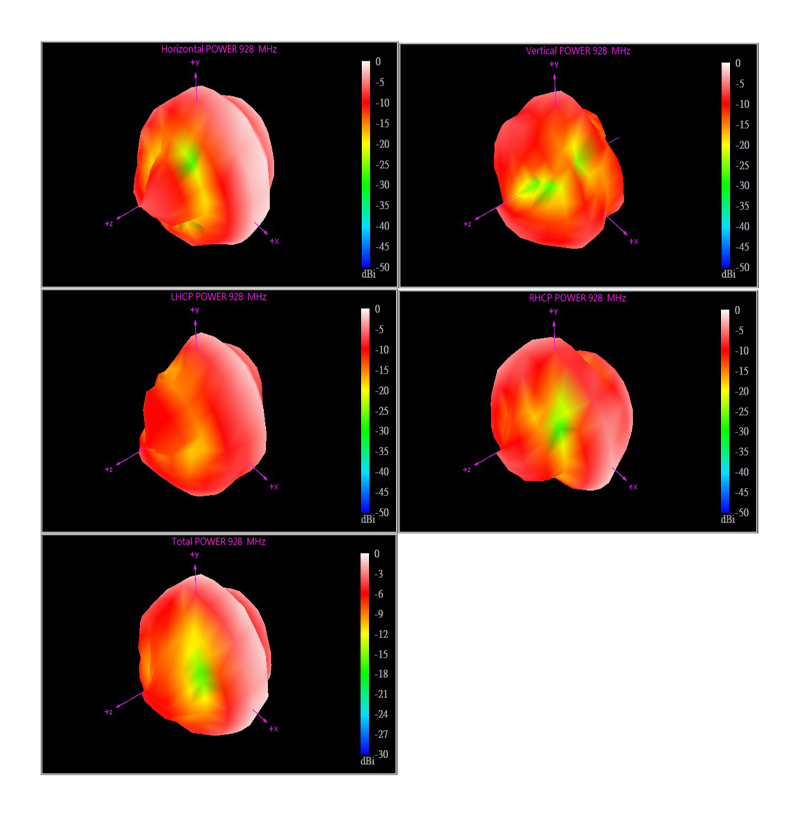

928Mhz:

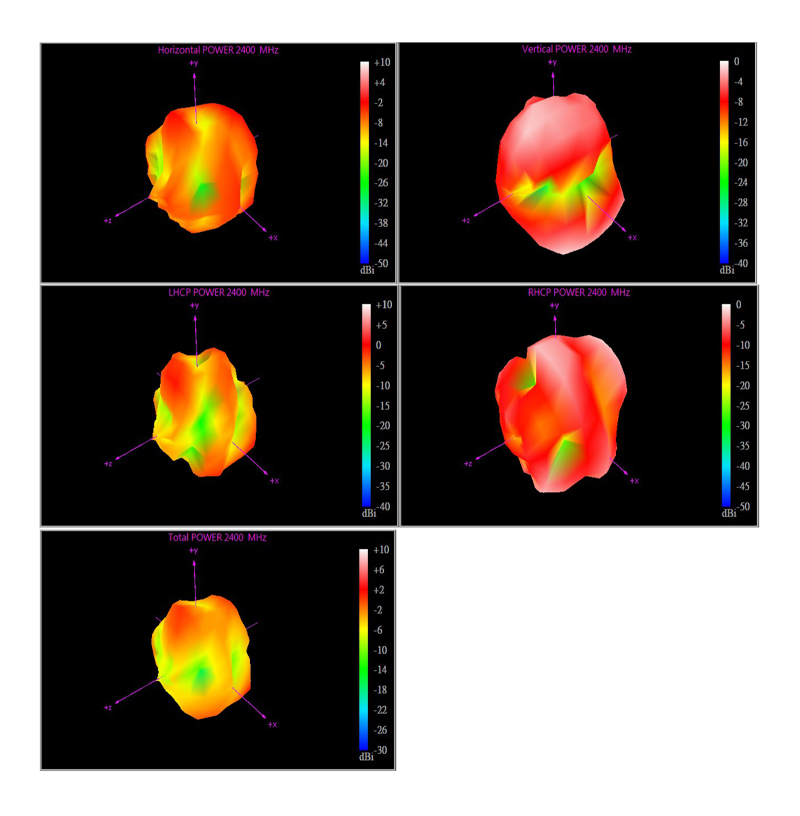

2400Mhz:

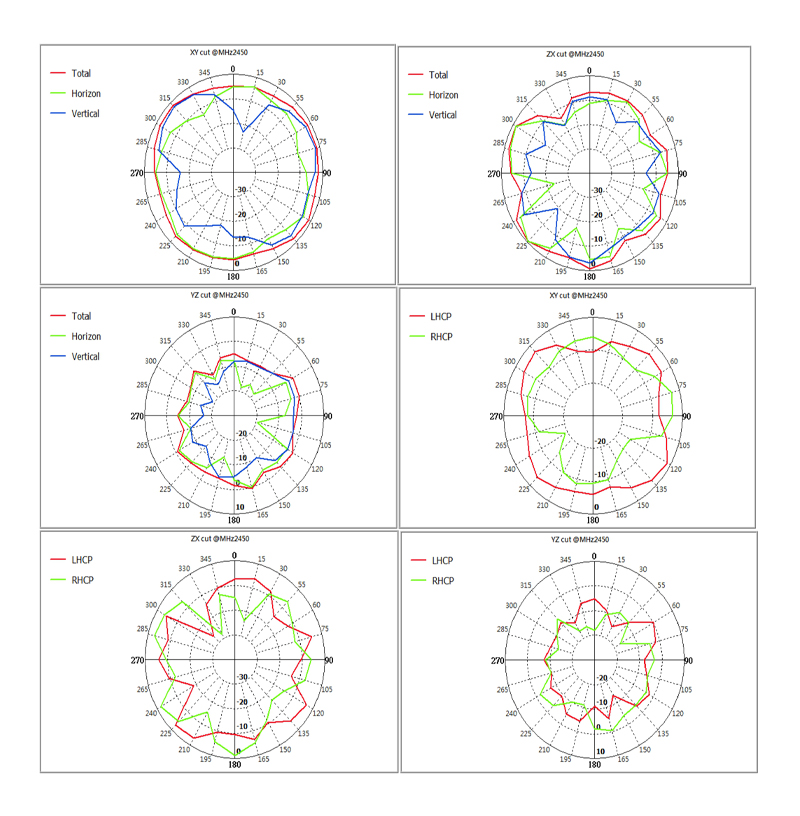

2450Mhz:

2500Mhz:
