TH-9024G-SMA(M)
  • Product Description
  • Product Specification

1.GENERAL DESCRIPTION

Model No P/N
TH-9024G TH9024G-SMA(M)
Below is a table summarizing the antenna design specification.

1.1 Electrical Properties

Parameter Description
Frequency Band 902~928 MHz & 2.4~2.5Ghz
Nominal Impedance 50 ohm
Polarization Vertical
V.S.W.R 2.0：1
Peak Gain Low Band :1dbi & High Band :2.5dbi
Power 10W

1.2 Mechanical Properties

Parameter Description
Antenna Type External Antenna
Touch Type Screw Type
Connector Type SMA(Male)
Antenna Dimensions 205mm ±3
Antenna Color Black
Weight 55g
Operating Temperature Range -40°C~+85°C
Storage Temperature Range -40°C~+85°C
Water Proof IP67

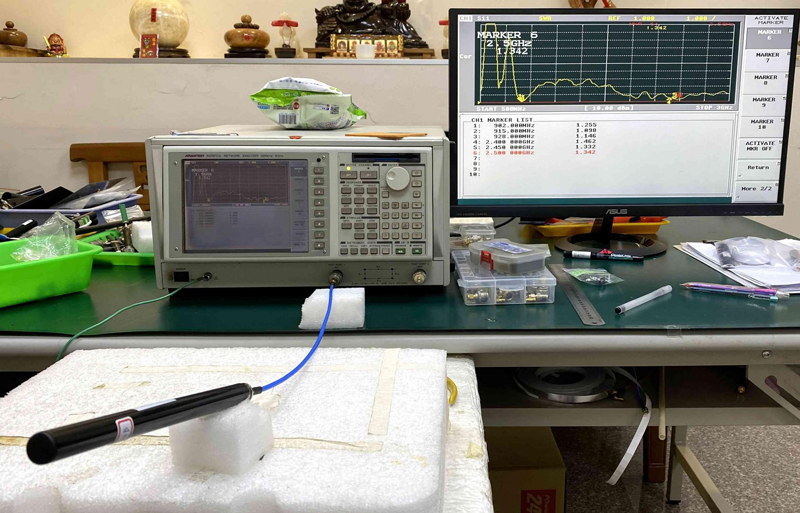

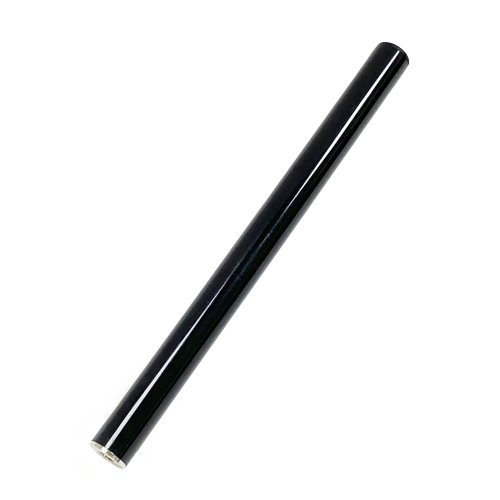

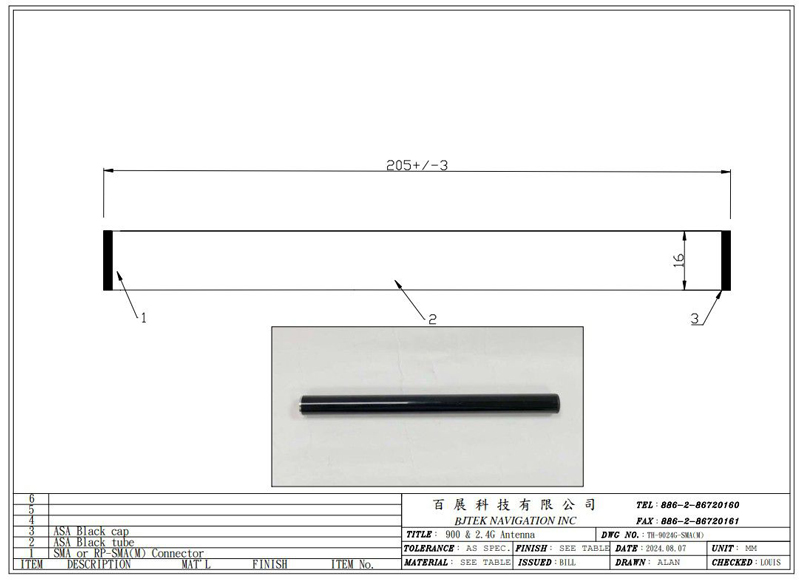

2. Appearance

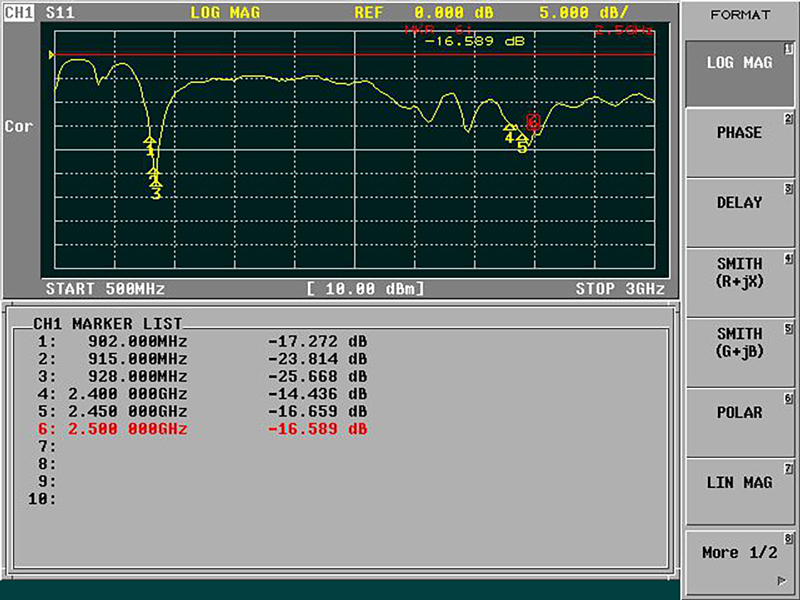

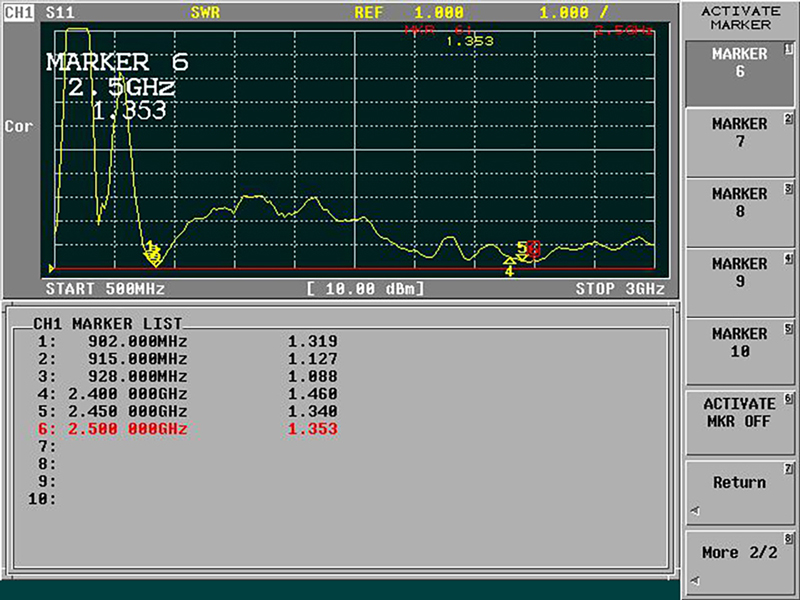

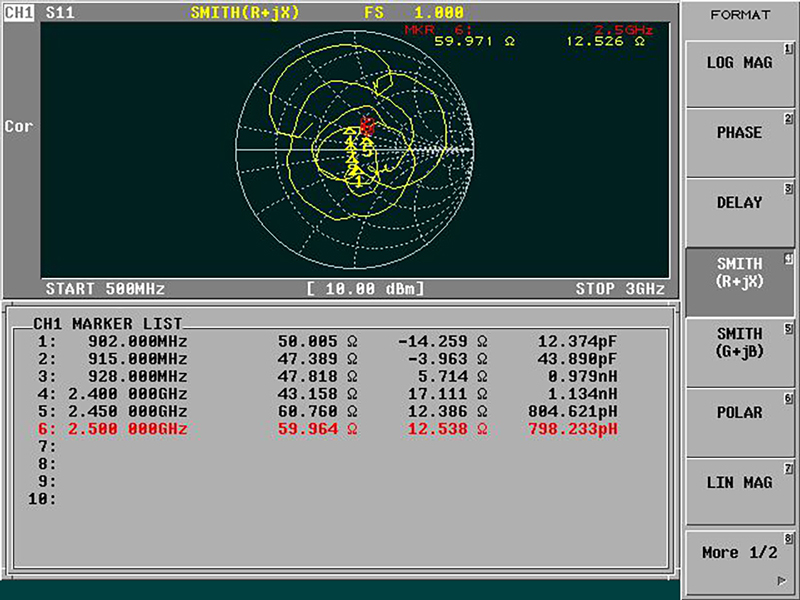

3. Frequency

3D Total

Frequency
(MHz)		 Upper Hem.
PRP (dBm)		 Lower HEM.
PRP (dBm)		 Efficiency
(dB)		 Efficiency
(%)		 Gain (dBi) Tot. Rad.Pwr.
(dBm)
902 MHz -4.62 -6.14 -2.30 58.84 0.95 -2.30
915 MHz -4.28 -5.72 -1.93 64.13 1.17 -1.93
928 MHz -3.84 -5.16 -1.44 71.79 1.48 -1.44
930 MHz -3.79 -5.16 -1.41 72.32 1.61 -1.41
2000 MHz -3.51 -9.63 -2.56 55.41 3.52 -2.56
2100 MHz -4.11 -8.18 -2.68 53.99 2.02 -2.68
2200 MHz -5.16 -8.06 -3.36 46.12 2.70 -3.36
2300 MHz -5.23 -6.87 -2.96 50.53 1.68 -2.96
2400 MHz -5.44 -6.76 -3.04 49.66 2.60 -3.04
2450 MHz -5.72 -6.55 -3.11 48.90 2.30 -3.11
2500 MHz -5.10 -5.95 -2.50 56.29 2.63 -2.50
2600 MHz -4.95 -5.86 -2.37 57.97 2.61 -2.37

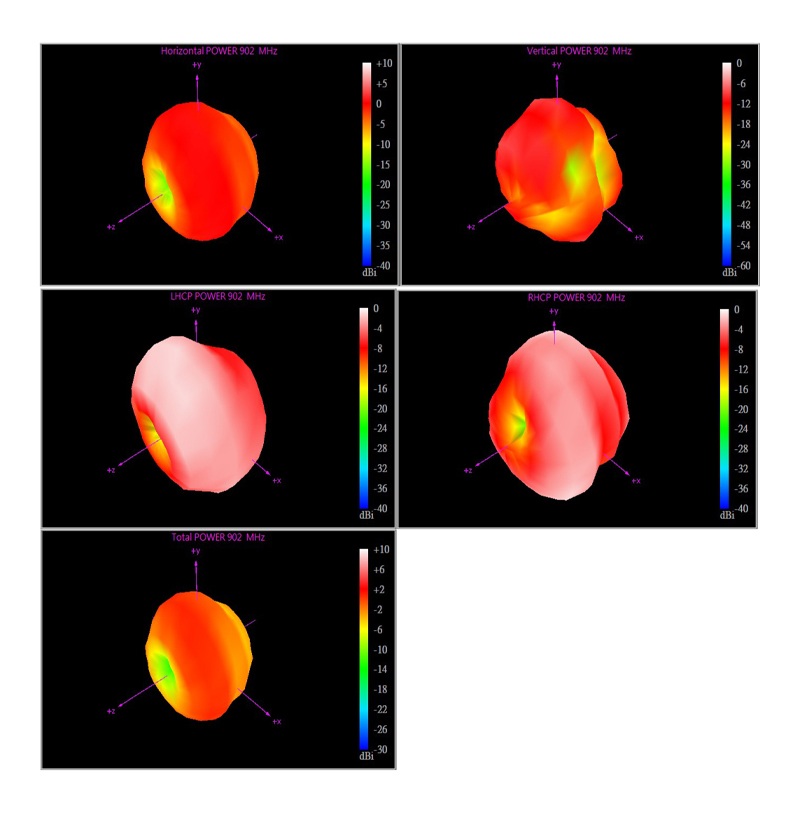

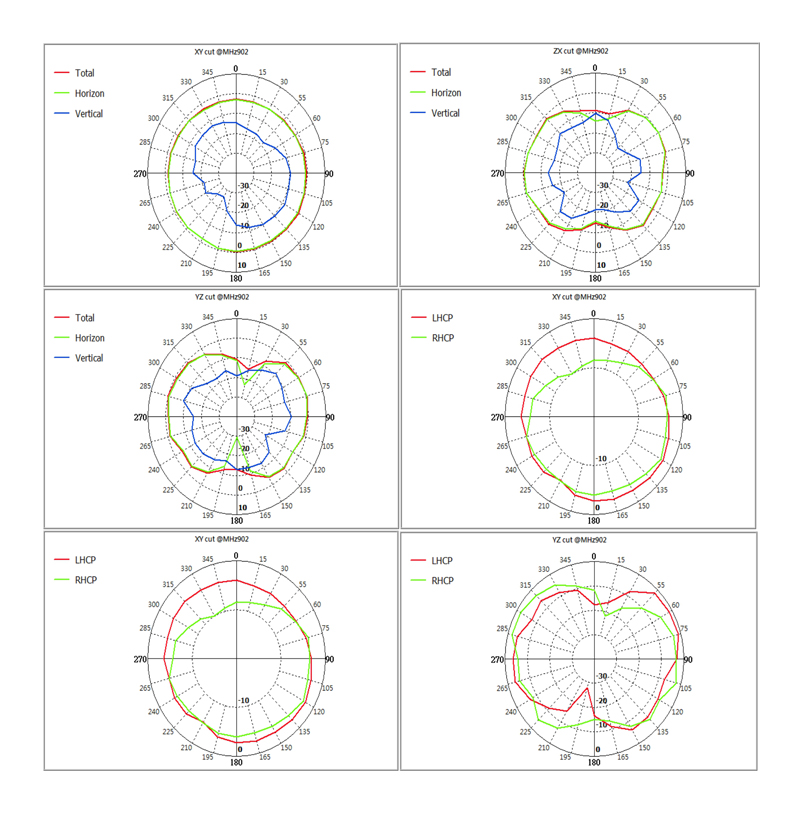

902Mhz:

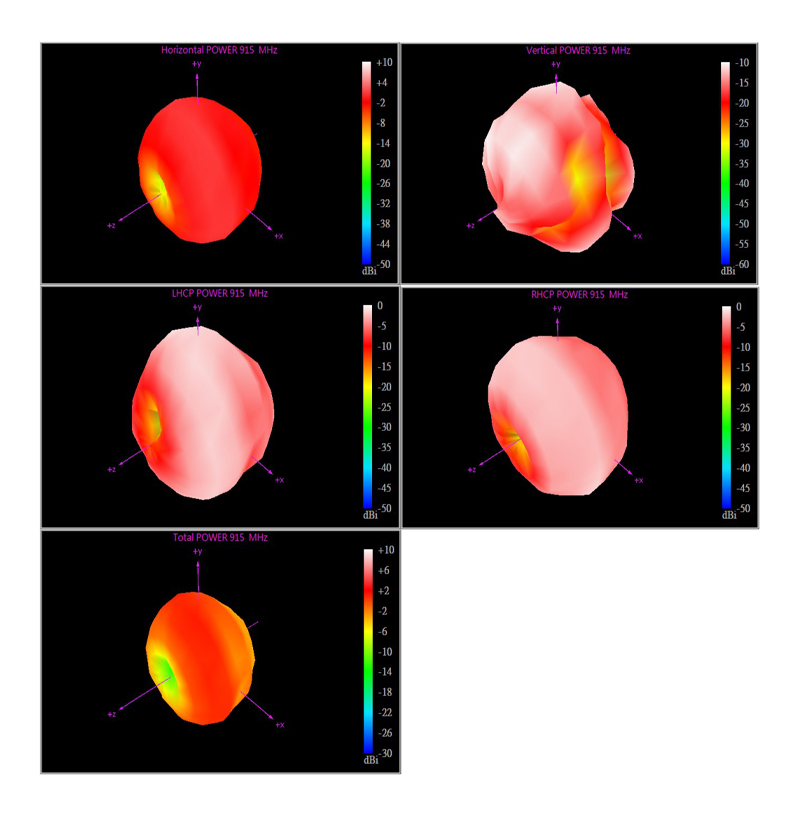

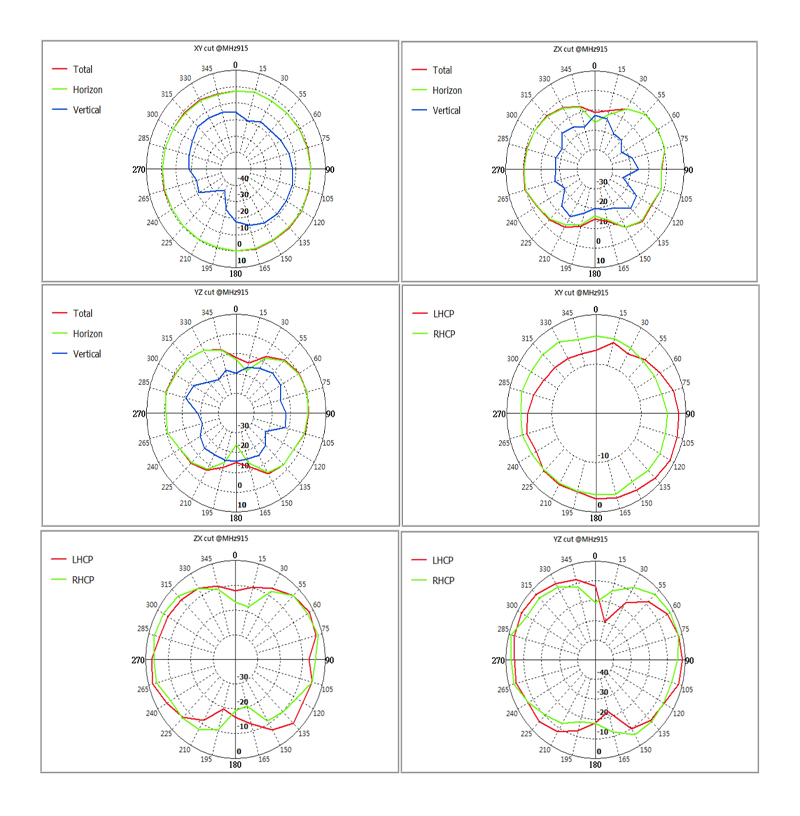

915Mhz:

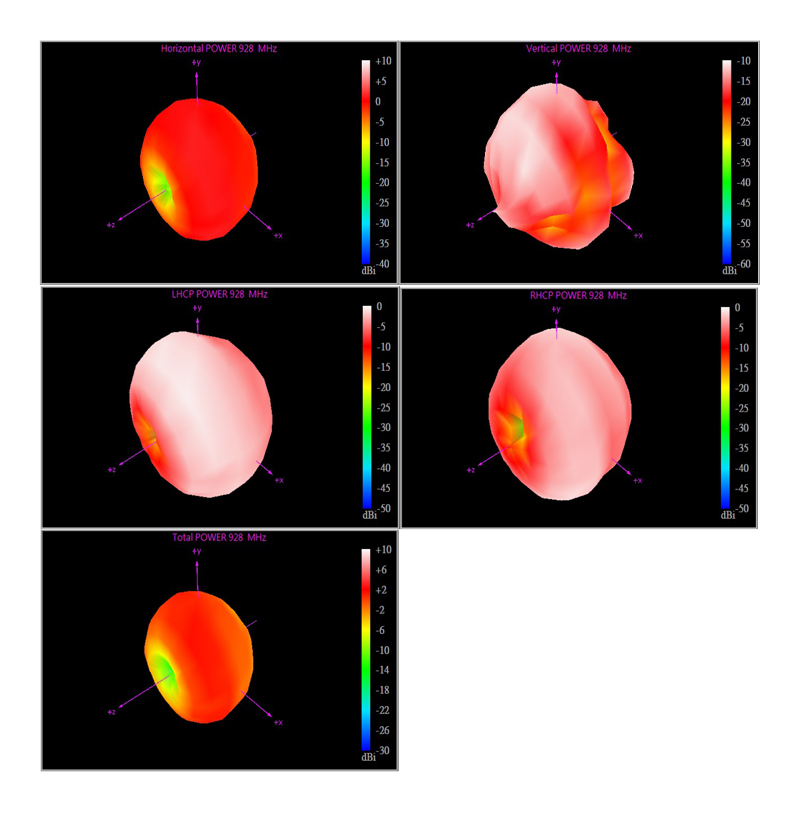

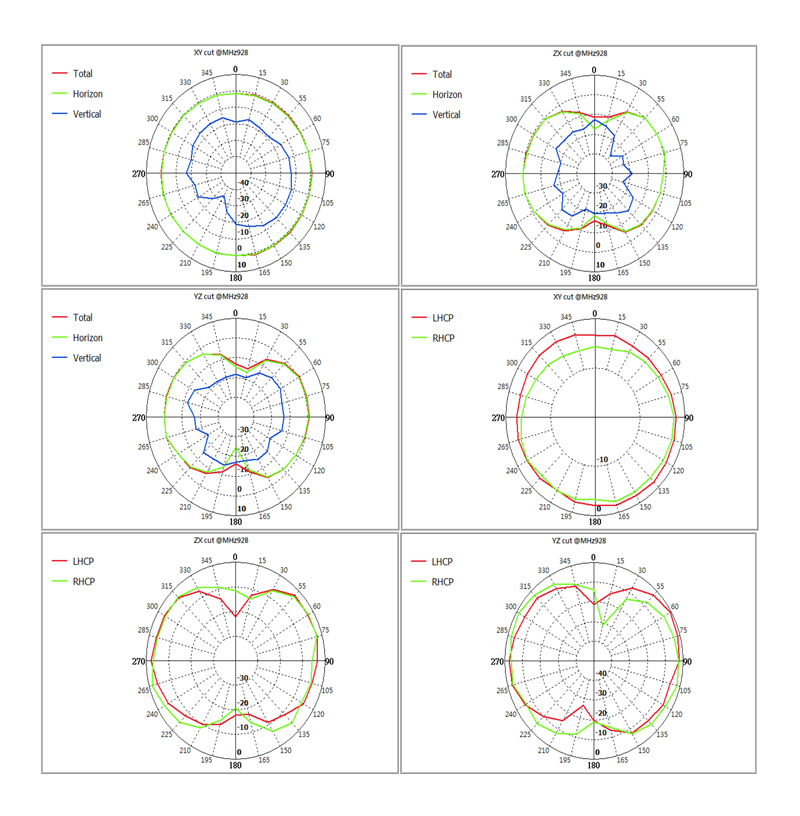

928Mhz:

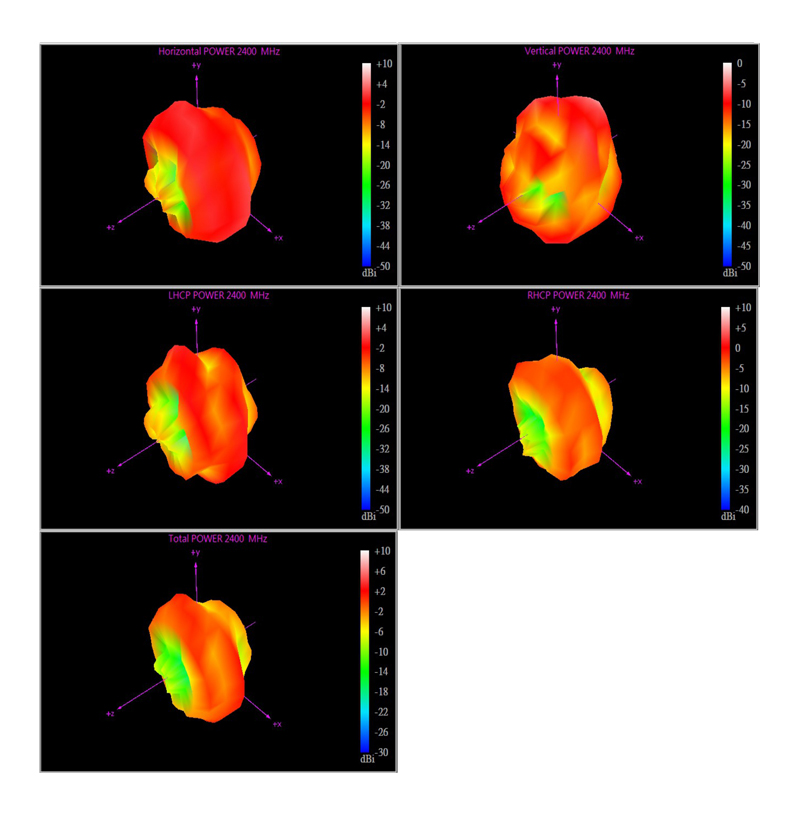

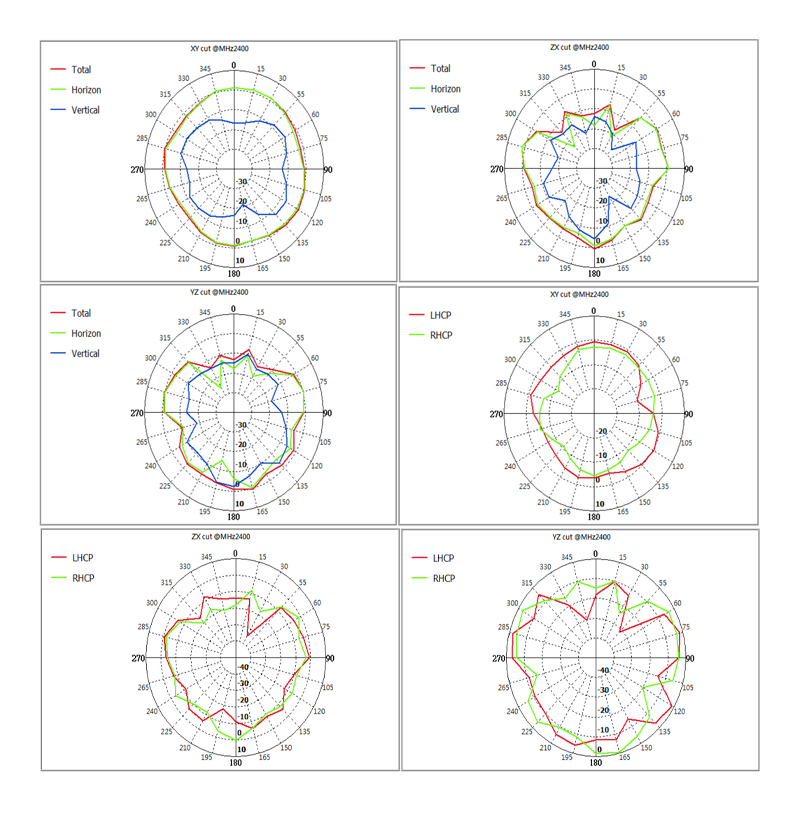

2400Mhz:

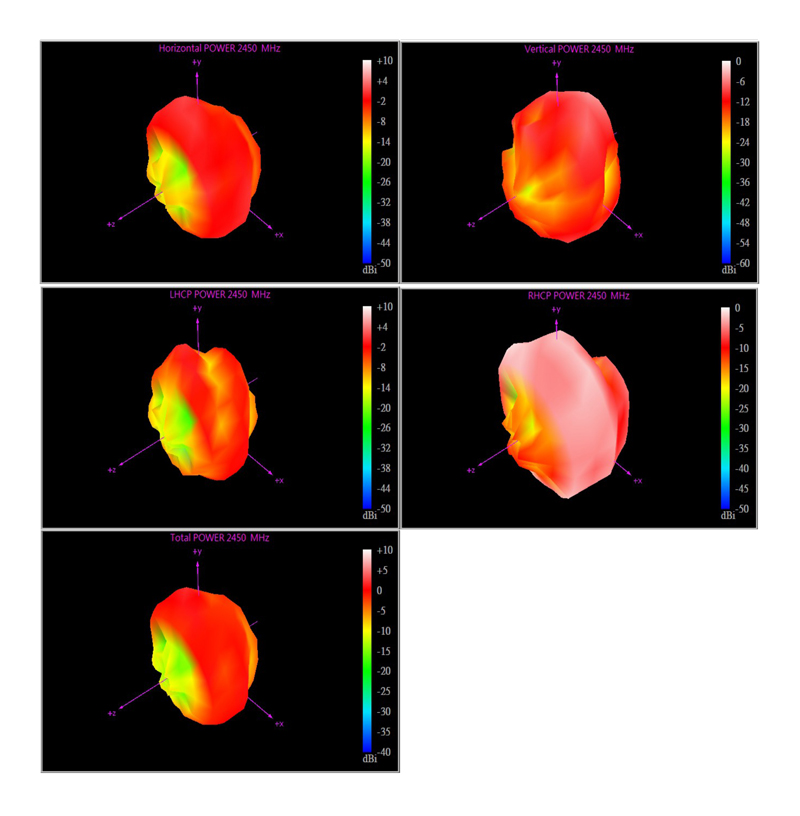

2450Mhz:

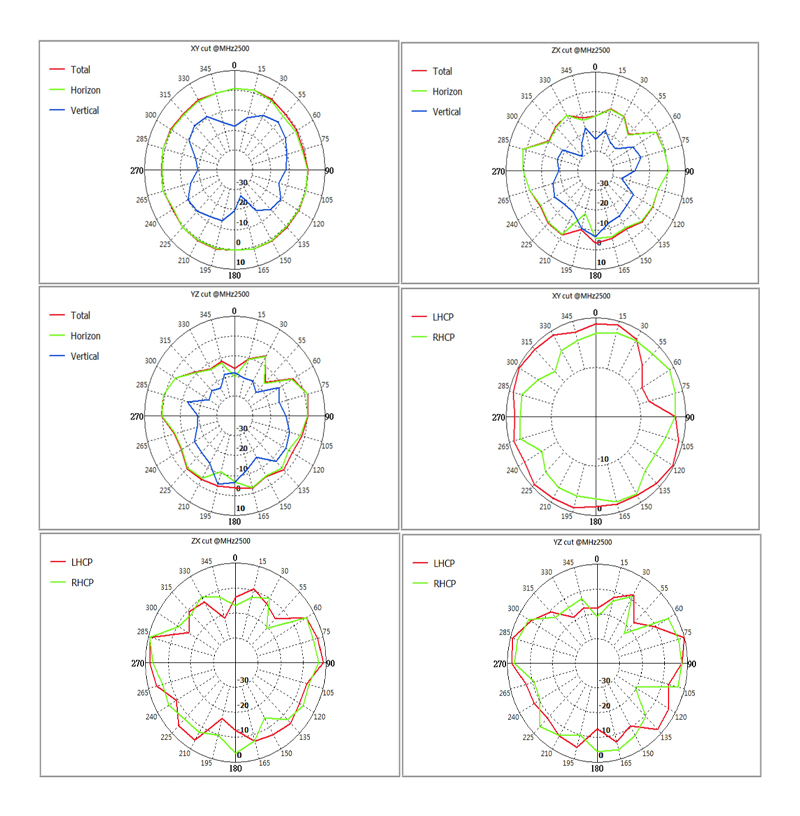

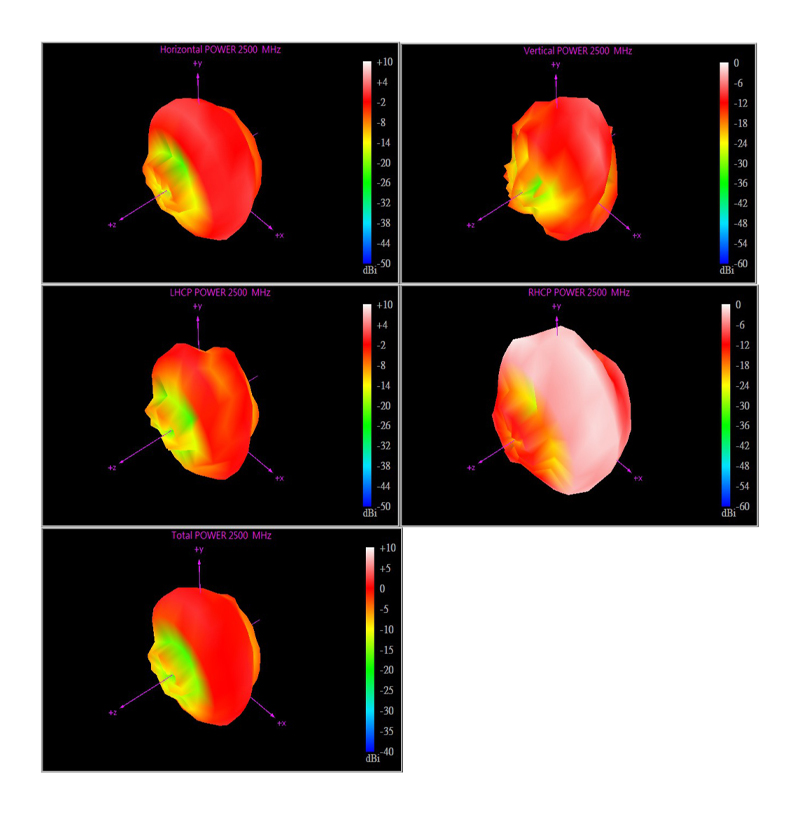

2500Mhz:
