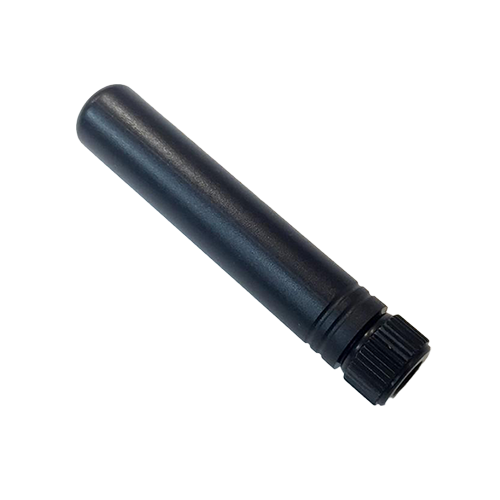

TH-9024E-SMA(M) 900 &2.4G Dual Band Antenna
  • Product Description
  • Product Specification

1. GENERAL DESCRIPTION

Model No P/N
TH-9024E TH-9024E-SMA(M)

1.1 Electrical Properties

Parameter Description
Frequency Band 902~928 MHz & 2.4~2.5Ghz
Nominal Impedance 50 ohm
Polarization Vertical
Admitted Power radiation 1W
V.S.W.R 3.0:1 Max
Antenna Gain 0~1dB

1.2 Mechanical Properties

Parameter Description
Antenna Type External Antenna
Material ASA-UV (UL94-HB)
Touch Type Screw Type
Connector Type SMA (Male)

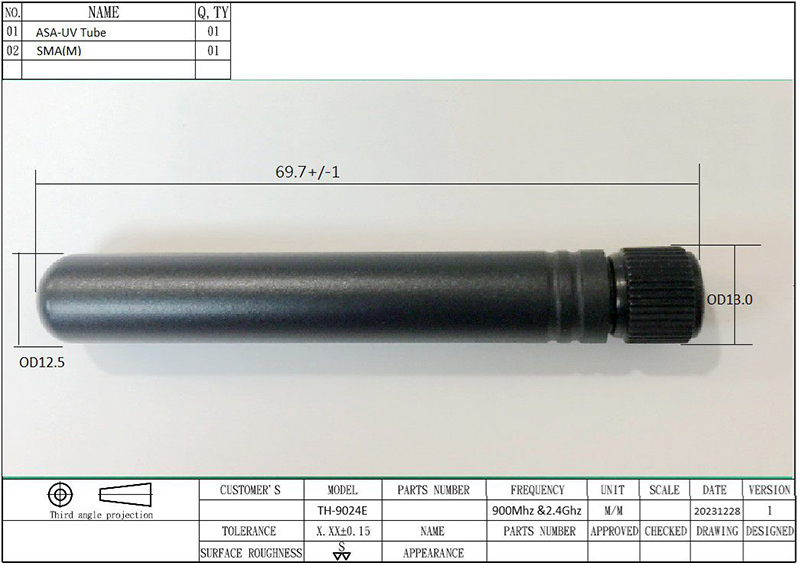

Antenna Dimensions OD12.5 x 69.7mm±1
Antenna Color Black
Operating Temperature Range -40°C~+80°C
Storage Temperature Range -40°C~+80°C
Waterproof IPX7 (Must match the silicone pad - optional)

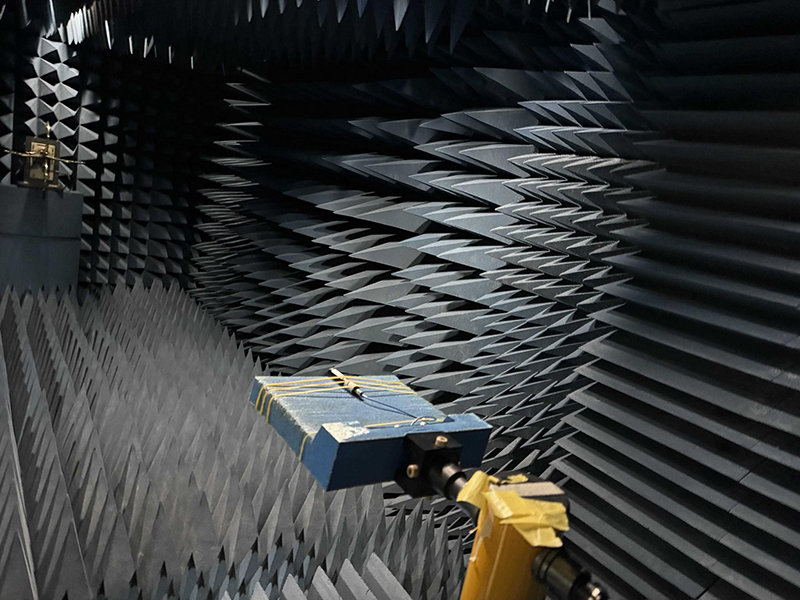

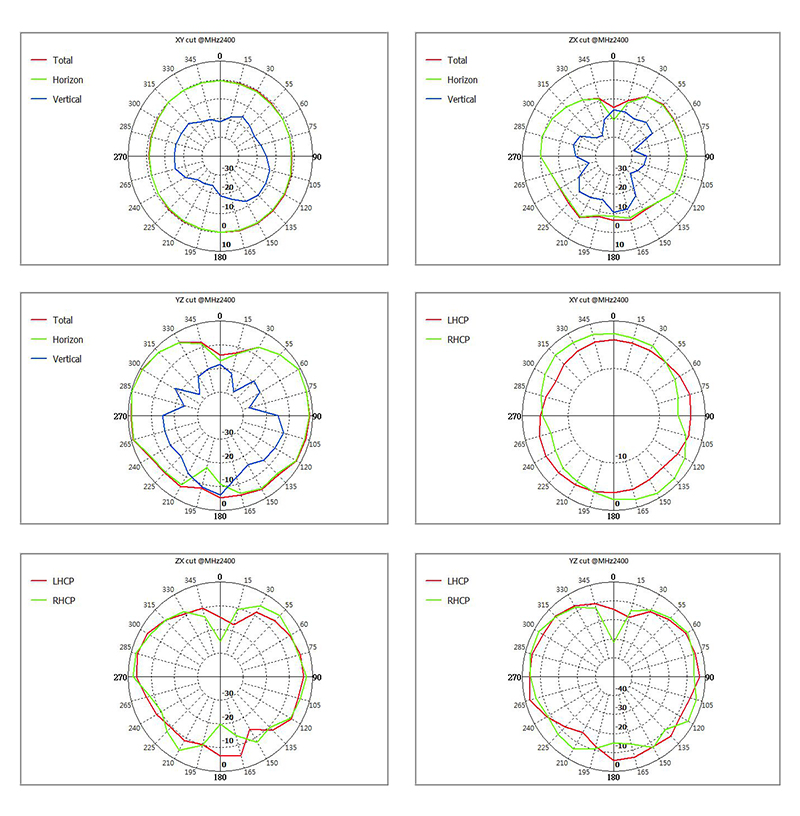

3D Total

Frequency
(MHz)		 Upper Hem.PRP
(dBm)		 Lower HEM.PRP
(dBm)		 Efficiency
(dB)		 Efficiency
(%)		 Gain
(dBi)		 Tot.Rad.Pwr.
(dBm)
900 MHz -9.10 -8.54 -4.8 33.11 0.04 -4.8
902 MHz -9.17 -8.54 -4.83 32.89 0.99 -4.83
915 MHz -9.28 -8.33 -4.77 33.34 0.44 -4.77
928 MHz -9.16 -8.06 -4.56 34.99 0.21 -4.56
930 MHz -9.15 -8.05 -4.56 34.99 0.19 -4.56
2400 MHz -5.11 -6.49 -2.74 53.23 0.81 -2.74
2450 MHz -4.89 -6.01 -2.41 57.47 1.23 -2.41
2500 MHz -4.87 -5.73 -2.27 59.30 1.23 -2.27

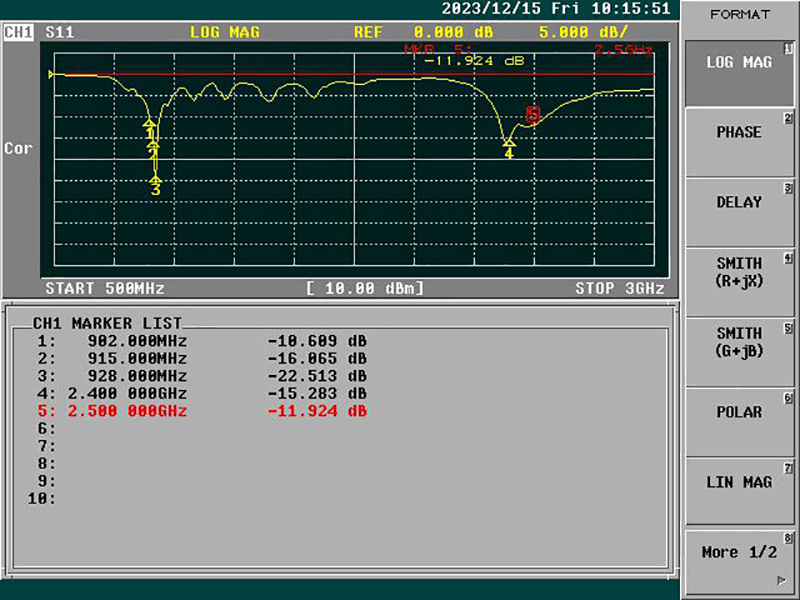

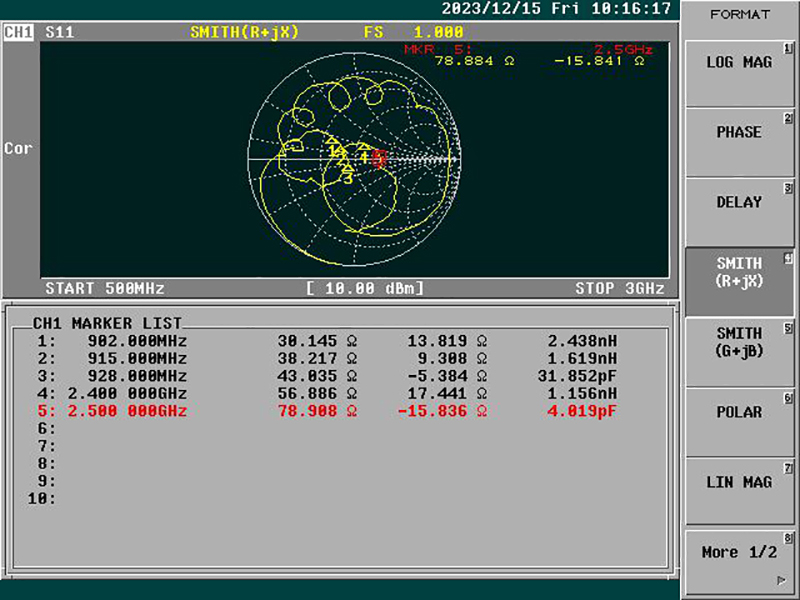

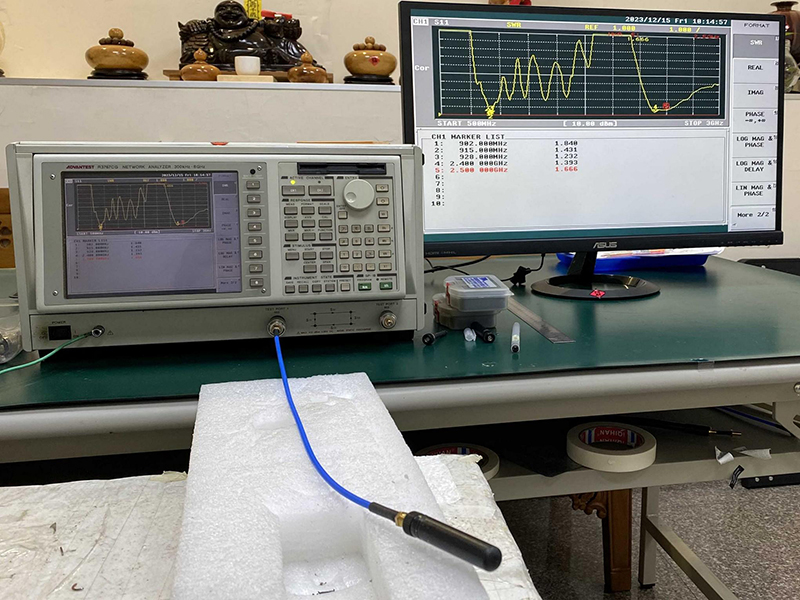

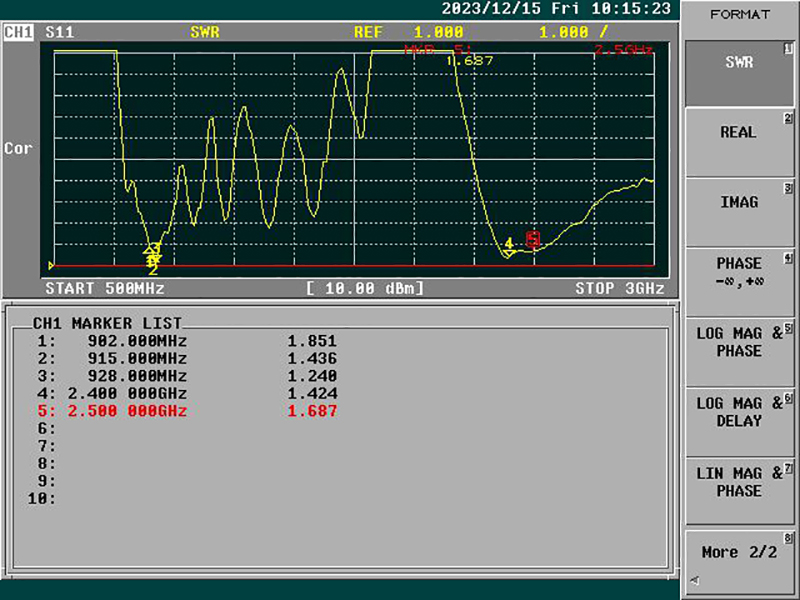

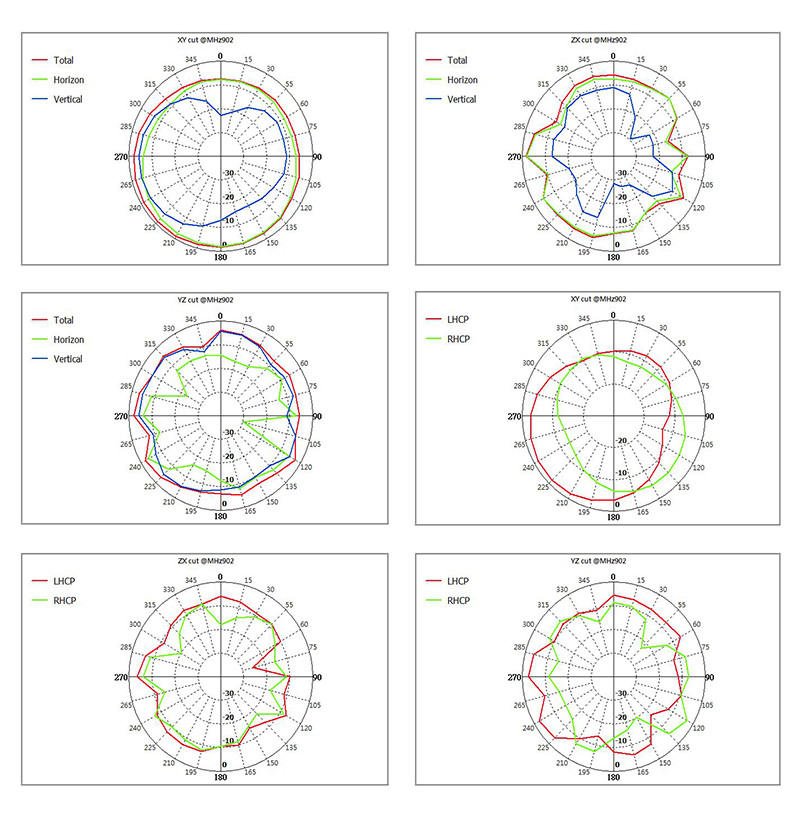

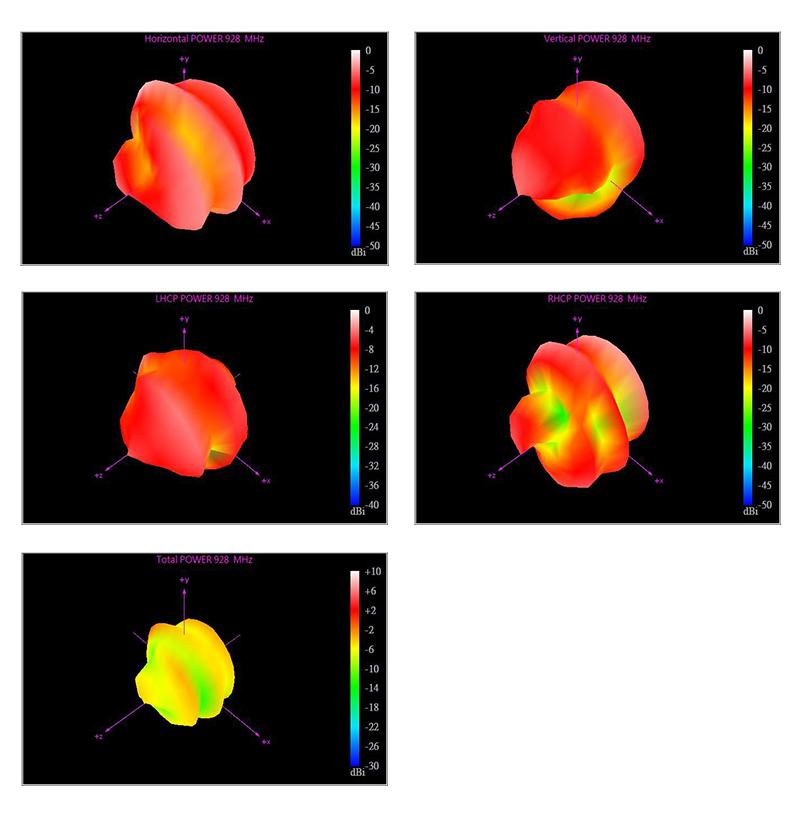

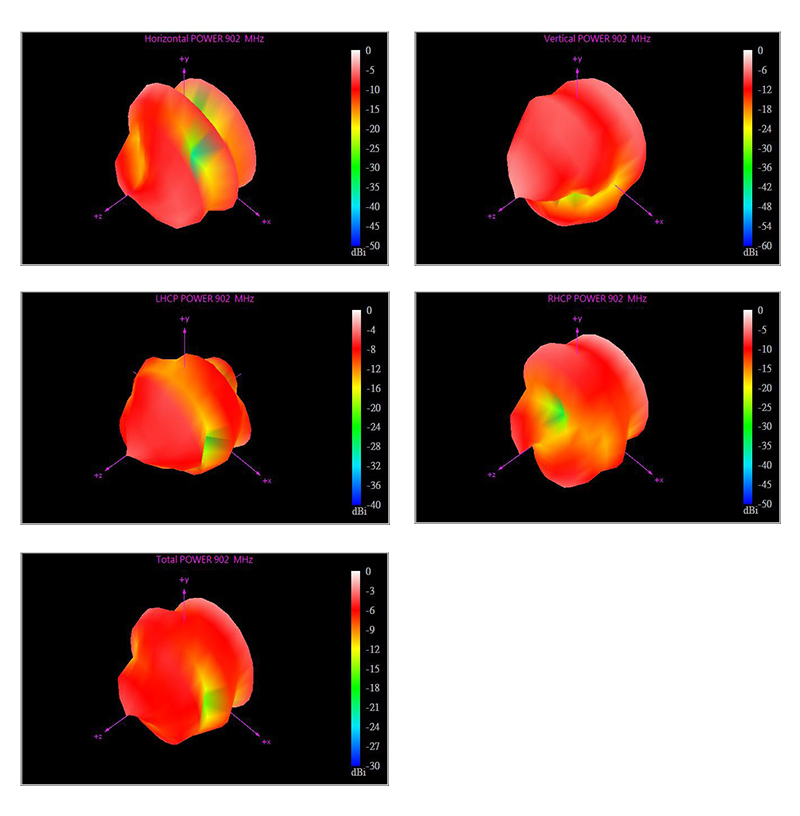

902Mhz:

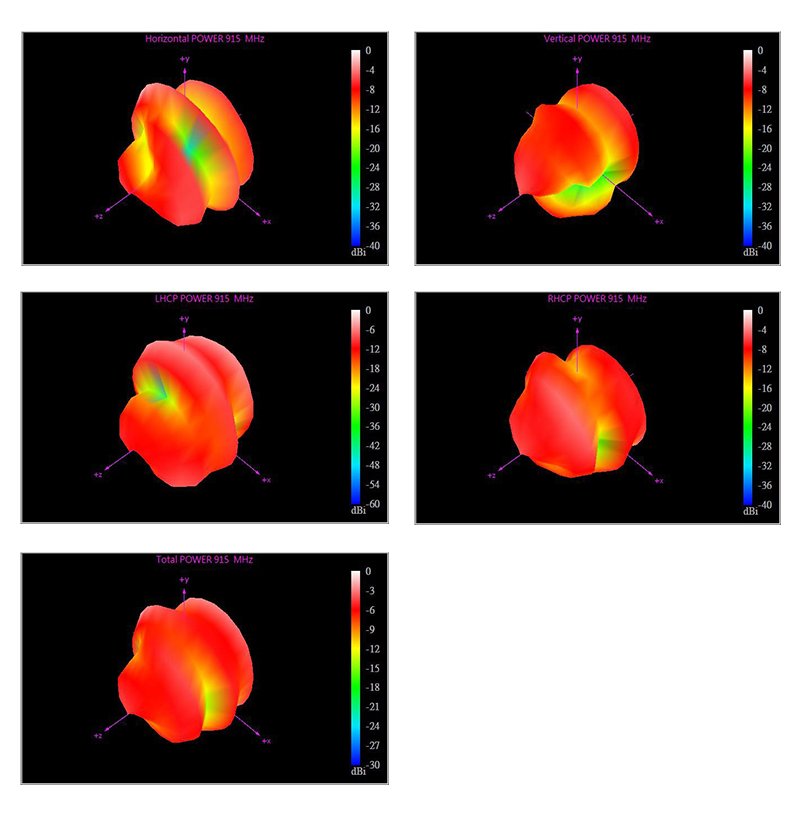

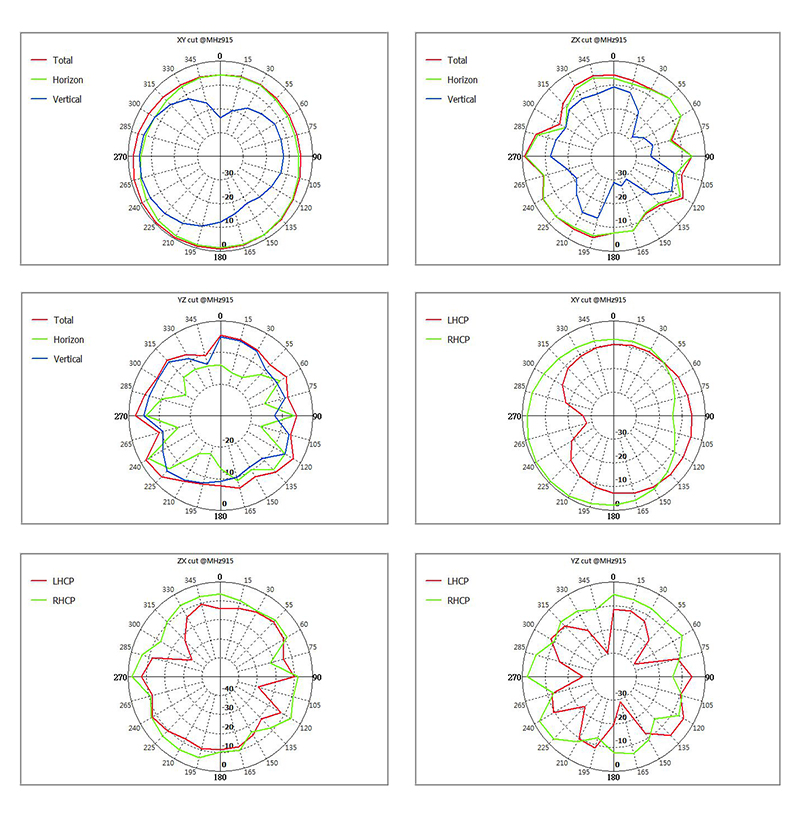

915Mhz:

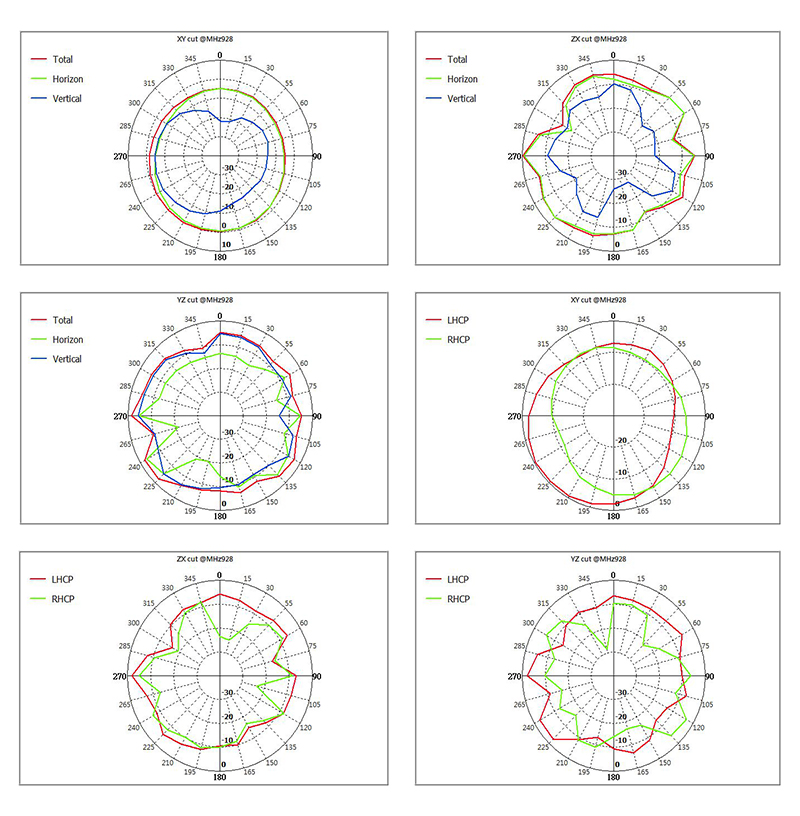

928Mhz:

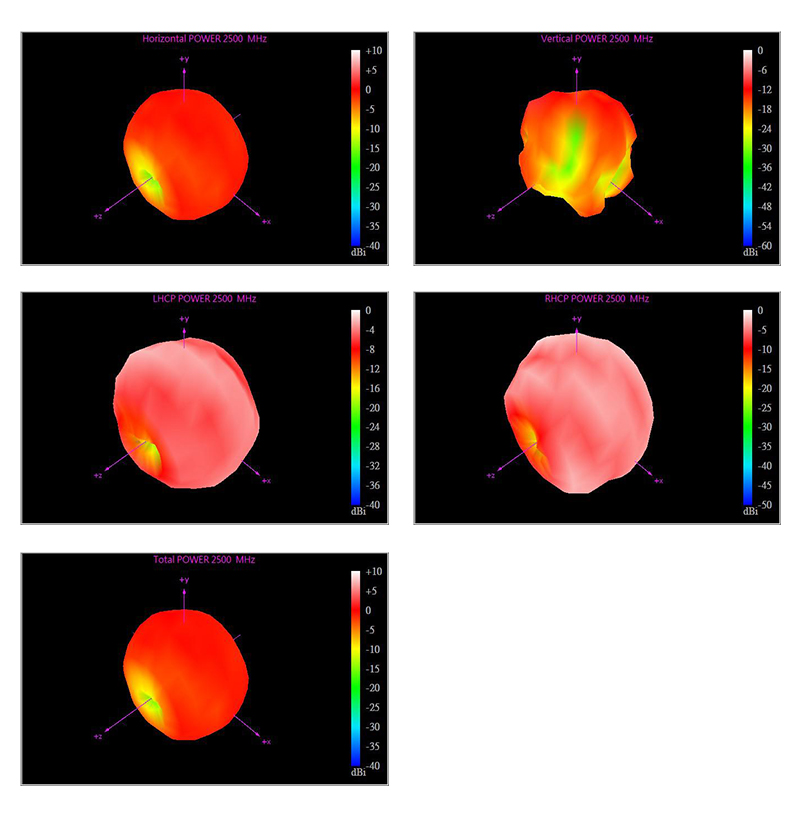

2.4Ghz:


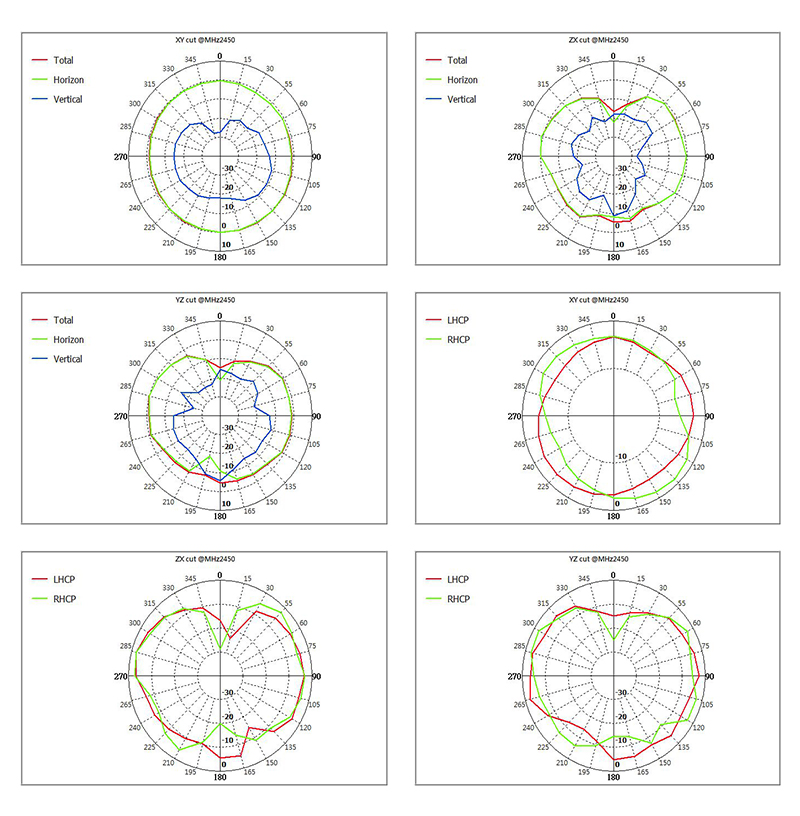

2.45Ghz:


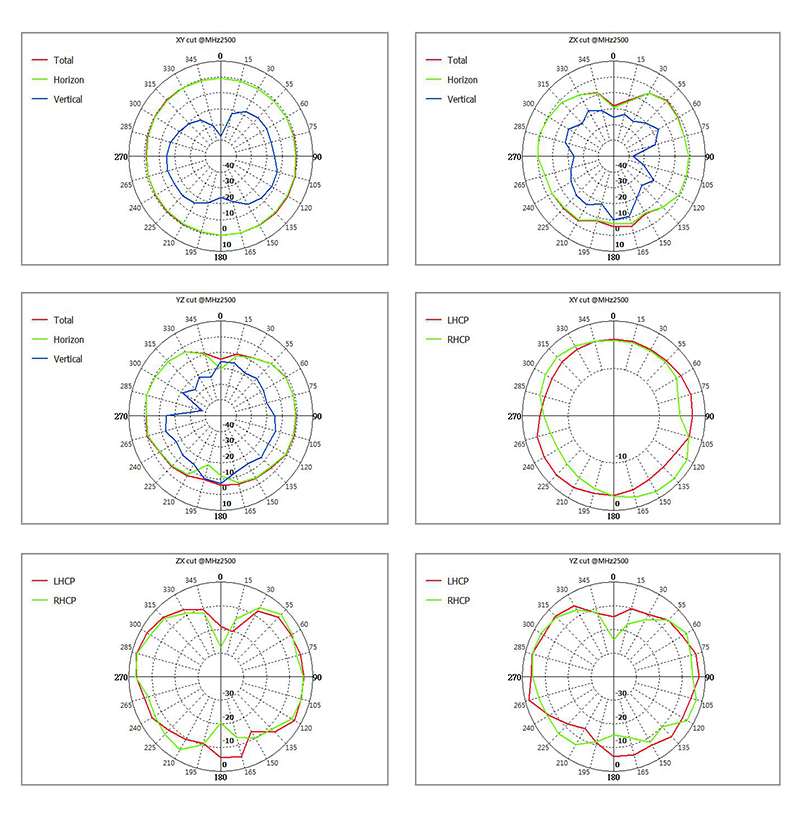

2.5Ghz:
