1.GENERAL DESCRIPTION
1.1 Electrical Properties
| Parameter |
Description |
| Frequency Band |
162MHz |
| Nominal Impedance |
50 ohm |
| Polarization |
Vertical |

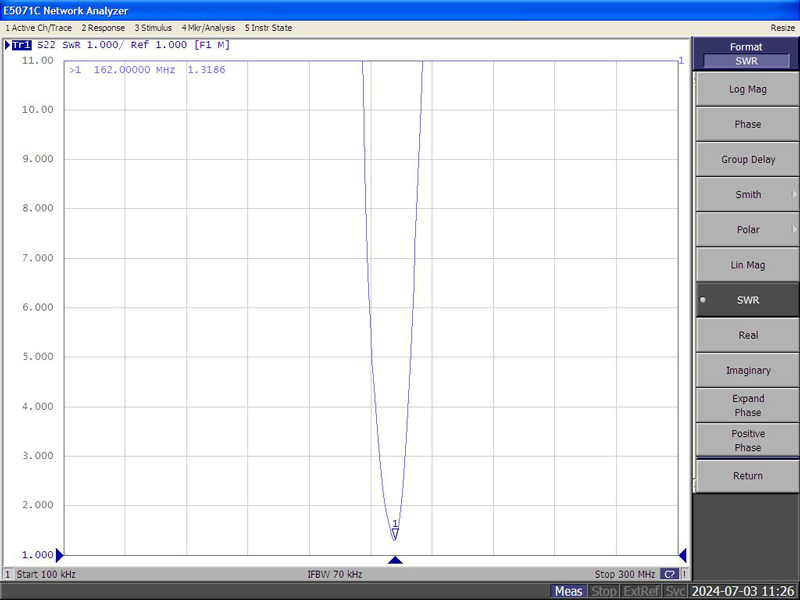

| V.S.W.R |
2.0:1 |
1.2 Mechanical Properties
| Parameter |
Description |
| Antenna Type |
External Antenna |
| Antenna Cover |
TPR |
| Touch Type |
Screw Type |
| Connector Type |
SMA(Male)-Ni |

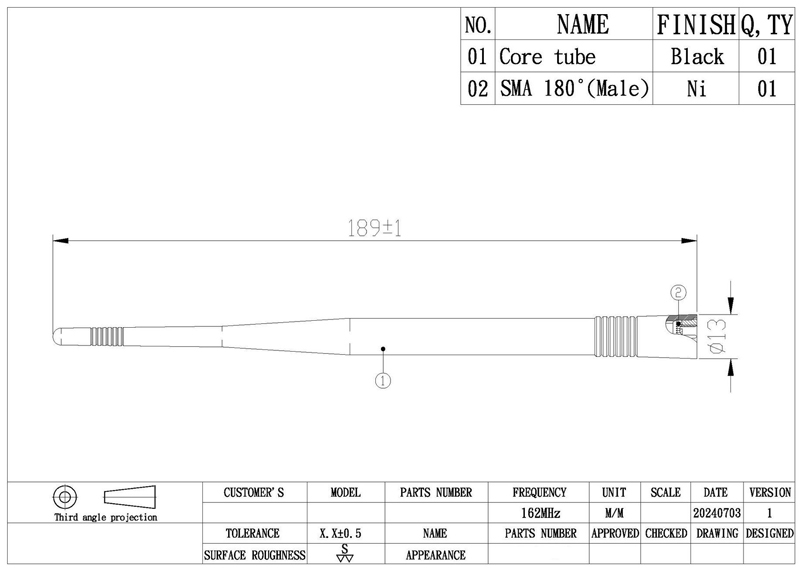

| Antenna Dimensions |
189mm ±1 |
| Antenna Color |
Black |
| Operating Temperature Range |
-30°C~+70°C |
| Storage Temperature Range |
-30°C~+70°C |

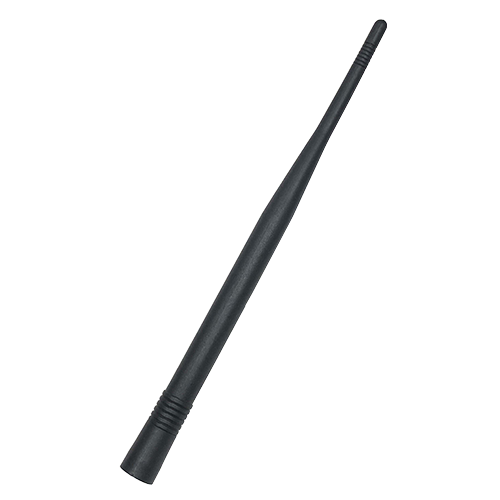

Our TH-162E is the best for AIS Class B transponders and handheld devices. It is small size and easy to install and disassemble. Please don’t hesitate to email us if you have any questions.
