TH-191
  • Product Description
  • Product Specification

1.GENERAL DESCRIPTION

P/N
TH-191-SMA(M)
Below is a table summarizing the antenna design specification.


1.1 Electrical Properties

Parameter Description
Frequency Band 191MHz on GND
Nominal Impedance 50 ohm
Polarization Vertical
V.S.W.R 2.0:1
Note: Gain includes the cable loss

1.2 Mechanical Properties

Parameter Description
Antenna Type External Antenna
Touch Type Screw Type
Connector Type SMA (Male)
Antenna Dimensions 335mm ±10
Antenna Color Black
Operating Temperature Range -30°C~+70°C
Storage Temperature Range -30°C~+70°C

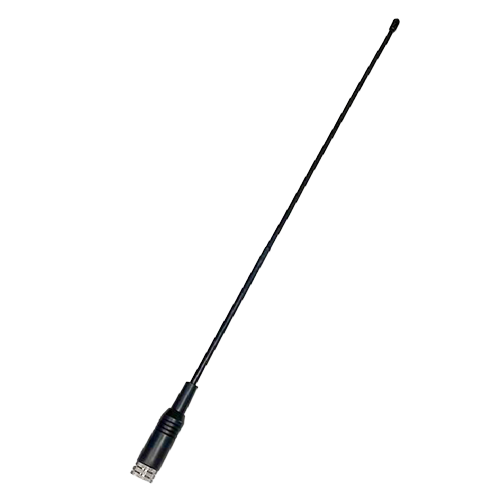

2. Appearance

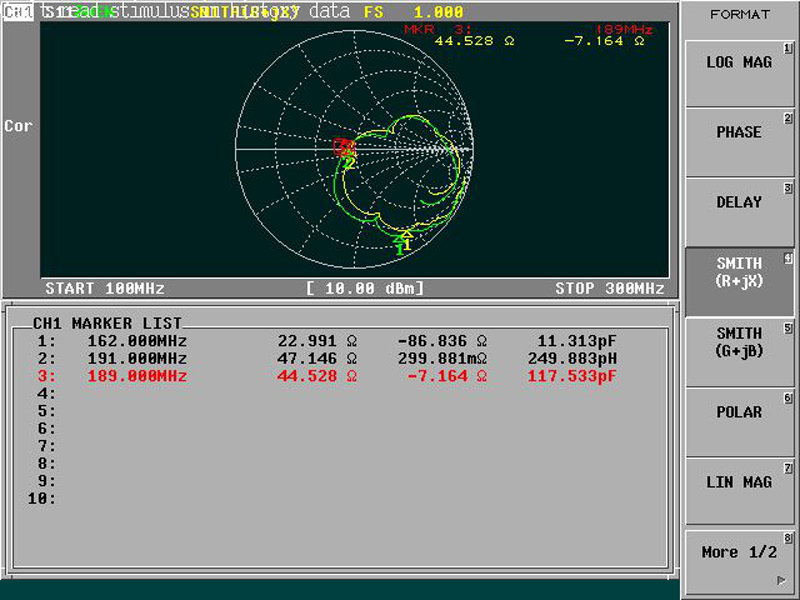

3. V.S.W.R. : Customer samples & Test Tools

3.1 V.S.W.R. for Customer samples & Test Tools
