1.GENERAL DESCRIPTION
Below is a table summarizing the antenna design specification.
1.1 Electrical Properties
| Parameter |
Description |
| Frequency Band |
162MHz on GND |

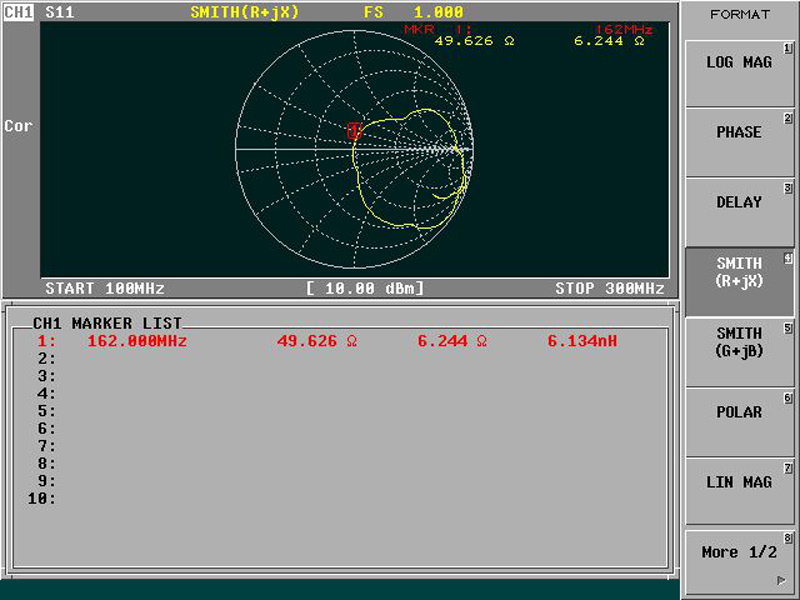

| Nominal Impedance |
50 ohm |
| Polarization |
Vertical |

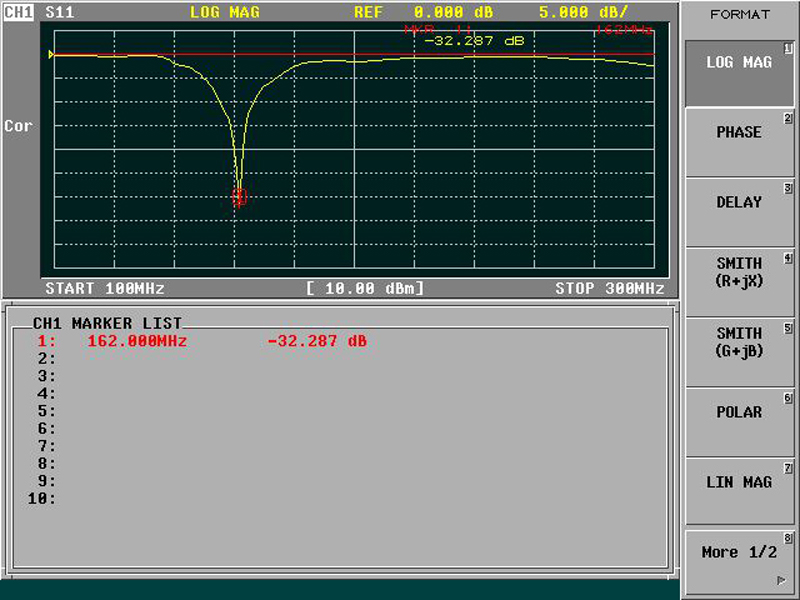

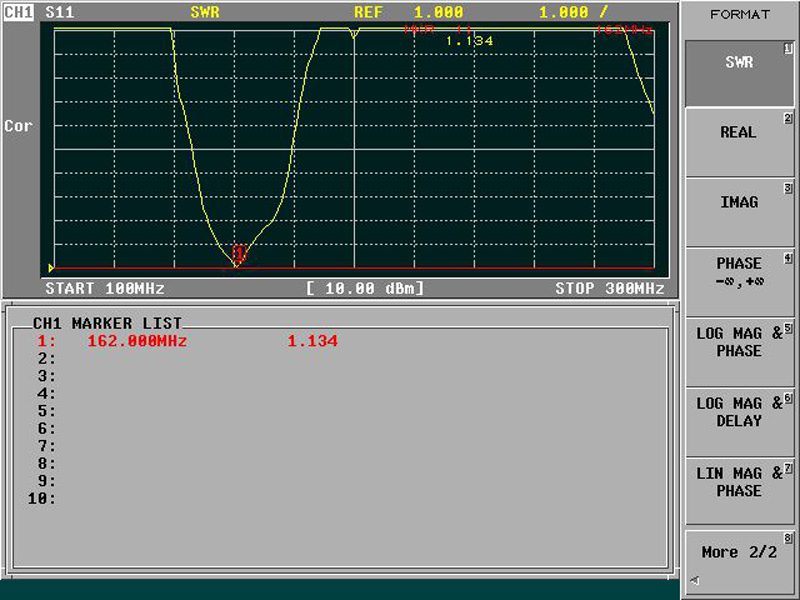

| V.S.W.R |
2.0:1 |
| Note: Gain includes the cable loss |

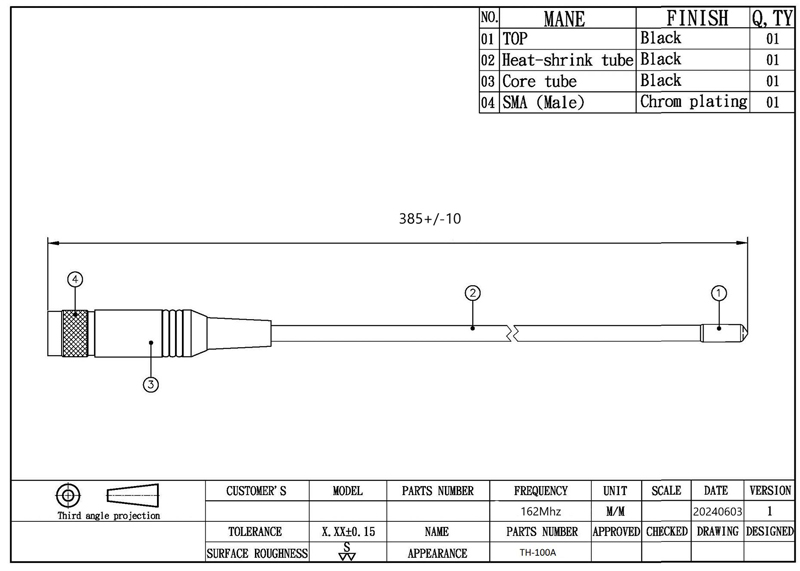

1.2 Mechanical Properties
| Parameter |
Description |
| Antenna Type |
External Antenna |
| Touch Type |
Screw Type |
| Connector Type |
SMA (Male) |
| Antenna Dimensions |
385mm ±10 |
| Antenna Color |
Black |
| Operating Temperature Range |
-30°C~+70°C |
| Storage Temperature Range |
-30°C~+70°C |
