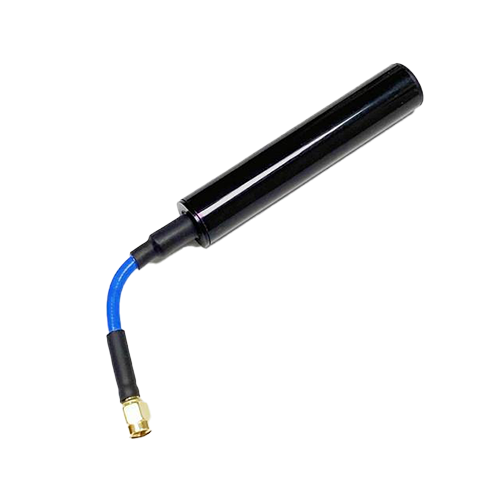

TH-1625-SMA(M) 1.6~2.5Ghz Flexible Cable Antenna
  • Product Description
  • Product Specification

1. GENERAL DESCRIPTION

Model No P/N
TH-1625 TH-1625-SMA(M)

1.1 Electrical Properties

Parameter Description
Frequency Band 1.6~2.5Ghz

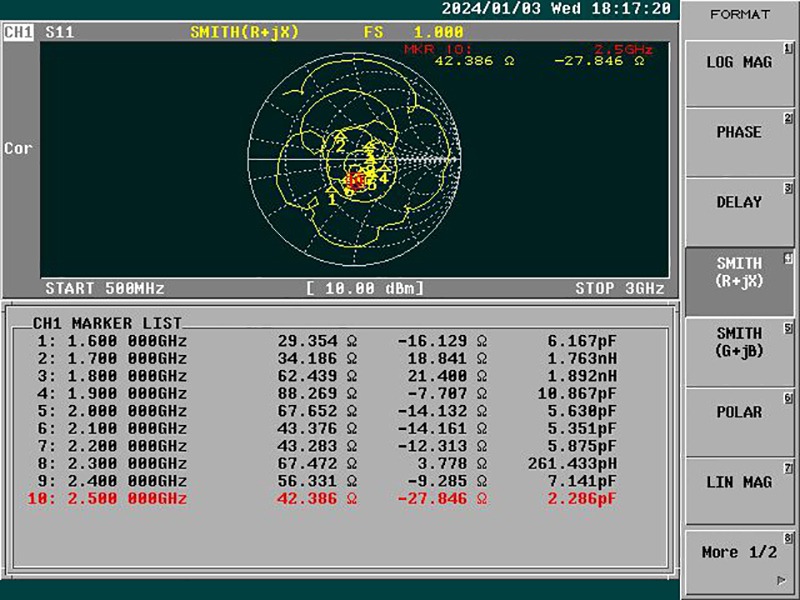

Nominal Impedance 50 ohm
Polarization Vertical
Admitted Power radiation 1W

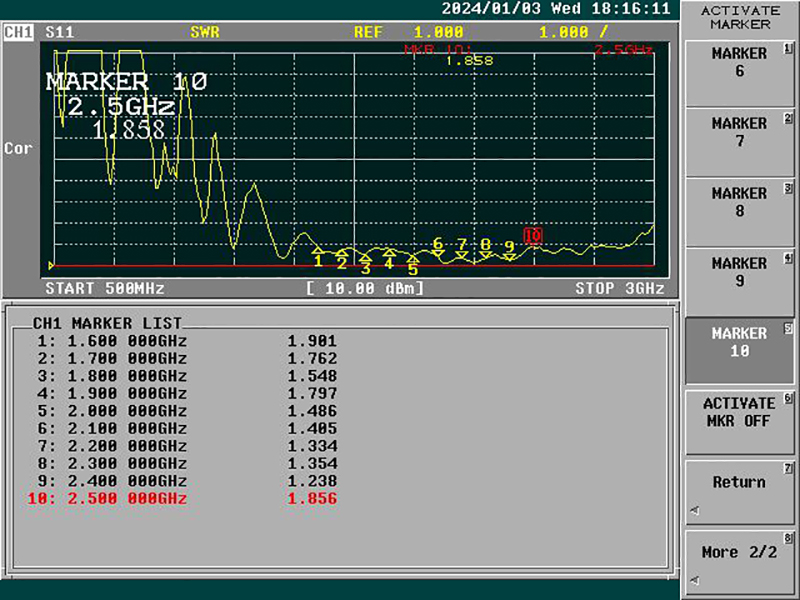

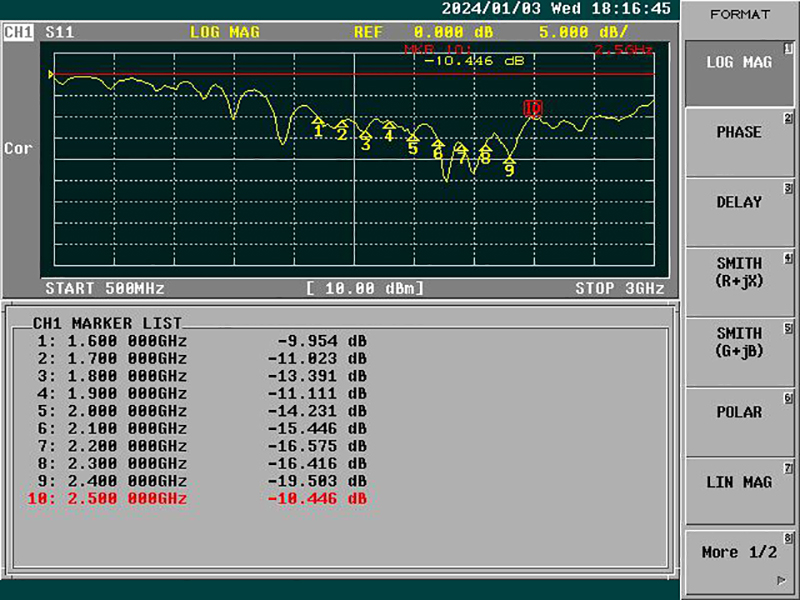

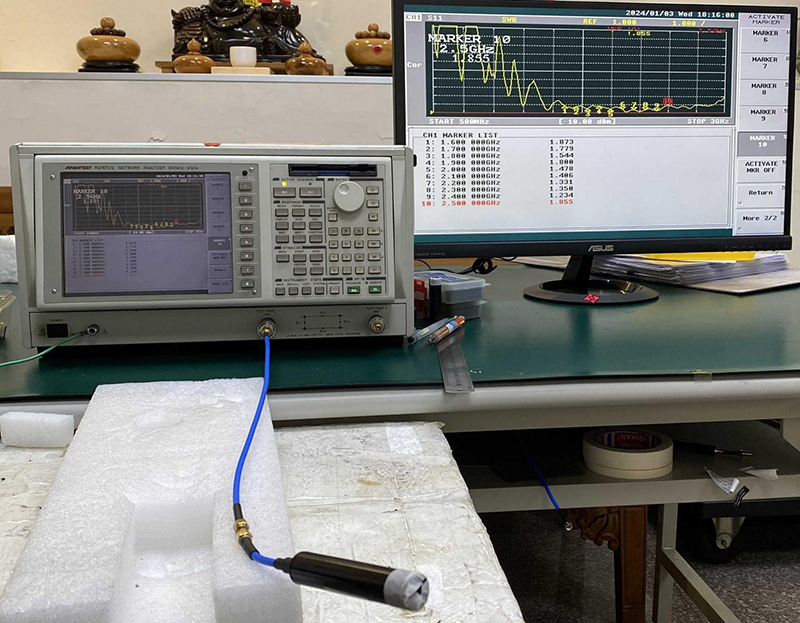

V.S.W.R 3.0:1 Max
Antenna Gain 0~3dB

1.2 Mechanical Properties

Parameter Description
Antenna Type External Antenna
Material ASA-UV (UL94-HB)
Touch Type Screw Type
Connector Type SMA connector (Male) / RG402 Cable
Antenna Dimensions OD12.5 x 159mm±2
Weight 35g
Antenna Color Black
Operating Temperature Range -40°C~+80°C
Storage Temperature Range -40°C~+80°C
Waterproof IPX7




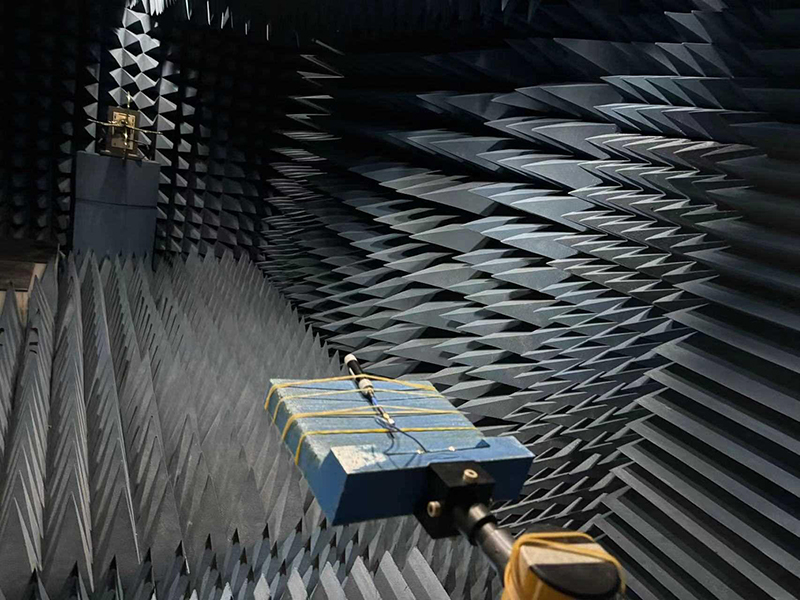

3D Total

Frequency
(MHz)		 Upper Hem.PRP
(dBm)		 Lower HEM.PRP
(dBm)		 Efficiency
(dB)		 Efficiency
(%)		 Gain
(dBi)		 Tot.Rad.Pwr.
(dBm)
1500 MHz -6.77 -5.65 -3.16 48.29 3.09 -3.16
1510 MHz -6.01 -5.10 -2.52 56.00 3.78 -2.52
1530 MHz -5.90 -5.32 -2.59 55.05 3.44 -2.59
1550 MHz -6.07 -5.85 -2.95 50.71 2.64 -2.95
1570 MHz -5.52 -5.59 -2.54 55.66 3.19 -2.54
1580 MHz -5.99 -6.25 -3.11 48.90 2.16 -3.11
1590 MHz -5.08 -5.46 -2.25 59.53 3.13 -2.25
1600 MHz -5.17 -5.90 -2.51 56.16 2.72 -2.51
1605 MHz -5.28 -5.95 -2.59 55.10 2.24 -2.59
1610 MHz -5.23 -5.89 -2.54 55.75 2.25 -2.54
1710 MHz -5.23 -5.94 -2.56 55.46 0.84 -2.56
1730 MHz -5.47 -5.35 -2.40 57.59 1.14 -2.40
1750 MHz -6.27 -5.45 -2.83 52.14 0.73 -2.83
1770 MHz -6.24 -4.98 -2.56 55.50 1.14 -2.56
1785 MHz -6.09 -4.33 -2.11 61.55 1.91 -2.11
1805 MHz -6.87 -4.77 -2.68 53.91 1.50 -2.68
1840 MHz -6.61 -4.05 -2.13 61.22 2.94 -2.13
1850 MHz -6.27 -3.57 -1.70 67.54 3.68 -1.70
1880 MHz -6.88 -4.24 -2.35 58.21 3.23 -2.35
1910 MHz -6.35 -4.07 -2.05 62.40 3.73 -2.05

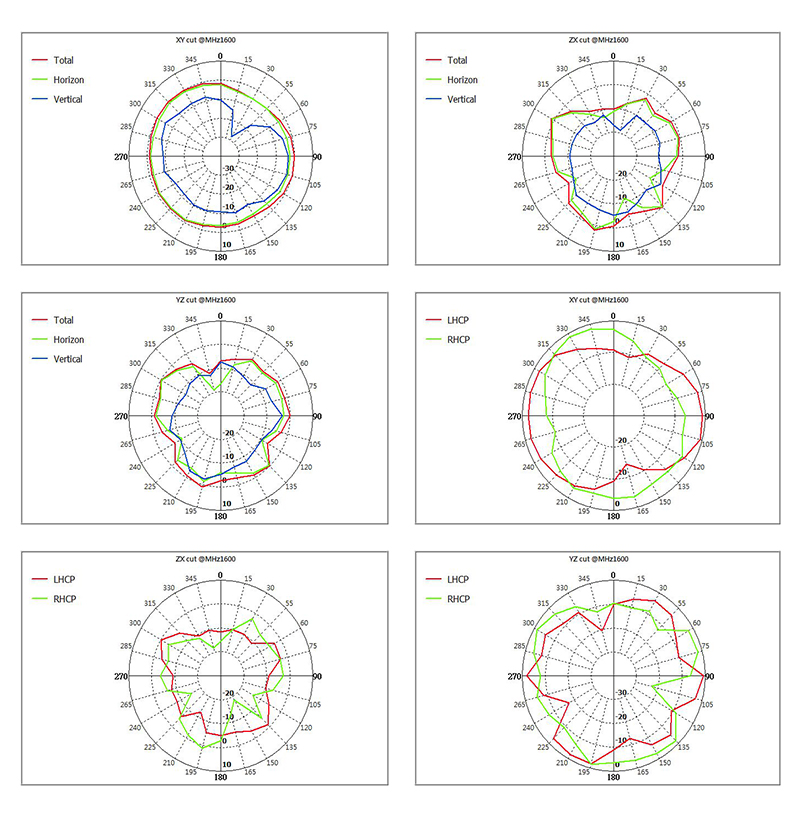

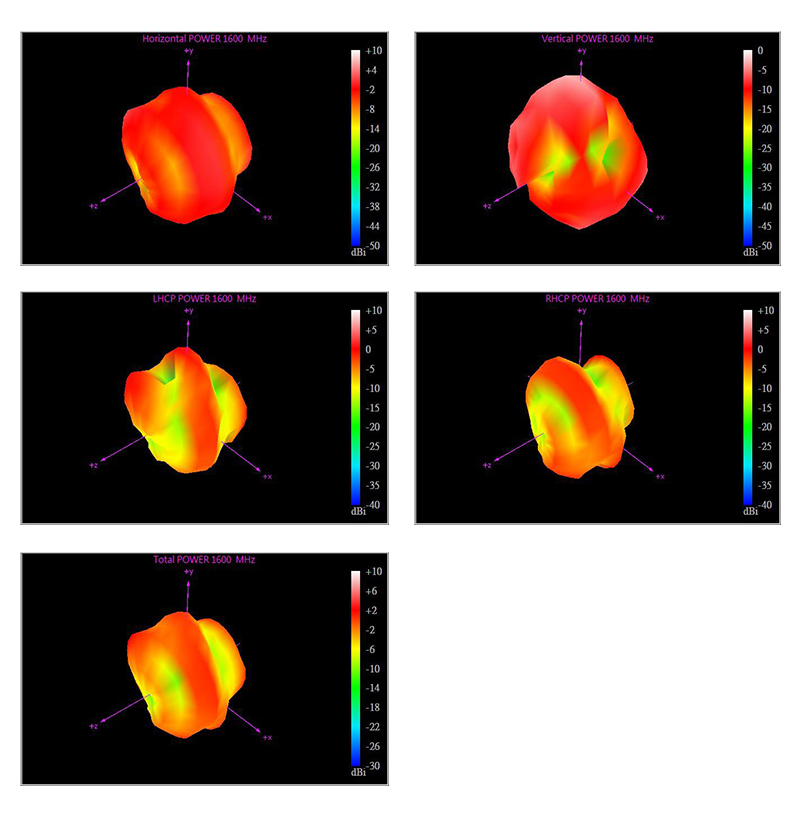

1600Mhz:

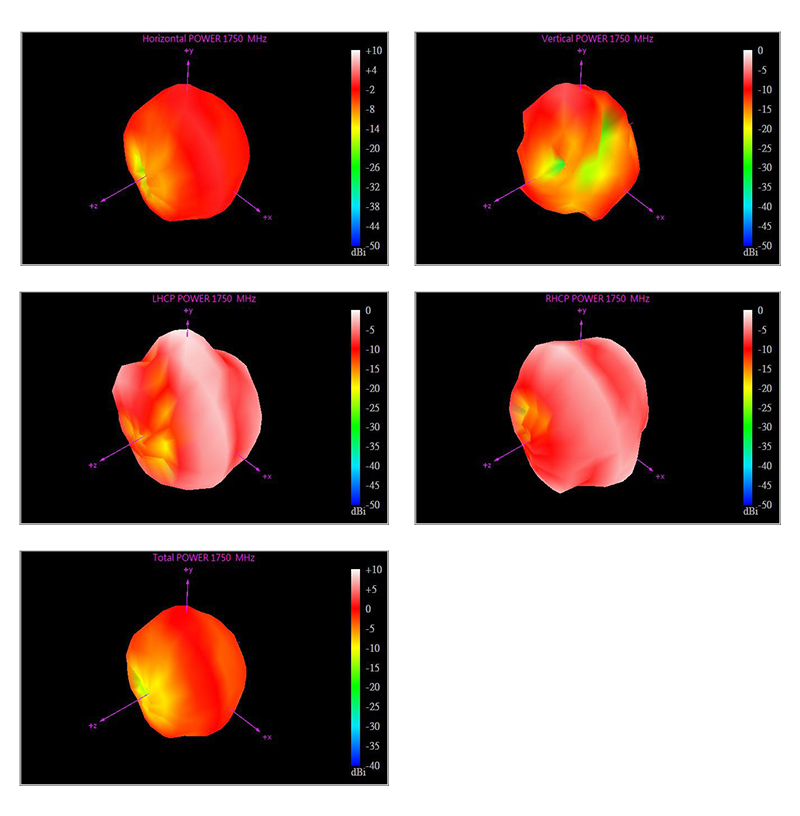

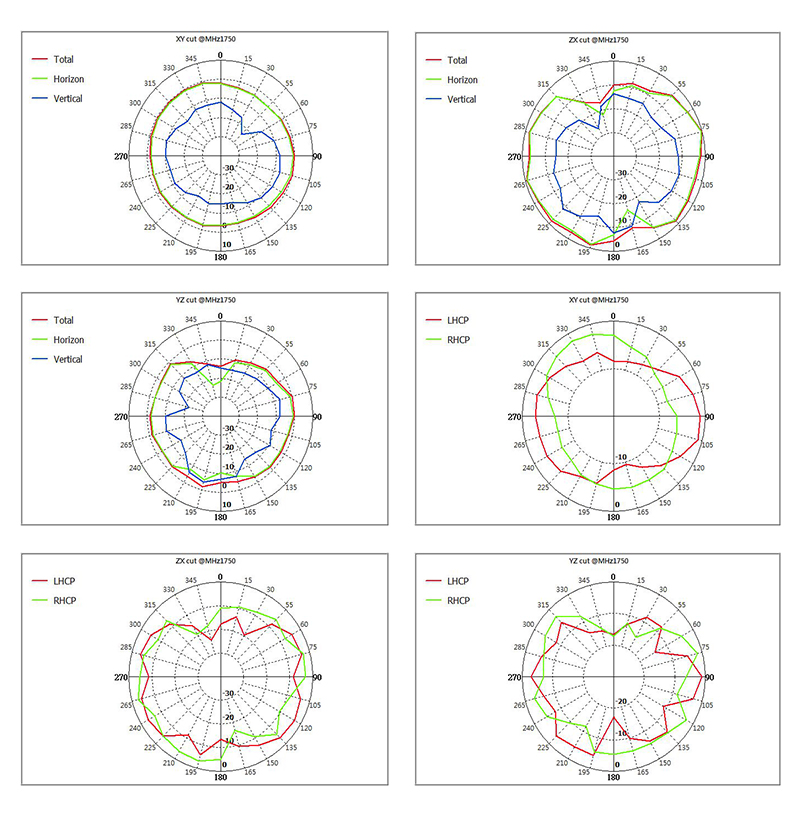

1750Mhz:

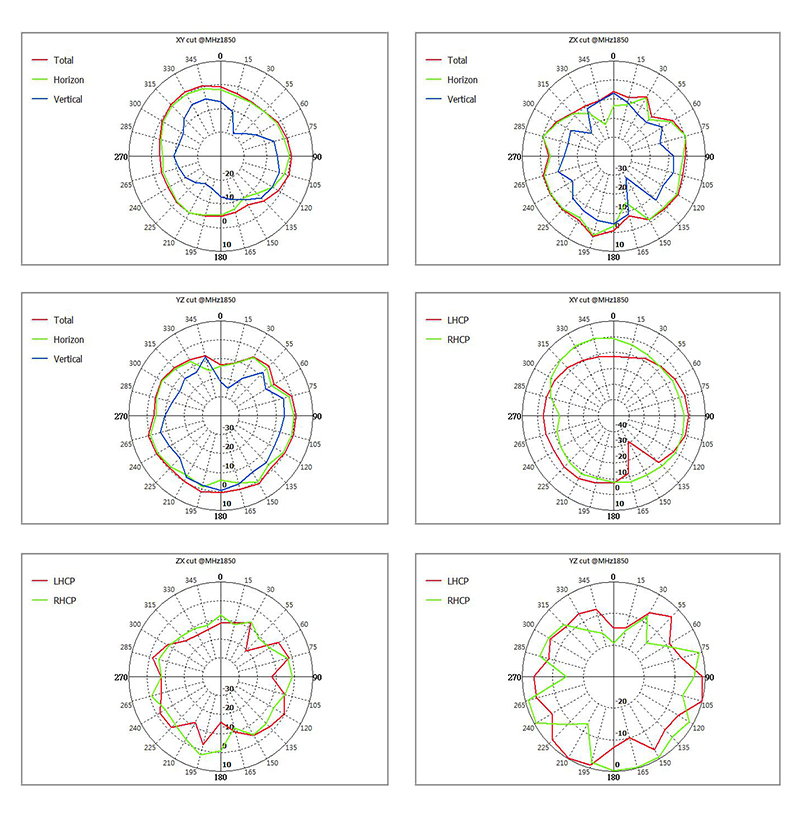

1850Mhz:

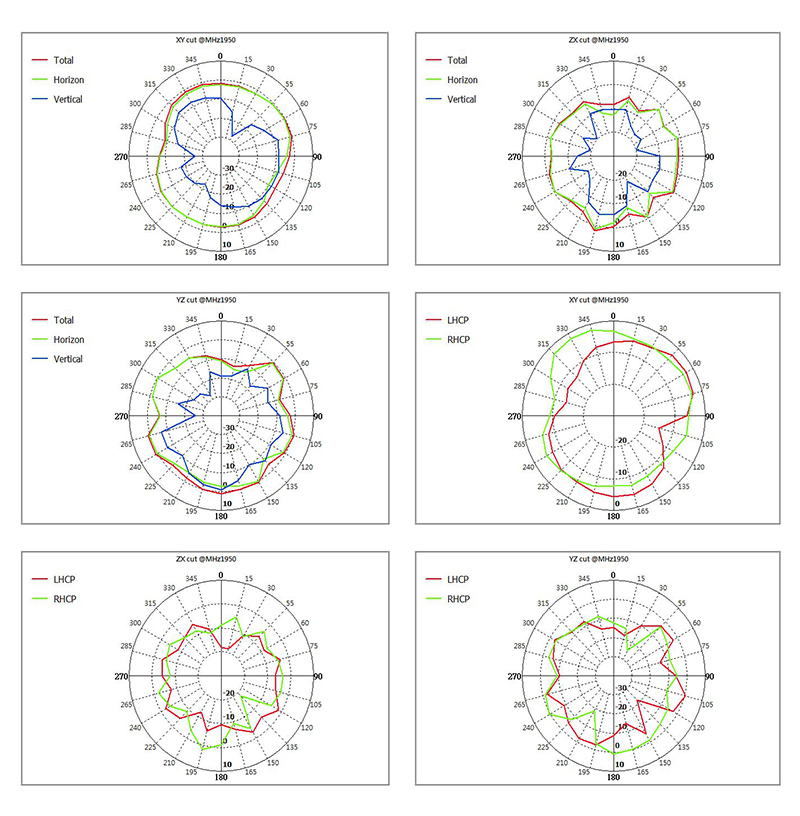

1950Mhz:

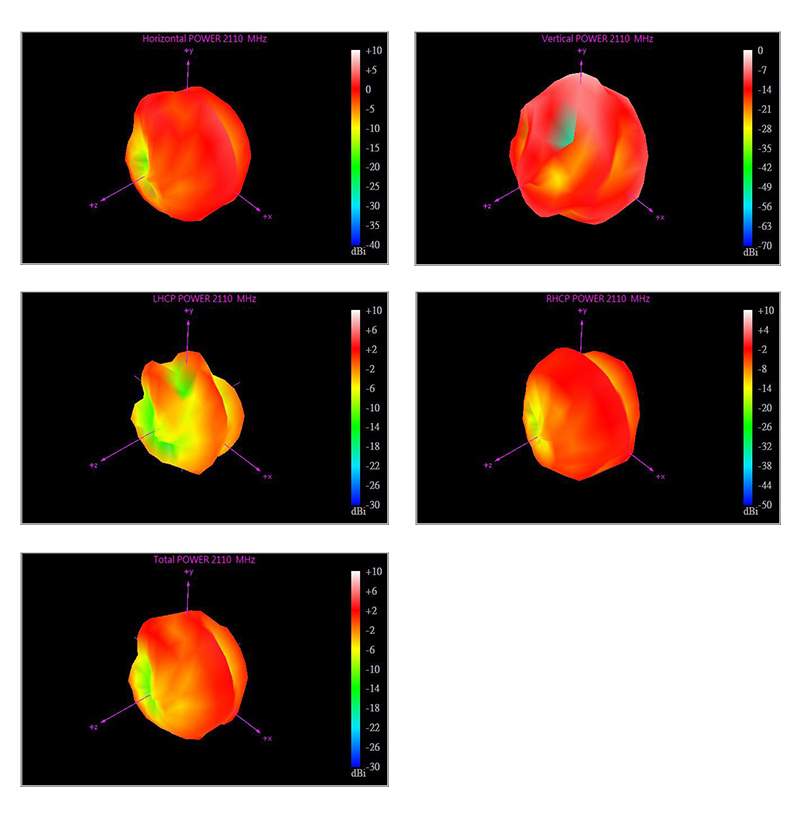

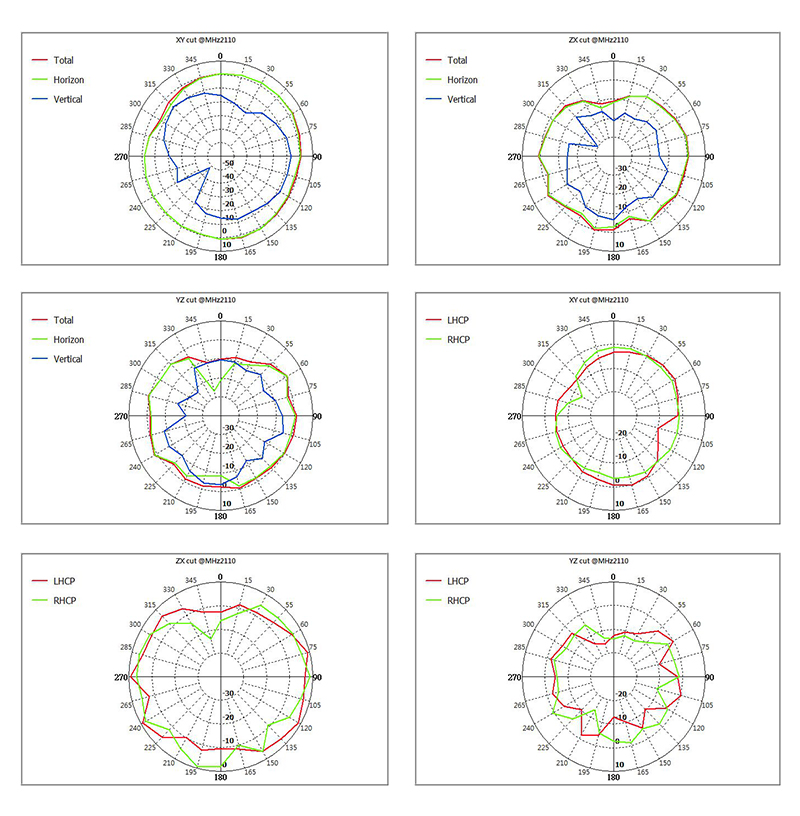

2110Mhz:

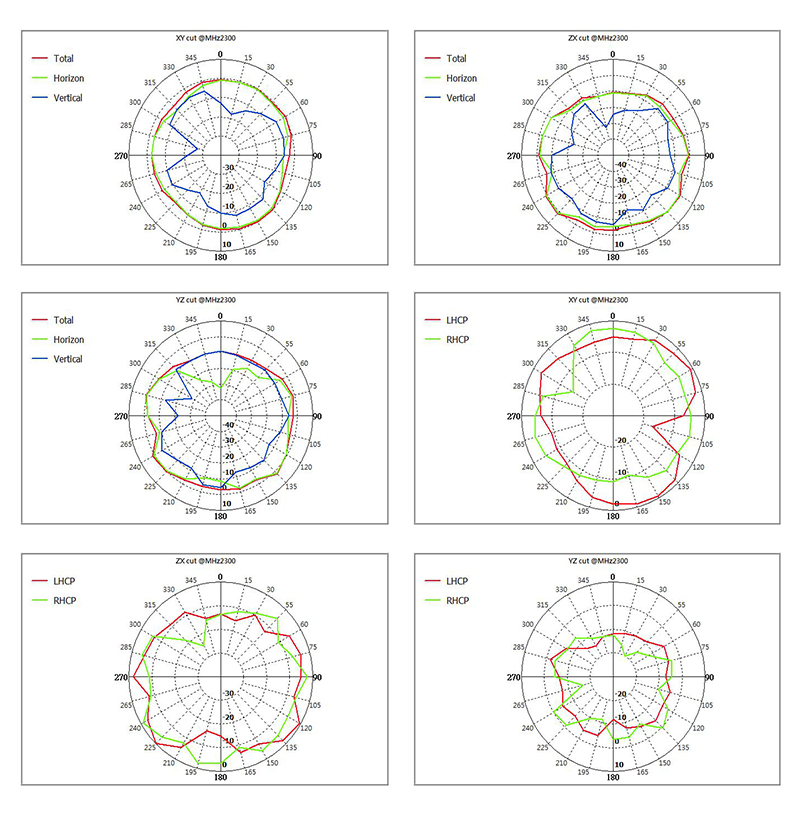

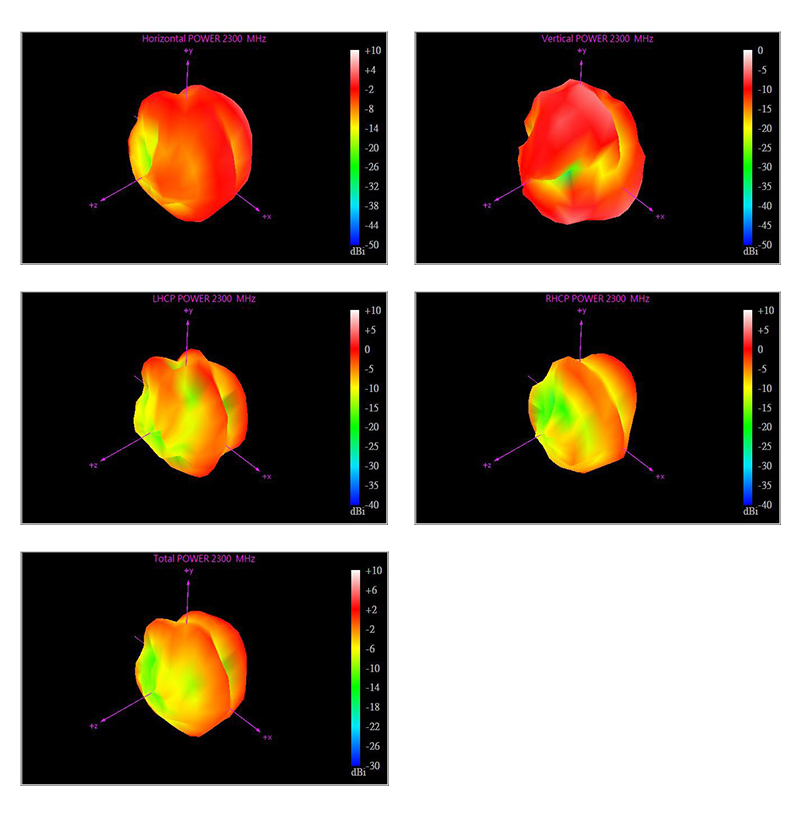

2300Mhz:

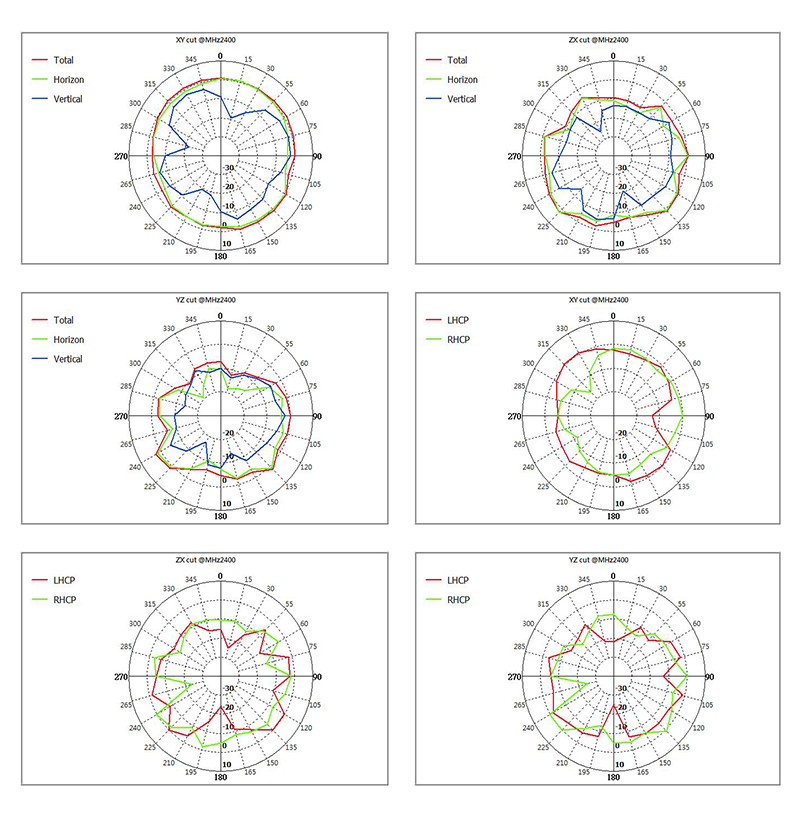

2400Mhz:

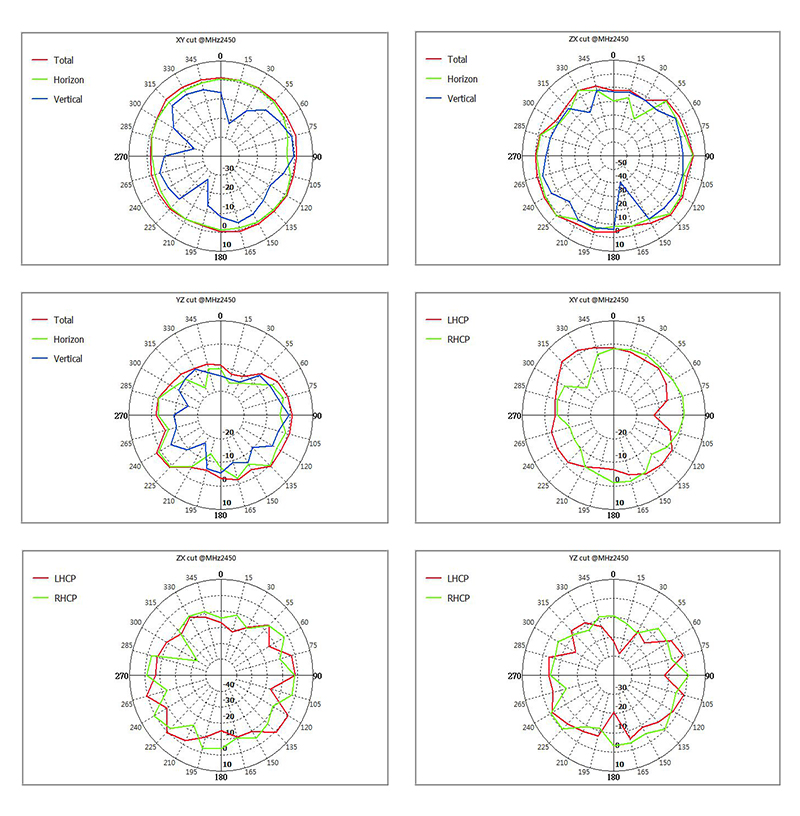

2450Mhz:

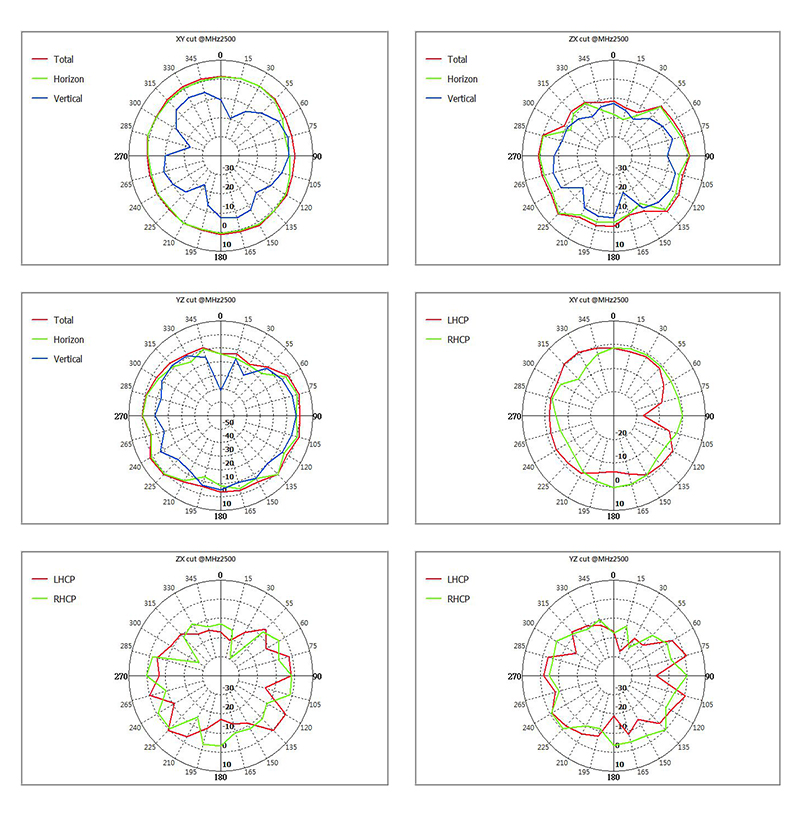

2500Mhz:
