  • Product Description
  • Product Specification

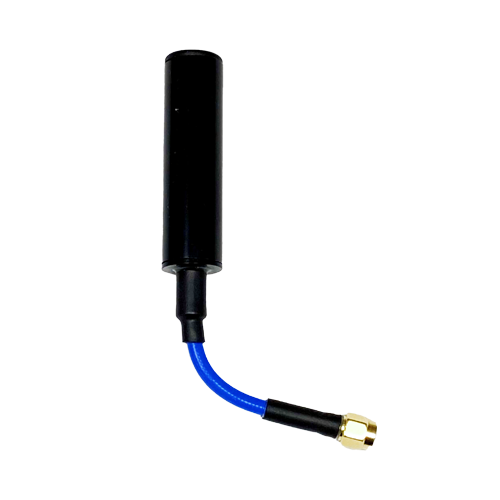

1.GENERAL DESCRIPTION

Model No
TH1438E-SMA(M)

1.1 Electrical Properties

Parameter Description
Frequency Band 1.3~1.5 & 2.0~3.0GHz
Nominal Impedance 50 ohm
Polarization Vertical

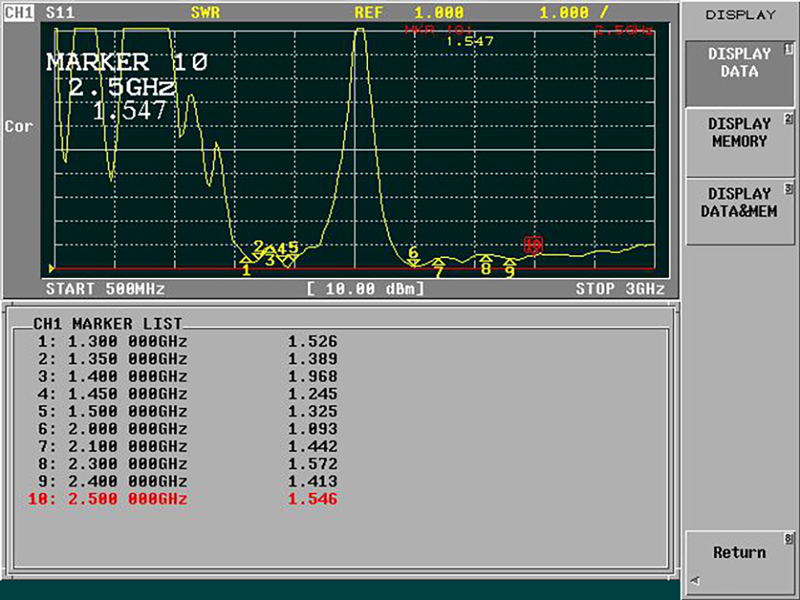

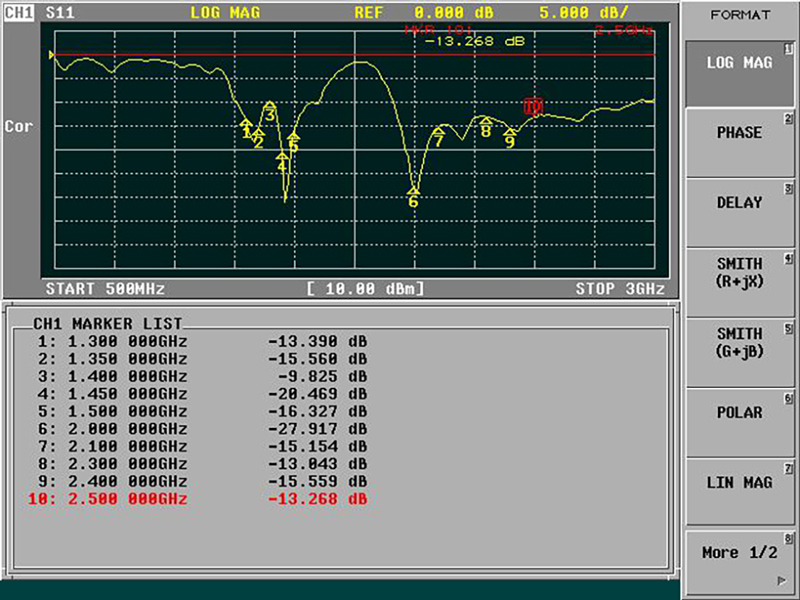

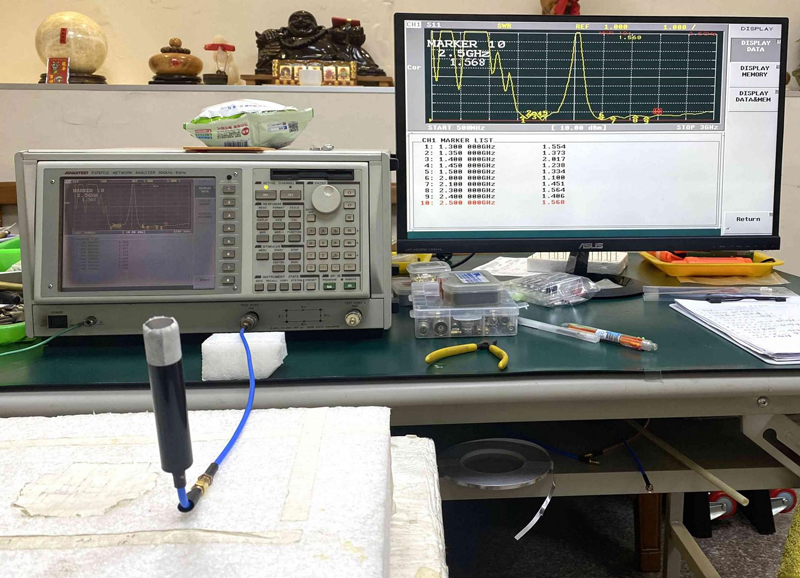

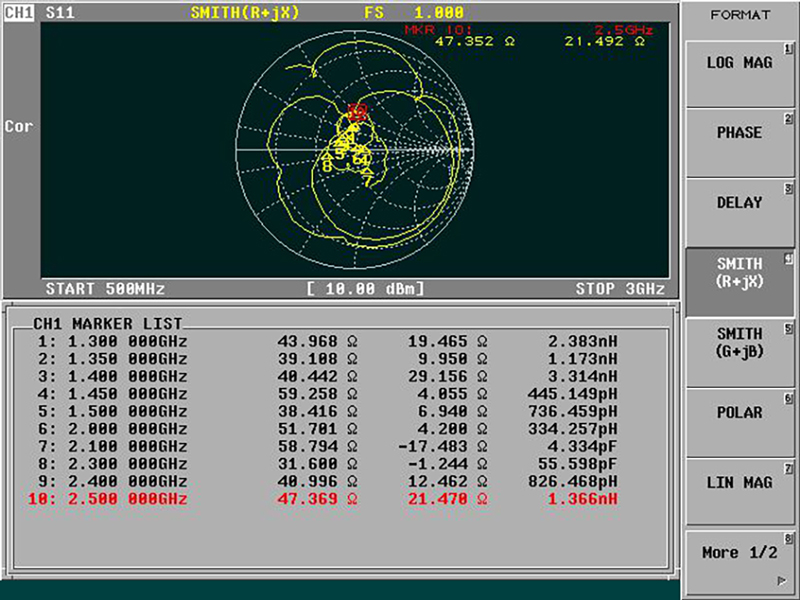

V.S.W.R 2.5:1
Peak Gain 1.5-4dbi
Power 10W

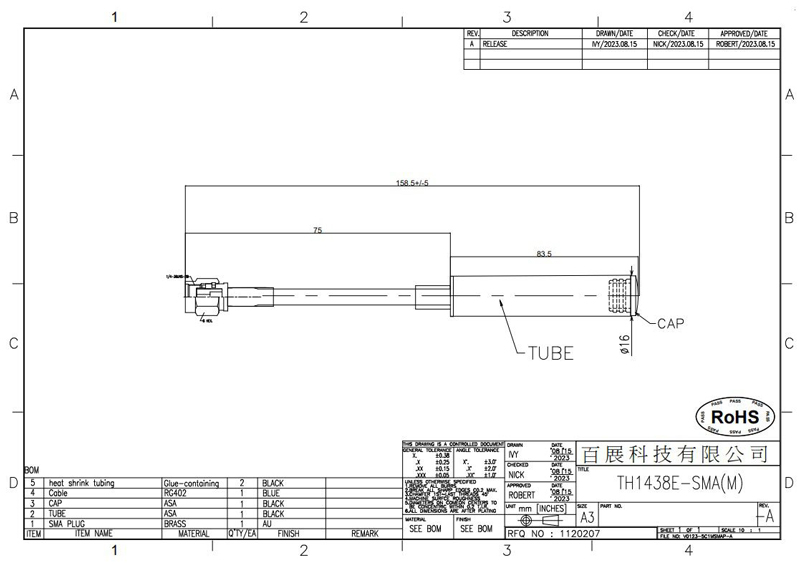

1.2 Mechanical Properties

Parameter Description
Antenna Type External Antenna
Materal ASA
Touch Type Screw Type
Connector Type SMA connector (Male) / RG402 Cable
Antenna Dimensions OD16 x158.5mm ±5
Weight 38g
Antenna Color Black
Operating Temperature Range -40°C~+85°C
Storage Temperature Range -40°C~+85°C
Waterproof IP67

Our TH-1438E is a Passive Antenna for L, S, and Wi-Fi Band communication transmission equipment. It’s best for drone control data image transmission, wireless AP, PA signal transmission, interference, etc. The ASA is strong weather resistance and its anti-aging performance with high temperature resistance and the RG402 Flexible Cable can be easily bent to make the antenna angle. Please don’t hesitate to email us if you have any questions.

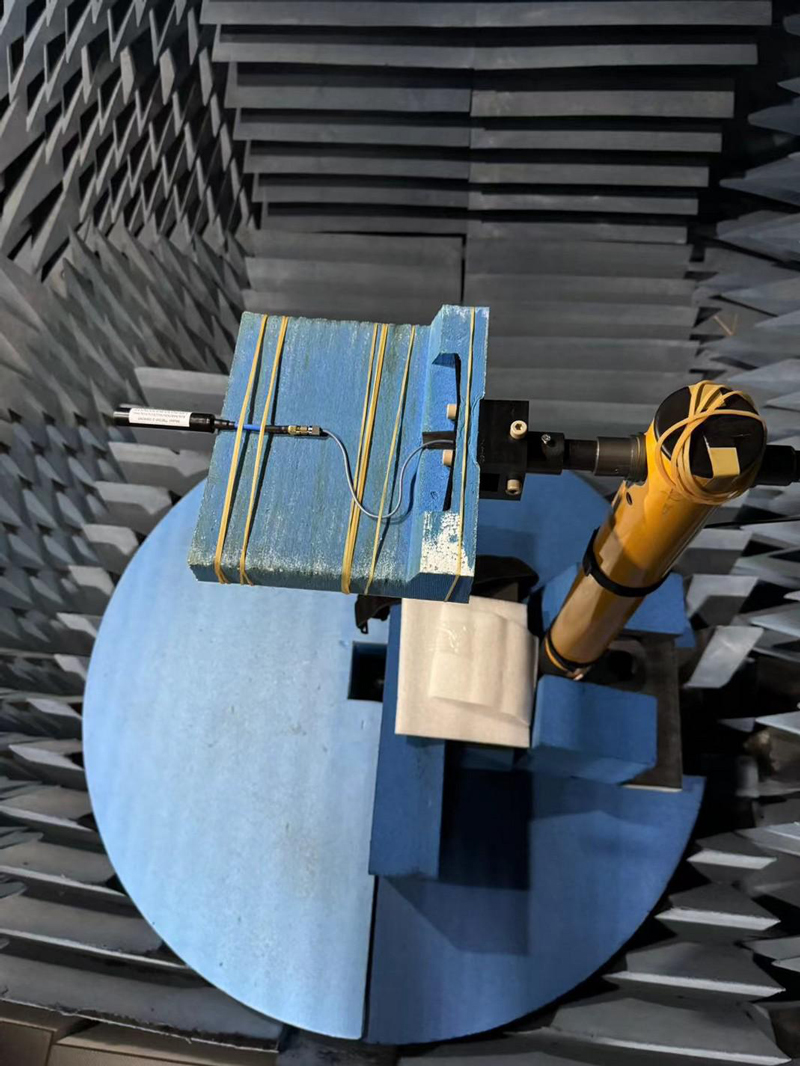

3D Total

Frequency
(MHz)		 Upper Hem.
PRP (dBm)		 Lower HEM.
PRP (dBm)		 Efficiency
(dB)		 Efficiency
(%)		 Gain (dBi) Tot. Rad.Pwr.
(dBm)
1300 MHz -6.69 -4.75 -2.60 54.94 1.74 -2.60
1350 MHz -6.27 -4.44 -2.25 59.61 2.24 -2.25
1400MHz -7.08 -4.33 -2.48 56.51 2.38 -2.48
1450 MHz -8.31 -4.99 -3.33 46.46 1.52 -3.33
1500 MHz -7.56 -5.11 -3.15 48.36 1.86 -3.15
2000 MHz -5.78 -5.58 -2.67 54.08 1.67 -2.67
2100 MHz -5.97 -5.21 -2.56 55.42 1.60 -2.56
2200 MHz -6.44 -5.24 -2.79 52.64 1.77 -2.79
2300 MHz -7.52 -4.60 -2.81 52.32 3.04 -2.81
2400 MHz -8.08 -4.49 -2.91 51.14 2.60 -2.91
2450 MHz -7.65 -4.47 -2.77 52.90 2.72 -2.77
2500 MHz -7.41 -4.27 -2.55 55.57 2.77 -2.55
2600 MHz -6.82 -3.50 -1.84 65.44 3.78 -1.84
2700 MHz -8.35 -4.07 -2.69 53.78 4.26 -2.69
2800 MHz -10.28 -6.49 -4.97 31.83 1.96 -4.97
2900 MHz -7.10 -3.48 -1.91 64.36 4.79 -1.91
3000 MHz -7.15 -3.59 -2.00 63.10 4.44 -2.00

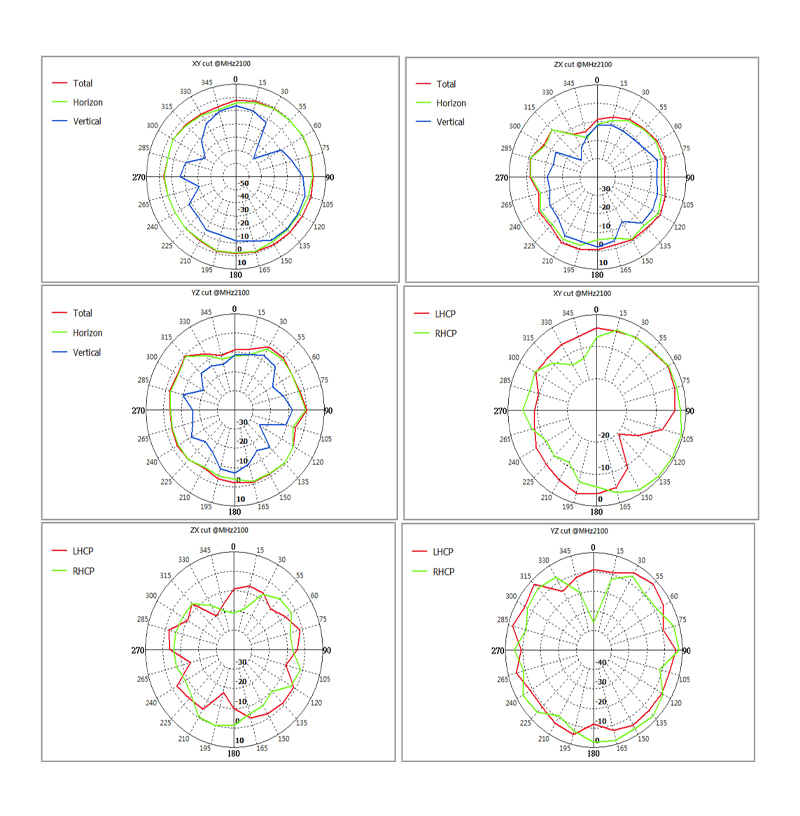

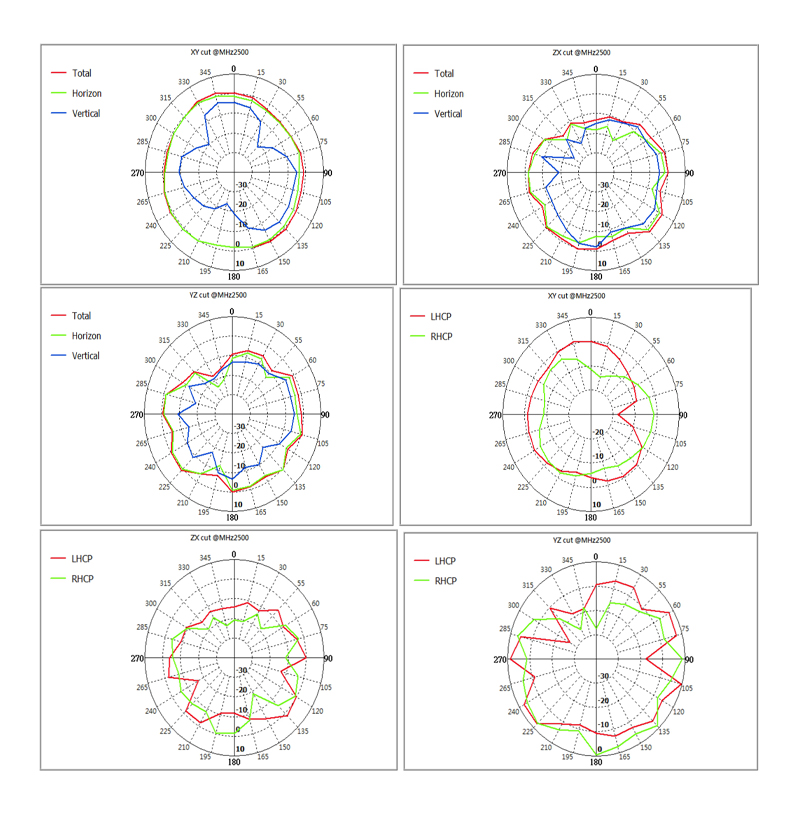

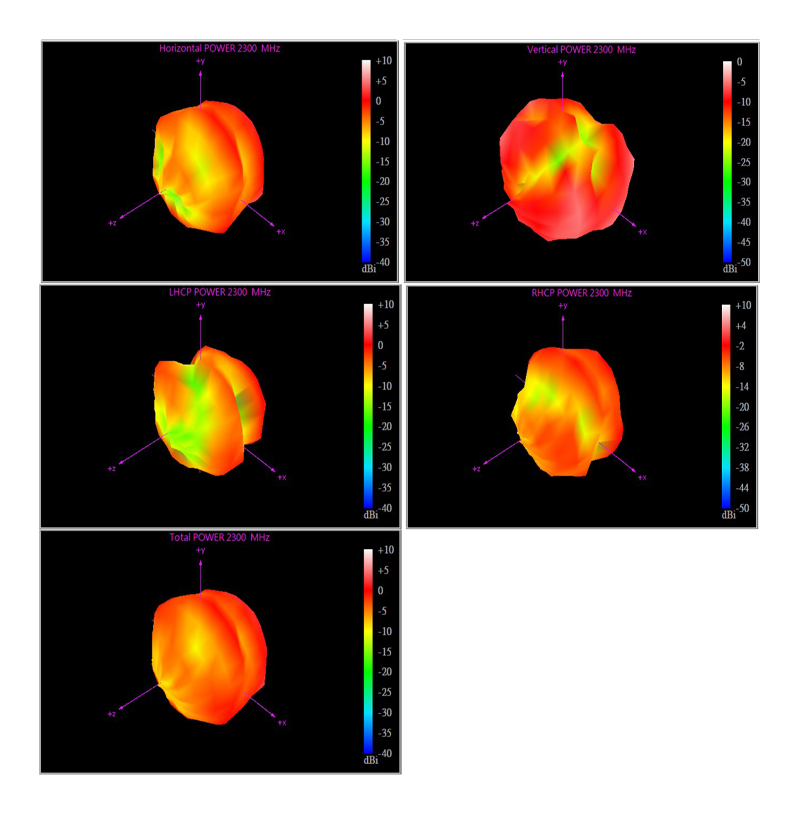

1300Mhz:

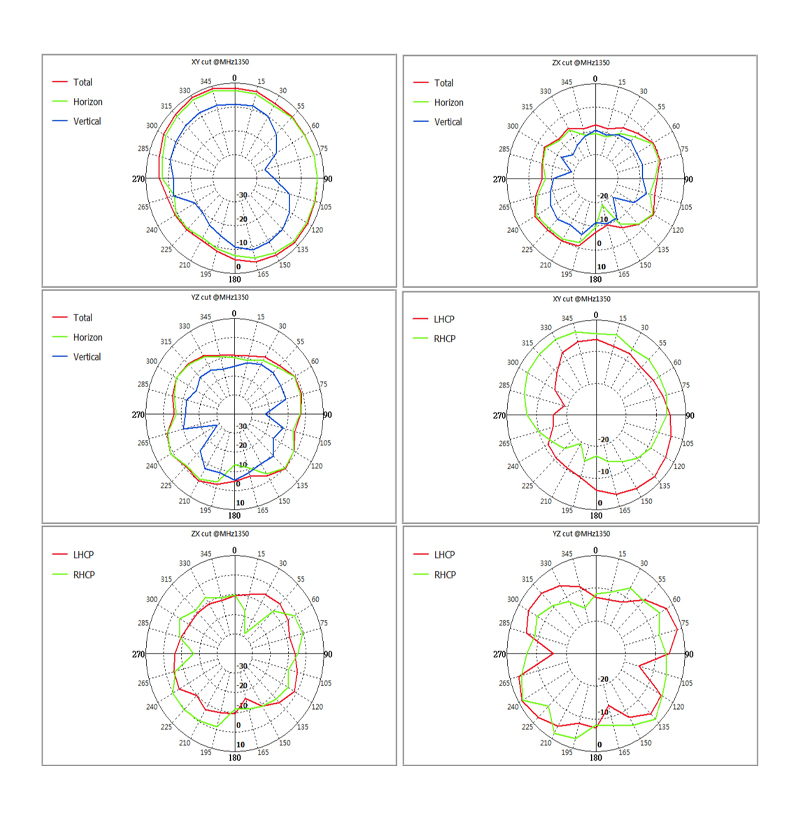

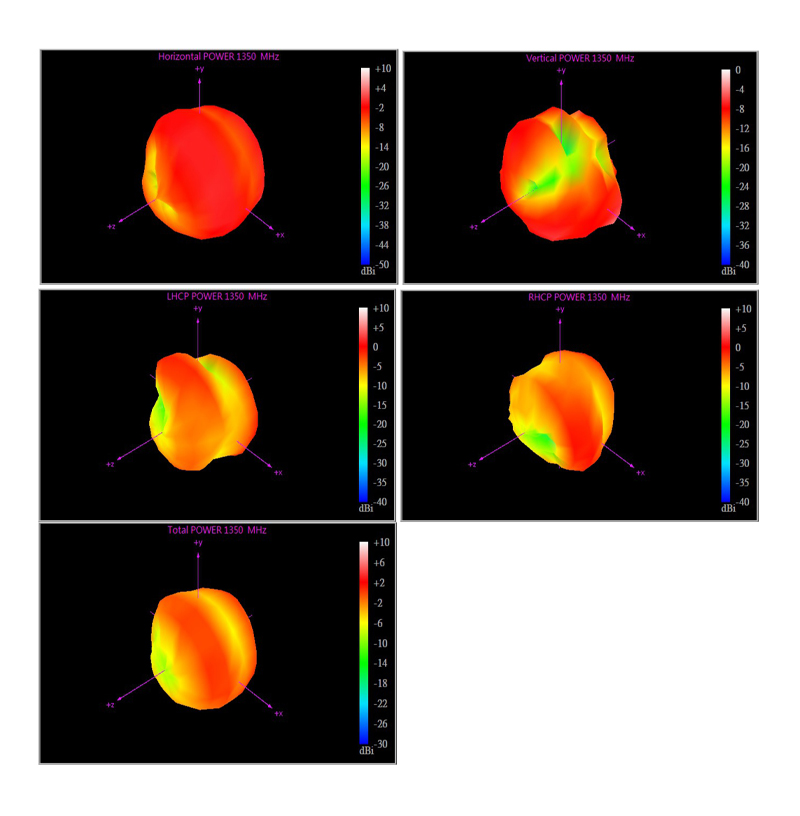

1350Mhz:

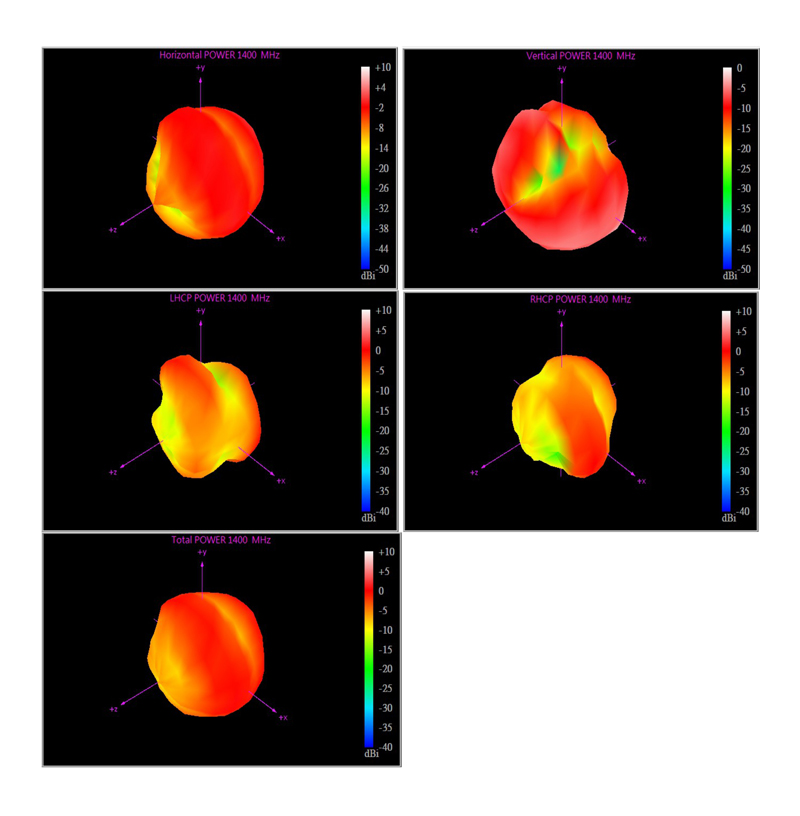

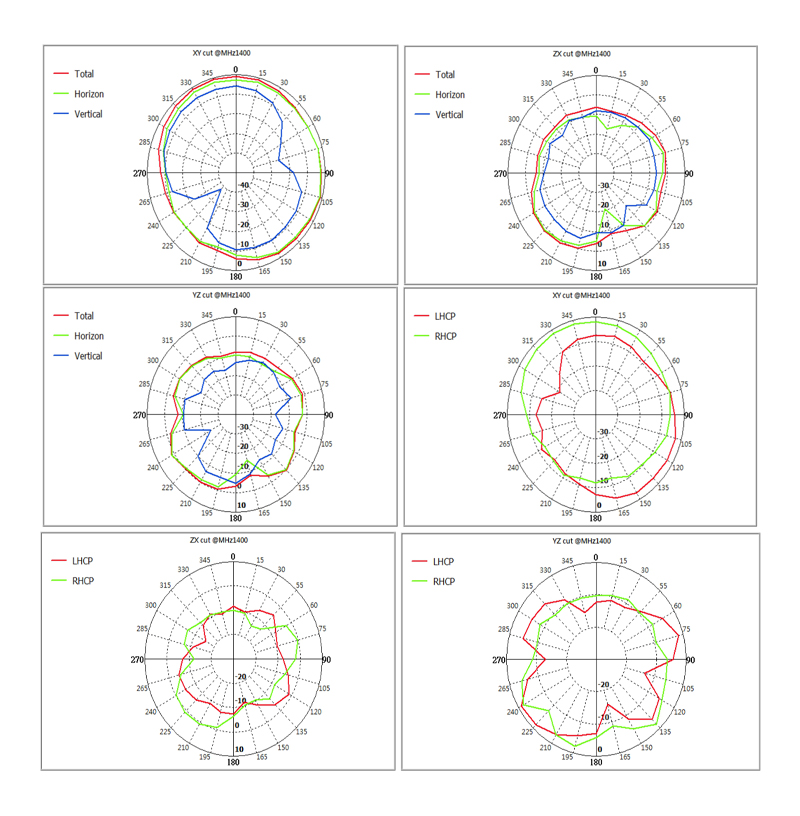

1400Mhz:

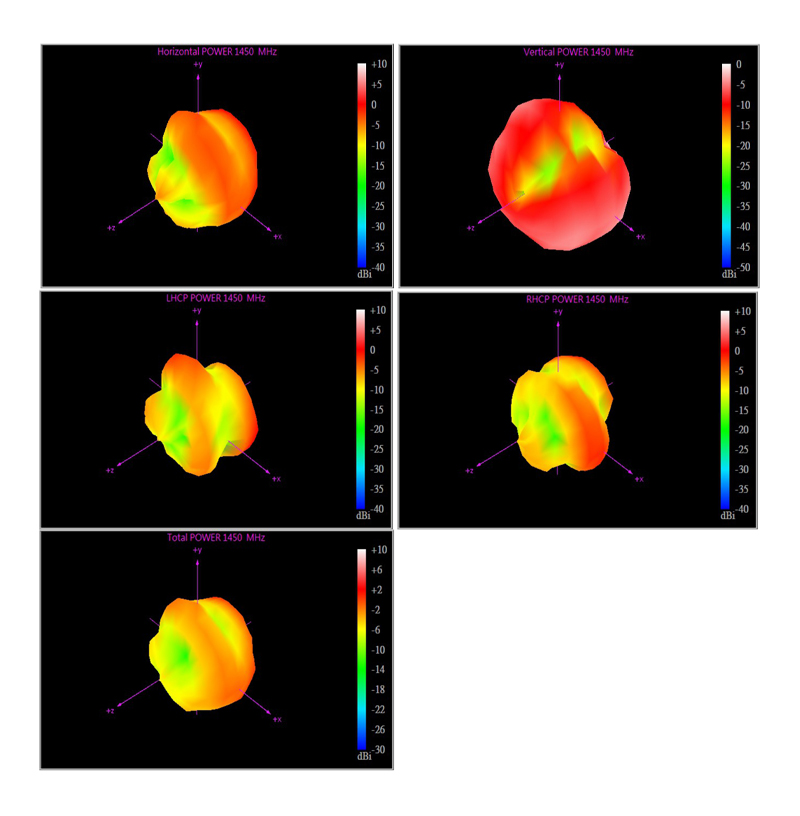

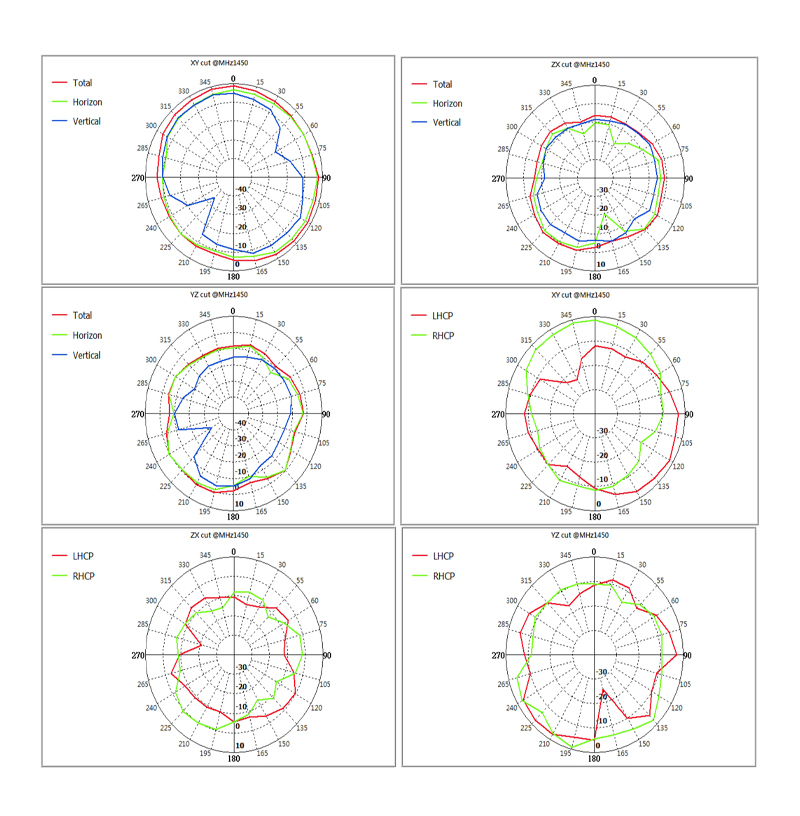

1450Mhz:

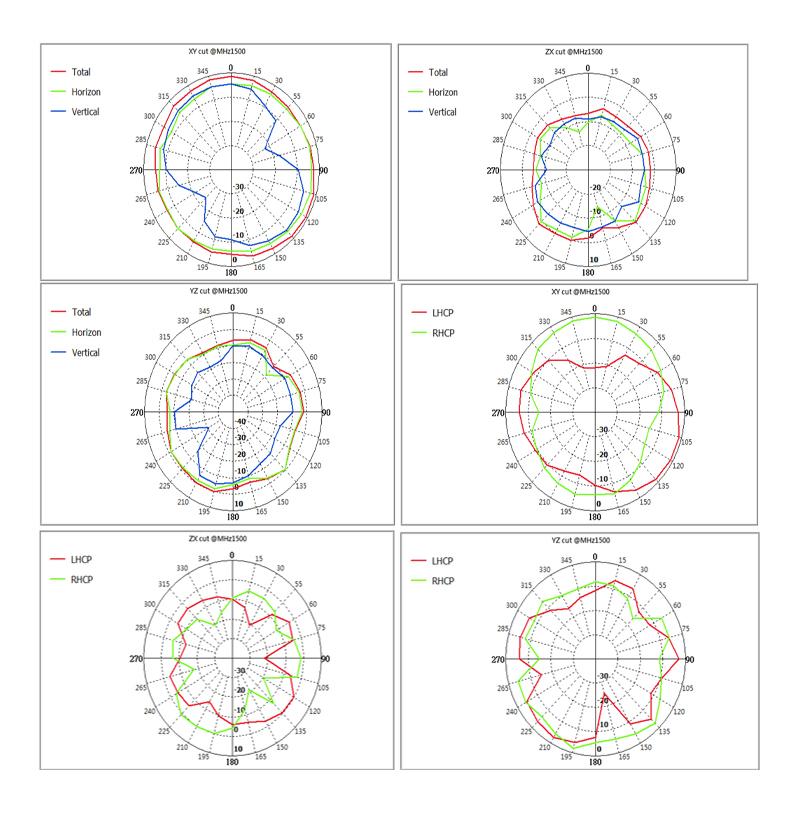

1500Mhz:

2100Mhz:

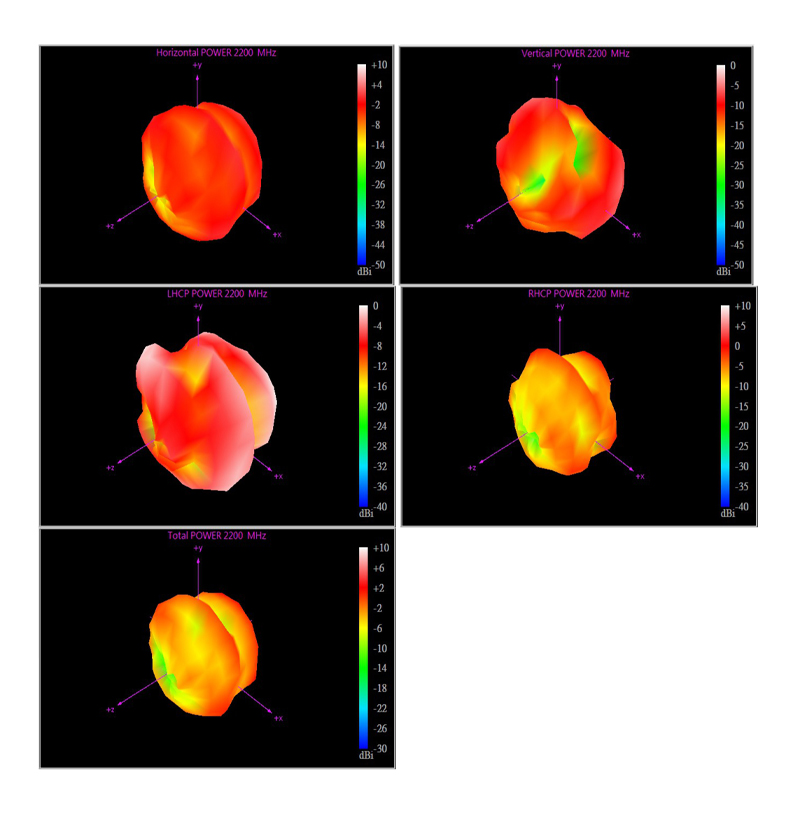

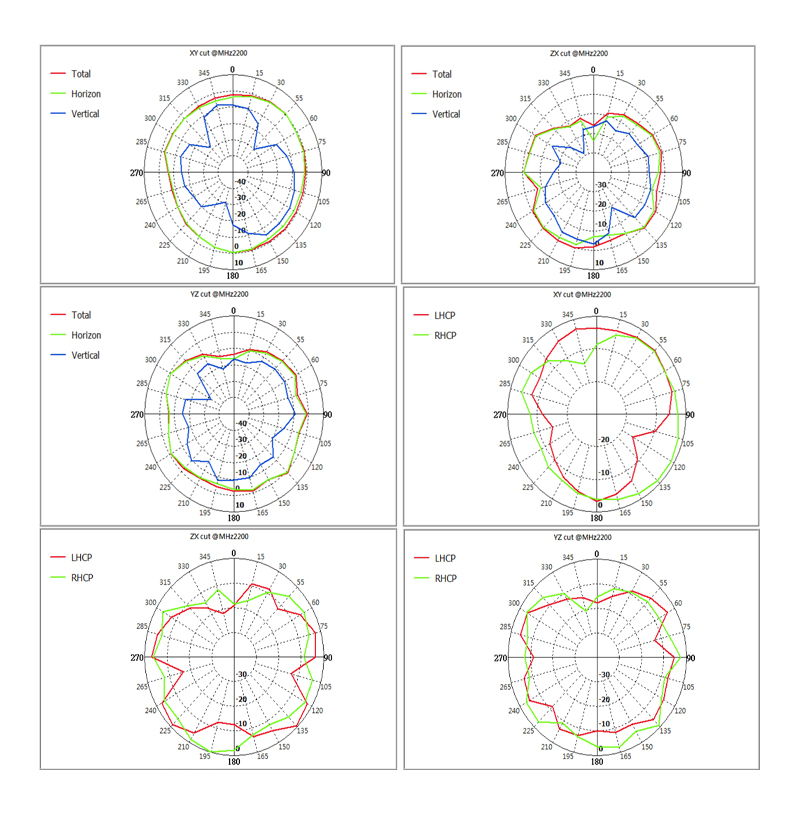

2200Mhz:

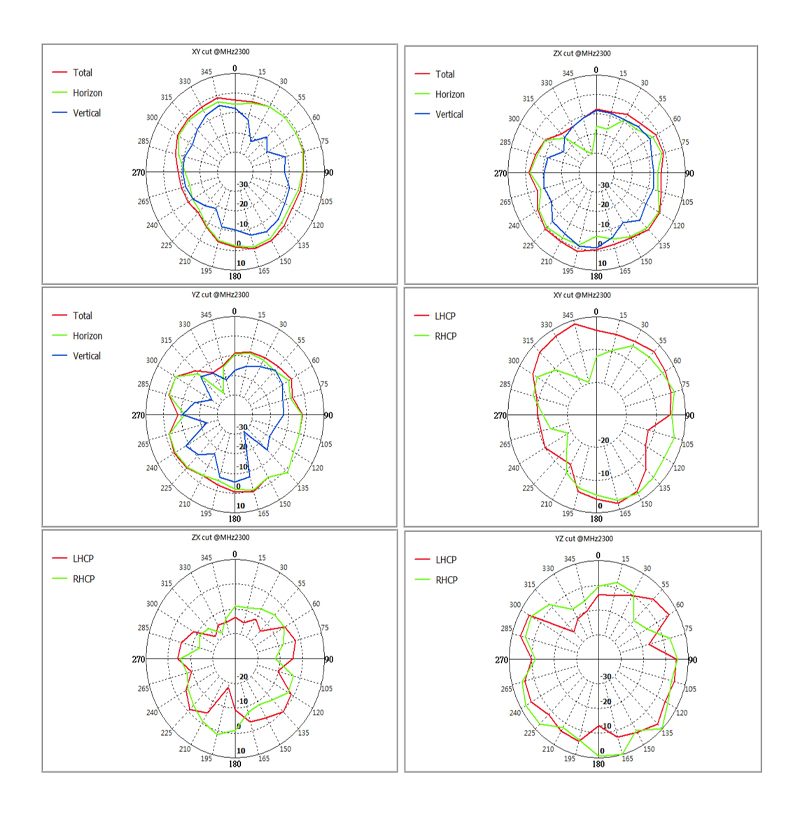

2300Mhz:

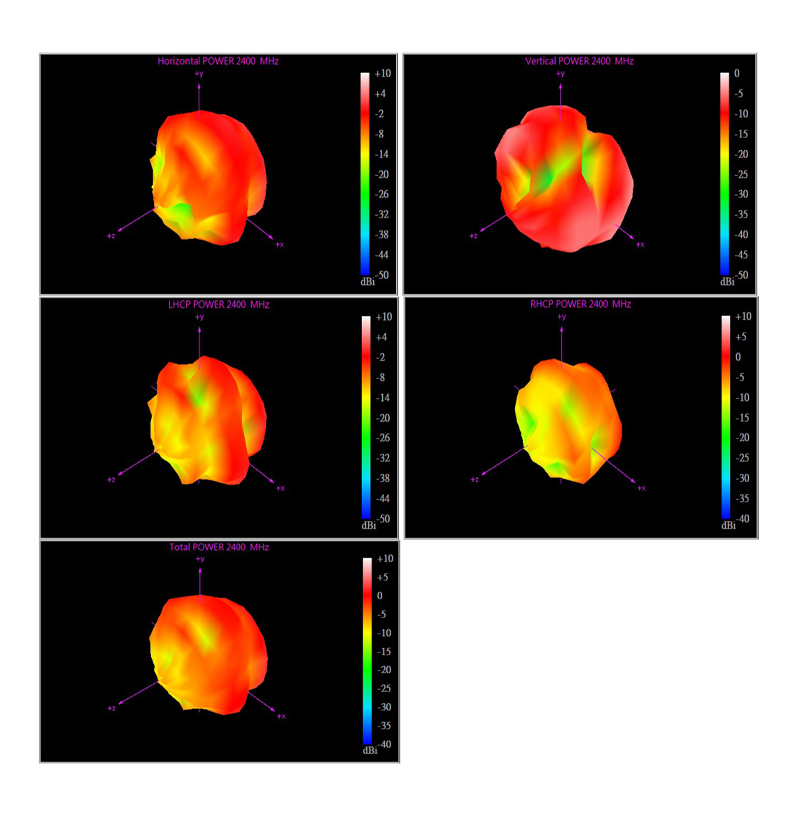

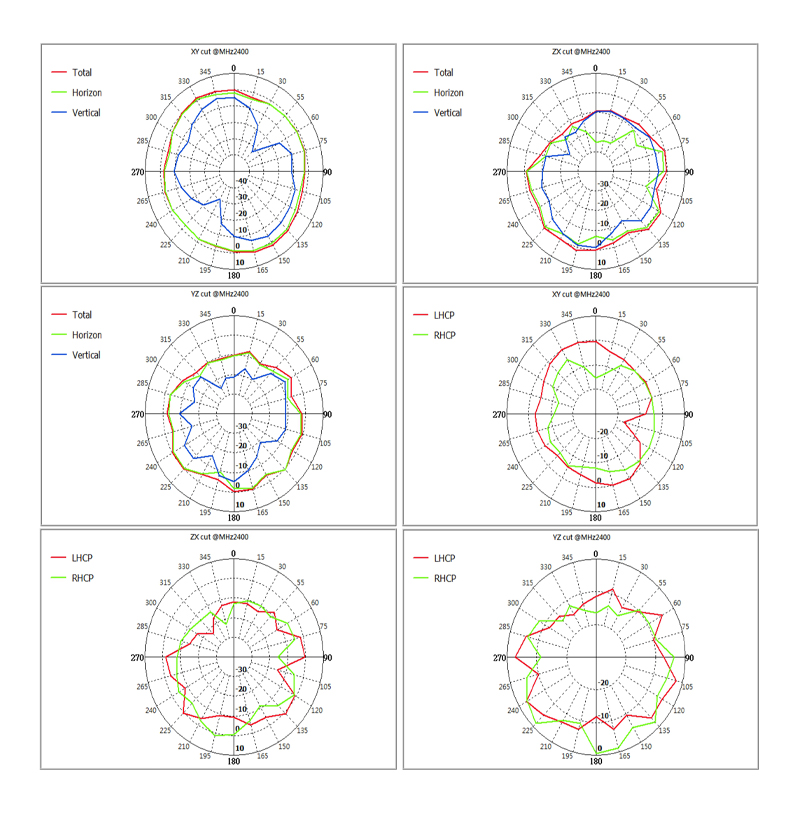

2400Mhz:

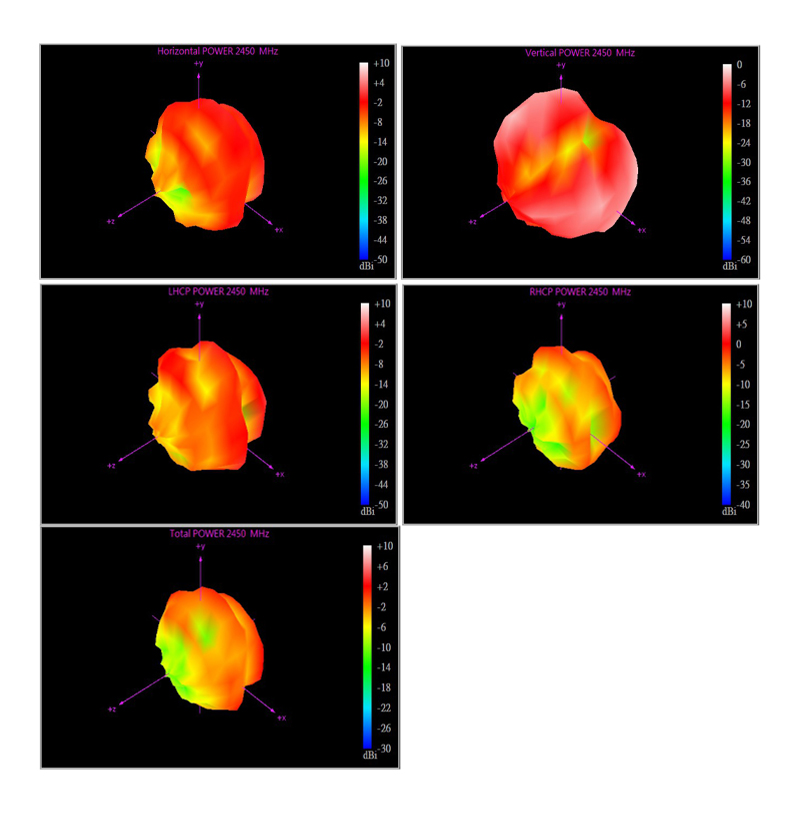

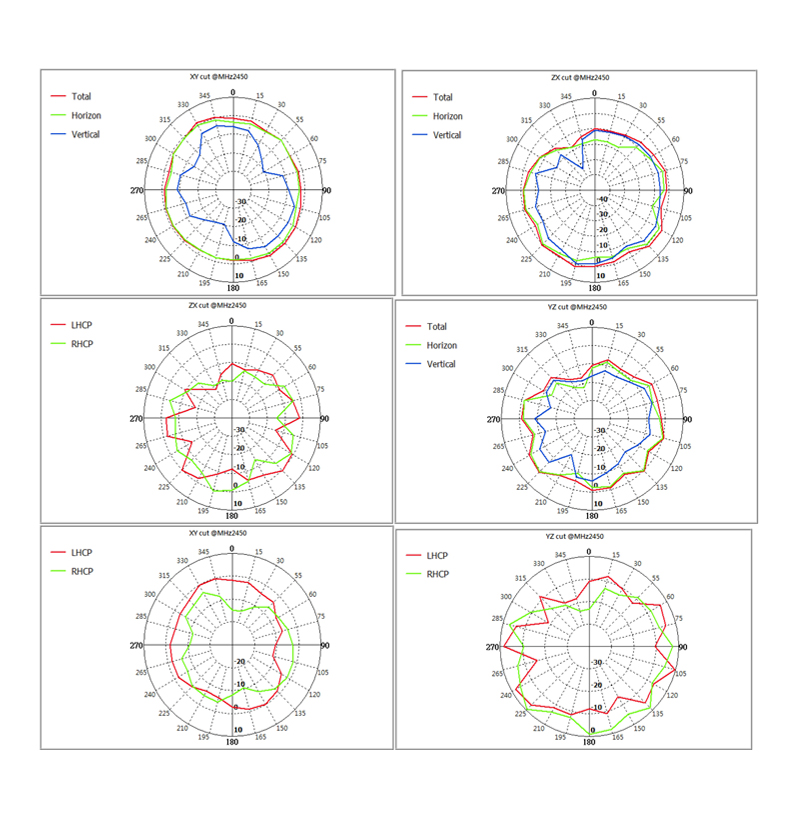

2450Mhz:

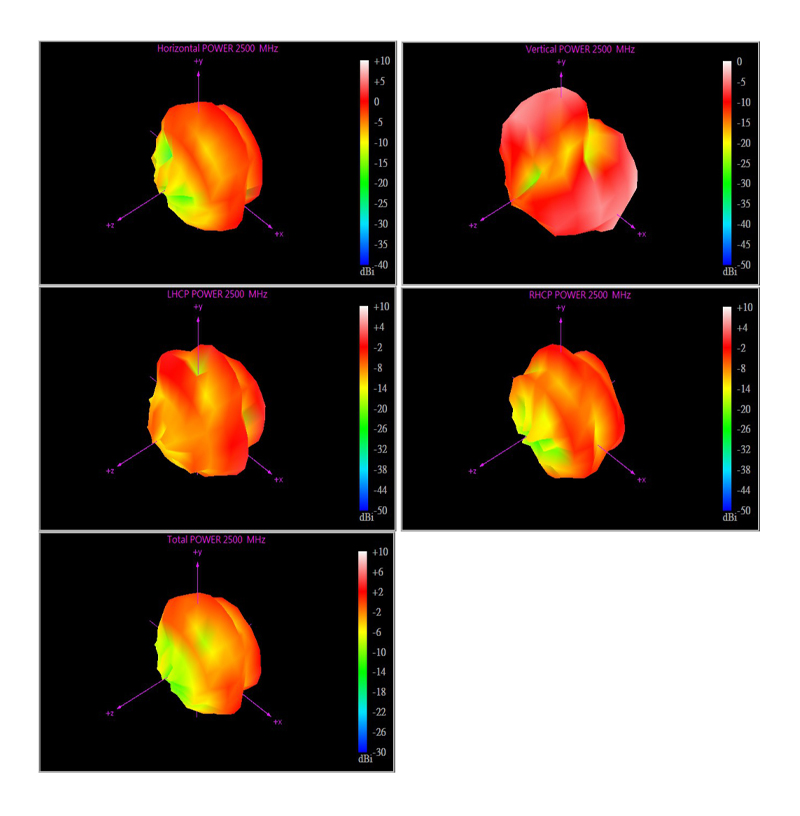

2500Mhz:

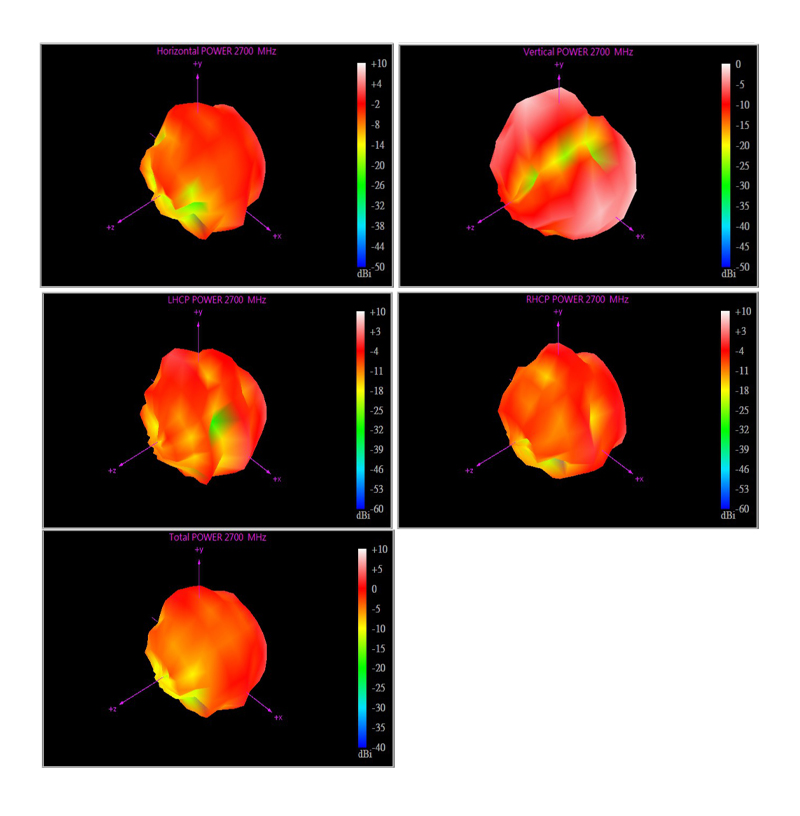

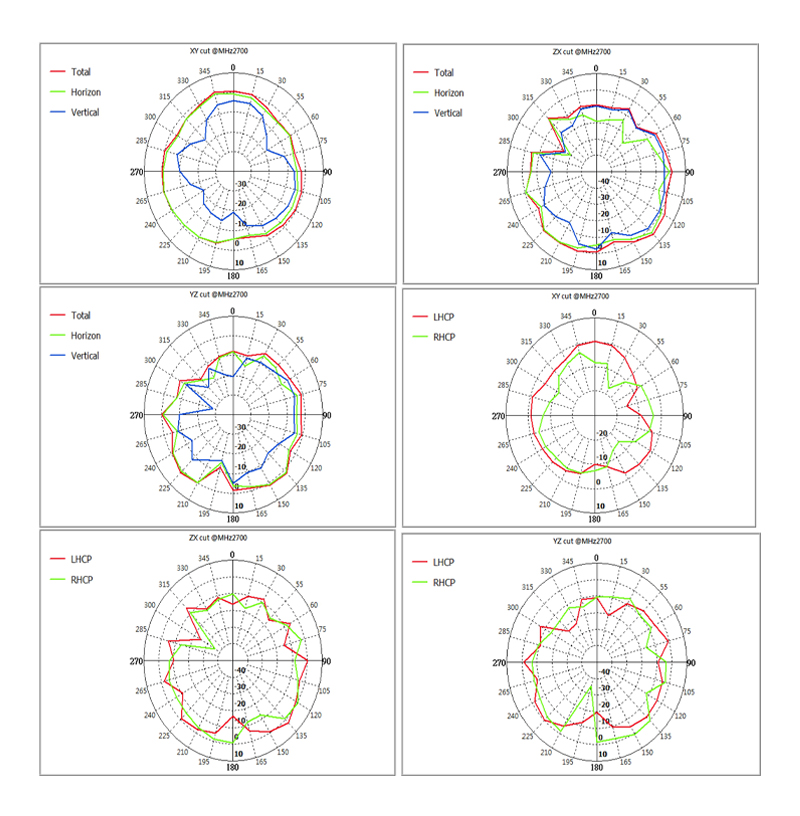

2700Mhz:
