TH-1440
  • Product Description
  • Product Specification

1.GENERAL DESCRIPTION

Model No
TH1440-SMA(M)

1.1 Electrical Properties

Parameter Description
Frequency Band 1.4~4.0GHz

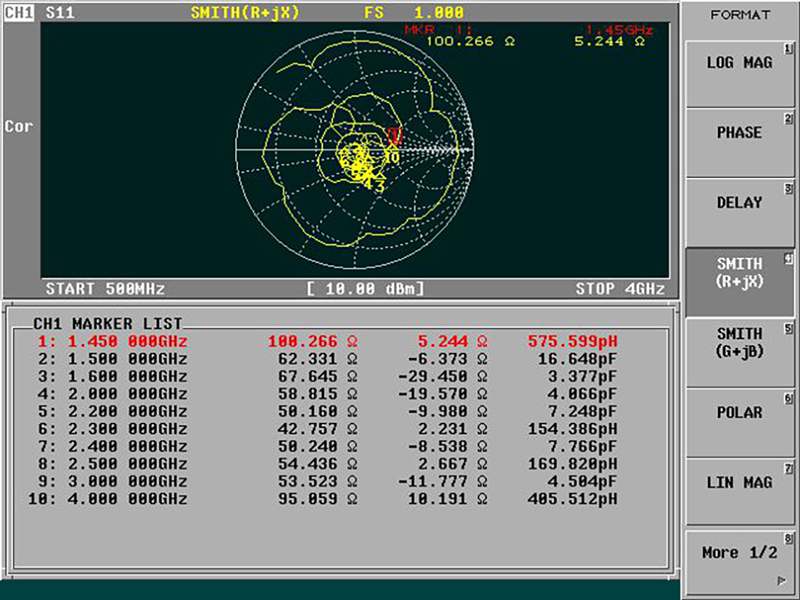

Nominal Impedance 50 ohm
Polarization Vertical

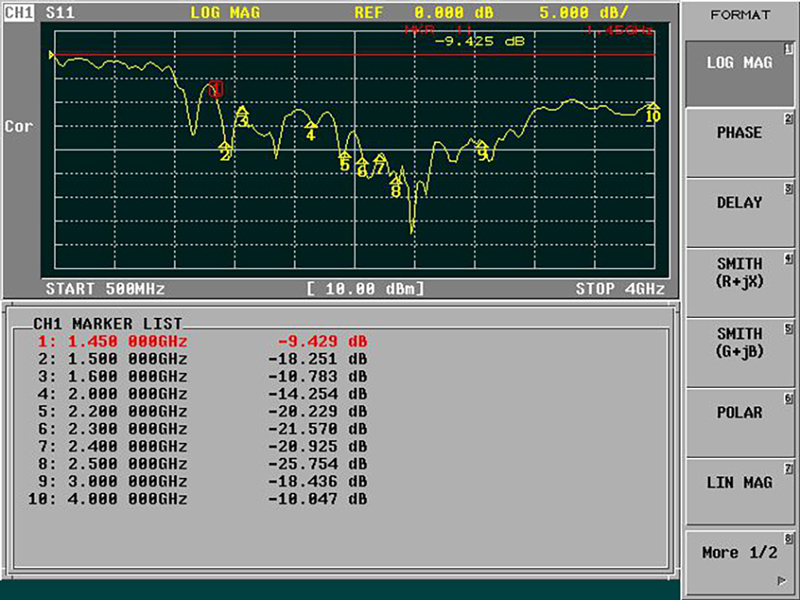

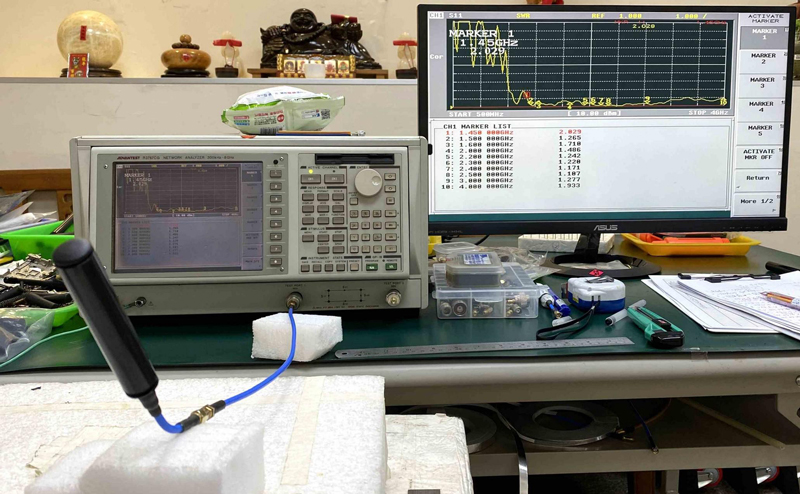

V.S.W.R 3.0:1
Peak Gain 0-4dbi
Power 10W

1.2 Mechanical Properties

Parameter Description
Antenna Type External Antenna
Materal ASA
Touch Type Screw Type
Connector Type SMA connector (Male) / RG402 Cable

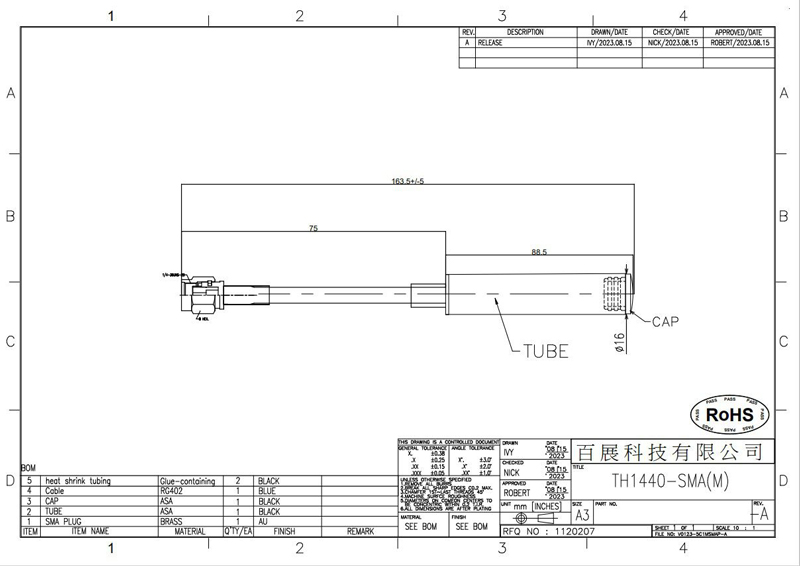

Antenna Dimensions OD16 x163.5mm ±5
Weight 40g
Antenna Color Black
Operating Temperature Range -40°C~+85°C
Storage Temperature Range -40°C~+85°C
Waterproof IP67

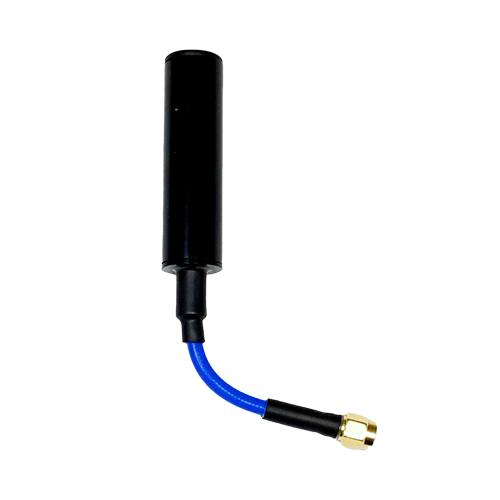

Our TH-14400 is a Passive Antenna for L & S & WIFI BAND communication transmission equipment, which is best for drone control data image transmission, wireless AP or PA signal transmission, interference... etc. The ASA is strong weather resistance and its anti-aging performance with high temperature resistance and the RG402 Flexible Cable can be easily bent to make the antenna angle. Please don’t hesitate to email us if you have any questions.

3D Total

Frequency
(MHz)		 Upper Hem.
PRP (dBm)		 Lower HEM.
PRP (dBm)		 Efficiency
(dB)		 Efficiency
(%)		 Gain (dBi) Tot. Rad.Pwr.
(dBm)
1300 MHz -7.51 -5.36 -3.29 46.85 0.74 -3.29
1350 MHz -7.29 -5.06 -3.03 49.82 2.20 -3.03
1400 MHz -8.37 -5.29 -3.55 44.15 1.91 -3.55
1450 MHz -9.35 -6.19 -4.48 35.68 1.07 -4.48
1500 MHz -8.25 -5.92 -3.92 40.55 1.47 -3.92
1550 MHz -7.42 -5.80 -3.53 44.40 1.36 -3.53
1570 MHz -6.85 -5.54 -3.14 48.56 1.44 -3.14
1600 MHz -6.98 -5.72 -3.29 46.86 1.52 -3.29
1610 MHz -7.13 -5.84 -3.43 45.42 1.27 -3.43
1620 MHz -7.35 -6.03 -3.63 43.34 1.33 -3.63
1630 MHz -7.49 -5.97 -3.65 43.13 1.27 -3.65
1650 MHz -7.38 -5.90 -3.57 43.99 1.23 -3.57
1700 MHz -7.29 -5.82 -3.49 44.81 0.75 -3.49
1750 MHz -6.94 -6.07 -3.47 44.97 0.45 -3.47
1800 MHz -7.06 -6.49 -3.75 42.14 -0.64 -3.75
1850 MHz -6.65 -5.77 -3.18 48.13 0.26 -3.18
1900 MHz -6.52 -6.21 -3.35 46.23 0.62 -3.35
1950 MHz -5.86 -5.94 -2.89 51.41 0.58 -2.89
2000 MHz -6.07 -6.15 -3.10 48.98 0.46 -3.10
2050 MHz -6.54 -6.19 -3.35 46.21 0.20 -3.35
2100 MHz -6.48 -5.58 -3.00 50.15 1.26 -3.00
2150 MHz -7.06 -5.79 -3.37 46.06 2.05 -3.37
2200 MHz -6.73 -4.98 -2.76 52.97 3.19 -2.76
2250 MHz -7.73 -5.28 -3.32 46.57 2.92 -3.32
2300 MHz -8.09 -4.64 -3.02 49.89 3.90 -3.02
2350 MHz -7.91 -4.12 -2.61 54.87 3.76 -2.61
2400 MHz -8.03 -4.66 -3.01 49.98 2.72 -3.01
2450 MHz -7.73 -4.82 -3.02 49.85 2.78 -3.02
2500 MHz -7.76 -4.59 -2.88 51.51 2.75 -2.88
2550 MHz -7.18 -4.09 -2.36 58.08 3.70 -2.36
2600 MHz -6.74 -3.96 -2.12 61.37 3.51 -2.12
2650 MHz -6.76 -3.39 -1.75 66.86 4.44 -1.75
2700 MHz -7.51 -4.64 -2.83 52.07 3.59 -2.83
2800 MHz -9.35 -6.59 -4.75 33.52 0.70 -4.75
2900 MHz -6.01 -3.91 -1.82 65.75 3.94 -1.82
3000 MHz -5.91 -4.13 -1.92 64.32 3.00 -1.92
3100 MHz -6.44 -4.30 -2.23 59.84 2.66 -2.23
3200 MHz -8.55 -4.83 -3.29 46.88 2.06 -3.29
3300 MHz -8.71 -3.82 -2.60 55.00 3.28 -2.60
3400 MHz -8.78 -5.03 -3.51 44.62 2.11 -3.51
3500 MHz -6.28 -3.72 -1.81 65.98 3.21 -1.81
3600 MHz -6.66 -5.17 -2.84 52.01 1.91 -2.84
3700 MHz -6.06 -5.27 -2.64 54.48 2.84 -2.64
3800 MHz -6.51 -6.53 -3.51 44.57 1.21 -3.51
3900 MHz -6.04 -6.43 -3.22 47.66 1.62 -3.22
4000 MHz -2.32 -2.96 -3.38 45.92 4.52 -3.38
4100 MHz -3.94 -4.80 -2.34 58.34 2.57 -1.34
4200 MHz -4.62 -5.84 -2.18 60.58 1.78 -2.18
4300 MHz -2.15 -3.68 -3.16 48.34 4.90 -3.16
4400 MHz -4.83 -7.08 -2.80 52.48 1.29 -2.80
4500 MHz -6.63 -9.36 -4.77 33.34 -0.30 -4.77

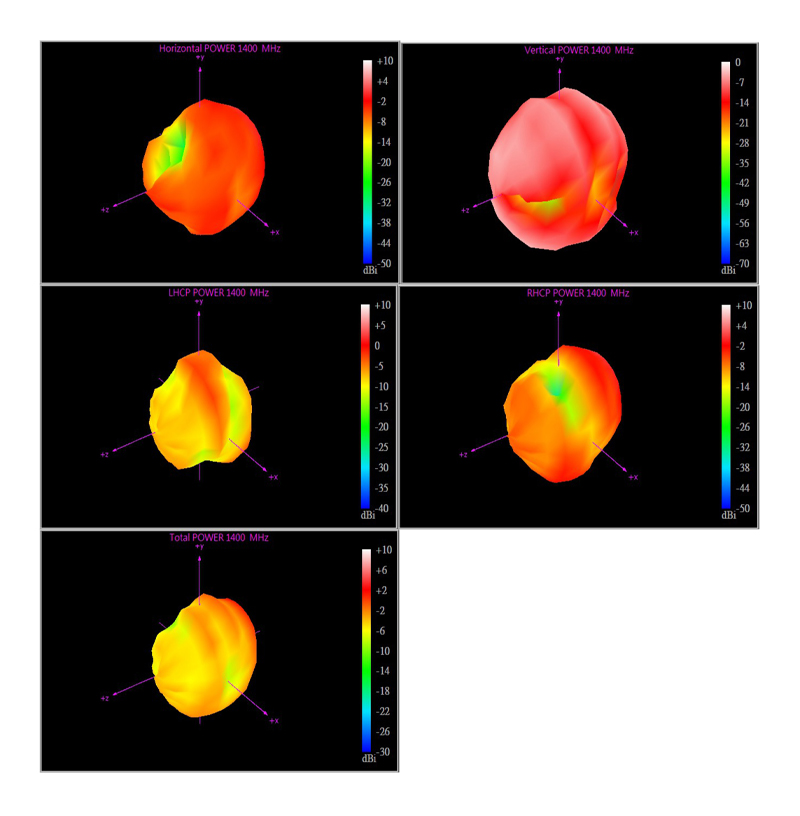

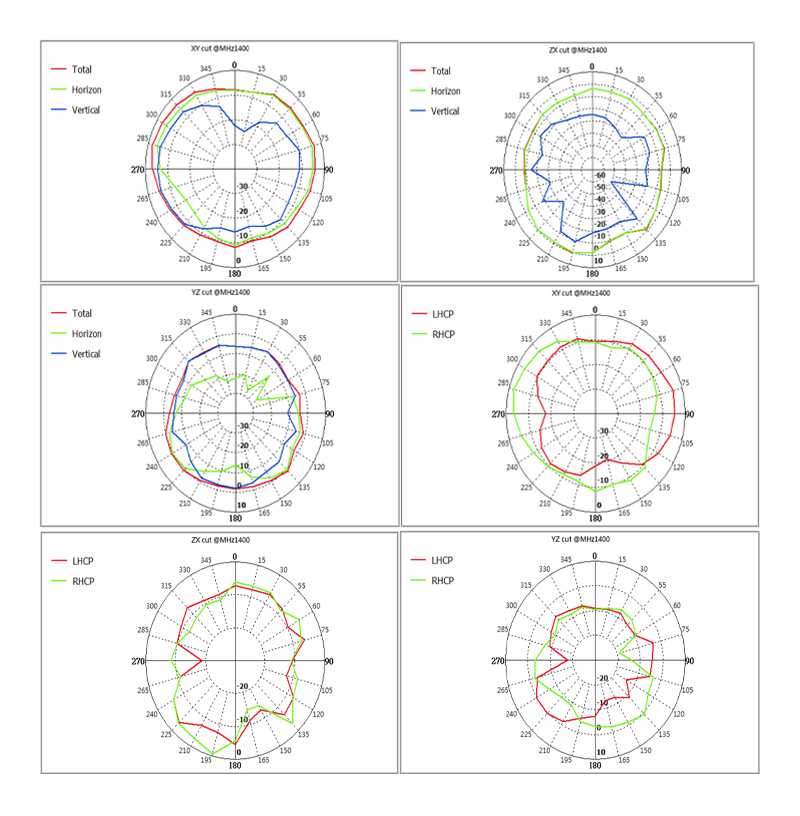

1400Mhz:

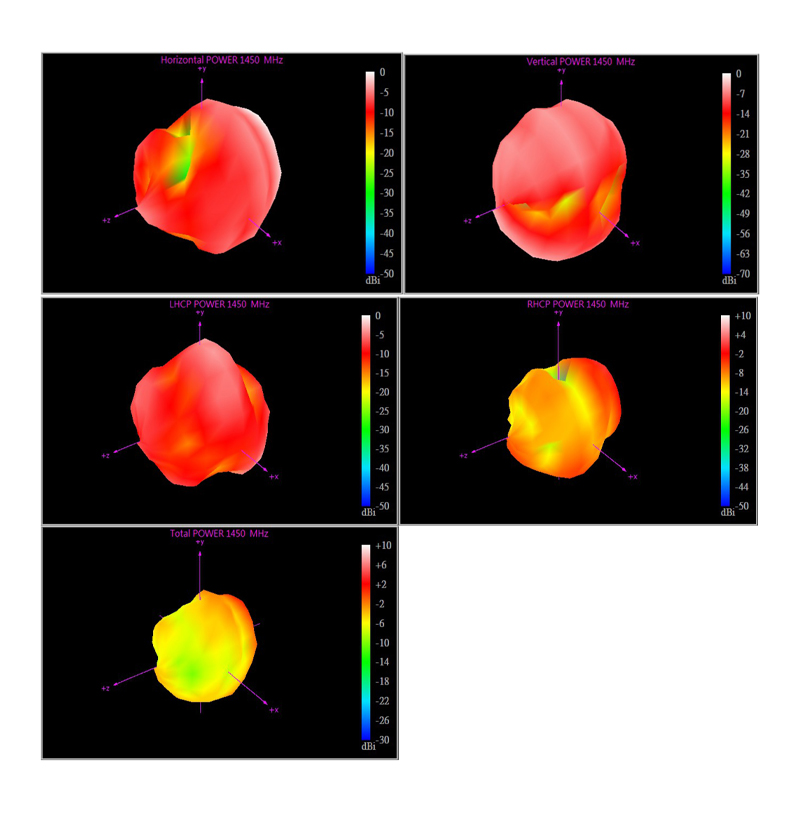

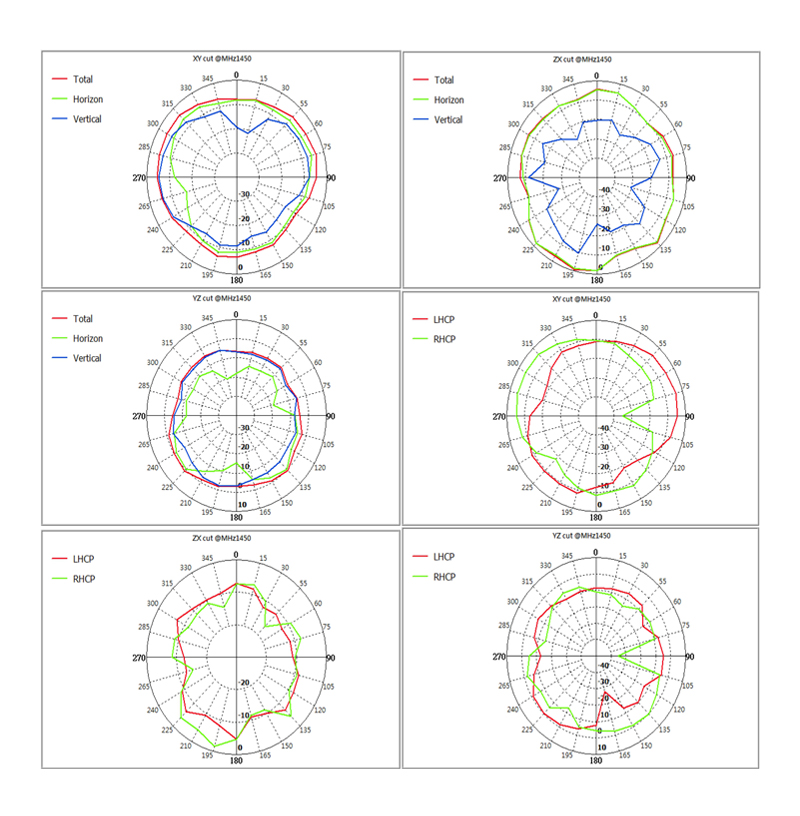

1450Mhz:

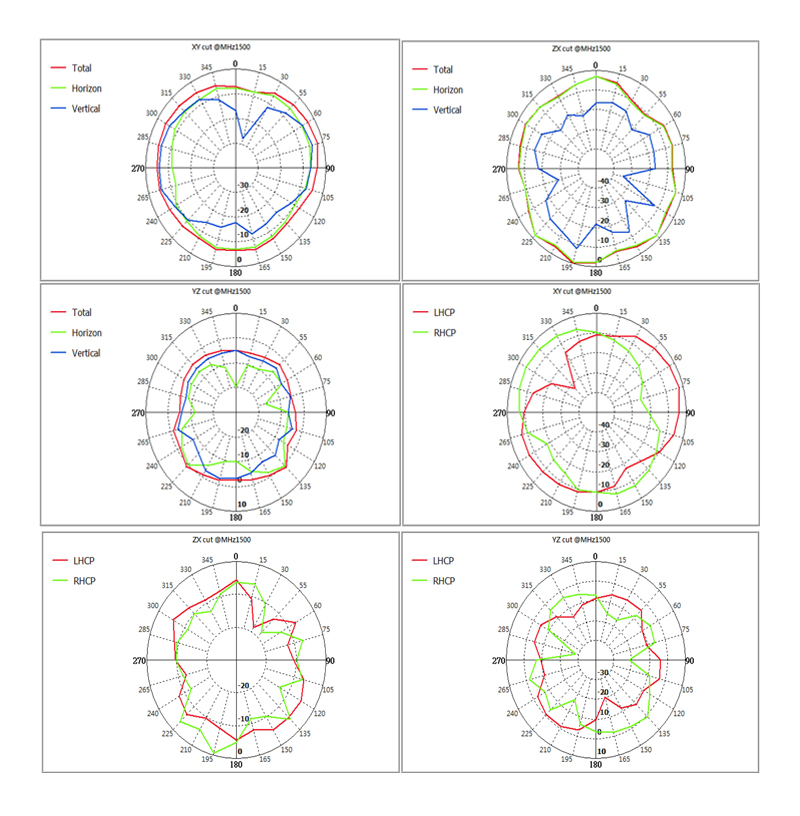

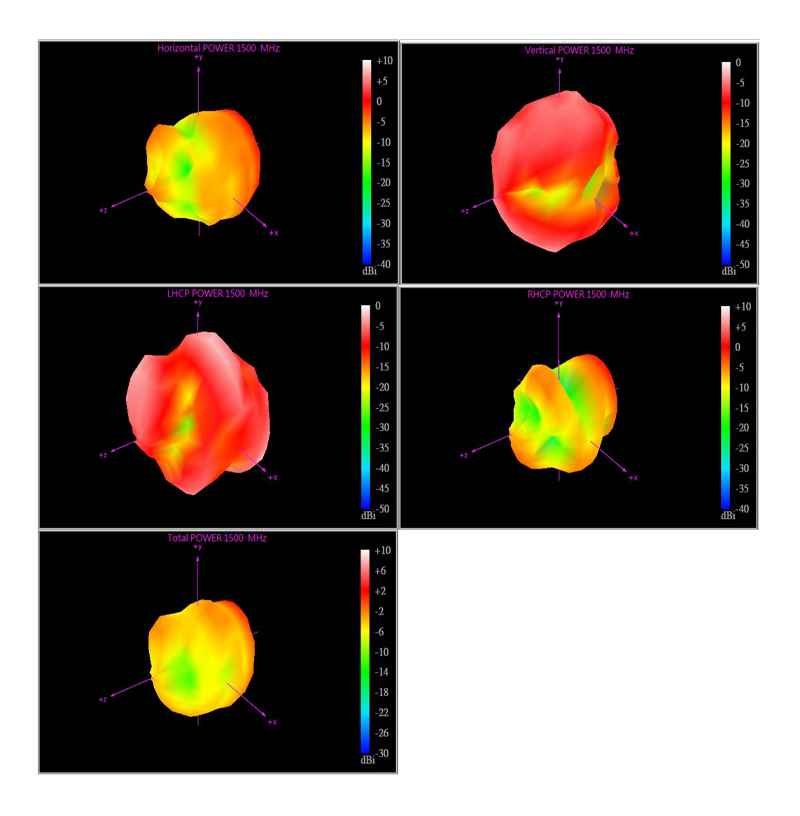

1500Mhz:

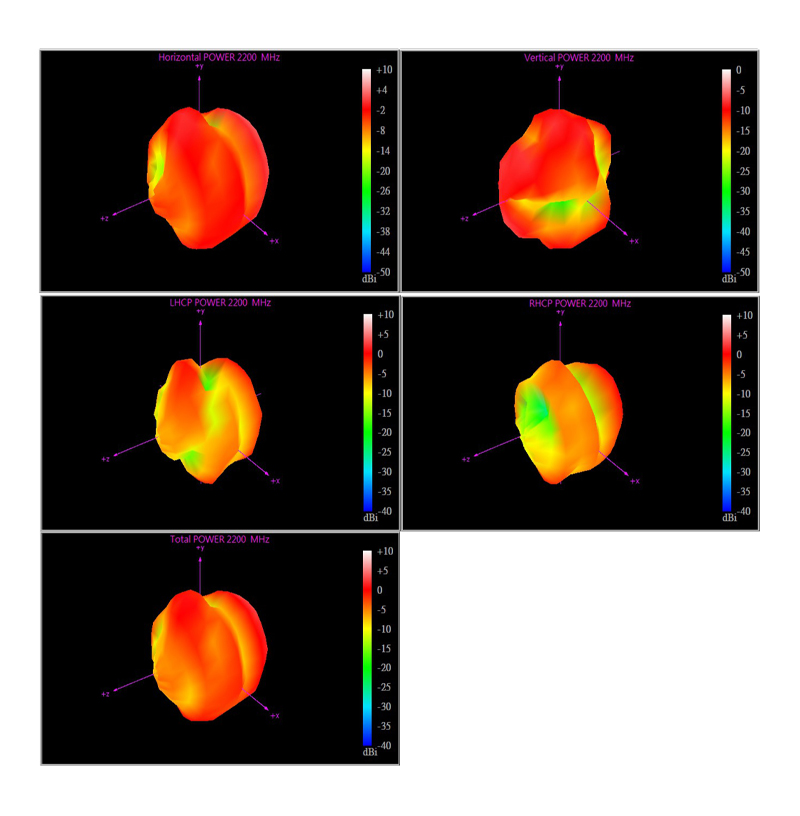

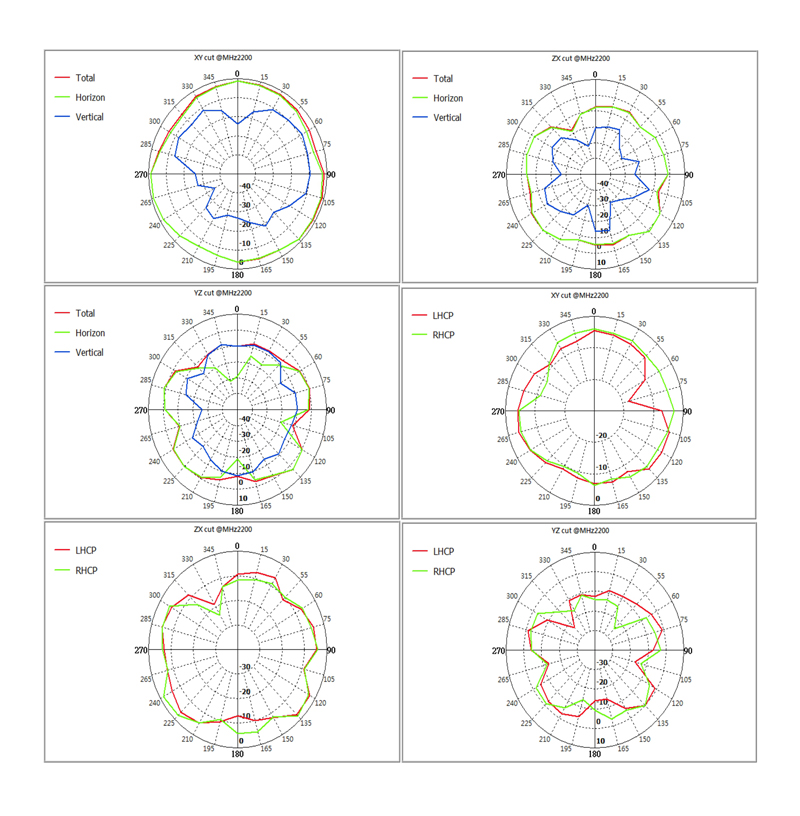

2200Mhz:

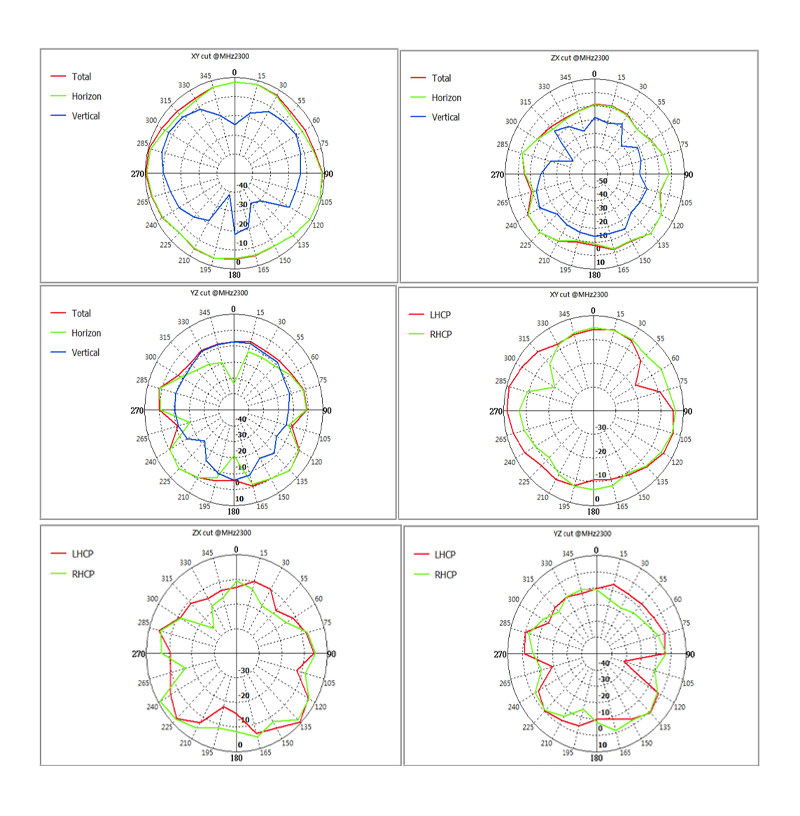

2300Mhz:

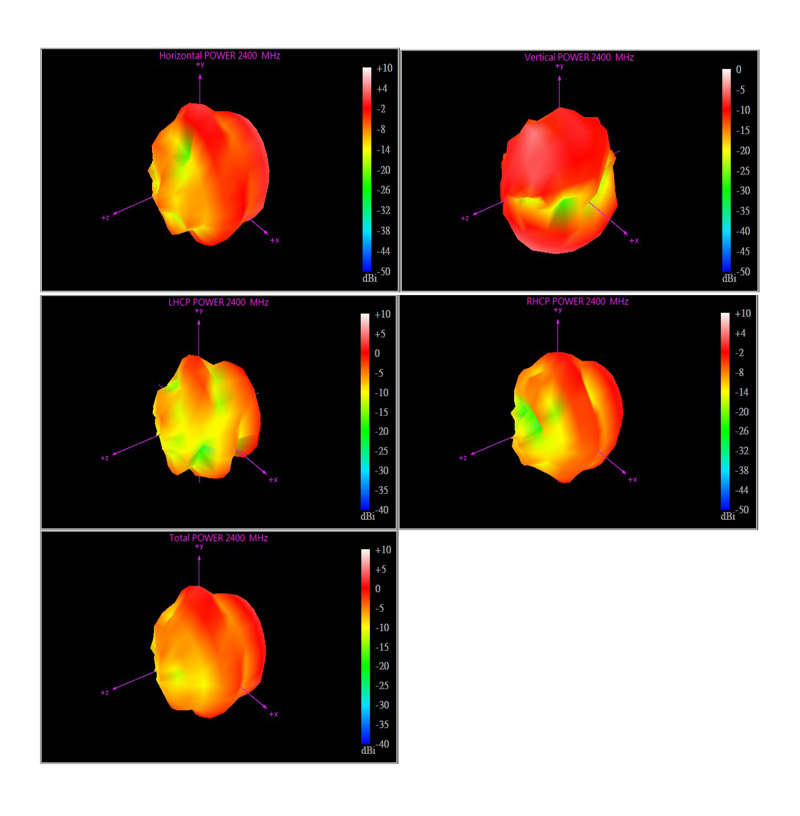

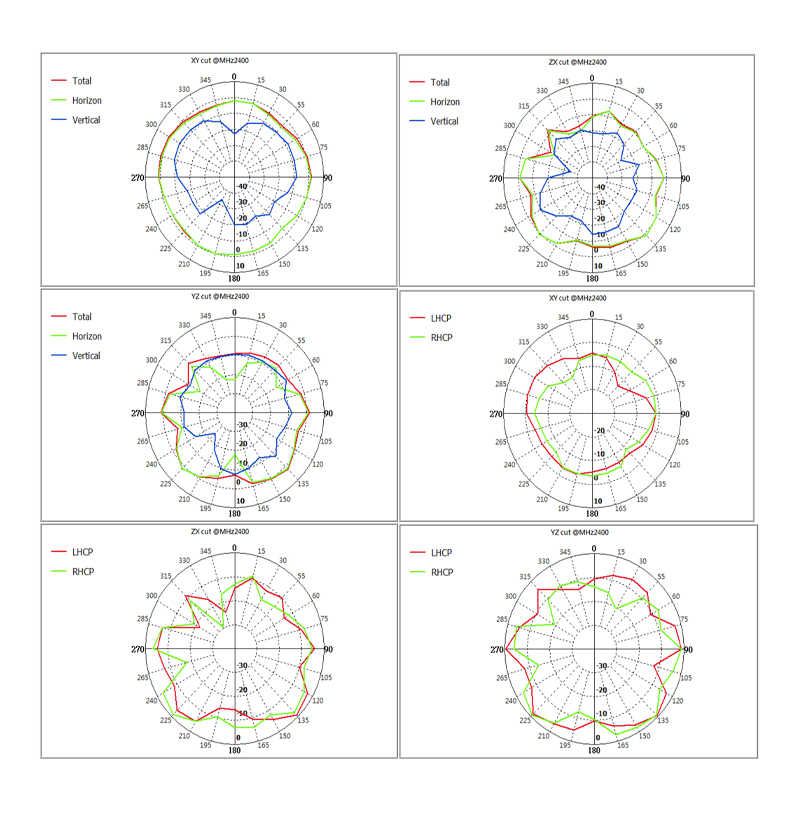

2400Mhz:

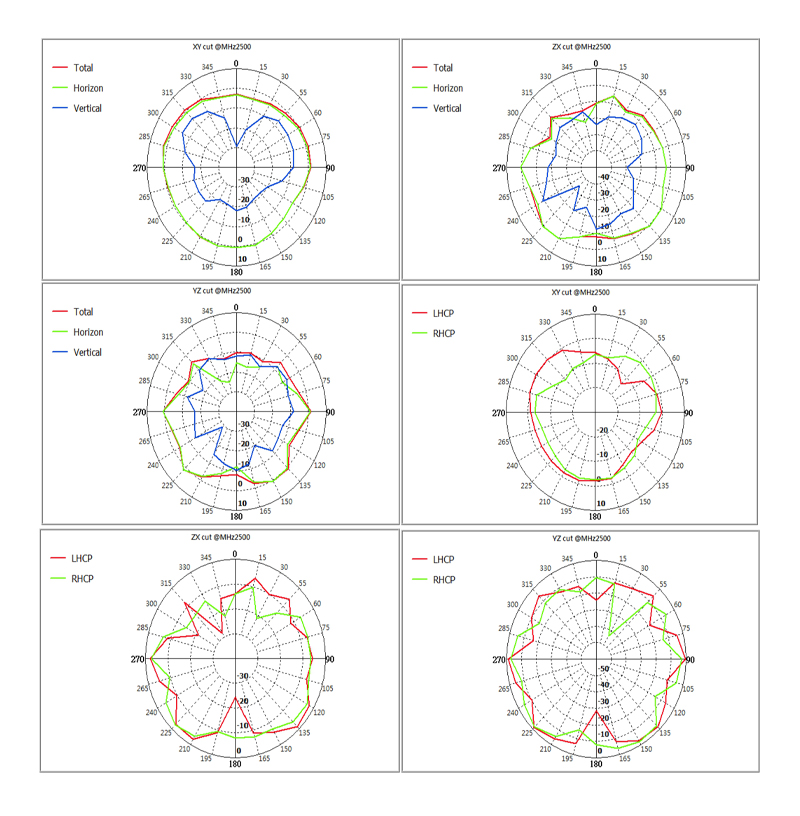

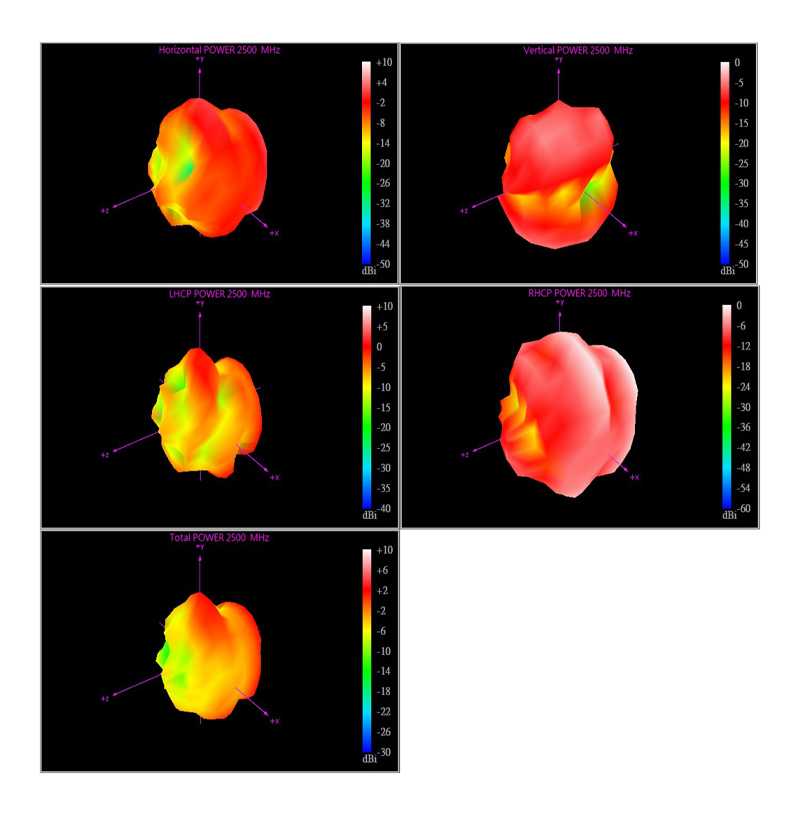

2500Mhz:

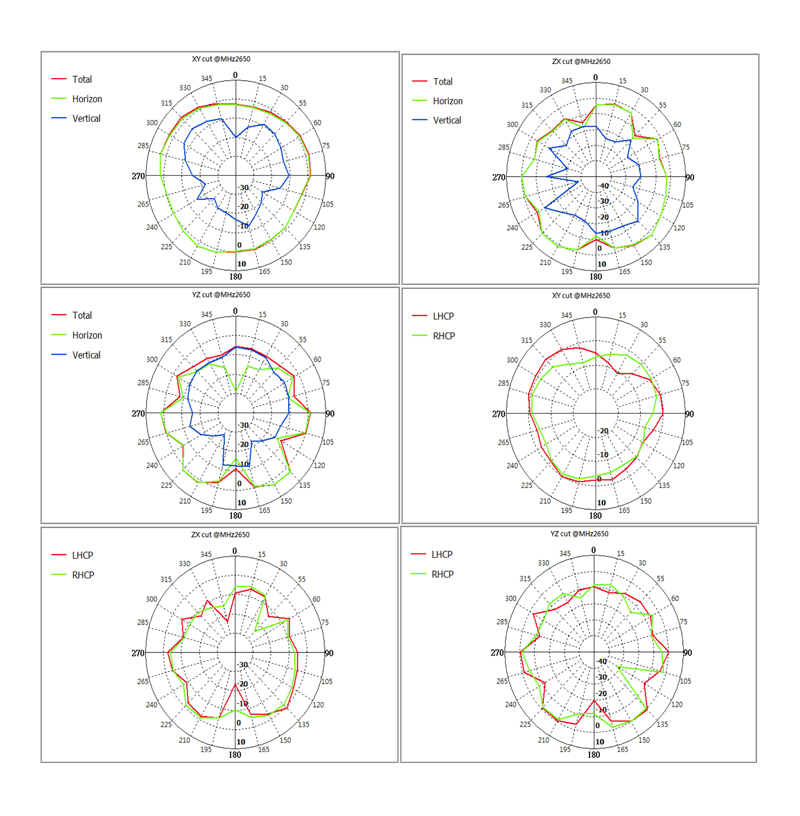

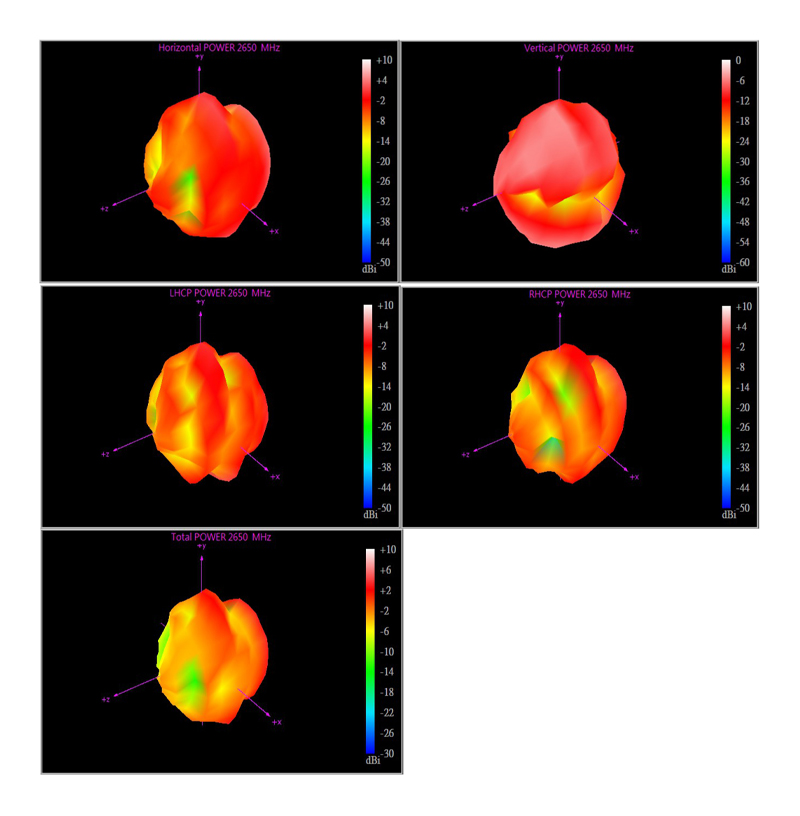

2650Mhz:

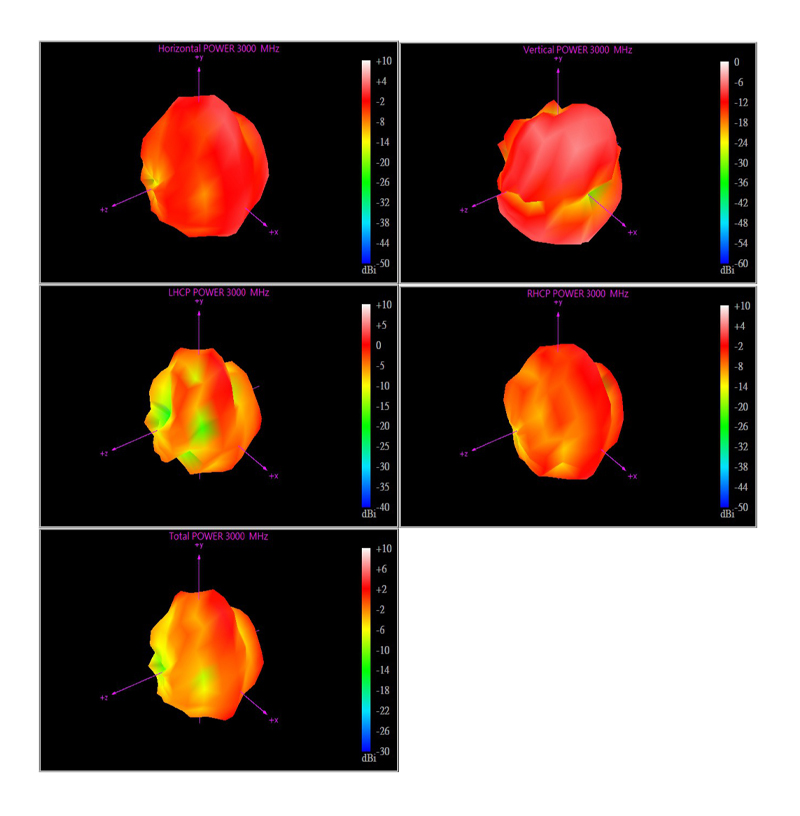

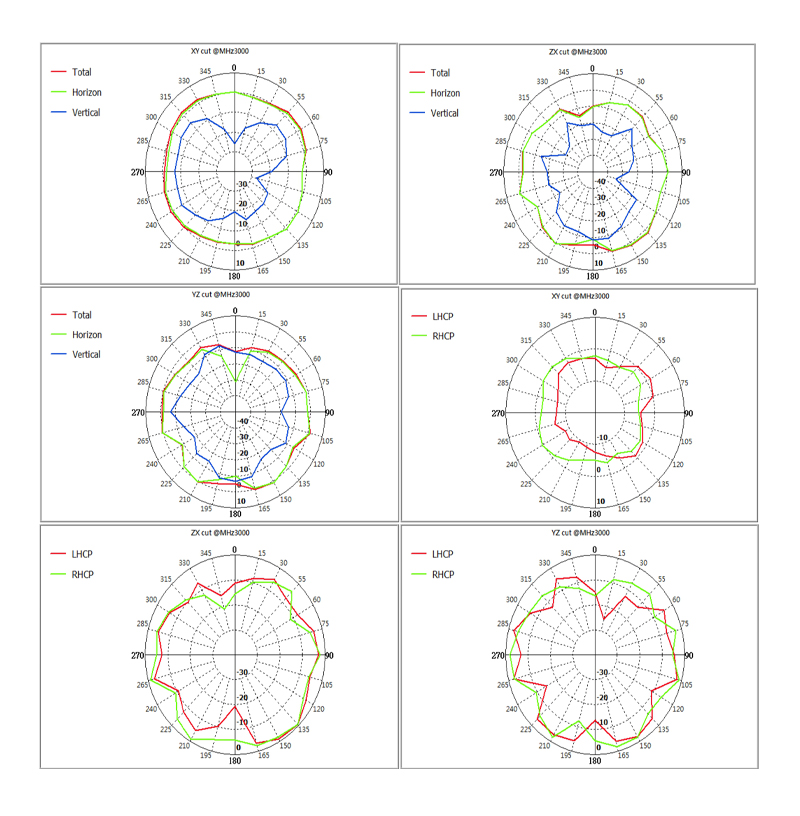

3000Mhz:

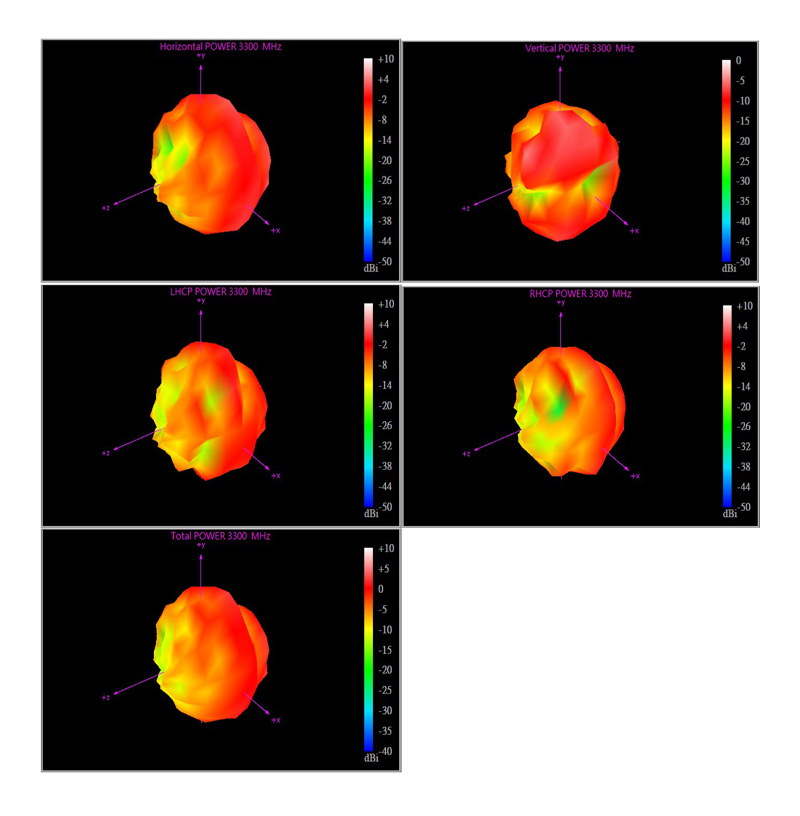

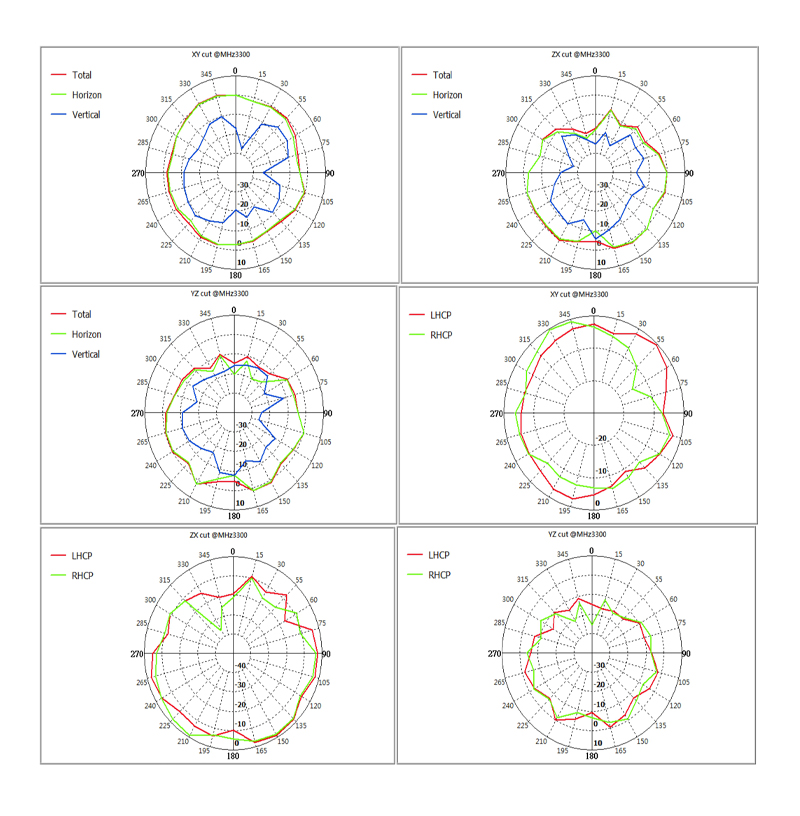

3300Mhz:

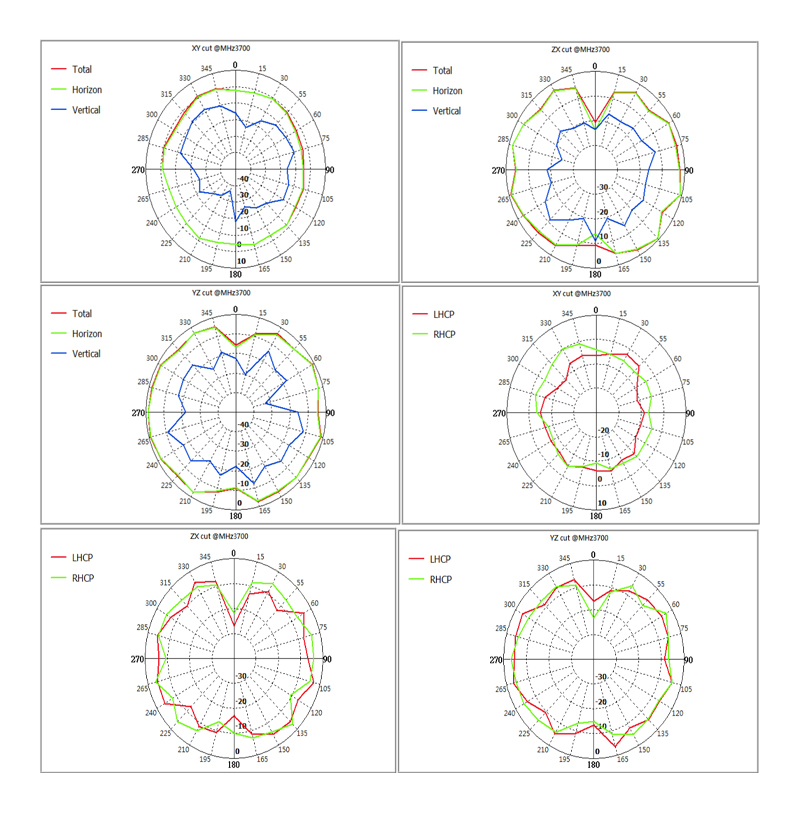

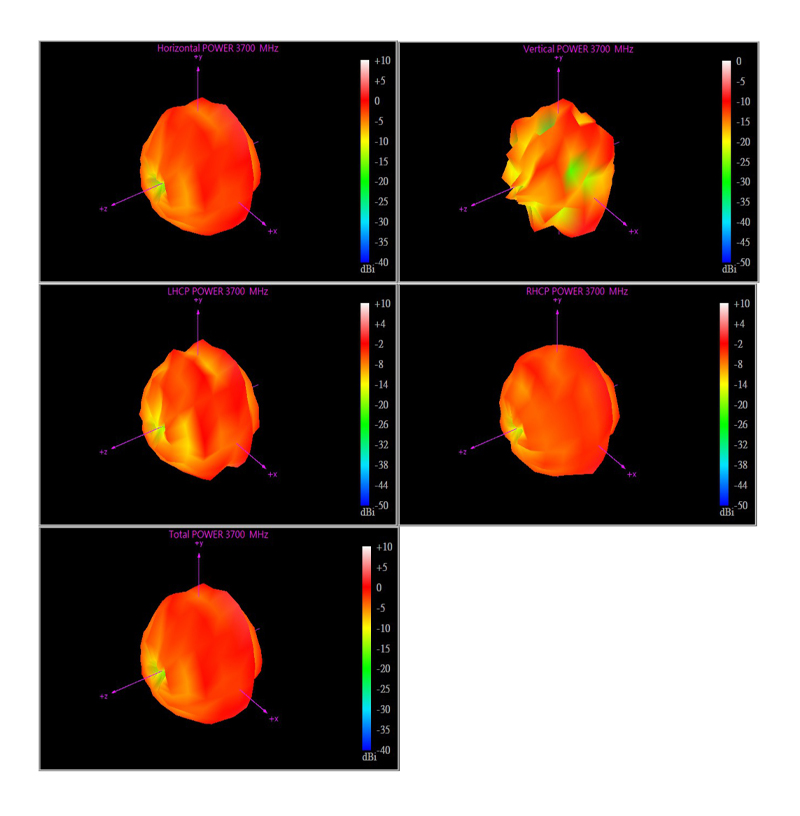

3700Mhz:

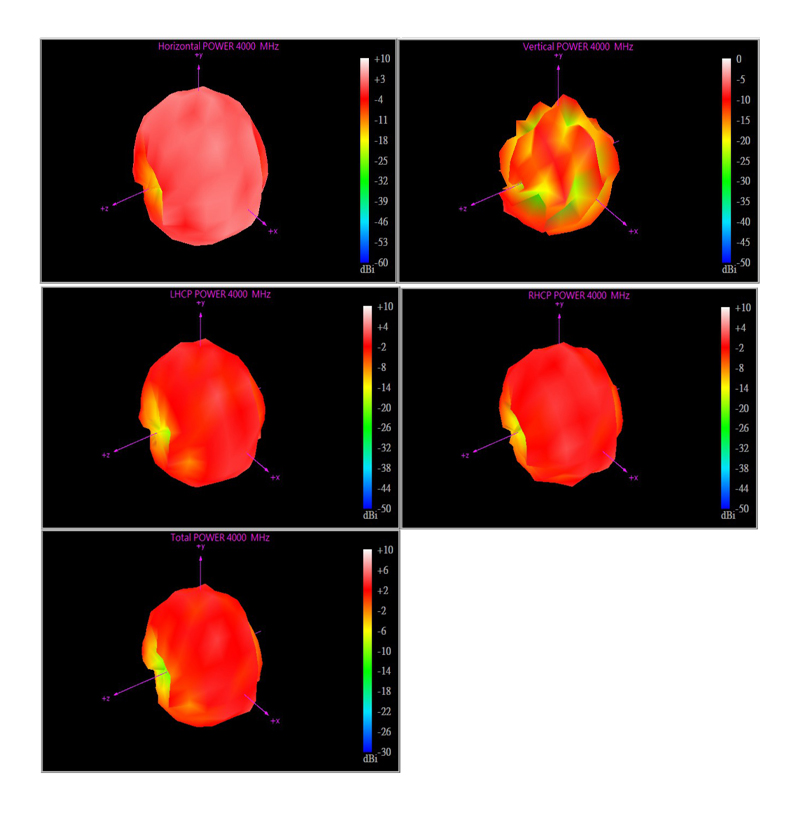

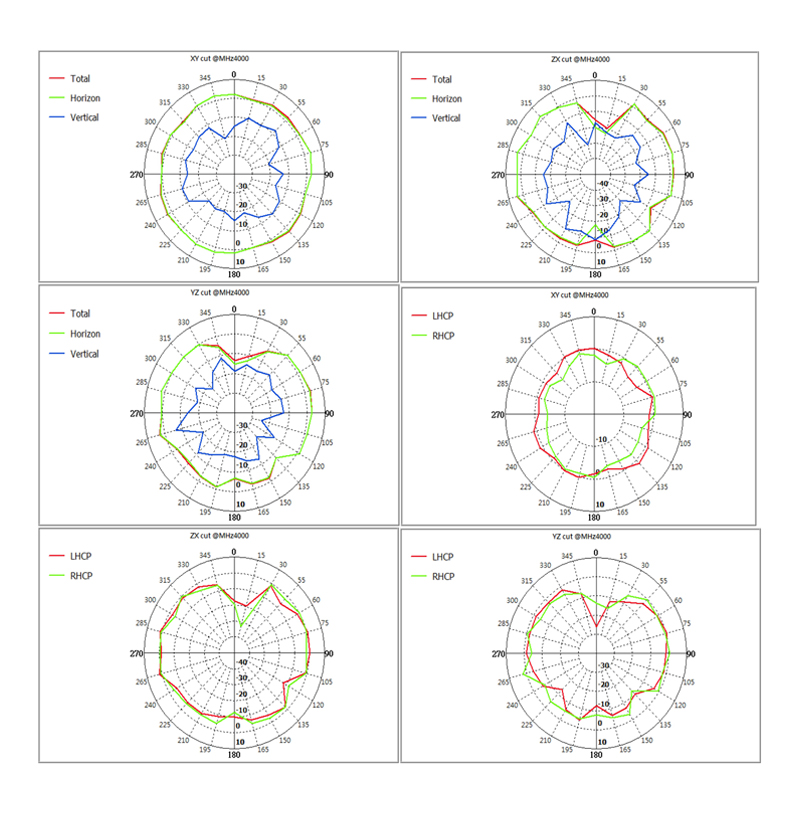

4000Mhz:
