TH-9024B-SMA(M)
  • Product Description
  • Product Specification

1.GENERAL DESCRIPTION

Model No P/N
TH-9024B TH9024B-SMA(M)
Below is a table summarizing the antenna design specification.


1.1 Electrical Properties

Parameter Description
Frequency Band 902~928 MHz & 2.4~2.5Ghz
Nominal Impedance 50 ohm
Polarization Vertical
Electrical Wave Dipole

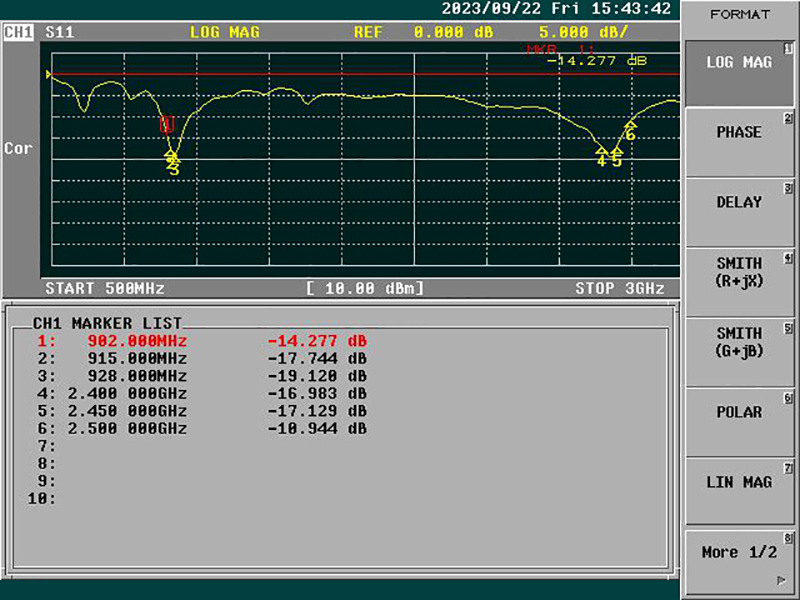

Return Loss Please See Data-1

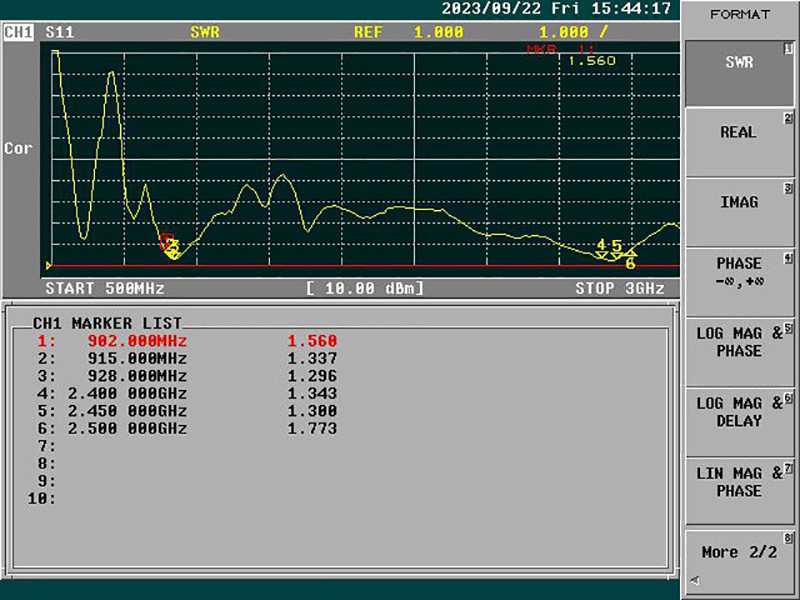

V.S.W.R 2.0：1
Gain 3db

1.2 Mechanical Properties

Parameter Description
Antenna Type External Antenna
Touch Type Screw Type
Connector Type SMA(Male)
Antenna Dimensions 290mm ±15
Antenna Color Black
Operating Temperature Range -40°C~+85°C
Storage Temperature Range -40°C~+85°C

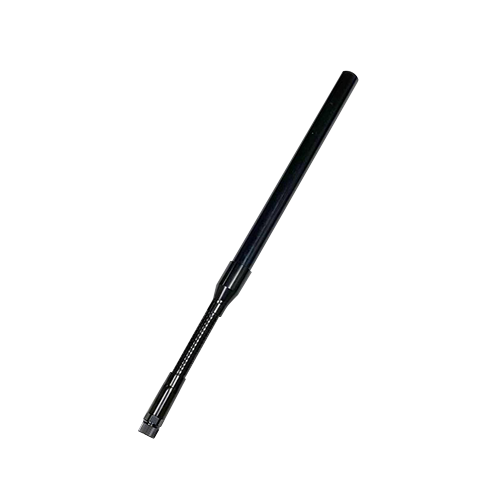

2. Appearance

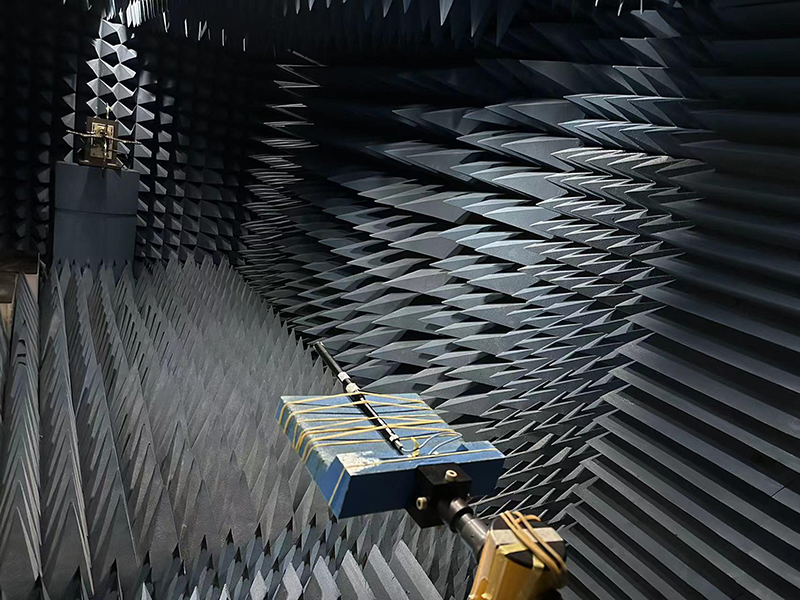

3. Frequency




3D Total

Frequency
(MHz)		 Upper Hem.
PRP (dBm)		 Lower HEM.
PRP (dBm)		 Efficiency
(dB)		 Efficiency
(%)		 Gain (dBi) Tot. Rad.Pwr.
(dBm)
902 MHz -3.59 -6.22 -1.70 67.66 2.79 -1.70
915 MHz -3.30 -5.69 -1.32 73.75 2.75 -1.32
928 MHz -3.18 -4.97 -0.98 79.87 2.86 -0.98
930 MHz -3.25 -4.96 -1.01 79.27 2.52 -1.01
2300 MHz -5.25 -6.86 -2.97 50.47 2.72 -2.97
2350 MHz -4.62 -5.89 -2.20 60.29 3.54 -2.20
2400 MHz -5.03 -5.88 -2.43 57.19 2.45 -2.43
2450 MHz -4.90 -6.03 -2.42 57.30 2.15 -2.42
2500 MHz -4.93 -6.17 -2.49 56.33 2.43 -2.49
2600 MHz -5.31 -6.46 -2.84 52.04 3.46 -2.84

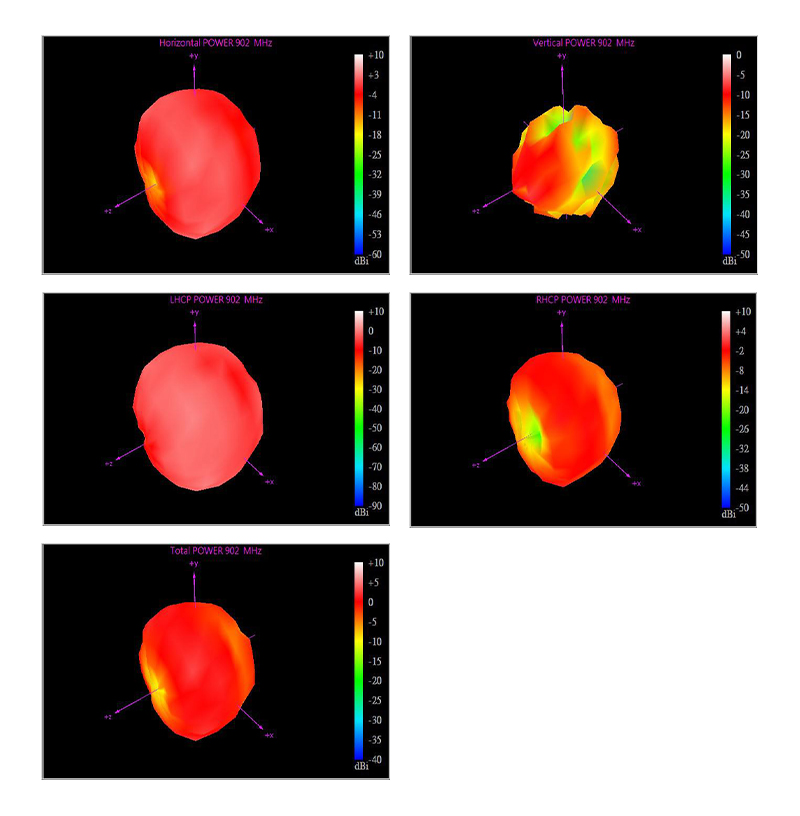

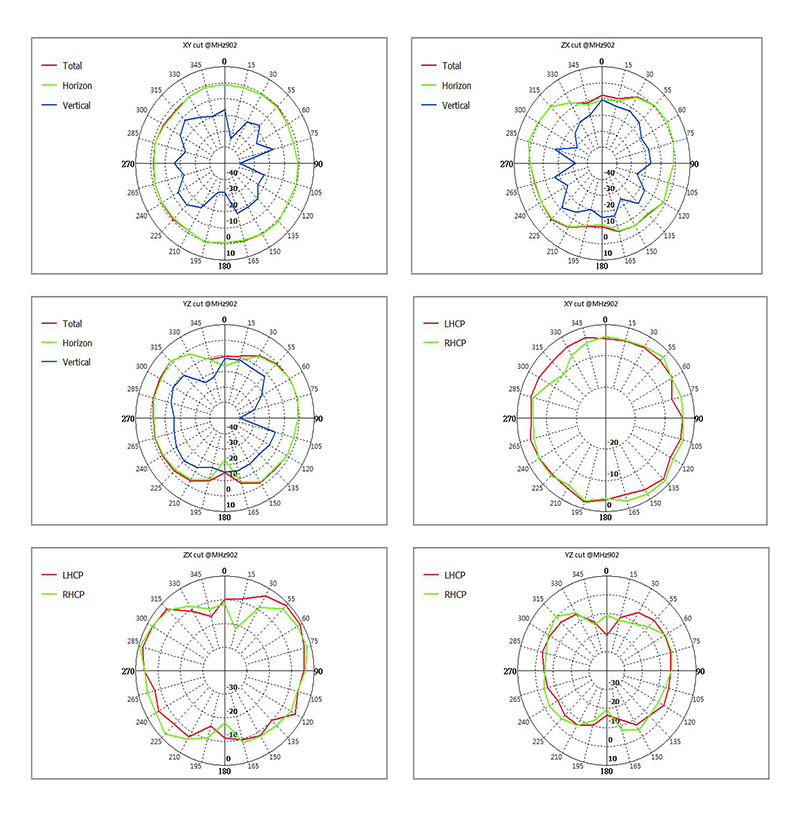

902 MHz:

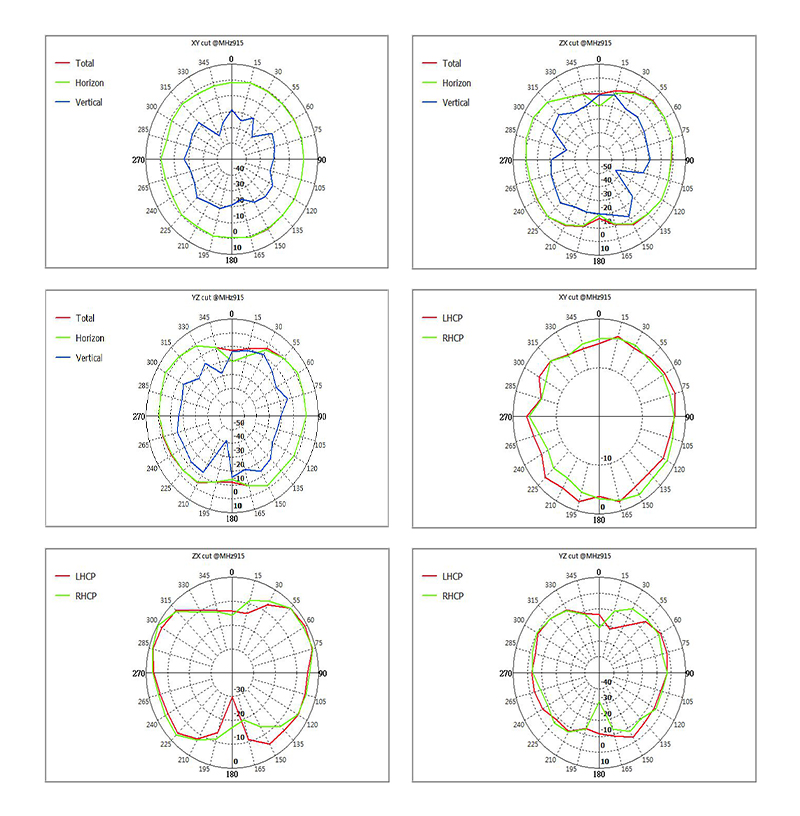

915 MHz:

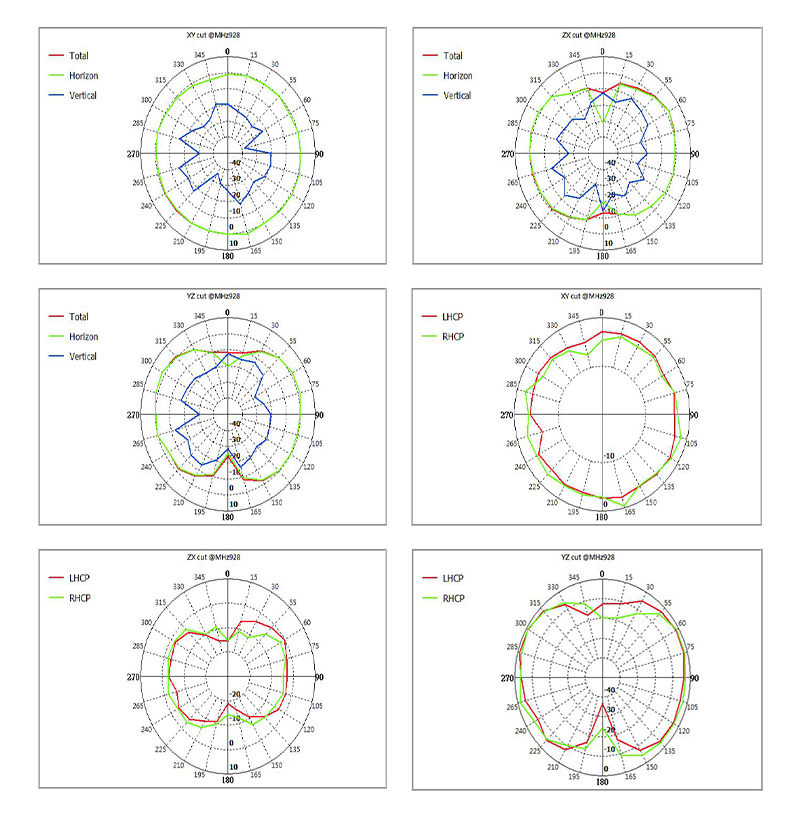

928 MHz:

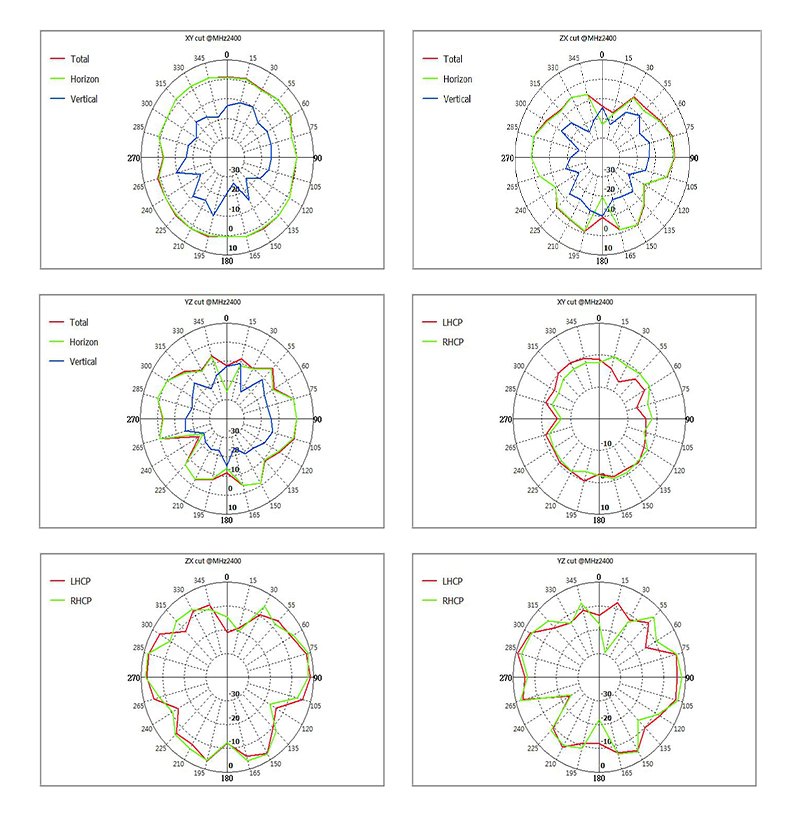

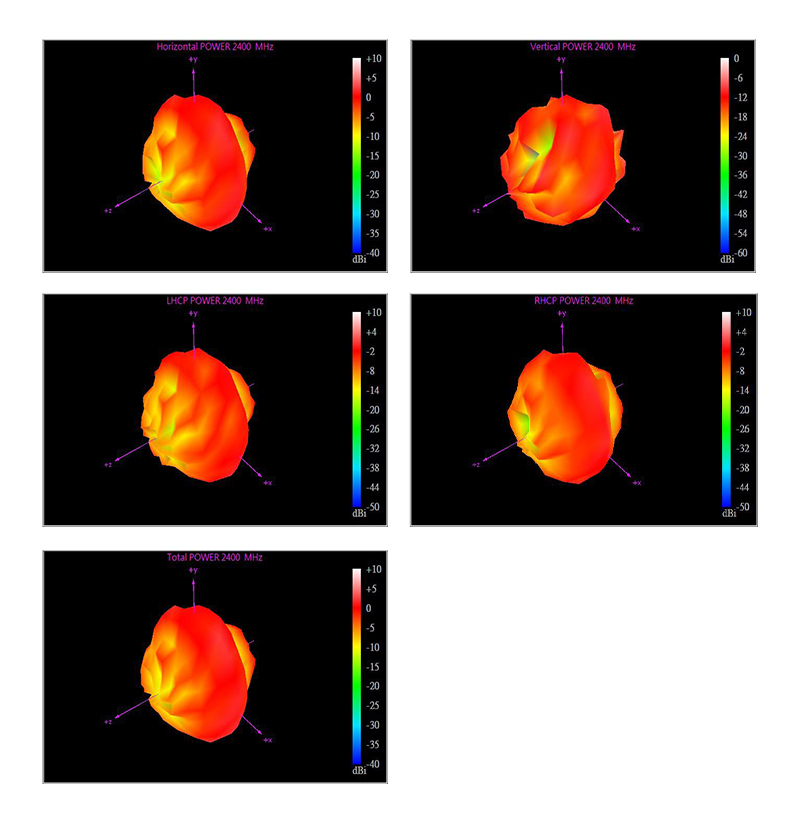

2.4 Ghz:

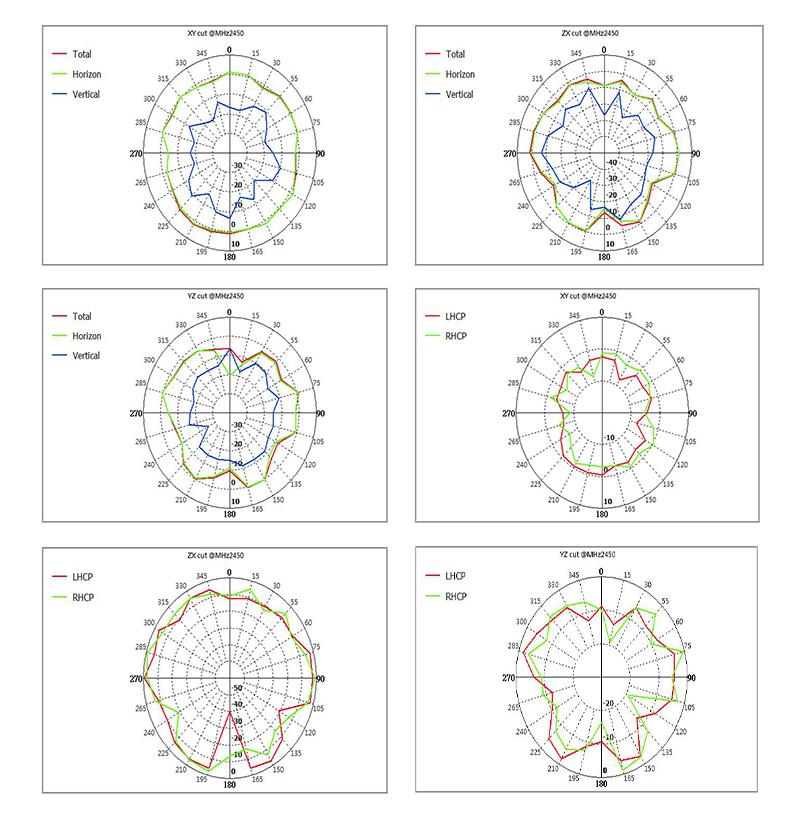

2.45 Ghz:

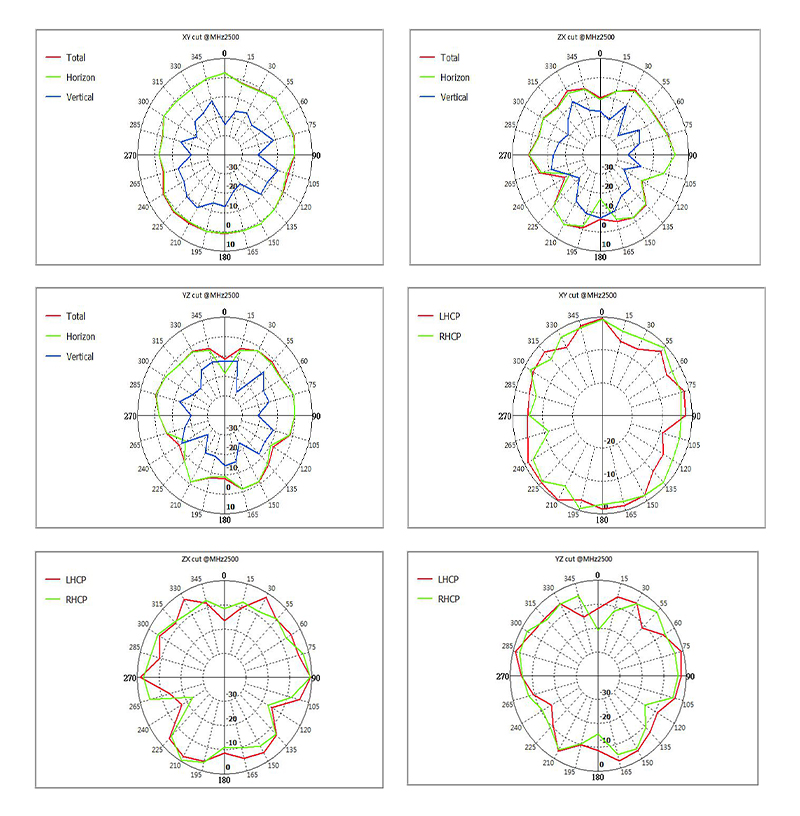

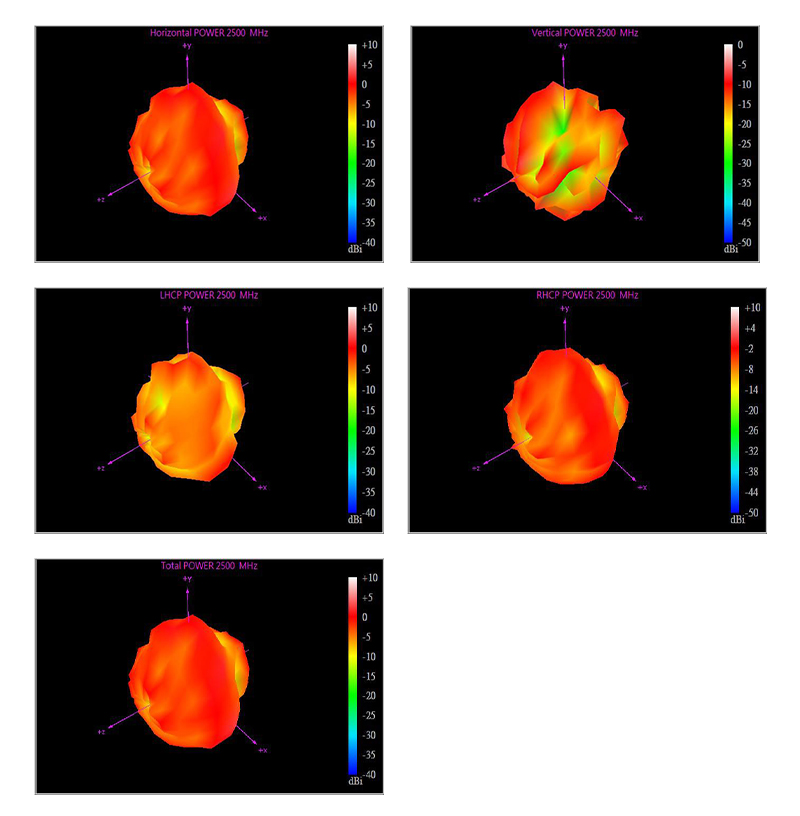

2.5 Ghz:
