TH-9024B-TNC(M)

TH-9024B-TNC(M)

Inquiry

Download

TH-9024B-TNC(M)
  • Product Description
  • Product Specification

1.GENERAL DESCRIPTION

Model No P/N
TH-9024B TH9024B-TNC(M)
Below is a table summarizing the antenna design specification.


1.1 Electrical Properties

Parameter Description
Frequency Band 902~928 MHz & 2.4~2.5Ghz
Nominal Impedance 50 ohm
Polarization Vertical
Electrical Wave Dipole

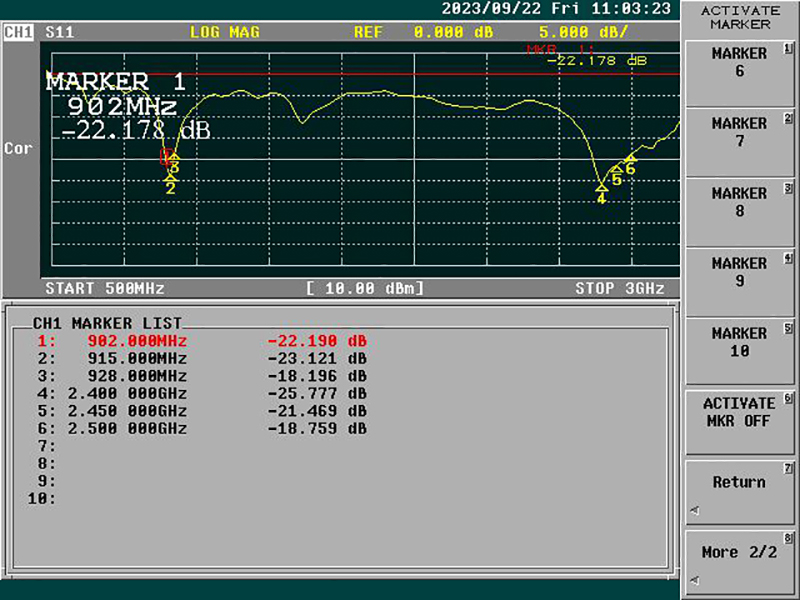

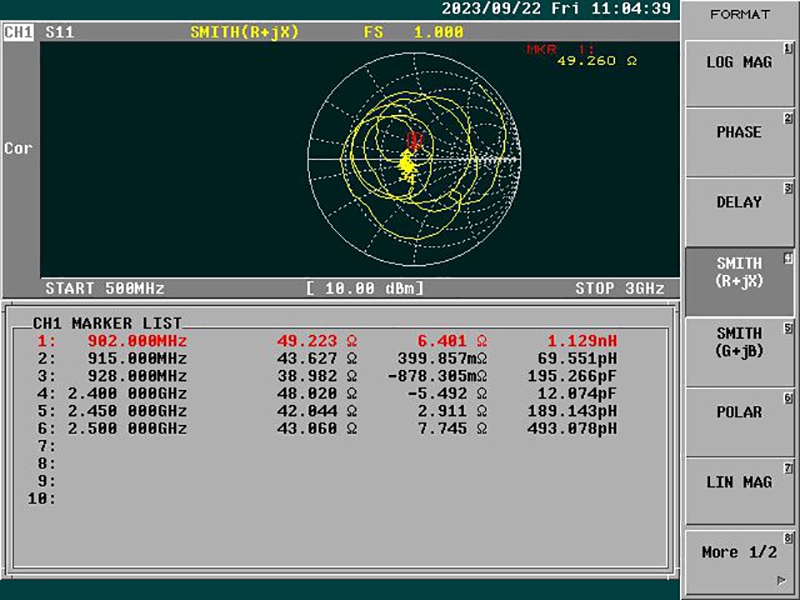

Return Loss Please See Data-1
V.S.W.R 2.0：1
Gain 3db


1.2 Mechanical Properties

Parameter Description
Antenna Type External Antenna
Touch Type Screw Type
Connector Type TNC(Male)
Antenna Dimensions 295mm ±15
Antenna Color Black
Operating Temperature Range Black
Operating Temperature Range -40°C~+85°C
Storage Temperature Range -40°C~+85°C

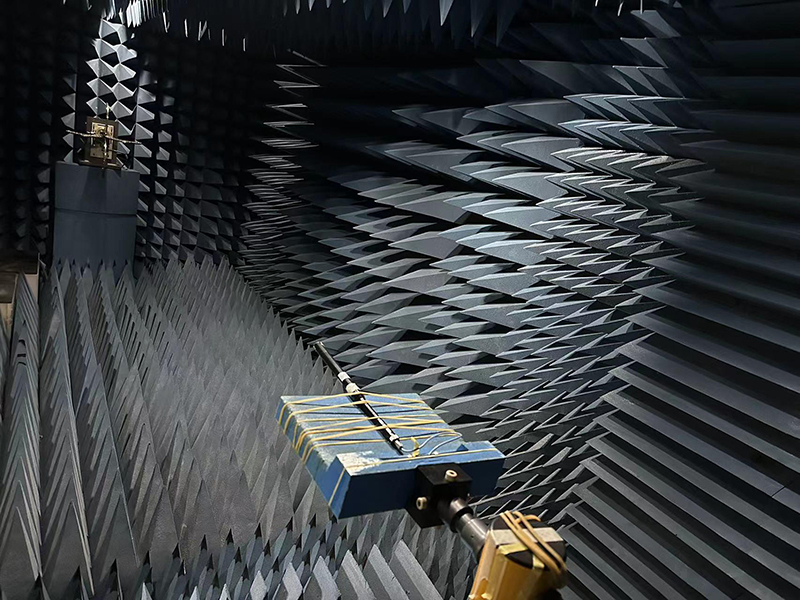

2. Appearance

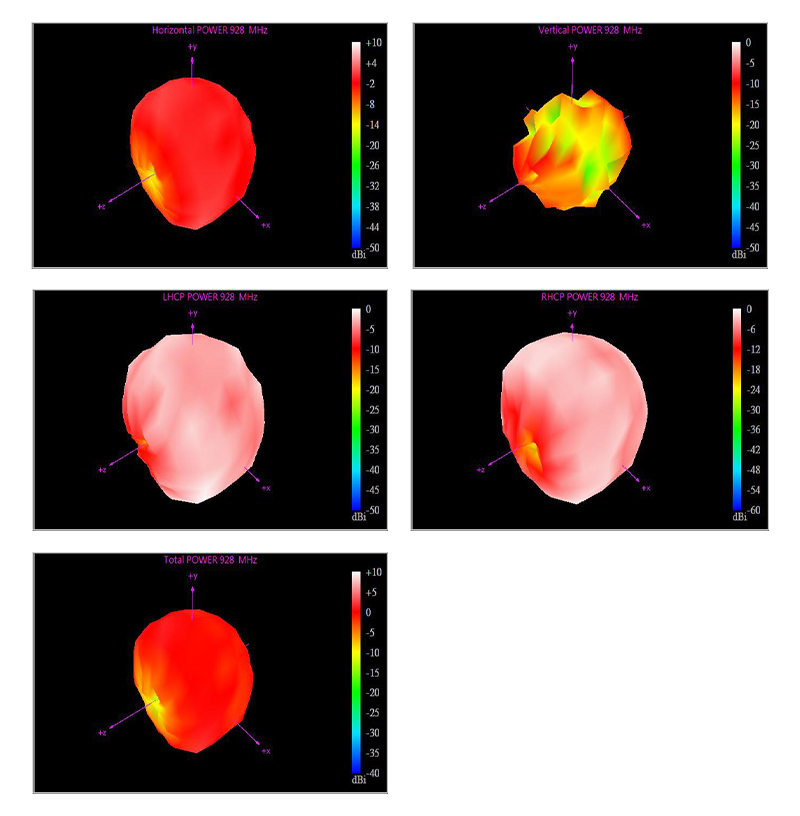

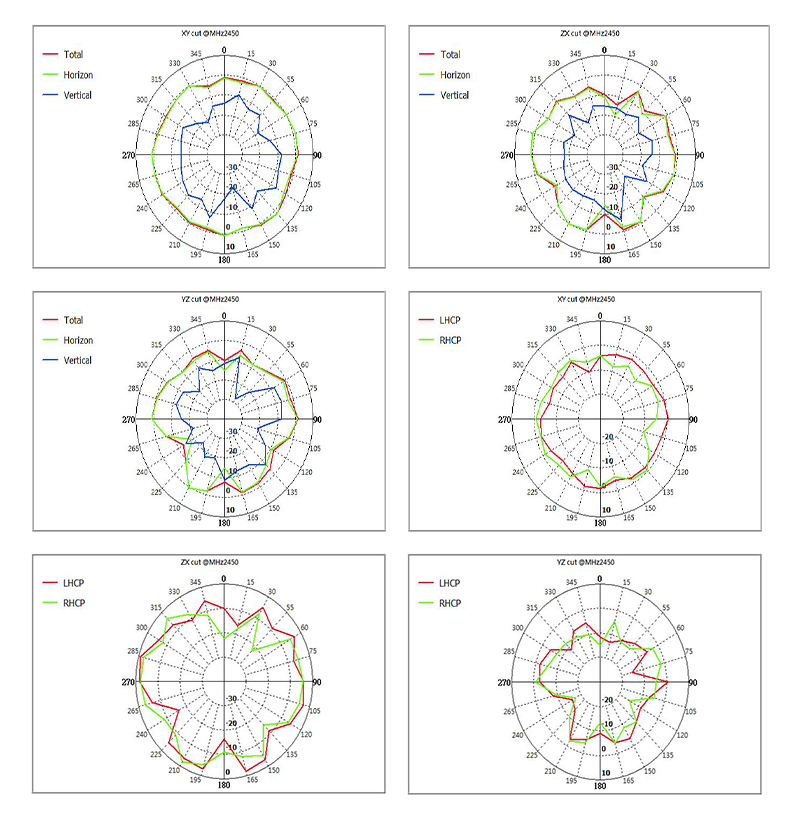

3. Frequency




3D Total

Frequency
(MHz)		 Upper Hem.
PRP (dBm)		 Lower HEM.
PRP (dBm)		 Efficiency
(dB)		 Efficiency
(%)		 Gain (dBi) Tot. Rad.Pwr.
(dBm)
902 MHz -4.17 -5.11 -1.61 69.07 1.83 -1.61
915 MHz -4.11 -5.00 -1.52 70.42 2.15 -1.52
928 MHz -4.13 -4.66 -1.37 72.91 2.37 -1.37
930 MHz -4.03 -4.69 -1.34 73.46 2.06 -1.34
2300 MHz -5.59 -6.61 -3.06 49.43 2.93 -3.06
2350 MHz -4.98 -5.82 -2.37 57.96 2.89 -2.37
2400 MHz -5.09 -5.87 -2.46 56.81 2.84 -2.46
2450 MHz -5.23 -6.04 -2.60 54.94 2.09 -2.60
2500 MHz -5.12 -5.74 -2.41 57.45 3.13 -2.41
2600 MHz -4.95 -5.54 -2.22 54.94 3.69 -2.22

902 MHz:


915 MHz:


928 MHz:


2.4 Ghz:


2.45 Ghz:


2.5 Ghz:
