TH-9024A-TNC(M)
  • Product Description
  • Product Specification

1.GENERAL DESCRIPTION

Model No P/N
TH-9024A TH9024A-TNC(M)
Below is a table summarizing the antenna design specification.


1.1 Electrical Properties

Parameter Description
Frequency Band 902~928 MHz & 2.4~2.5Ghz
Nominal Impedance 50 ohm
Polarization Vertical
Electrical Wave Dipole

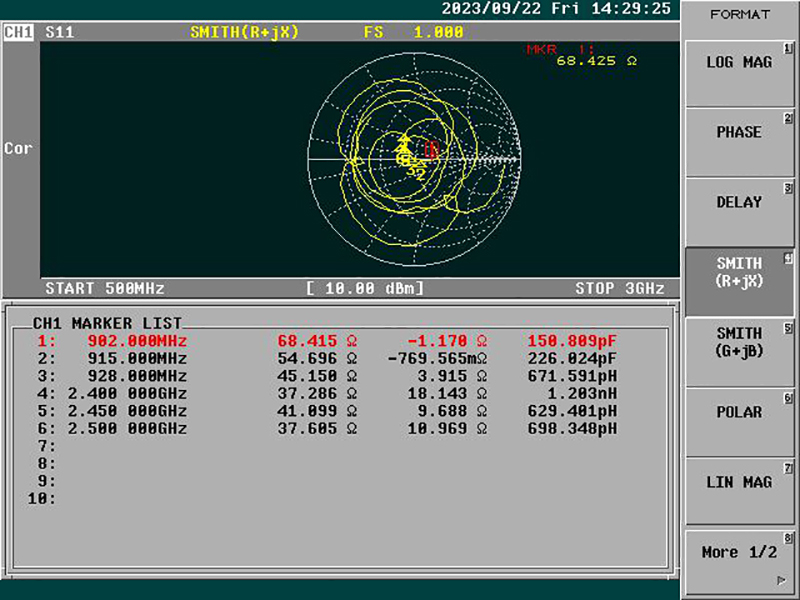

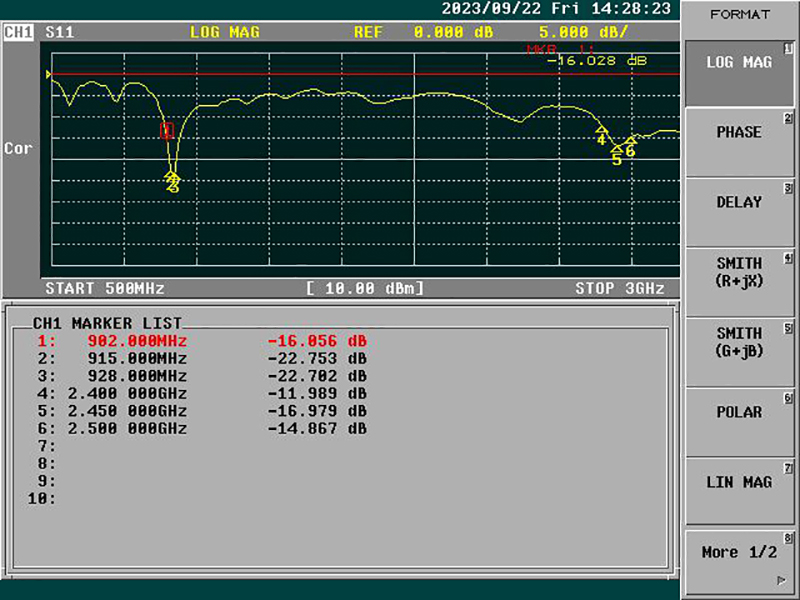

Return Loss Please See Data-1

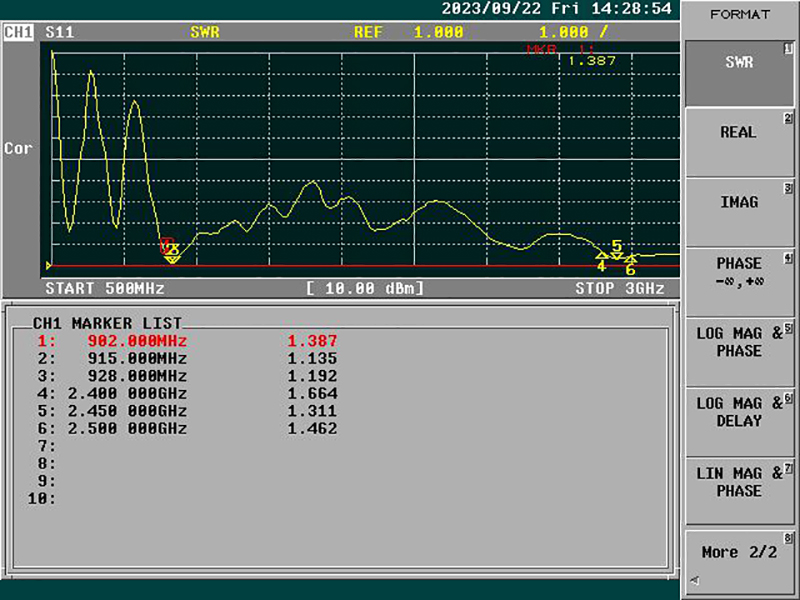

V.S.W.R 2.0：1
Gain 3db


1.2 Mechanical Properties

Parameter Description
Antenna Type External Antenna
Touch Type Screw Type
Connector Type TNC(Male)
Antenna Dimensions 367mm ±15
Antenna Color Black
Operating Temperature Range -40°C~+85°C
Storage Temperature Range -40°C~+85°C

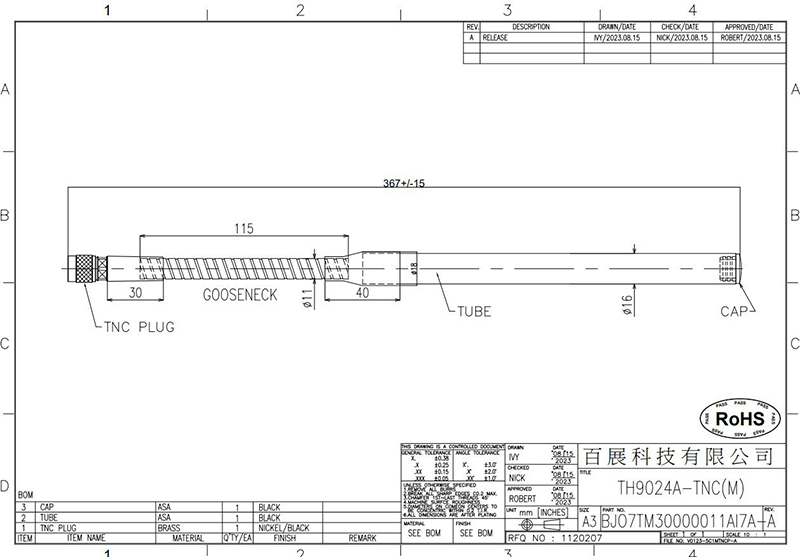

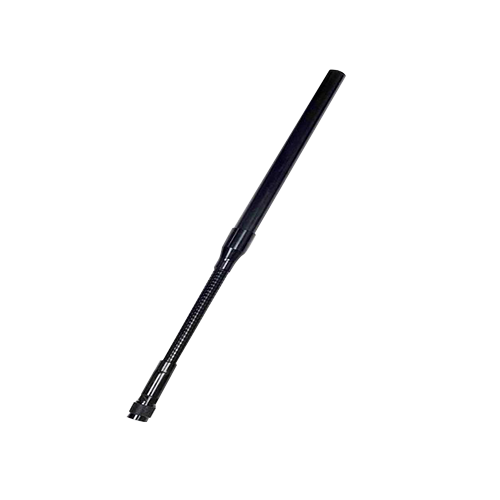

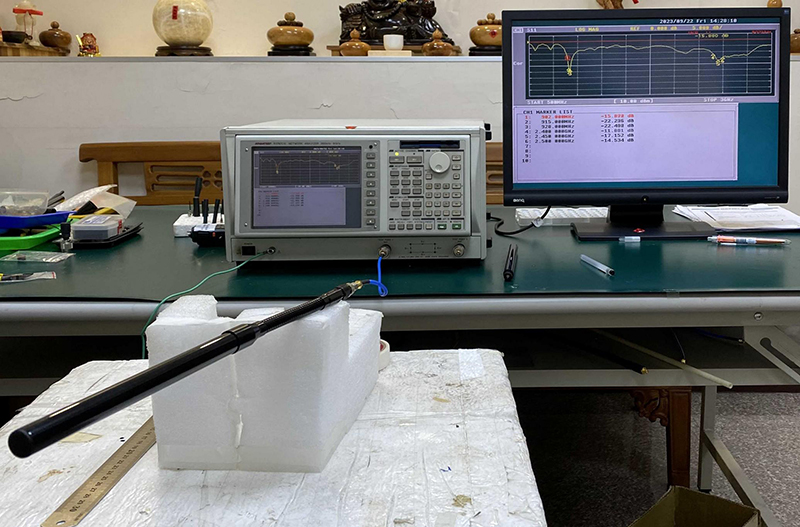

2. Appearance

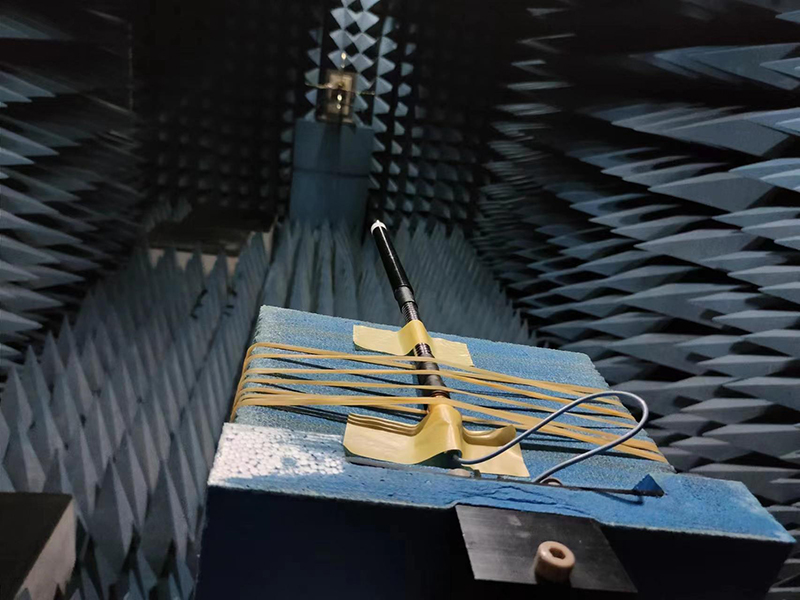

3. Frequency






3D Total

Frequency
(MHz)		 Upper Hem.
PRP (dBm)		 Lower HEM.
PRP (dBm)		 Efficiency
(dB)		 Efficiency
(%)		 Gain (dBi) Tot. Rad.Pwr.
(dBm)
902 MHz -3.49 -5.71 -1.45 71.63 2.59 -1.45
915 MHz -3.31 -5.04 -1.08 78.04 2.75 -1.08
928 MHz -2.94 -4.55 -0.66 85.88 3.21 -0.66
930 MHzz -3.02 -4.48 -0.68 85.52 2.90 -0.68
2300 MHz -5.58 -7.35 -3.36 46.09 2.88 -3.36
2350 MHz -4.87 -6.23 -2.49 56.41 4.51 -2.49
2400 MHz -5.43 -6.24 -2.81 52.37 3.42 -2.81
2450 MHz -5.14 -5.90 -2.50 56.26 2.48 -2.50
2500 MHz -5.37 -5.71 -2.52 55.95 3.54 -2.52
2600 MHz -4.92 -5.22 -2.06 62.29 4.49 -2.06

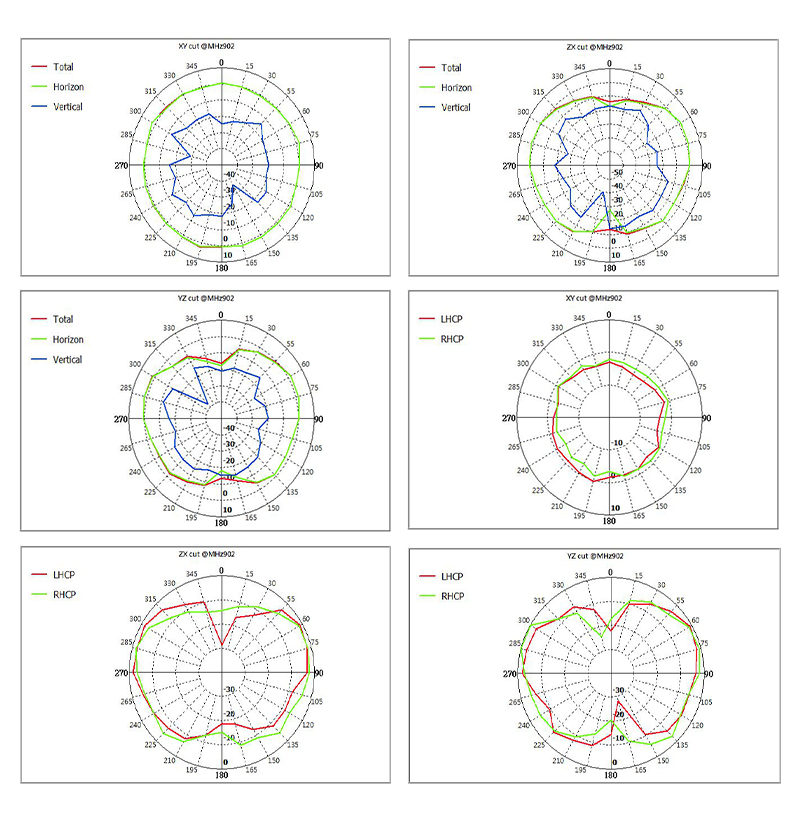

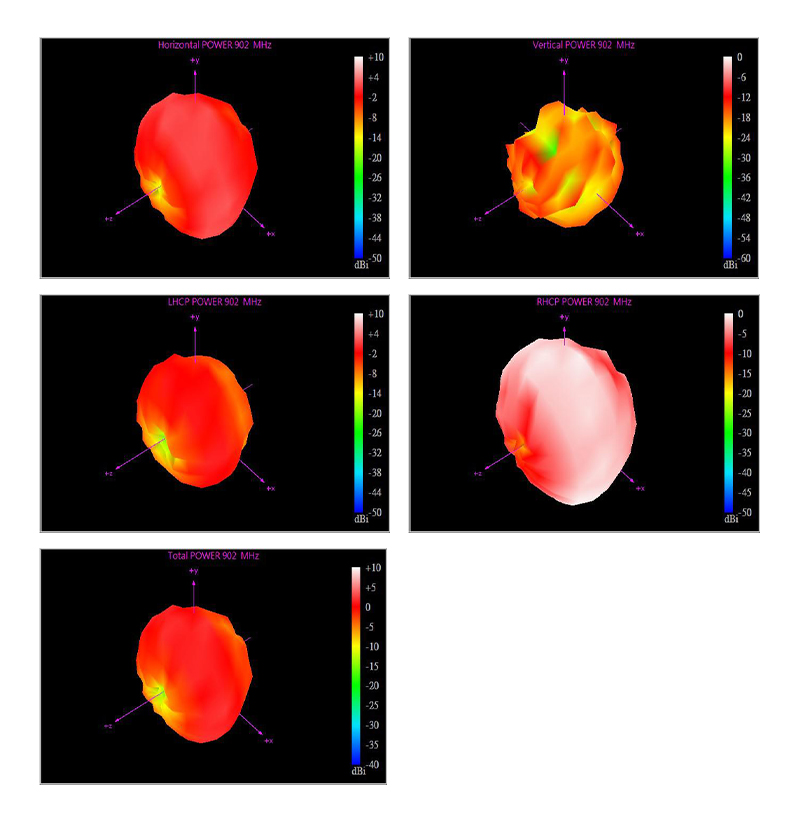

902Mhz:

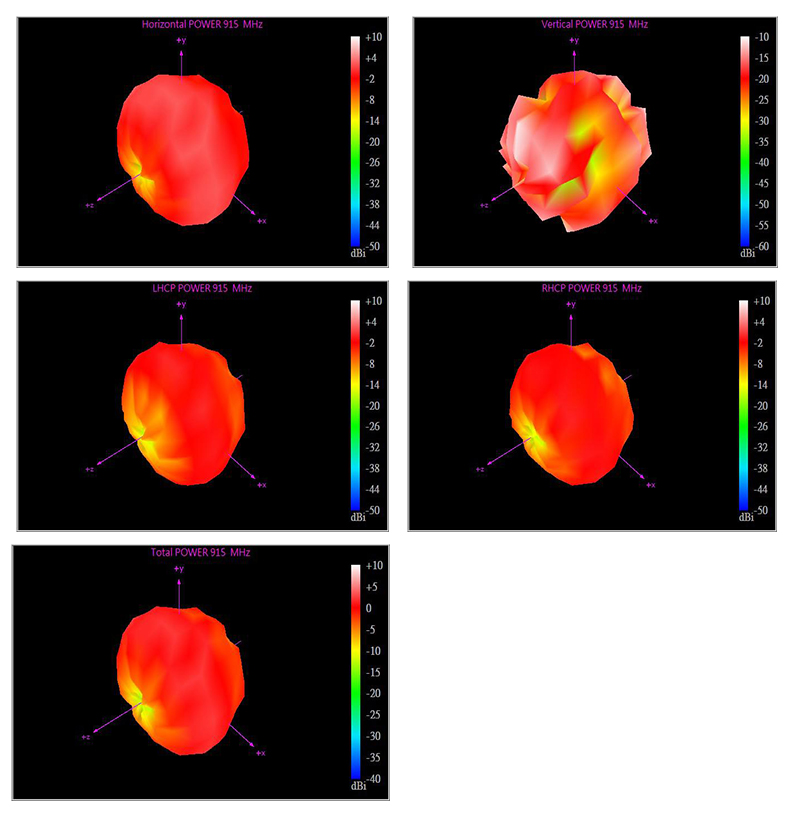

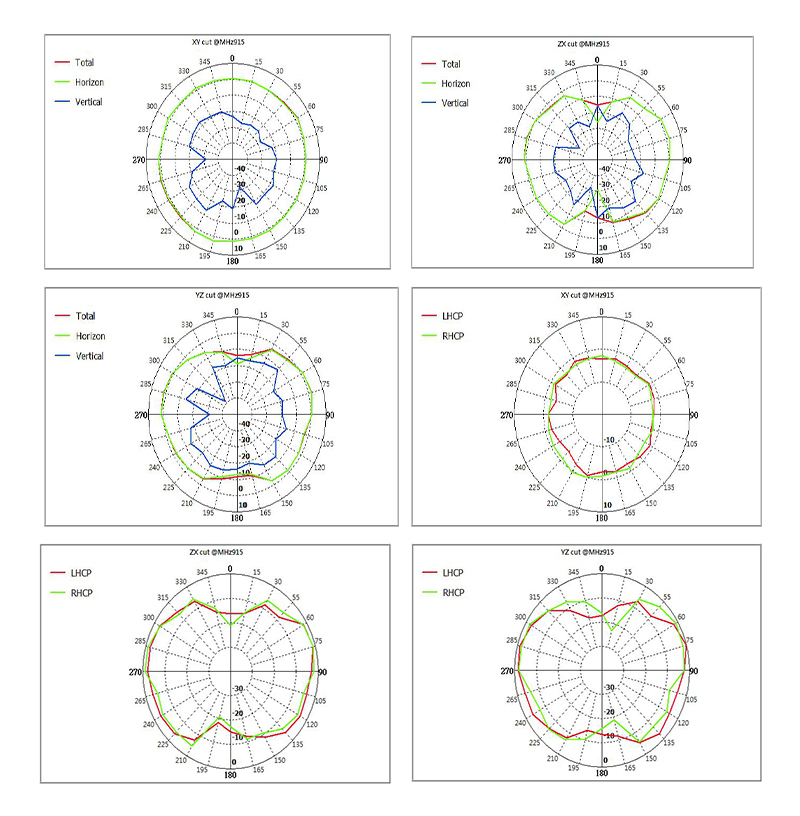

915Mhz:

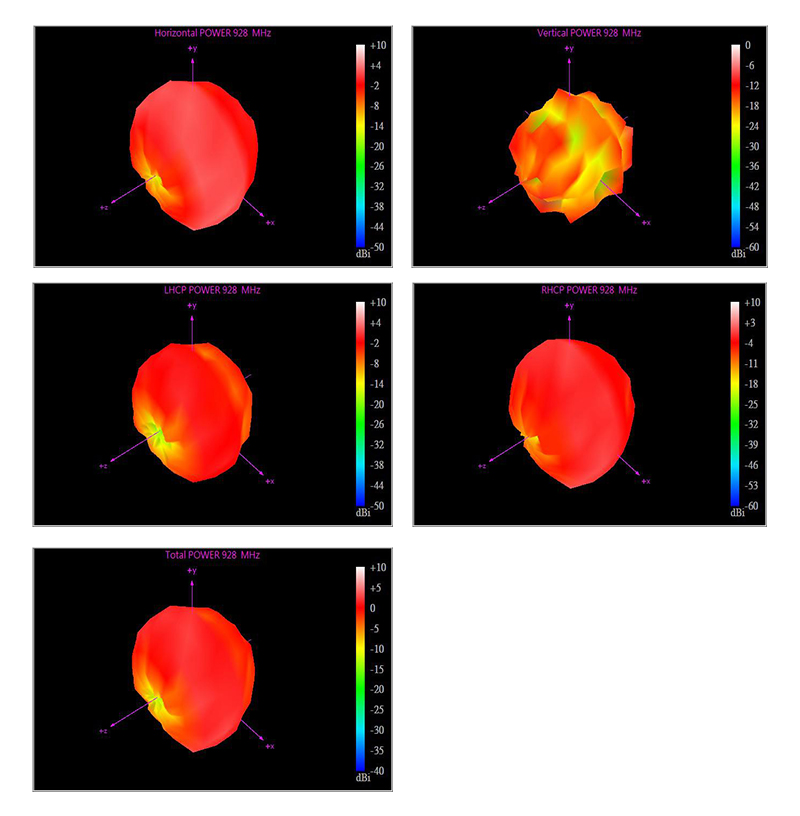

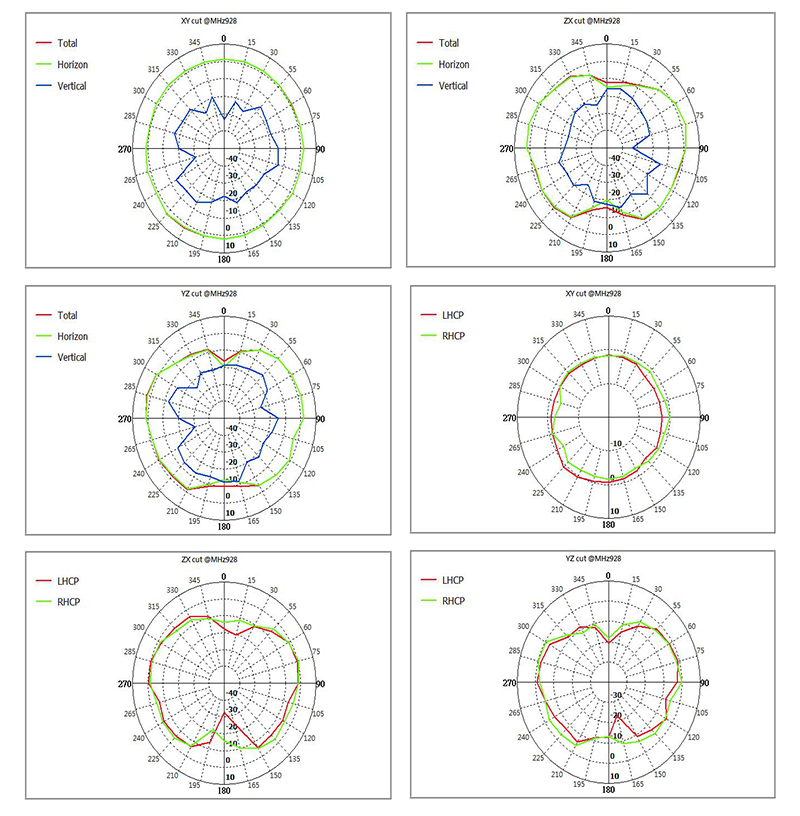

928Mhz:

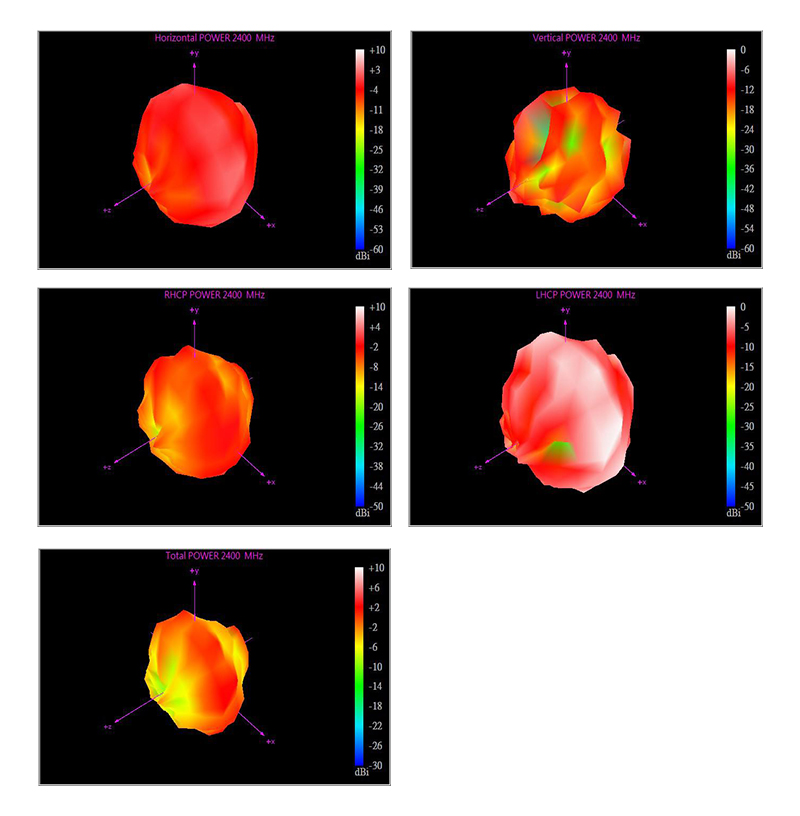

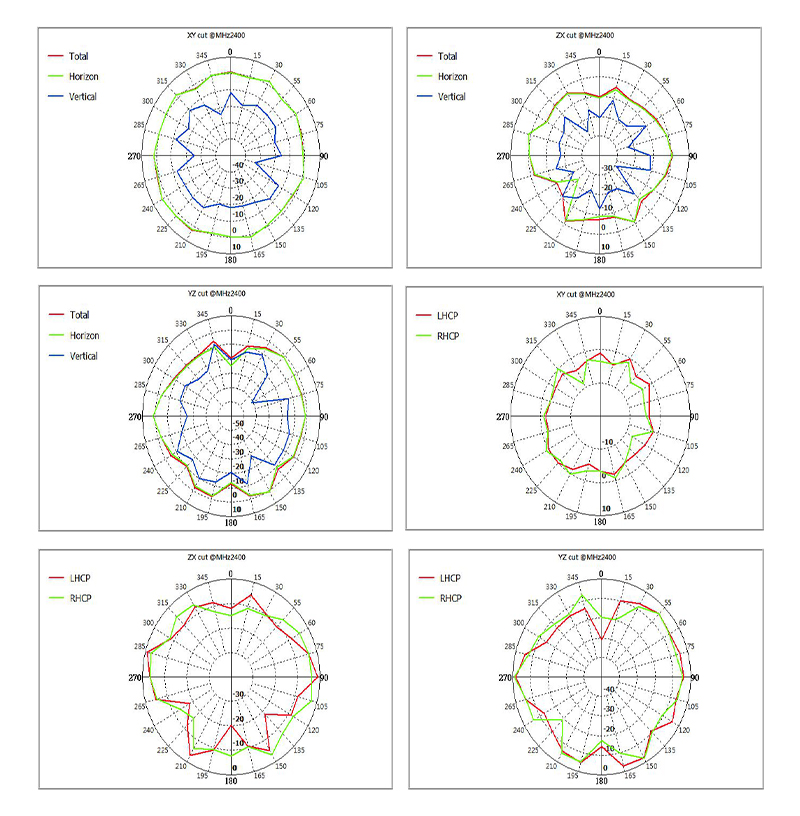

2.4Ghz:

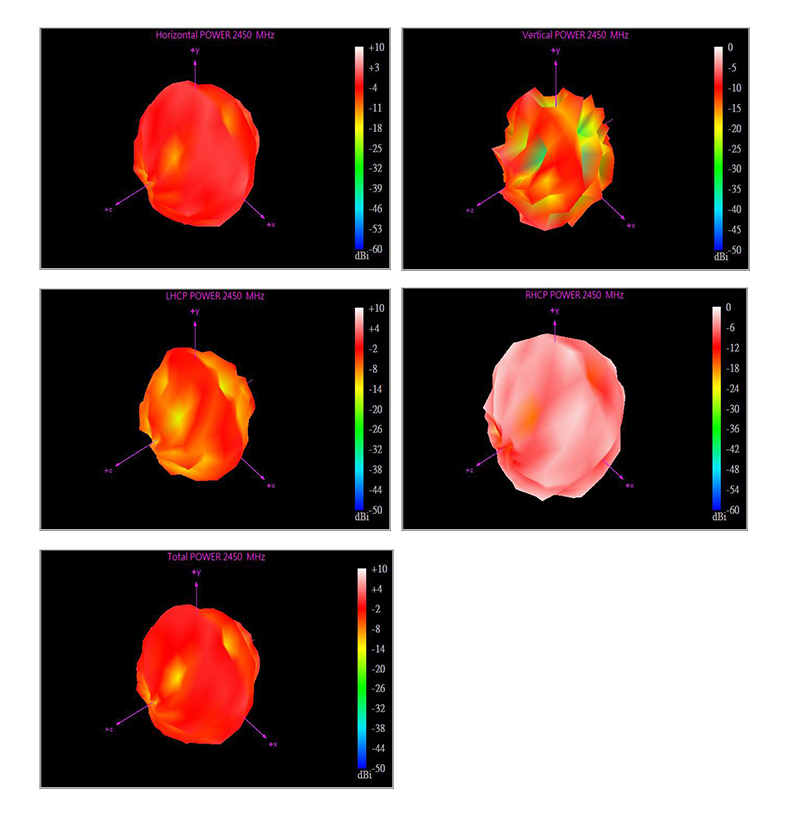

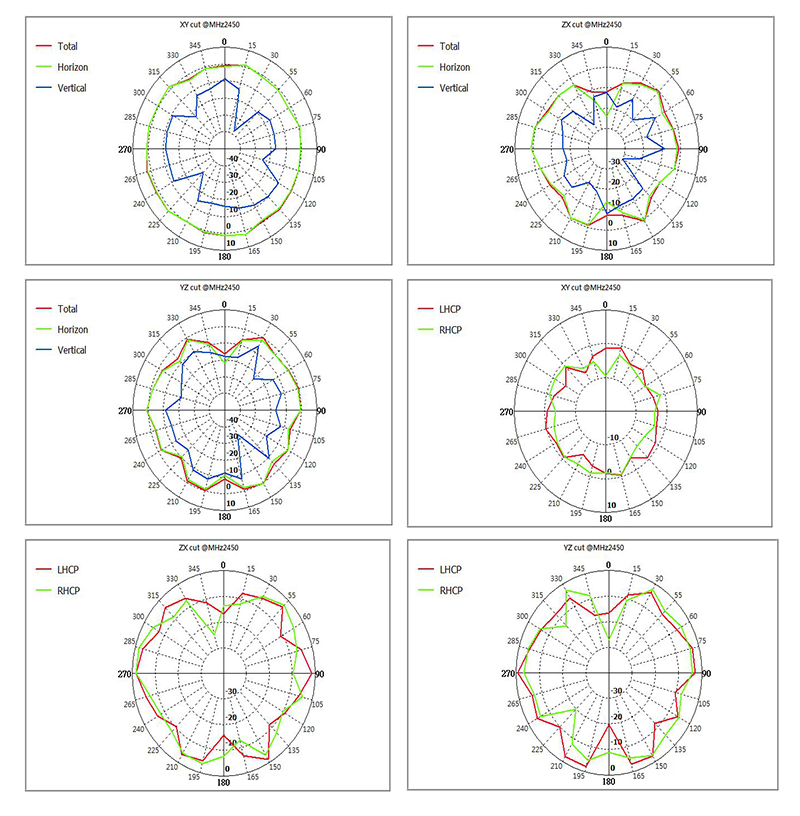

2.45Ghz:

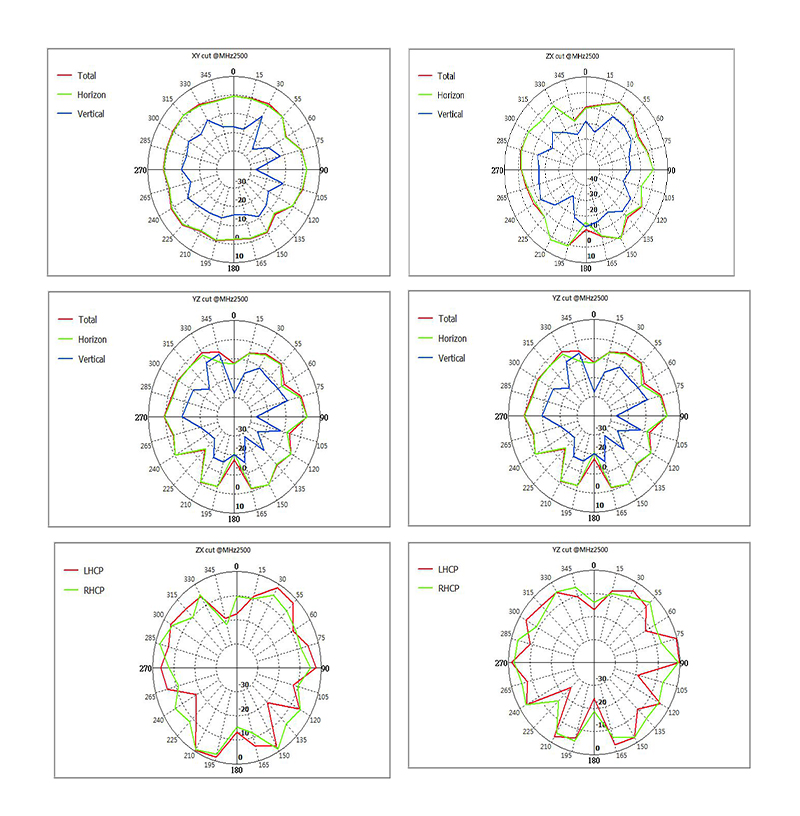

2.5Ghz:
