TH-9024A-SMA(M)
  • Product Description
  • Product Specification

1.GENERAL DESCRIPTION

Model No P/N
TH-9024A TH9024A-SMA(M)
Below is a table summarizing the antenna design specification.


1.1 Electrical Properties

Parameter Description
Frequency Band 902~928 MHz & 2.4~2.5Ghz
Nominal Impedance 50 ohm
Polarization Vertical
Electrical Wave Dipole

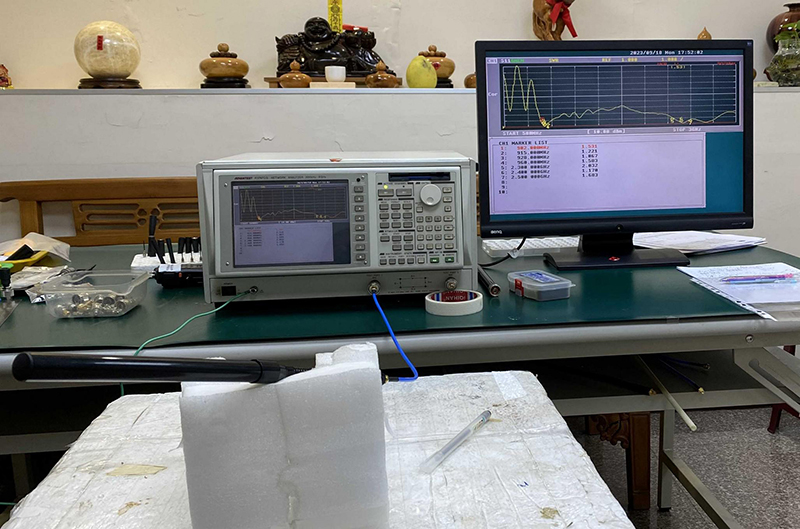

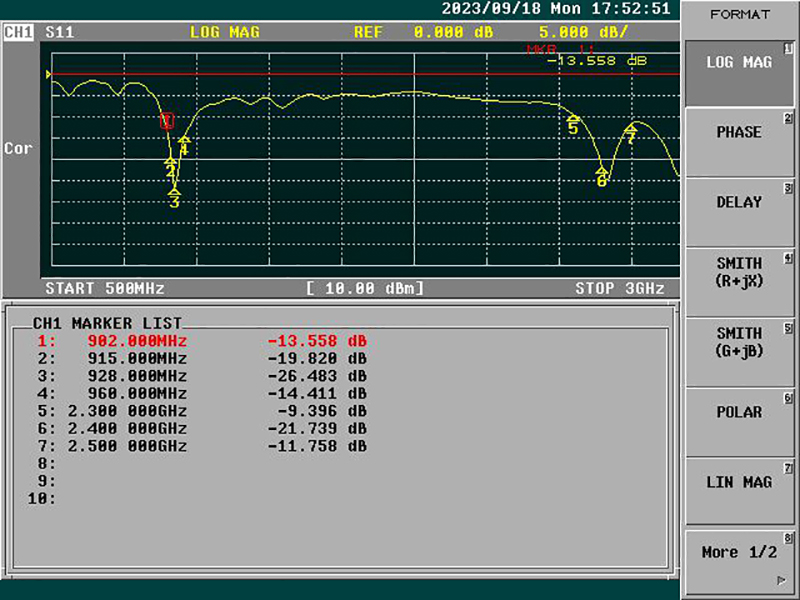

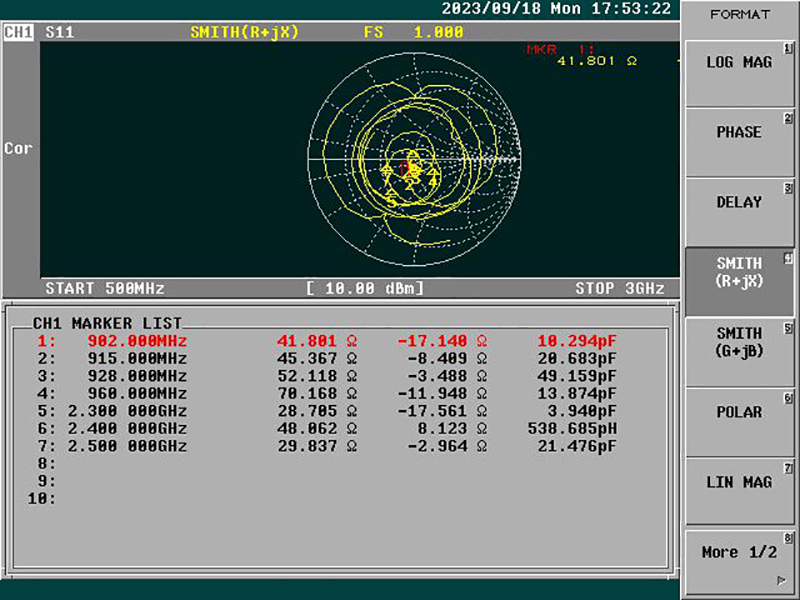

Return Loss Please See Data-1

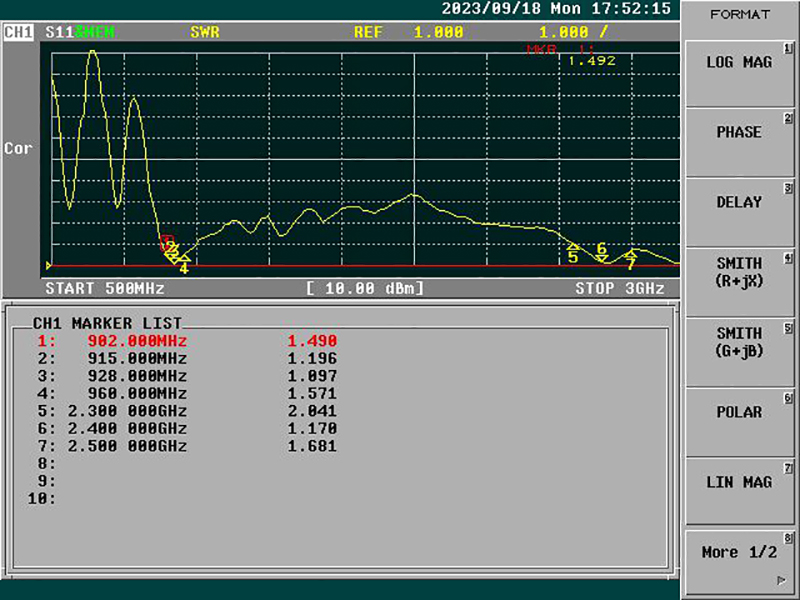

V.S.W.R 2.0：1
Gain 3db


1.2 Mechanical Properties

Parameter Description
Antenna Type External Antenna
Touch Type Screw Type
Connector Type SMA(Male)

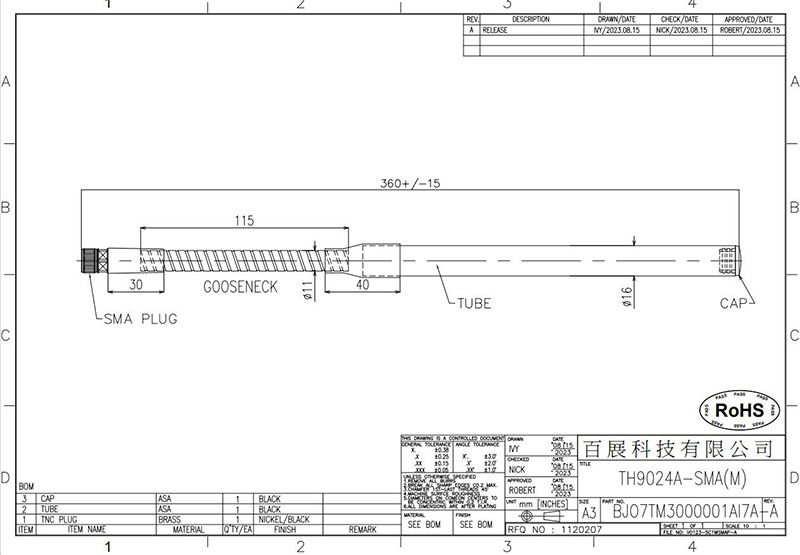

Antenna Dimensions 360mm ±15
Antenna Color Black
Operating Temperature Range Black
Operating Temperature Range -40°C~+85°C
Storage Temperature Range -40°C~+85°C

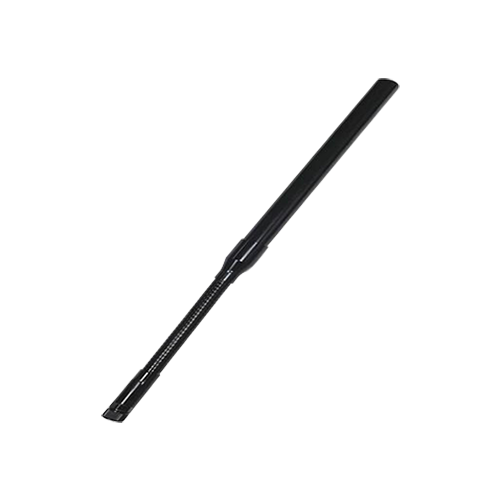

2. Appearance

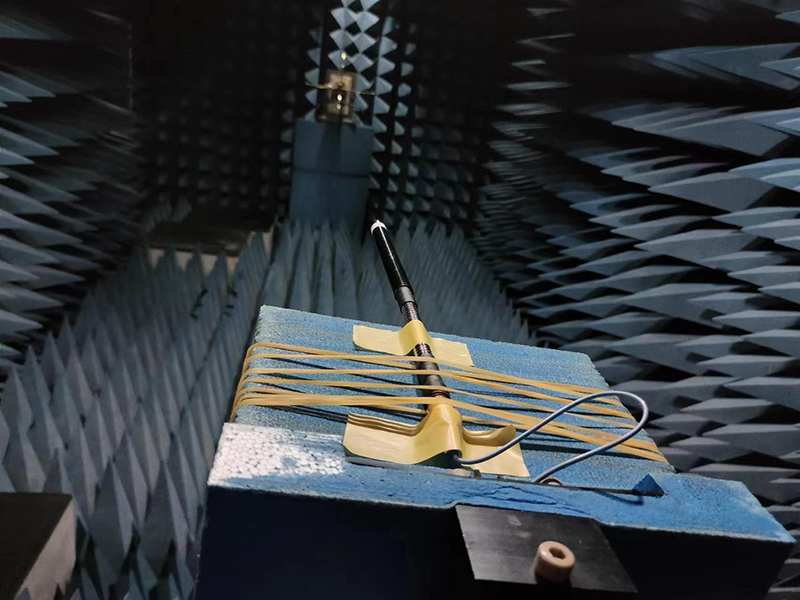

3. Frequency




3D Total

Frequency
(MHz)		 Upper Hem.
PRP (dBm)		 Lower HEM.
PRP (dBm)		 Efficiency
(dB)		 Efficiency
(%)		 Gain (dBi) Tot. Rad.Pwr.
(dBm)
902 MHz -3.47 -5.78 -1.46 71.39 2.87 -1.46
915 MHz -3.23 -5.29 -1.13 77.07 3.23 -1.13
928 MHz -2.95 -4.74 -0.74 84.32 2.75 -0.74
930 MHz -2.94 -4.71 -0.73 84.56 2.66 -0.73
2300 MHz -5.79 -7.46 -3.54 44.28 2.40 -3.54
2350 MHz -4.71 -6.27 -2.41 57.43 4.16 -2.41
2400 MHz -4.82 -5.94 -2.33 58.42 2.59 -2.33
2500 MHz -5.04 -5.46 -2.24 59.75 2.62 -2.24
2600 MHz -4.90 -5.54 -2.20 60.25 4.20 -2.20

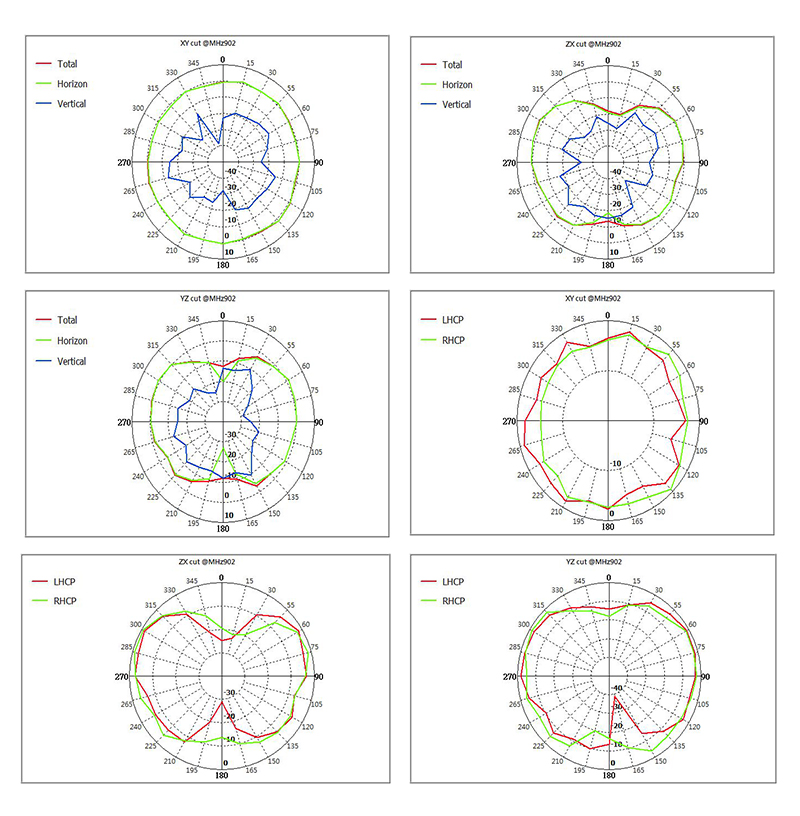

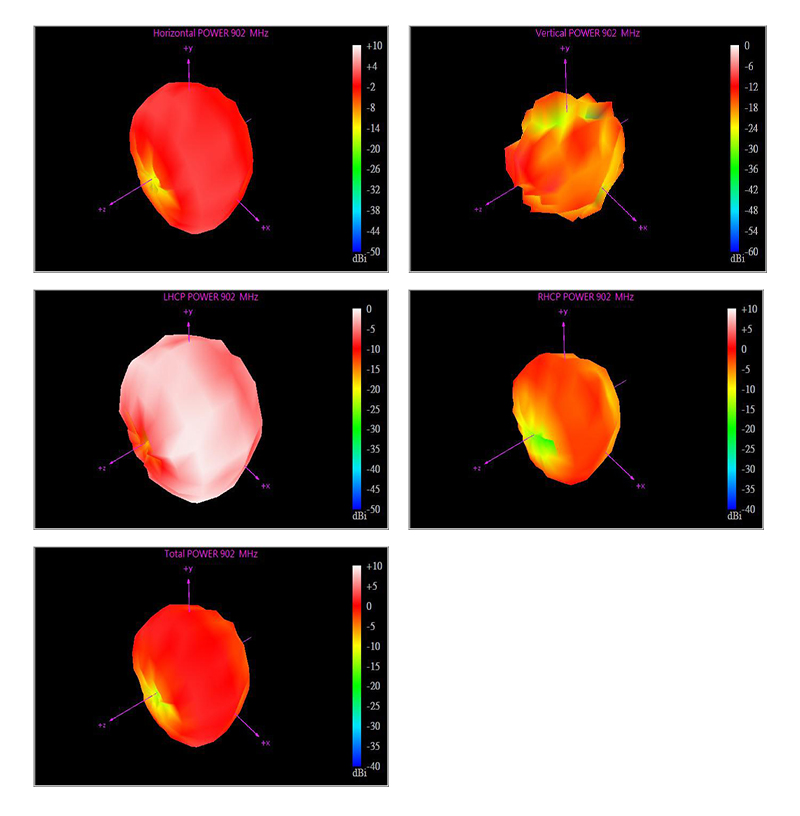

902 MHz:

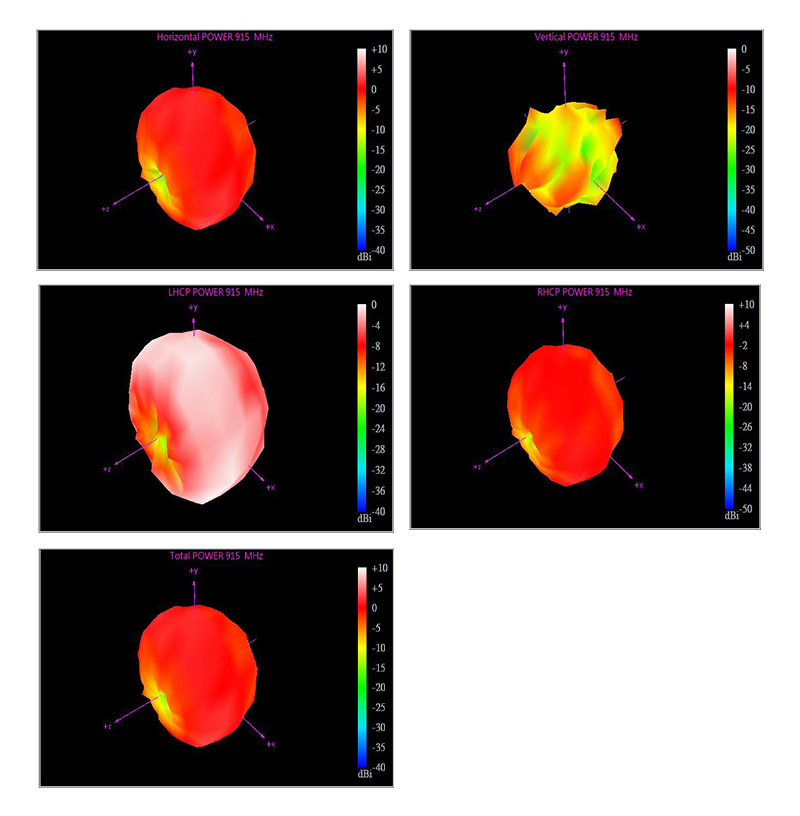

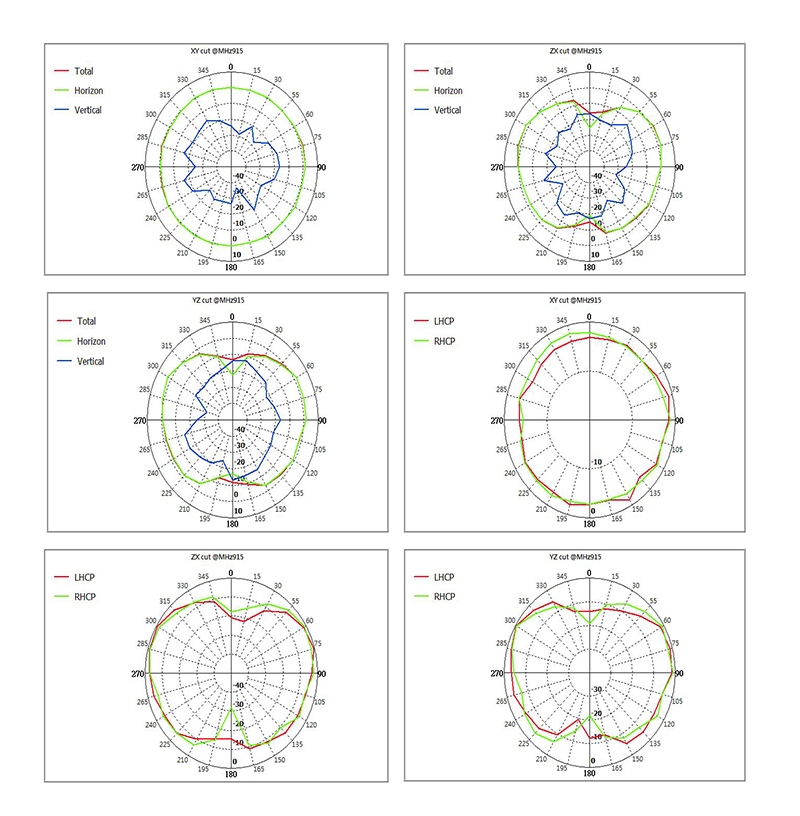

915 MHz:

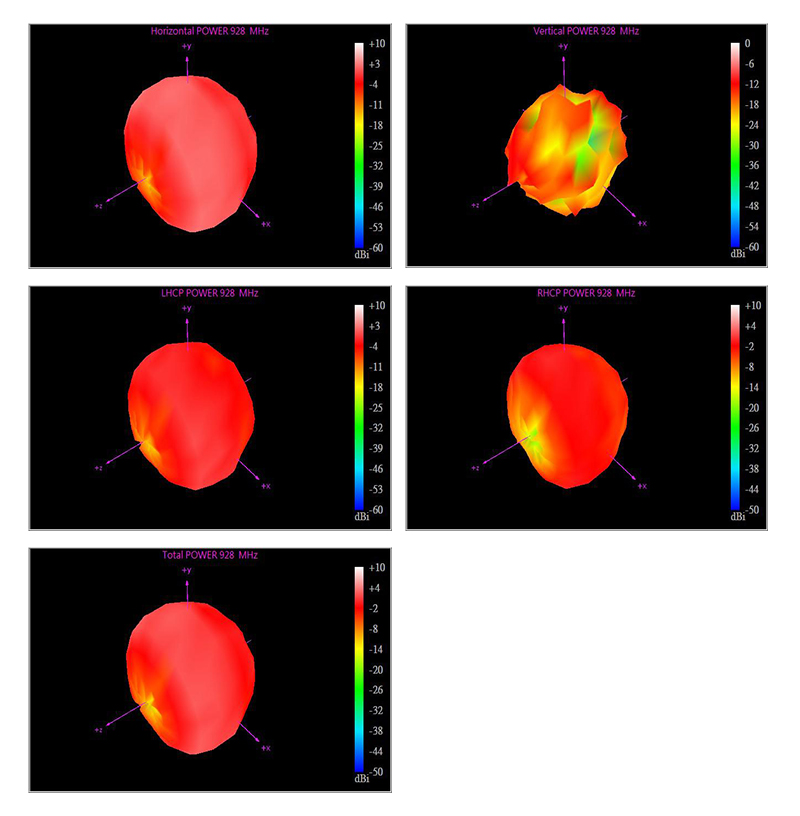

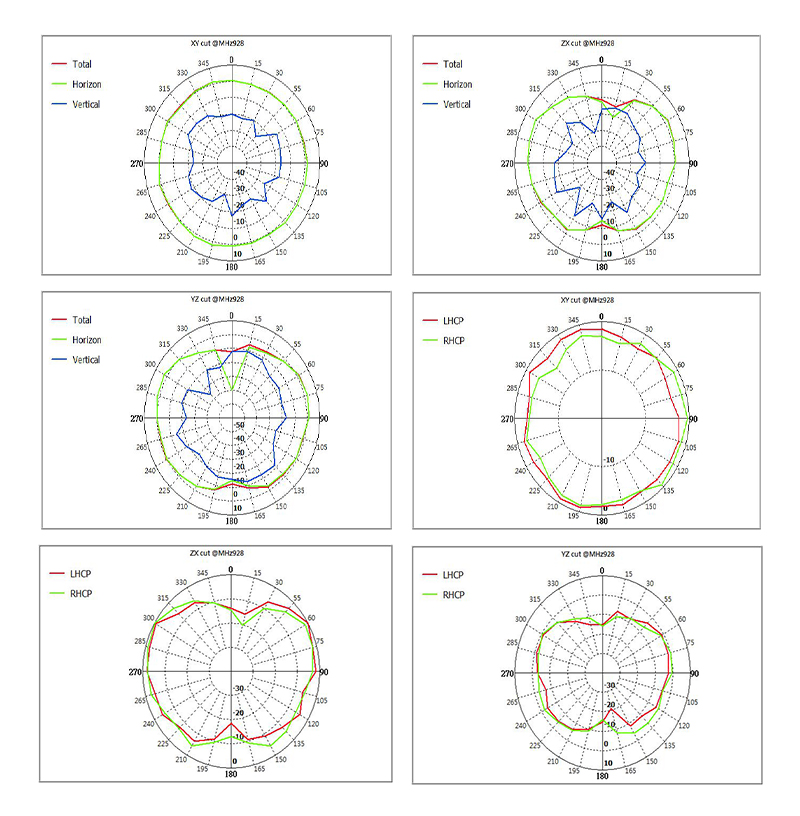

928 MHz:

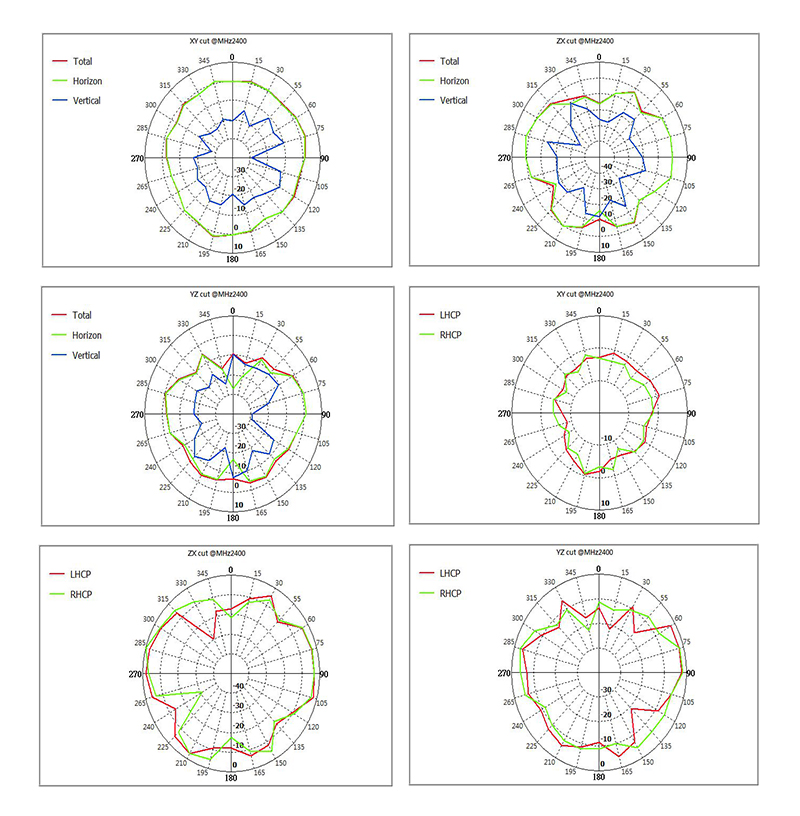

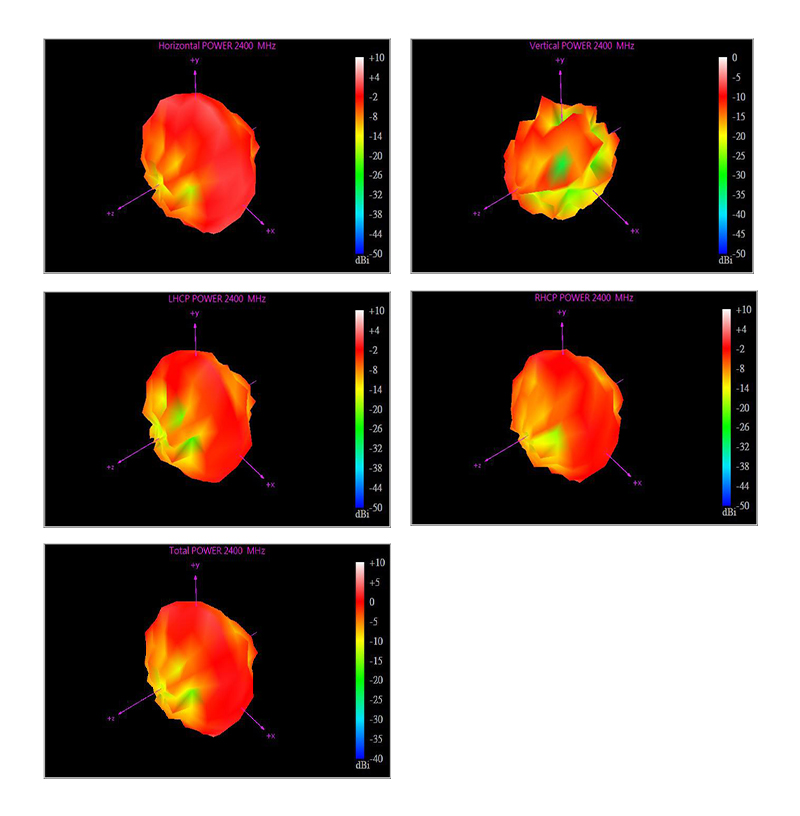

2.4 Ghz:

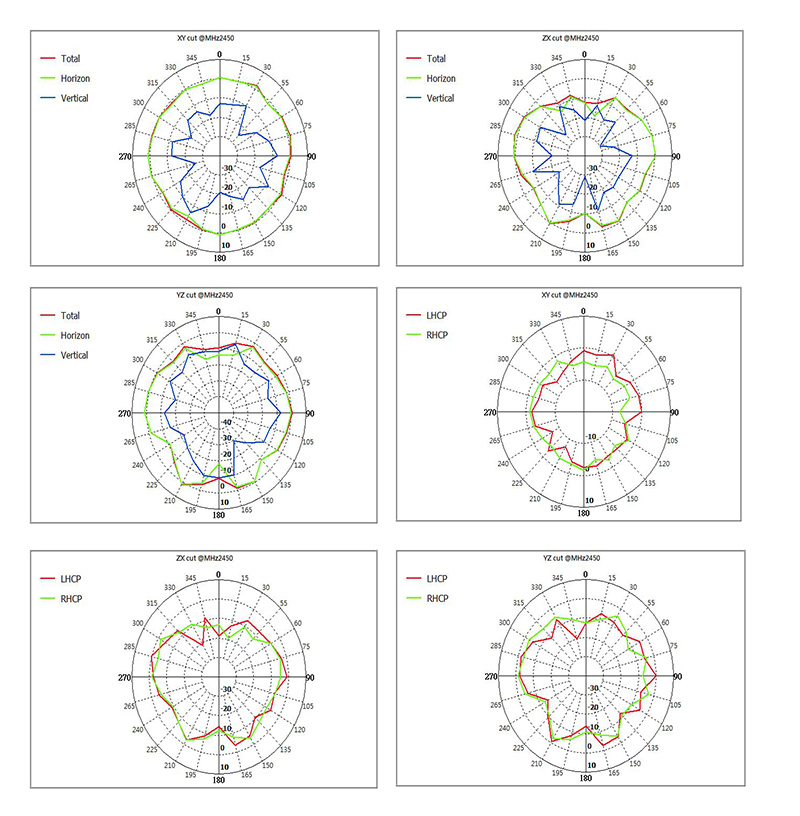

2.45 Ghz:

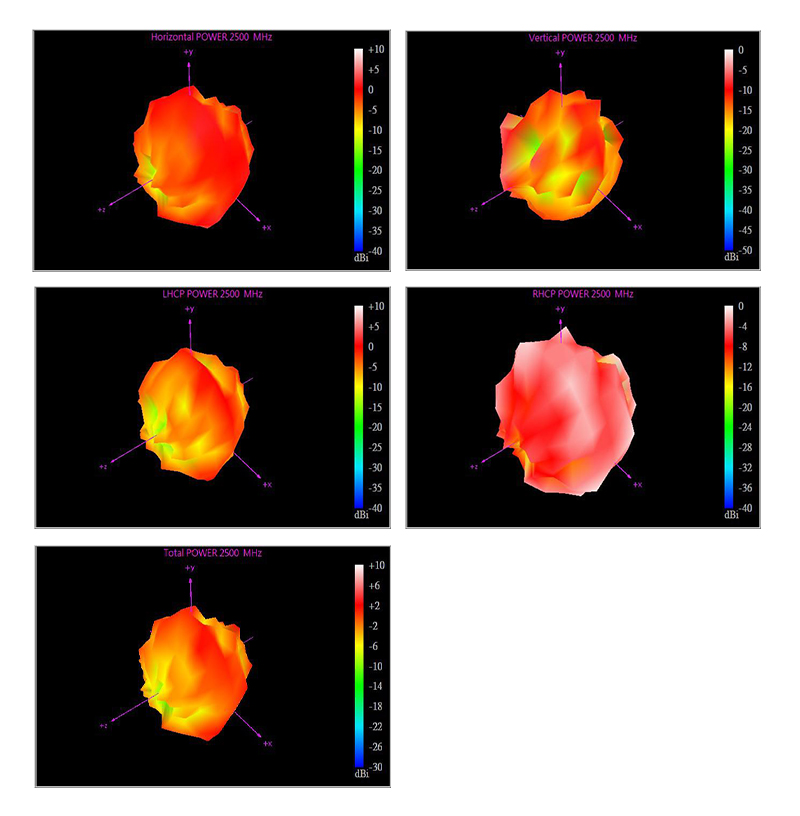

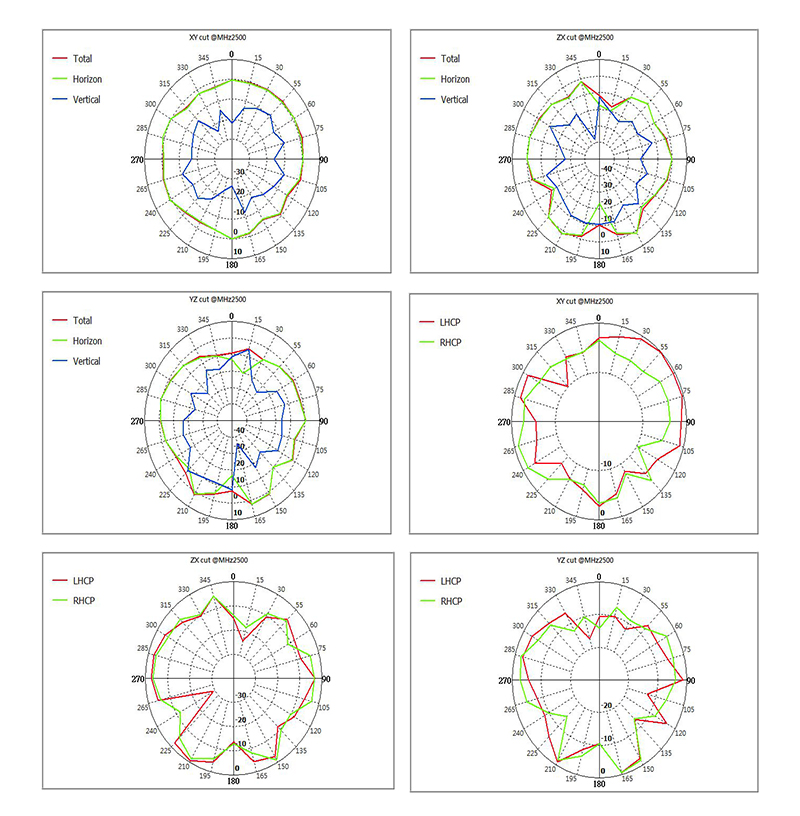

2.5 Ghz:
