TH-3360-TNC(M) 3.3~6Ghz Gooseneck Antenna
  • Product Description
  • Product Specification

1.GENERAL DESCRIPTION

Model No P/N
TH-3360 TH3360-TNC(M)
Below is a table summarizing the antenna design specification.

1.1 Electrical Properties

Parameter Description
Frequency Band 3.3~6GHz
Nominal Impedance 50 ohm
Polarization Vertical
Electrical Wave Dipole

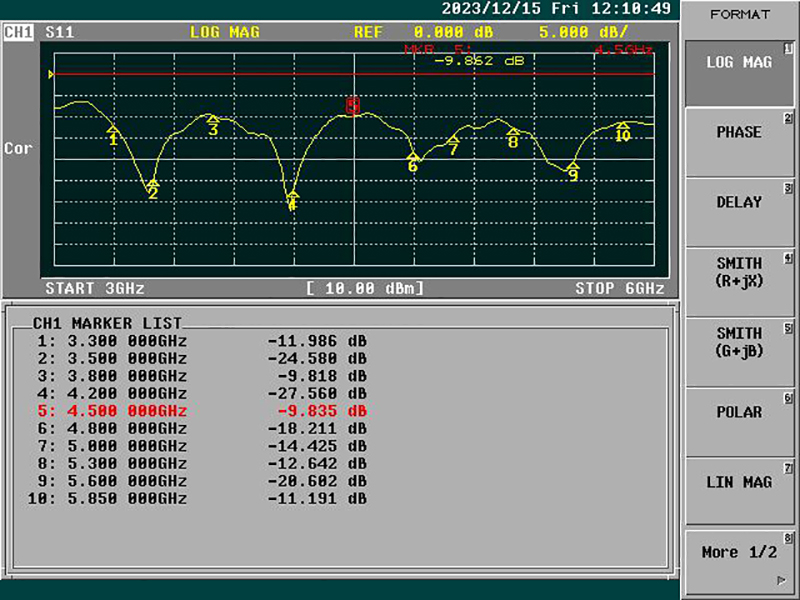

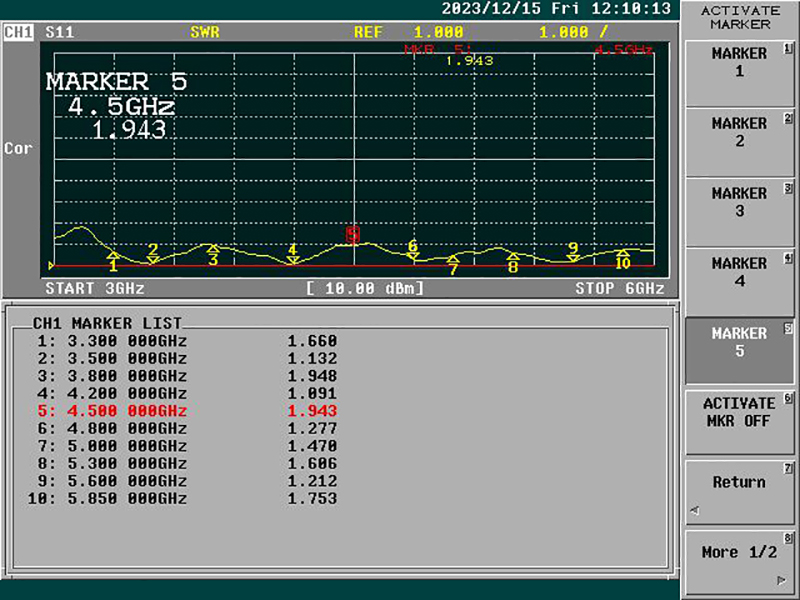

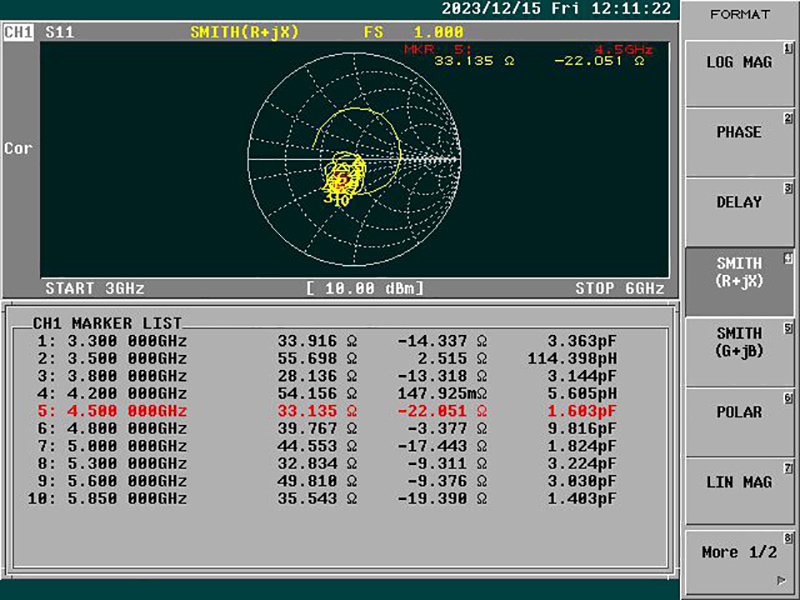

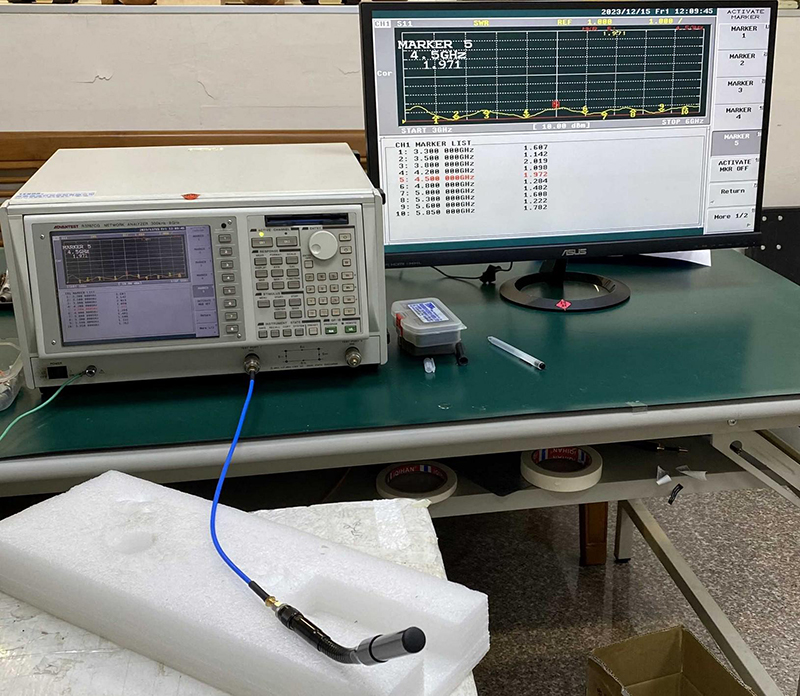

Return Loss Please See Data-1
V.S.W.R 2.0：1
Gain 2.5db

1.2 Mechanical Properties

Parameter Description
Antenna Type External Antenna
Touch Type Screw Type
Connector Type TNC(Male)
Antenna Dimensions 193mm ±15
Antenna Color Black
Operating Temperature Range -40°C~+85°C
Storage Temperature Range -40°C~+85°C

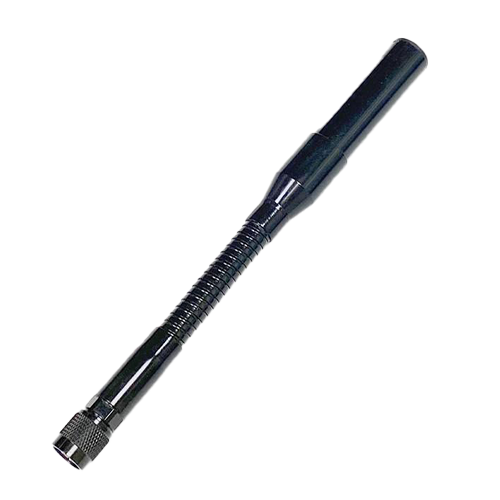

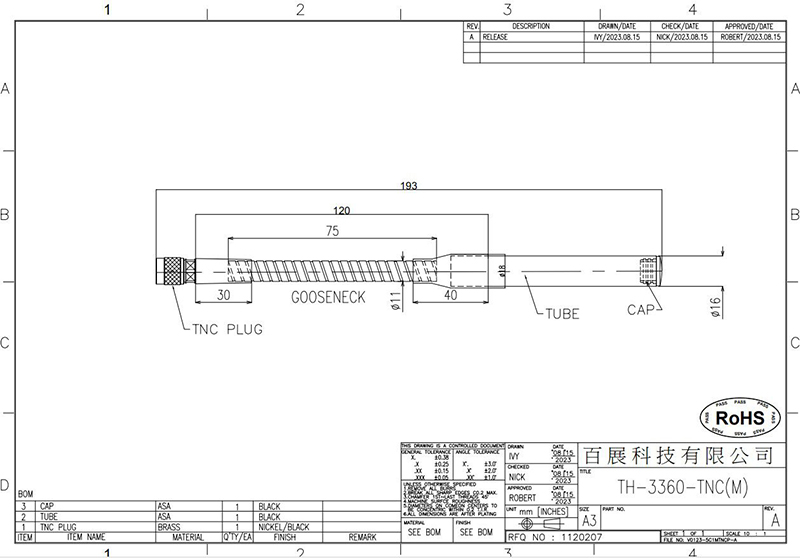

2. Appearance

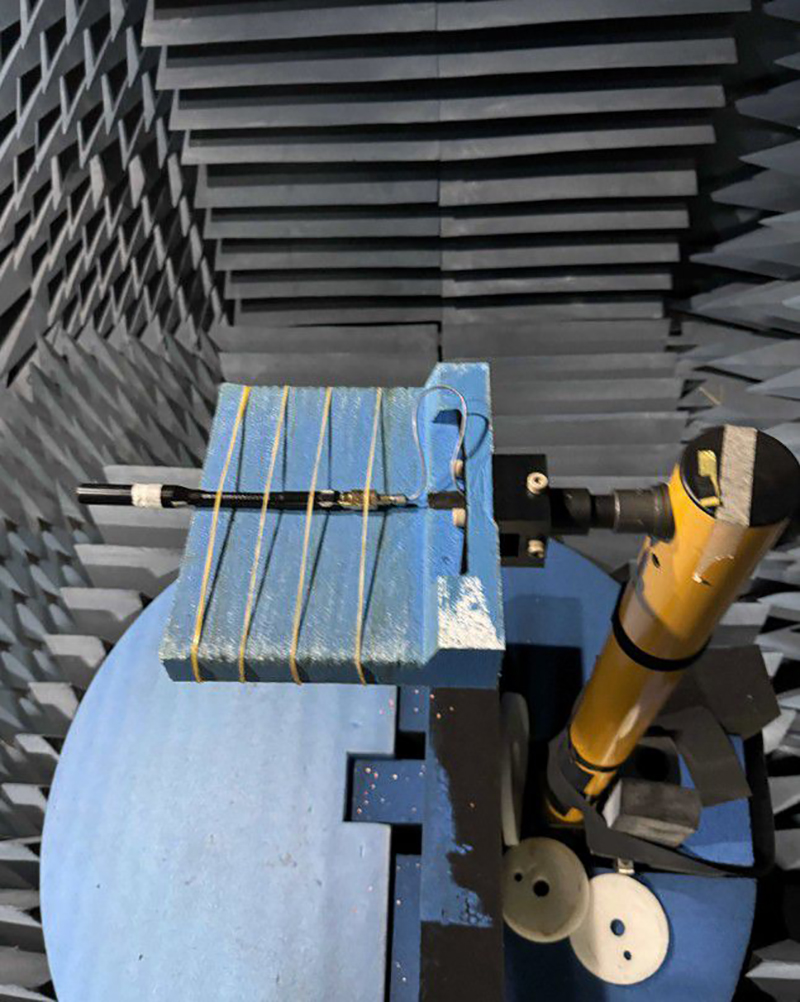

3. Frequency





3D Total

Frequency
(MHz)		 Upper Hem.PRP
(dBm)		 Lower HEM.PRP
(dBm)		 Efficiency
(dB)		 Efficiency
(%)		 Gain
(dBi)		 Tot.Rad.Pwr.
(dBm)
3300 MHz -5.59 -4.47 -1.98 63.32 1.97 -1.98
3350 MHz -4.47 -3.28 -0.82 82.75 3.49 -0.82
3450 MHz -5.06 -3.54 -1.22 75.45 3.22 -1.22
3500 MHz -5.41 -3.65 -1.43 71.95 2.93 -1.43
3550 MHz -6.48 -4.65 -2.46 56.74 2.15 -2.46
3650 MHz -5.13 -2.77 -0.78 83.51 4.22 -0.78
3700 MHz -7.41 -4.70 -2.83 52.08 2.98 -2.83
3750 MHz -7.81 -4.66 -2.94 50.78 3.19 -2.94
3800 MHz -8.80 -5.43 -3.78 41.85 2.70 -3.78
3850 MHz -7.89 -4.52 -2.87 51.59 3.53 -2.87
4400 MHz -6.73 -3.37 -1.72 67.24 3.30 -1.72
4550 MHz -8.20 -5.19 -3.43 45.39 2.53 -3.43
4600 MHz -8.39 -5.40 -3.63 43.35 2.37 -3.63
4650 MHz -8.08 -4.96 -3.23 47.49 2.81 -3.23
4750 MHz -7.81 -3.97 -2.47 56.67 4.66 -2.47
4850 MHz -7.36 -3.21 -1.80 66.06 5.58 -1.80
4900 MHz -7.88 -3.82 -2.38 57.79 5.29 -2.38
5150 MHz -8.35 -4.90 -3.28 46.96 2.85 -3.28
5350 MHz -8.88 -5.15 -3.61 43.52 2.64 -3.61
5470 MHz -9.19 -4.71 -3.39 45.82 2.92 -3.39
5600 MHz -8.51 -4.28 -2.89 51.40 3.12 -2.89
5725 MHz -7.12 -4.43 -2.56 55.47 2.27 -2.56
5850 MHz -7.17 -5.18 -3.05 49.56 1.39 -3.05
5900 MHz -5.61 -3.76 -1.57 69.58 2.60 -1.57
5950 MHz -3.17 -1.40 -1.82 65.77 5.03 -1.82
6000 MHz -6.99 -5.13 -2.95 50.70 1.56 -2.95

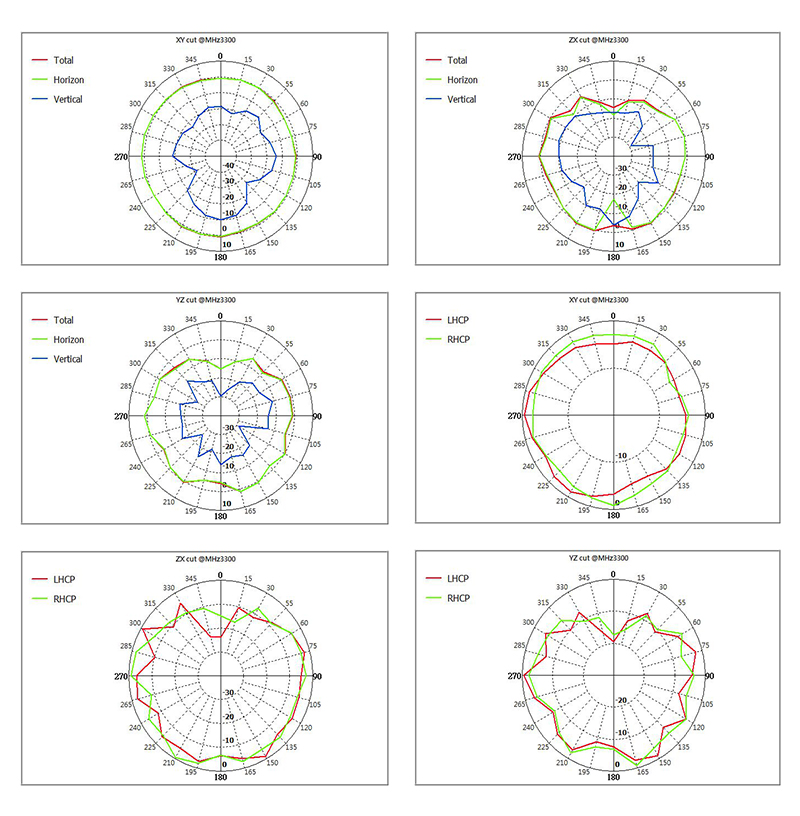

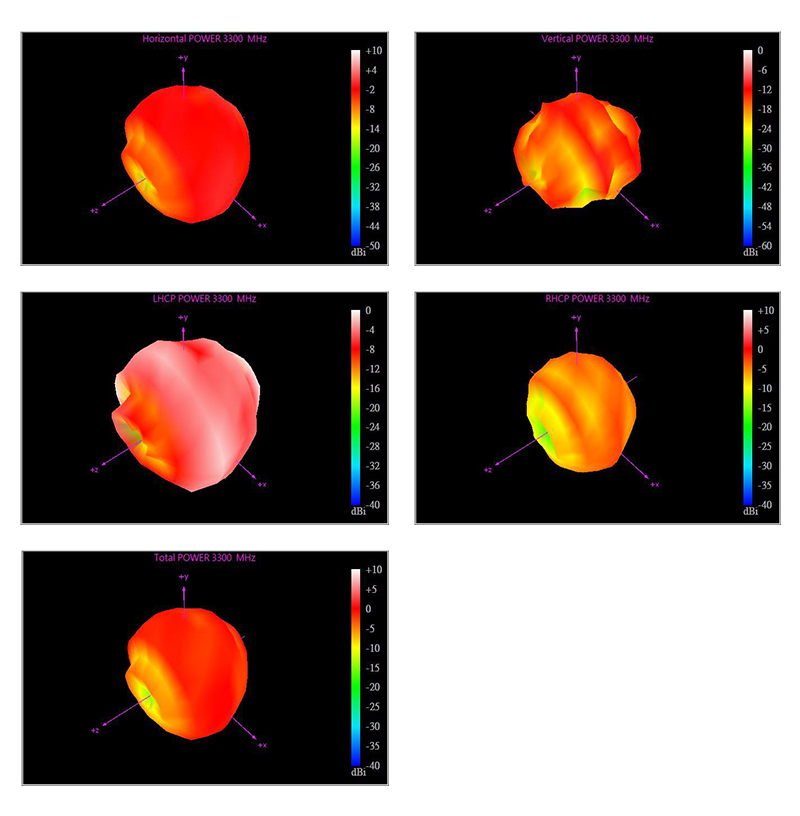

3300Mhz:

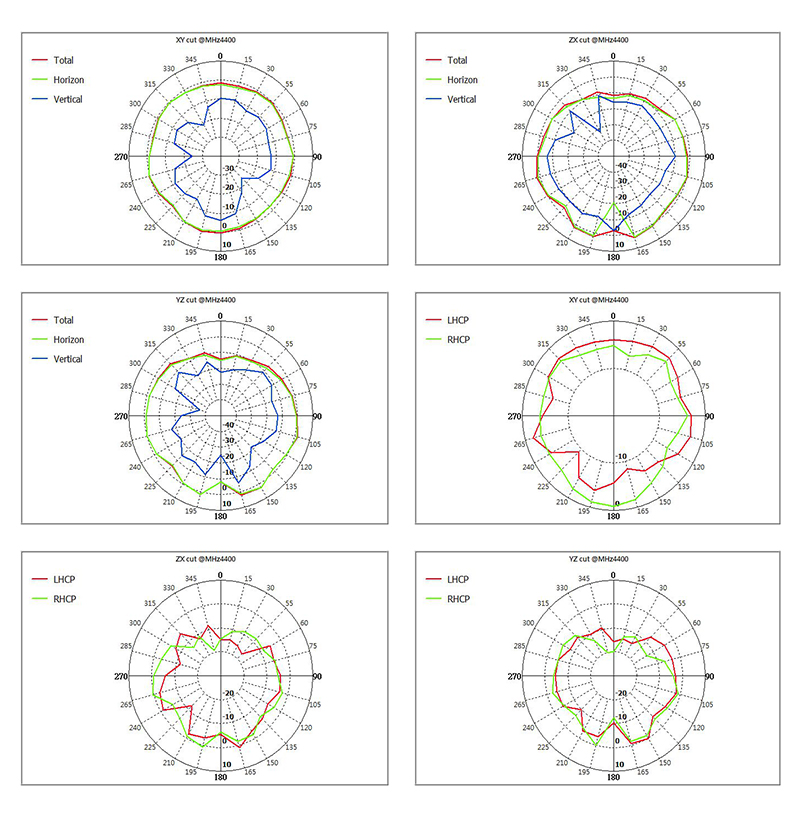

4400Mhz:

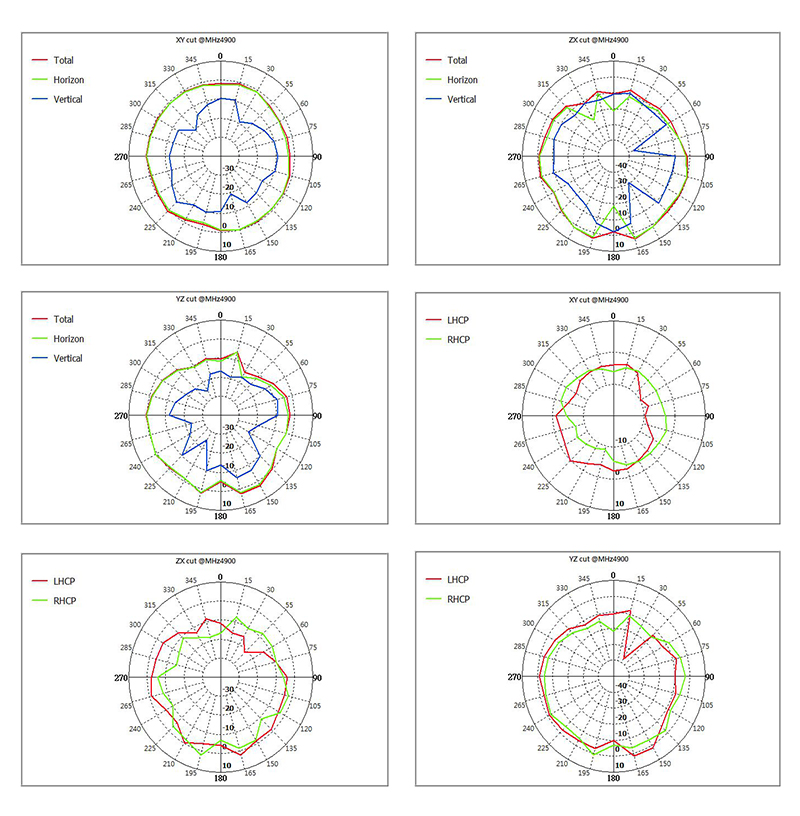

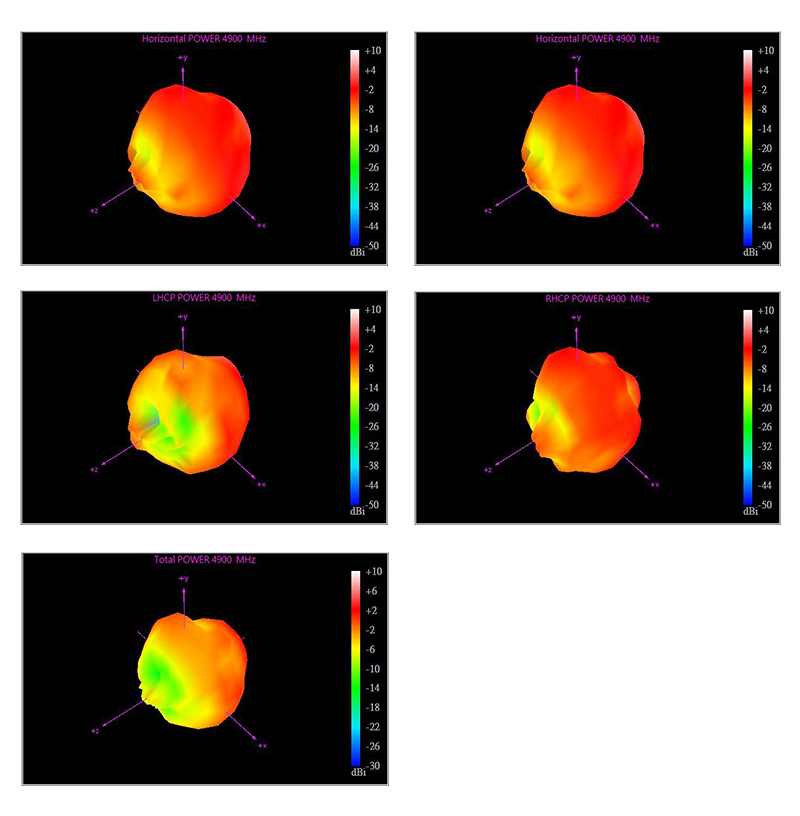

4900Mhz:

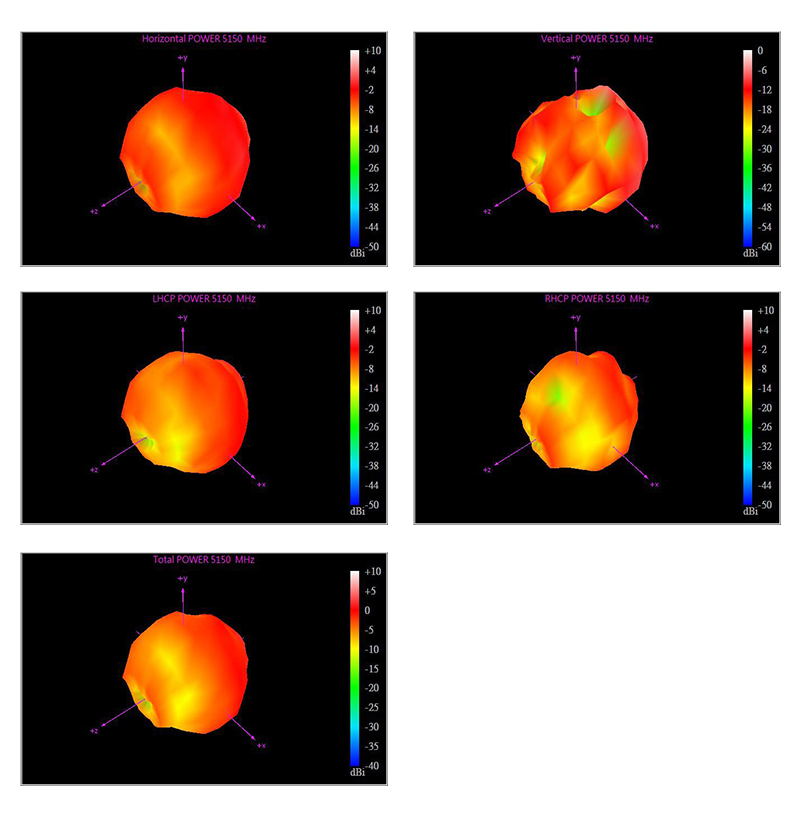

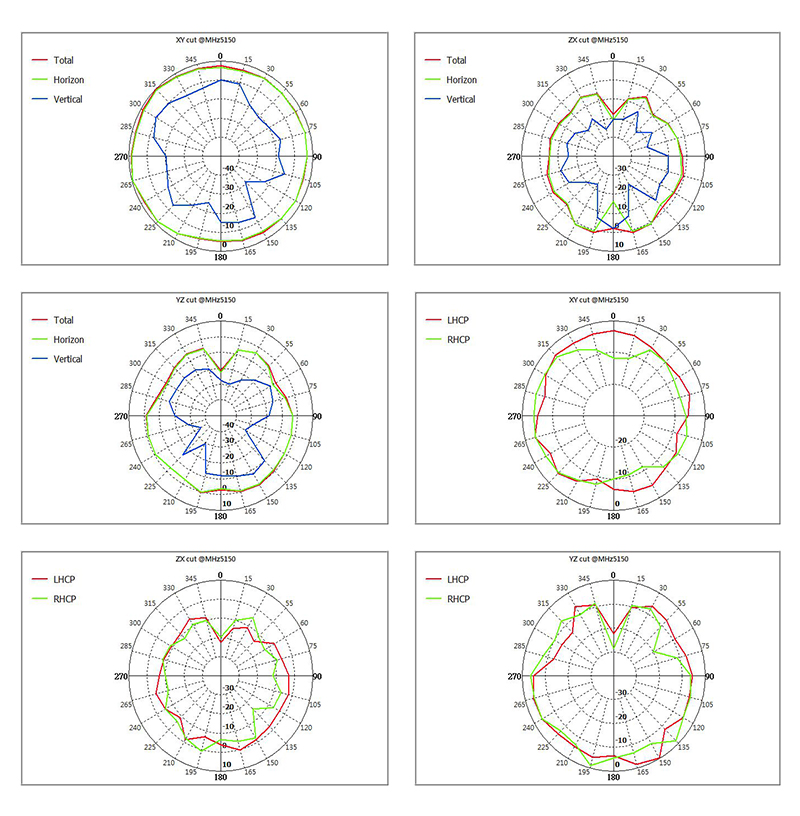

5150Mhz:

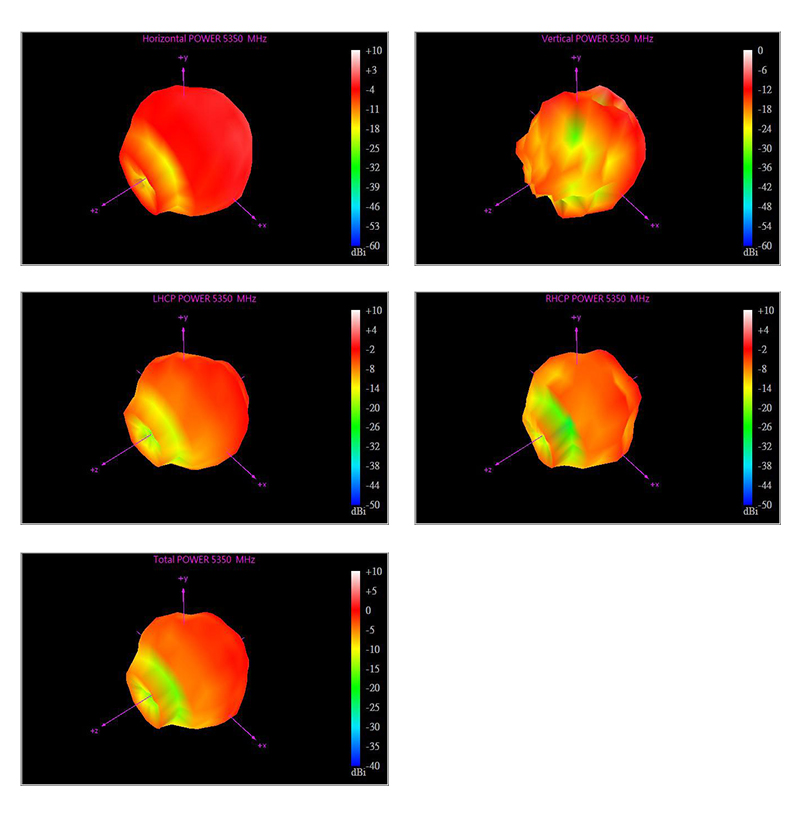

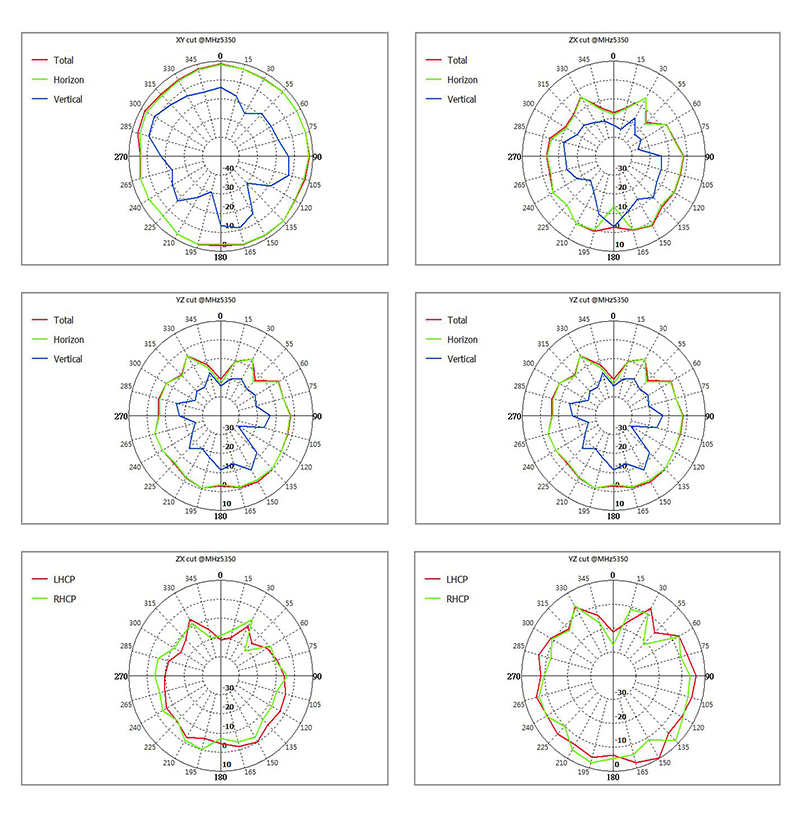

5350Mhz

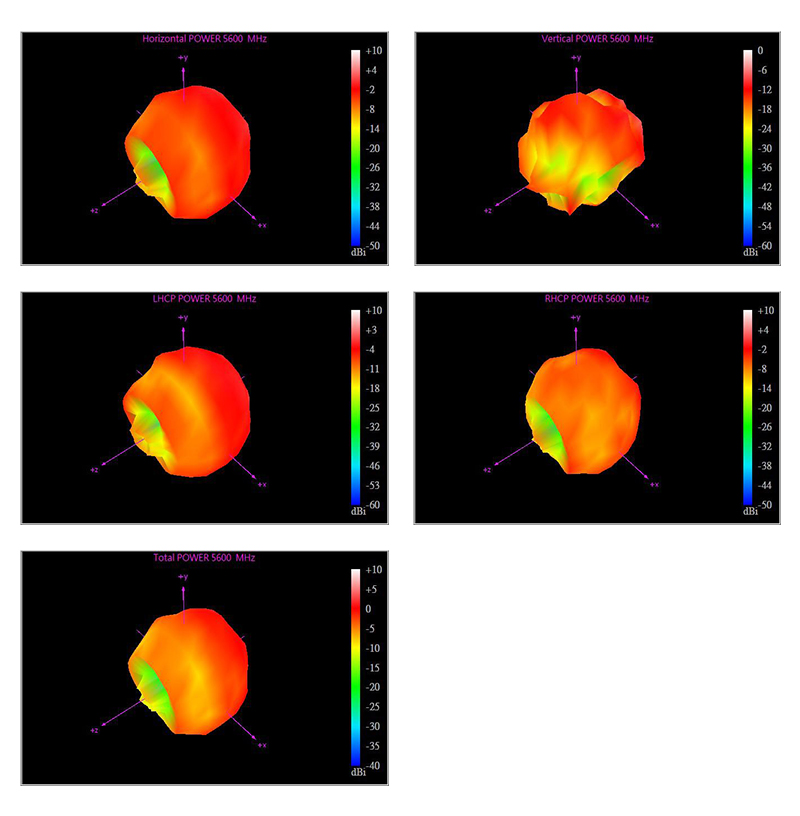

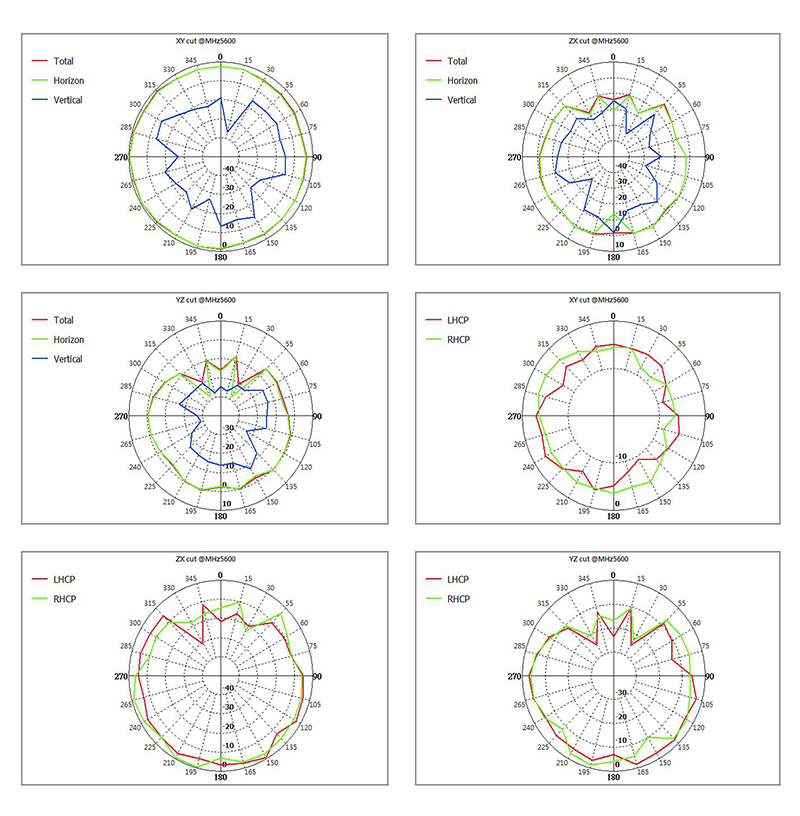

5600Mhz:

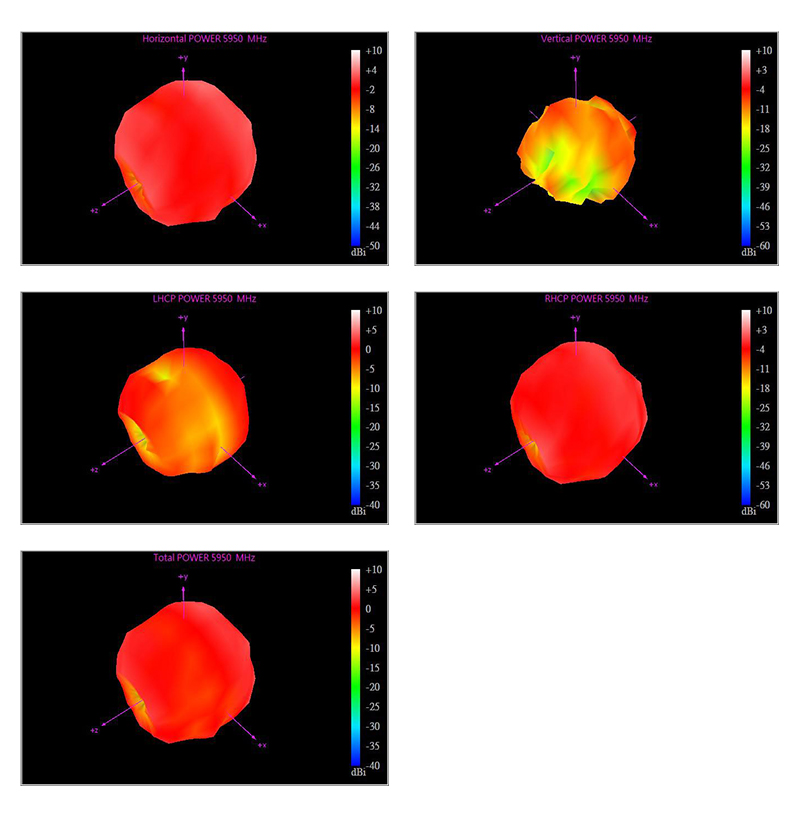

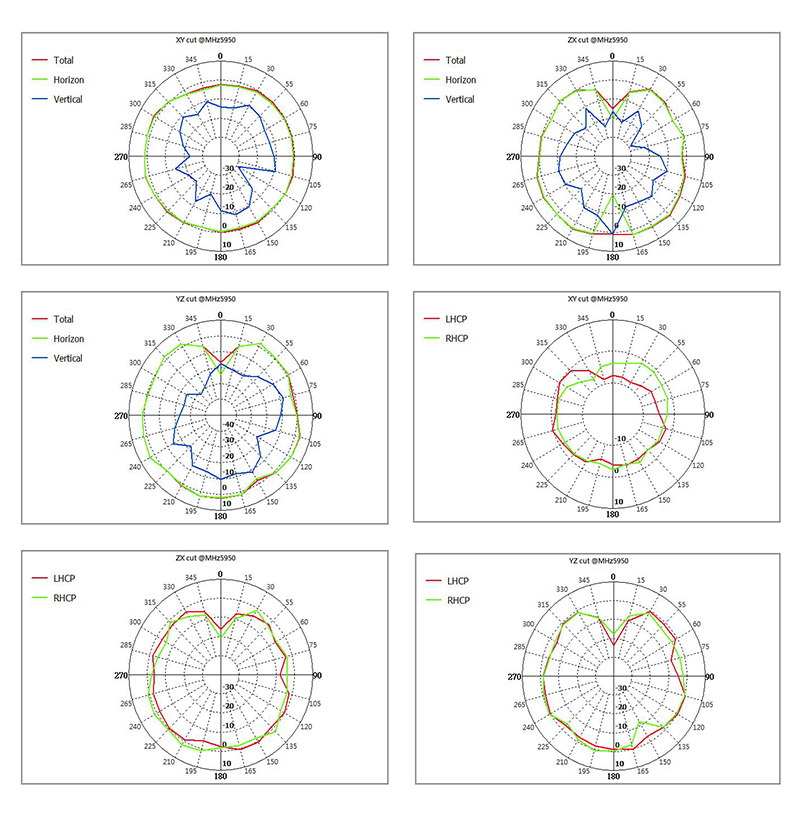

5950Mhz:
