Electrical Properties
| Parameter |
Description |
| Model |
TH-3360 |
TH-4000 |
| Frequency Band |
3300~6000Mhz |
3000~5500Mhz |
| Nominal Impedance |
50 ohm |
| Polarization |
Vertical |
| V.S.W.R |
2.5:1 |
Mechanical Properties
| Parameter |
Description |
| Antenna Type |
External Antenna |
| Material |
ASA |
| Touch Type |
Screw Type |
| Connector Type |
TNC connector (Male) |
| Antenna Dimensions |
Ø16 x 193mm ±15 |
Ø16 x 233mm ±15 |
| Antenna Color |
Black |
| Operating Temperature Range |
-40°C~+85°C |
| Storage Temperature Range |
-40°C~+85°C |

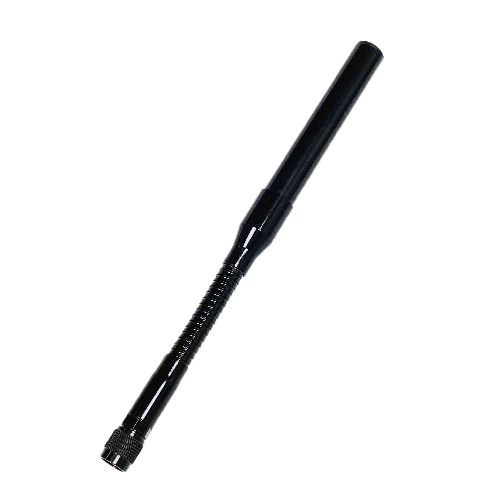

Our TH-3360 and TH-4000 are Passive Antenna that are suitable for all types of 3~6GHZ RADIO and RF Transponder equipment. Best for long and short distance communication services and technical applications such as industrial, scientific, medical, monitoring, data transmission, and interference… etc. The ASA is strong weather resistance. Please don’t hesitate to email us if you have any questions.
