X-Band Passive Antenna GA-7500
  • Product Description
  • Product Specification

Antenna Size: 60mm(Dia) × 18.5mm(H)

Antenna Element

Center Frequency 7200-7800Mhz
Polarization R.H.C.P. (Right Handed Circular Polarization)

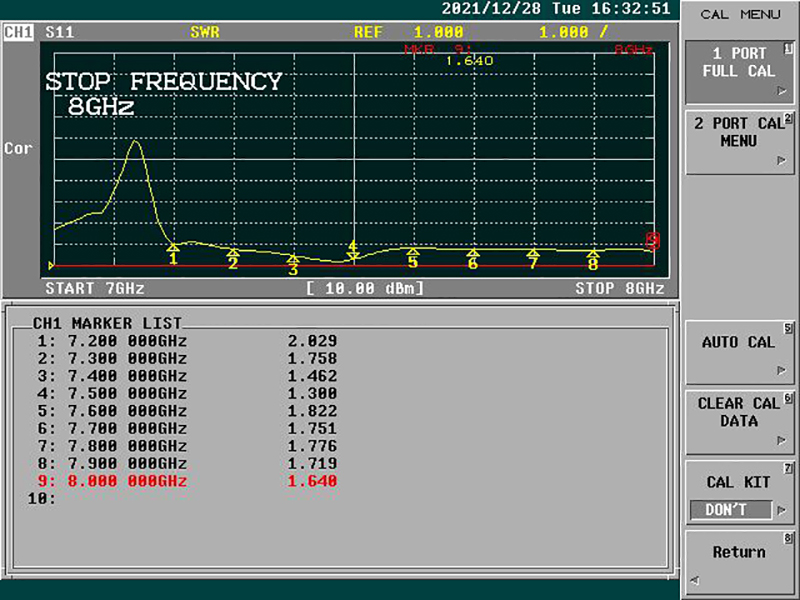

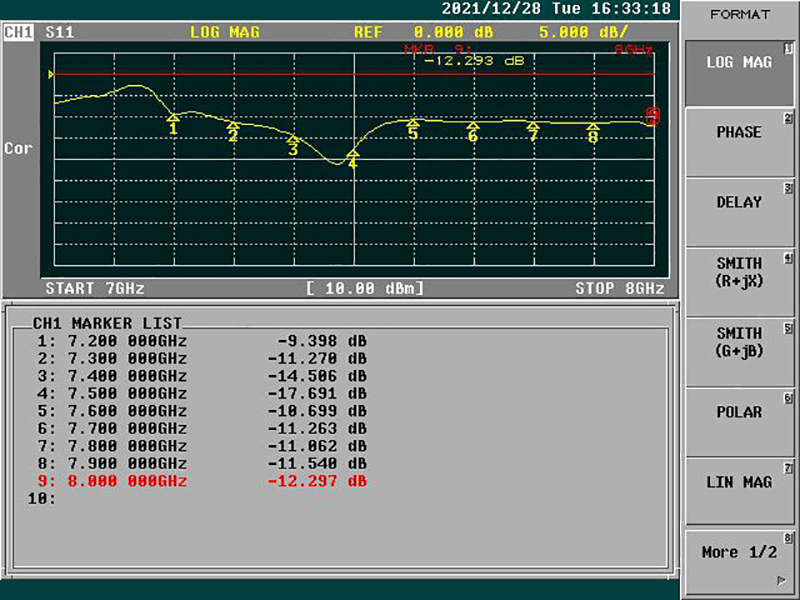

Output VSWR 2.0:1

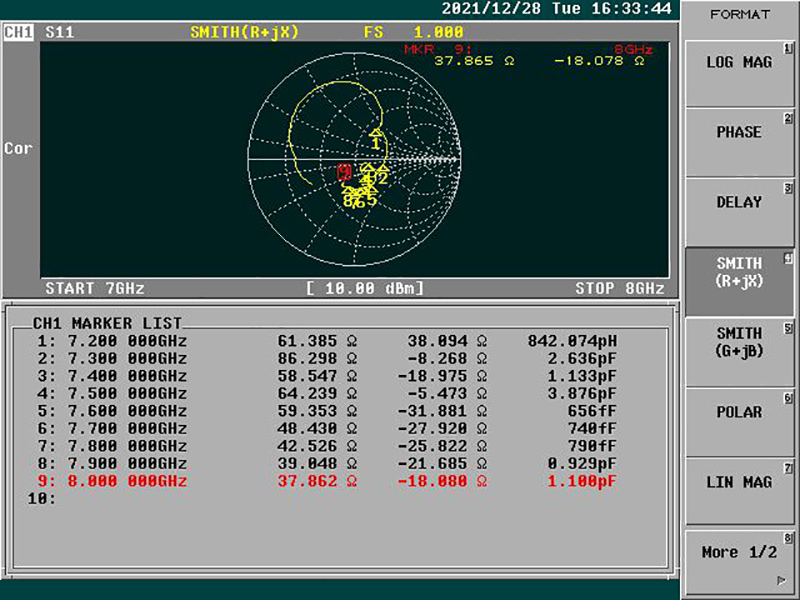

Output Impedance 50 ohm

Environmental Conditions

Operating Temperature -40oC to +85oC
Storage Temperature -40oC to +85oC
Relative Humidity 40% to 95% non-condensing
Water Resistance 100% waterproof

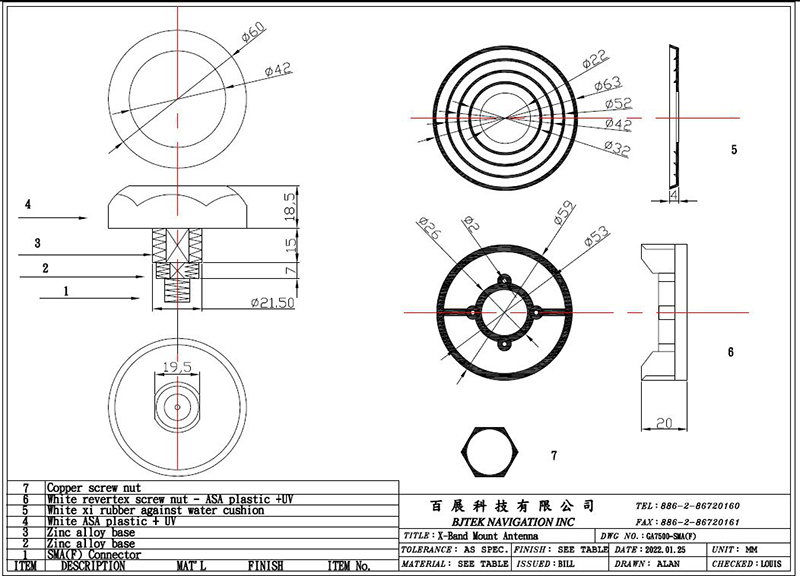

Physical Constructions

Dimensions Antenna： 60mm(Dia.) × 18.5mm(H)
Weight 65 grams (without cable)

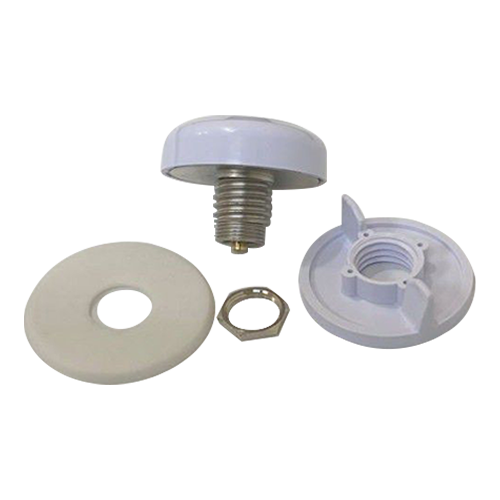

Mounting Bulkhead mount with 0.8 inch threaded wing nut (standard accessory).

Physical Constructions

RF Cable Without cable
Connector available SMA(F)
＊This specification is subject to change without prior notice
Data Updated: JAN 25, 2022





Frequency
(MHz)		 7200 7300 7400 7500 7600 7700 7800
Peak Gain
(dBi)		 3.73 5.86 6.85 6.65 4.32 3.89 3.69
Efficiency
(%)		 39.7 50.09 66.20 61.53 59.20 44.81 34.25

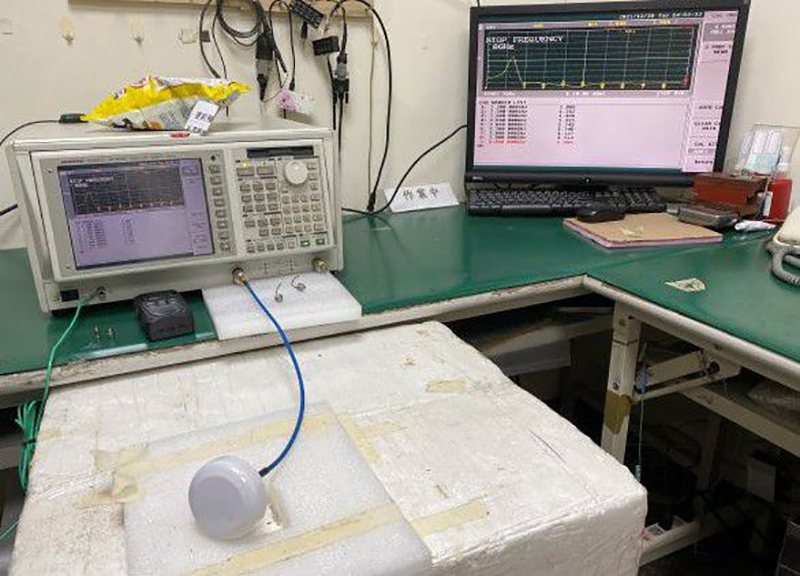

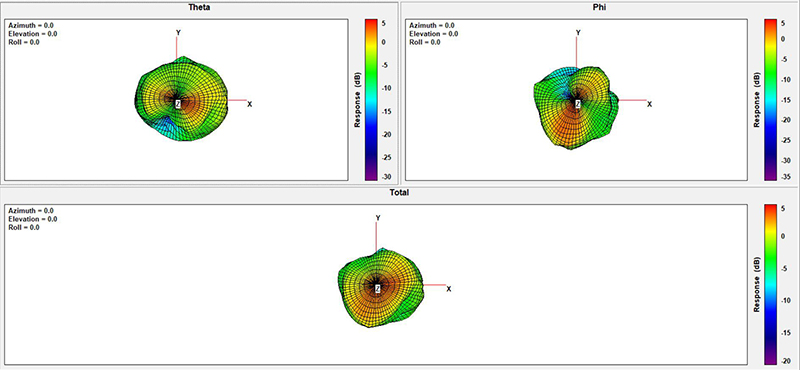

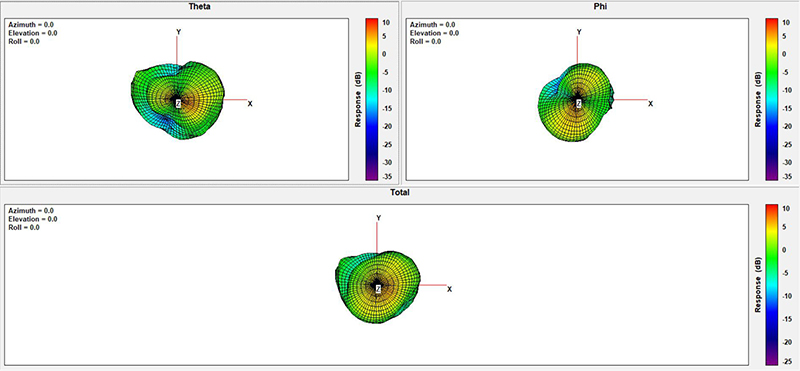

7200Mhz

7300Mhz

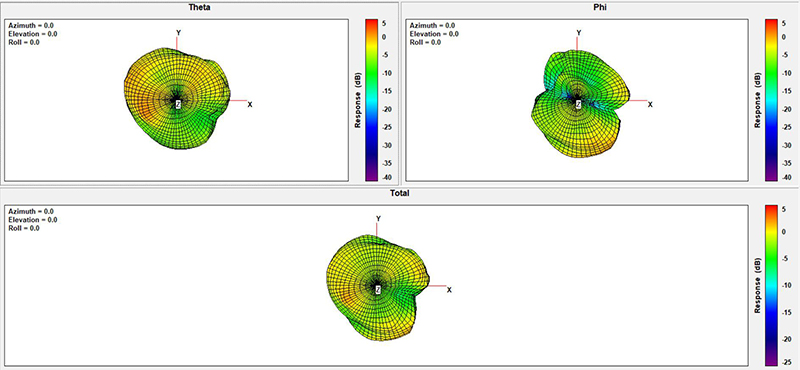

7400Mhz

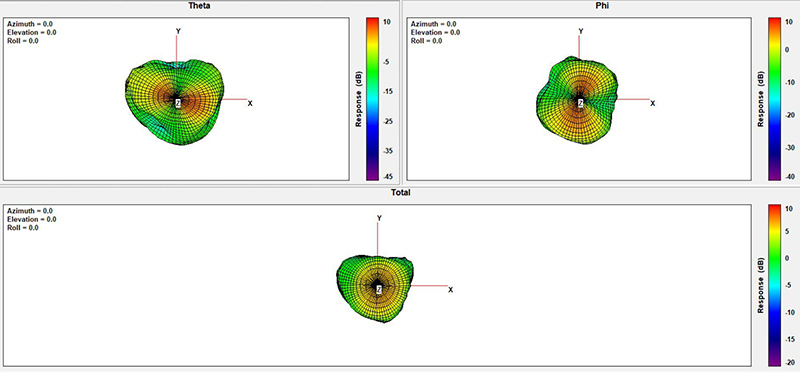

7500Mhz

7600 Mhz

7700 Mhz

7800Mhz
