GENERAL DESCRIPTION

Model No
TH1090C-N(F)

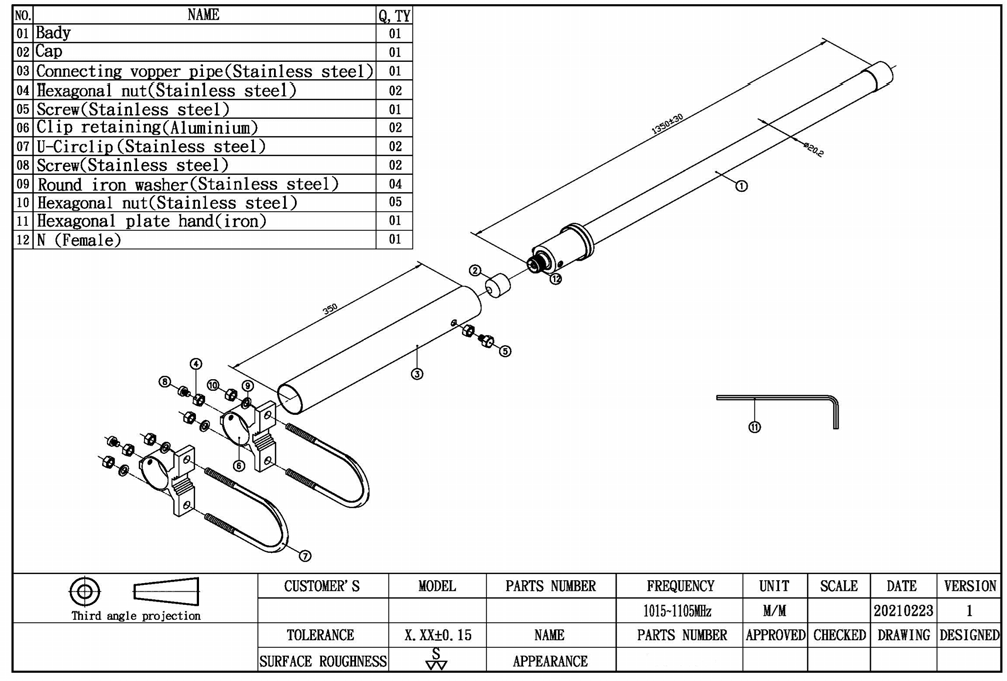

Mechanical Properties

Parameter Description
Antenna Type Base Antenna
Antenna Cover Fiber
Connector Type N (Female)
Antenna Dimensions 1350mm ±30
Antenna Color White
Operating Temperature Range -20°C~+60°C
Storage Temperature Range -30°C~+70°C

Electrical Properties

Parameter Description
Frequency Band 1015~1105MHz (1075/1090Mhz)
Nominal Impedance 50 ohm
Polarization Vertical
Return Loss Please See Data-1
V.S.W.R 2.0:1
Gain 5dbi

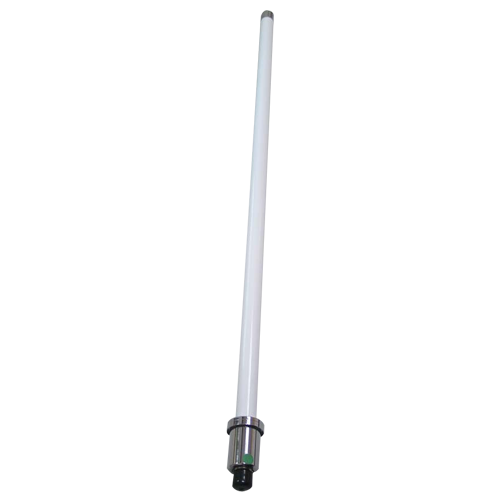

Appearance

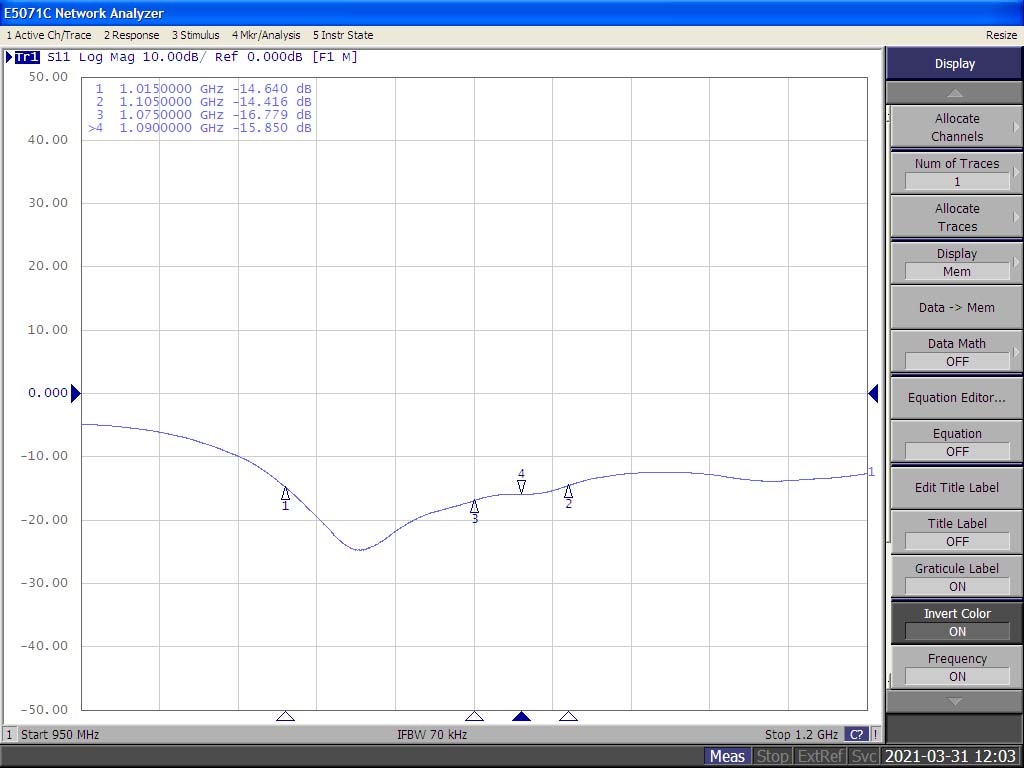

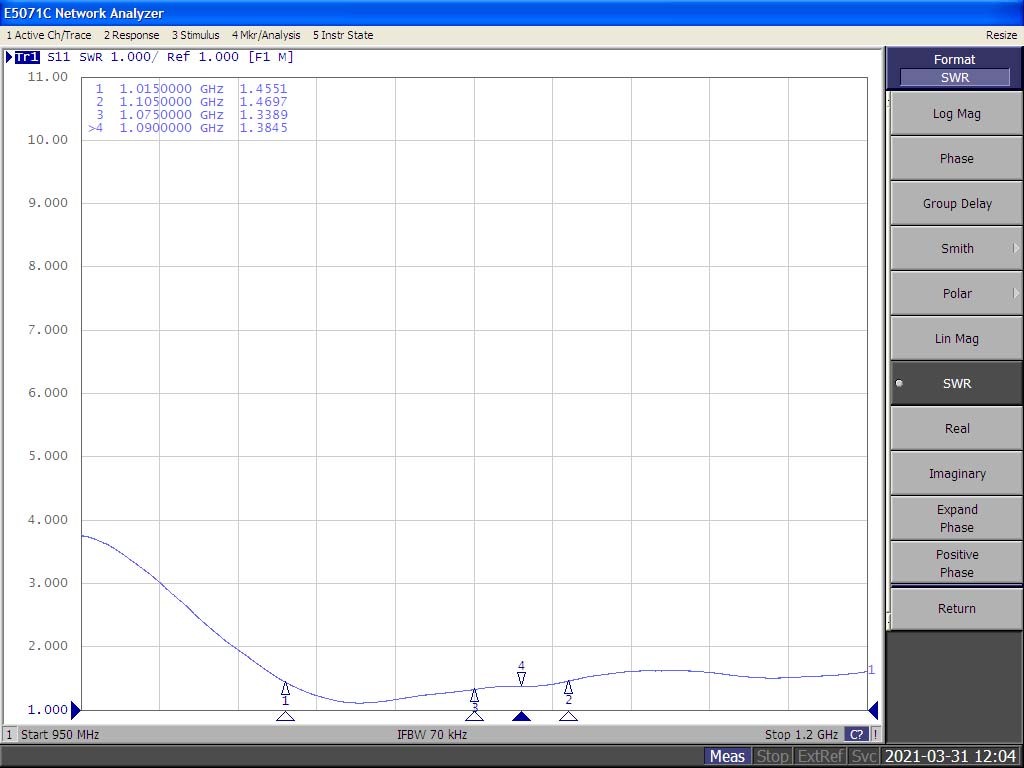

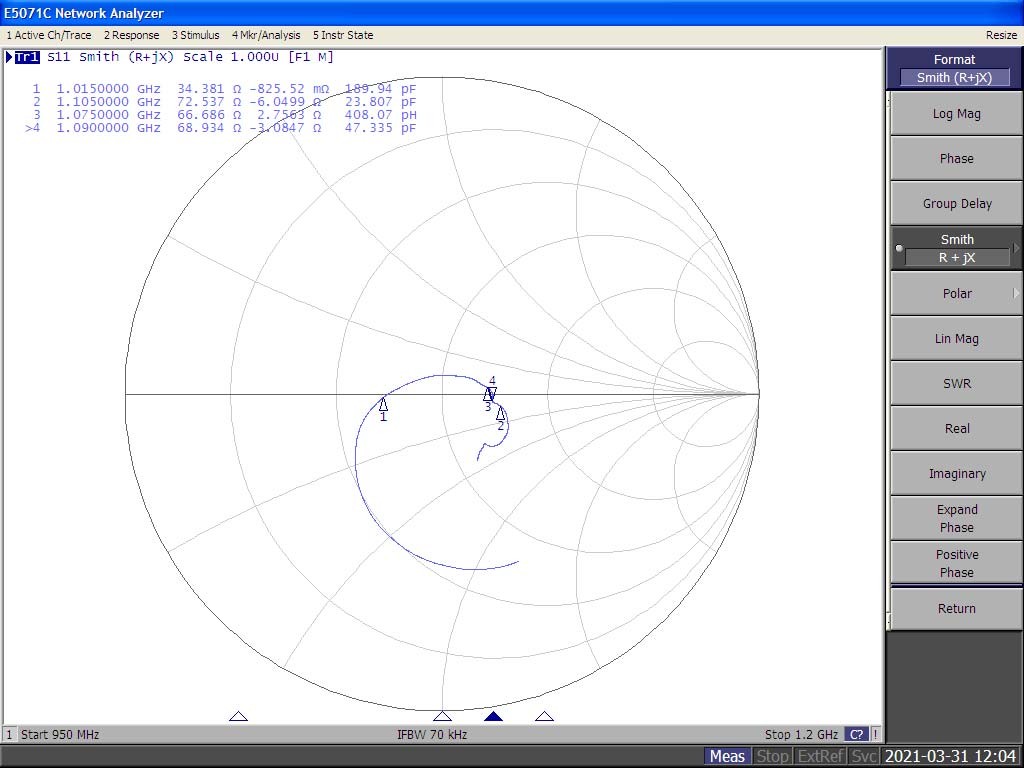

Return Loss, V.S.W.R. and Smith Chart







Frequency (MHz) 1105 1075 1090 1105
Peak Gain (dBi) 5.33 5.21 5.28 5.23
Efficiency (%) 72.11 73.99 76.32 71.29
