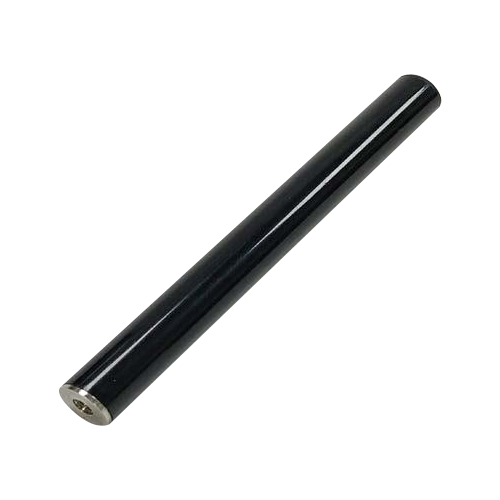

TH-1090D

TH-1090D

Расследование

Скачать

  • Описание продукции
  • Характер продукта
  • Технические характеристики

GENERAL DESCRIPTION

Model No
TH1090D-SMA(M)

Mechanical Properties

Parameter Description
Antenna Type External Antenna
Material ASA
Touch Type Screw Type
Connector Type SMA connector (Male)

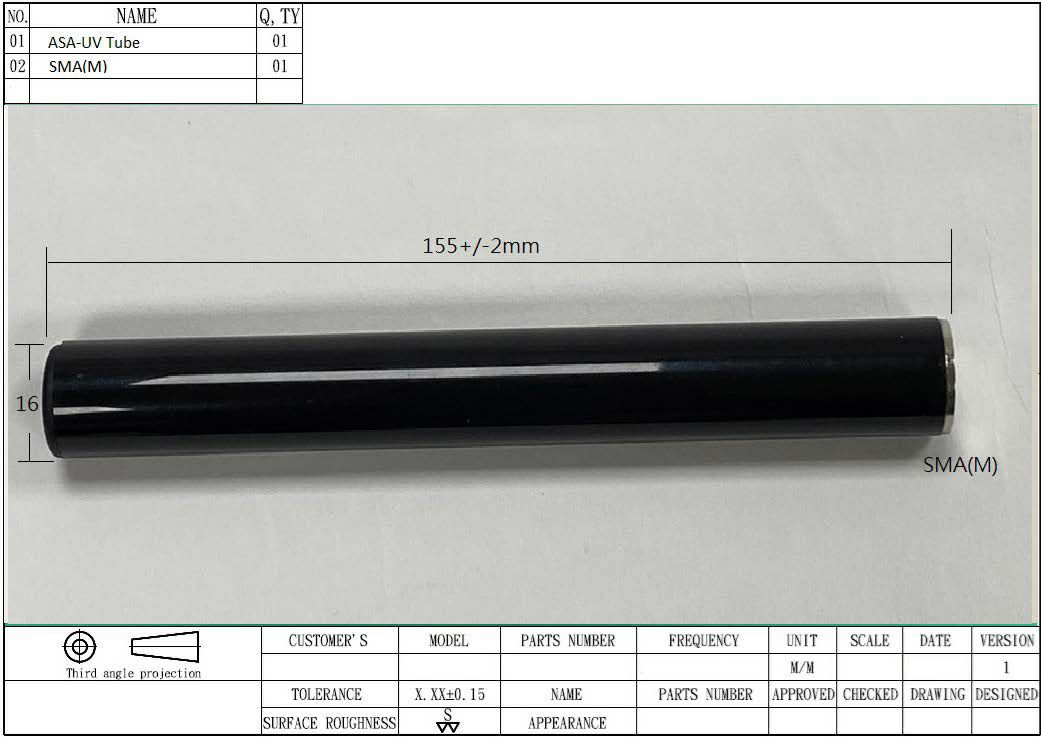

Antenna Dimensions Ø16 x 155mm ±2
Antenna Color Black
Operating Temperature Range -30°C~+80°C
Storage Temperature Range -30°C~+80°C

Electrical Properties

Parameter Description
Frequency Band 1090Mhz

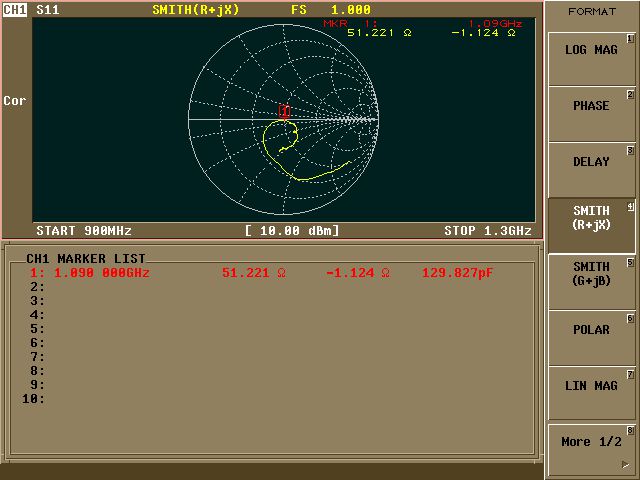

Nominal Impedance 50 ohm
Polarization Vertical

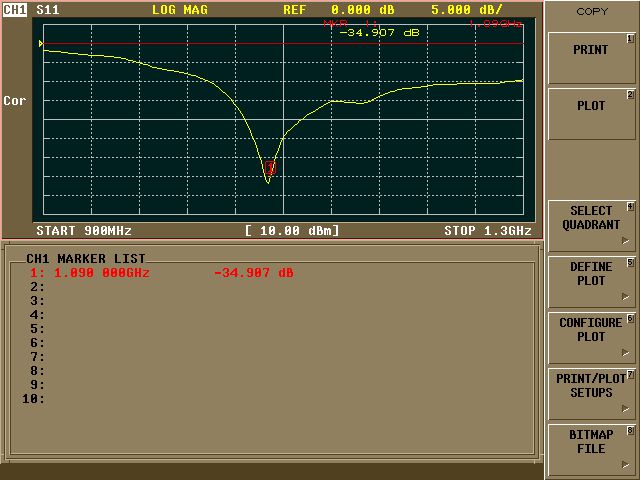

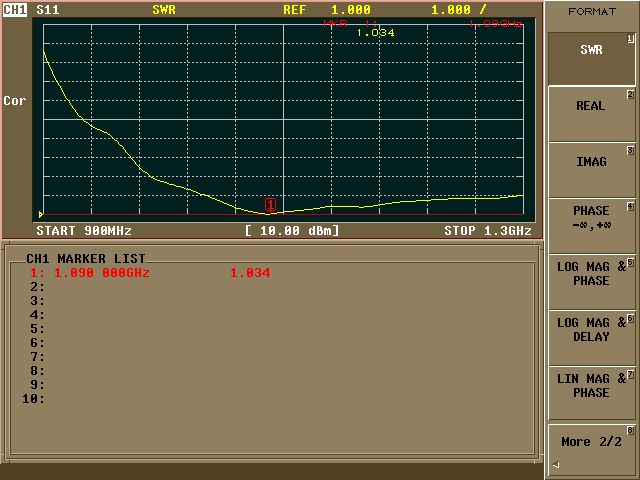

V.S.W.R 1.5:1
Power 15W
Peak gain 2dbi

Frequency (MHz) 1080 1090 1100
Peak Gain (dBi) 2.26 2.59 2.39
Efficiency (%) 70.86 73.55 69.86

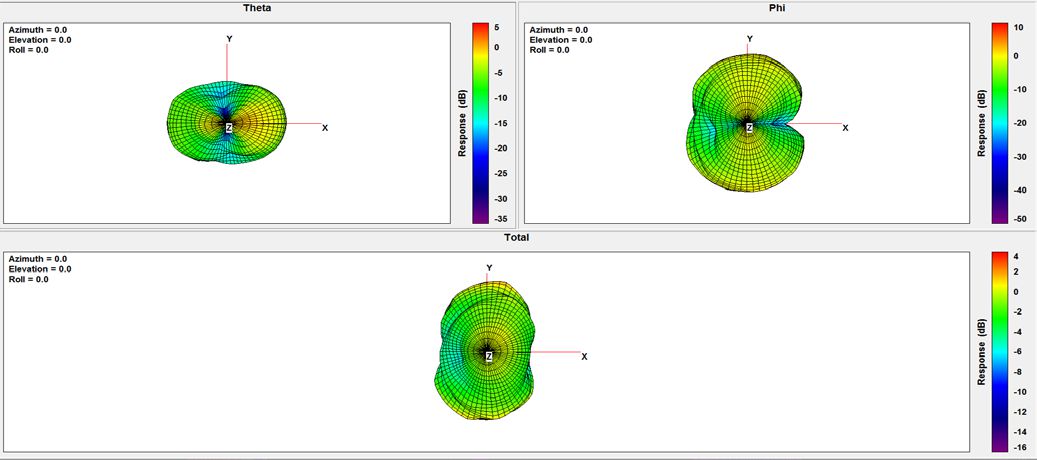

1080Mhz:

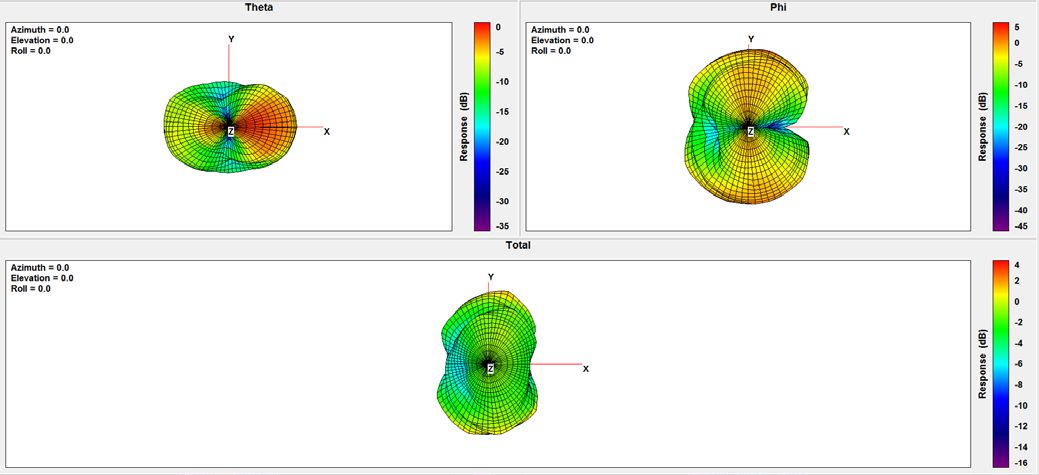

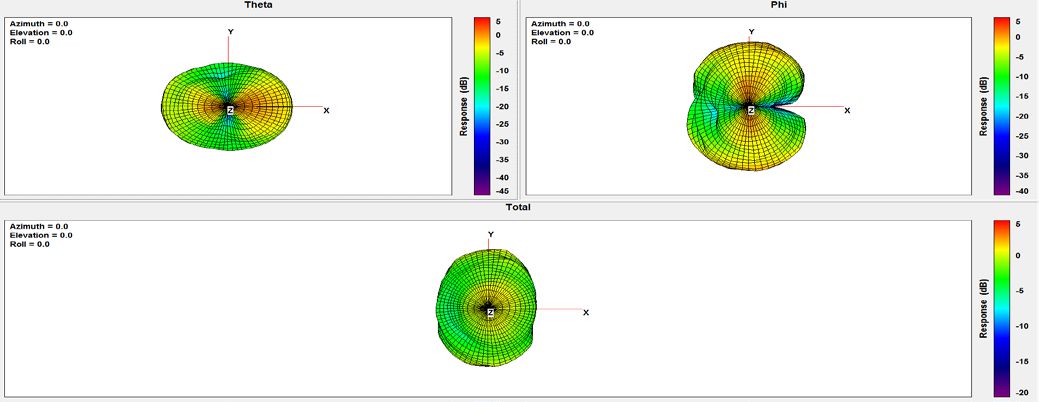

1090Mhz:

1100Mhz:
