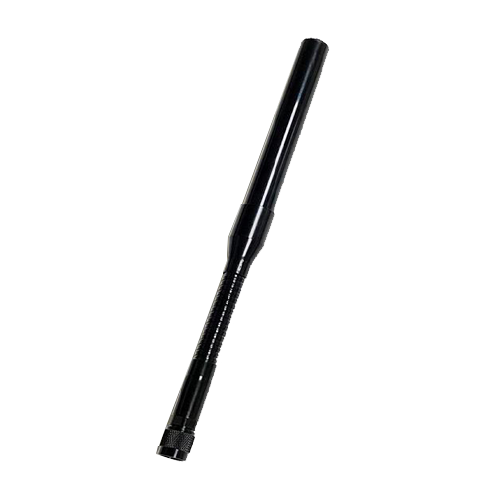

1. GENERAL DESCRIPTION
| Model No |
P/N |
| TH-1450E |
TH1450E-TNC(M) |
Below is a table summarizing the antenna design specification.
1.1 Electrical Properties
| Parameter |
Description |
| Frequency Band |
1400~1500MHz ON GND |
| Nominal Impedance |
50 ohm |
| Polarization |
Vertical |
| Electrical Wave |
Dipole |

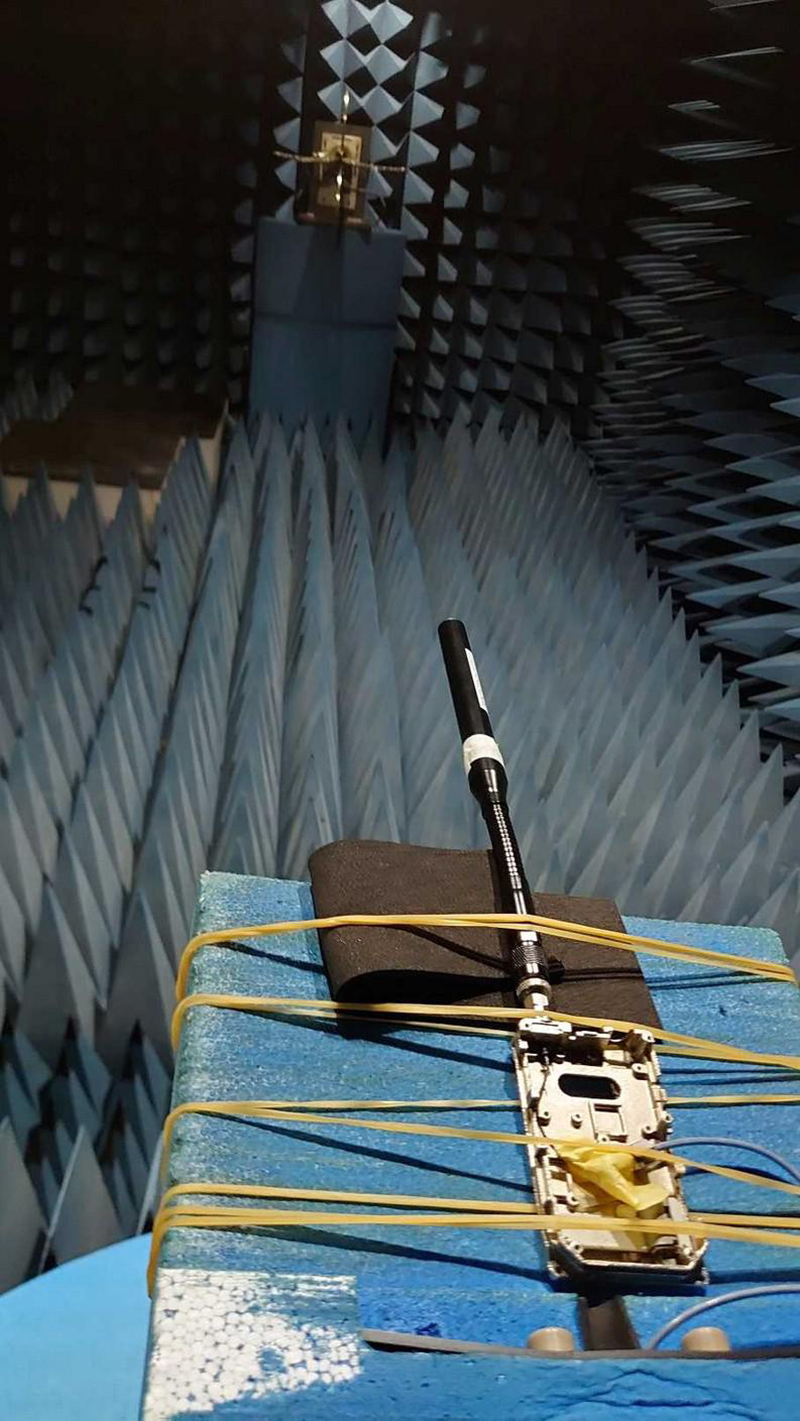

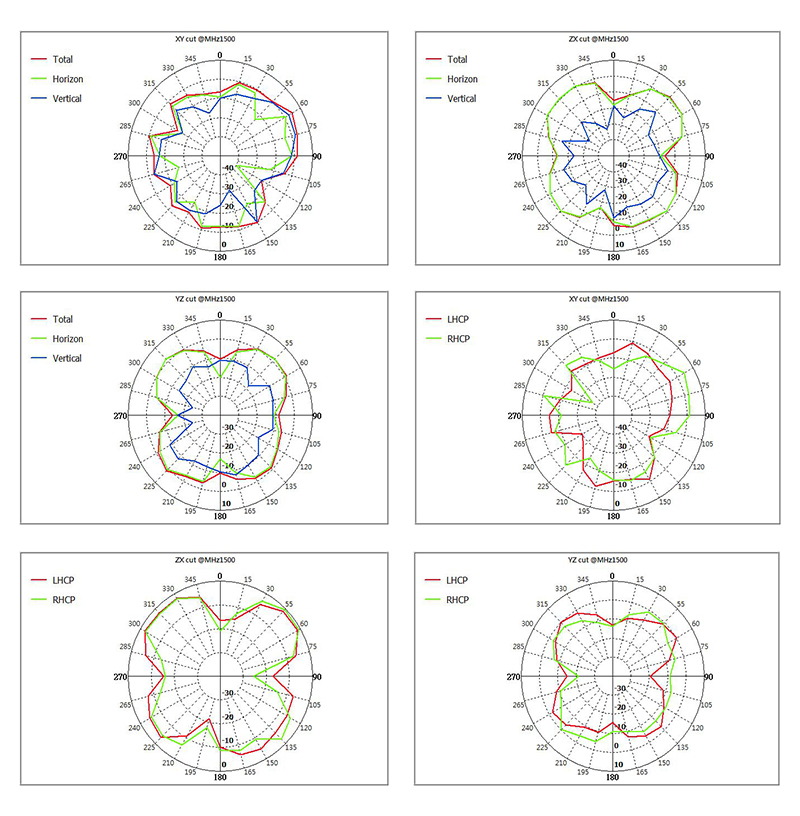

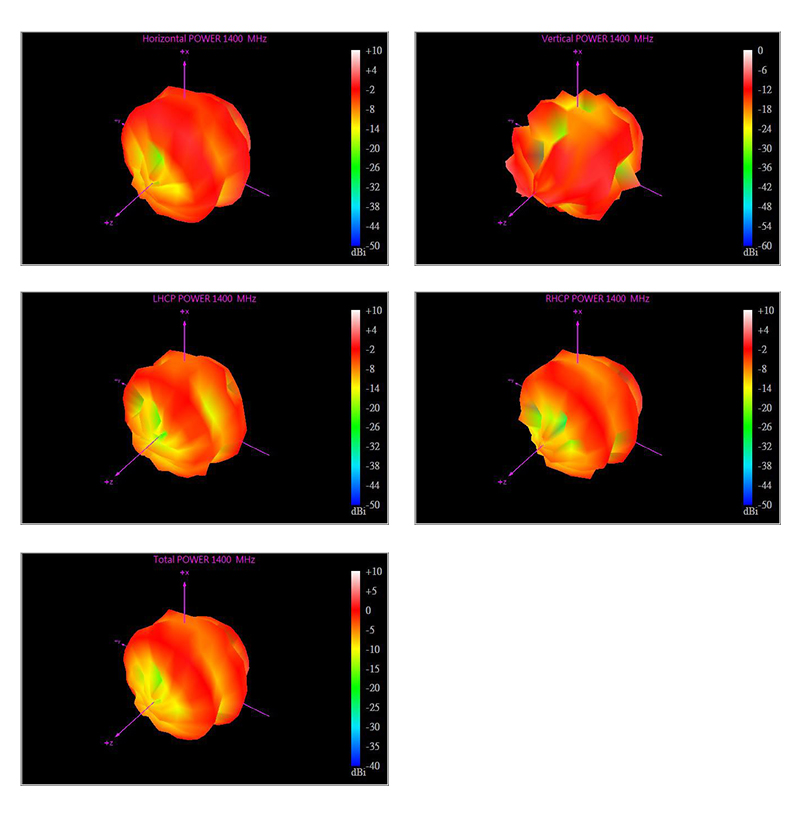

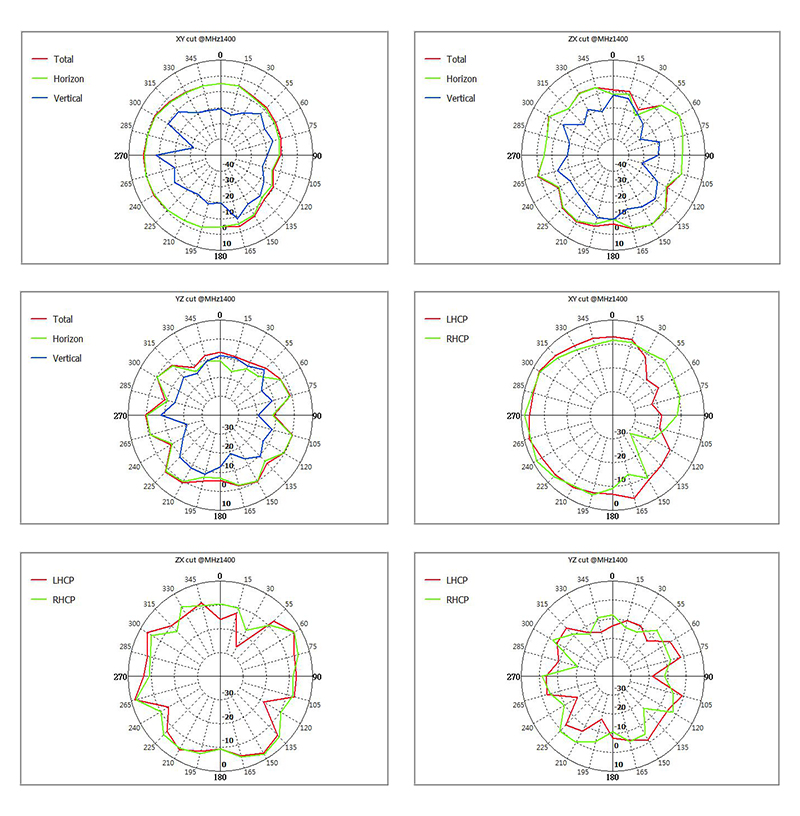

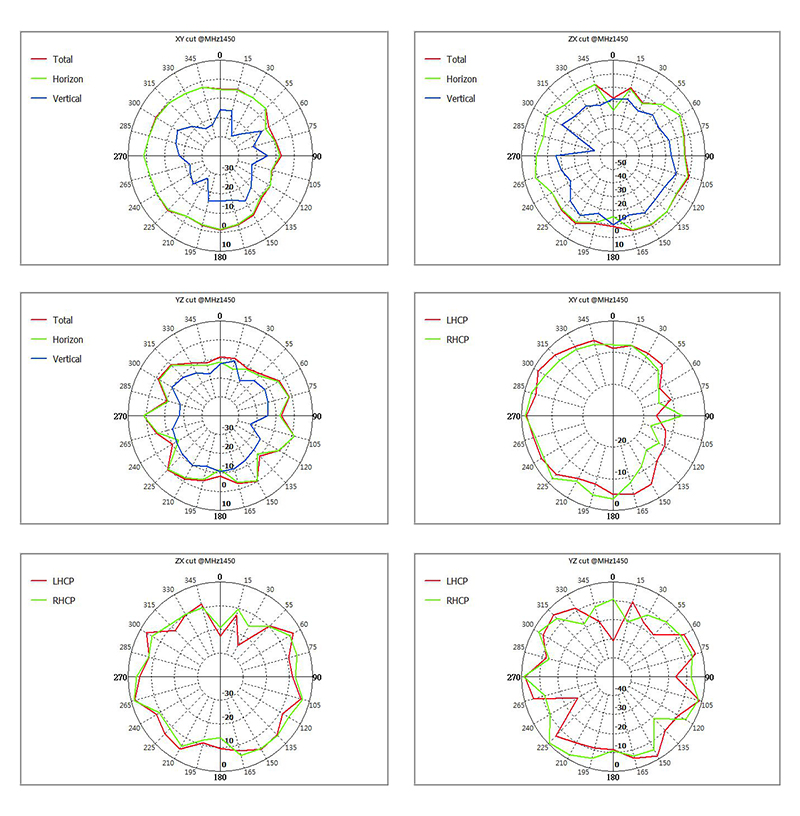

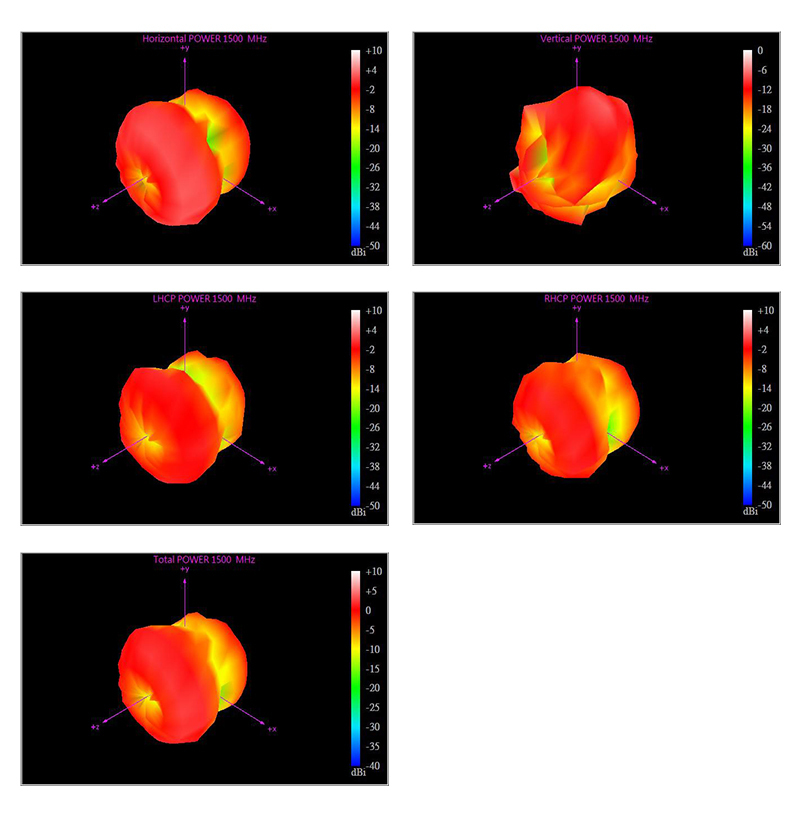

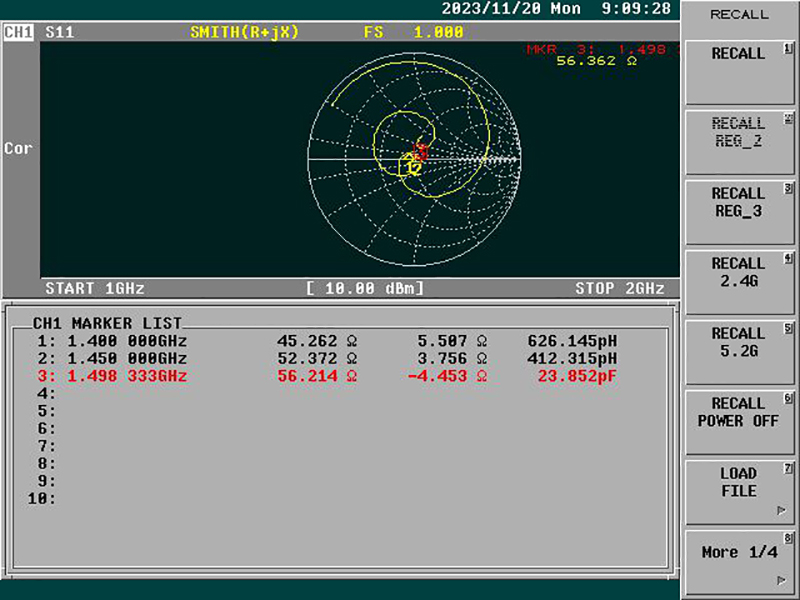

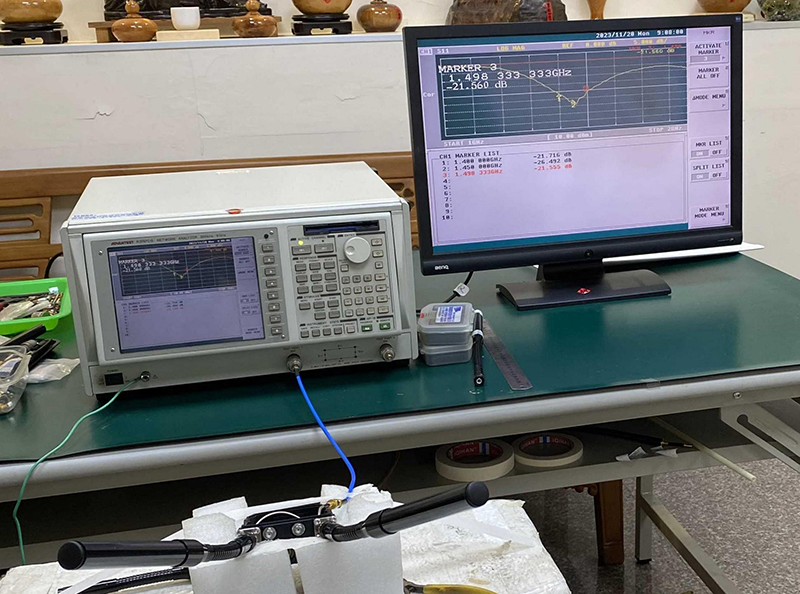

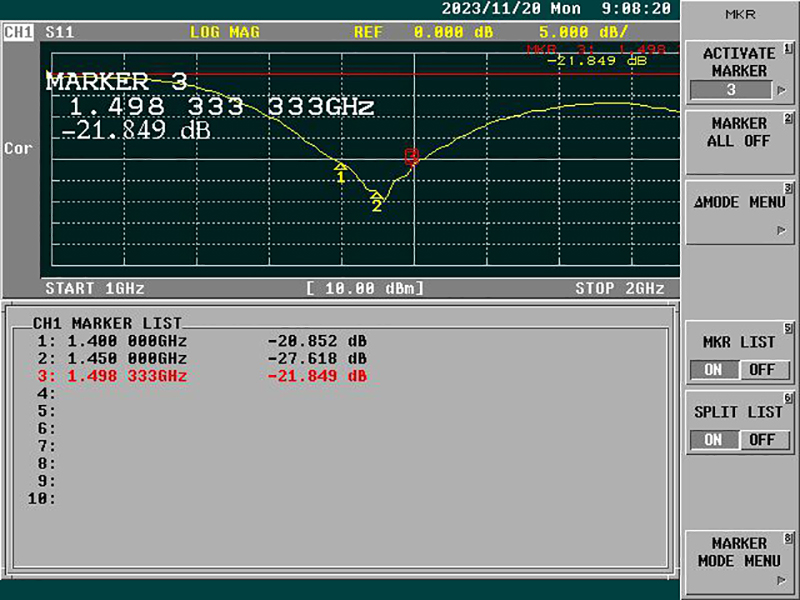

| Return Loss |
Please See Data-1 |

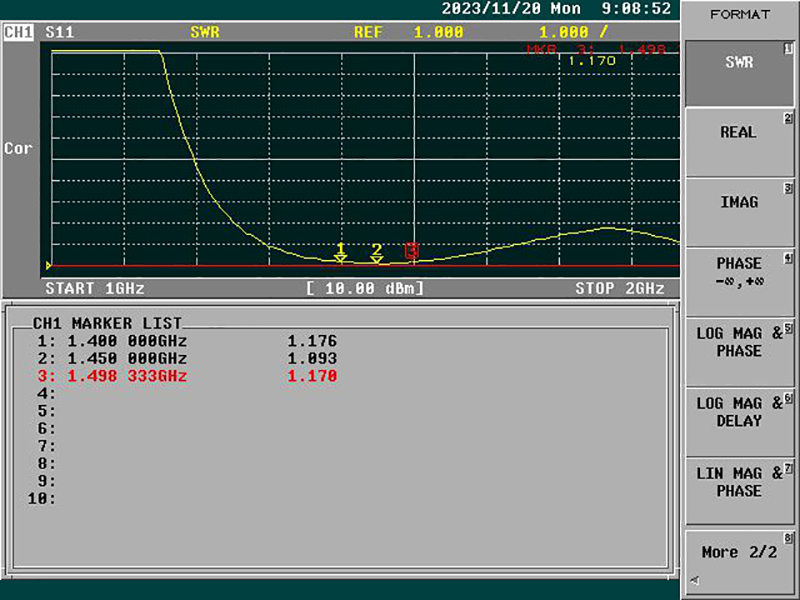

| V.S.W.R |
2.0：1 |
| Gain |
2.5db |
1.2 Mechanical Properties
| Parameter |
Description |
| Antenna Type |
External Antenna |
| Touch Type |
Screw Type |
| Connector Type |
TNC(Male) |
| Antenna Dimensions |
255mm ±15 |
| Antenna Color |
Black |
| Operating Temperature Range |
-40°C~+85°C |
| Storage Temperature Range |
-40°C~+85°C |
