TH-835 UHF Band Omni Antenna
  • Product Description
  • Product Specification

1. GENERAL DESCRIPTION

P/N
TH-835-N(M)

1.1 Electrical Properties

Parameter Description
Frequency Band 820~850MHz
Nominal Impedance 50 ohm
Polarization Vertical
V.S.W.R 2.0:1
Power 2W
Gain 1db

1.2 Mechanical Properties

Parameter Description
Antenna Type External Antenna
Materal ASA
Touch Type Screw Type
Connector Type N Connector (Male)

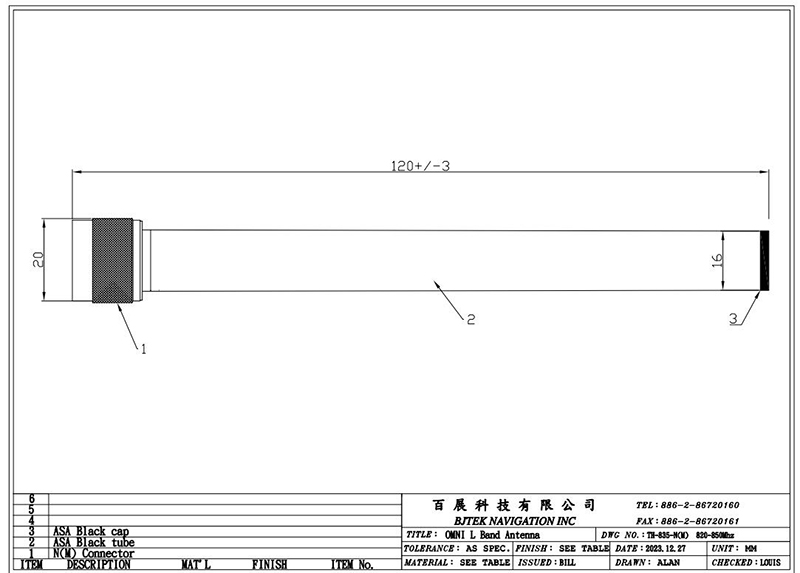

Antenna Dimensions 120mm ±3
Antenna Color Black
Operating Temperature Range -45°C~+85°C
Storage Temperature Range -45°C~+85°C

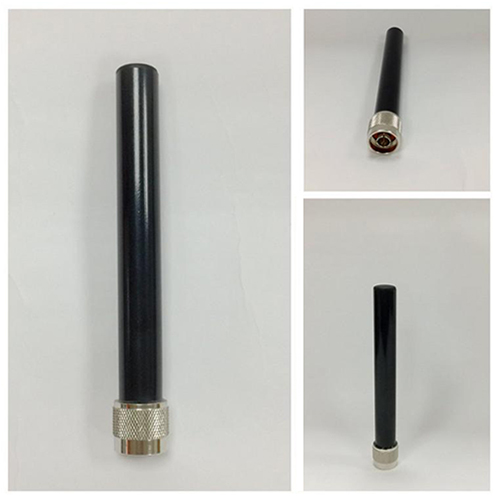

2. Appearance

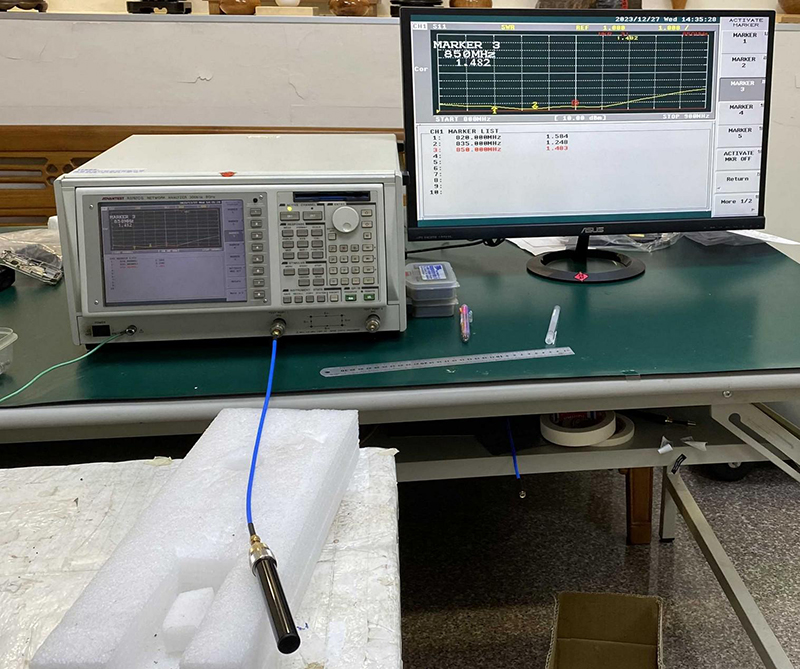

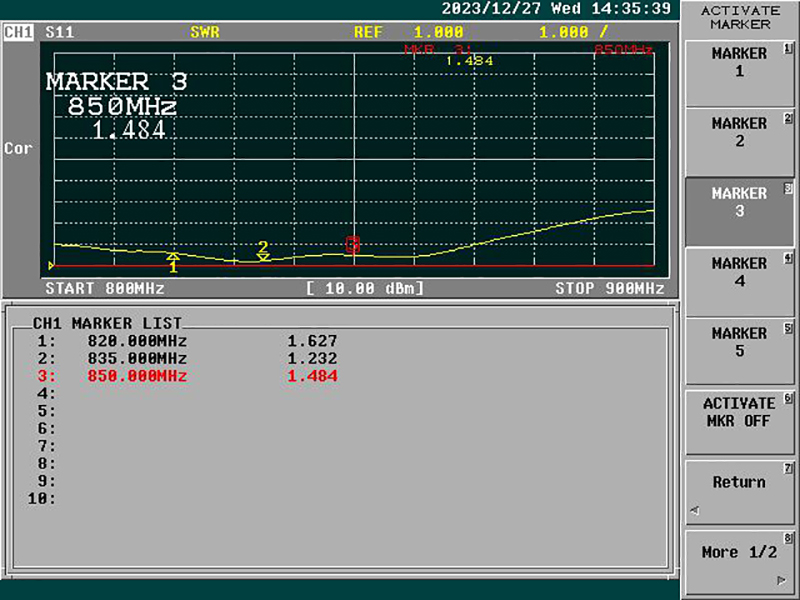

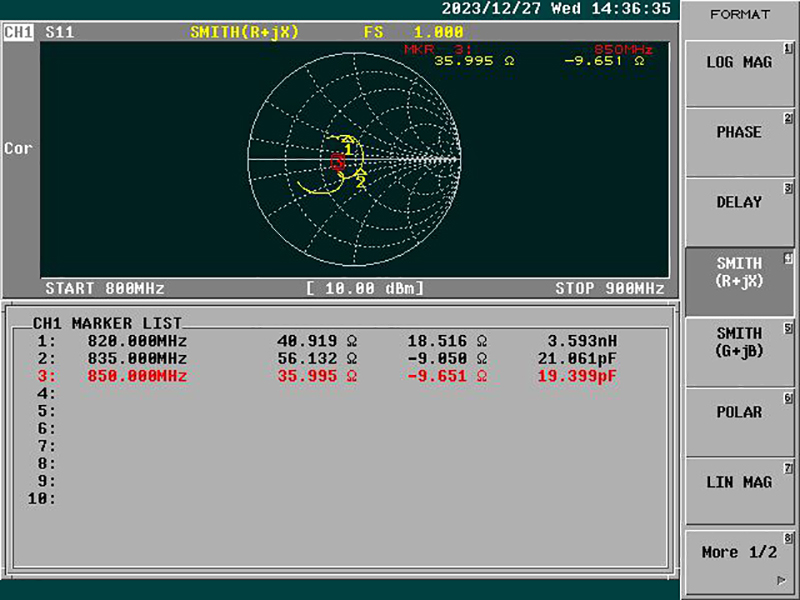

3. Return Loss, V.S.W.R. and Smith Chart

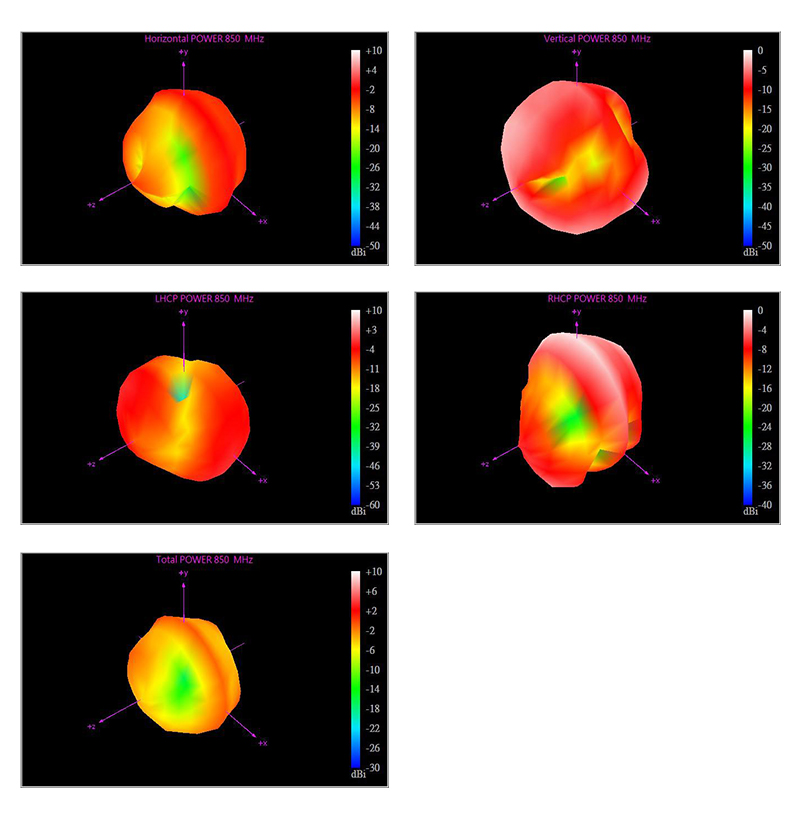

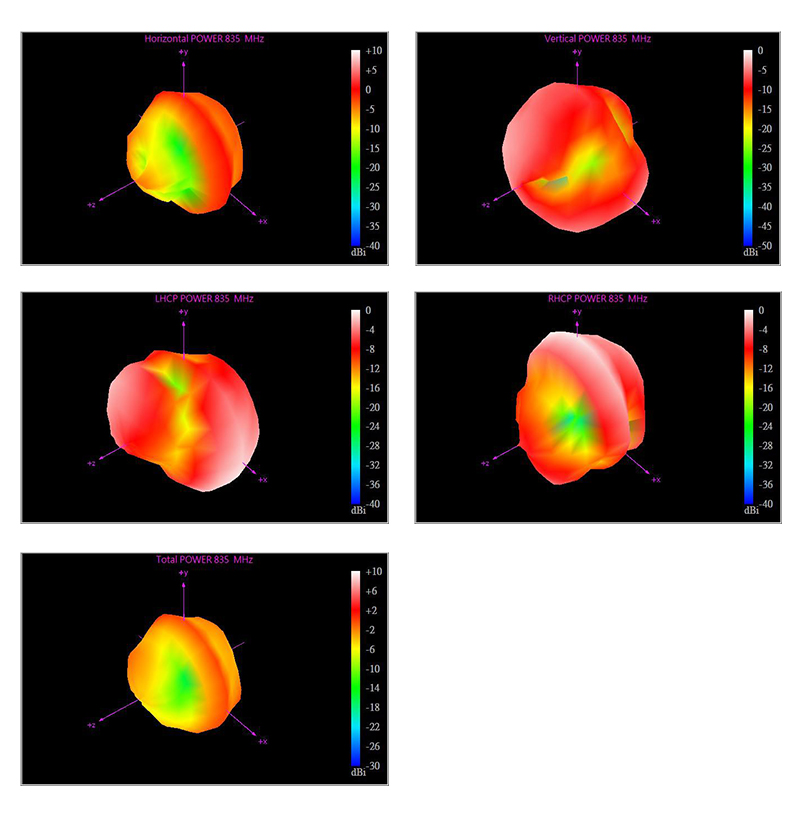

3D Total

Frequency
(MHz)		 Upper Hem.PRP
(dBm)		 Lower HEM.PRP
(dBm)		 Efficiency
(dB)		 Efficiency
(%)		 Gain
(dBi)		 Tot.Rad.Pwr.
(dBm)
810 MHz -6.01 -5.38 -2.67 54.05 1.17 -2.67
820 MHz -5.97 -5.25 -2.58 55.15 1.51 -2.58
835 MHz -6.23 -5.41 -2.79 52.59 1.40 -2.79
840 MHz -6.62 -5.81 -3.19 48.00 1.00 -3.19
850 MHz -6.39 -5.60 -2.97 50.47 1.25 -2.97
860 MHz -6.37 -5.47 -2.88 51.47 1.15 -2.88

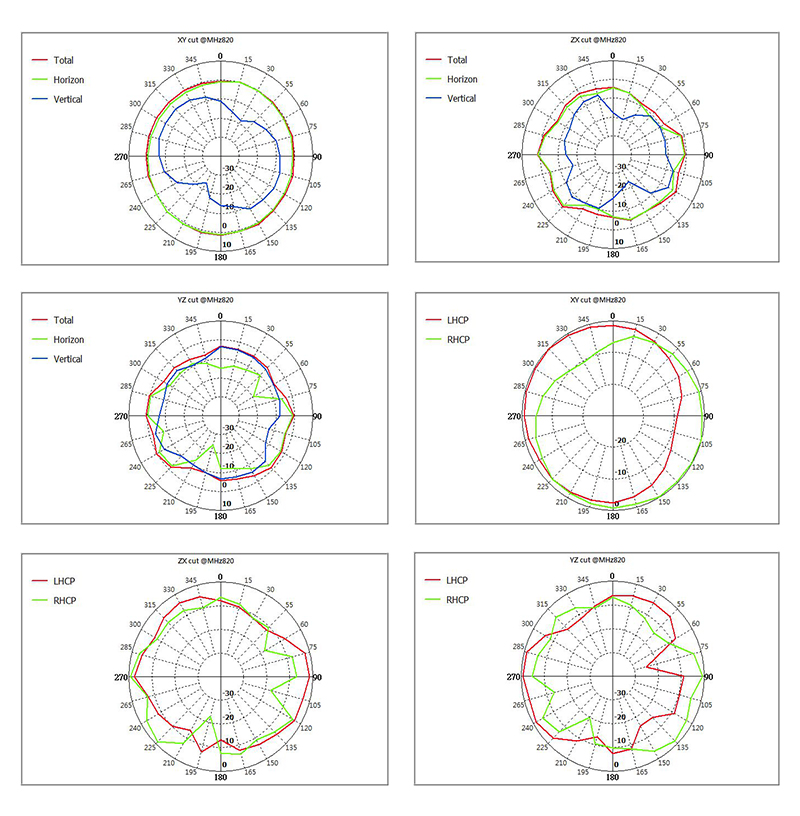

820Mhz:

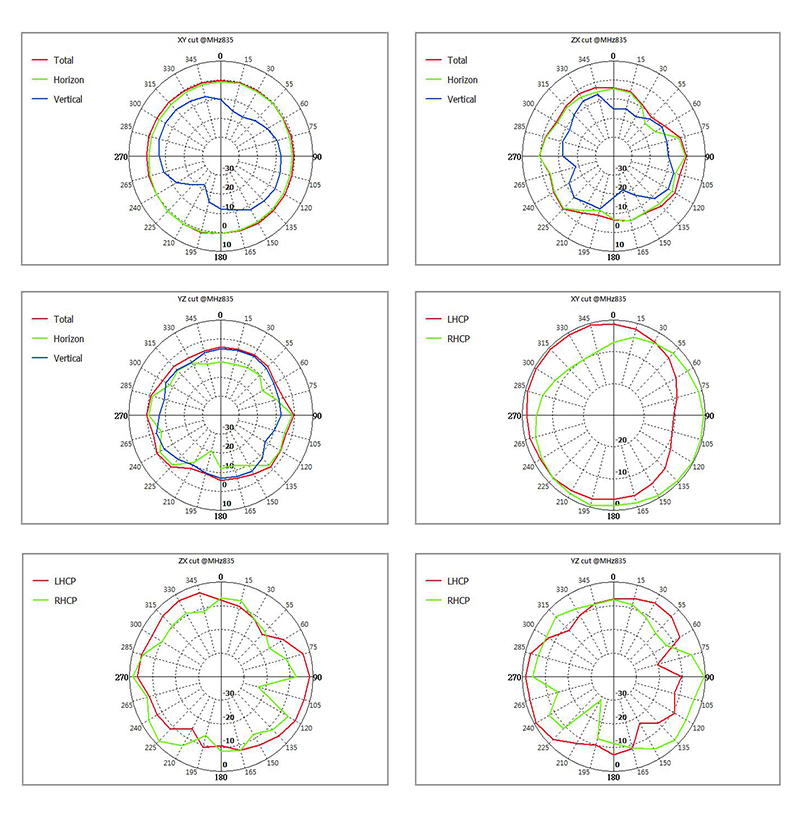

835Mhz:

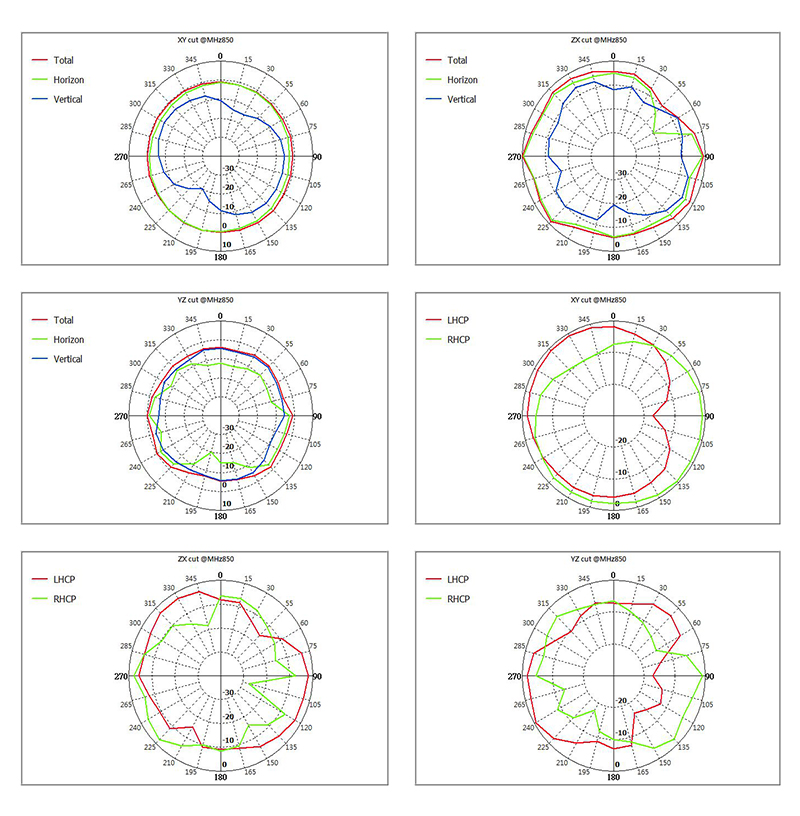

850Mhz:
