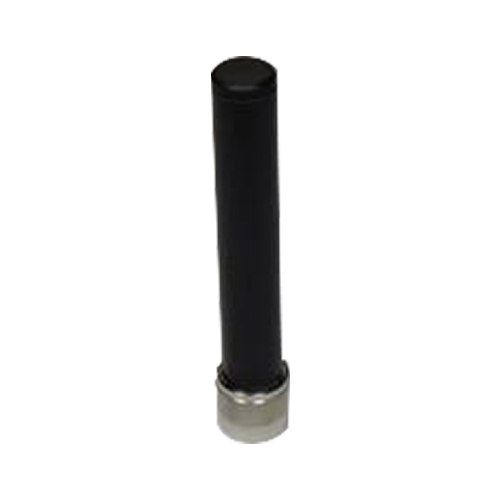

1.6~2.6Ghz Antenna TH-1724
  • Product Description
  • Product Specification

1.GENERAL DESCRIPTION

Model No
TH1724-N(M)

1.1 Electrical Properties

Parameter Description
Frequency Band 1600~2600MHz
Nominal Impedance 50 ohm
Polarization Vertical

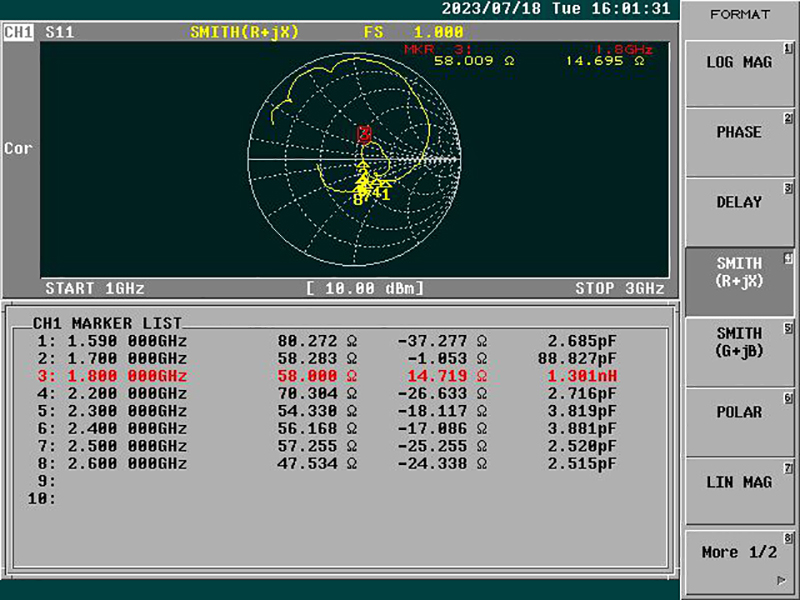

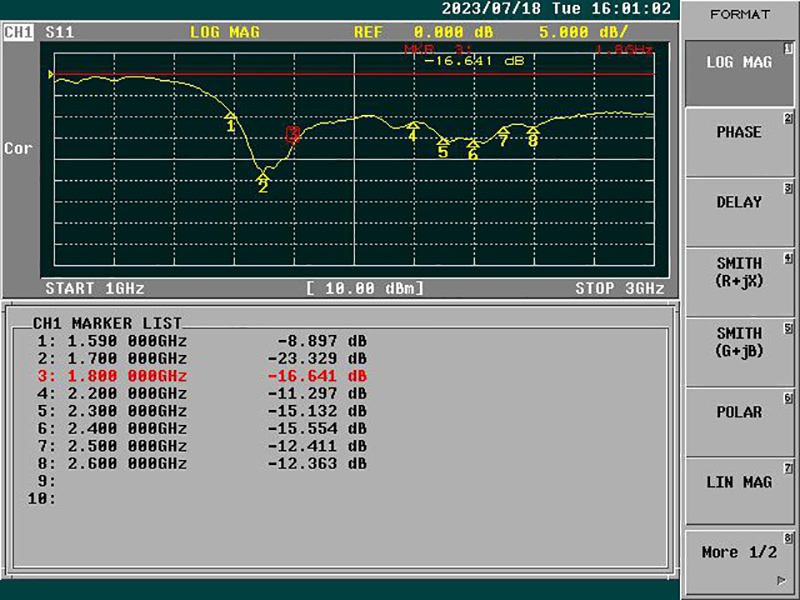

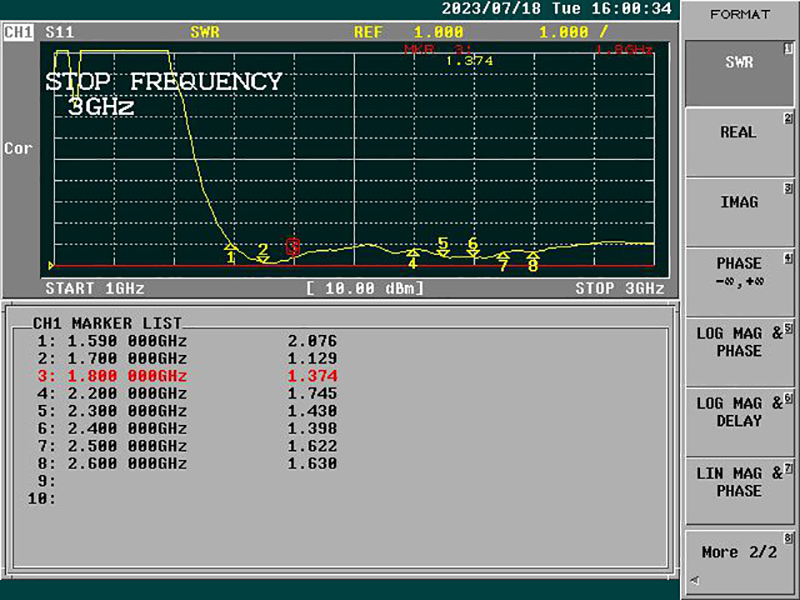

V.S.W.R 2.0:1

1.2 Mechanical Properties

Parameter Description
Antenna Type External Antenna
Materal ASA
Touch Type Screw Type
Connector Type N connector (Male)

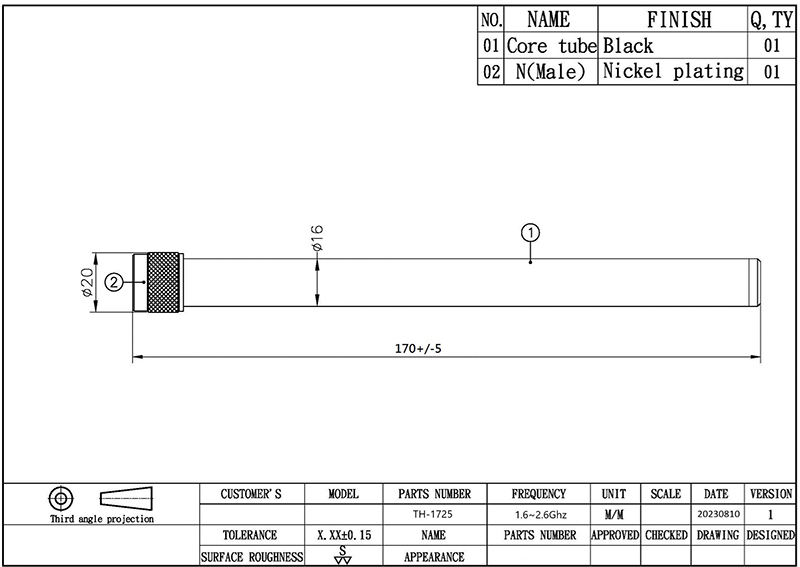

Antenna Dimensions 170mm ±5
Antenna Color Black
Operating Temperature Range -40°C~+85°C
Storage Temperature Range -40°C~+85°C




3D Total

Frequency
(MHz)		 Upper Hem.PRP
(dBm)		 Lower HEM.PRP
(dBm)		 Efficiency
(dB)		 Efficiency
(%)		 Gain (dBi) Tot. Rad.Pwr.
(dBm)
1590 MHz -4.79 -5.14 -1.95 63.83 1.11 -1.95
1600 MHz -4.92 -5.41 -2.15 60.99 1.16 -2.15
1620 MHz -4.96 -5.27 -2.10 61.68 1.12 -2.10
1630 MHz -4.82 -5.08 -1.94 64.02 2.32 -1.94
1700 MHz -4.96 -4.53 -1.73 67.17 1.99 -1.73
1800 MHz -6.31 -4.36 -2.21 60.06 1.27 -2.21
1900 MHz -6.23 -3.09 -1.66 68.23 3.11 -1.37
2000 MHz -7.21 -3.35 -1.85 65.28 3.40 -1.85
2100 MHz -7.05 -3.28 -1.75 66.77 3.20 -1.75
2200 MHz -6.68 -3.75 -1.96 63.67 2.51 -1.96
2300 MHz -8.40 -4.04 -2.68 53.90 3.52 -2.68
2400 MHz -6.69 -4.06 -2.17 60.67 3.76 -2.17
2450 MHz -6.21 -4.16 -2.06 62.30 3.23 -2.06
2500 MHz -5.83 -4.21 -1.94 64.04 3.03 -1.94
2600 MHz -5.37 -3.88 -1.55 70.02 3.32 -1.55
2700 MHz -4.94 -4.37 -1.64 68.59 2.39 -1.64
2800 MHz -6.37 -6.42 -3.39 45.87 1.86 -3.39
2900 MHz -2.91 -3.71 -1.86 65.16 5.90 -1.86
3000 MHz -4.51 -4.69 -1.59 69.37 3.68 -1.59

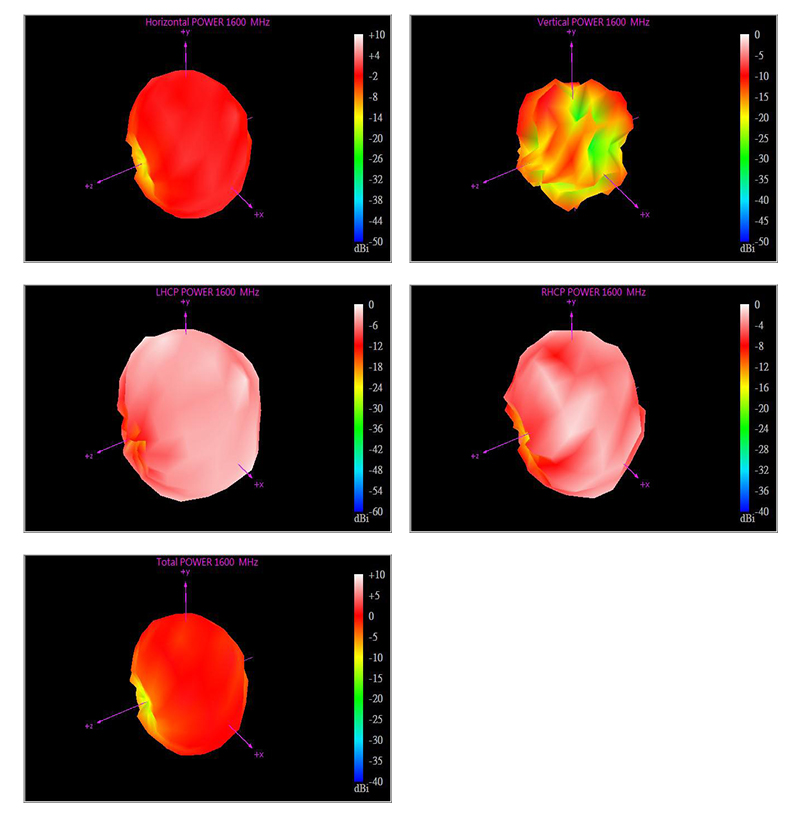

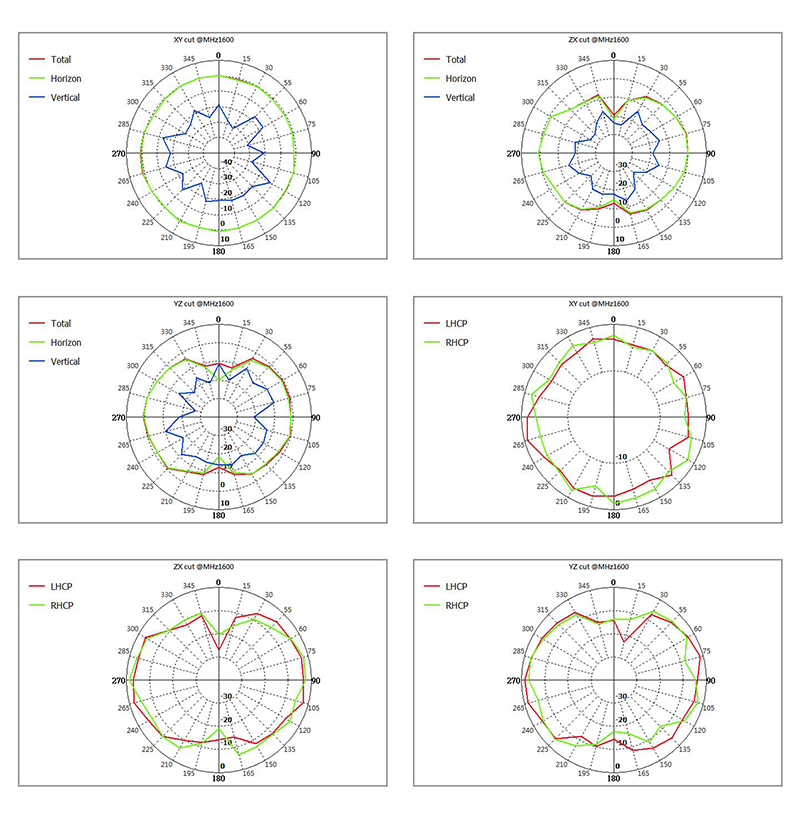

1600MHz:

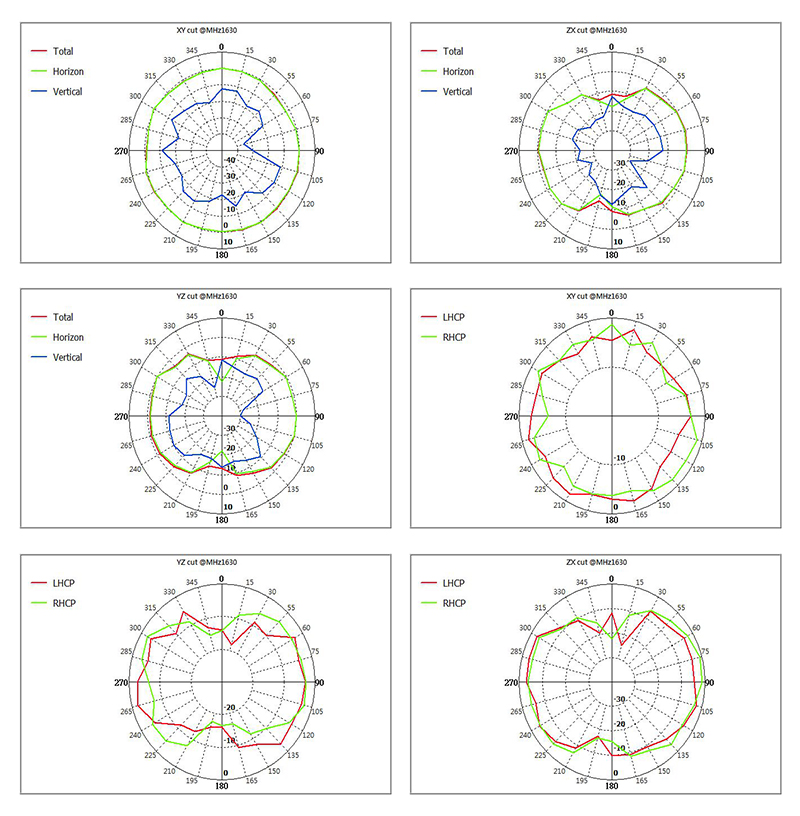

1630Mhz:

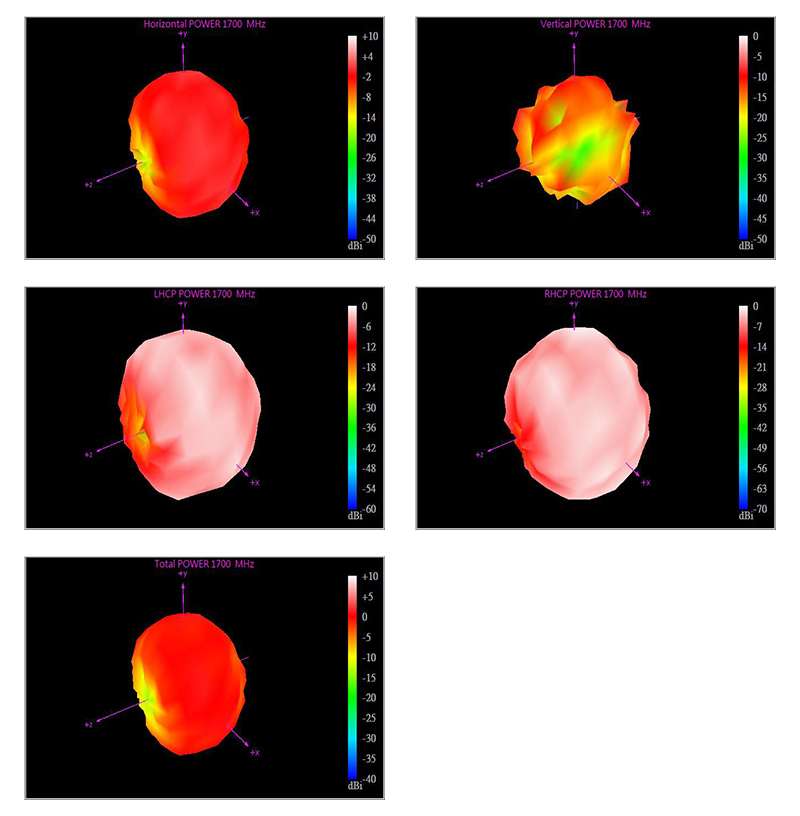

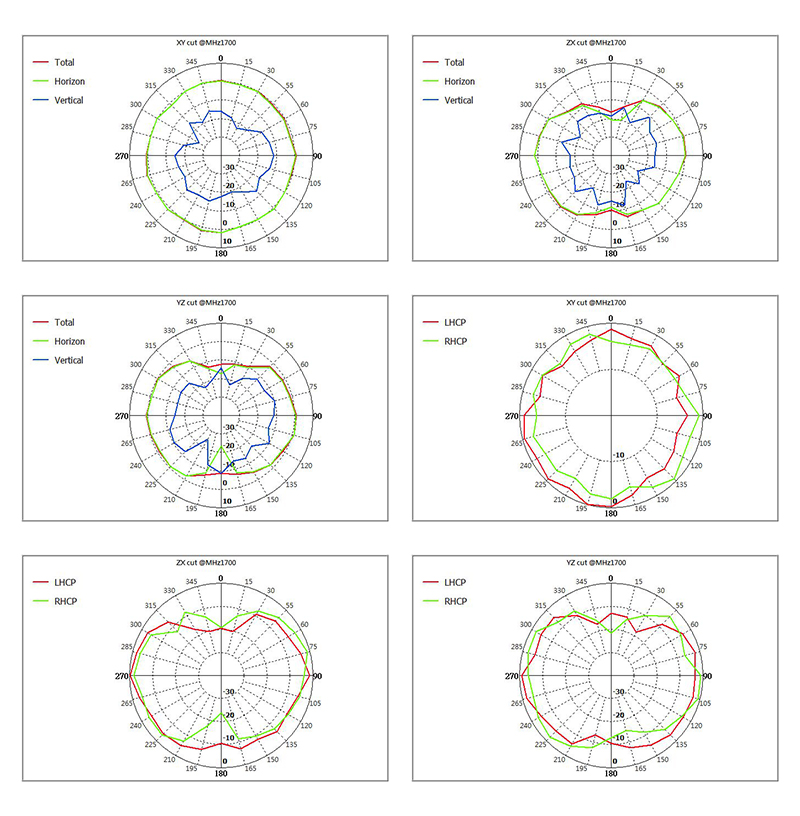

1700Mhz:

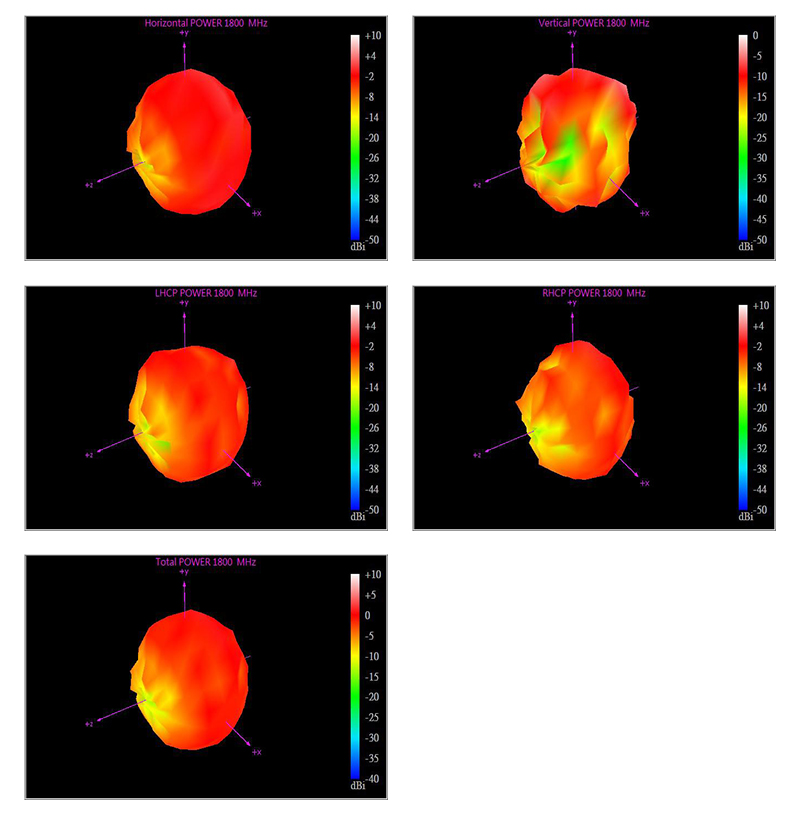

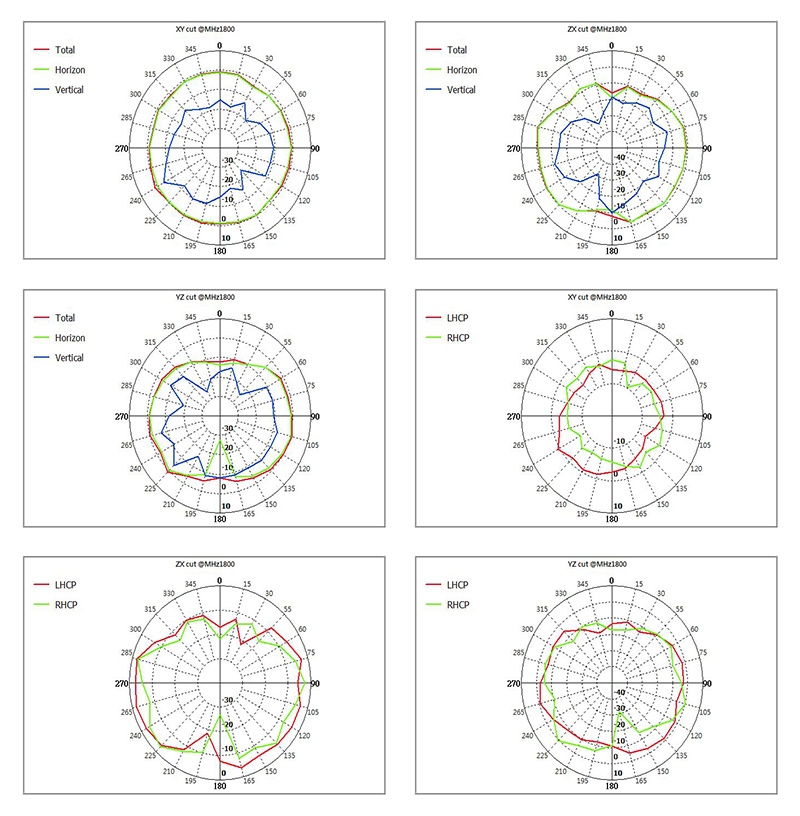

1800Mhz:

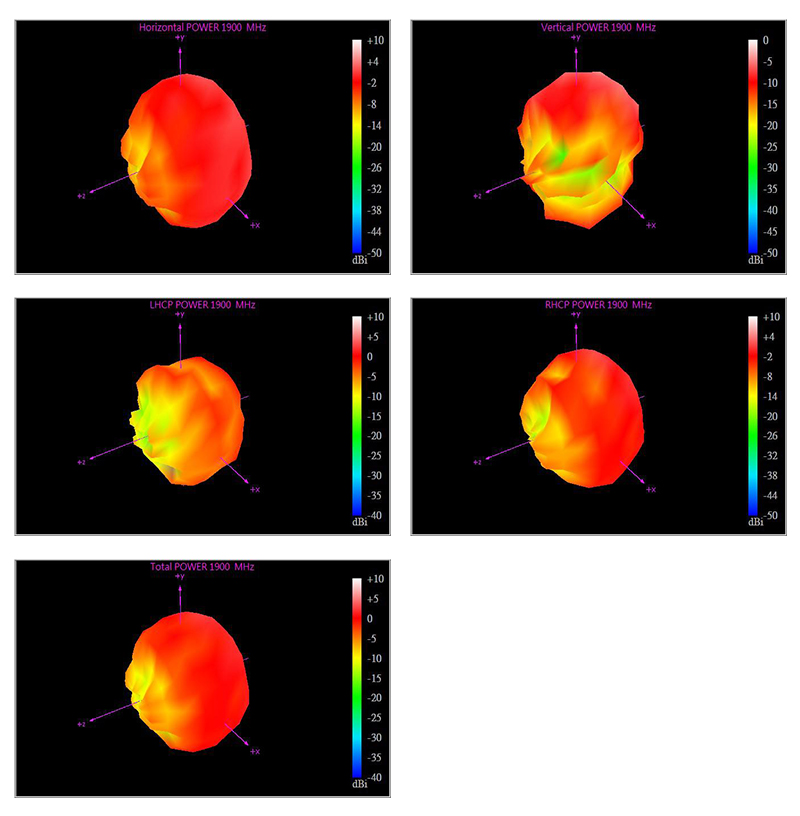

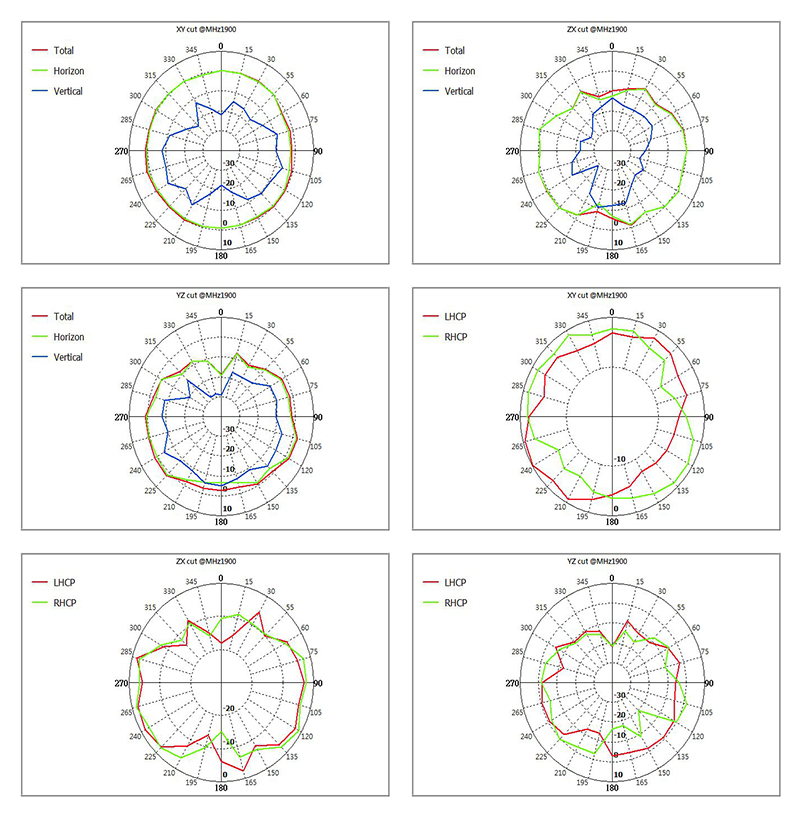

1900Mhz:

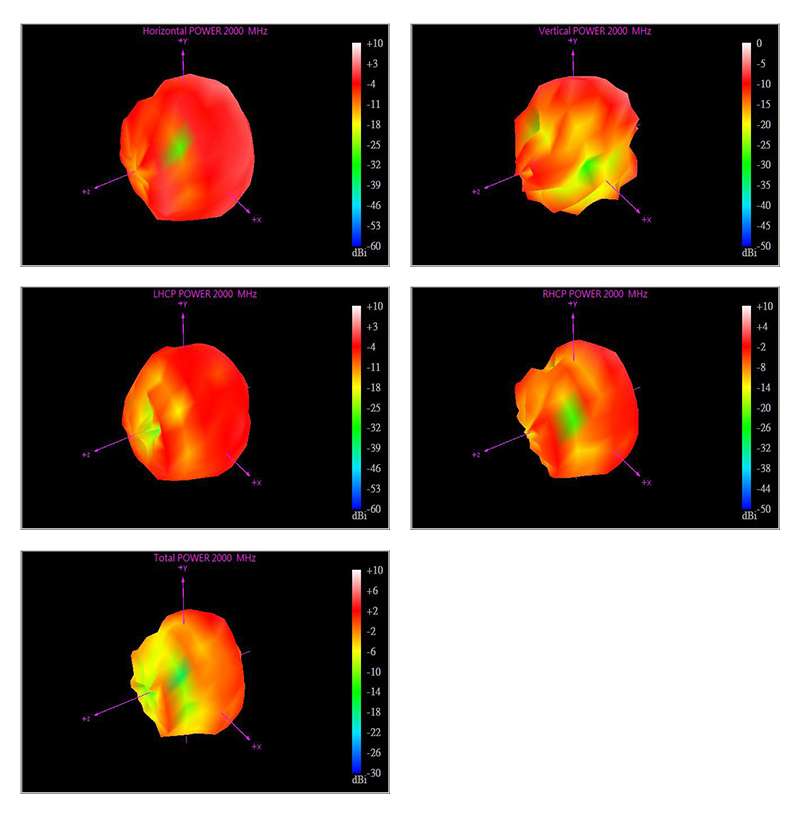

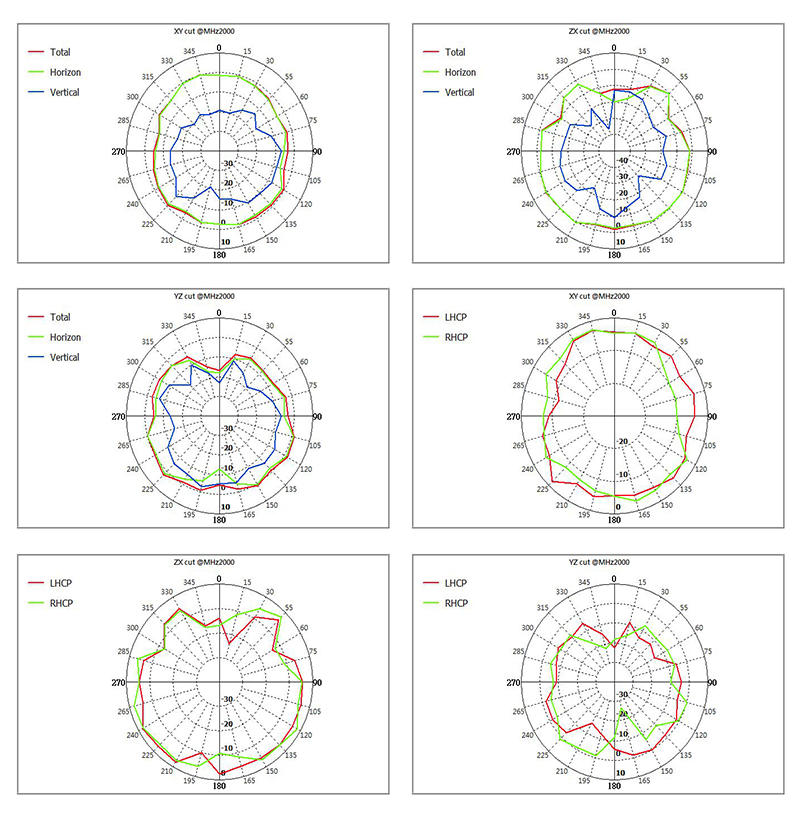

2000Mhz:

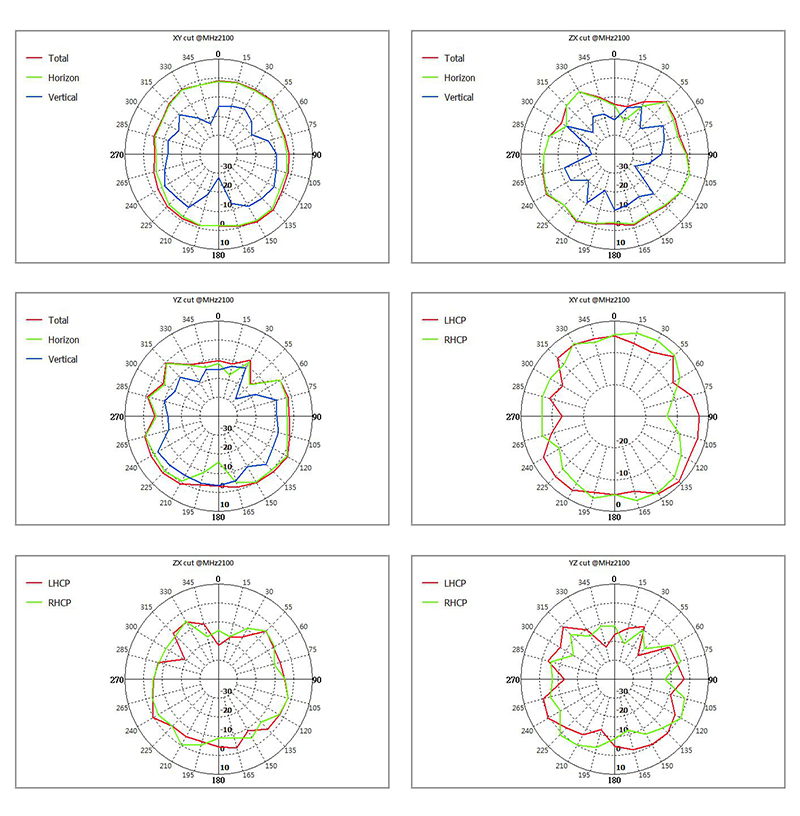

2100Mhz:

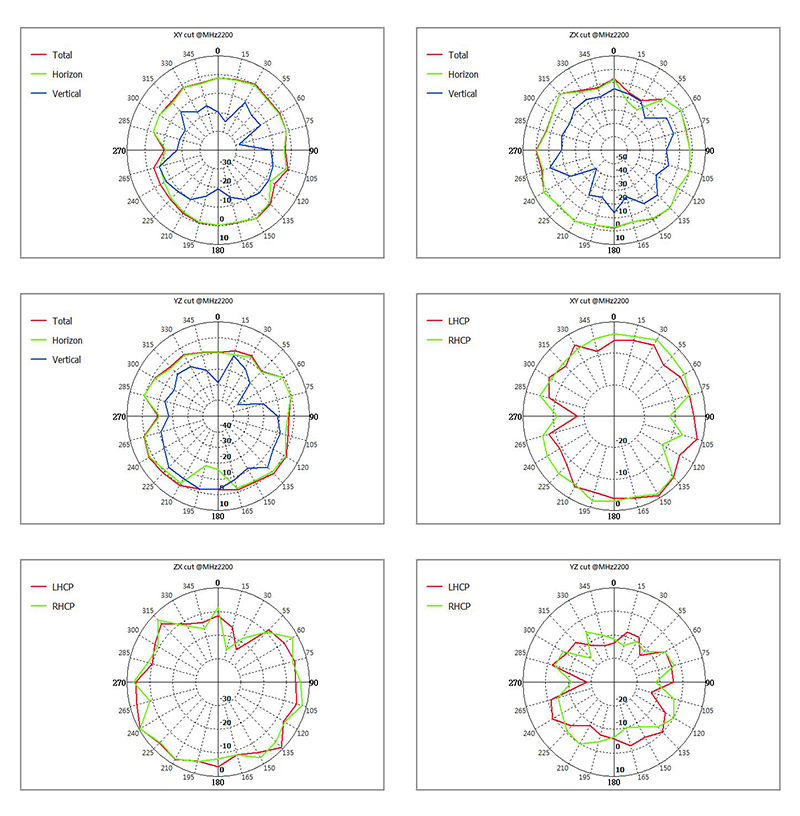

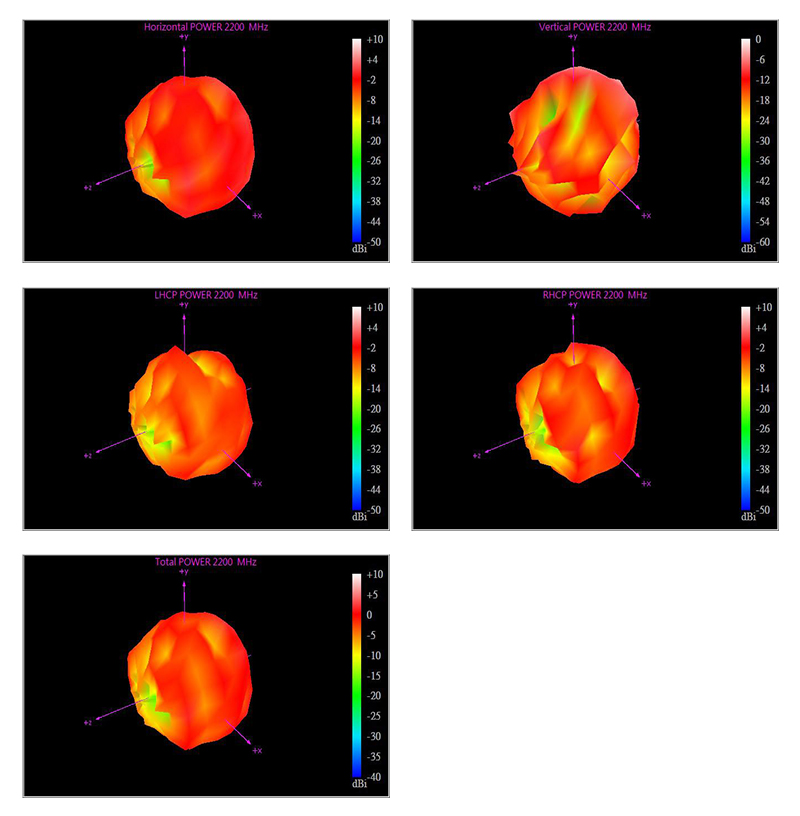

2200Mhz:

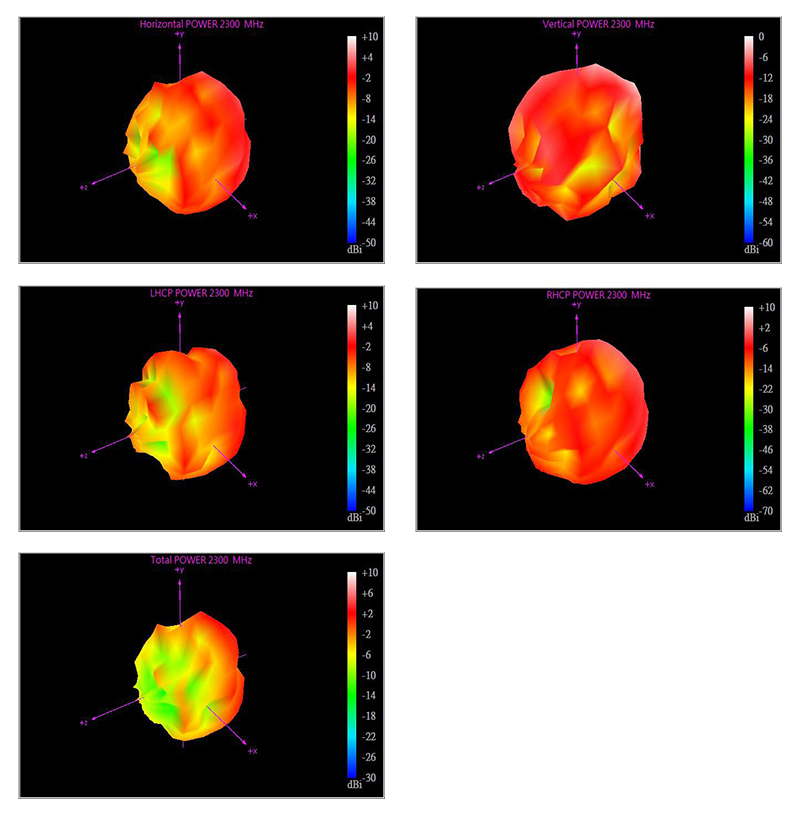

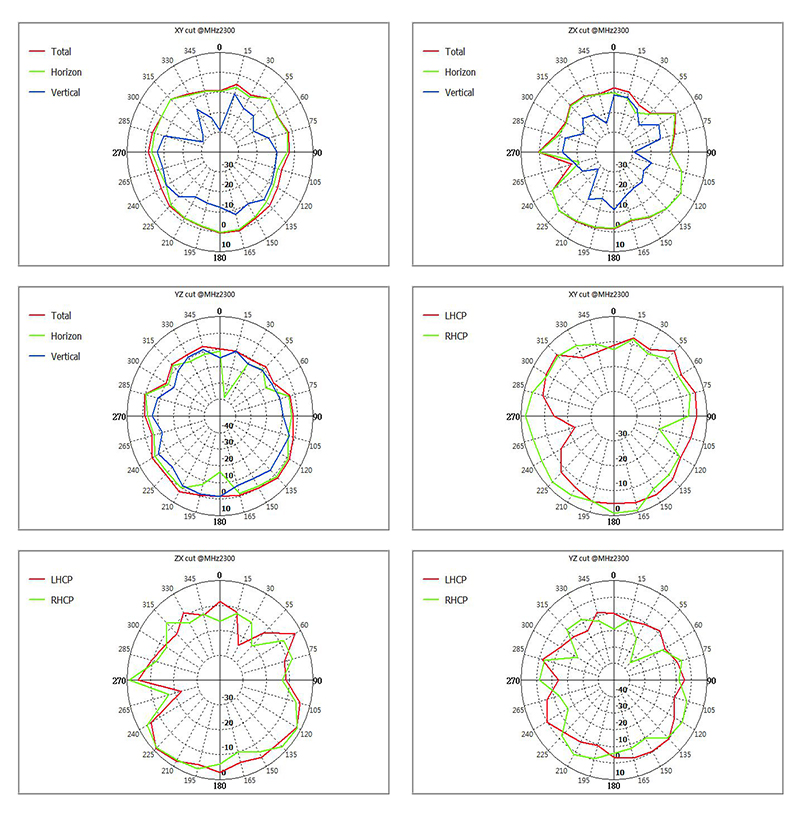

2300Mhz:

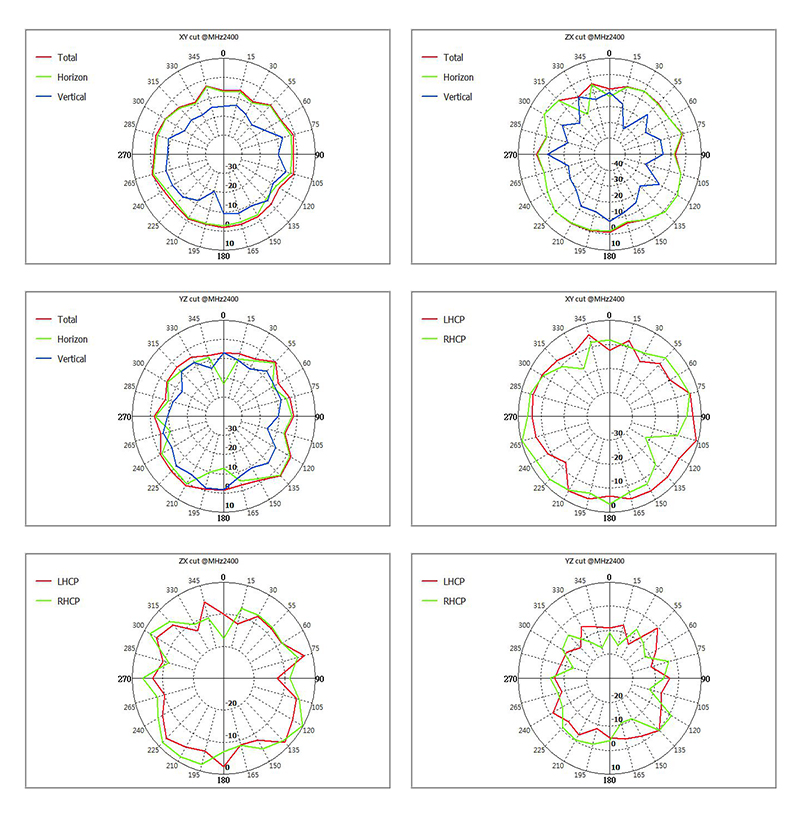

2400Mhz:

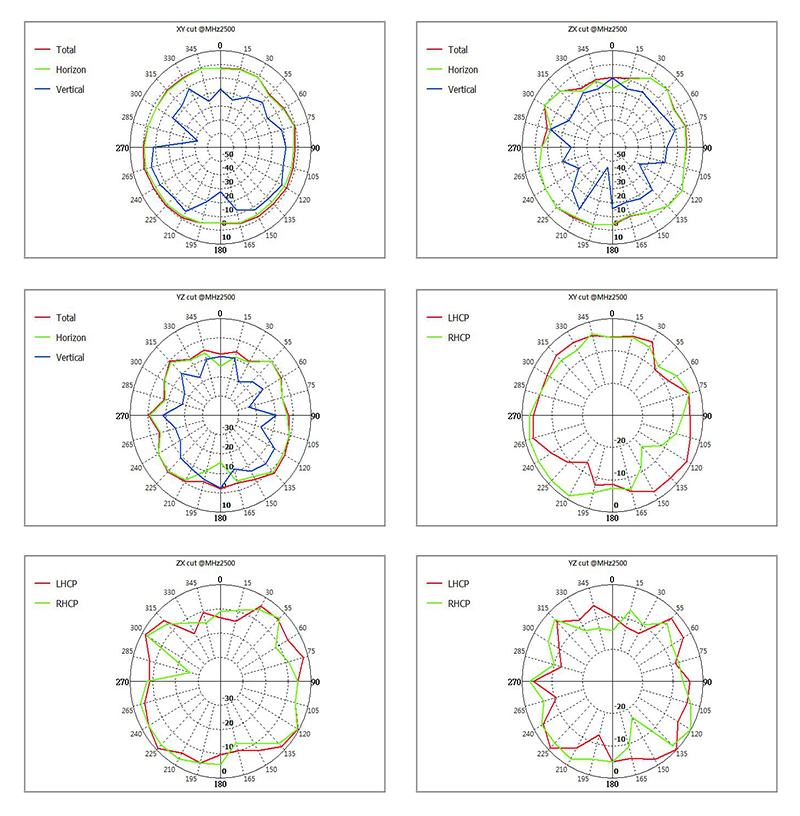

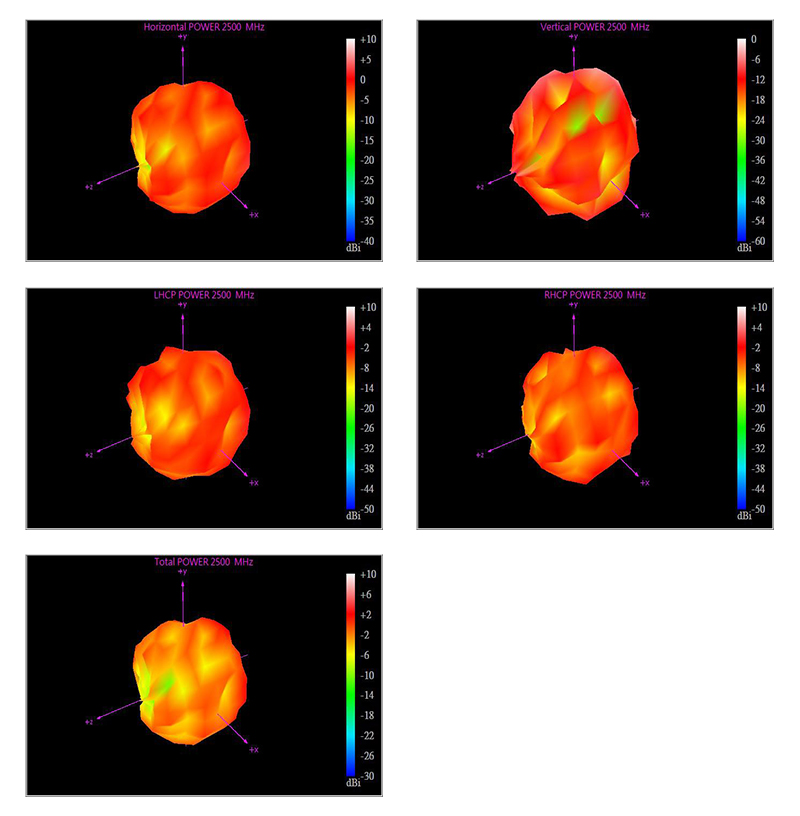

2500Mhz:

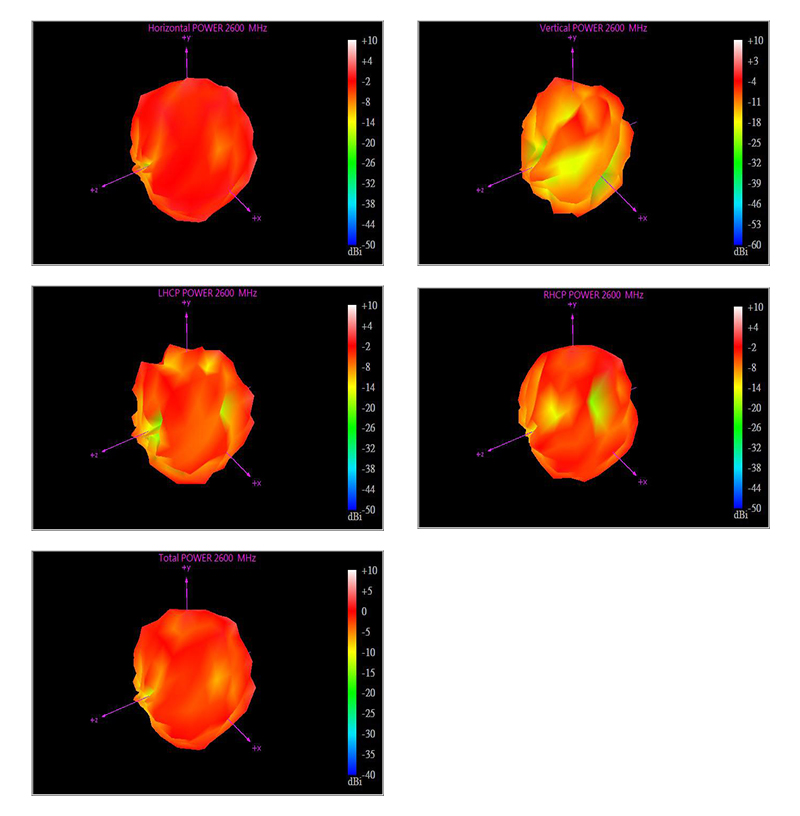

2600Mhz:
