L & 2.4G & S Band Gooseneck Antenna TH-1438D-TNC(M)
  • Product Description
  • Product Specification

1.GENERAL DESCRIPTION

Model No P/N
TH-1438D TH1438D-TNC(M)
Below is a table summarizing the antenna design specification.

1.1 Electrical Properties

Parameter Description
Frequency Band 1350~1450MHz & 2.2~2.5Ghz ON GND
Nominal Impedance 50 ohm
Polarization Vertical
Electrical Wave Dipole

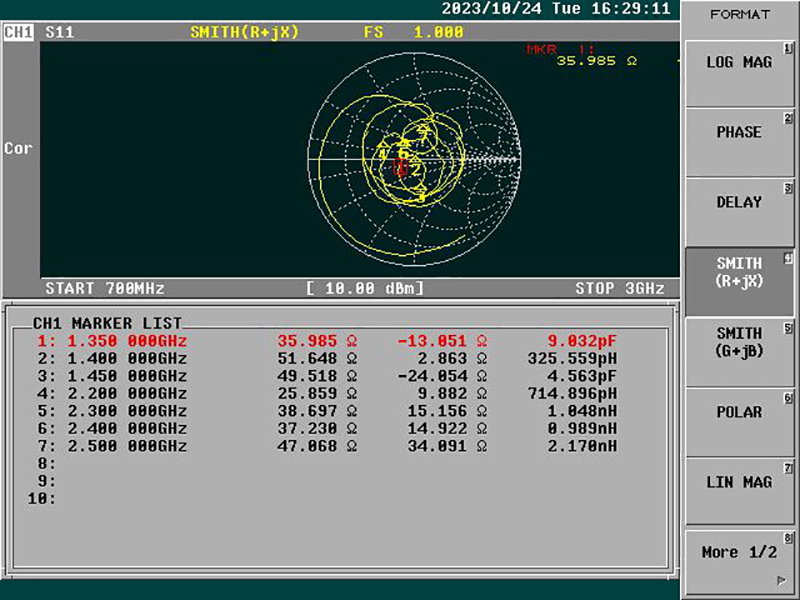

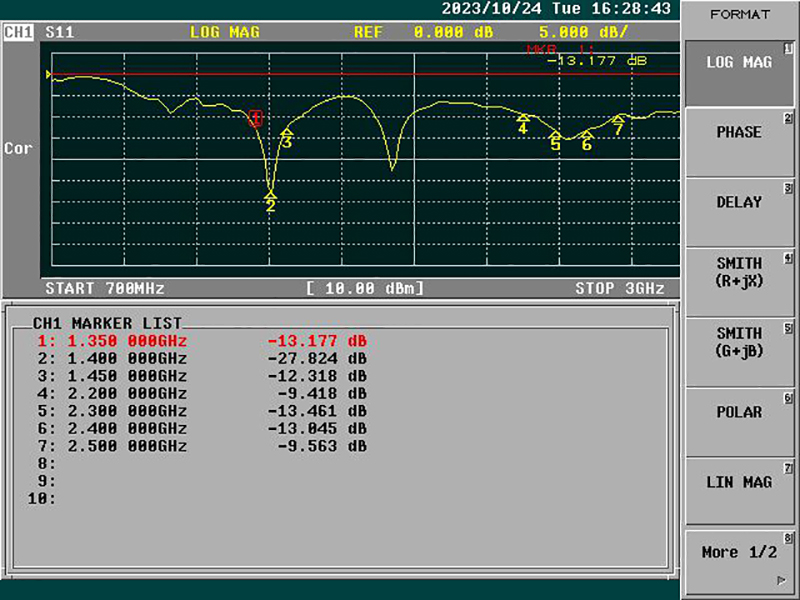

Return Loss Please See Data-1
V.S.W.R 2.5：1
Gain 2.5db

1.2 Mechanical Properties

Parameter Description
Antenna Type External Antenna
Touch Type Screw Type
Connector Type TNC(Male)
Antenna Dimensions 275mm ±15
Antenna Color Black
Operating Temperature Range -40°C~+85°C
Storage Temperature Range -40°C~+85°C

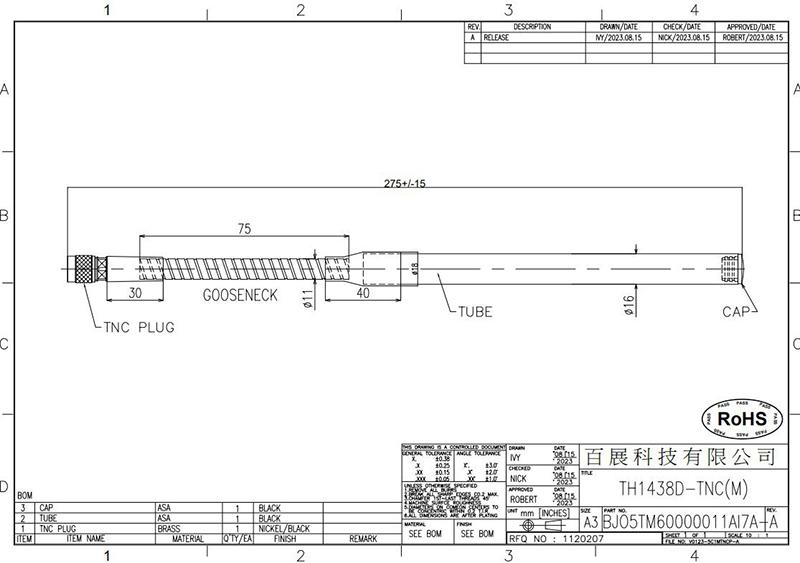

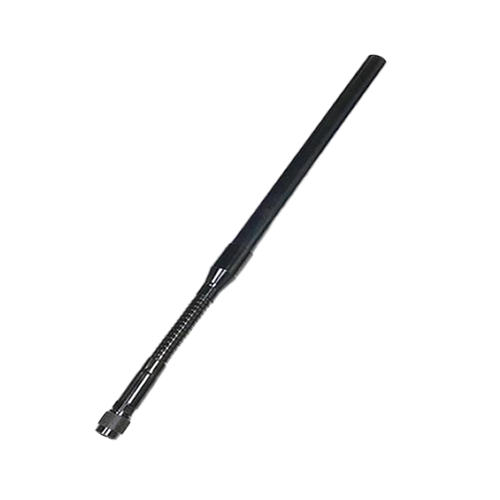

2. Appearance

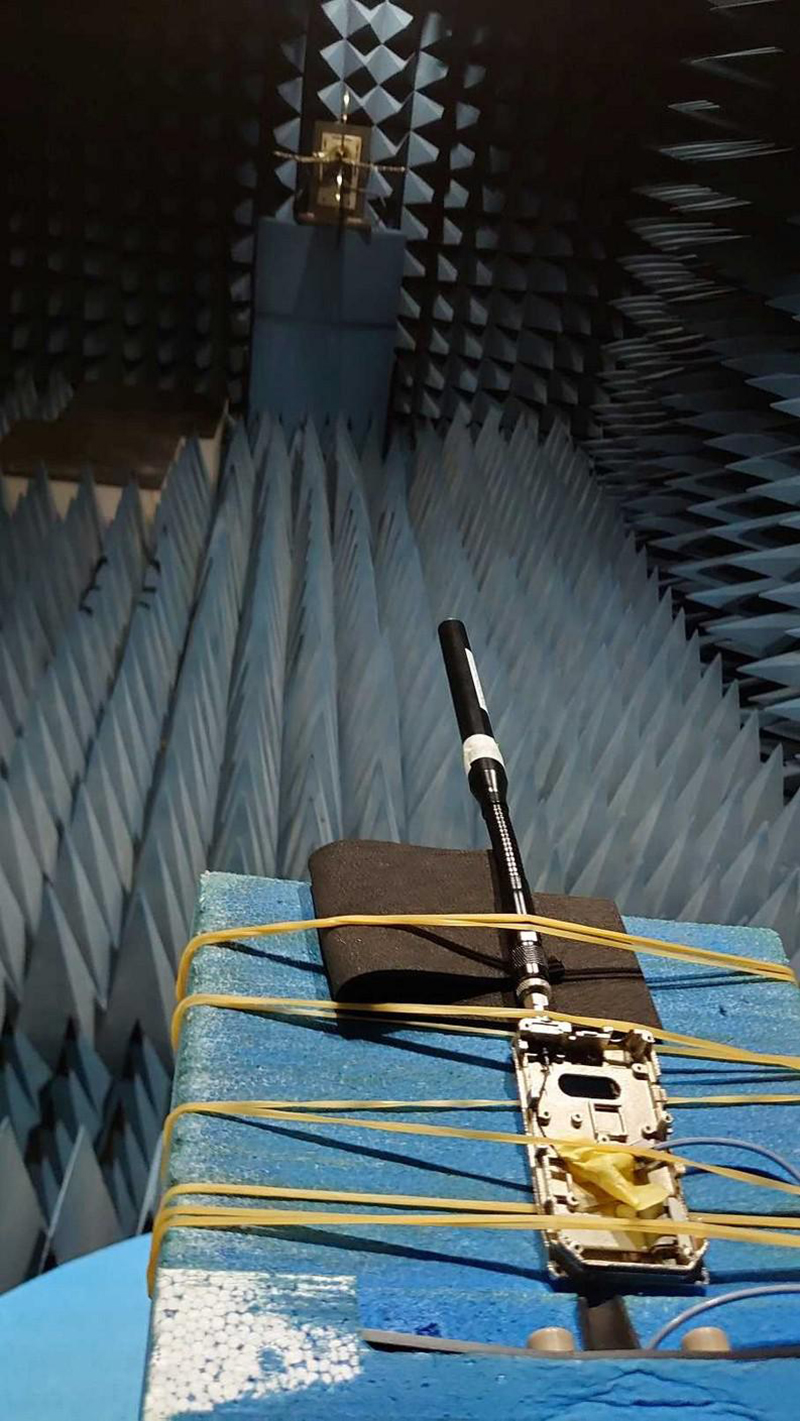

3D Total

Frequency
(MHz)		 Upper Hem.PRP
(dBm)		 Lower HEM.PRP
(dBm)		 Efficiency
(dB)		 Efficiency
(%)		 Gain
(dBi)		 Tot.Rad.Pwr.
(dBm)
1350 MHz -8.84 -4.77 -3.33 53.42 2.75 -3.33
1400 MHz -6.77 -5.18 -2.89 51.39 2.53 -2.89
1450 MHz -7.40 -5.85 -3.54 54.23 2.65 -2.54
2200 MHz -8.20 -3.99 -2.59 55.04 2.63 -2.59
2300 MHz -9.05 -4.25 -3.01 50.04 2.57 -3.01
2400 MHz -9.01 -4.40 -3.11 53.90 2.24 -3.11
2500 MHz -7.54 -4.66 -2.86 51.81 2.37 -2.86

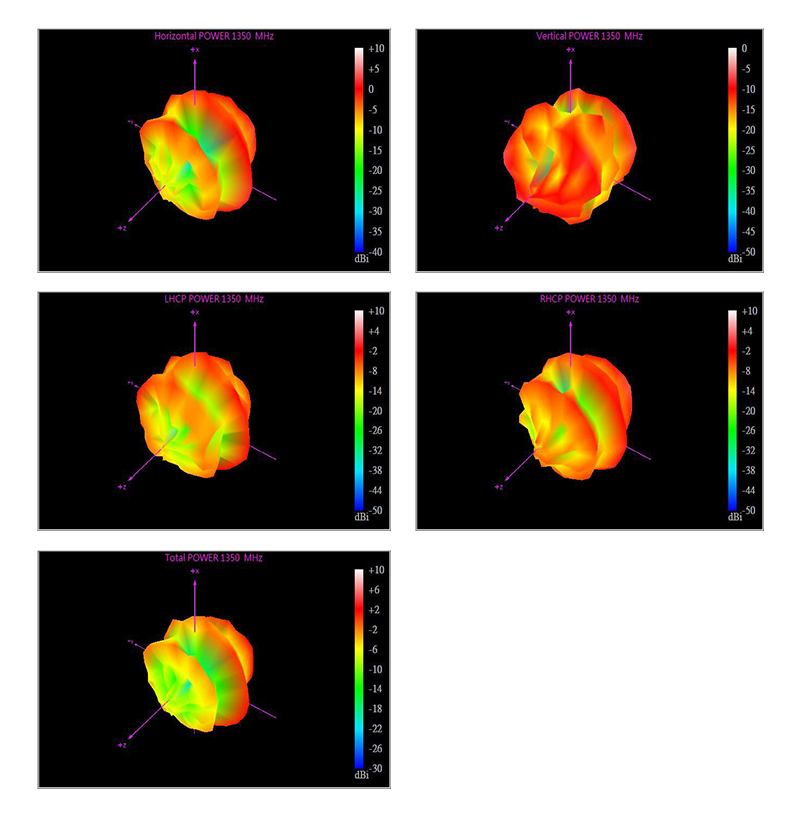

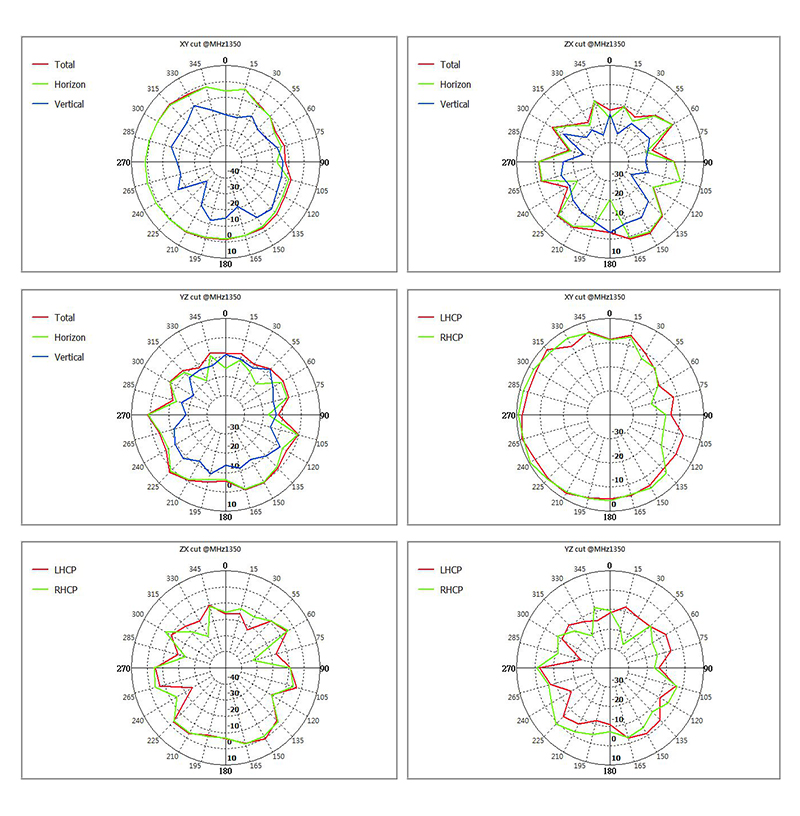

1350Mhz:

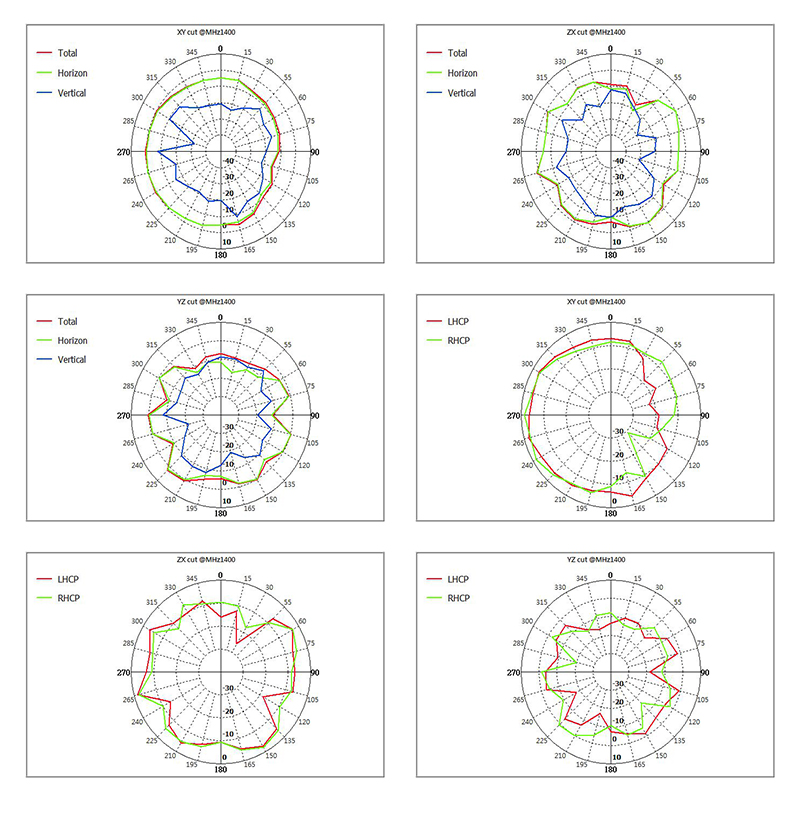

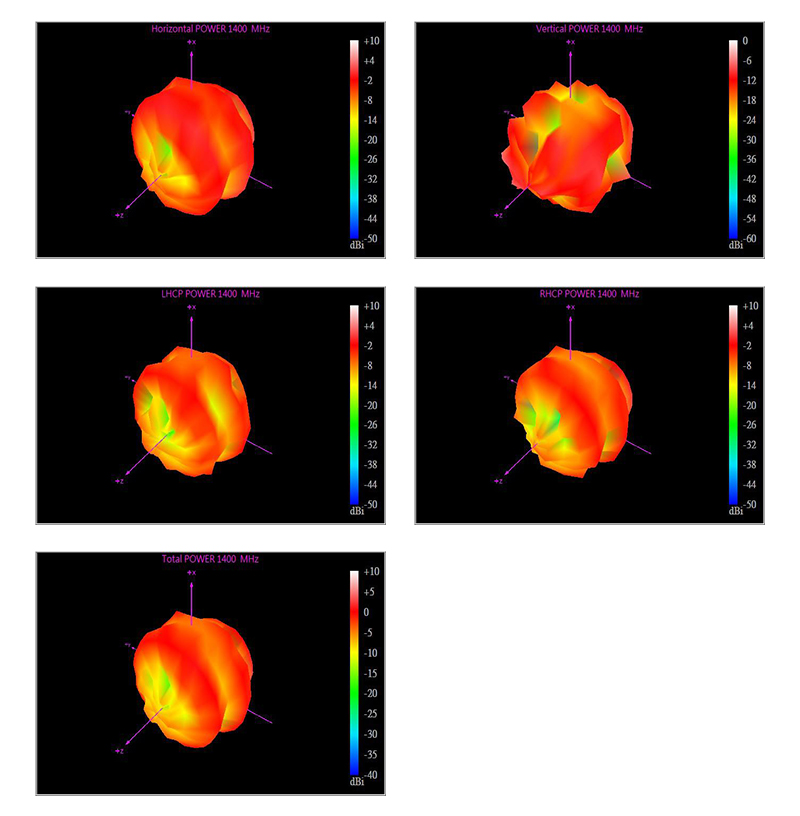

1400Mhz:

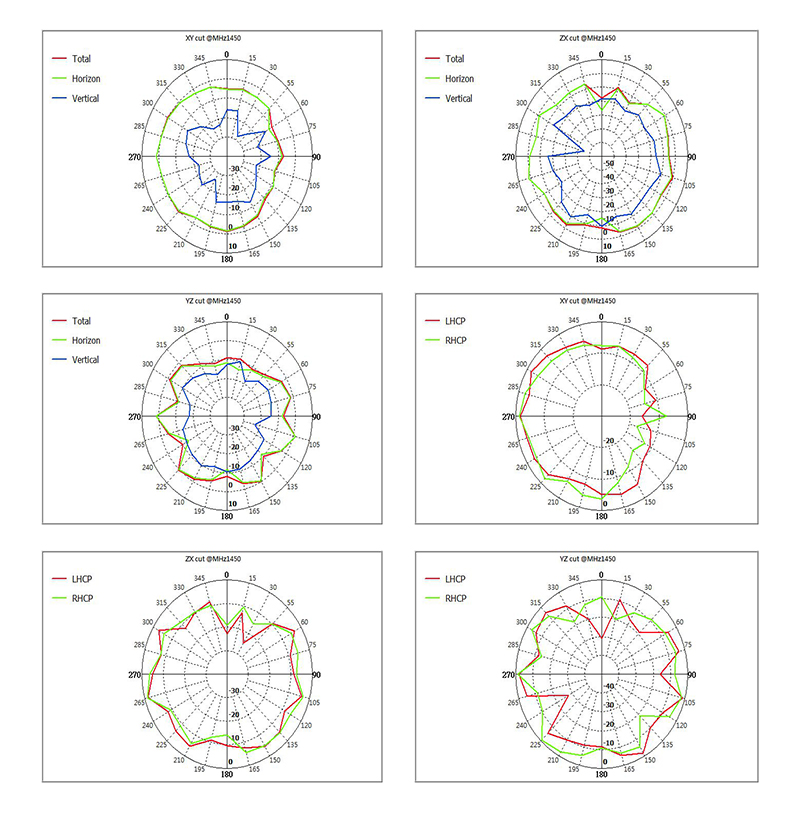

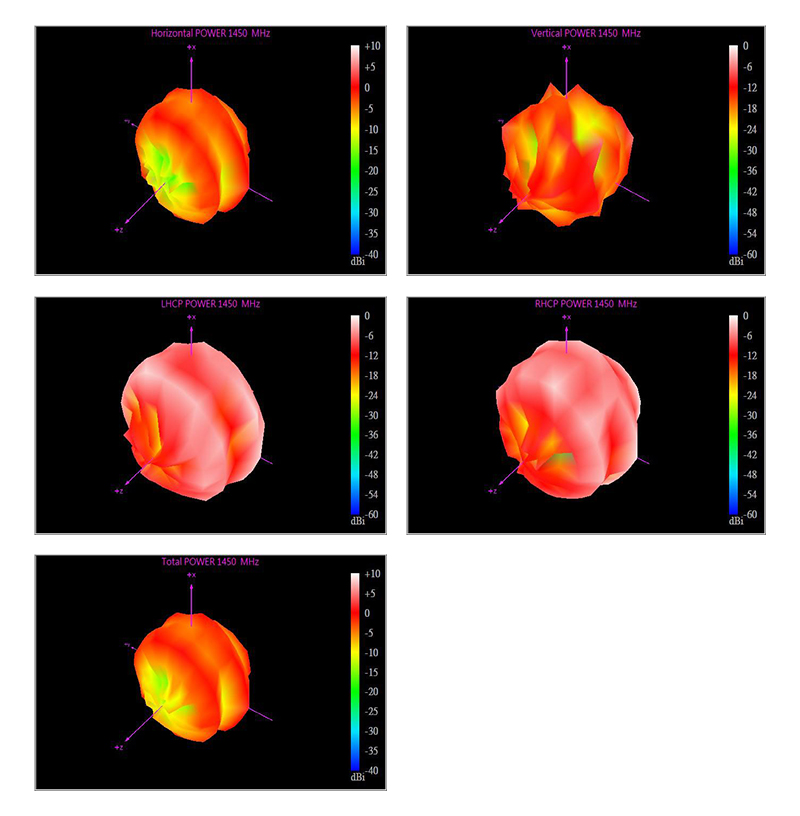

1450Mhz:

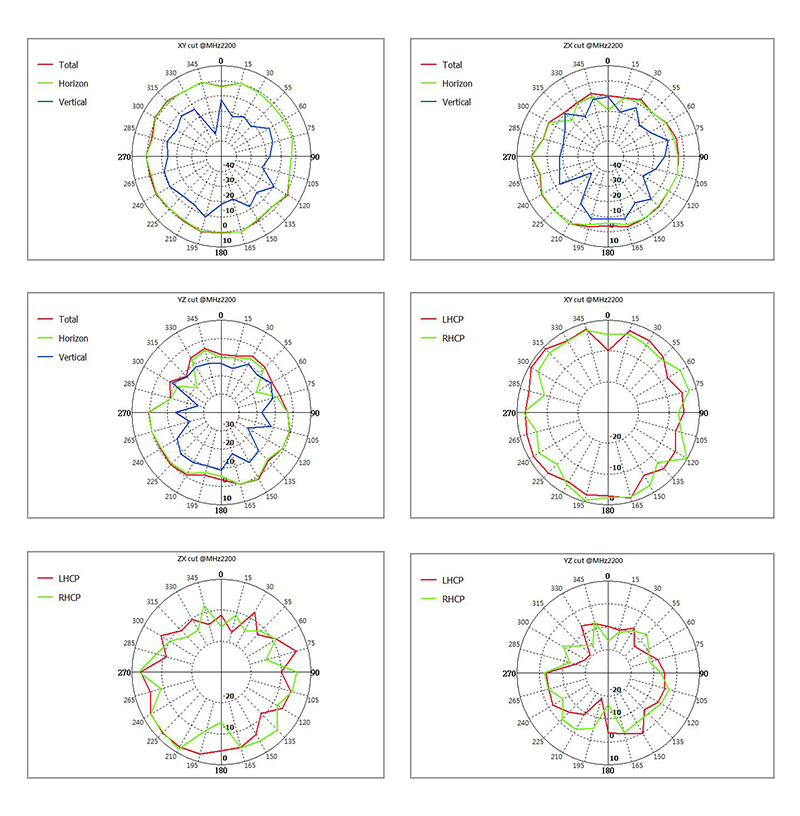

2200Mhz:

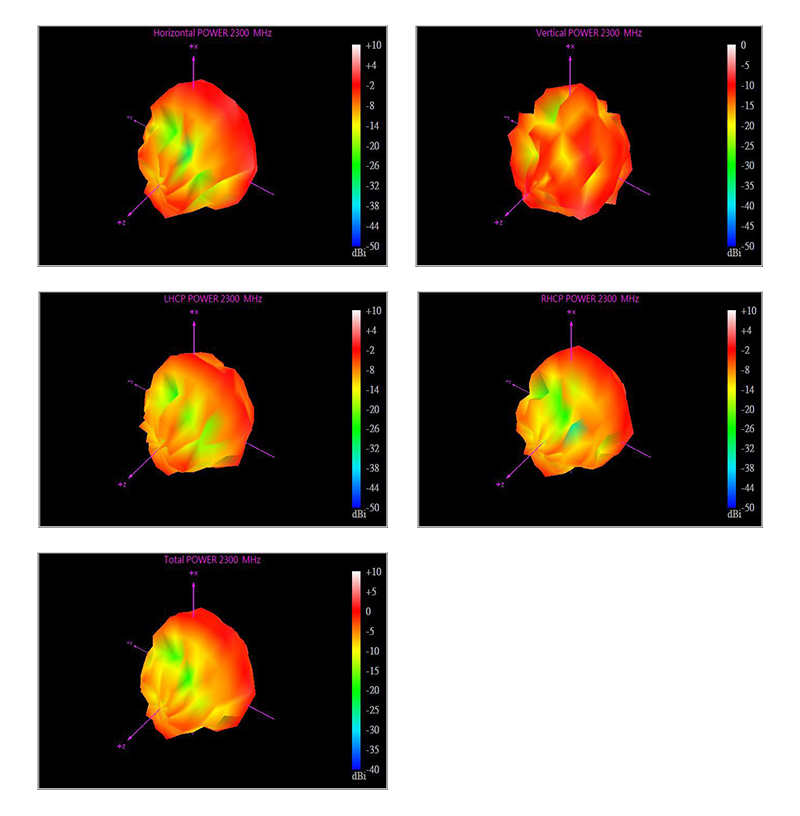

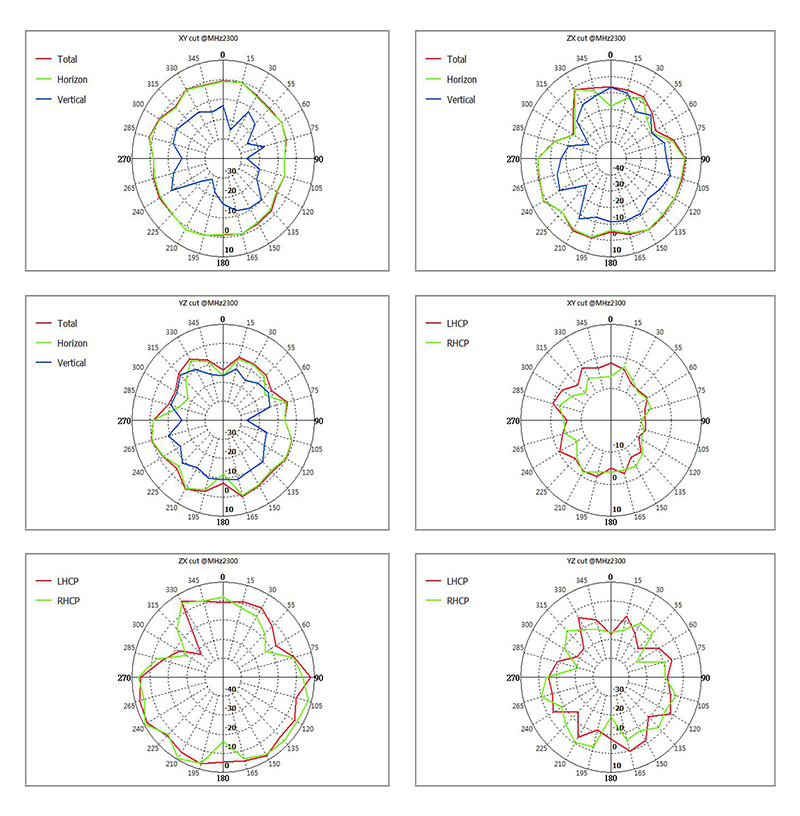

2300Mhz:

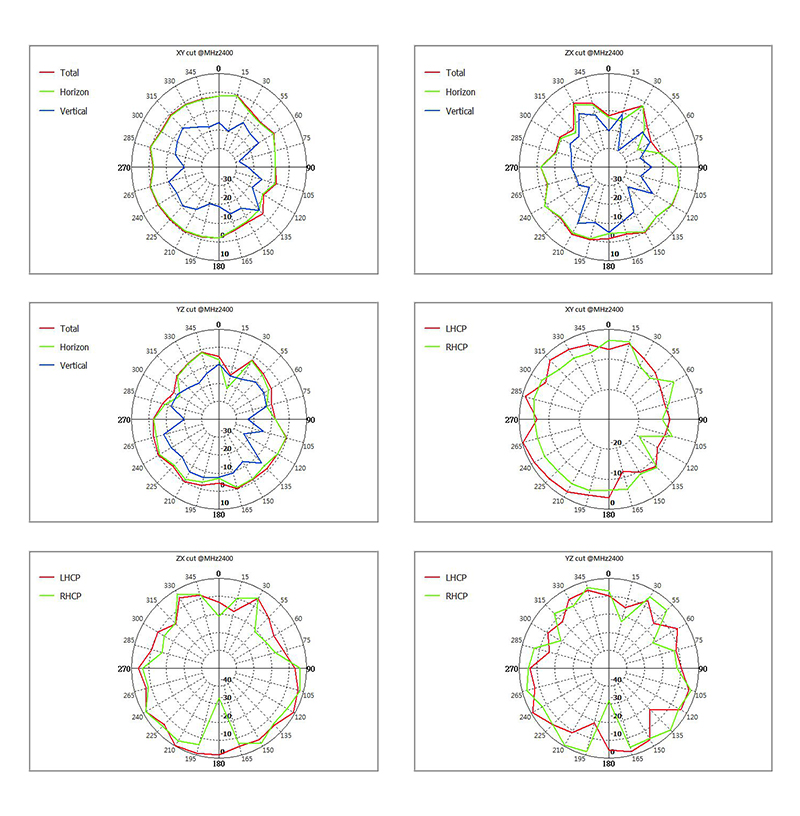

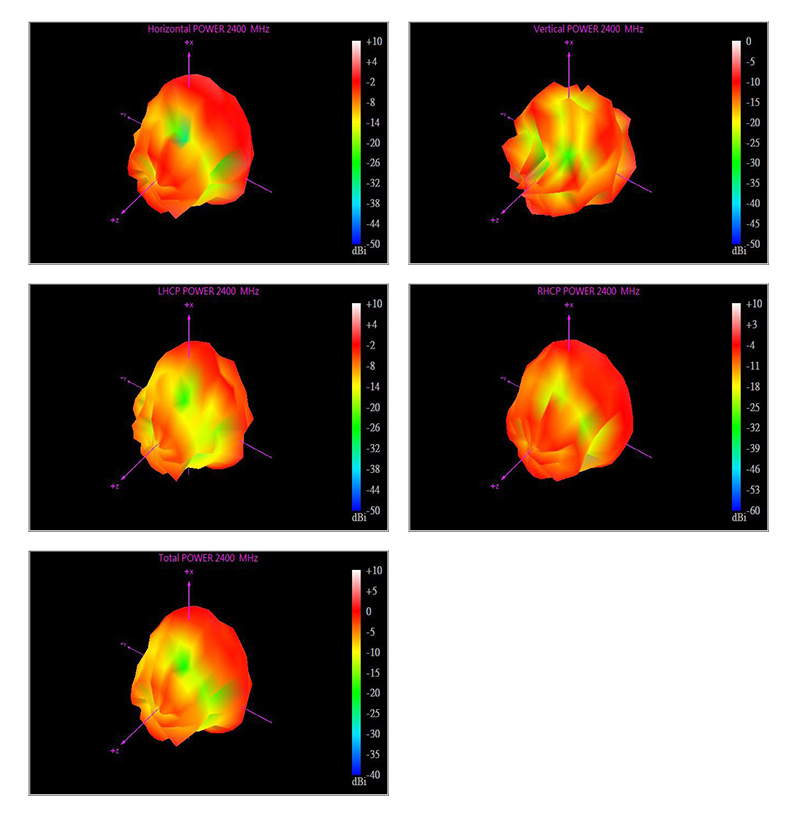

2400Mhz:

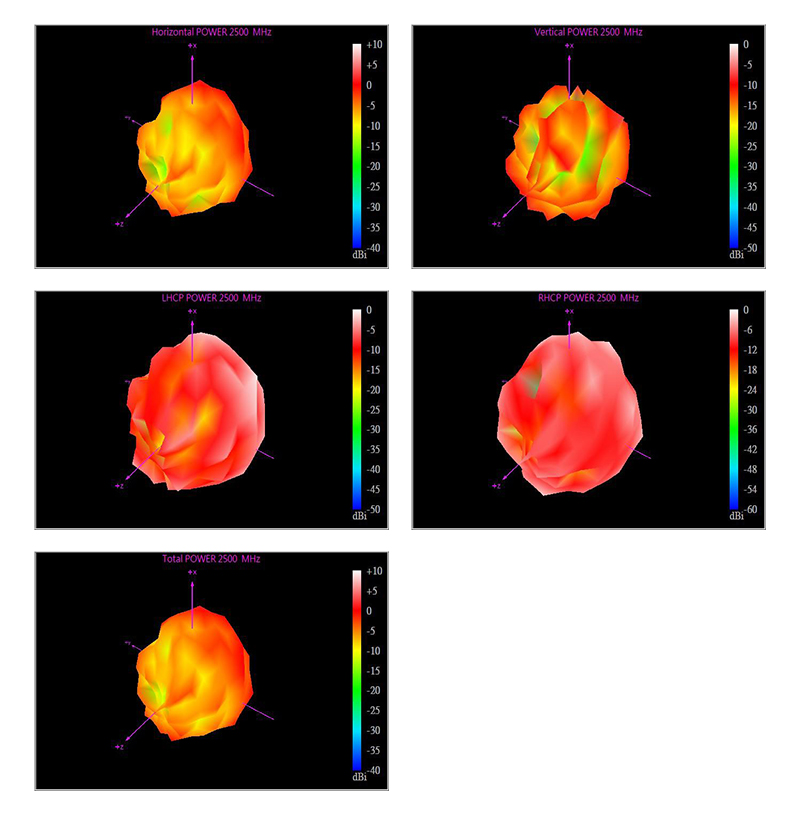

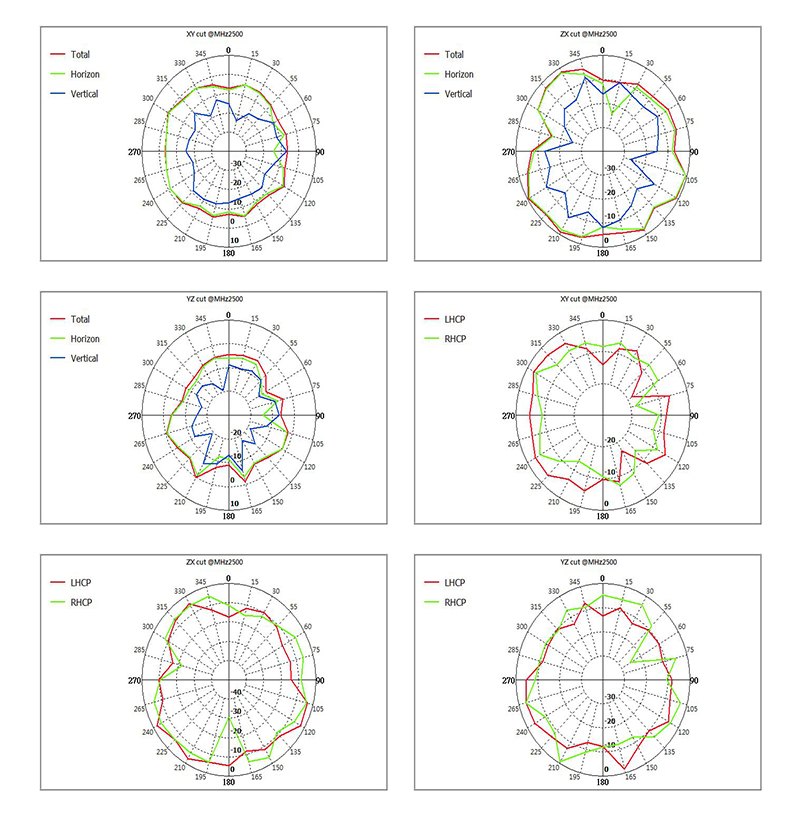

2500Mhz:
