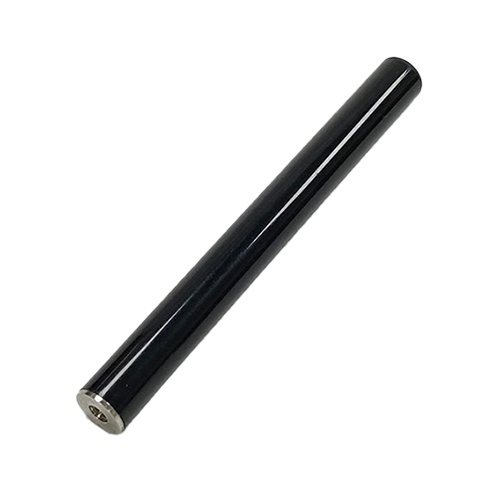

L Band & 2.4G & S Band Antenna TH-1325B

TH‐1325B

Inquiry

Download

L Band & 2.4G & S Band Antenna TH-1325B
  • Product Description
  • Product Specification

1.GENERAL DESCRIPTION

Model No
TH1325B-SMA(M)

1.1 Electrical Properties

Parameter Description
Frequency Band 1350~3000Mhz
Nominal Impedance 50 ohm
Polarization Vertical

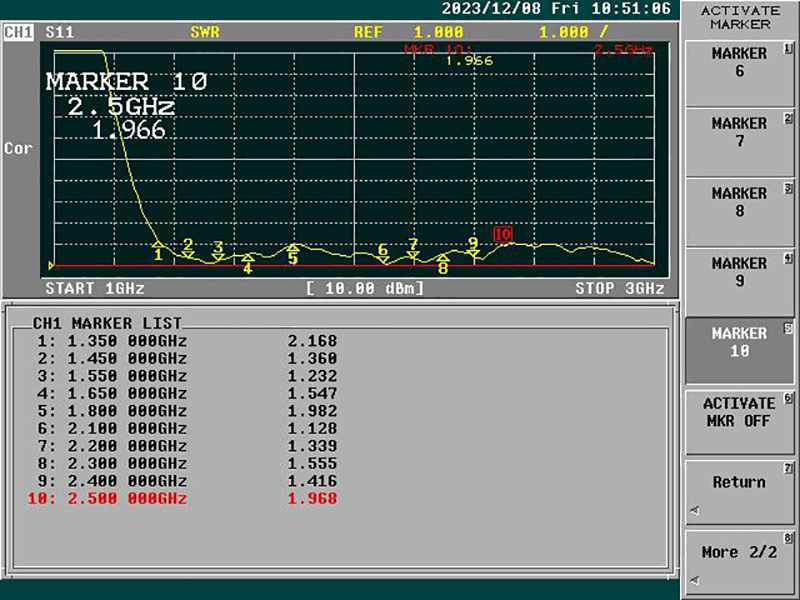

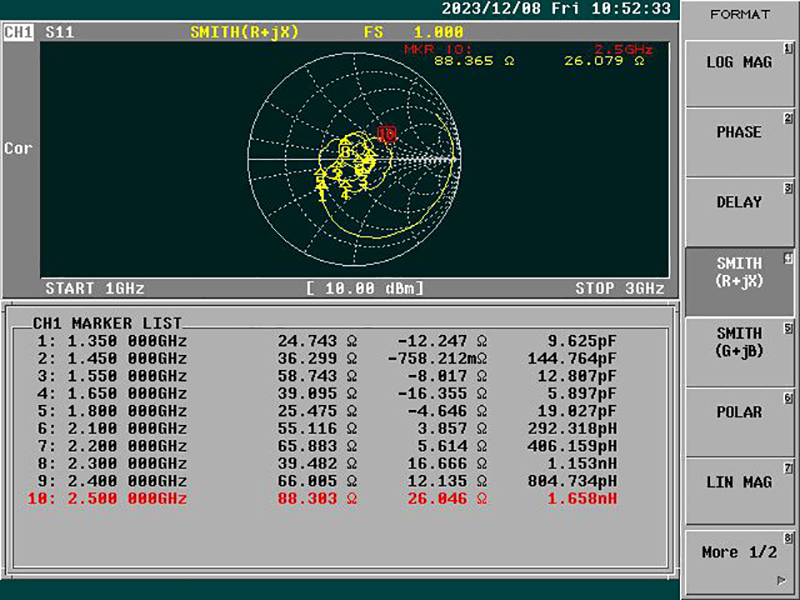

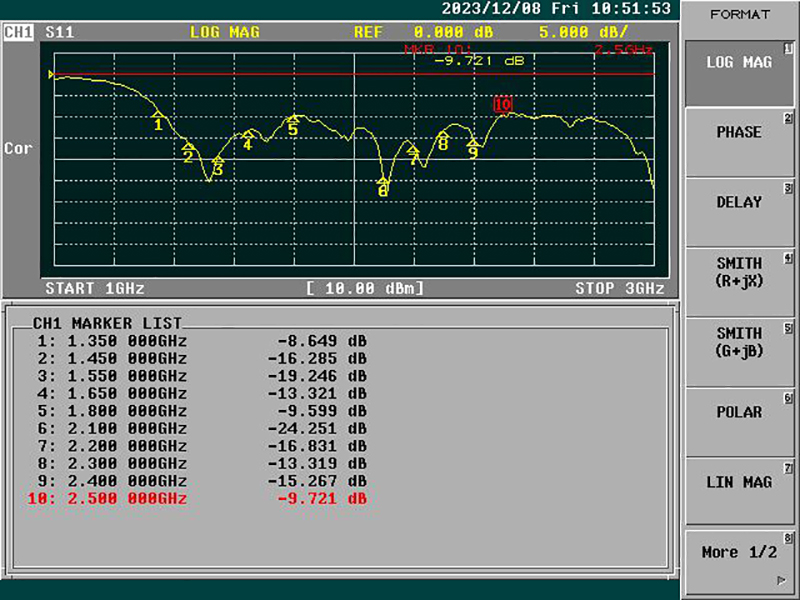

V.S.W.R 2.5:1

1.2 Mechanical Properties

Parameter Description
Antenna Type External Antenna
Material ASA
Touch Type Screw Type
Connector Type SMA connector (Male)

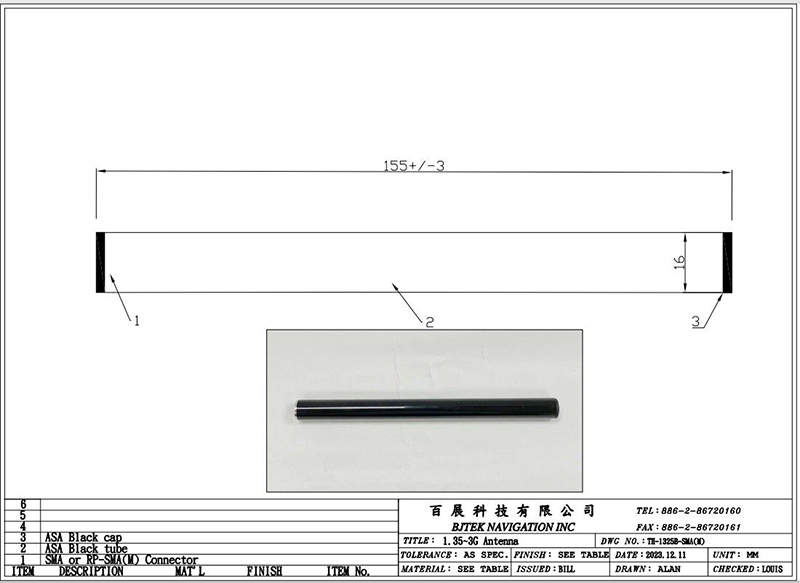

Antenna Dimensions Ø16 x 155mm ±3
Weight 35g
Antenna Color Black
Operating Temperature Range -40°C~+85°C
Storage Temperature Range -40°C~+85°C






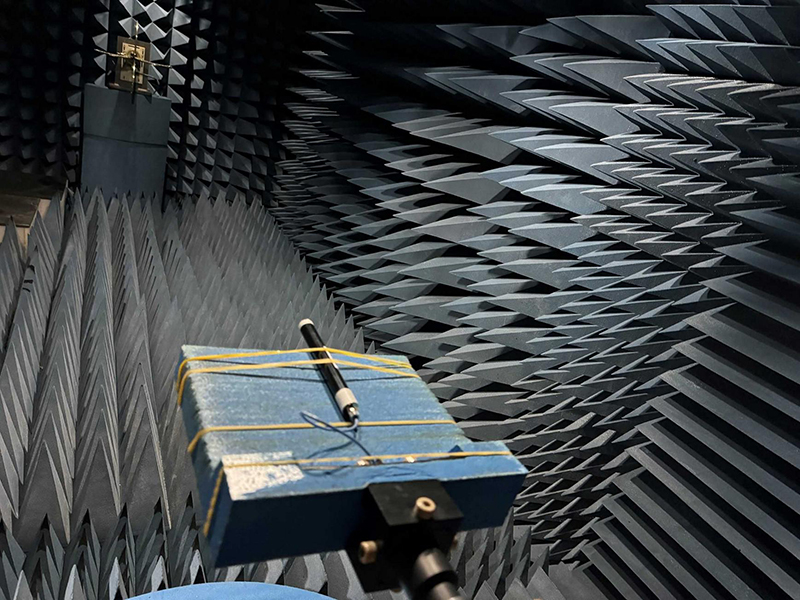

3D Total

Frequency
(MHz)		 Upper Hem.PRP
(dBm)		 Lower HEM.PRP
(dBm)		 Efficiency
(dB)		 Efficiency
(%)		 Gain
(dBi)		 Tot.Rad.Pwr.
(dBm)
1350 MHz -5.49 -5.75 -2.61 54.88 -0.07 -2.61
1400 MHz -4.49 -5.16 -1.80 66.03 1.05 -1.80
1450 MHz -4.93 -4.99 -1.95 63.82 0.72 -1.95
1500 MHz -5.27 -4.90 -2.07 62.10 0.50 -2.07
1600 MHz -5.45 -4.48 -1.93 64.14 1.36 -1.93
1700 MHz -5.83 -4.75 -2.25 59.56 1.32 -2.25
1800 MHz -6.79 -4.46 -2.46 56.72 1.06 -2.46
1900 MHz -7.10 -3.58 -1.99 63.28 1.98 -1.99
2000 MHz -8.42 -2.95 -1.87 65.09 2.84 -1.87
2100 MHz -9.16 -2.88 -1.96 63.67 3.73 -1.96
2200 MHz -7.56 -3.49 -2.05 62.36 3.27 -2.05
2300 MHz -5.97 -4.82 -2.35 58.24 1.61 -2.35
2400 MHz -6.56 -4.69 -2.52 55.99 2.26 -2.52
2500 MHz -5.69 -4.33 -1.95 63.88 3.67 -1.95
2600 MHz -4.69 -4.72 -1.69 67.74 2.49 -1.69
2700 MHz -5.08 -5.07 -2.07 62.15 1.65 -2.07
2800 MHz -6.96 -6.41 -3.67 42.96 0.23 -3.67
2900 MHz -4.56 -2.88 -0.63 86.45 3.63 -0.63
3000 MHz -5.30 -2.17 -0.45 90.18 4.73 -0.45

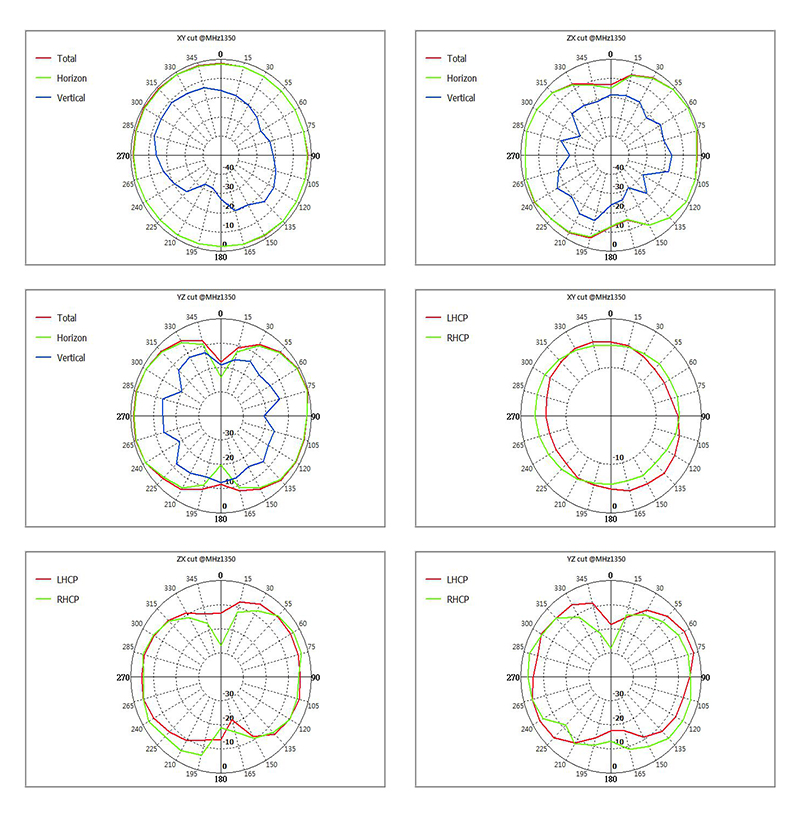

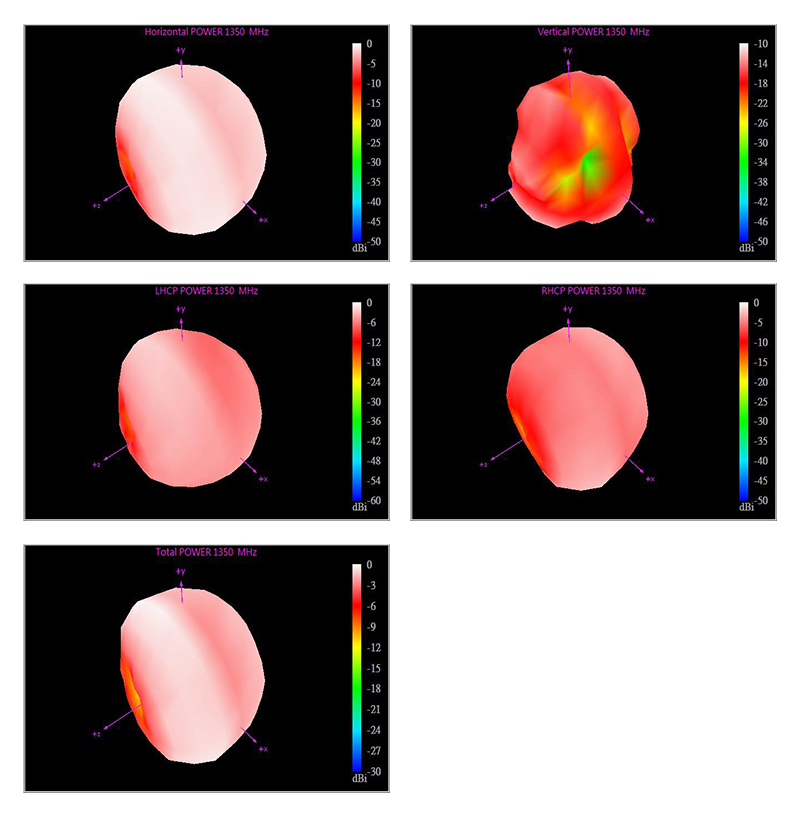

1350Mhz:

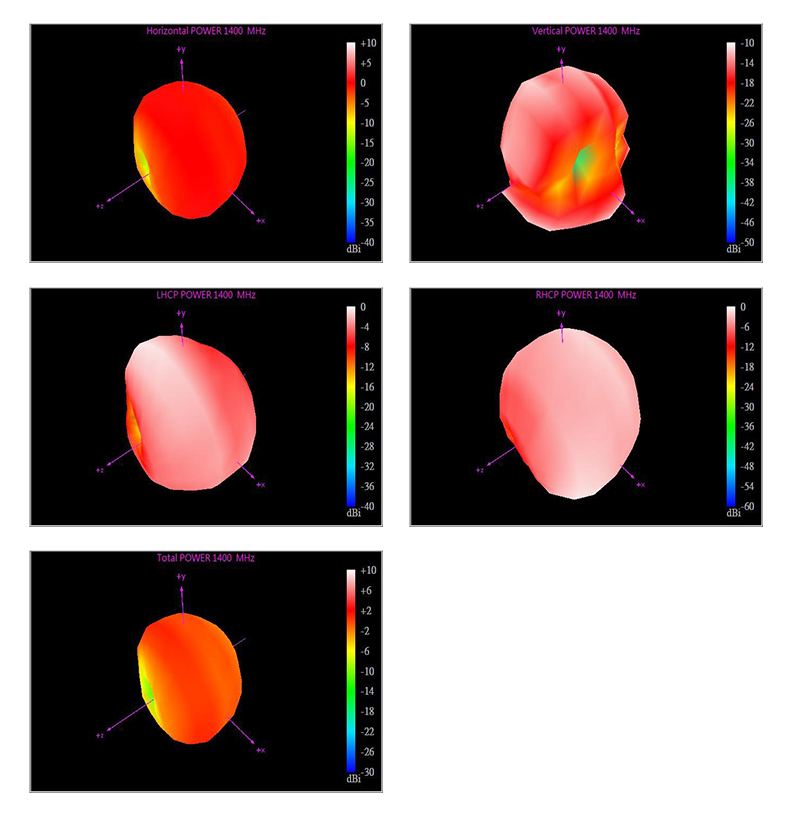

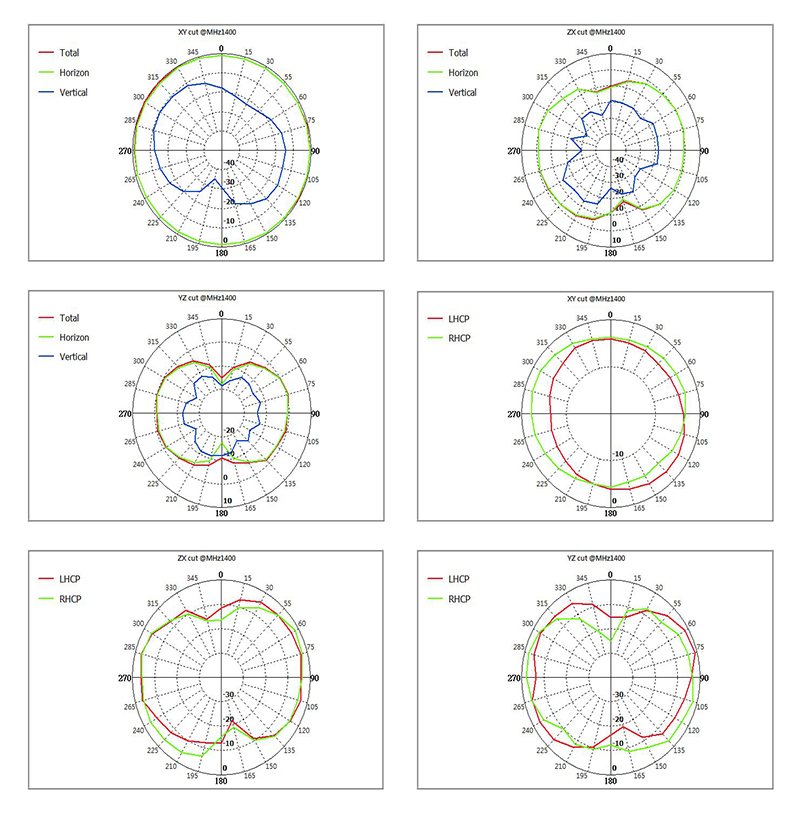

1400Mhz:

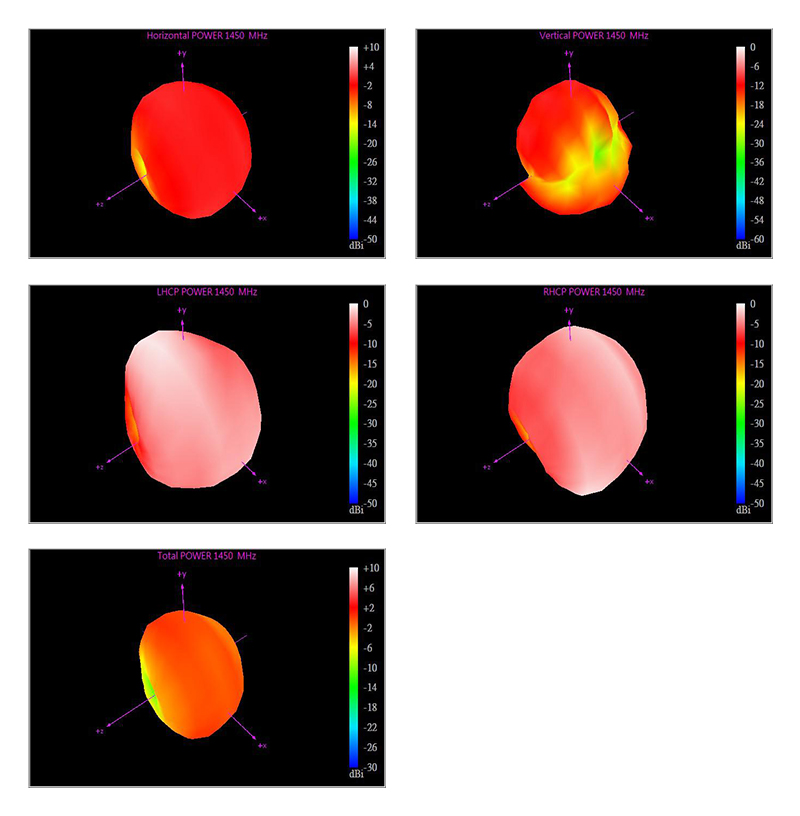

1450Mhz:

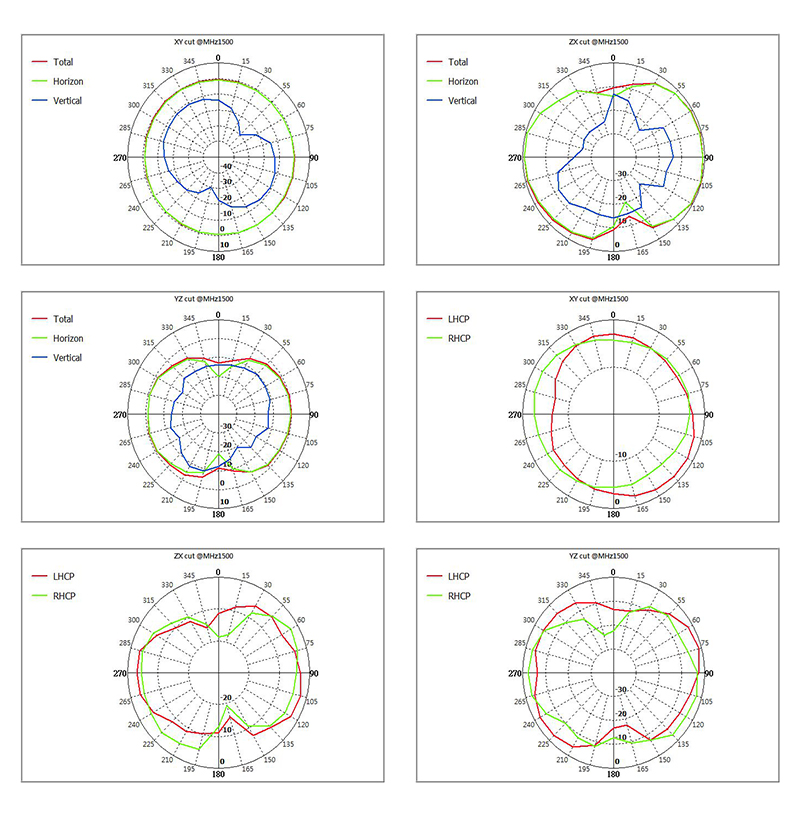

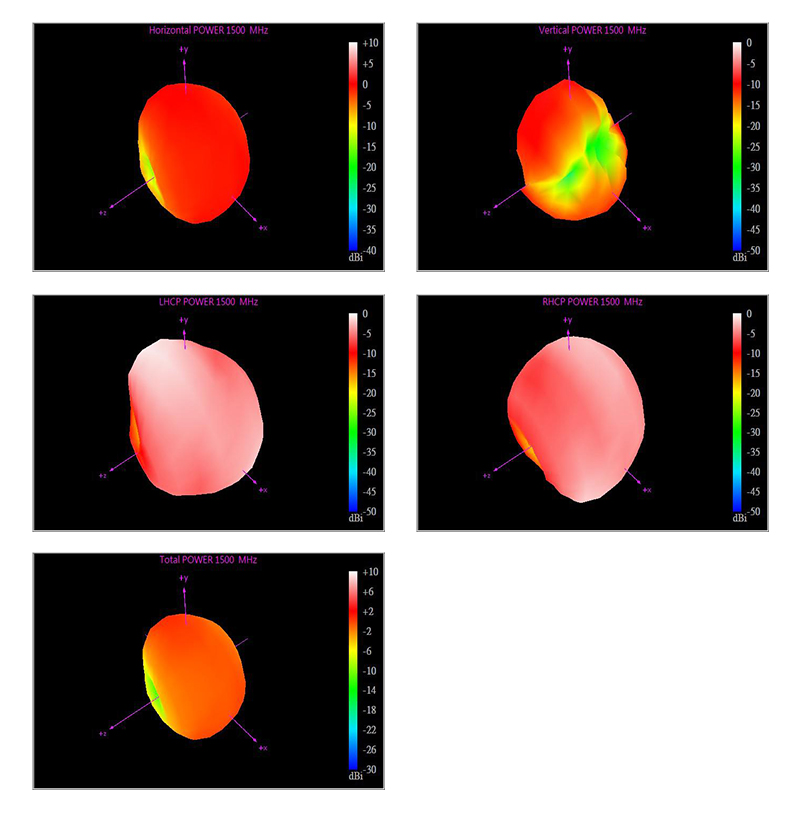

1500Mhz:

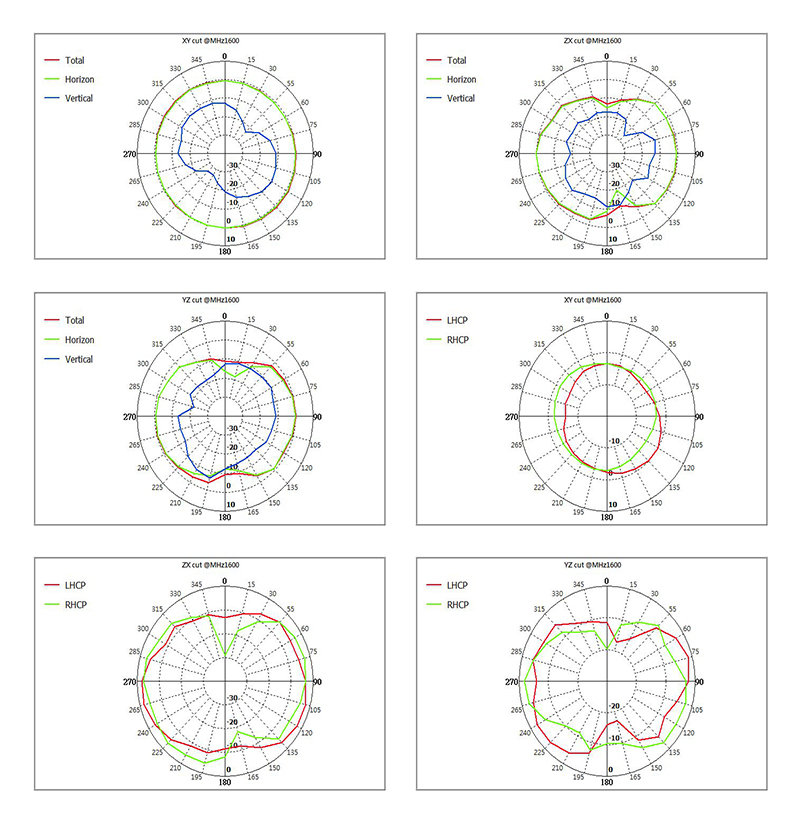

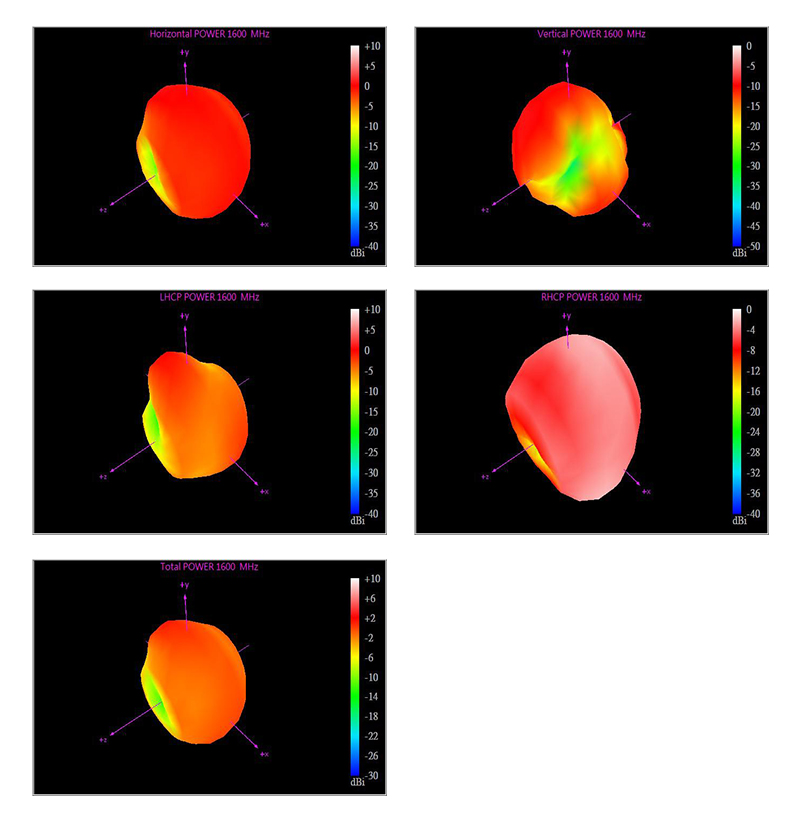

1600Mhz:

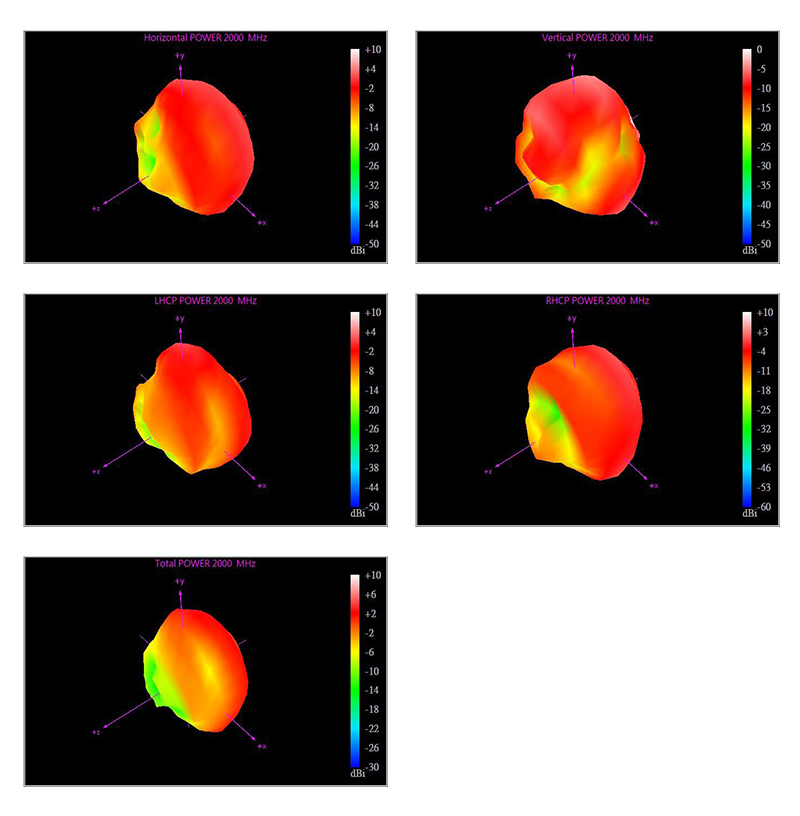

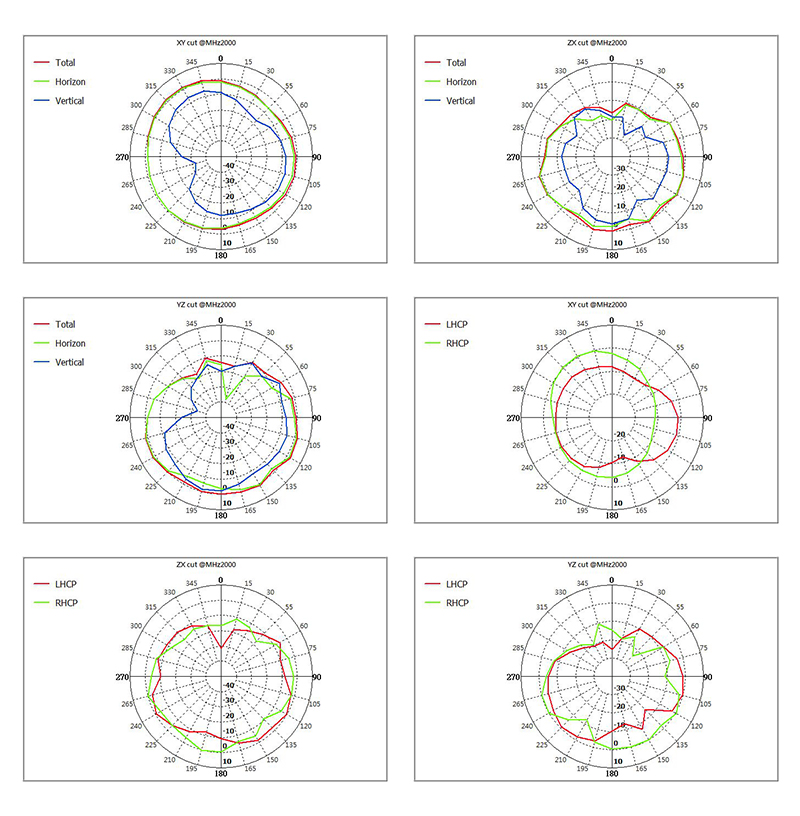

2000Mhz:

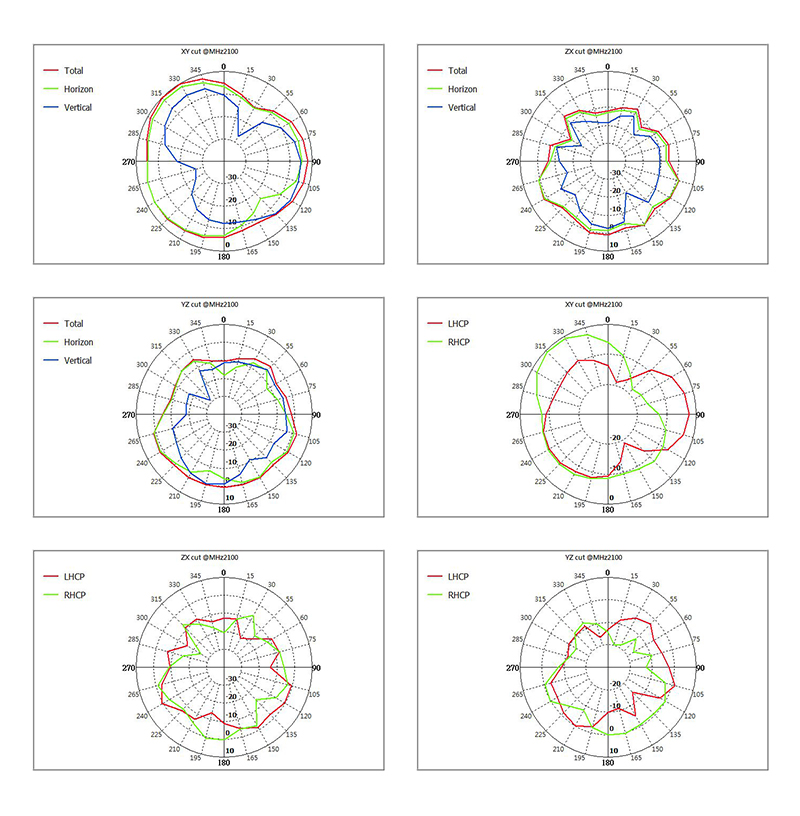

2100Mhz:

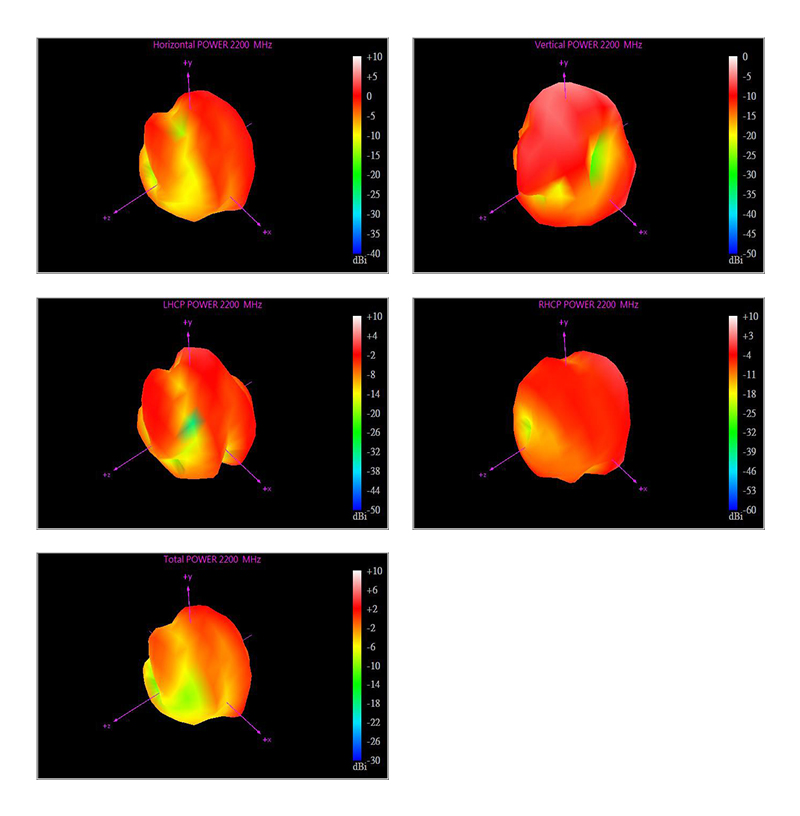

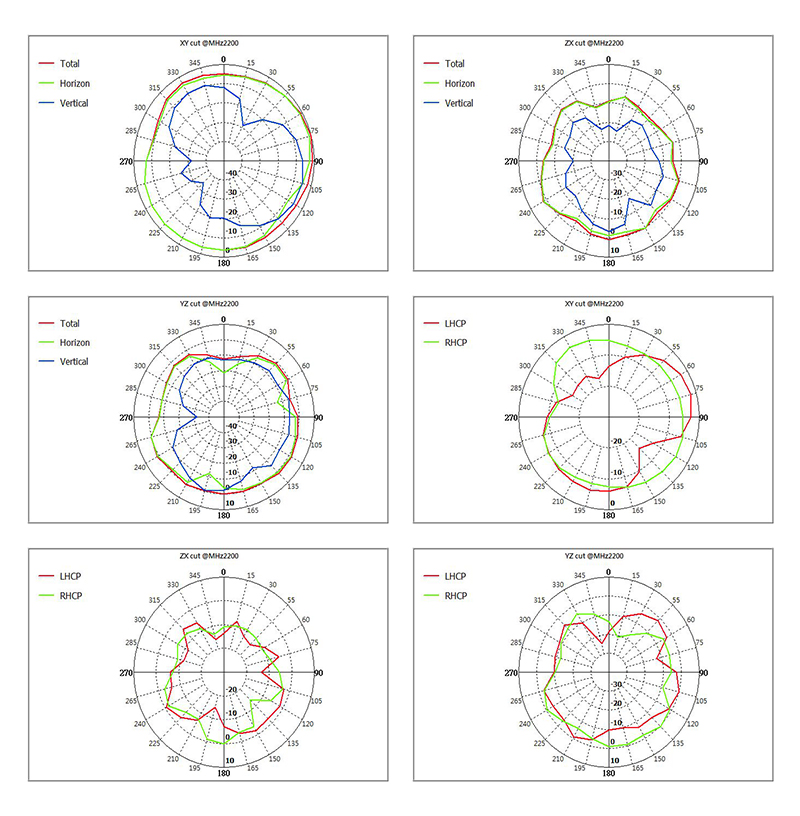

2200Mhz:

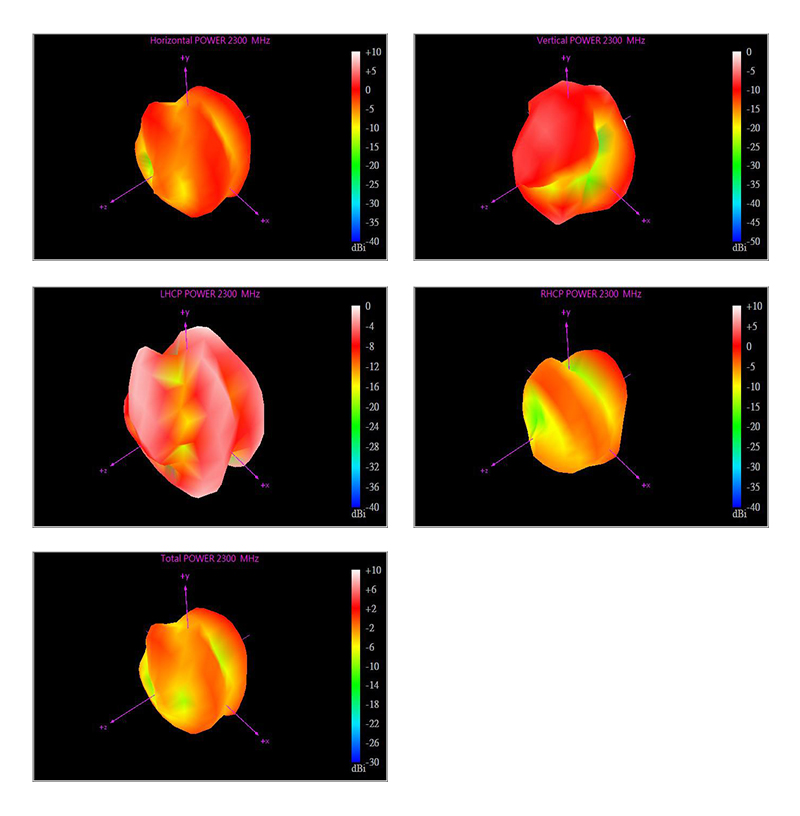

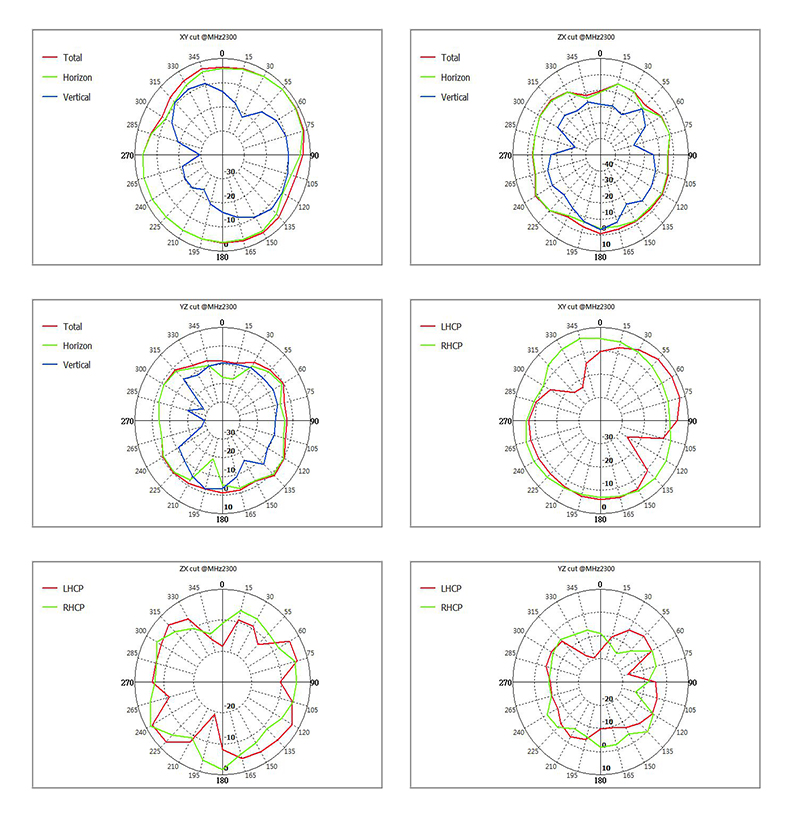

2300Mhz:

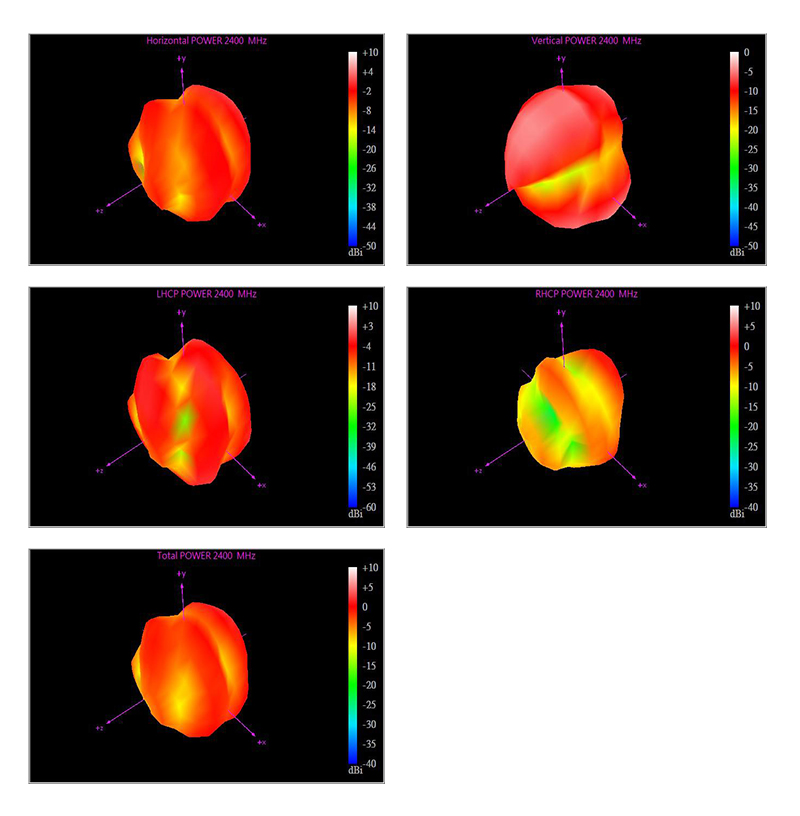

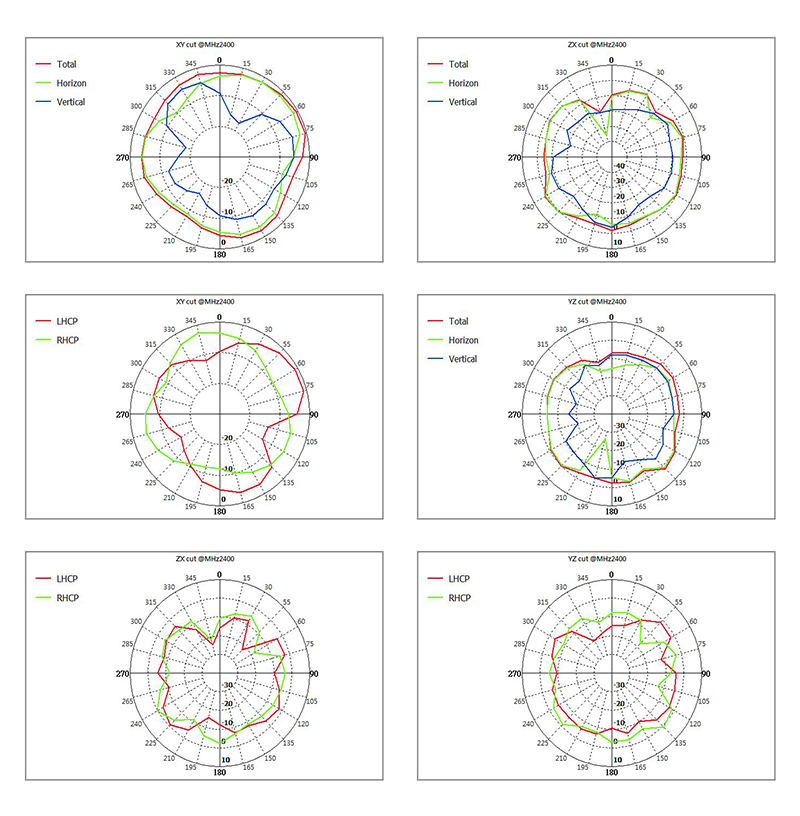

2400Mhz:

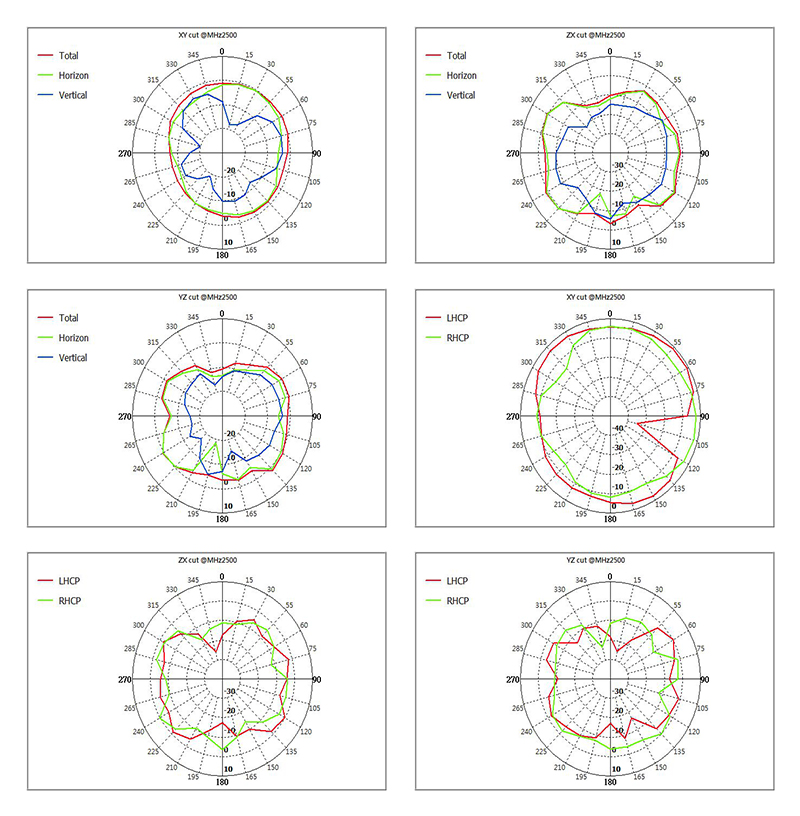

2500Mhz:

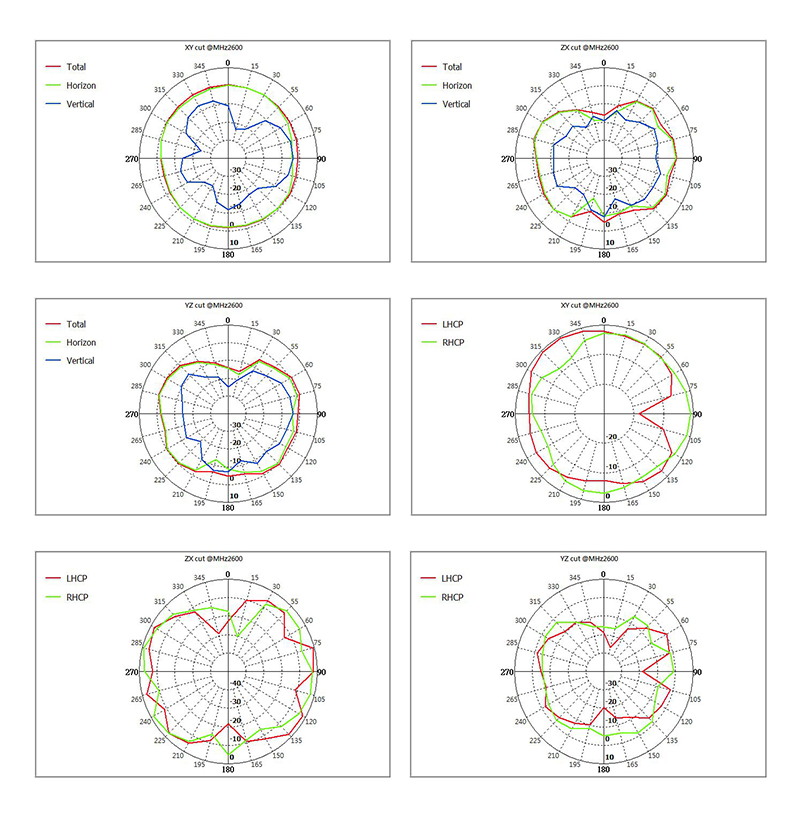

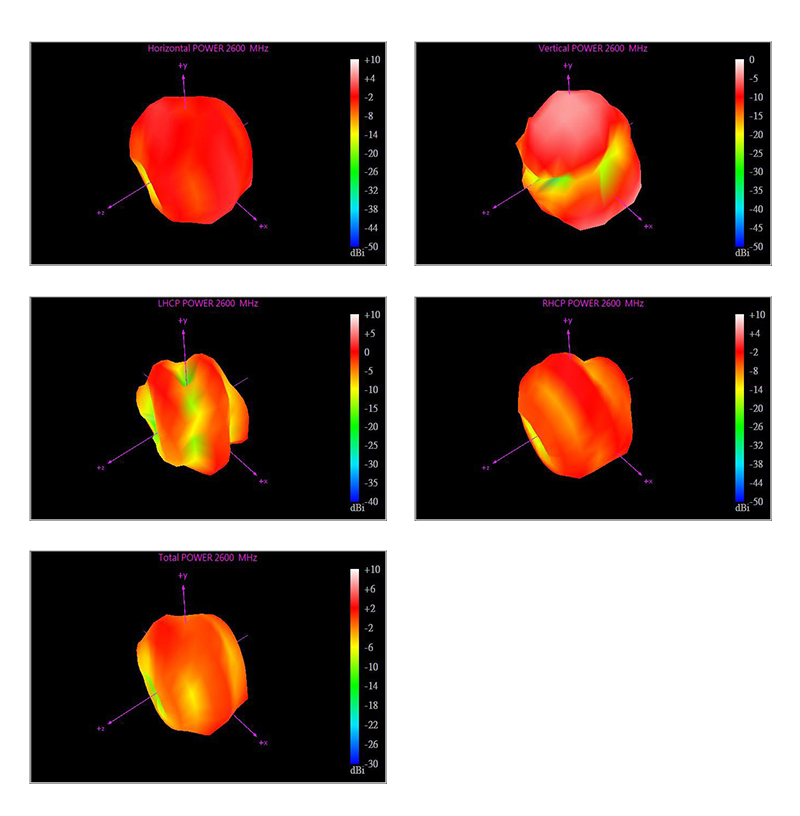

2600Mhz:

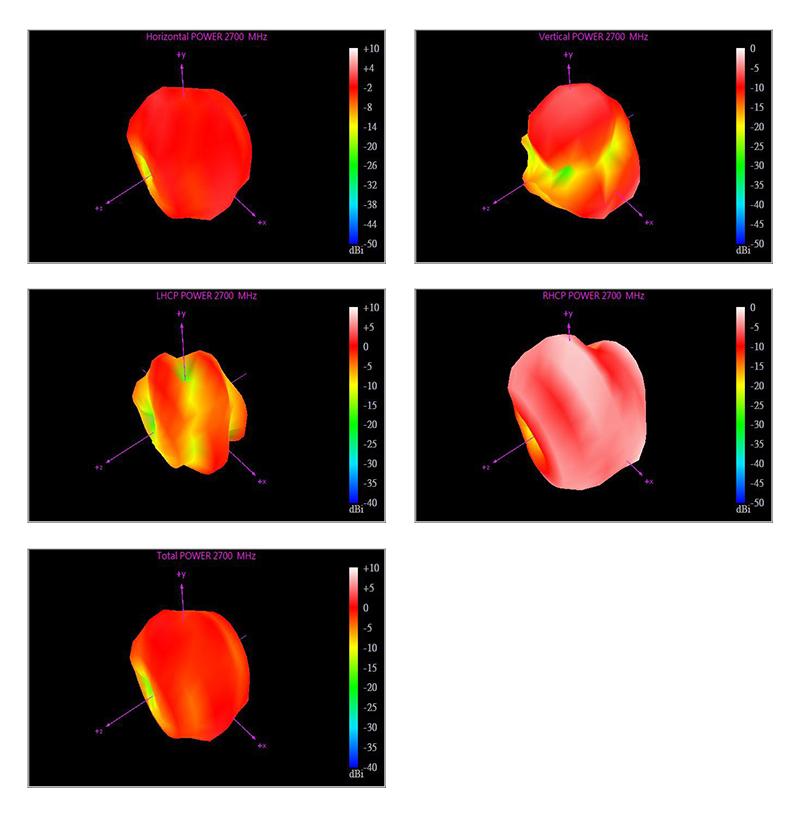

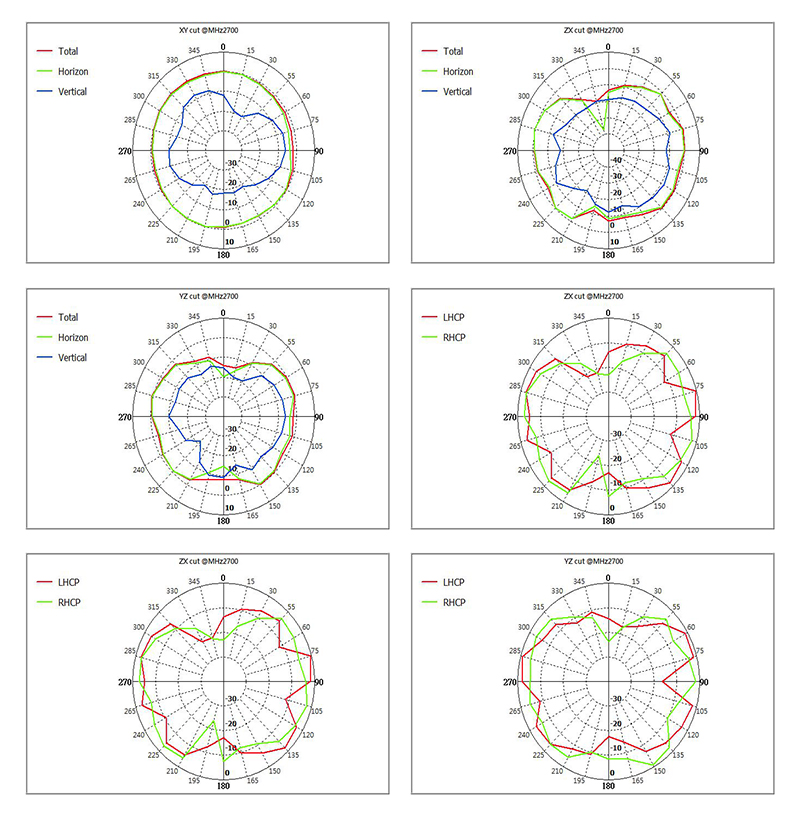

2700Mhz:
