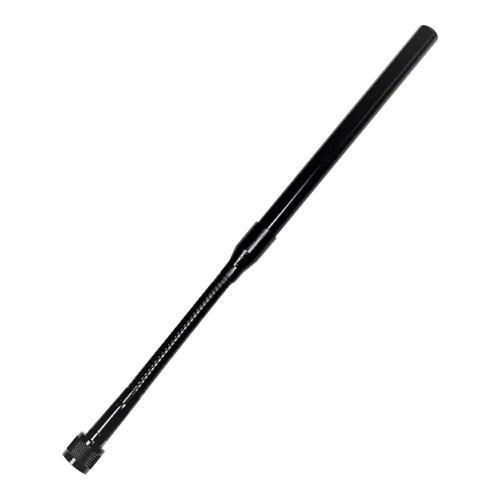

1.GENERAL DESCRIPTION
| Model No |
P/N |
| TH-9024A |
TH9024A-N(M) |
Below is a table summarizing the antenna design specification.
1.1 Electrica Properties
| Parameter |
Description |
| Frequency Band |
902~928 MHz & 2.4~2.5Ghz |
| Nominal Impedance |
50 ohm |
| Polarization |
Vertical |
| Electrical Wave |
Dipole |
| Return Loss |
Please See Data-1 |
| V.S.W.R |
2.0:1 |
| Gain |
3db |
1.2 Mechanical Properties
| Parameter |
Description |
| Antenna Type |
External Antenna |
| Touch Type |
Screw Type |
| Connector Type |
N(Male) |
| Antenna Dimensions |
370mm ± 15 |
| Antenna Color |
Black |
| Operating Temperature Range |
-30°C~+80°C |
| Storage Temperature Range |
-30°C~+80°C |
