TH‐4060B 4~6Ghz mini Antenna
  • Product Description
  • Product Specification

1. GENERAL DESCRIPTION

Model No
TH4060B-SMA(M)

1.1 Electrical Properties

Parameter Description
Frequency Band 4000~6000Mhz
Nominal Impedance 50 ohm
Polarization Vertical

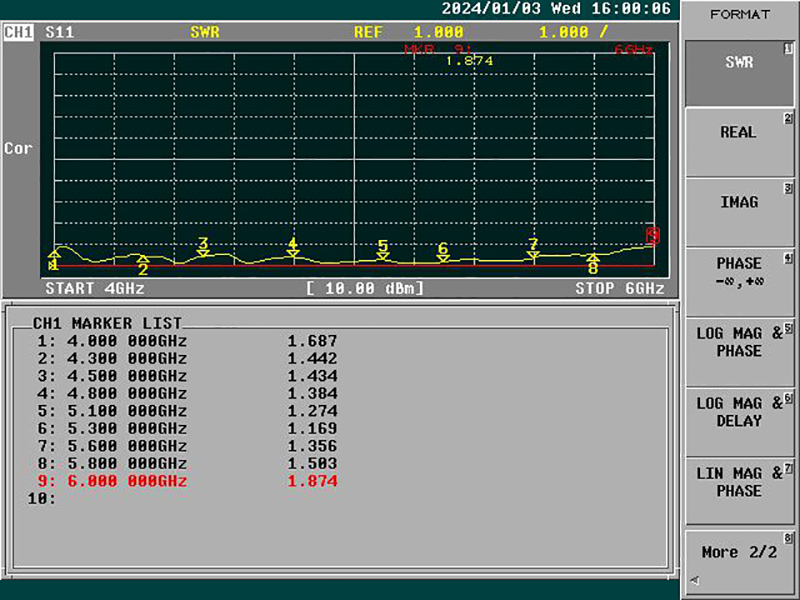

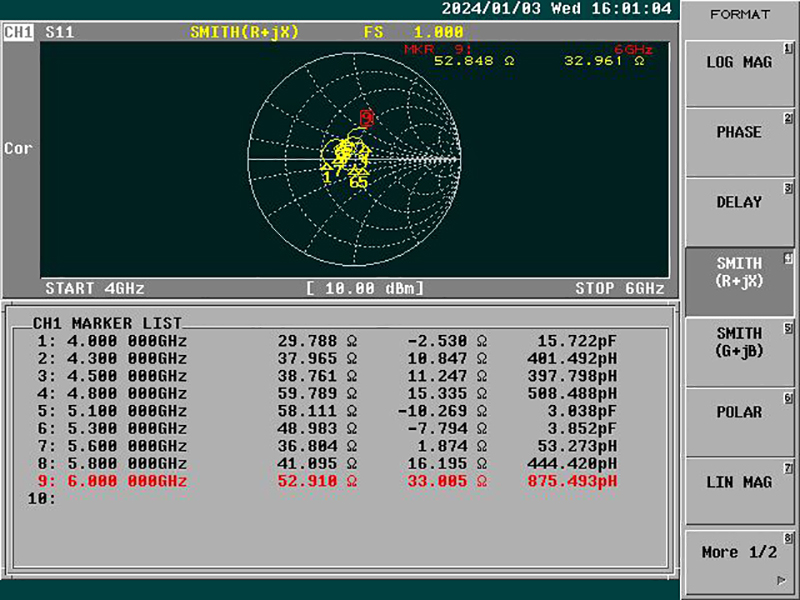

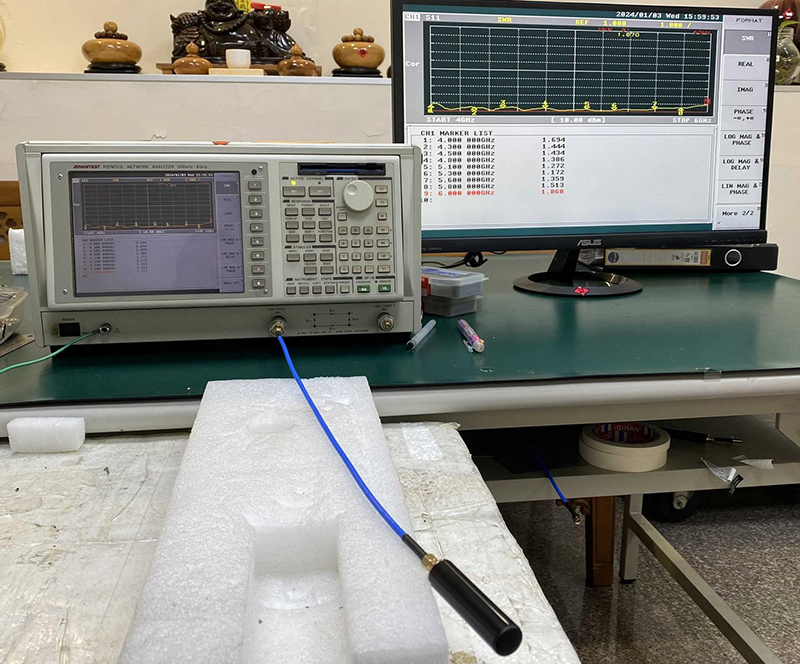

V.S.W.R 2.0:1

1.2 Mechanical Properties

Parameter Description
Antenna Type External Antenna
Material ASA
Touch Type Screw Type
Connector Type SMA connector (Male)

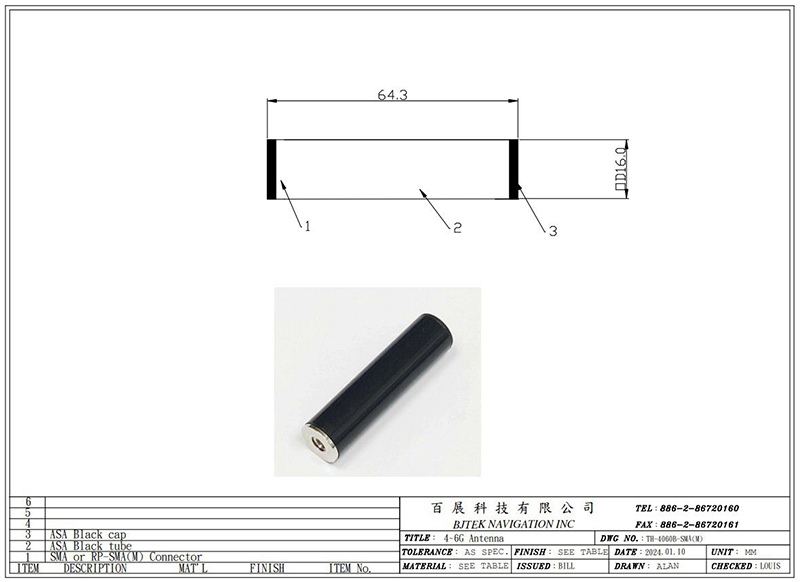

Antenna Dimensions Ø16 x 64.3mm ±3
Weight 20g
Antenna Color Black
Operating Temperature Range -40°C~+85°C
Storage Temperature Range -40°C~+85°C





3D Total

Frequency
(MHz)		 Upper Hem.PRP
(dBm)		 Lower HEM.PRP
(dBm)		 Efficiency
(dB)		 Efficiency
(%)		 Gain
(dBi)		 Tot.Rad.Pwr.
(dBm)
4000 MHz -5.04 0.86 -1.85 65.31 8.07 -1.85
4050 MHz -3.35 2.05 -1.78 66.37 9.43 -1.78
4100 MHz -6.06 -0.74 -2.12 61.38 6.52 -2.12
4150 MHz -5.31 -0.29 -1.93 64.12 6.82 -1.93
4200 MHz -5.72 -1.00 -1.67 68.08 7.38 -1.67
4250 MHz -4.98 -0.91 -2.32 58.61 6.70 -2.32
4300 MHz -2.65 1.06 -1.56 69.82 7.49 -1.56
4350 MHz -4.63 -1.06 -2.03 62.66 5.63 -2.03
4400 MHz -5.66 -2.19 -1.71 67.45 5.17 -1.71
4450 MHz -6.88 -3.81 -2.07 62.07 3.72 -2.07
4500 MHz -6.08 -3.81 -1.79 66.25 3.31 -1.79
4550 MHz -5.99 -3.67 -1.66 68.17 3.07 -1.66
4600 MHz -5.96 -3.98 -1.85 65.31 3.33 -1.85
4650 MHz -5.90 -3.86 -1.75 66.86 2.31 -1.75
4700 MHz -5.89 -3.81 -4.23 37.76 3.37 -4.23
4750 MHz -5.51 -3.58 -1.43 71.93 3.78 -1.43
4850 MHz -3.99 -2.60 -1.48 71.12 4.19 -1.48
4900 MHz -4.63 -3.08 -2.01 62.95 4.43 -2.01
5150 MHz -4.54 -4.09 -1.30 74.07 3.17 -1.30
5250 MHz -5.46 -5.48 -2.46 56.81 2.26 -2.46
5350 MHz -4.94 -5.22 -2.07 62.10 1.96 -2.07
5470 MHz -5.12 -5.53 -2.31 58.76 2.05 -2.31
5600 MHz -4.03 -5.14 -1.54 70.15 2.67 -1.54
5725 MHz -4.65 -6.07 -2.29 59.01 1.79 -2.29
5785 MHz -4.65 -6.31 -2.39 57.62 2.57 -2.39
5800 MHz -5.09 -6.63 -2.78 52.68 1.26 -2.78
5850 MHz -4.45 -6.32 -2.28 59.22 1.84 -2.28
5900 MHz -3.03 -5.07 -1.92 64.27 4.02 -1.92
5950 MHz -0.86 -2.66 -1.35 73.28 5.57 -1.35
6000 MHz -4.54 -6.76 -2.50 56.21 1.95 -2.50

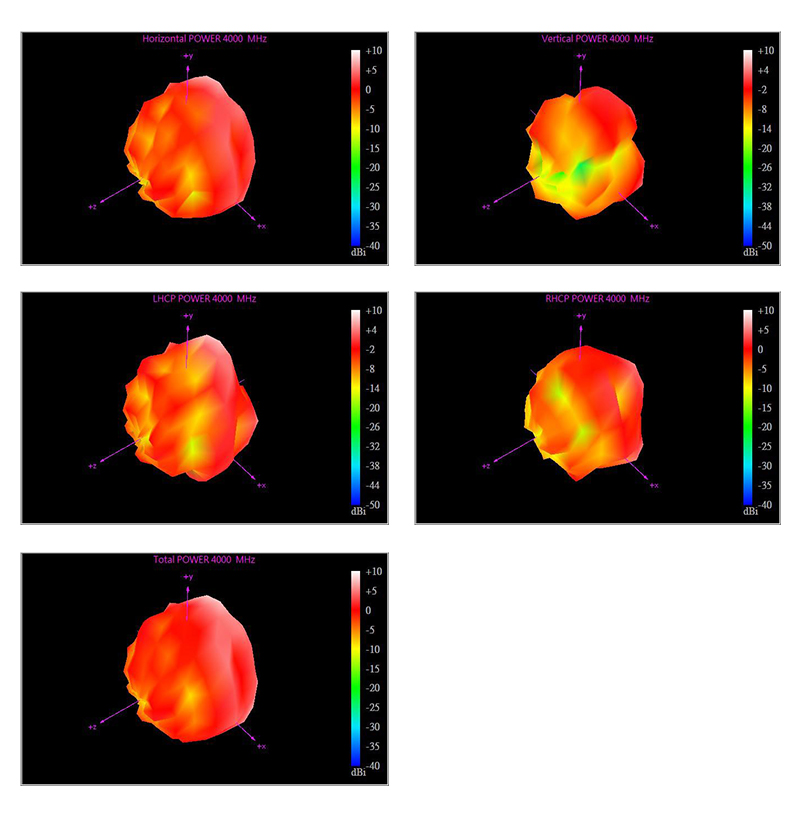

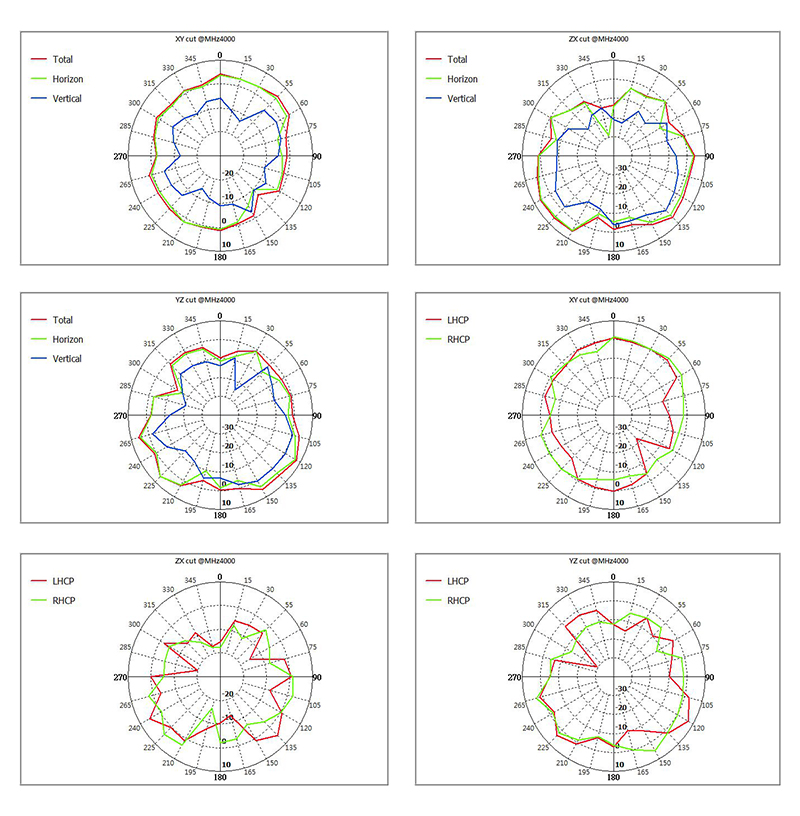

4000Mhz:

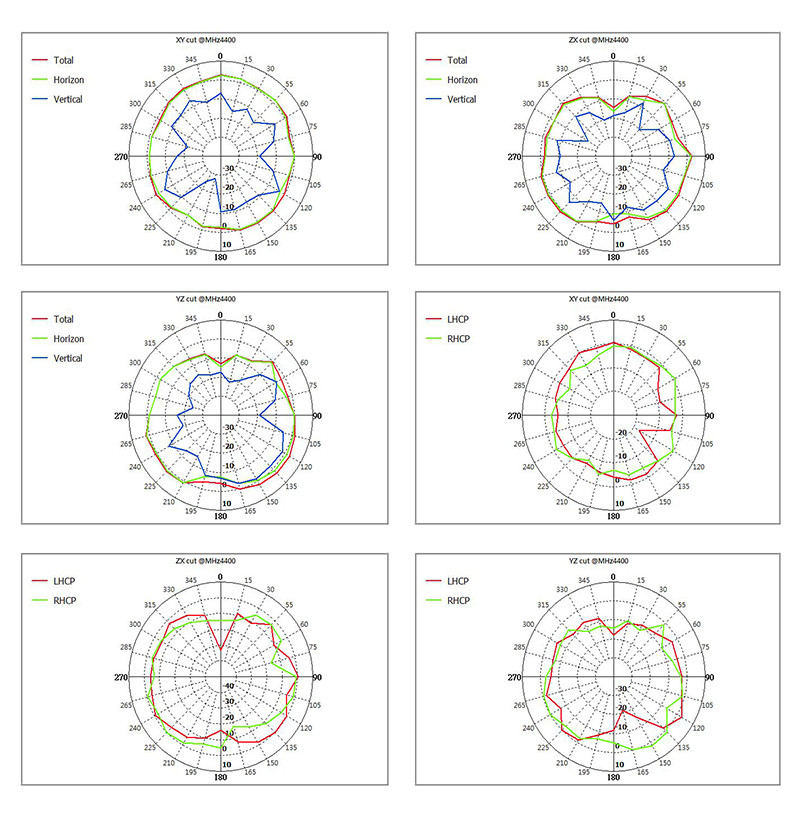

4400Mhz:

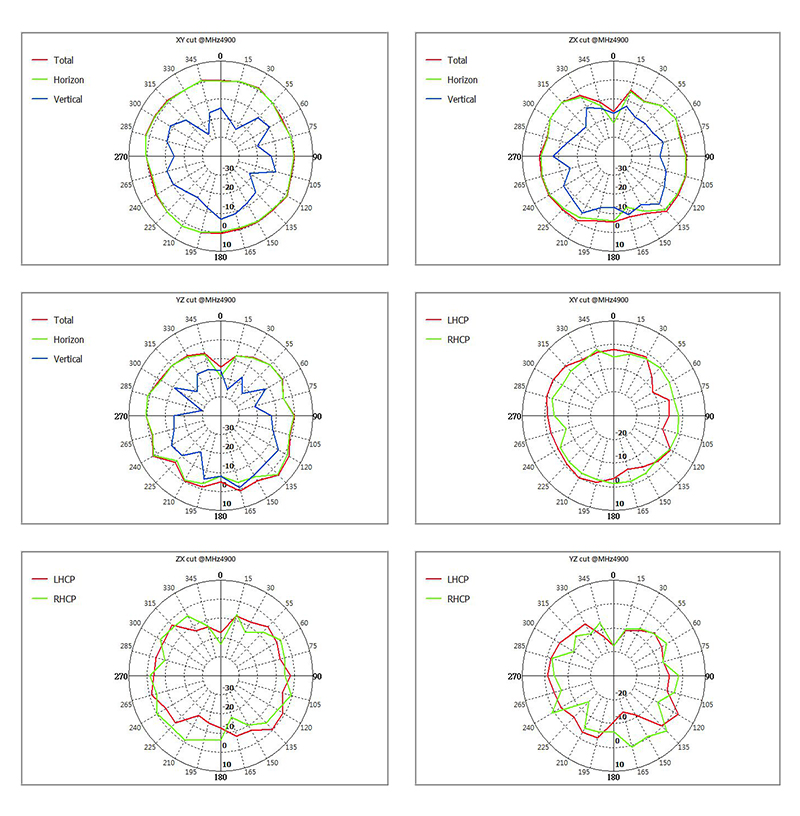

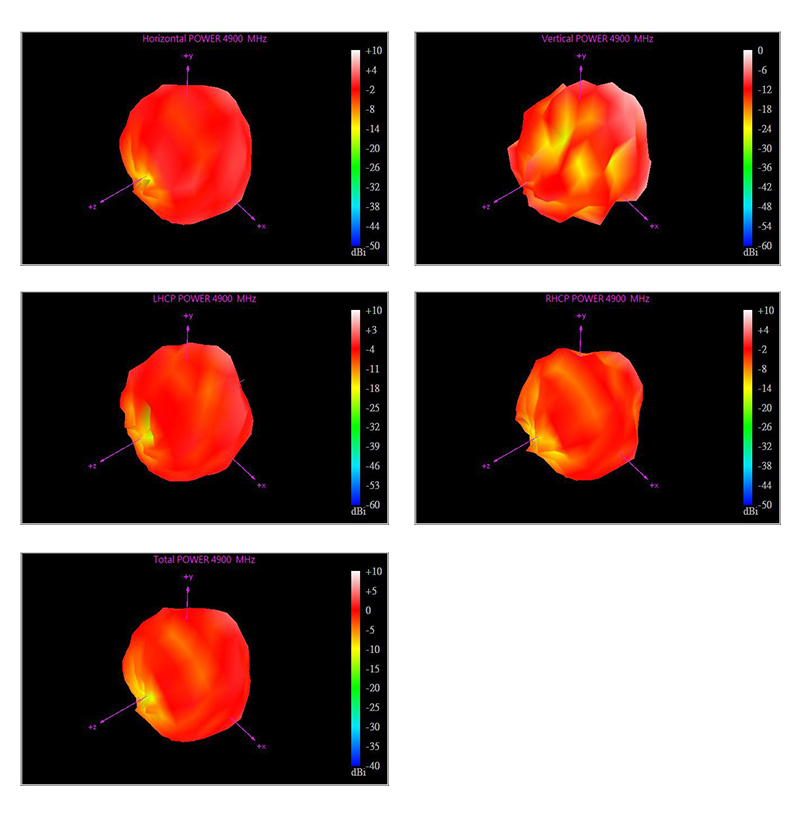

4900Mhz:

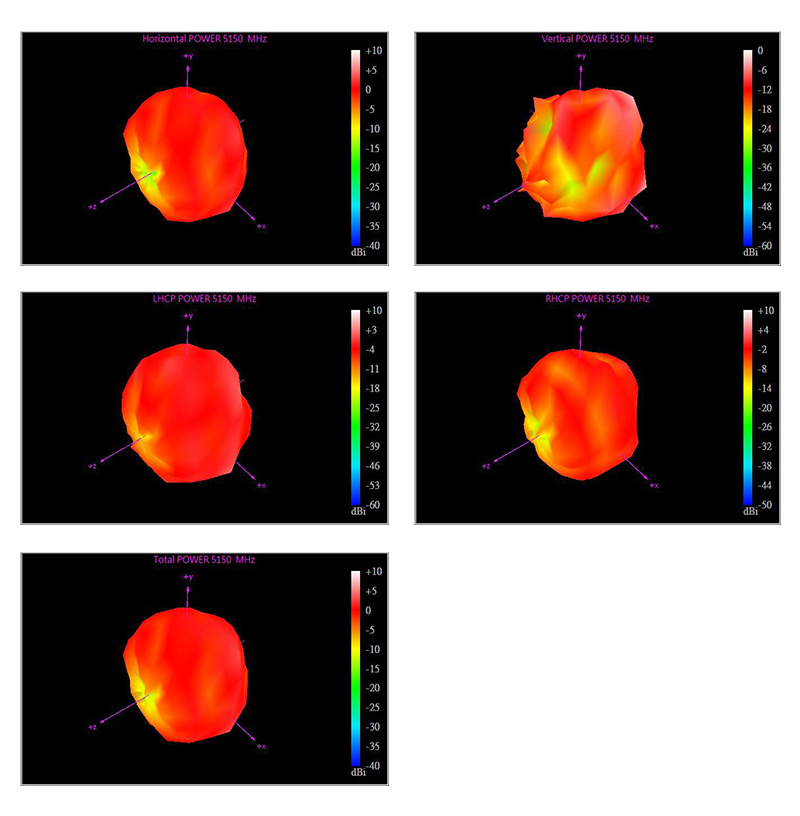

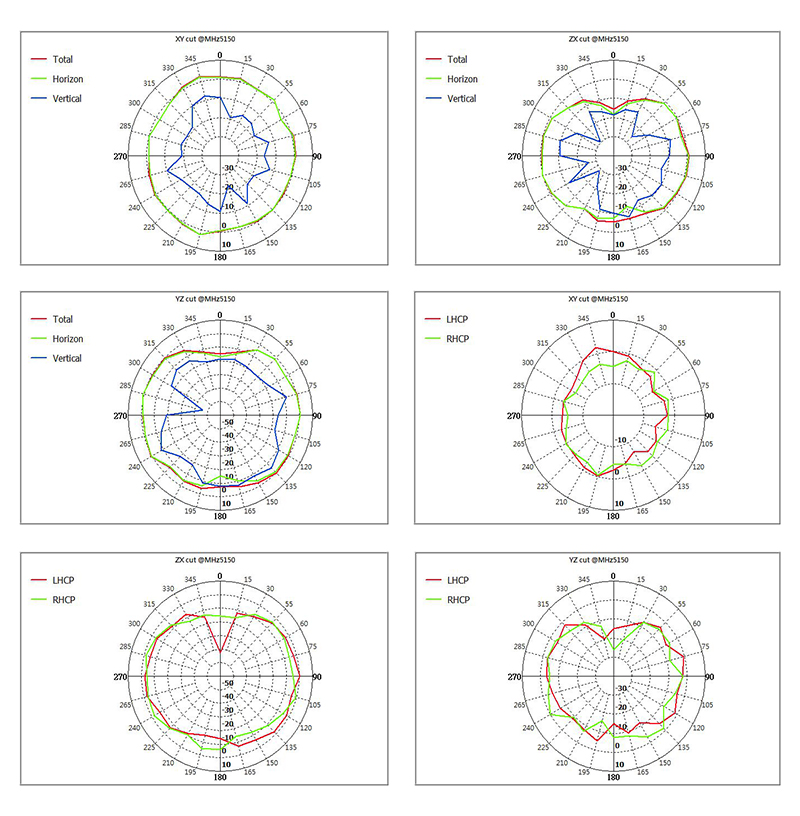

5150Mhz:

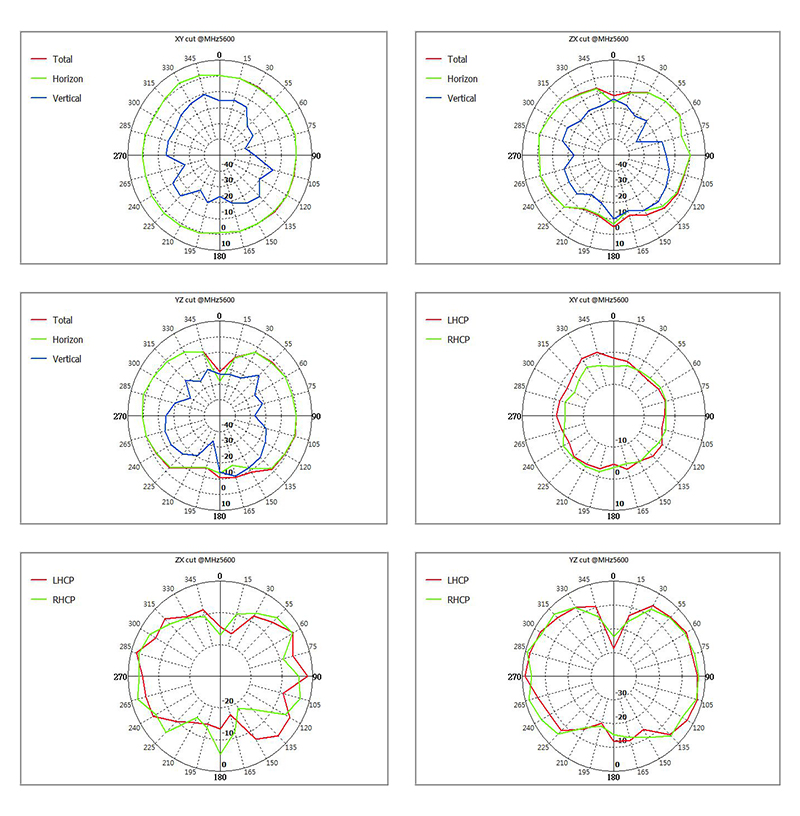

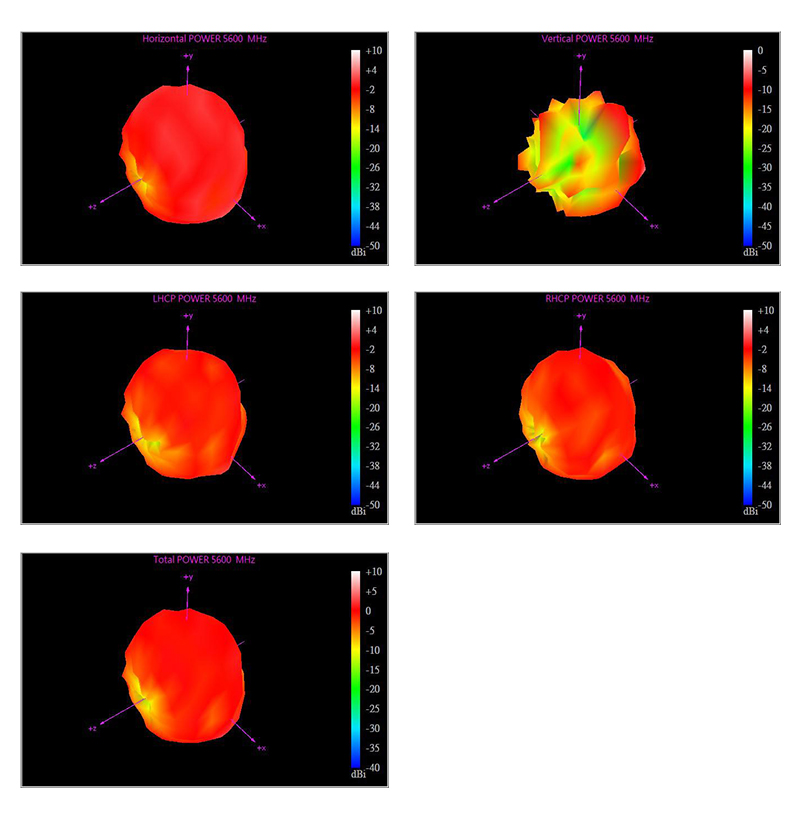

5600Mhz:

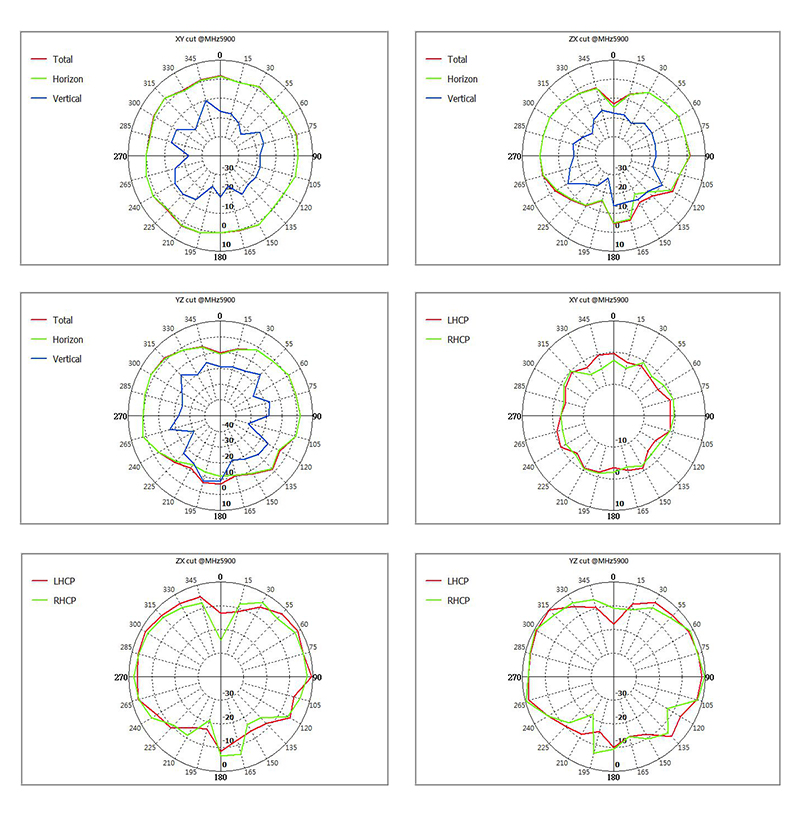

5900Mhz:
