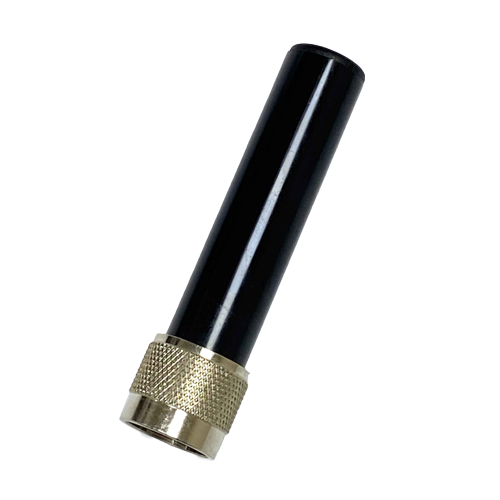

TH-3360B
  • Product Description
  • Product Specification

1.GENERAL DESCRIPTION

Model No
TH3360B-N(M)

1.1 Electrical Properties

Parameter Description
Frequency Band 3300~6000MHz
Nominal Impedance 50 ohm
Polarization Vertical
V.S.W.R 2.0:1

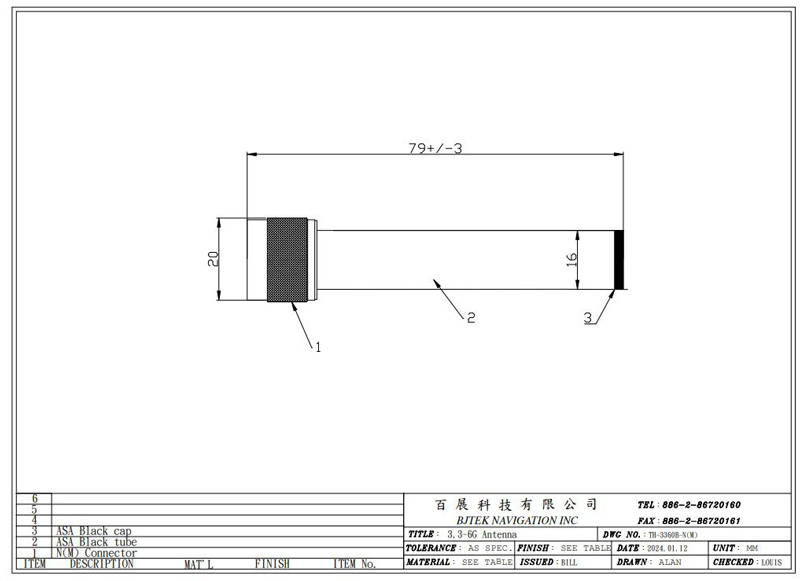

1.2 Mechanical Properties

Parameter Description
Antenna Type External Antenna
Materal ASA
Touch Type Screw Type
Connector Type N connector (Male)
Antenna Dimensions 79mm ±3
Antenna Color Black
Operating Temperature Range -40°C~+85°C
Storage Temperature Range -40°C~+85°C

Our TH-3360B is a Passive Antenna that is best for all types of communication transmission equipment. Such as, UAV control data image transmission, wireless AP, PA signal transmission, interference... etc. The ASA is strong weather resistance and its anti-aging performance is more than 10 times that of ABS. It has relatively good high temperature resistance, with a fire rating of UL94-HB or above. Please don’t hesitate to email us if you have any questions.

3D Total

Frequency
(MHz)		 Upper Hem.
PRP (dBm)		 Lower HEM.
PRP (dBm)		 Efficiency
(dB)		 Efficiency
(%)		 Gain (dBi) Tot. Rad.Pwr.
(dBm)
3300 MHz -9.48 -3.65 -2.64 54.40 3.70 -2.64
3350 MHz -8.23 -2.13 -1.18 76.29 5.79 -1.18
3400 MHz -10.01 -4.40 -3.35 46.27 3.01 -3.35
3450 MHz -8.85 -3.05 -2.04 62.57 4.08 -2.04
3500 MHz -8.59 -2.50 -1.54 70.09 4.77 -1.54
3550 MHz -9.89 -3.33 -2.46 56.75 3.72 -2.46
3600 MHz -9.00 -2.81 -1.87 64.96 4.74 -1.87
3650 MHz -8.04 -1.45 -1.59 69.34 5.80 -0.59
3700 MHz -9.75 -3.03 -2.19 60.42 4.62 -2.19
3750 MHz -9.19 -2.92 -2.00 63.15 4.89 -2.00
3800 MHz -9.46 -3.68 -2.66 54.22 4.23 -2.66
3850 MHz -8.09 -2.57 -1.49 70.92 5.50 -1.49
4400 MHz -5.50 -2.83 -0.95 80.36 3.61 -0.95
4450 MHz -6.81 -4.30 -2.37 58.00 2.17 -2.37
4500 MHz -6.49 -3.87 -1.97 63.48 2.45 -1.97
4550 MHz -6.25 -3.73 -1.80 66.05 2.23 -1.80
4600 MHz -6.26 -3.60 -1.72 67.36 2.69 -1.72
4650 MHz -6.07 -3.63 -1.67 68.02 2.84 -1.67
4700 MHz -6.02 -3.69 -4.17 38.28 2.97 -4.17
4750 MHz -5.74 -3.11 -1.22 75.56 4.12 -1.22
4850 MHz -5.26 -2.52 -1.67 68.08 3.82 -0.67
4900 MHz -5.70 -2.61 -1.87 65.01 3.34 -0.87
5150 MHz -7.35 -3.59 -2.06 62.16 3.04 -2.06
5250 MHz -8.31 -4.69 -3.13 48.68 2.20 -3.13
5350 MHz -8.31 -4.35 -2.88 51.47 2.00 -2.88
5470 MHz -9.23 -4.75 -3.43 45.42 2.01 -3.43
5600 MHz -9.31 -4.48 -3.25 47.34 2.52 -3.25
5725 MHz -9.60 -5.01 -3.72 42.50 1.76 -3.72
5785 MHz -9.71 -5.13 -3.83 41.42 2.20 -3.83
5800 MHz -9.73 -5.06 -3.79 41.82 2.19 -3.79
5850 MHz -9.12 -4.65 -3.33 46.49 2.88 -3.33
5900 MHz -7.95 -3.77 -2.36 58.01 3.22 -2.36
5950 MHz -5.68 -1.52 -2.11 61.52 6.05 -0.11
6000 MHz -8.75 -5.07 -3.52 44.47 1.80 -3.52

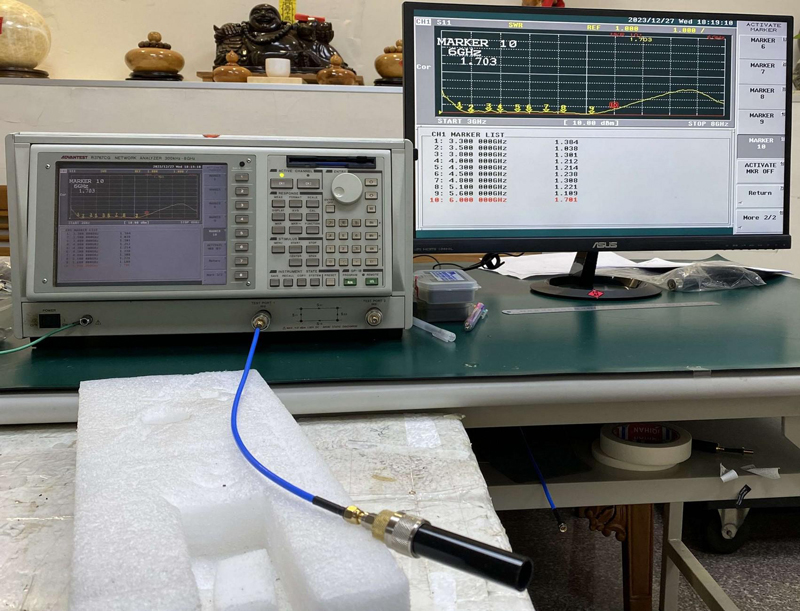

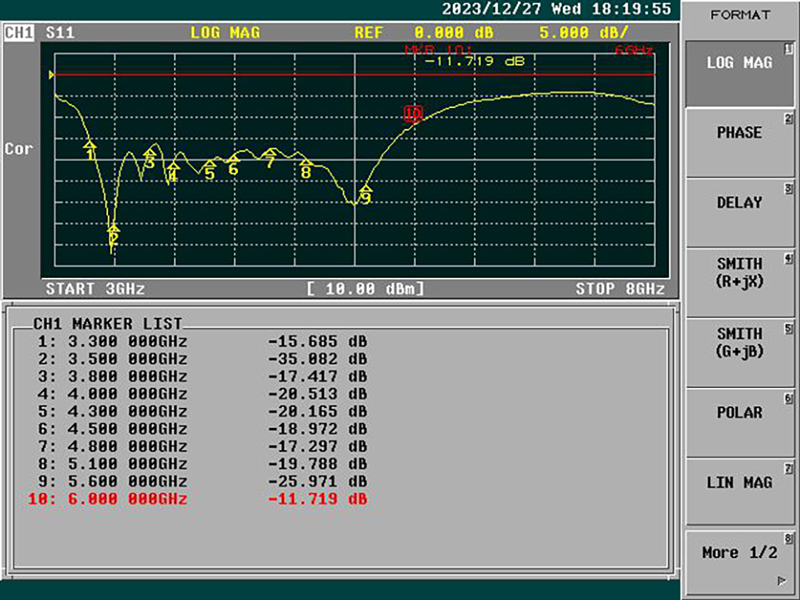

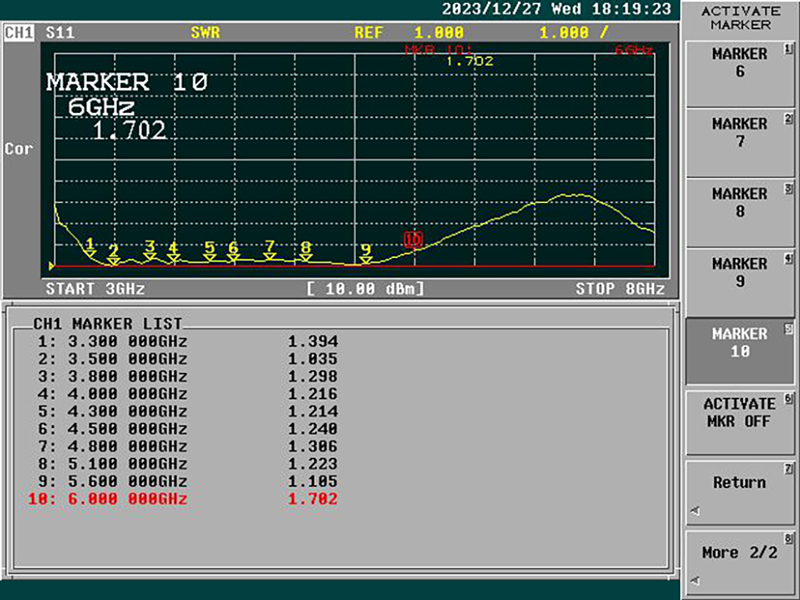

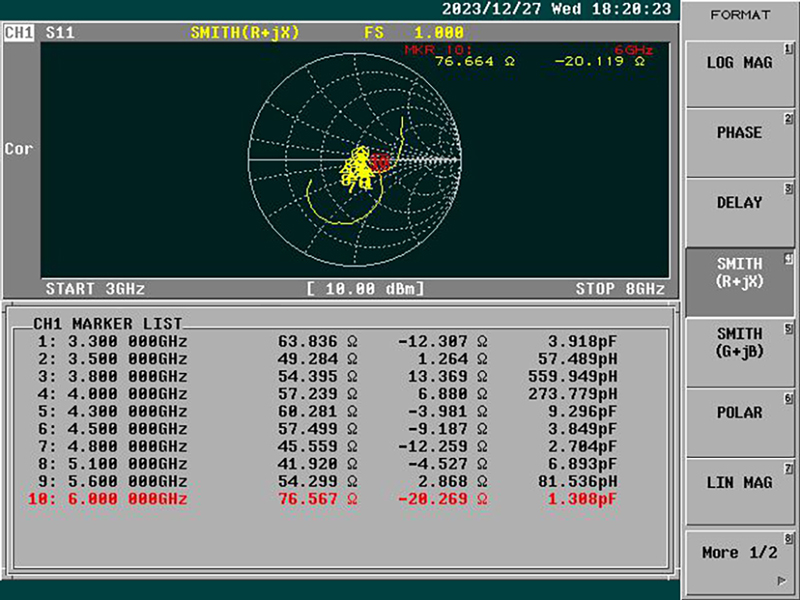

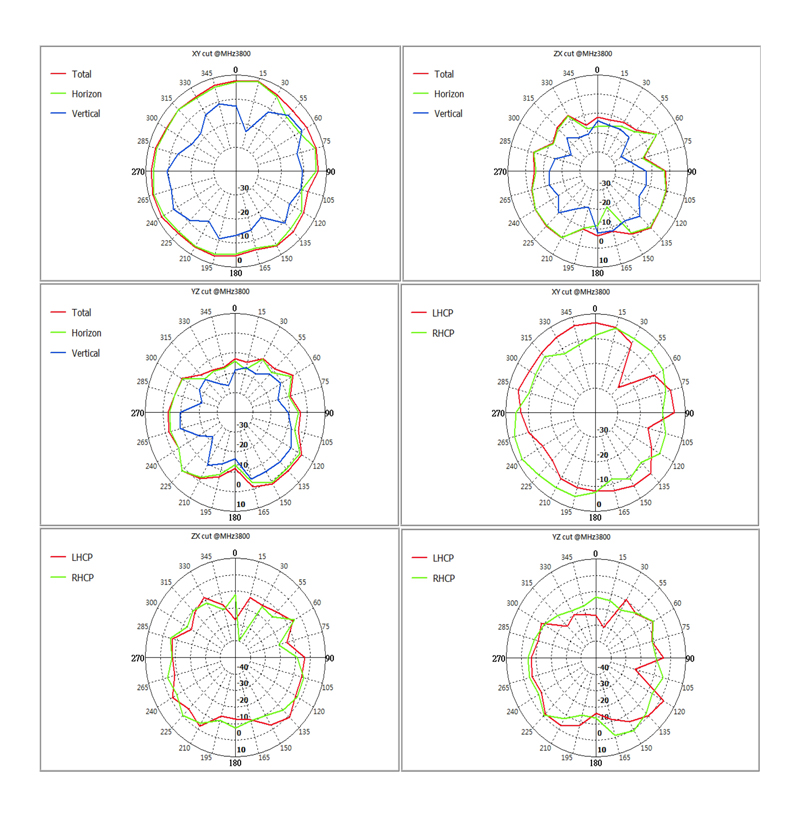

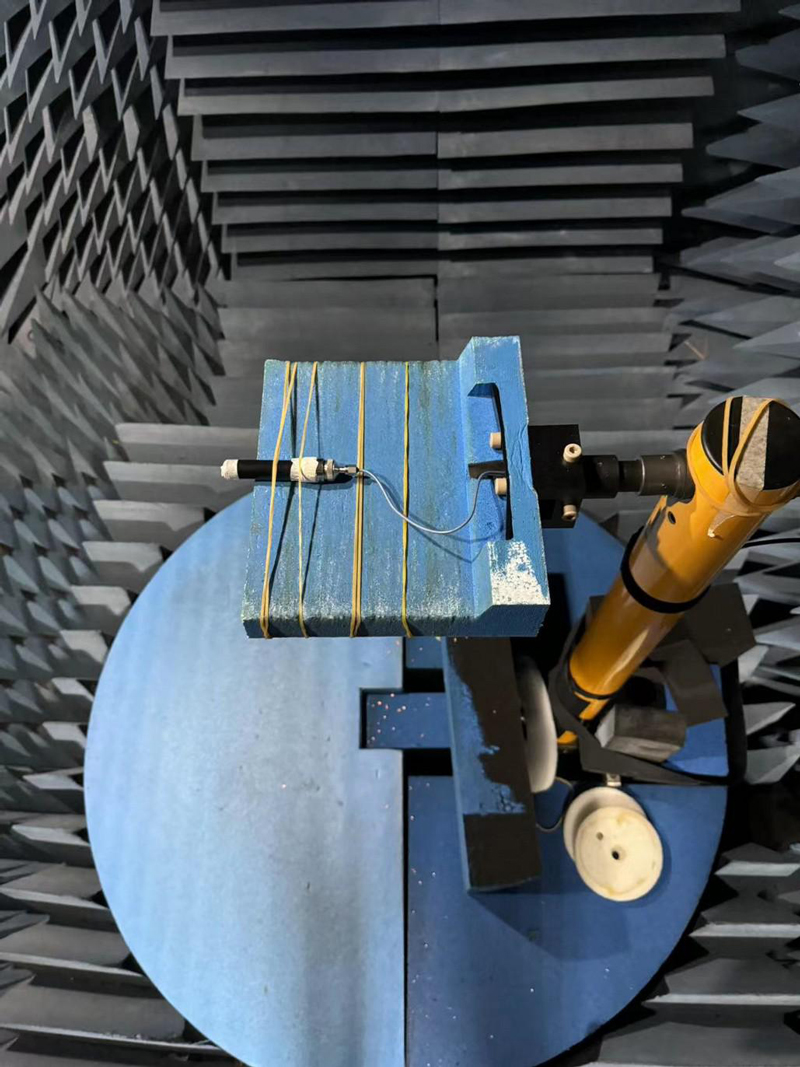

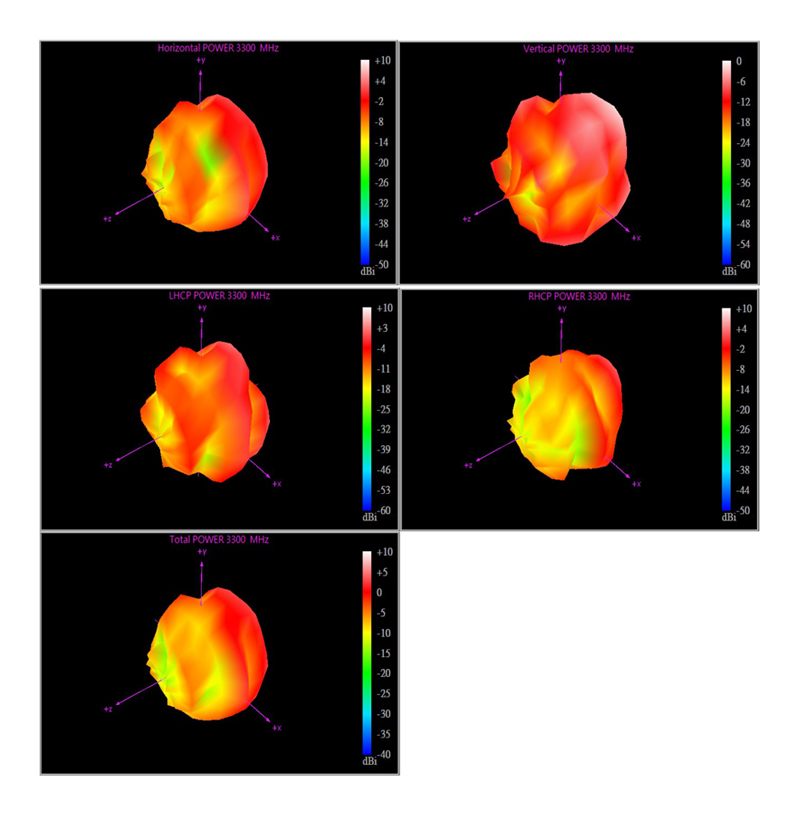

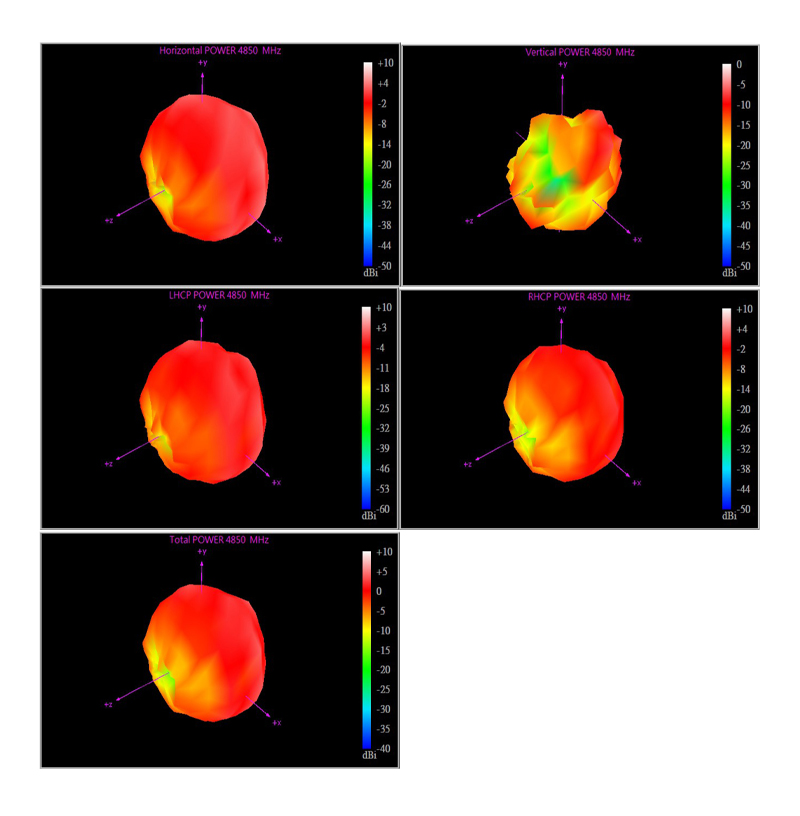

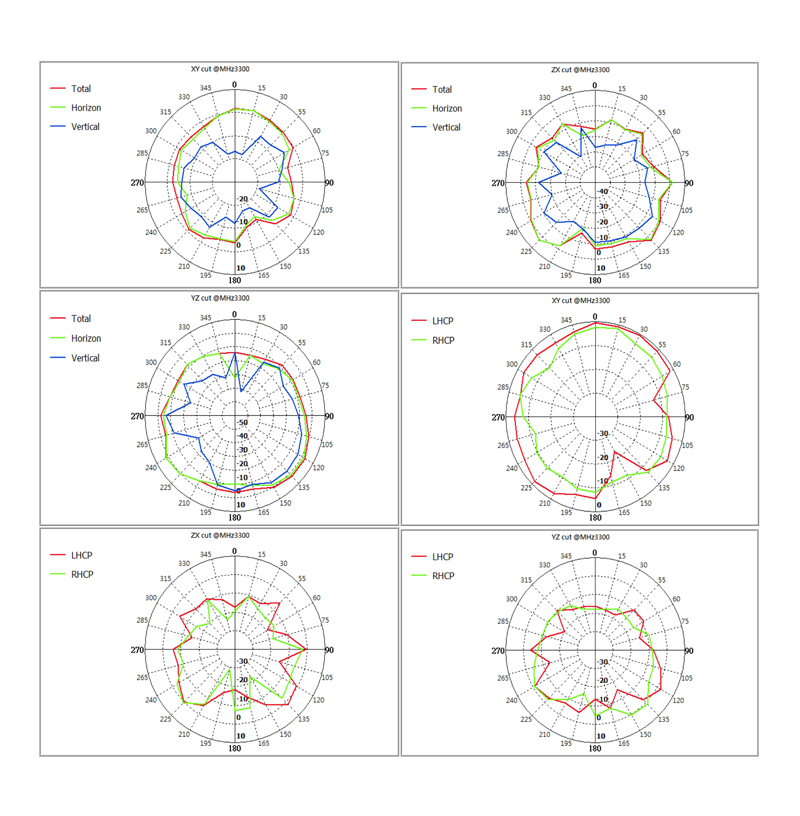

3300Mhz:

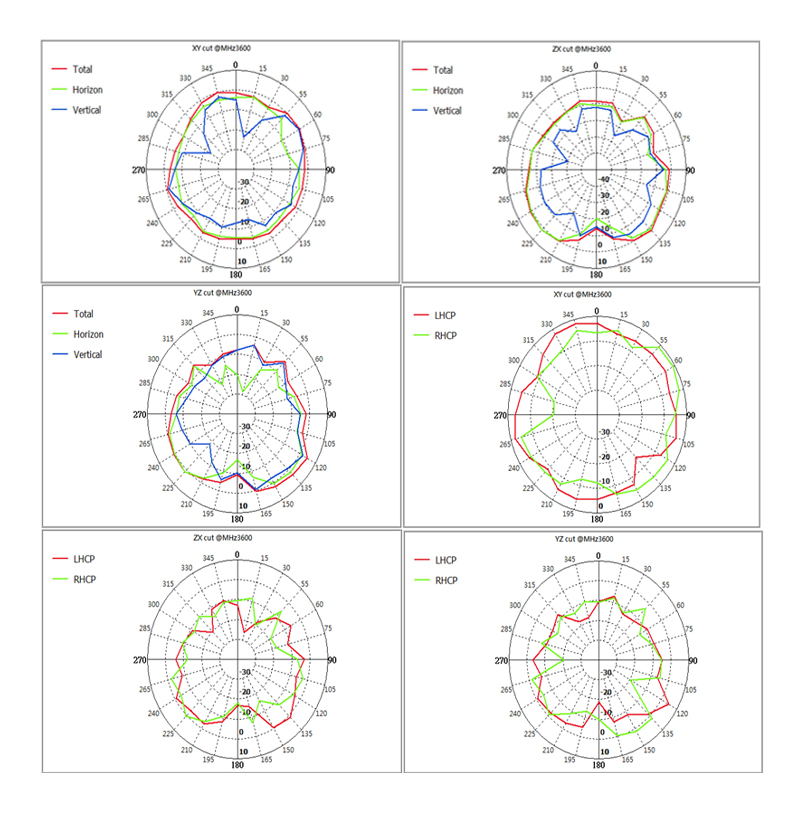

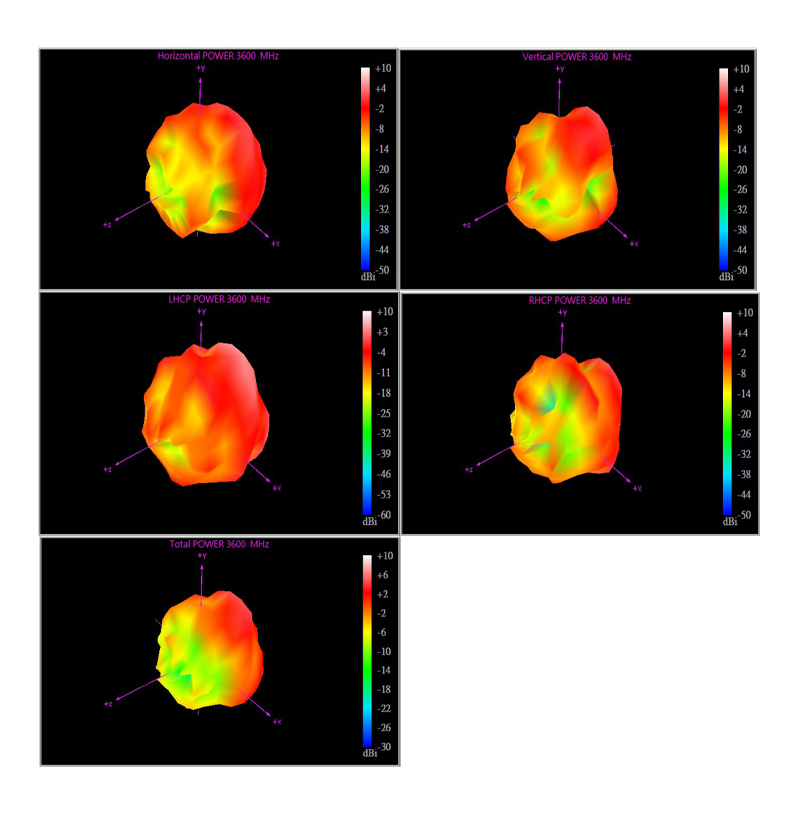

3600Mhz:

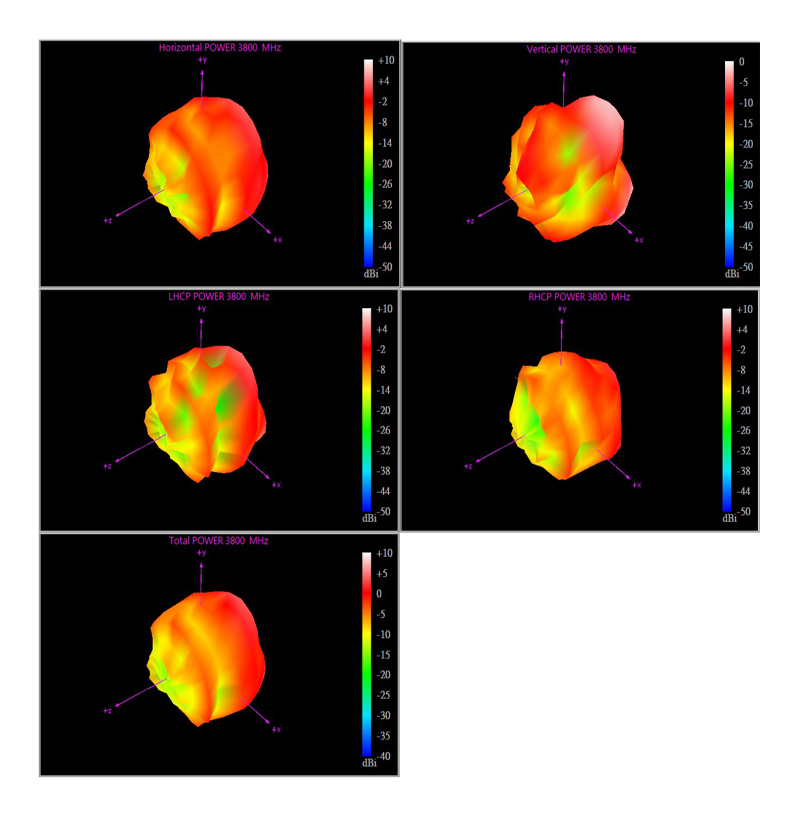

3800Mhz:

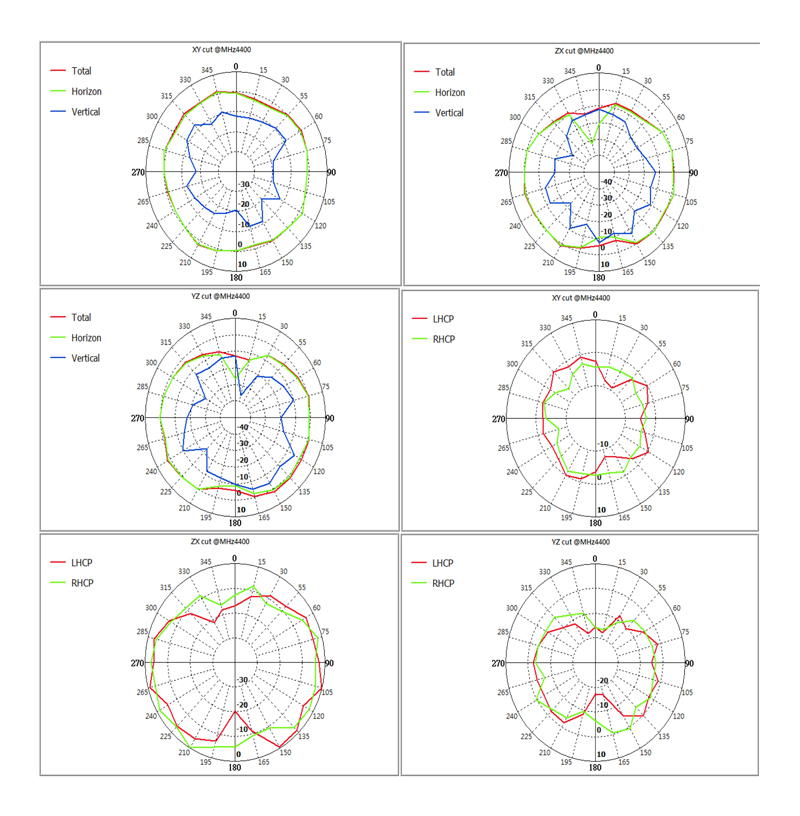

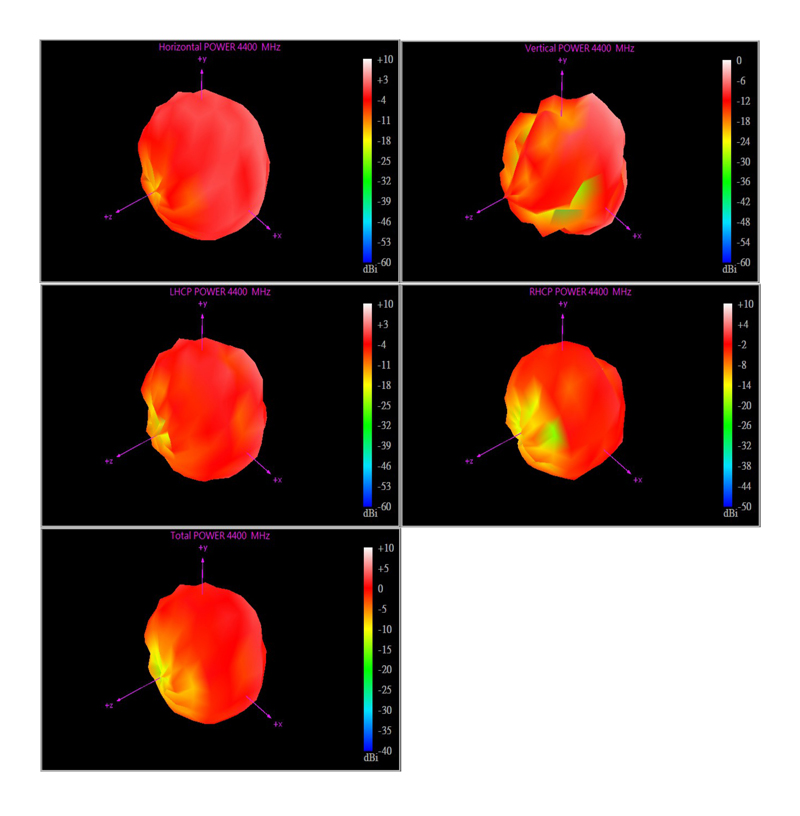

4400Mhz:

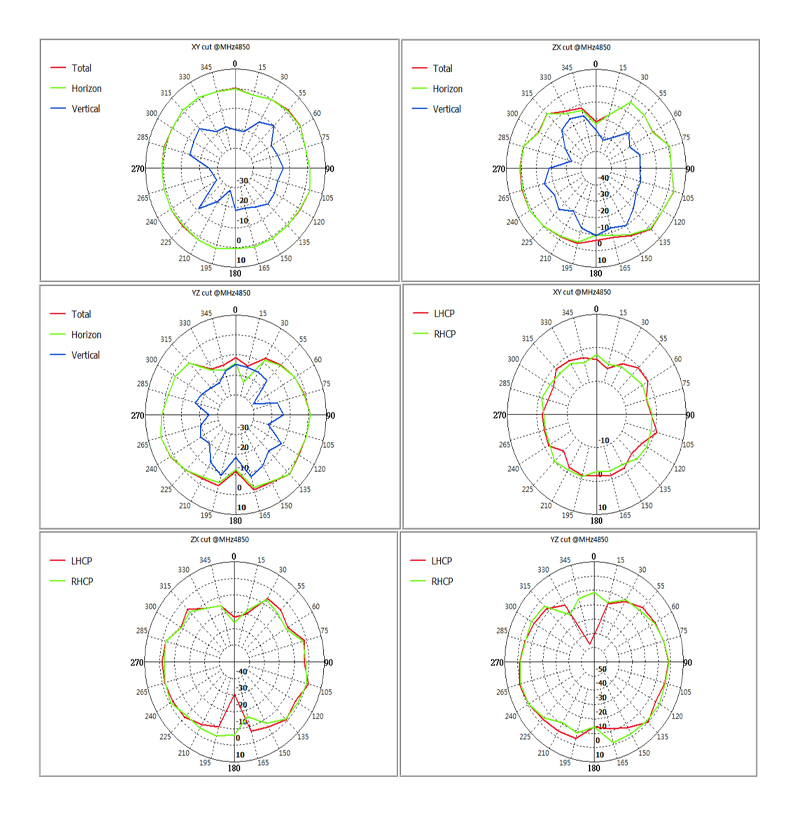

4850Mhz:

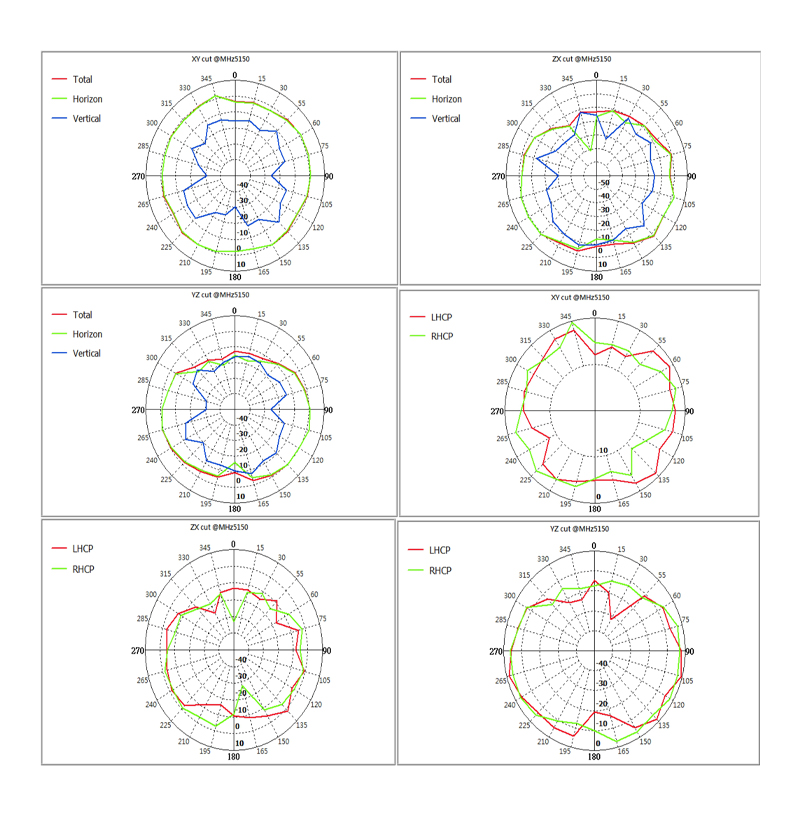

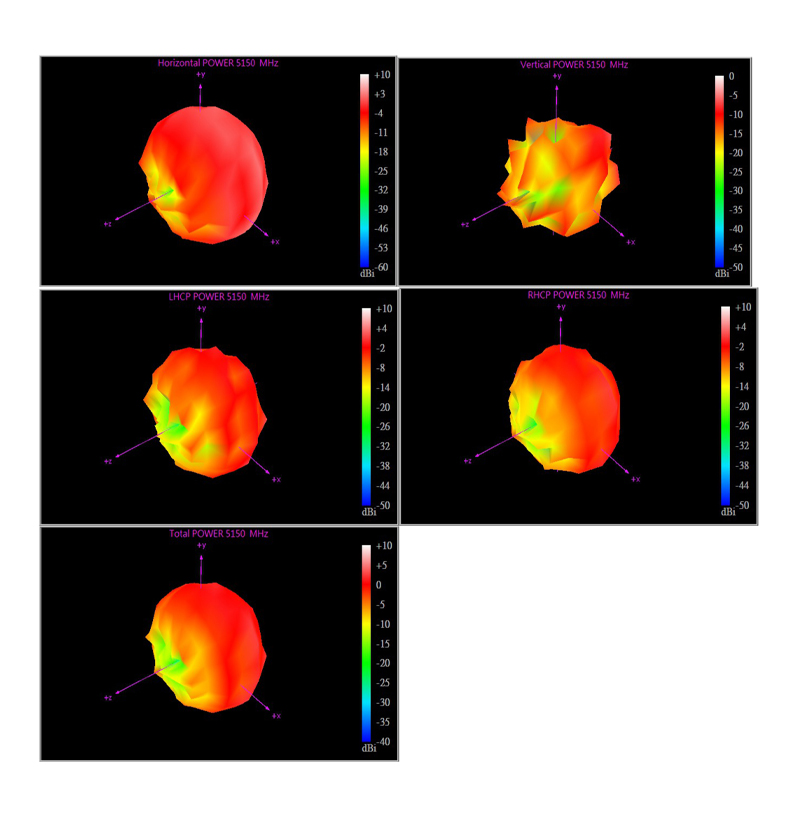

5150Mhz:

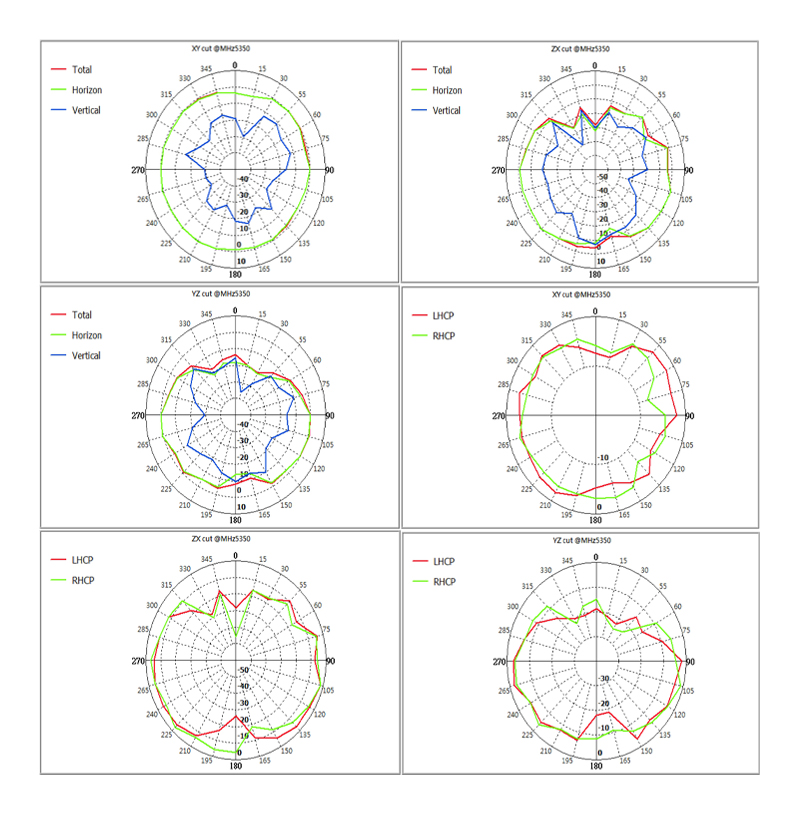

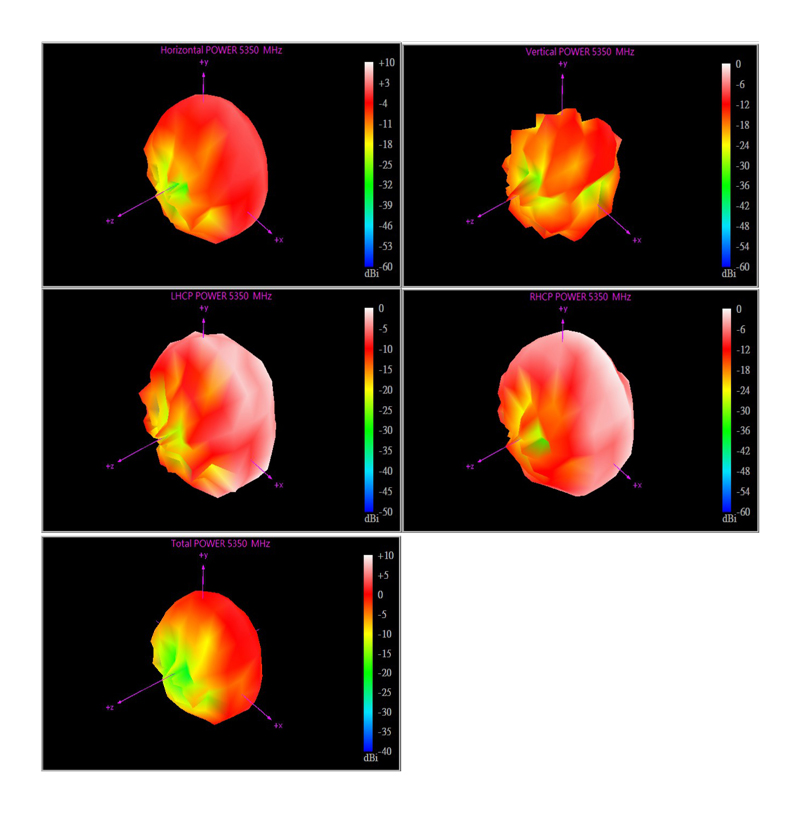

5350Mhz:

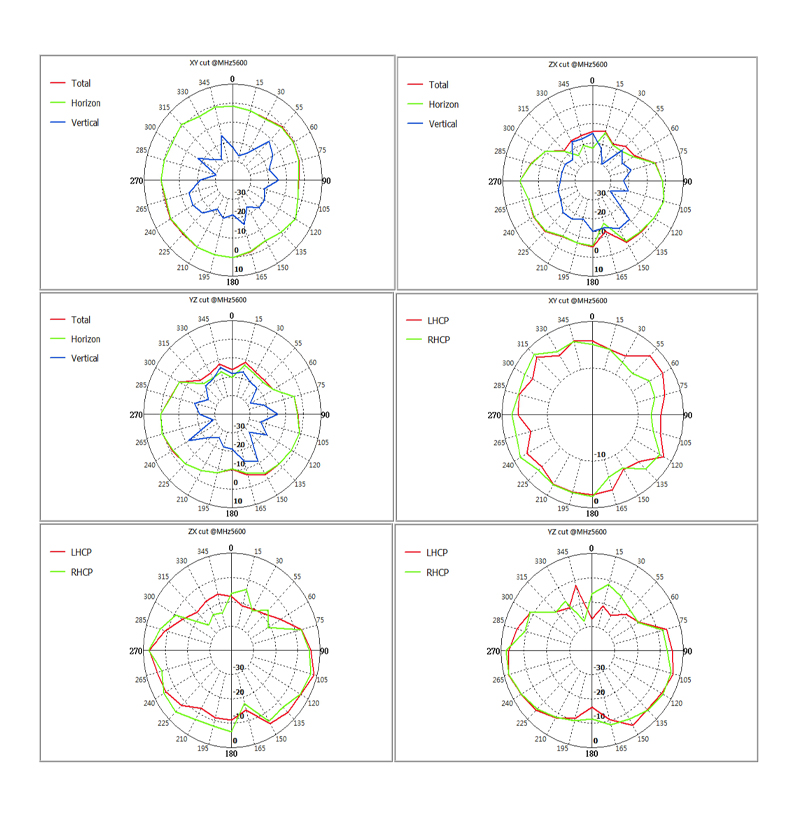

5600Mhz:

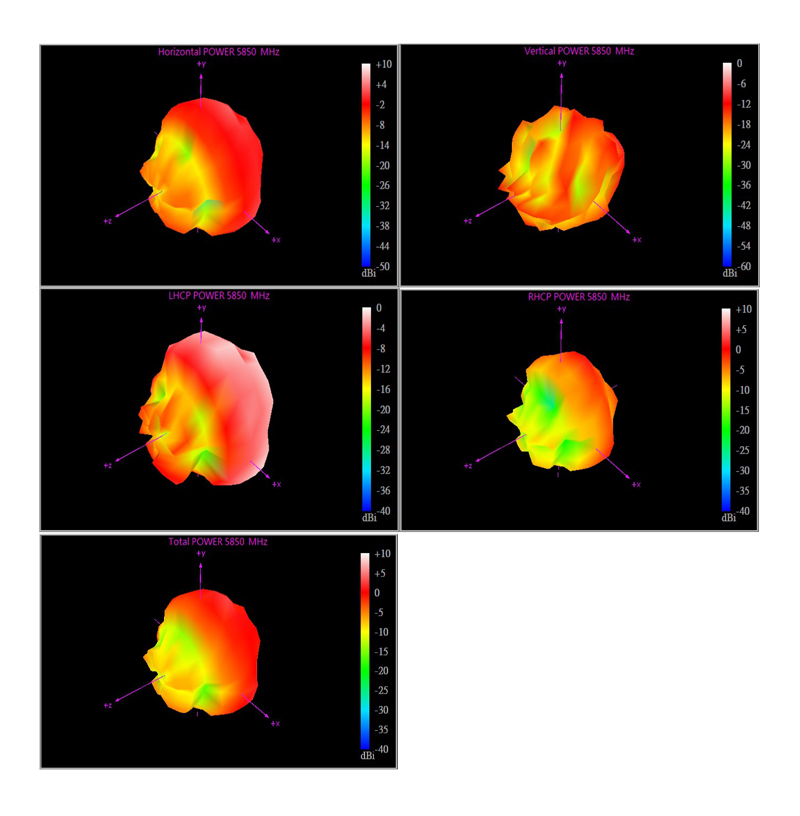

5850Mhz:

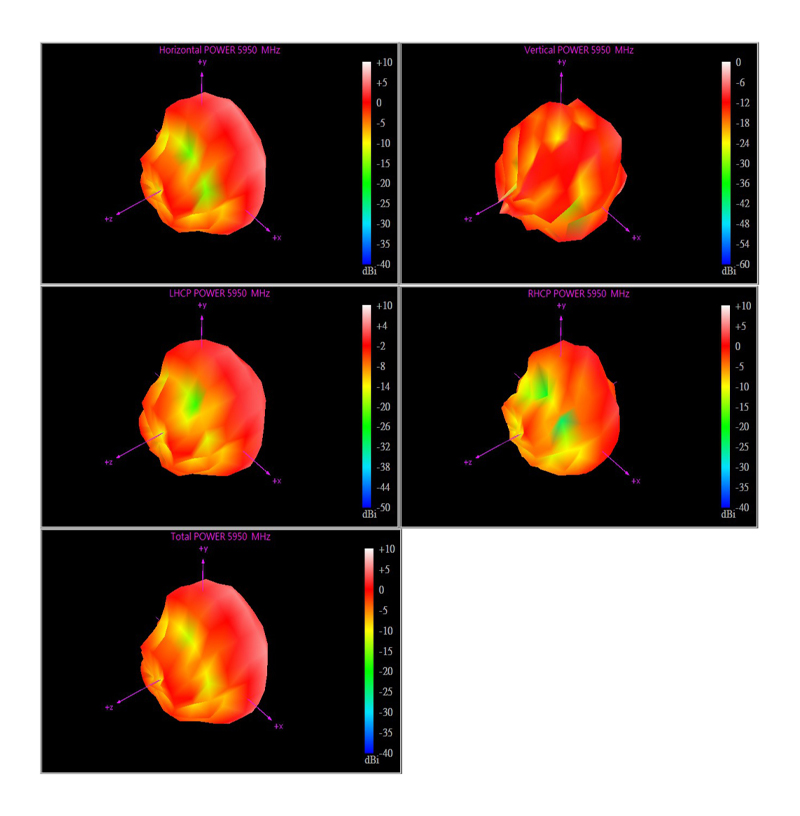

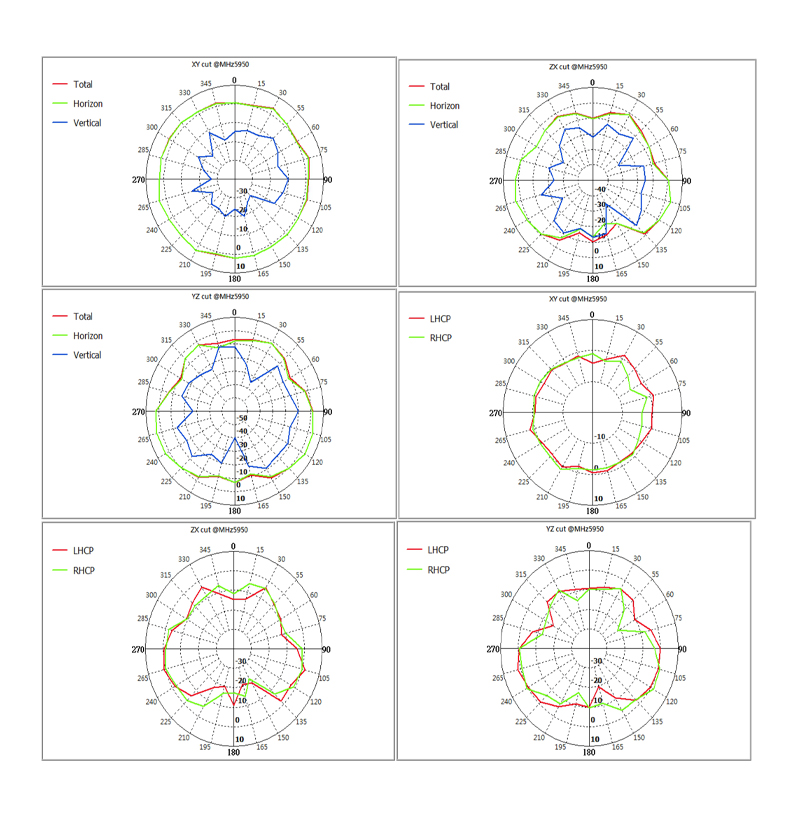

5950Mhz:
