TH-240D Whip 5.8G Antenna
  • Product Specification

Electrica Properties:

Parameter Description
Frequency Band 2.4~2.5 & 5.0~5.9 GHz
Nominal Impedance 50 ohm
Polarization Vertical

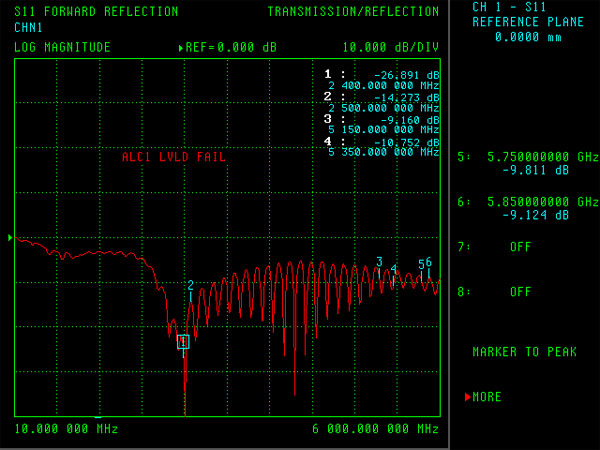

Return Loss Please See Data-1

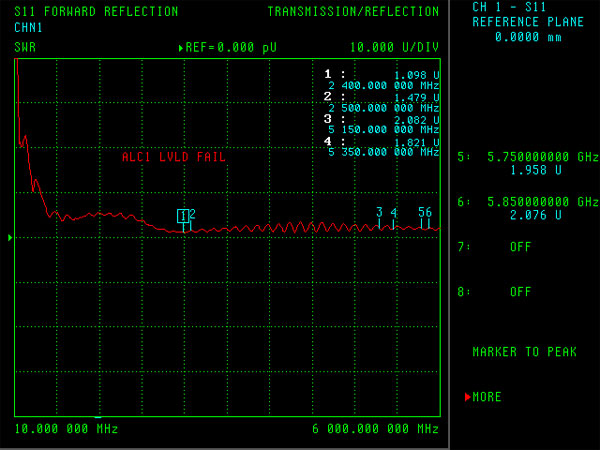

V.S.W.R 2.5：1
Gain 3db
Note: Gain includes the cable loss

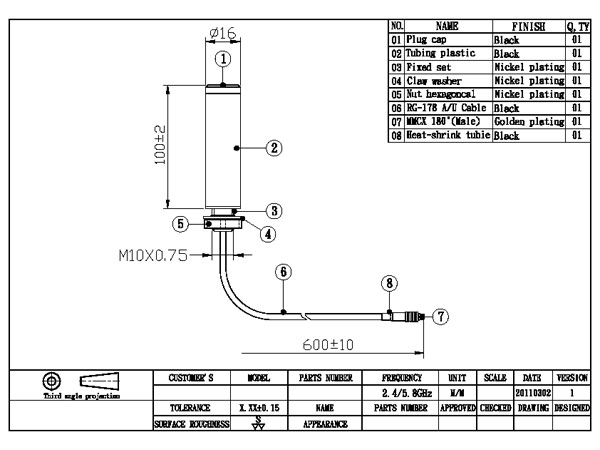

Mechanical Properties:

Parameter Description
Antenna Type External Antenna
Antenna Material Tubing plastic
Touch Type Screw Type M10 x0.75
Connector Type MMCX 180°(Male) or --
Antenna Dimensions Φ16x100mm ±2
Antenna Color Black
Operating Temperature Range -20°C~+60°C
Storage Temperature Range -30°C~+70°C

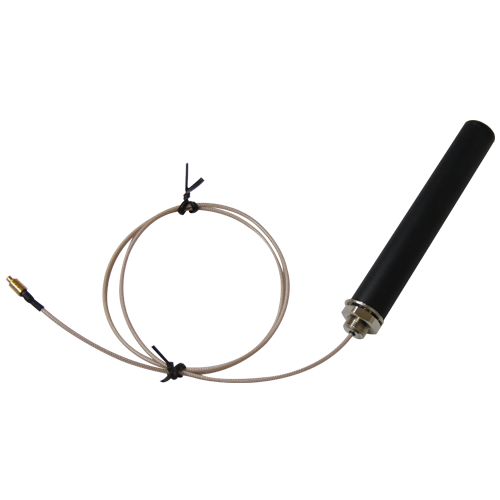

Appearance:
