TH-81 (2.4G) Whip 2.4G Antenna
  • Product Specification

Electrica Properties:

Parameter Description
Frequency Band 2.4 ~2.5GHz
Nominal Impedance 50 ohm
Polarization Vertical

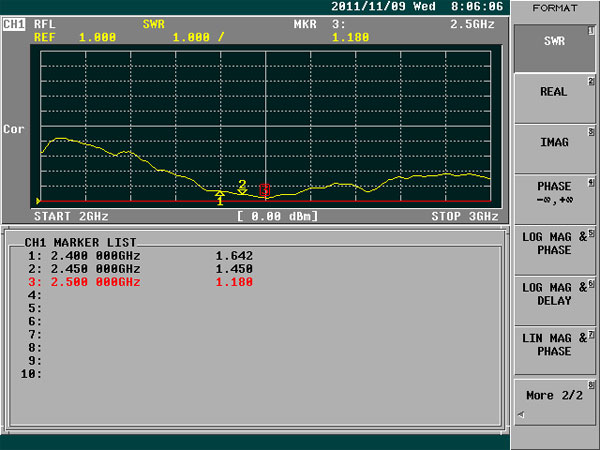

Return Loss Please See Data-1
V.S.W.R 2.0:1
Gain 1db
Note: Gain includes the cable loss

Mechanical Properties:

Parameter Description
Antenna Type External Antenna
Antenna Material TPU
Touch Type Screw Type
Connector Type SMA 180˚(Male)
Antenna Dimensions 60mm ±2
Antenna Color Black
Operating Temperature Range -20°C~+60°C
Storage Temperature Range -30°C~+70°C

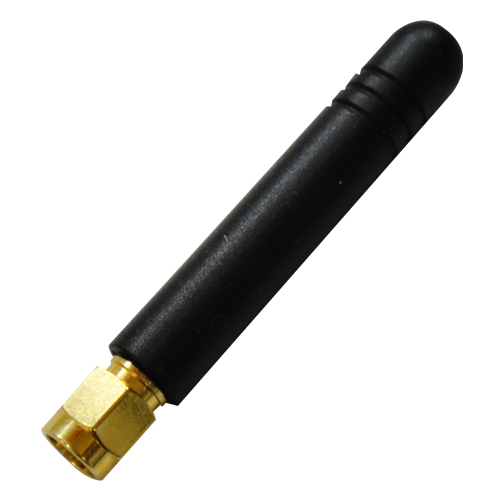

Appearance
