WA-62 Wireless External 2.4 / 5.8 G Antenna for Outdoor/Indoor
  • Product Description
  • Product Specification

Our WA-62 is WIFI (Wireless Fidelity) Outdoor/Indoor dual frequency
Transceiver Antenna. The shell is ASA plastic, which has a strong anti-ultraviolet function and is used for outdoor injection molding products. ASA has strong weather resistance, and its anti-aging performance is more than 10 times of ABS. ASA has relatively good
high temperature resistance, and the fire rating is above UL94-HB.
Don't hesitate to email us if you have any questions.

WA-62 Wireless External 2.4 / 5.8 G Antenna for Outdoor/Indoor
WA-62 Wireless External 2.4 / 5.8 G Antenna for Outdoor/Indoor
WA-62 Wireless External 2.4 / 5.8 G Antenna for Outdoor/Indoor
WA-62 Wireless External 2.4 / 5.8 G Antenna for Outdoor/Indoor
WA-62 Wireless External 2.4 / 5.8 G Antenna for Outdoor/Indoor

WLAN Antenna Efficiency

MHz WLAN Antenna
Efficiency (dB) Efficiency (%) Peak Gain (dBi)
2400 -3.04 49.68 2.69
2412 -2.91 51.22 2.70
2417 -2.89 51.40 2.67
2422 -2.94 50.77 2.51
2427 -3.01 49.99 2.40
2432 -3.13 48.65 2.33
2442 -3.13 48.60 2.21
2447 -3.20 47.82 2.20
2450 -3.22 47.59 2.14
2452 -3.22 47.69 2.20
2457 -3.24 47.45 2.16
2467 -3.21 47.72 2.15
2472 -3.17 48.15 2.33
2500 -3.24 47.38 2.70
5150 -5.59 27.59 1.39
5180 -5.48 28.29 1.66
5250 -5.05 31.25 2.39
5310 -5.28 29.68 1.75
5320 -5.05 31.23 1.95
5350 -4.76 33.40 2.16
5470 -4.39 36.40 2.67
5500 -4.16 38.35 2.88
5510 -3.91 40.63 3.28
5600 -2.74 53.15 4.50
5670 -2.90 51.28 3.69
5700 -2.47 56.64 4.05
5725 -2.39 57.65 3.97
5745 -2.12 61.37 4.17
5765 -2.53 55.84 4.09
5785 -2.79 52.57 3.85
5805 -2.88 51.49 3.45
5825 -3.19 48.00 3.67
5850 -3.48 44.85 3.32

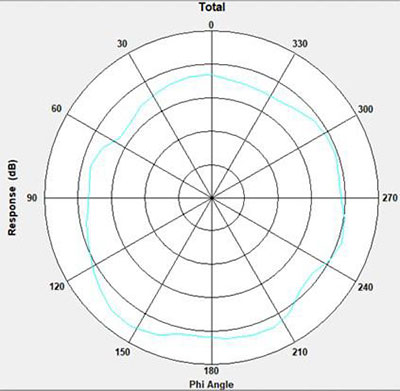

Radiation Pattern

2.4 GHz
 2.5 GHz
5.15 GHz
 5.35 GHz
5.6 GHz
 5.85 GHz

WA-62 Wireless External 2.4 / 5.8 G Antenna for Outdoor/Indoor Specification

PHYSICAL CONDITION
Constructions ASA-UV radome, detachable cable/connector for easy mount, rubber-O-ring between top radome and screw base for waterproof
Dimensions 60mm(Dia.) x 18.5mm(H)
Weight 135grams (w/o cable & connector).
Color Standard in ivory white, other colours available upon request.
Mounting Bulkhead mount with 0.8 inch threaded wing nut (standard accessory).
Cable & Connector
RF cable RG174-1M other length (optional)
Pulling strength 6 Kg @ 5sec. molded plastic on connector end for strain relief.
Connector SMA(M) or other
Antenna Element
Center Frequency 2400~2500 / 5100~5850 MHz
Polarization Linear
Peak Gain  4 dBi

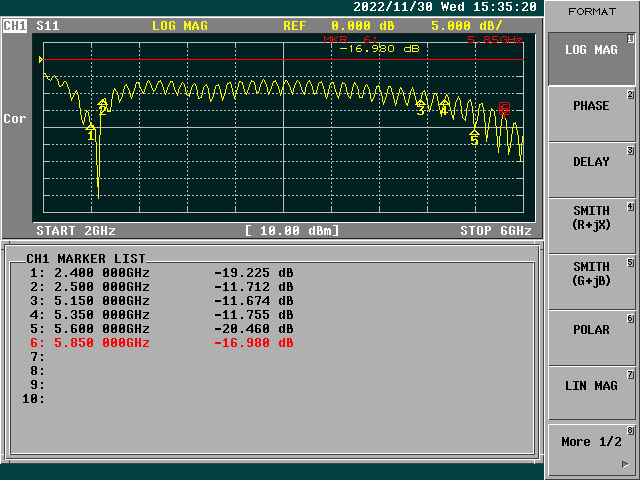

VSWR 2.0 max (ON GND 320 x 240mm )
Impedance 50 Ω
Environmental
Operating Temperature -40oC~ +85℃.
Storage Temperature -40oC~ +85℃.
Relative Humidity 95% non-condensing.
Water Resistance 100% waterproof. IPX8

*This specification is subject to change without prior notice.
