1.GENERAL DESCRIPTION
| Model No |
| TH2100B-TNC(M) FIXED |
1.1 Electrical Properties
| Parameter |
Description |
| Frequency Band |
1900~2200Mhz |
| Nominal Impedance |
50 ohm |
| Polarization |
Vertical |

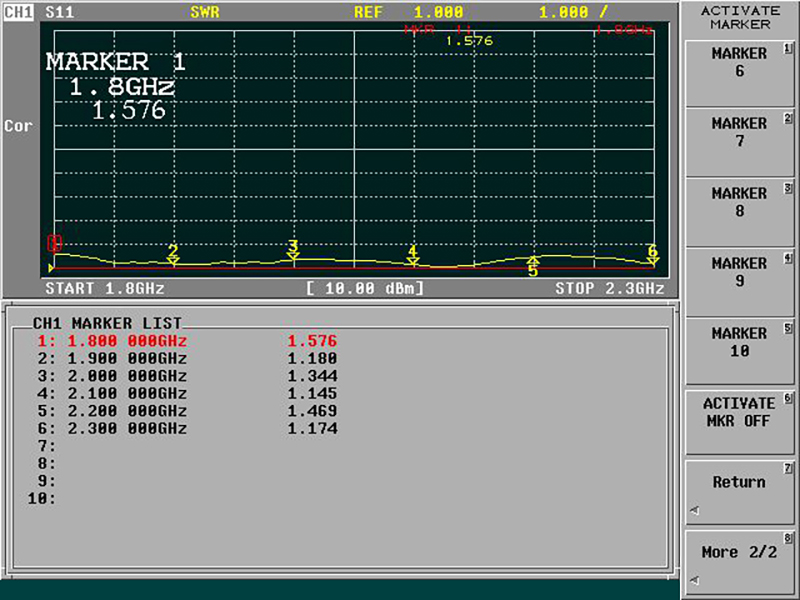

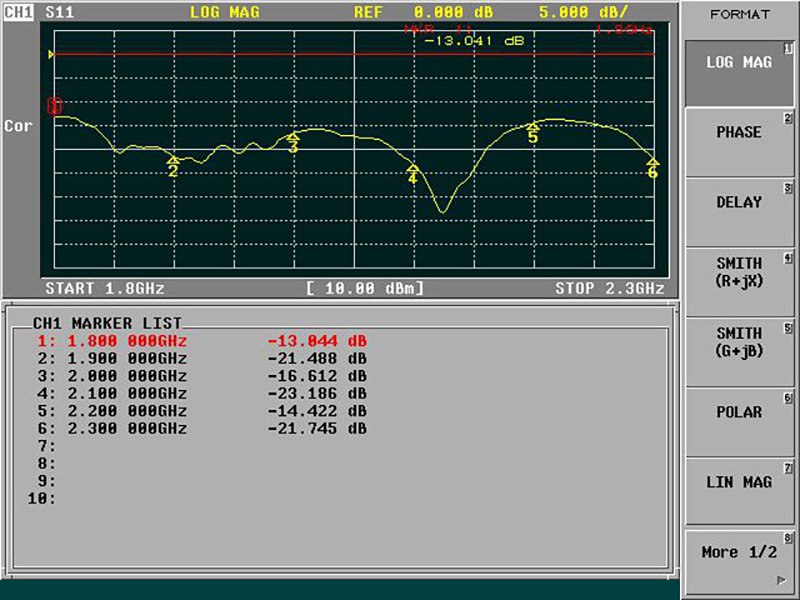

| V.S.W.R |
2.0:1 |
1.2 Mechanical Properties
| Parameter |
Description |

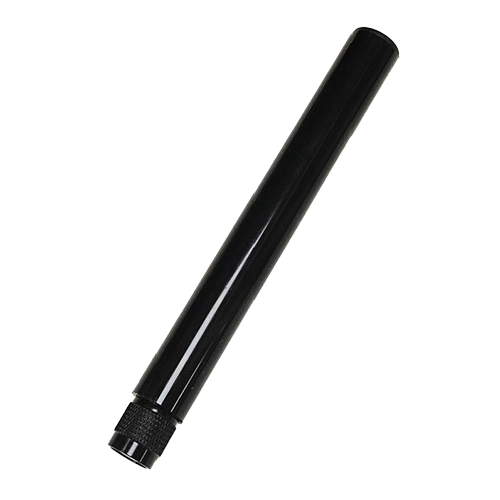

| Antenna Type |
External Antenna |
| Material |
ASA |
| Touch Type |
Screw Type |
| Connector Type |
TNC connector (Male) FIXED |

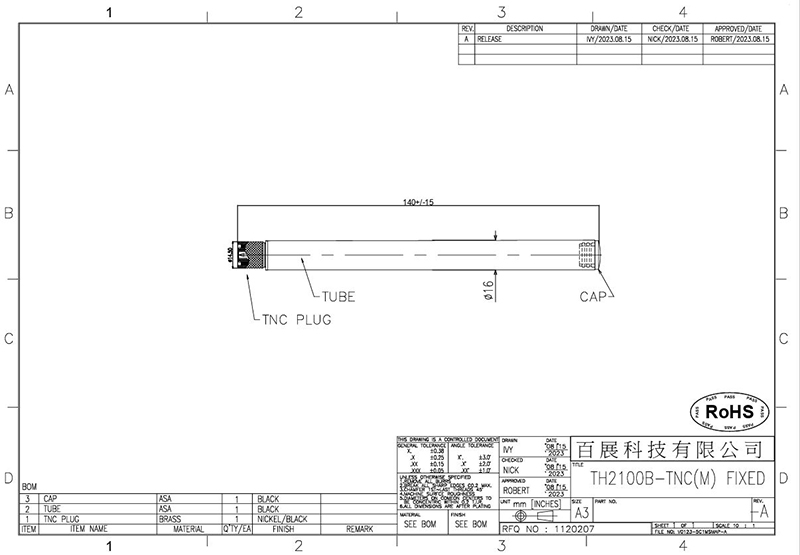

| Antenna Dimensions |
Ø16 x 140mm ±15 |
| Antenna Color |
Black |
| Operating Temperature Range |
-40°C~+85°C |
| Storage Temperature Range |
-40°C~+85°C |
