Model No: TH145-BNC(M)

Electrica Properties

Parameter Description
Frequency Band 140-150 MHz
Nominal Impedance 50 ohm
Polarization Vertical
Return Loss Please See Data-1
V.S.W.R 2.0:1
Note: Gain includes the cable loss

Mechanical Properties

Parameter Description
Antenna Type Inside Glass Antenna
Antenna Material Screw Type
Touch Type 3M Type
Connector Type BNC 180°(Male)
Antenna Dimensions 164mm ±3
Antenna Color Black
Operating Temperature Range -20°C~+60°C
Storage Temperature Range -30°C~+70°C

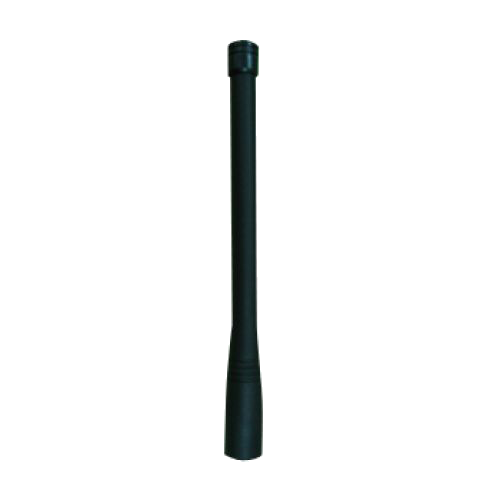

Appearance

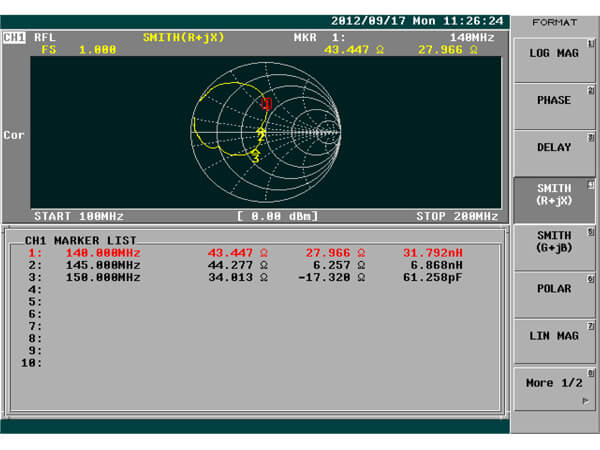

Return Loss, V.S.W.R. and Smith Chart
