1.    GENERAL DESCRIPTION



P/N

TH900D-SMA(M)



1.1 Electrical Properties



Parameter Description
Frequency Band 902~960MHz
Nominal Impedance 50 ohm
Polarization Vertical
Return Loss Please See Data-1
V.S.W.R 2.0:1



1.2 Mechanical Properties



Parameter Description
Antenna Type External Antenna
Touch  Type Screw Type
Connector Type SMA (Male)
Antenna Dimensions OD13.6 x100mm±2
Antenna tube & Color TPU - Black
OperatingTemperatureRange -30°C~+70°C
StorageTemperatureRange -30°C~+70°C
Waterproof IPX6-7

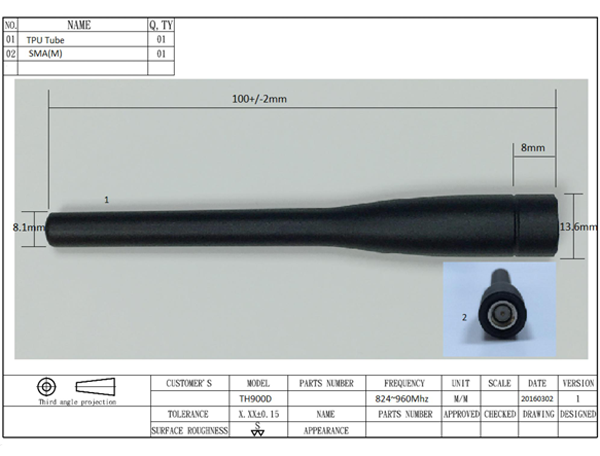

2. Appearance

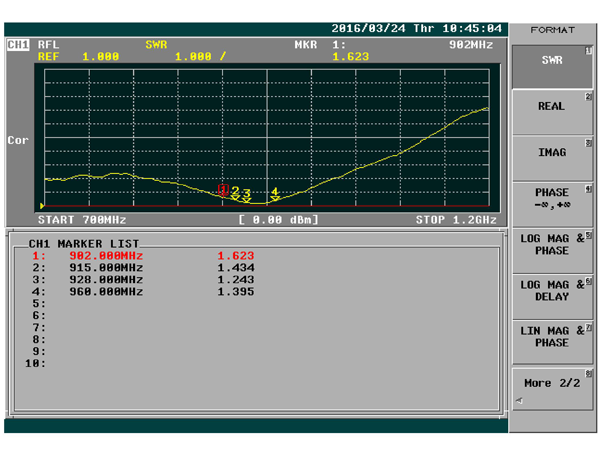

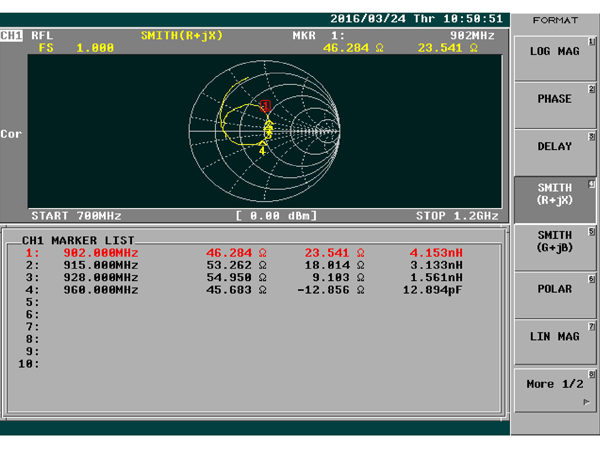

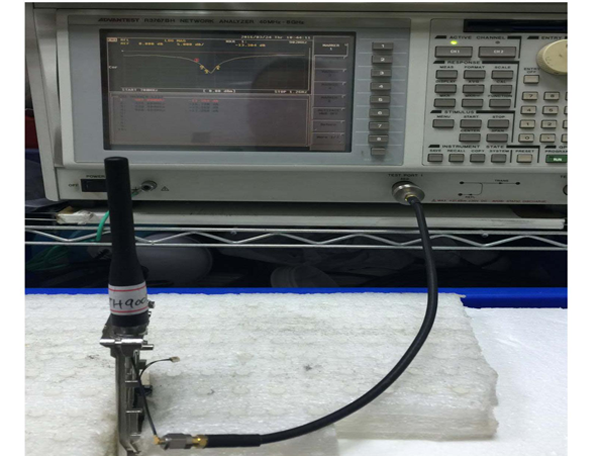

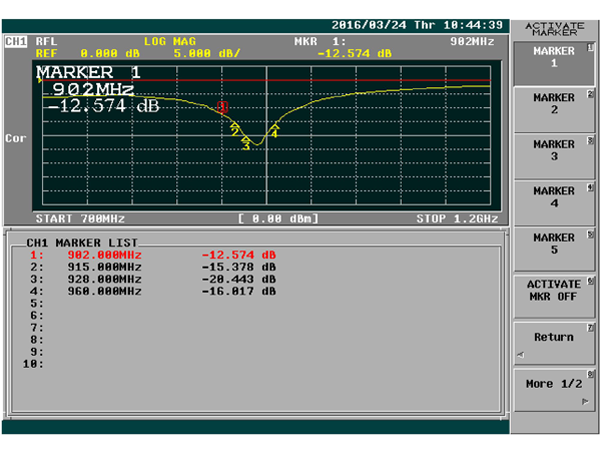

3. FREQUENCY : Test on Customer GND
