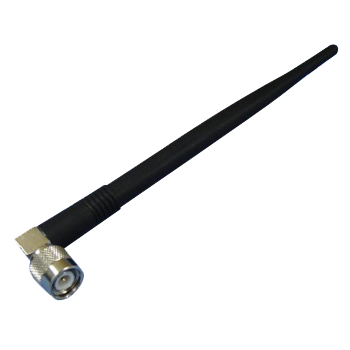

TH-1300A

TH-1300A

Расследование

Скачать

  • Описание продукции
  • Характер продукта
  • Технические характеристики

Model No: TH-1300A

P/N: TH1300A-TNC90(M)

Electrical Properties

Parameter Description
Frequency Band 1280~1400 MHz ( 1300~1330Mhz)
Nominal Impedance 50 ohm
Polarization Vertical
Electrical Wave Dipole

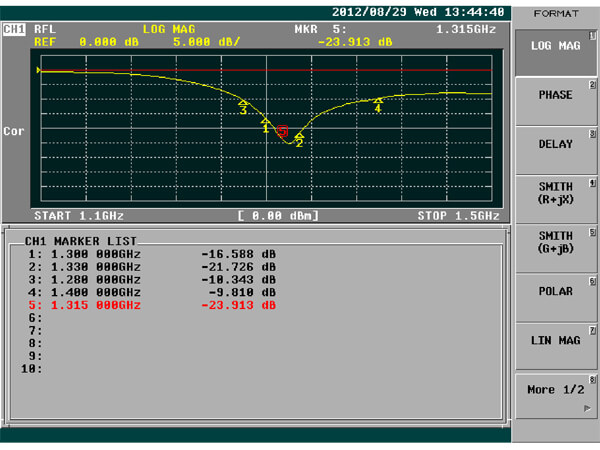

Return Loss Please See Data-1

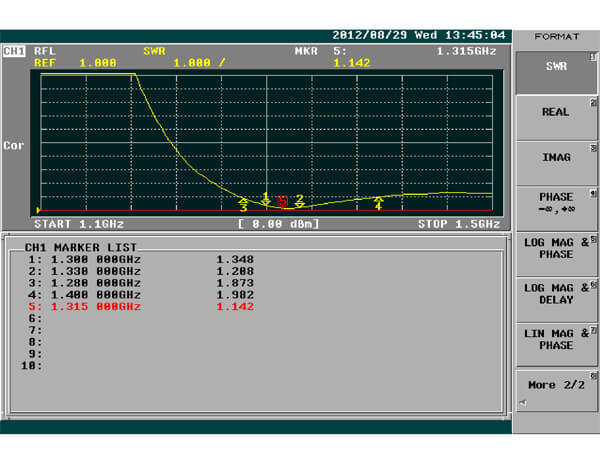

V.S.W.R 2.0:1
Gain 1.5db

Mechanical Properties

Parameter Description
Antenna Type External Antenna
Touch Type Screw Type
Connector Type TNC 90˚(Male)

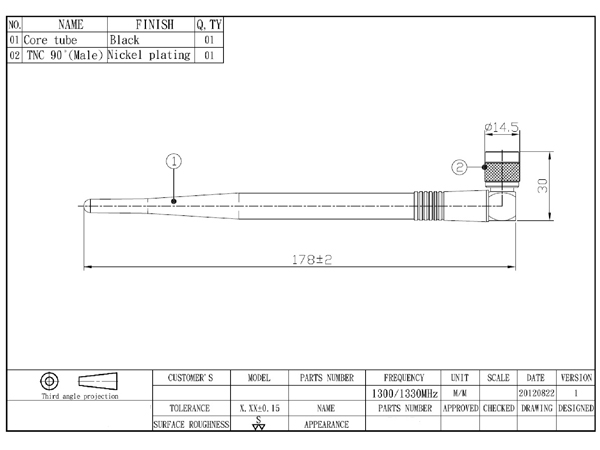

Antenna Dimensions 178mm ±2
Antenna Color Black
Operating Temperature Range -30°C~+80°C
Storage Temperature Range -40°C~+90°C
