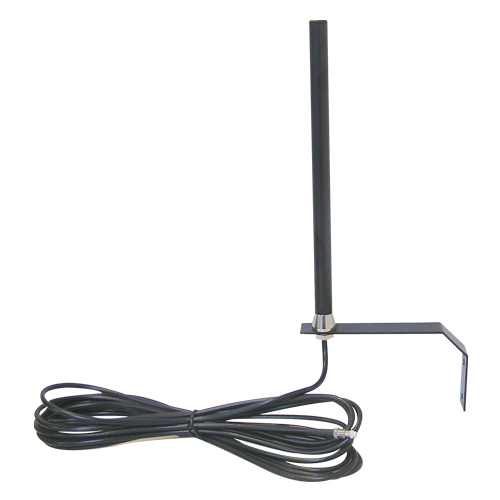

TH-261

TH-261

Расследование

Скачать

  • Описание продукции
  • Технические характеристики
Model No P/N
  TH-261-2.4G

Below is a table summarizing the antenna design specification.

Electrical Properties

Parameter Description
Frequency Band 2.4 GHz
Nominal Impedance 50 ohm
Polarization Vertical
Return Loss Please See Data-1
V.S.W.R 2.0:1
Antenna Average Gain 4.7dBi
Note: Gain includes the cable loss

Mechanical Properties

Parameter Description
Antenna Type External Antenna
Touch?Type Screw Type
Connector Type FME 180°(Female) or SMA-M
Antenna Dimensions 268.5 mm ± 5
Antenna Cable Total Length RG-58 /U 5000 mm ± 20
Antenna Color Black
Operating Temperature Range -20°C~+60°C
Storage Temperature Range -30°C~+70°C
