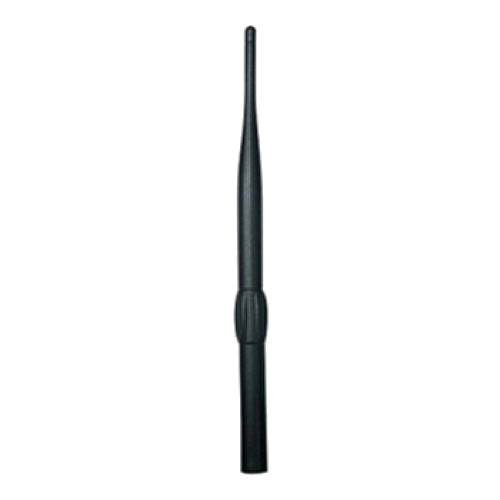

TH-88C

TH-88C

Расследование

Скачать

  • Описание продукции
  • Технические характеристики

GSM800/GSM900/DCS1800/PCS1900/3G2170

Model No: TH88C-SMA(M)

Electrical Properties

Parameter Description
Frequency Band 800/900/1800/1900/2100 MHz
Nominal Impedance 50 ohm
Polarization Vertical
Return Loss Please See PDF Data
V.S.W.R 3:5:1
Note: Gain includes the cable loss

Mechanical Properties

Parameter Description
Antenna Type External Antenna
Material TPE
Touch Type Screw Type
Connector Type SMA 180° (Male)
Antenna Dimensions 228 mm±3
Operating Temperature Range -20°C~+60°C
Storage Temperature Range -30°C~+70°C
