IAP-500 Internal GSM Antenna
  • Описание продукции
  • Технические характеристики

Applications:

For antenna units used with or in Handheld system, Automobile, Recreational, Marine, etc

Electrical Specification:

PCB Specification:

Characteristic Parameter Specification
Size 40mm x 11.8mm x 6mm
Frequency Band 880-960MHz, 1710-1990MHz, 1920-2170 MHz, 2.3-2.7GHz
Bandwidth Return lossVSWR < 3
Gain at Zenith 0 dBi
Ground size based on 40mm*95mm ground plane
Polarization Linear

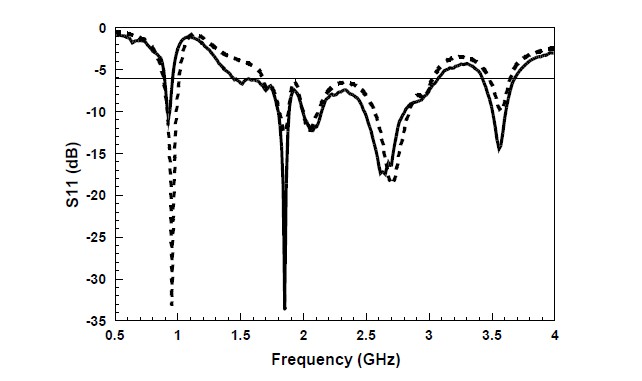

Return loss:

Gain:

Frequency (MHz) 928 1740 1900 2100
Gain (dBi) 2.1 2.7 0 4.1
Frequency (MHz) 2450 2650 3500
Gain (dBi) 2.3 3.8 1.6

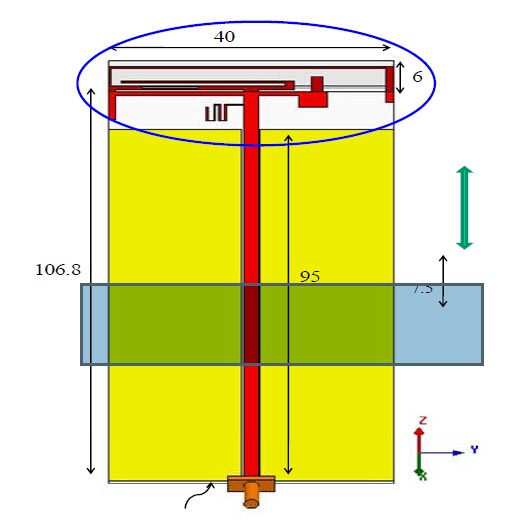

Antenna dimension: unit:mm
