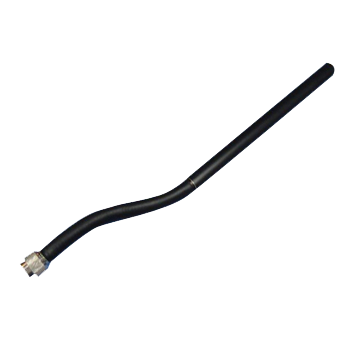

Model No: TH-900

P/N: TH900-N(M)

Electrical Properties

Parameter Description
Frequency Band 800~960 MHz
Nominal Impedance 50 ohm
Polarization Vertical
Electrical Wave Dipole

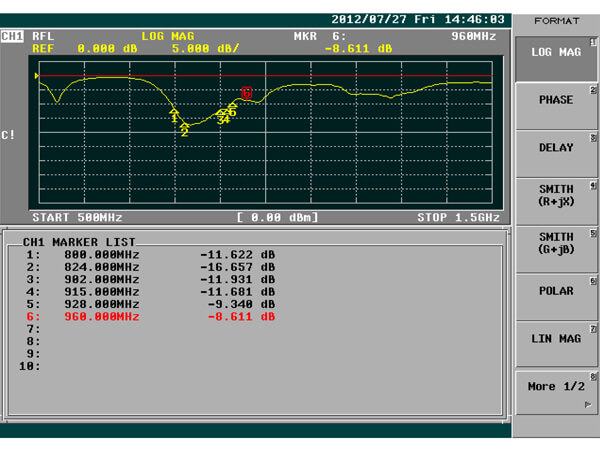

Return Loss Please See Data-1

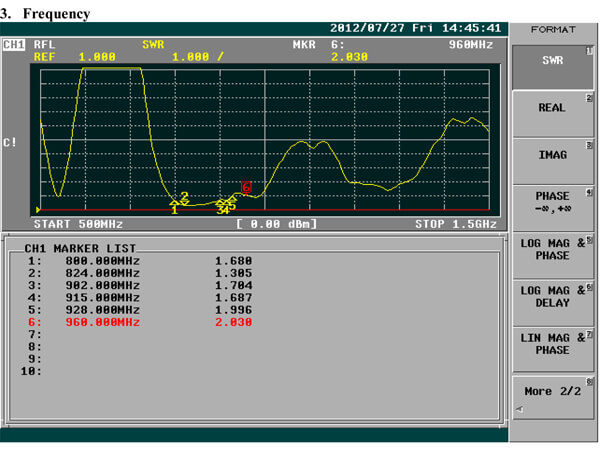

V.S.W.R 2.0:1
Gain 3db

Mechanical Properties

Parameter Description
Antenna Type External Antenna
Touch Type Screw Type
Connector Type N 180˚(Male)

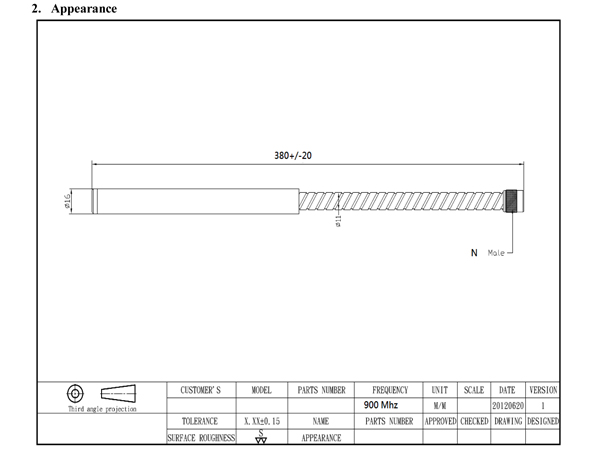

Antenna Dimensions 380mm ±20
Antenna Color Black
Operating Temperature Range -30°C~+80°C
Storage Temperature Range -40°C~+90°C
