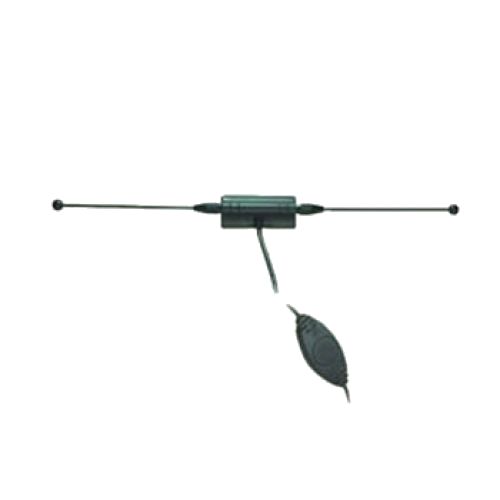

DVBT Active Antenna

DA-170

Расследование

Скачать

  • Технические характеристики
Frequency Range VHF+UHF 170-240 & 480-860MHz
Peak Gain 0 dBi
VSWR 2.0 : 1
Impedance 75 ohm
Polarization Linear Horizontal
Connector MCX
Cable RG174 - 5M
LNA DC Drive DC 5V
Color Black
LNA Operation Frequency 150-860MHz
LNA Gain 20dB
LNA Noise Figure 1.8dBmax
LNA Consumption Current 20mA typi
Storage Temperature -30℃~ +85 ℃
Dimensions LxWxH241x20x13 mm
