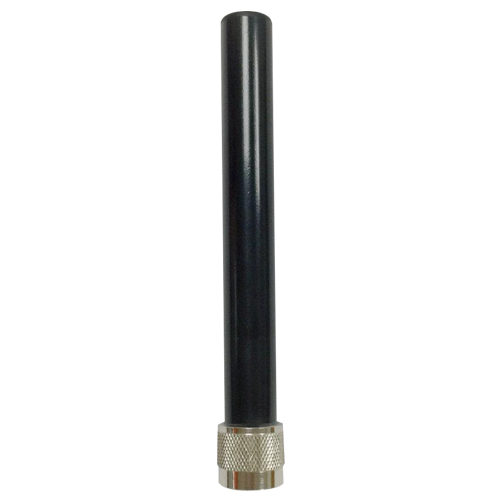

TH-4300

TH-4300

Расследование

Скачать

  • Описание продукции
  • Характер продукта
  • Технические характеристики

Mechanical Properties

Parameter Description
Antenna Type External Antenna
Connector Type N(M)
Antenna Dimensions 120 mm ± 3
Antenna Color ASA-UV-Black
Operating Temperature Range -40°C~+80°C
Storage Temperature Range -40°C~+80°C
Waterproof IPX7

Electrical Properties

Parameter Description
Frequency Band 4200-4500Mhz
Nominal Impedance 50 ohm
Polarization Vertical
Electrical Wave Dipole
Return Loss Please See Data-1
V.S.W.R 2.0:1
Antenna Peak Gain 2~5 DBI

Frequency (MHz) 4000 4200 4300 4500
Peak Gain (dBi) 4.68 5.11 5.09 5.30
Efficiency (%) 67.36 72.69 77.45 72.67

4.0G:

4.2G:

4.3G:

4.5G:
