TH-89G
  • Характер продукта
  • Технические характеристики

1. 1. GENERAL DESCRIPTION

P/N
TH89G-SMA(M)

1.1 Electrical Properties

Parameter Description
Frequency Band 600~960/1710~2700/3300~3800/4000~5000MHz
Nominal Impedance 50 ohm
Polarization Vertical
V.S.W.R 3.0：1

1.2 Mechanical Properties

Parameter Description
Antenna Type External Antenna
Touch Type Screw Type
Connector Type SMA 180°(Male)

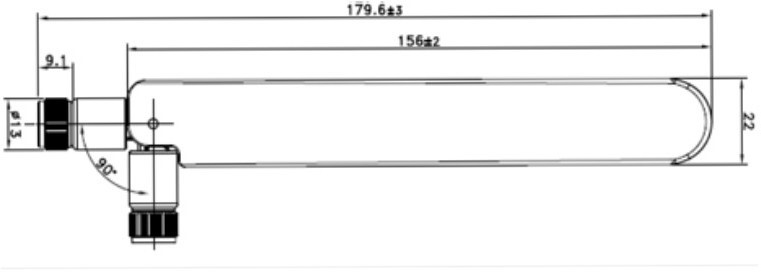

Antenna Dimensions 179.6mm±3
Antenna Color Black
Operating Temperature Range -30°C~+70°C
Storage Temperature Range -30°C~+70°C

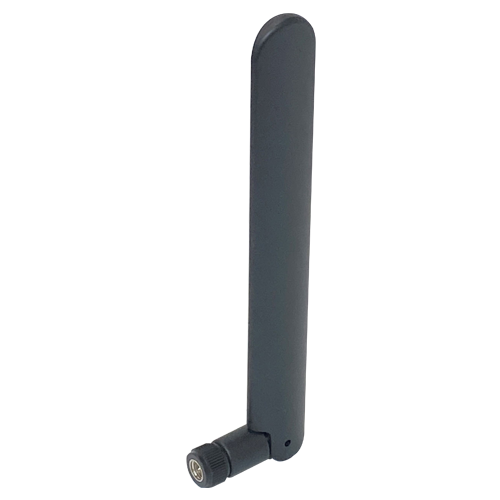

2. APPEARANCE:

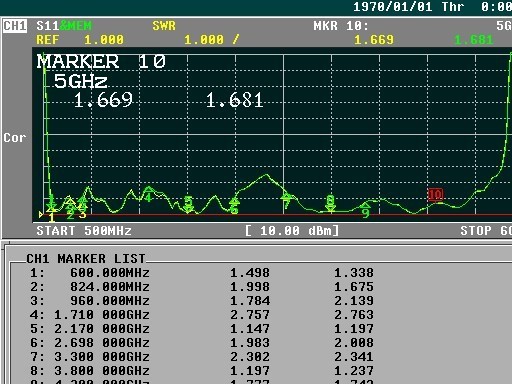

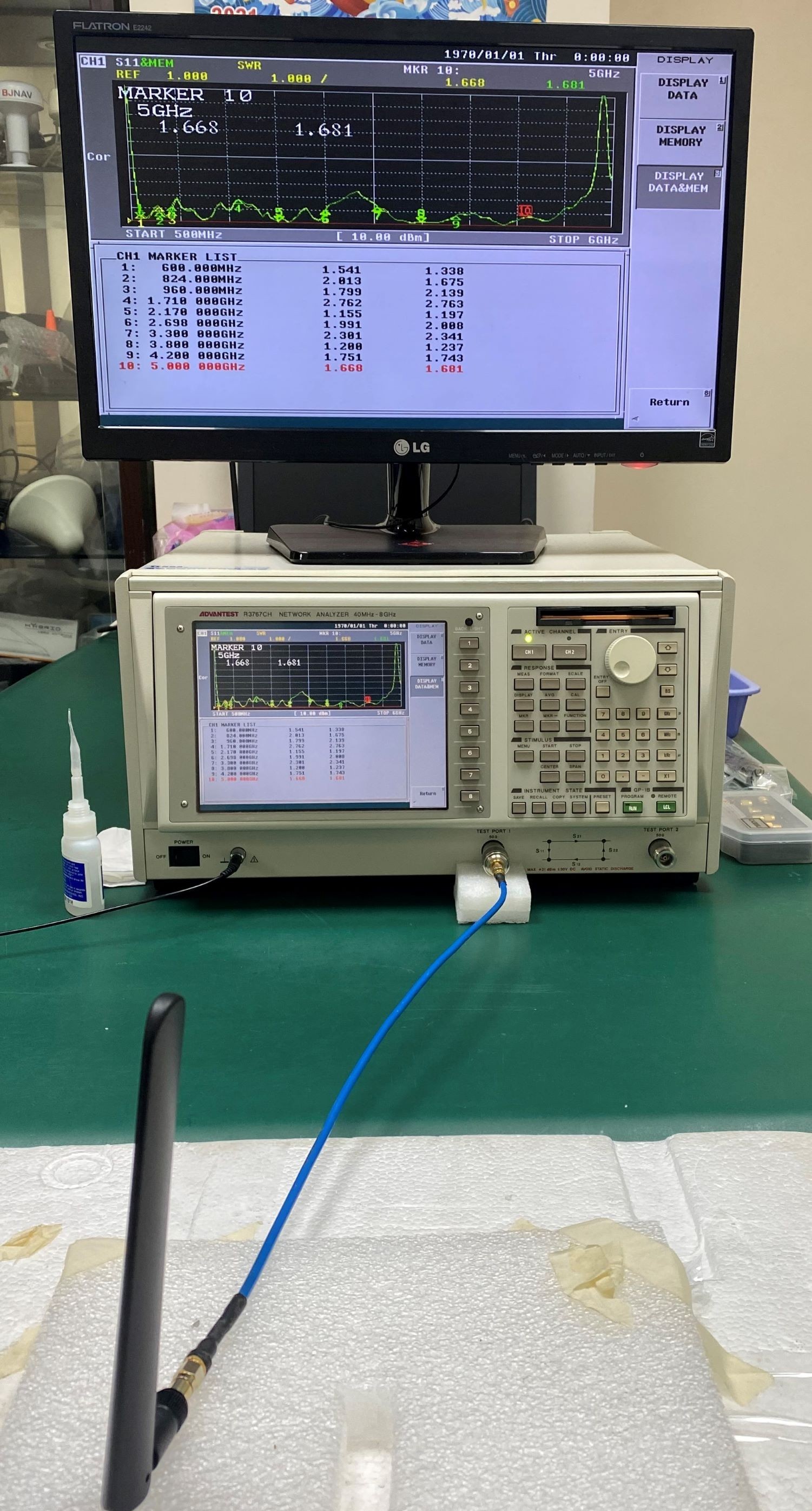

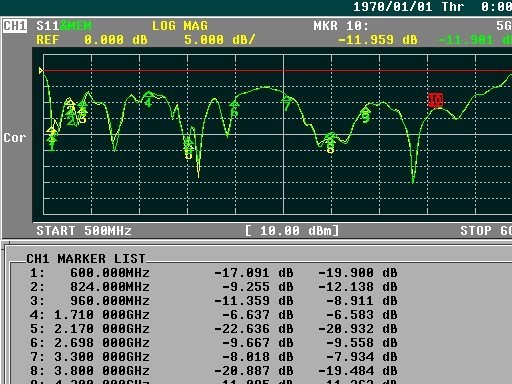

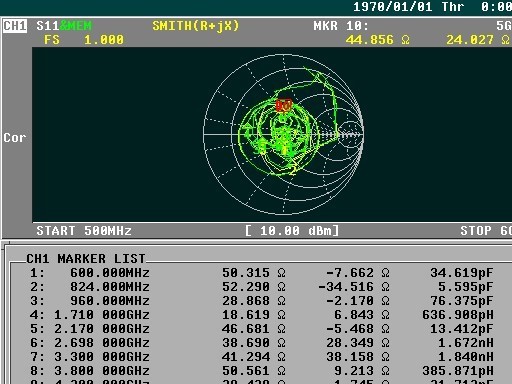

3. Return Loss, V.S.W.R. and Smith Chart









Frequency
(MHz)		 617 634.5 652 663 680.5 698 699 703 707.5 716 717 722.5 725.5
Peak Gain (dBi) 0.21 -0.20 -0.44 -0.37 -0.03 0.62 0.70 0.88 0.90 1.25 1.28 1.36 1.46
Efficiency (%) 55.10 47.49 43.60 43.16 44.40 47.64 48.21 49.56 49.23 51.68 52.01 53.24 54.02
Frequency
(MHz)		 728 729 737.5 746 748 751 756 758 763 768 777 780.5 782
Peak Gain (dBi) 1.57 1.57 1.85 1.99 2.04 2.10 2.16 2.16 2.11 2.05 1.82 1.63 1.54
Efficiency (%) 55.61 56.10 59.71 60.66 61.60 62.60 63.16 63.65 62.47 61.61 57.64 55.21 53.94
Frequency
(MHz)		 787 788 791 793 798 803 806 814 815 821 822.5 824 830
Peak Gain (dBi) 1.25 1.23 1.10 0.97 1.69 -0.32 -0.38 -0.48 -0.47 -0.51 -0.47 -0.40 -0.07
Efficiency (%) 50.46 50.06 48.07 46.75 43.30 33.86 33.19 31.77 31.73 31.01 31.19 31.62 33.50
Frequency
(MHz)		 831.5 832 836.5 837.5 845 847 849 859 860 862 867.5 869 875
Peak Gain (dBi) 0.00 0.02 0.24 0.32 0.60 0.68 0.73 1.01 1.02 1.07 1.17 1.19 1.14
Efficiency (%) 33.85 33.95 35.20 35.48 37.30 37.72 38.00 39.57 39.80 40.11 40.77 40.58 39.56
Frequency
(MHz)		 876.5 880 881.5 882.5 890 894 897.5 915 925 942.5 960 1452 1474
Peak Gain (dBi) 1.12 1.10 1.08 1.13 1.09 1.13 1.17 1.46 1.76 2.49 3.01 0.86 1.30
Efficiency (%) 39.32 38.67 38.64 38.74 37.94 38.16 38.22 40.33 43.03 51.82 59.91 57.08 61.33
Frequency
(MHz)		 1496 1573 1575 1577 1596 1601.5 1607 1710 1732.5 1745 1747.5 1749.9 1755
Peak Gain (dBi) 1.55 1.60 1.65 1.71 1.74 1.70 1.72 3.46 3.19 2.97 2.92 2.90 2.80
Efficiency (%) 64.30 45.55 45.28 45.18 41.69 40.97 40.75 57.74 52.81 50.07 49.34 48.67 47.94
Frequency
(MHz)		 1767.4 1780 1784.9 1785 1805 1842.5 1844.9 1850 1862.4 1879.9 1880 1882.5 1900
Peak Gain (dBi) 2.70 2.55 2.50 2.49 2.42 2.39 2.39 2.43 2.46 2.42 2.43 2.43 2.43
Efficiency (%) 46.10 44.32 43.80 43.70 42.62 41.71 41.70 42.18 42.75 43.84 43.75 43.68 45.66
Frequency
(MHz)		 1910 1915 1920 1930 1950 1960 1962.5 1980 1990 1995 2010 2017.5 2025
Peak Gain (dBi) 2.39 2.34 2.33 2.33 2.11 1.88 1.85 1.54 1.30 1.15 0.20 0.17 0.02
Efficiency (%) 46.95 47.56 48.43 49.82 51.97 51.80 52.23 53.6 52.70 51.71 42.91 38.80 35.58
Frequency
(MHz)		 2110 2132.5 2140 2155 2170 2200 2300 2305 2310 2315 2350 2355 2360
Peak Gain (dBi) 1.10 0.47 0.21 -0.05 0.00 0.82 0.79 0.77 0.66 0.55 0.10 0.17 0.10
Efficiency (%) 43.23 37.92 36.19 35.02 36.47 41.51 61.02 61.01 59.85 59.26 57.57 58.09 58.67
Frequency
(MHz)		 2400 2496 0500 2535 2570 2593 2595 2620 2655 2690 3300 3400 3500
Peak Gain (dBi) 0.37 -0.69 -0.68 0.45 0.07 -0.03 -0.01 -0.23 0.57 0.75 1.49 1.20 2.51
Efficiency (%) 61.01 39.03 38.68 39.90 47.06 45.29 44.52 39.16 40.74 33.98 56.21 48.15 54.76
Frequency
(MHz)		 3550 3600 3625 3700 3750 3800 4200 4400 4700 5000 5150 5537.5 5925
Peak Gain (dBi) 1.53 1.51 2.04 2.12 17.73 1.75 1.21 1.89 1.19 1.36 3.11 1.84 3.00
Efficiency (%) 57.98 67.89 76.00 75.88 68.29 66.18 45.08 53.86 50.21 44.30 52.45 46.44 50.07


617Mhz:

698Mhz:

746Mhz:

824Mhz:

869Mhz:

915Mhz:

925Mhz:

960Mhz:

1575Mhz:

1601Mhz:

1710Mhz:

1880Mhz:

1990Mhz:

2010Mhz:

2300Mhz:

2400Mhz:

2500Mhz:

2690Mhz:

3300Mhz:

3500Mhz:

3800Mhz:

4200Mhz:

4700Mhz:

5000Mhz:

5150Mhz:

5537.5Mhz:

5925Mhz:
