- GENERAL DESCRIPTION
| Model No |
P/N |
|
TC700
|

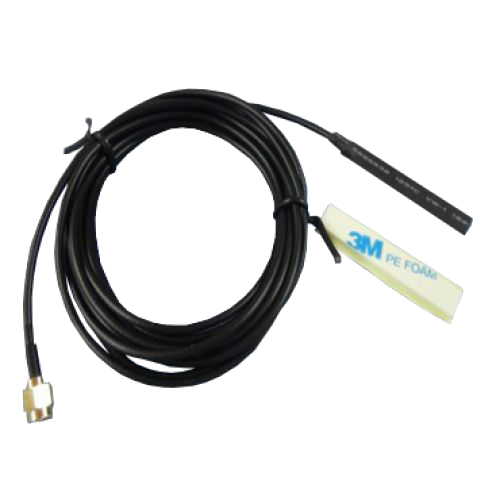

TC700-3M-SMA-M
|
Below is a table summarizing the antenna design specification.
1.2 Electrica Properties
| Parameter |
Description |
|
Frequency Band
|
690-960/1710-1990/1990-2170/2300-2700 Mhz
|
|
Nominal Impedance
|
50 ohm
|
|
Polarization
|
Vertical
|
|
Electrical
|
Dipole
|
|
V.S.W.R
|
2.5:1
|
|
Antenna Average Gain
|
0-3.0dBi
|
|
Note: Gain includes the cable loss
|
1.2 Mechanical Properties
| Parameter |
Description |
|
Antenna Type
|
Inside Glass Antenna
|
Antenna Material
|
Φ8mmx60mmHeat-shrinkable sleeves
|
|
Touch Type
|
3MType
|
|
Connector Type
|
SMA–Type
|
Antenna Dimensions
|
60x9.7x1.7mm± 1
|
Antenna Cable Total Length
|
3000mm± 10
|
|
Antenna Color
|
Black
|
|
OperatingTemperatureRange
|
-30°C~+70°C
|
|
StorageTemperatureRange
|
-30°C~+70°C
|
